Presentation Transcript
qm form options in excel
QM Form Options in Excel
  • What are the options in QM?
  • How do you duplicate those options in Excel?

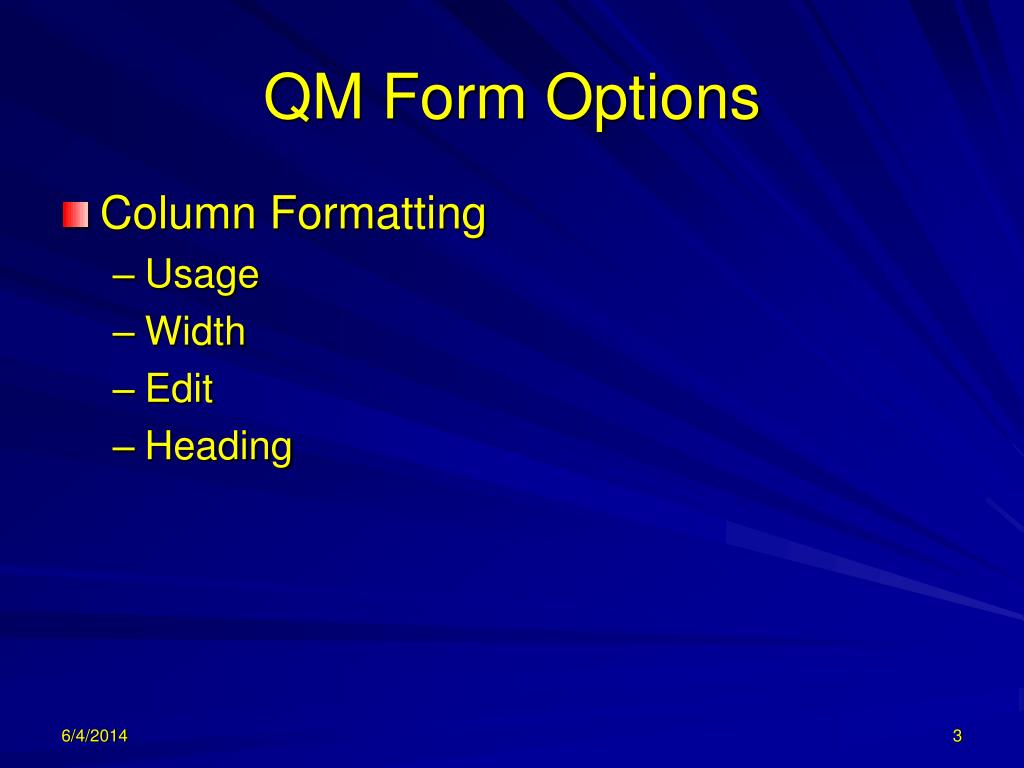

qm form options
QM Form Options
  • Column Formatting
    • Usage
    • Width
    • Edit
    • Heading
qm form options1
QM Form Options
  • Page Formatting
    • Page Header
    • Page Footer
    • Break Text
    • Final Text
qm form options2
QM Form Options
  • Column Formatting options in QM
    • Usage (frequently used)
      • Break
      • Average
      • Count
      • Sum
qm form options3
QM Form Options
  • Column Formatting in QM
    • Usage (infrequently used)
      • Omit
      • First
      • Last
      • Minimum
      • Maximum
qm form options example
QM Form Options Example
  • Find the count of all current students having an overall GPA of 3.0 or better. Subtotal by department within college.

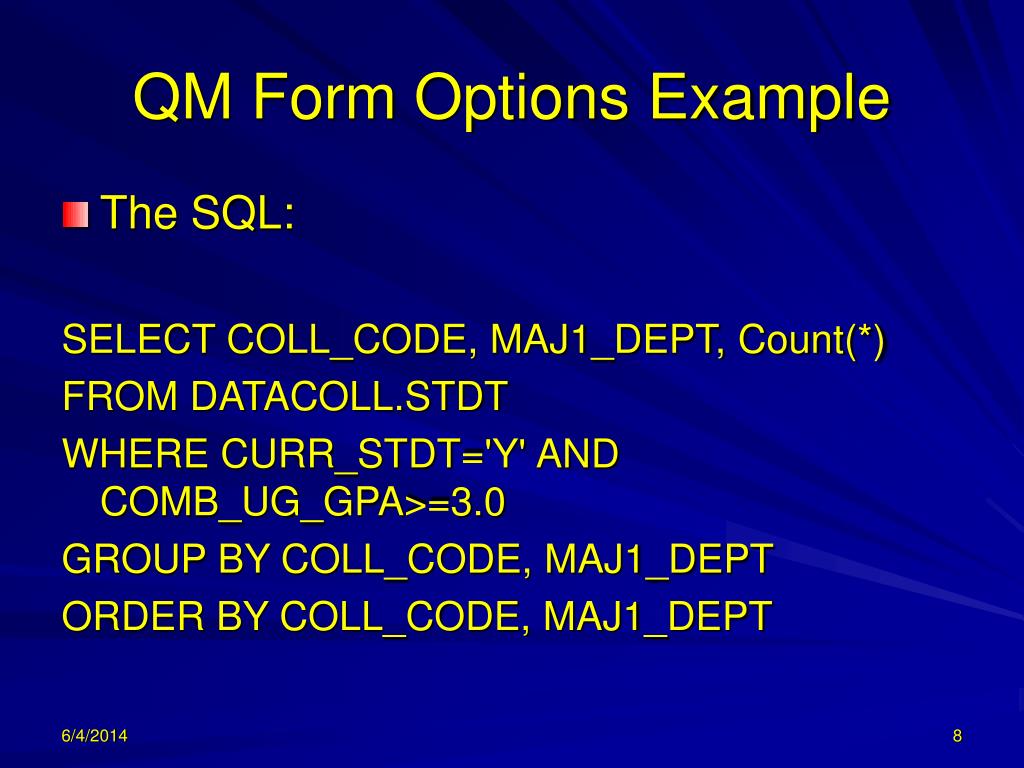

qm form options example1
QM Form Options Example
  • The SQL:

SELECT COLL_CODE, MAJ1_DEPT, Count(*)

FROM DATACOLL.STDT

WHERE CURR_STDT='Y' AND COMB_UG_GPA>=3.0

GROUP BY COLL_CODE, MAJ1_DEPT

ORDER BY COLL_CODE, MAJ1_DEPT

qm form options example2
QM Form Options Example
  • The QM Form:

Column Heading Usage Edit Seq Indent Width

COLL_CODE COLL_CODE BREAK1 1 2 4

MAJ1_DEPT MAJ1_DEPT 2 25 4

SEL1 COUNT_OF_STUDENTS SUM 3 2 18

qm form options example3
QM Form Options Example
  • The QM Report (partial listing)

COUNT

COLL MAJ1 OF

CODE DEPT STUDENTS

---- ---- ------------------

AL AR 297

CM 176

EN 306

FL 76

MJ 189

MU 209

TD 136

------------------

count of students in college AL 1,389

qm form options in excel1
QM Form Options in Excel
  • The results in Excel:
qm form options in excel2
QM Form Options in Excel
  • To change the column heading
    • Click the cell, press F2, and edit
    • Click the cell, click the formula bar, and edit
    • Double click the cell and edit
  • If you want stacked column headings, you have to format the alignment of the cell
    • Right-click the cell, select “Format cells”, click on “Alignment” tab, and check “Wrap text”

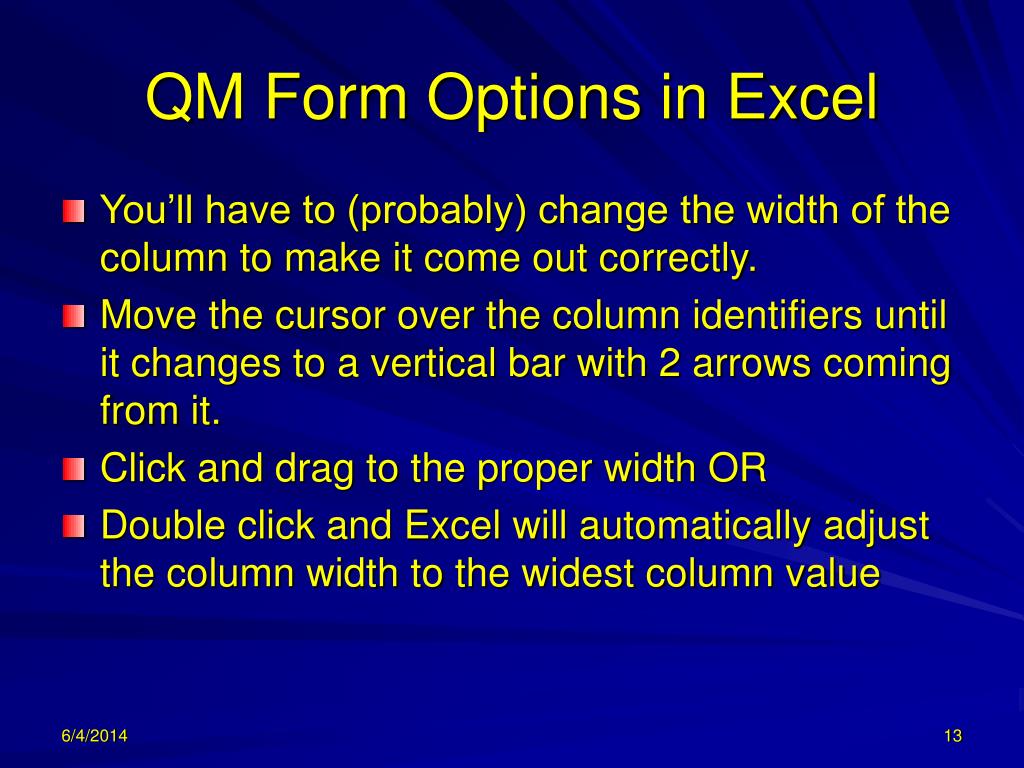

qm form options in excel3
QM Form Options in Excel
  • You’ll have to (probably) change the width of the column to make it come out correctly.
  • Move the cursor over the column identifiers until it changes to a vertical bar with 2 arrows coming from it.
  • Click and drag to the proper width OR
  • Double click and Excel will automatically adjust the column width to the widest column value
qm form options in excel4
QM Form Options in Excel
  • To set the break level:
    • Data -> Subtotals
qm form options in excel6
QM Form Options in Excel
  • To add more than 1 break level
    • Add the outermost level first
    • Add the next level
    • Uncheck Replace current subtotals

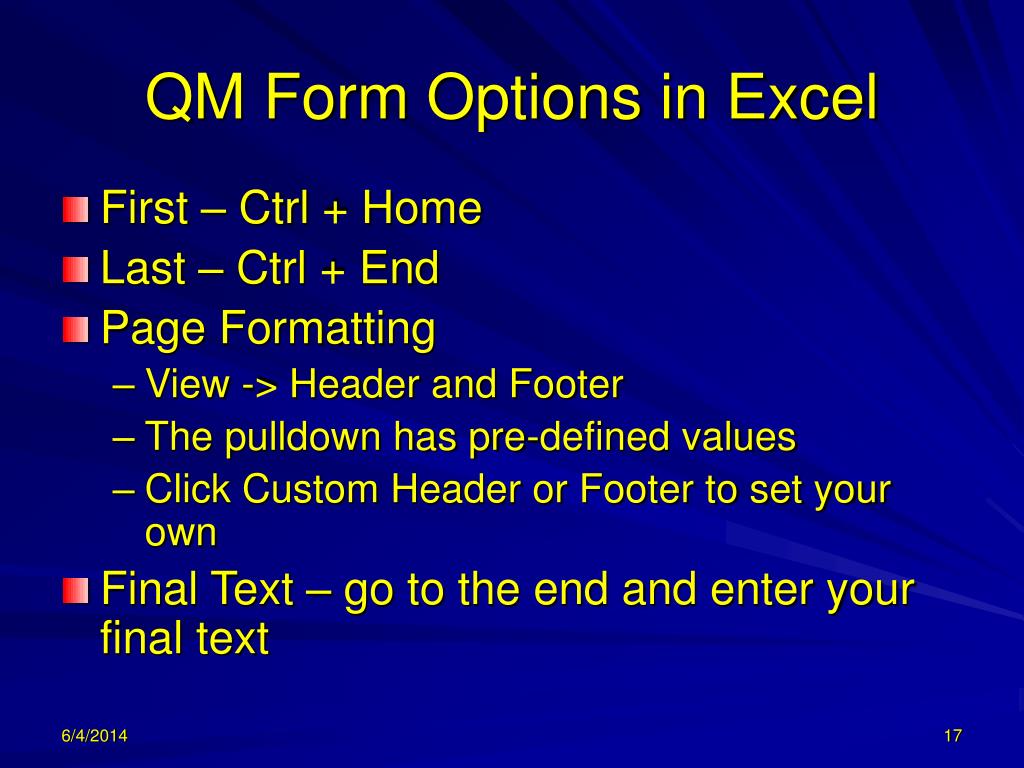

qm form options in excel7
QM Form Options in Excel
  • First – Ctrl + Home
  • Last – Ctrl + End
  • Page Formatting
    • View -> Header and Footer
    • The pulldown has pre-defined values
    • Click Custom Header or Footer to set your own
  • Final Text – go to the end and enter your final text

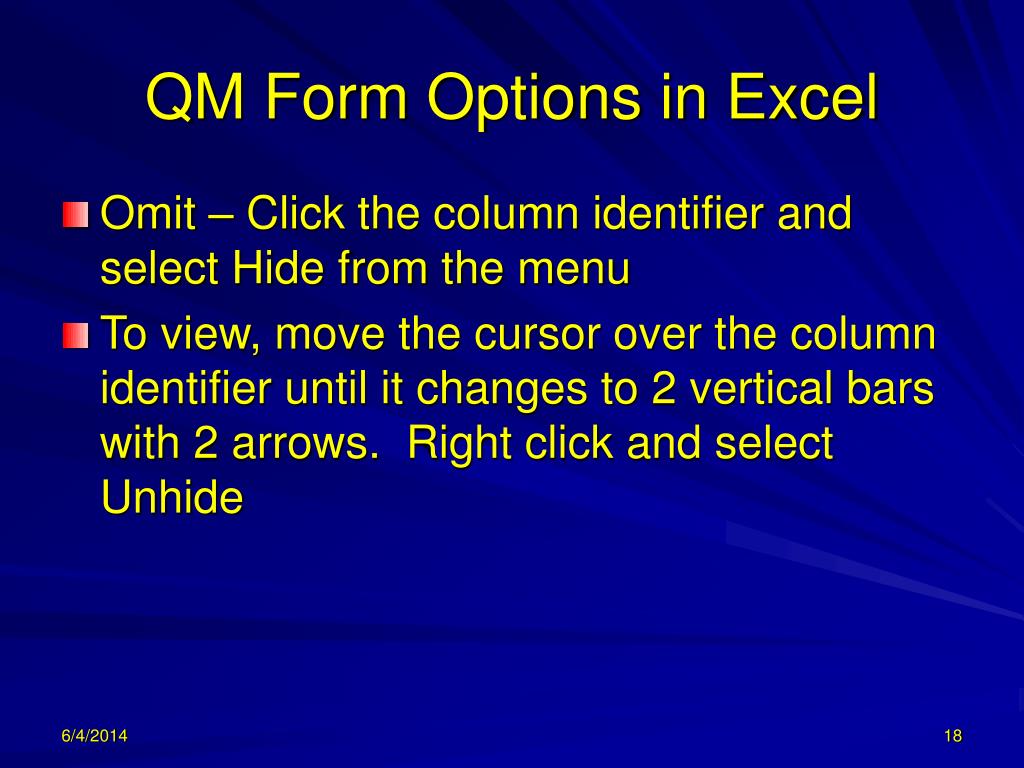

qm form options in excel8
QM Form Options in Excel
  • Omit – Click the column identifier and select Hide from the menu
  • To view, move the cursor over the column identifier until it changes to 2 vertical bars with 2 arrows. Right click and select Unhide
qm form options in excel9
QM Form Options in Excel
  • COUNT – double click the cell you want and enter =COUNTA(1st cell:last cell)
  • SUM – double click the cell you want and enter =SUM(1st cell:last cell) or
    • Click below the last data value for the column and click the Autosum button ( Σ )
  • AVG – double click the cell you want and enter =AVERAGE(1st cell:last cell)
