  1. The Performance Management of Large Windows NT System Des Atkinson Metron Technology Ltd desa@metron.co.uk

  2. Contents • Introduction • Scalability • NT and mixed workloads • Capacity planning of large NT systems • Management issues • Conclusions/questions

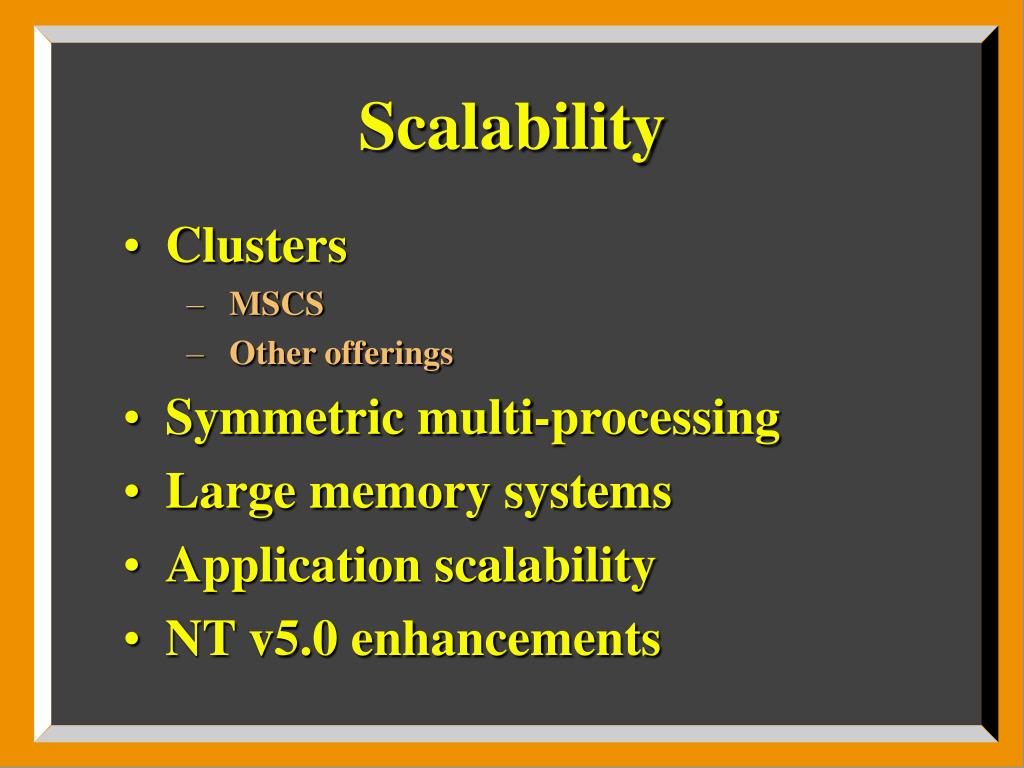

  3. Scalability • Clusters • MSCS • Other offerings • Symmetric multi-processing • Large memory systems • Application scalability • NT v5.0 enhancements

  4. Clusters • Microsoft Cluster Server • Shared-nothing, failover model • 2 non-identical nodes • Includes application failover • Scalability of MSCS lies in the future • Other providers, e.g. Digital Enterprise Cluster

  5. Symmetric Multi-Processing • Standard product supported up to 4-CPU systems • NT 4.0 Enterprise Edition took this up to 8 CPUs • More scalable versions available from OEMs • Asymmetry of NT SMP implementation

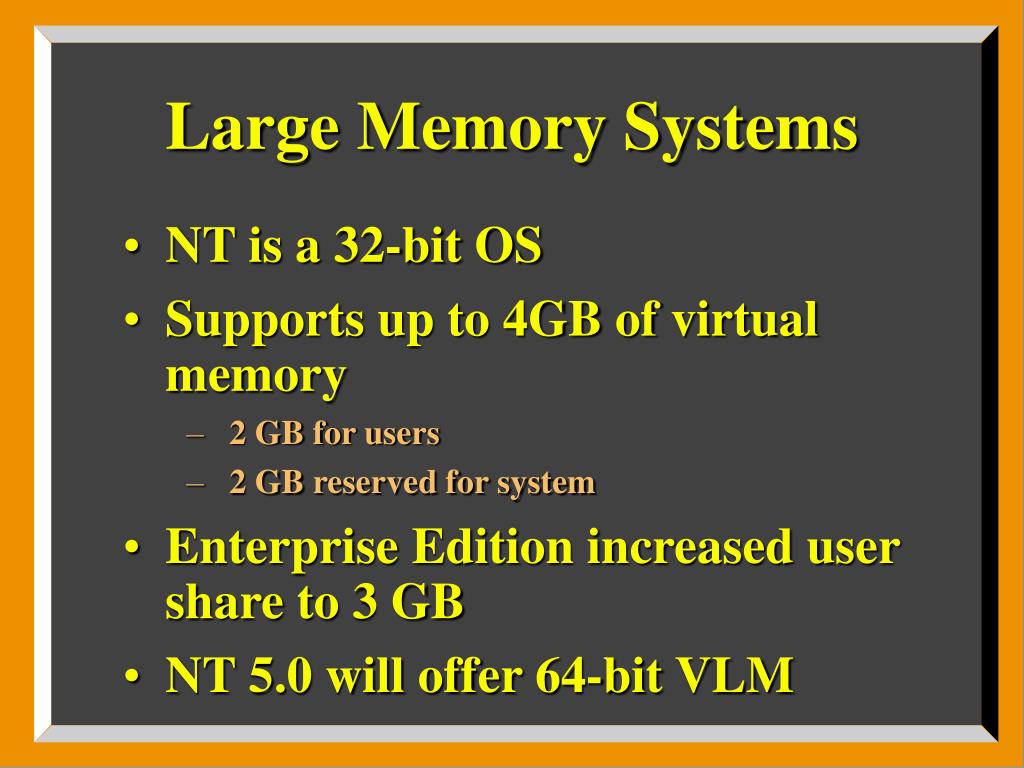

  6. Large Memory Systems • NT is a 32-bit OS • Supports up to 4GB of virtual memory • 2 GB for users • 2 GB reserved for system • Enterprise Edition increased user share to 3 GB • NT 5.0 will offer 64-bit VLM

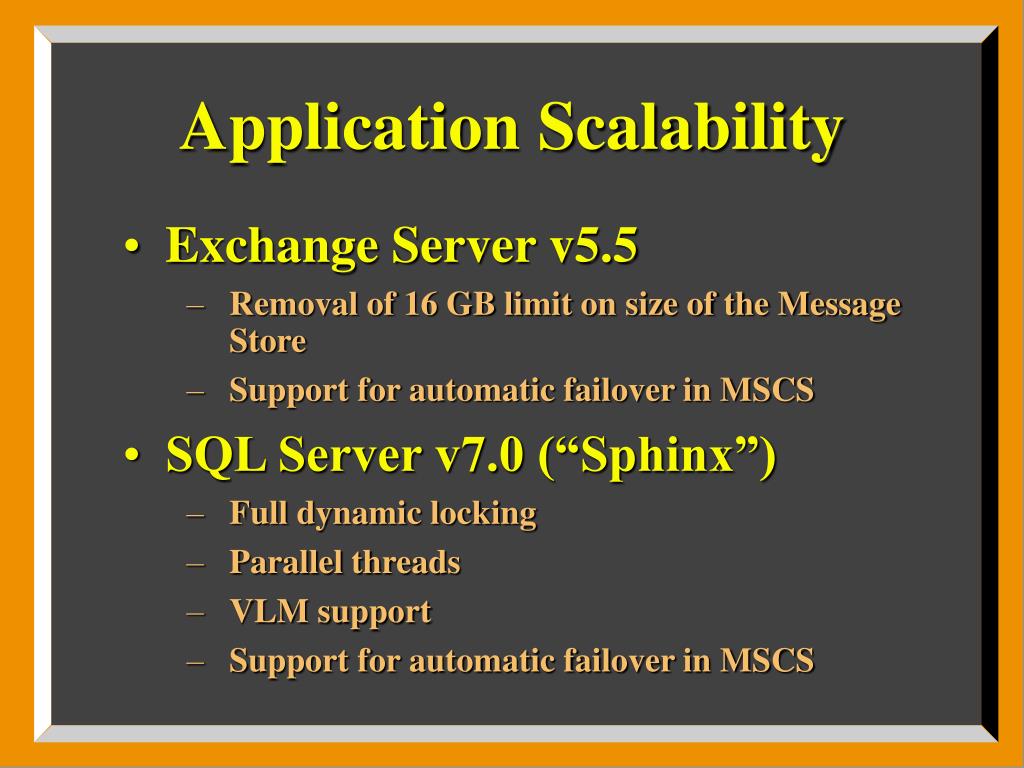

  7. Application Scalability • Exchange Server v5.5 • Removal of 16 GB limit on size of the Message Store • Support for automatic failover in MSCS • SQL Server v7.0 (“Sphinx”) • Full dynamic locking • Parallel threads • VLM support • Support for automatic failover in MSCS

  8. NT v5.0 Enhancements • Active Directory and DFS • Support for I2O • Event Trace Facility • Discussed more fully later • Microsoft Management Console • Disk quotas, Kerberos, IPSEC etc.

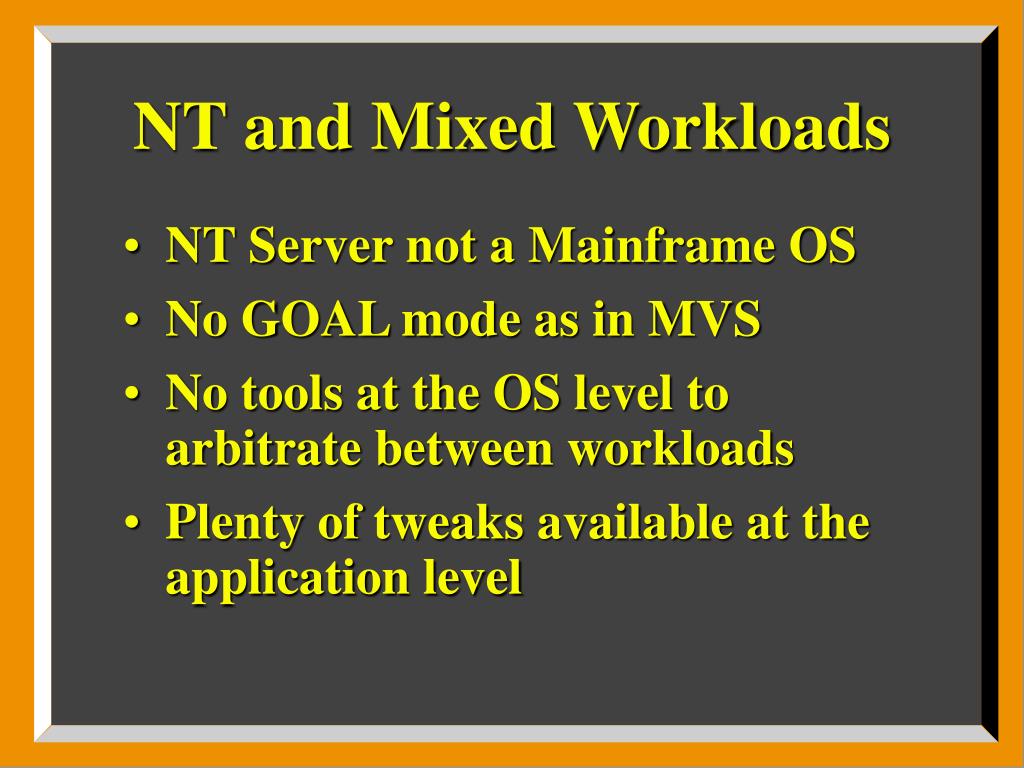

  9. NT and Mixed Workloads • NT Server not a Mainframe OS • No GOAL mode as in MVS • No tools at the OS level to arbitrate between workloads • Plenty of tweaks available at the application level

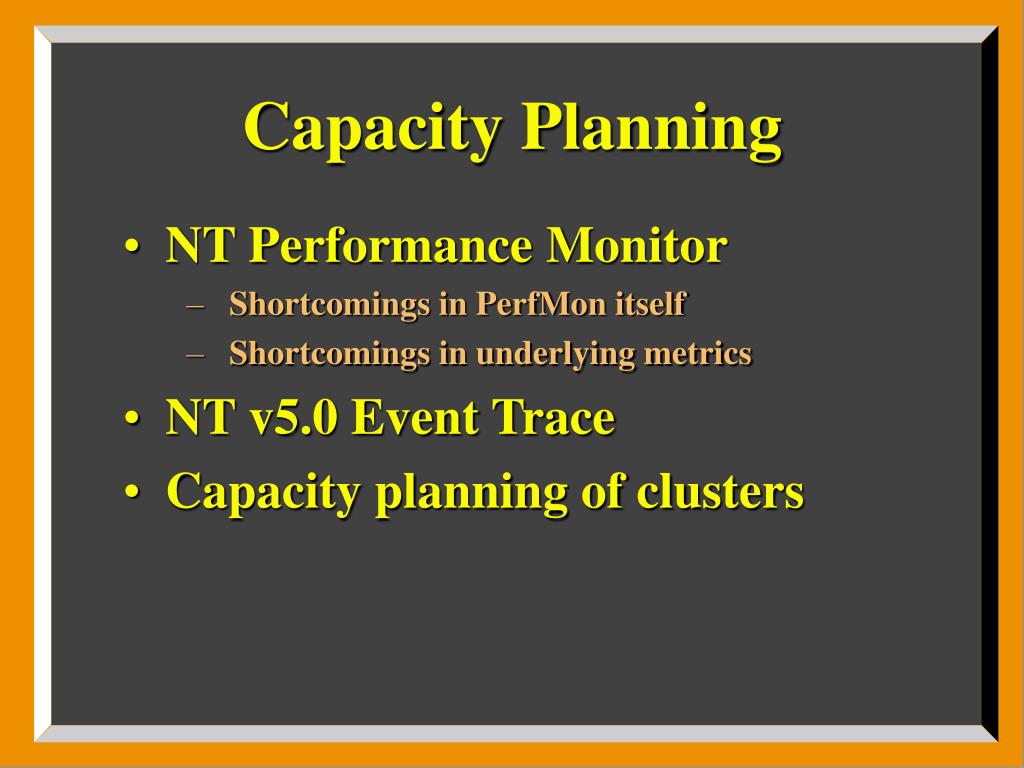

  10. Capacity Planning • NT Performance Monitor • Shortcomings in PerfMon itself • Shortcomings in underlying metrics • NT v5.0 Event Trace • Capacity planning of clusters

  11. NT Performance Monitor • PerfMon is an application - users can write their own • Metrics have shortcomings • Log facility is nearest you get to an historic performance database • No built-in planning capability

  12. NT 5.0 Event Trace • Comes with NT 5.0 Beta 2 • Programming tool to allow applications to be instrumented • Will give lots of new metrics • Overhead “very low”? • To be part of WBEM

  13. Following Slides based on talk given at US CMG ‘97 Authors are Jee Fung Pang and Melur Raghuraman of Microsoft

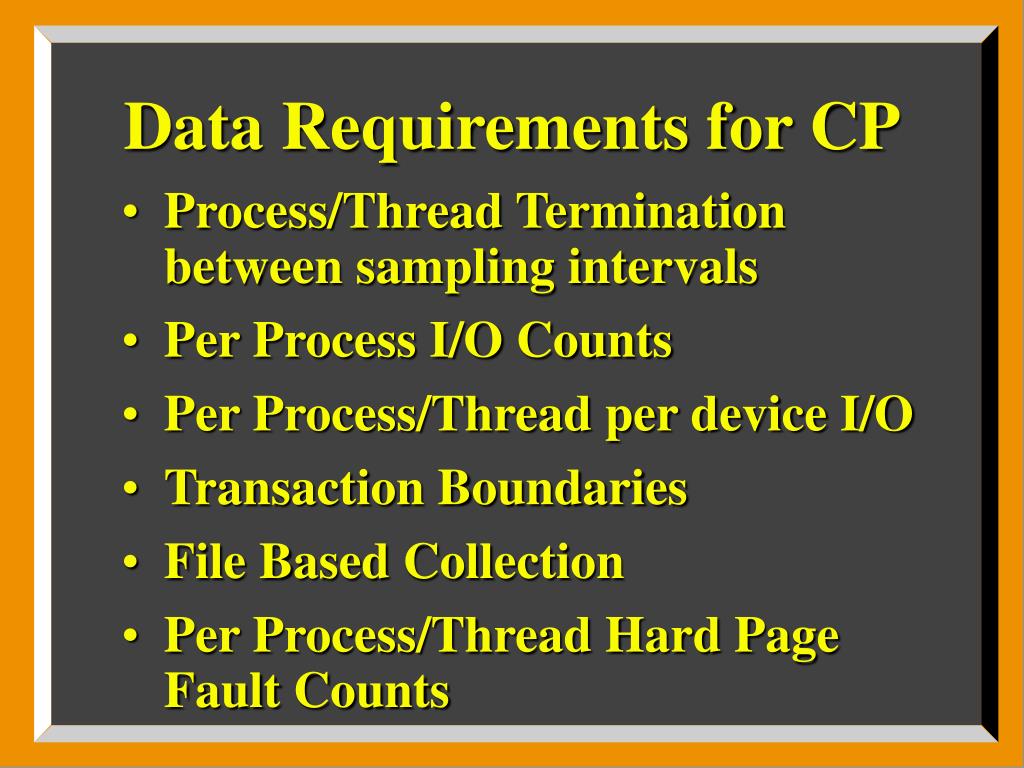

  14. Data Requirements for CP • Process/Thread Termination between sampling intervals • Per Process I/O Counts • Per Process/Thread per device I/O • Transaction Boundaries • File Based Collection • Per Process/Thread Hard Page Fault Counts

  15. NT 5.0 Instrumentation • Events traced • Process/Thread Create/Delete • Physical Disk I/O and Page Fault • Detailed Metrics can now be derived • Detail metrics for process, threads and disks • Allows per device metrics for every thread and process • Bottleneck analysis tools • e.g. hotfiles, hotdisk, topcpu with drilldown

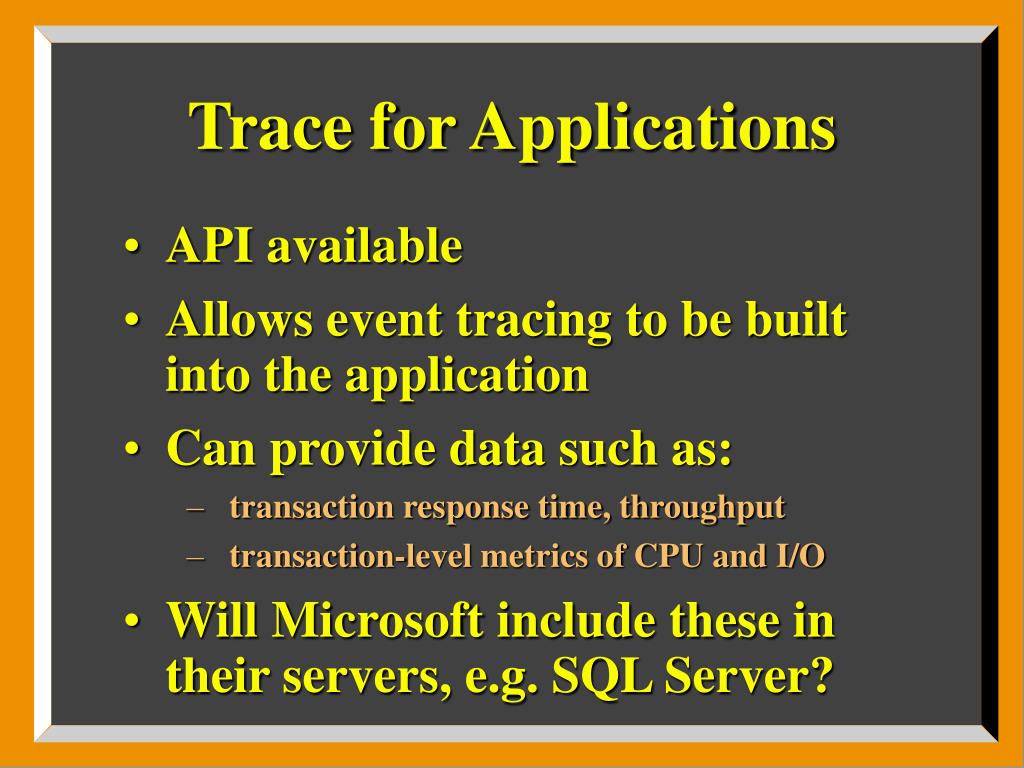

  16. Trace for Applications • API available • Allows event tracing to be built into the application • Can provide data such as: • transaction response time, throughput • transaction-level metrics of CPU and I/O • Will Microsoft include these in their servers, e.g. SQL Server?

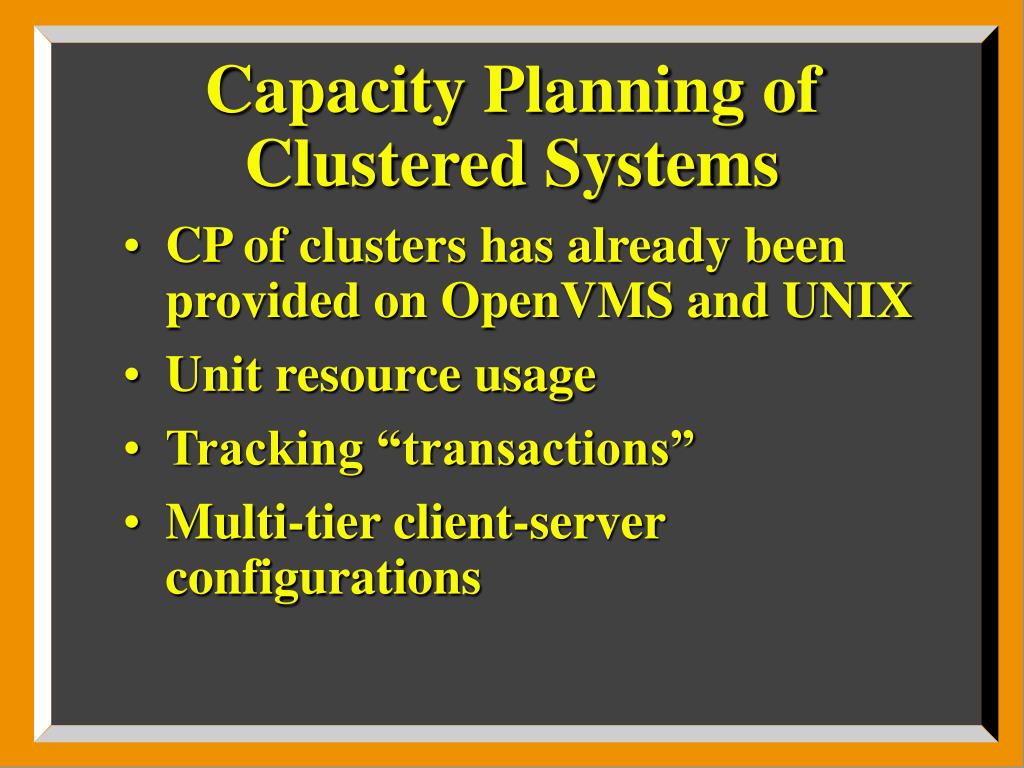

  17. Capacity Planning of Clustered Systems • CP of clusters has already been provided on OpenVMS and UNIX • Unit resource usage • Tracking “transactions” • Multi-tier client-server configurations

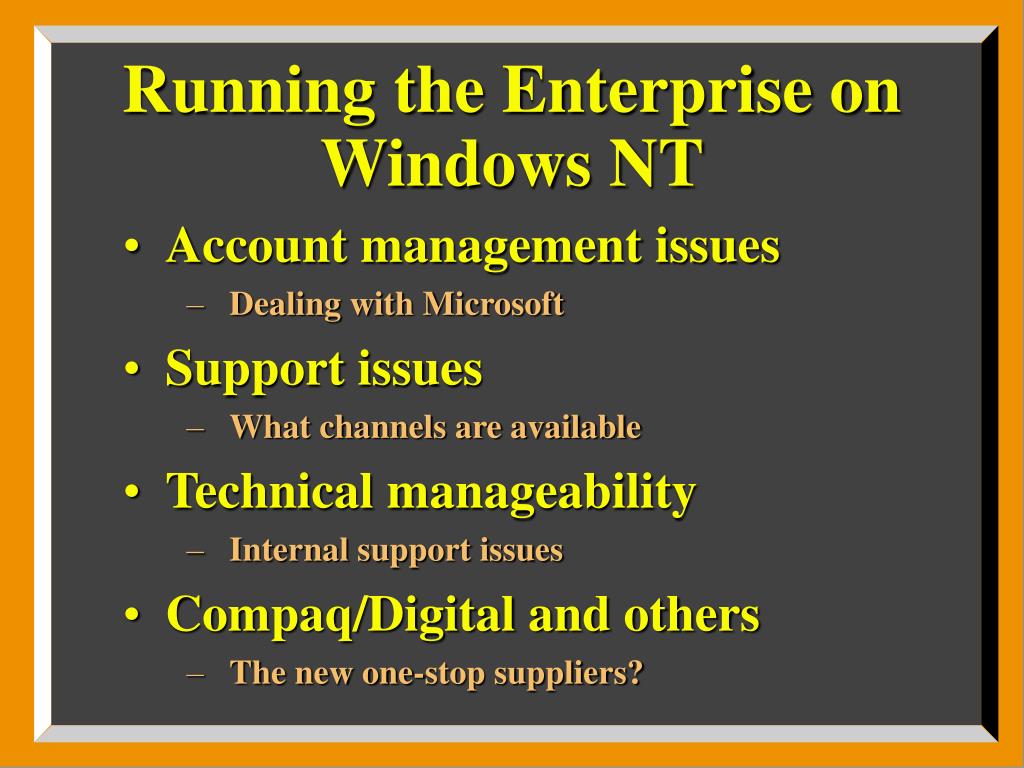

  18. Running the Enterprise on Windows NT • Account management issues • Dealing with Microsoft • Support issues • What channels are available • Technical manageability • Internal support issues • Compaq/Digital and others • The new one-stop suppliers?

  19. Conclusion • Until now, Windows NT was not ready to run the enterprise • NT v5.0 should represent a major advance in the enterprise • Wise to wait until SP2 is out unless you feel very brave (early 2001?) • How will the competition respond?
