  1. ACMS: The Akamai Configuration Management System A. Sherman, P. H. Lisiecki, A. Berkheimer, and J. Wein Presented by ParyaMoinzadeh

  2. The Akamai Platform • Over 15,000 servers • Deployed in 1200+ different ISP networks • In 60+ countries

  3. Motivation • Customers need to maintain close control over the manner in which their web content is served • Customers need to configure different options that determine how their content is served by the CDN • Need for frequent updates or “reconfigurations”

  4. Akamai Configuration Management System (ACMS) • Supports configuration propagation management • Accepts and disseminates distributed submissions of configuration information • Availability • Reliability • Asynchrony • Consistency • Persistent storage

  5. Problem • The widely dispersed set of end clients • At any point in time some servers may be down or have connectivity problems • Configuration changes are generated from widely dispersed places • Strong consistency requirements

  6. Assumptions • The configuration les will vary in size from a few hundred bytes up to 100MB • Most updates must be distributed to every Akamai node • There is no particular arrival pattern of submissions • The Akamai CDN will continue to grow • Submissions could originate from a number of distinct applications running at distinct locations on the Akamai CDN • Each submission of a configuration file foo completely overwrites the earlier submitted version of foo • For each configuration file there is either a single writer or multiple idempotent (non-competing) writers

  7. Requirements • High Fault-Tolerance and Availability • Efficiency and Scalability • Persistent Fault-Tolerant Storage • Correctness • Acceptance Guarantee • Security

  8. Approach Small set of storage points The entire Akamai CDN

  9. Architecture SP SP Storage Points Publishers SP SP SP Accepting SP Edge Servers

  10. Quorum-based Replication • A quorum is defined as a majority of the ACMS SPs • Any update submission should be replicated and agreed upon by the quorum • A majority of operational and connected SPs should be maintained • Every future majority overlaps with the earlier majority that agreed on a file

  11. Acceptance Algorithm the Accepting SP copies the update to at least a quorum of the SPs Vector exchange protocol

  12. Acceptance Algorithm Continued • A publisher contacts an accepting SP SP Agreement algorithm ??? • The Accepting SP first creates a temporary file with a unique filename (UID) SP SP • The accepting SP sends this file to a number of SPs SP UID for a configuration file foo: “foo.A.1234” SP • If replication succeeds the accepting SP initiates an agreement algorithm called Vector Exchange • Upon success the accepting SP “accepts” and all SPs upload the new file

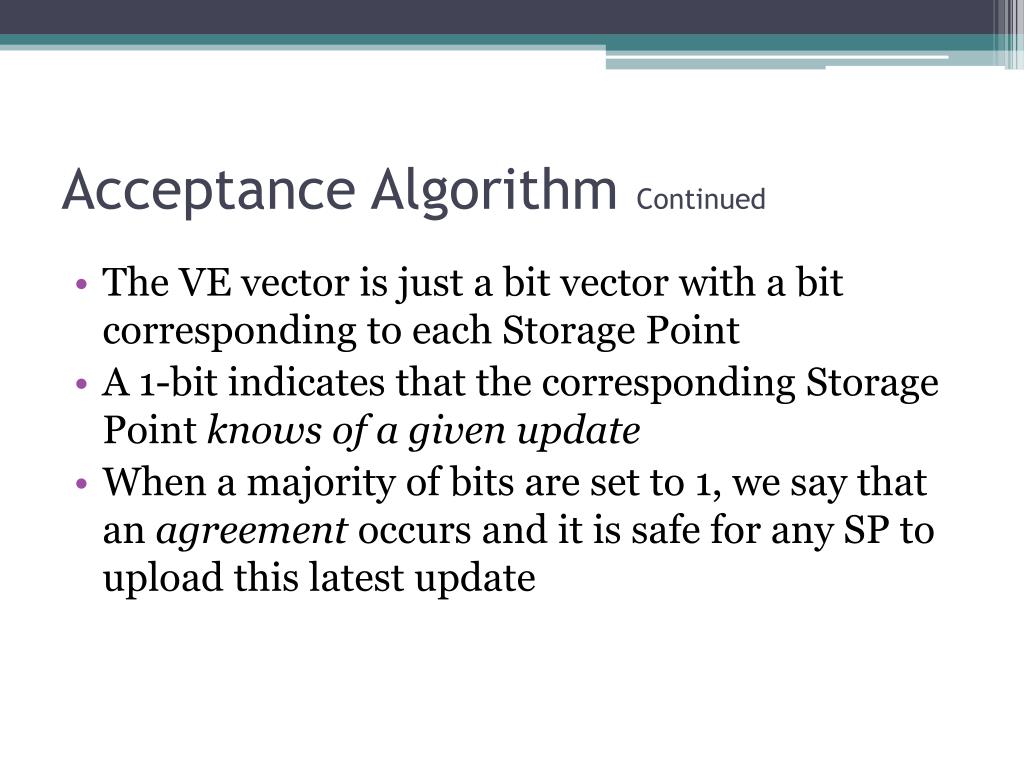

  13. Acceptance Algorithm Continued • The VE vector is just a bit vector with a bit corresponding to each Storage Point • A 1-bit indicates that the corresponding Storage Point knows of a given update • When a majority of bits are set to 1, we say that an agreement occurs and it is safe for any SP to upload this latest update

  14. Acceptance Algorithm Continued

  15. Acceptance Algorithm Continued • “A” initiates and broadcasts a vector: • A:1 B:0 C:0 D:0 E:0 A B SP SP SP • “C” sets its own bit and re-broadcasts: • A:1 B:0 C:1 D:0 E:0 E SP • “D” sets its bit and rebroadcasts • A:1 B:0 C:1 D:1 E:0 SP C D Any SP learns of the “agreement” when it sees a majority of bits set.

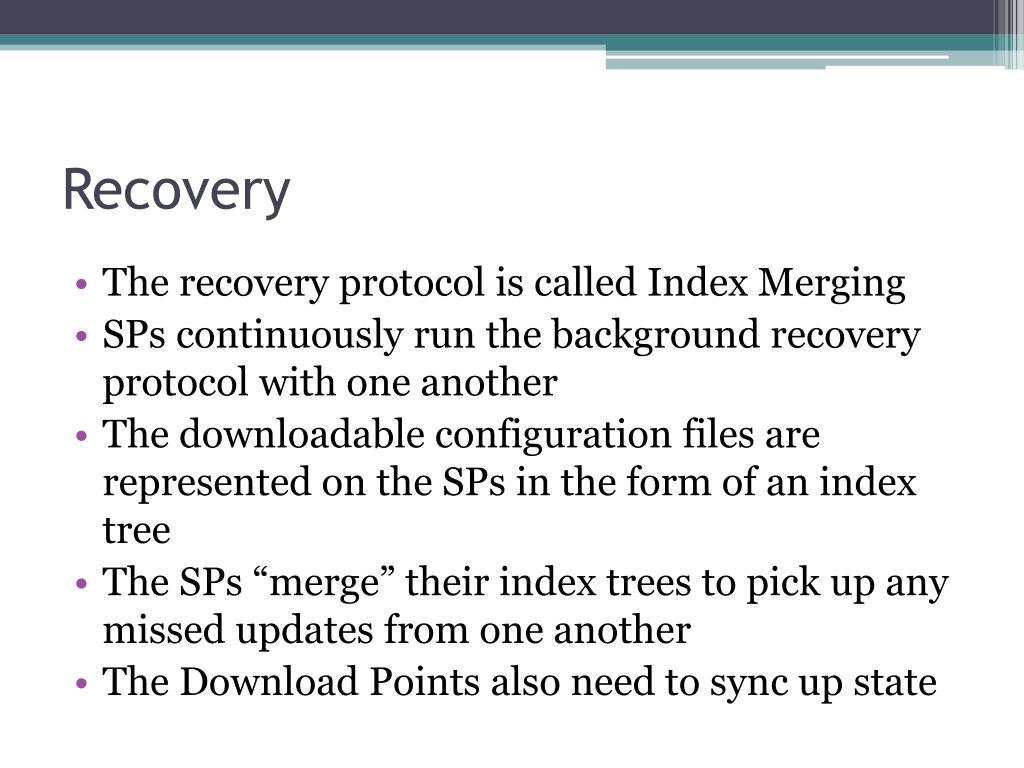

  16. Recovery • The recovery protocol is called Index Merging • SPs continuously run the background recovery protocol with one another • The downloadable configuration files are represented on the SPs in the form of an index tree • The SPs “merge” their index trees to pick up any missed updates from one another • The Download Points also need to sync up state

  17. The Index Tree • Snapshot is a hierarchical index structure that describes latest versions of all accepted files • Each SP updates its own snapshot when it learns of a quorum agreement • For full recovery each SP needs only to merge in a snapshot from majority-1 other SPs • Snapshots are also used by the edge servers to detect changes

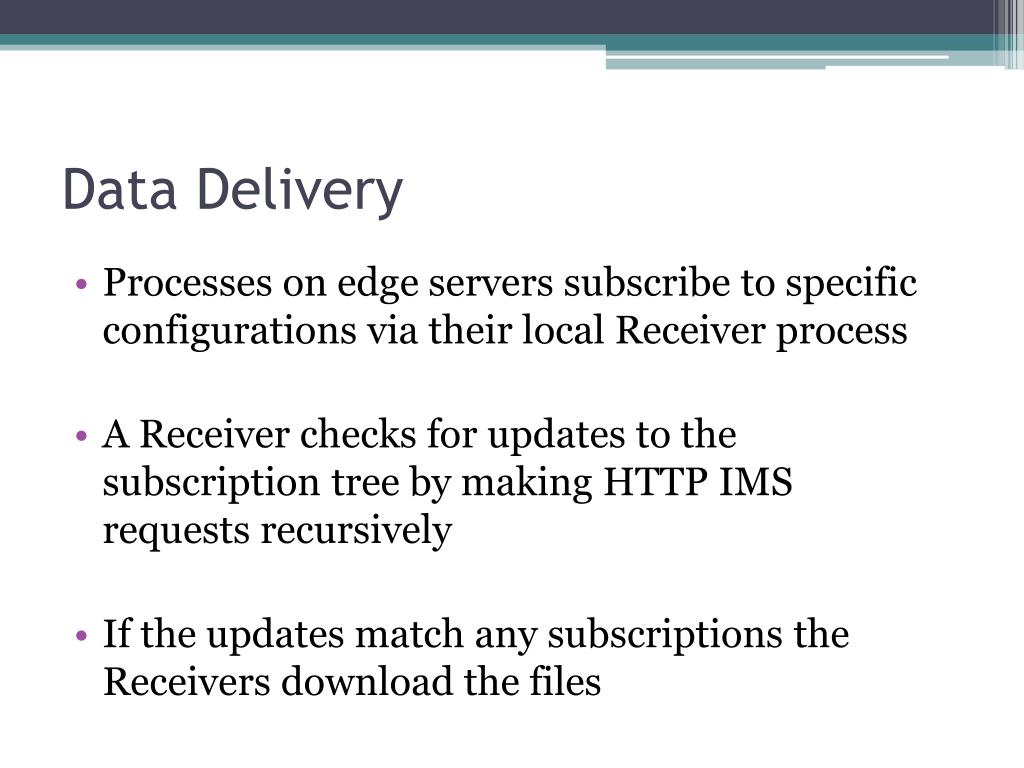

  18. Data Delivery • Processes on edge servers subscribeto specific configurations via their local Receiver process • A Receiver checks for updates to the subscription tree by making HTTP IMS requests recursively • If the updates match any subscriptions the Receivers download the files

  19. Evaluation The period from the time an Accepting SP is first contacted by a publishing application, until it replies with “Accept” • Workload of the ACMS front-end over a 48 hour period in the middle of a work week • 14,276 total file submissions on the system • Five operating Storage Points

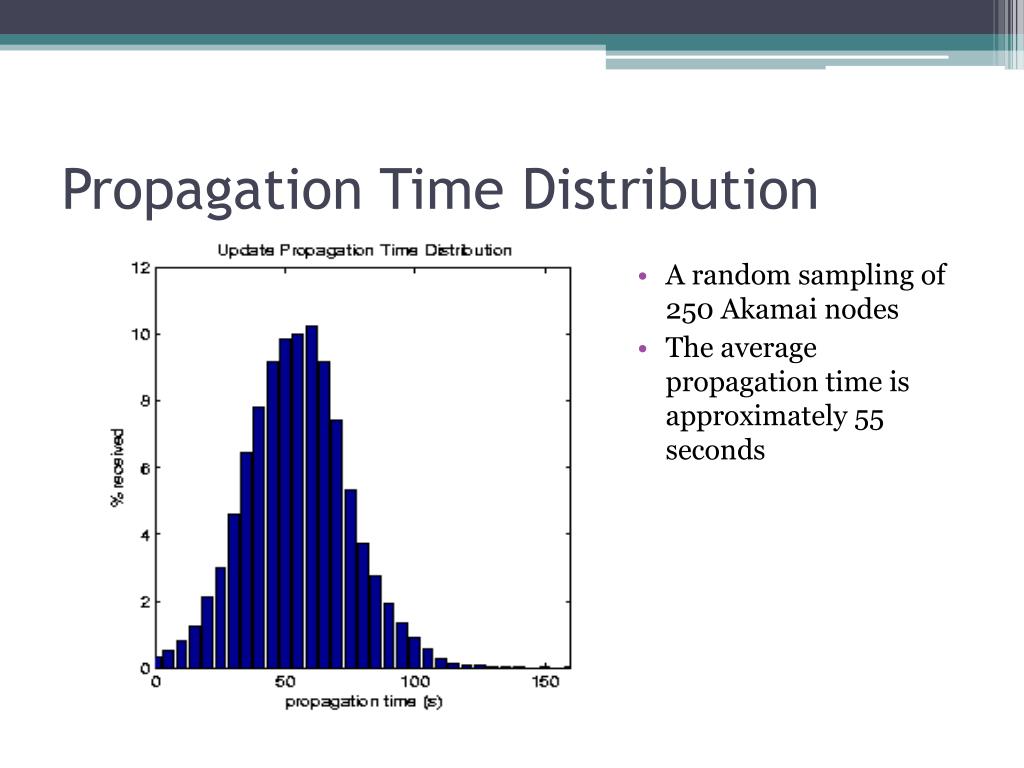

  20. Propagation Time Distribution • A random sampling of 250 Akamai nodes • The average propagation time is approximately 55 seconds

  21. Propagation times for various size files The average time for each file to propagate to 95% of its recipients The average propagation time • Mean and 95th-percentile delivery time for each submission • 99.95% of updates arrived within three minutes • The remaining 0.05% were delayed due to temporary network connectivity issues

  22. Discussion • Push-based vs. pull-based update • The effect of increasing the number of SP on the efficiency • The effect of having less number on nodes in the quorum • The effect of having a variable sized quorum • Consistency vs. availability trade-offs in quorum selection • How is a unique and synchronized ordering of all update versions of a given configuration file maintained? Can it be optimized? • Is VE expensive? Can it be optimized? • Can we optimize the index tree structure? • The trade-off of having great cacheability…

  23. CS525 – Dynamo vs. Bigtable KeunSooYim April 21, 2009 • Dynamo: Amazon’s Highly Available Key-value StoreG. DeCandia et al. (Amazon), SOSP 2007. • Bigtable: A Distributed Storage System for Structured DataF. Chang et al. (Google), OSDI 2006.

  24. Scalable Distributed Storage Sys. • RDBMS and NFS • High throughput and Scalability • High-availability vs. Consistency • Relational data processing model and security • Cost-effectiveness

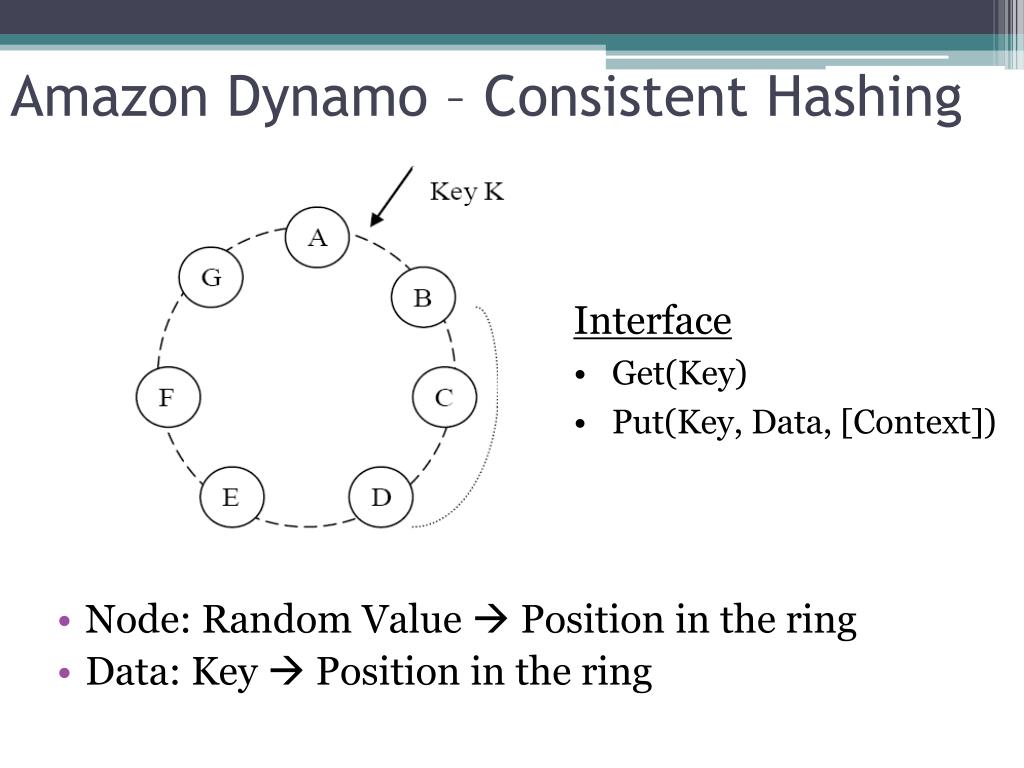

  25. Amazon Dynamo – Consistent Hashing • Node: Random Value  Position in the ring • Data: Key  Position in the ring • Interface • Get(Key) • Put(Key, Data, [Context])

  26. Virtual Node for Load Balancing Physical Node • If a node fails,the load is evenly dispersed across the rest. • If a node joins,its virtual nodes accept a roughly equivalent amount of load from the rest. • How does it handle heterogeneity in nodes? # virtual nodes for a node is decided based on the node capacity

  27. Replication for High Availability • Each data item is replicated at N hosts. • Key is stored in N-1 clockwise successors. • N is a per-instance configurable parameter

  28. Quorum for Consistency • W + R > N • W: 2 • R: 2 Write Read Write Read Write Read Consistency Insurance Consistency Insurance Consistency Insurance • Slow Write • Write: 3 • Read: 1 • Ambiguous& Slow Read(cache)

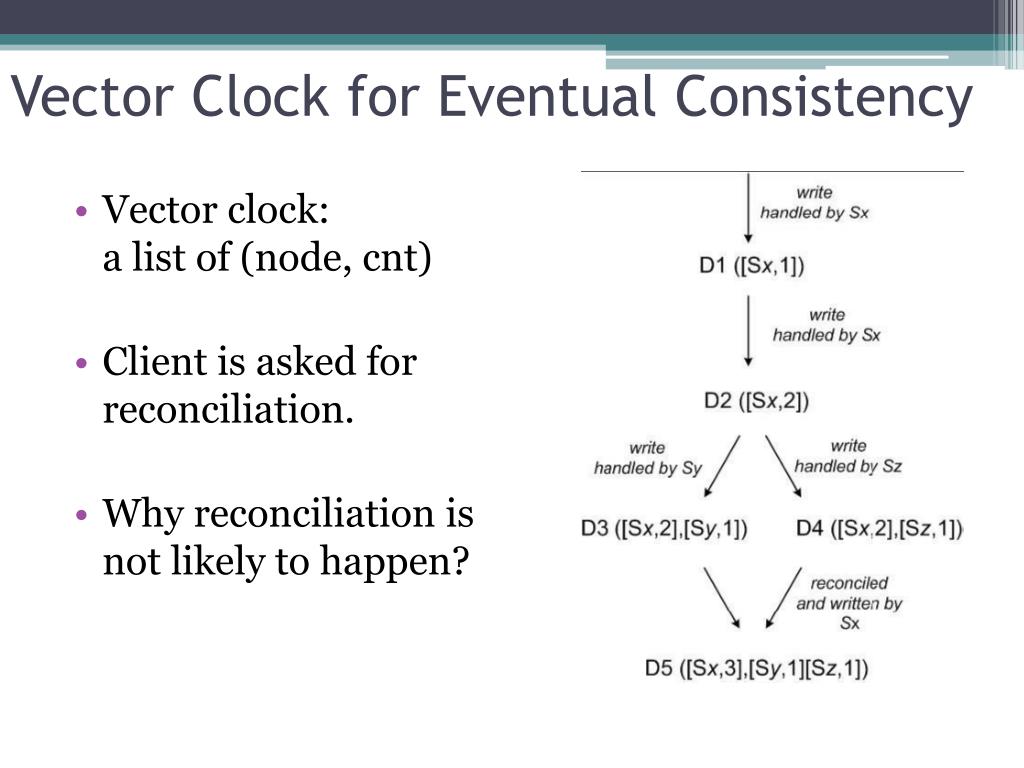

  29. Vector Clock for Eventual Consistency • Vector clock: a list of (node, cnt) • Client is asked for reconciliation. • Why reconciliation isnot likely to happen?

  30. Latency of 99.9 Percentile Service Level Agreements (SLA)

  31. Load Balancing

  32. Google’s Bigtable • Key: <Row, Column, Timestamp> • Rows are ordered lexicographically • Column = family:optional_qualifier • API: lookup, insert, and delete • No support for relational DBMS model

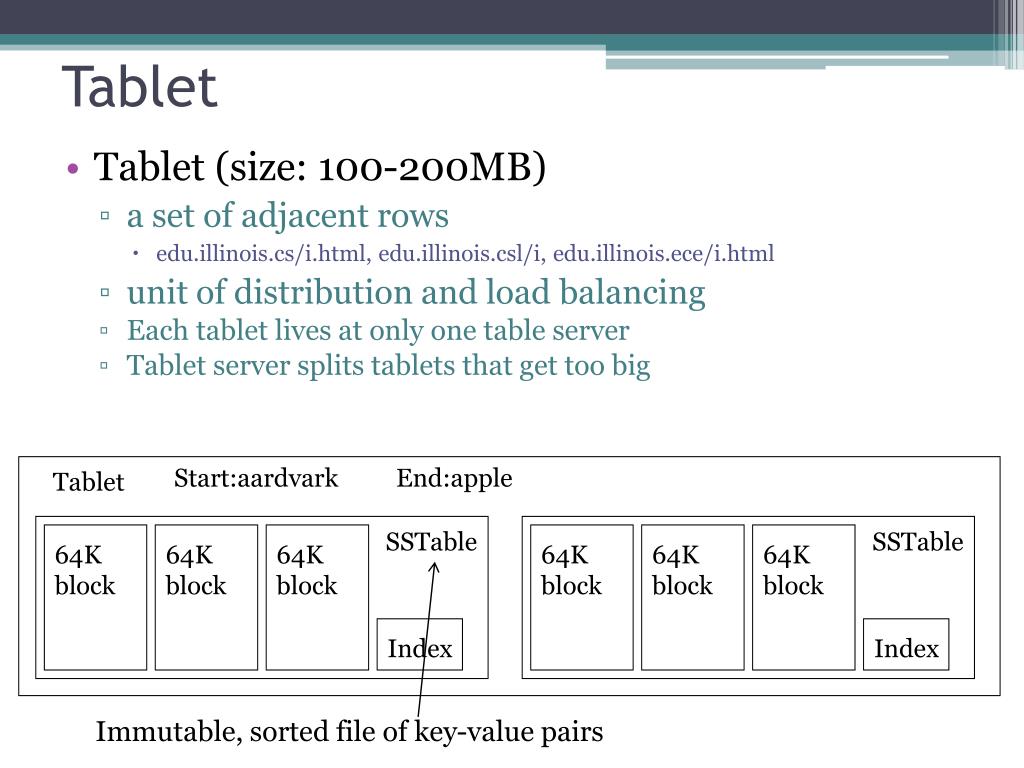

  33. Tablet • Tablet (size: 100-200MB) • a set of adjacent rows • edu.illinois.cs/i.html, edu.illinois.csl/i, edu.illinois.ece/i.html • unit of distribution and load balancing • Each tablet lives at only one table server • Tablet server splits tablets that get too big Start:aardvark End:apple Tablet SSTable SSTable 64K block 64K block 64K block 64K block 64K block 64K block Index Index • Immutable, sorted file of key-value pairs

  34. System Organization <Clients> <Tablet Server 1> BigTable Client BigTable Server GFS Chunk Server Scheduler Slave <Masters> Linux Scheduler Master (Google WorkQueue) Tablet Server N Lock Service (Chubby, OSDI’06) BigTable Master Scheduler Slave • Master for load balancing and fault tolerance • Metadata: Use Chubby to monitor health of tablet servers, restart failed servers [OSDI’06] • Data: GFS replicates data. [SOSP’03] GFS Chunk Server GFS Master Linux

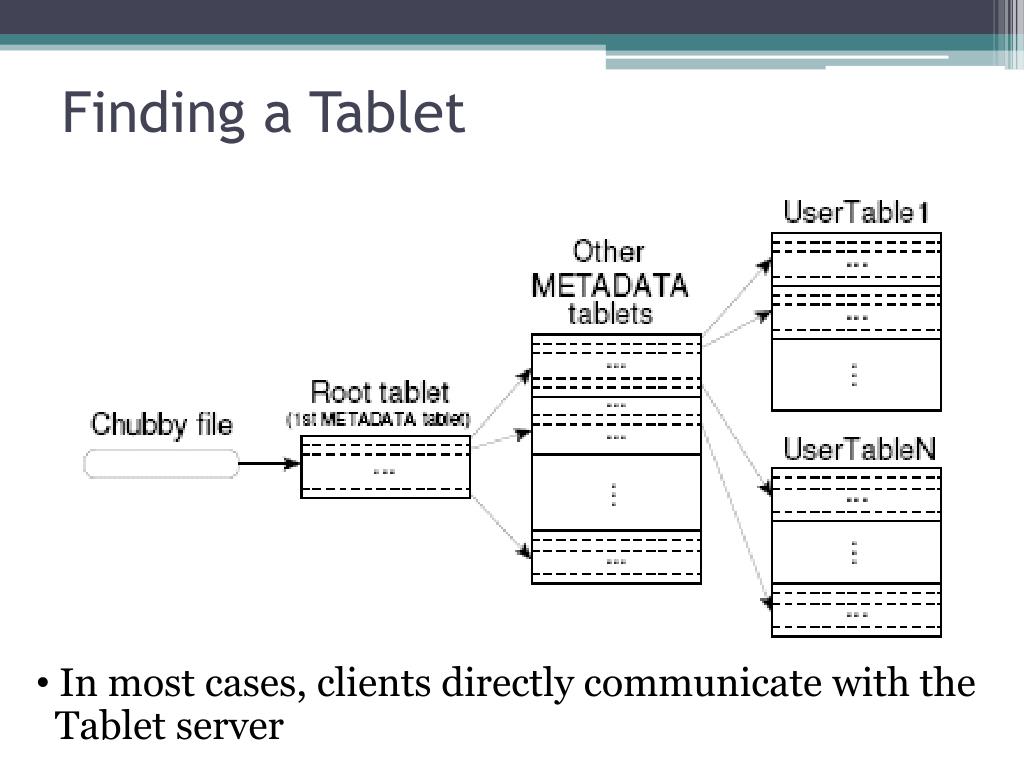

  35. Finding a Tablet • In most cases, clients directly communicate with the Tablet server

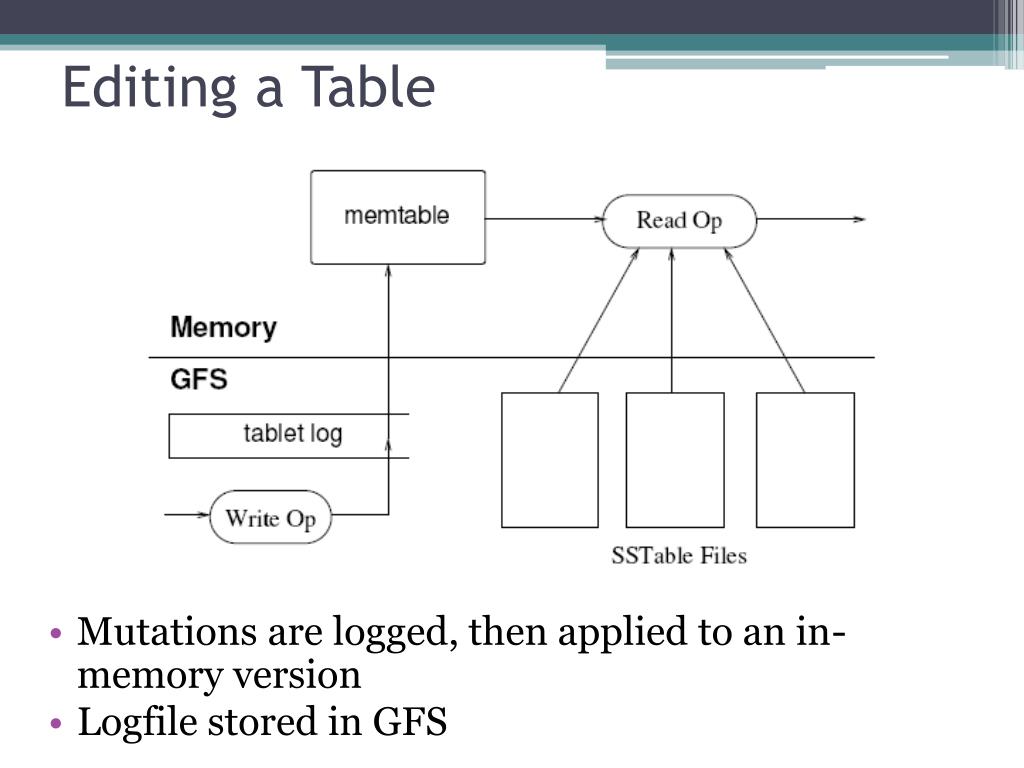

  36. Editing a Table • Mutations are logged, then applied to an in-memory version • Logfile stored in GFS

  37. Table • Multiple tablets make up the table • SSTables can be shared • Tablets do not overlap, SSTables can overlap Tablet Tablet apple boat aardvark apple_two_E SSTable SSTable SSTable SSTable

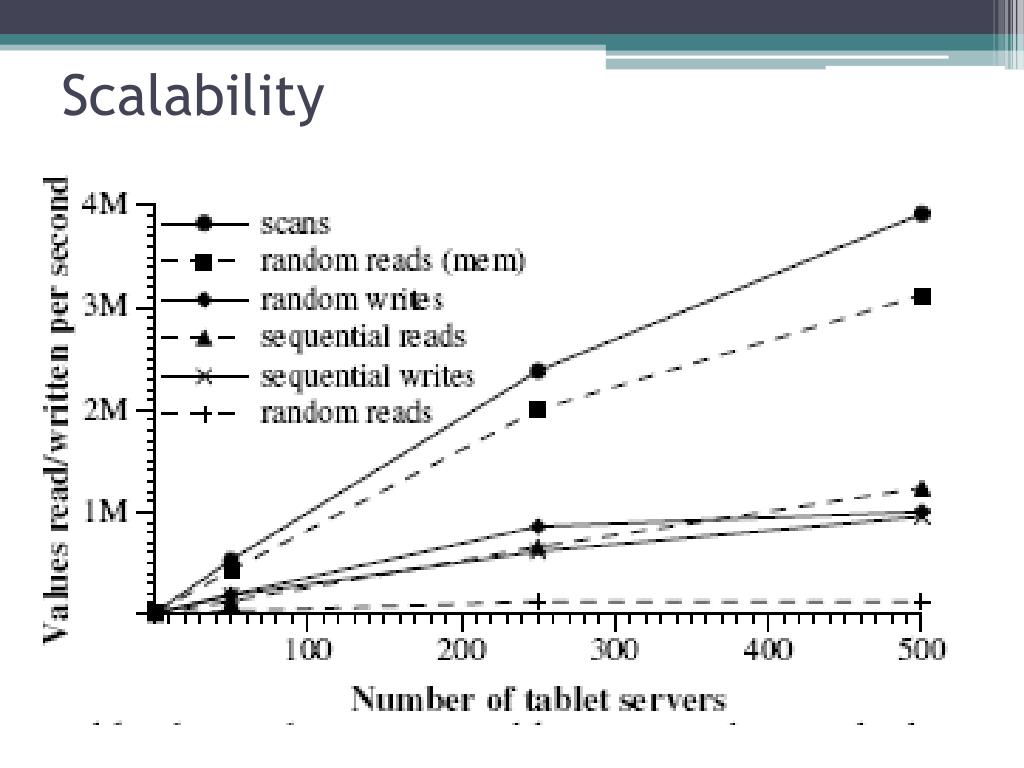

  38. Scalability

  39. Discussion Points • What’s the difference between these two and NFS/DBMS in terms of interface? • Non-hierarchical name spaceKey vs. <Row,Col,Timestamp> • Dynamo vs. Bigtable? • Partitioning: Hashing without master vs. Alphabet ordered key with master • Consistency: Quorum/Versioning vs. Chubby • Fault tolerance: Replication vs. GFS • Load Balancing: Virtual Node vs. Tablet
