Different Types of Blind flanges and Their Uses - A complete Guide

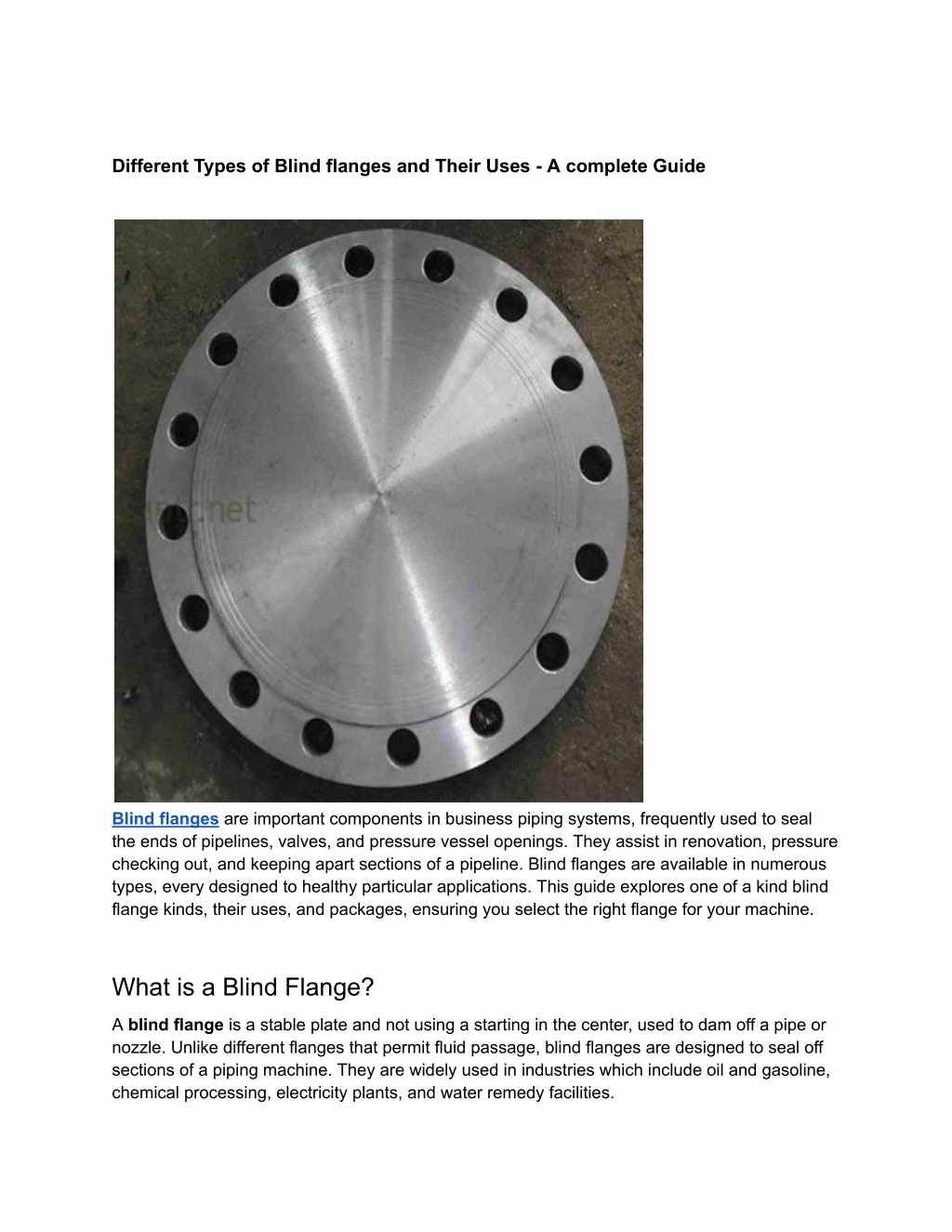

1. Different Types of Blind flanges and Their Uses - A complete Guide Blind flangesare important components in business piping systems, frequently used to seal the ends of pipelines, valves, and pressure vessel openings. They assist in renovation, pressure checking out, and keeping apart sections of a pipeline. Blind flanges are available in numerous types, every designed to healthy particular applications. This guide explores one of a kind blind flange kinds, their uses, and packages, ensuring you select the right flange for your machine. What is a Blind Flange? A blind flange is a stable plate and not using a starting in the center, used to dam off a pipe or nozzle. Unlike different flanges that permit fluid passage, blind flanges are designed to seal off sections of a piping machine. They are widely used in industries which include oil and gasoline, chemical processing, electricity plants, and water remedy facilities.

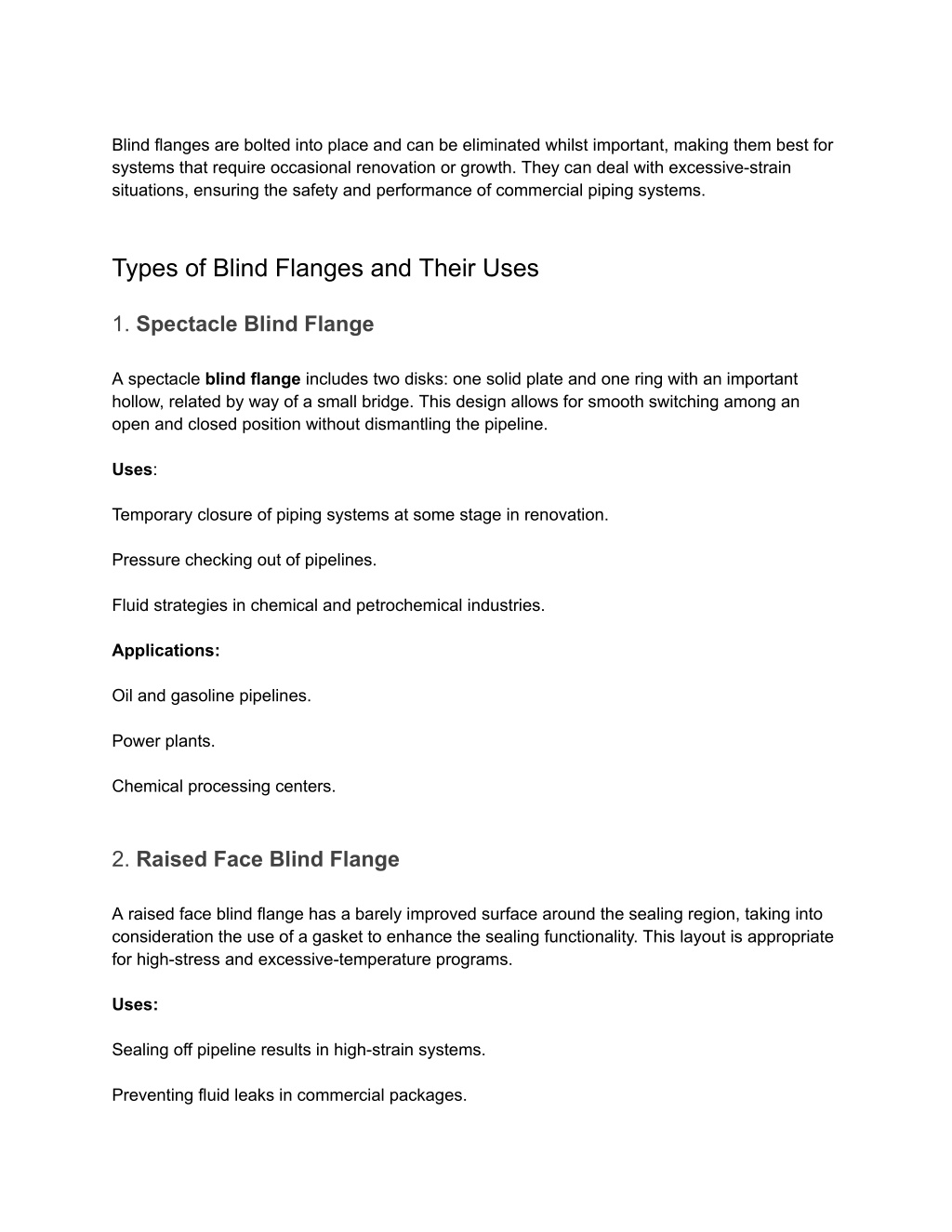

2. Blind flanges are bolted into place and can be eliminated whilst important, making them best for systems that require occasional renovation or growth. They can deal with excessive-strain situations, ensuring the safety and performance of commercial piping systems. Types of Blind Flanges and Their Uses 1. Spectacle Blind Flange A spectacle blind flange includes two disks: one solid plate and one ring with an important hollow, related by way of a small bridge. This design allows for smooth switching among an open and closed position without dismantling the pipeline. Uses: Temporary closure of piping systems at some stage in renovation. Pressure checking out of pipelines. Fluid strategies in chemical and petrochemical industries. Applications: Oil and gasoline pipelines. Power plants. Chemical processing centers. 2. Raised Face Blind Flange A raised face blind flange has a barely improved surface around the sealing region, taking into consideration the use of a gasket to enhance the sealing functionality. This layout is appropriate for high-stress and excessive-temperature programs. Uses: Sealing off pipeline results in high-strain systems. Preventing fluid leaks in commercial packages.

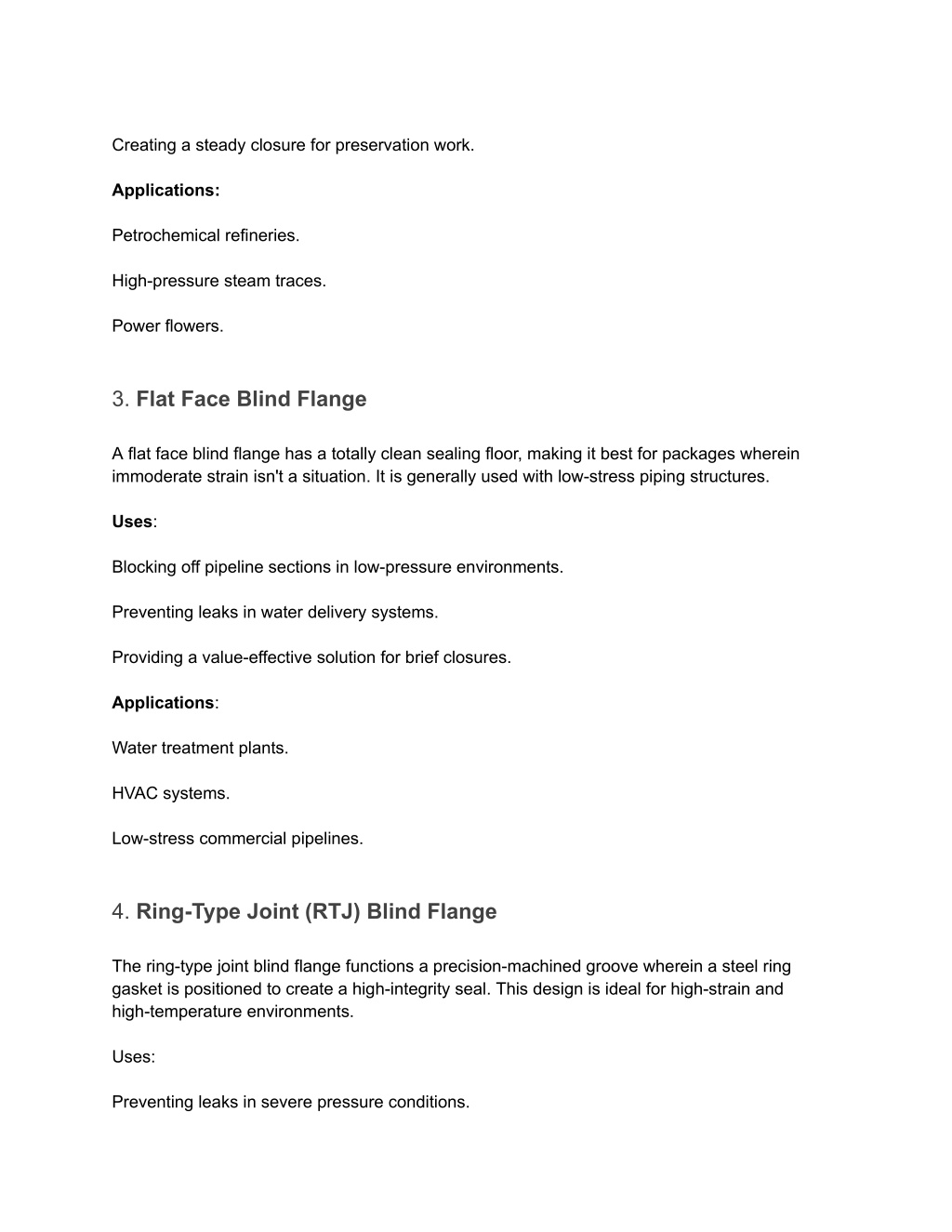

3. Creating a steady closure for preservation work. Applications: Petrochemical refineries. High-pressure steam traces. Power flowers. 3. Flat Face Blind Flange A flat face blind flange has a totally clean sealing floor, making it best for packages wherein immoderate strain isn't a situation. It is generally used with low-stress piping structures. Uses: Blocking off pipeline sections in low-pressure environments. Preventing leaks in water delivery systems. Providing a value-effective solution for brief closures. Applications: Water treatment plants. HVAC systems. Low-stress commercial pipelines. 4. Ring-Type Joint (RTJ) Blind Flange The ring-type joint blind flange functions a precision-machined groove wherein a steel ring gasket is positioned to create a high-integrity seal. This design is ideal for high-strain and high-temperature environments. Uses: Preventing leaks in severe pressure conditions.

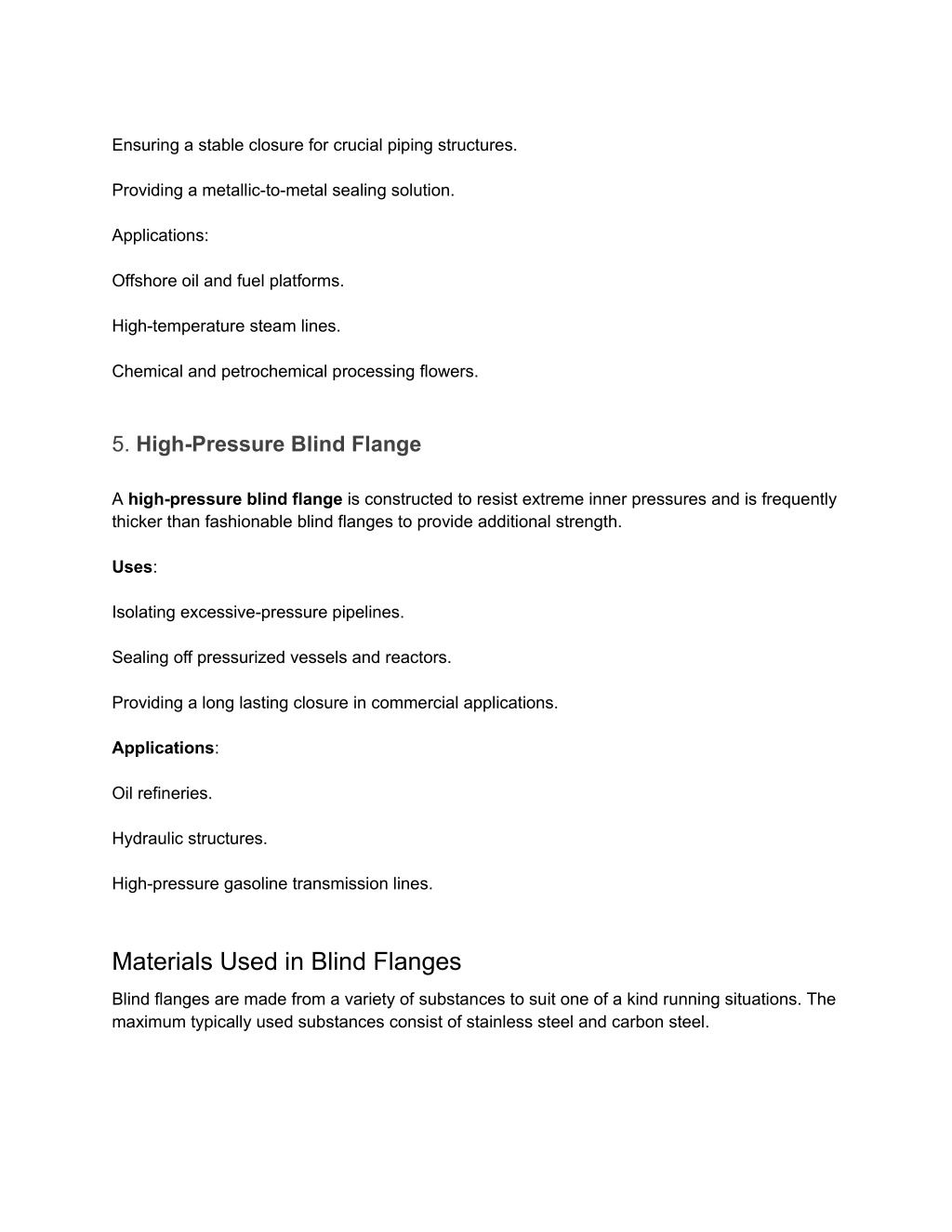

4. Ensuring a stable closure for crucial piping structures. Providing a metallic-to-metal sealing solution. Applications: Offshore oil and fuel platforms. High-temperature steam lines. Chemical and petrochemical processing flowers. 5. High-Pressure Blind Flange A high-pressure blind flange is constructed to resist extreme inner pressures and is frequently thicker than fashionable blind flanges to provide additional strength. Uses: Isolating excessive-pressure pipelines. Sealing off pressurized vessels and reactors. Providing a long lasting closure in commercial applications. Applications: Oil refineries. Hydraulic structures. High-pressure gasoline transmission lines. Materials Used in Blind Flanges Blind flanges are made from a variety of substances to suit one of a kind running situations. The maximum typically used substances consist of stainless steel and carbon steel.

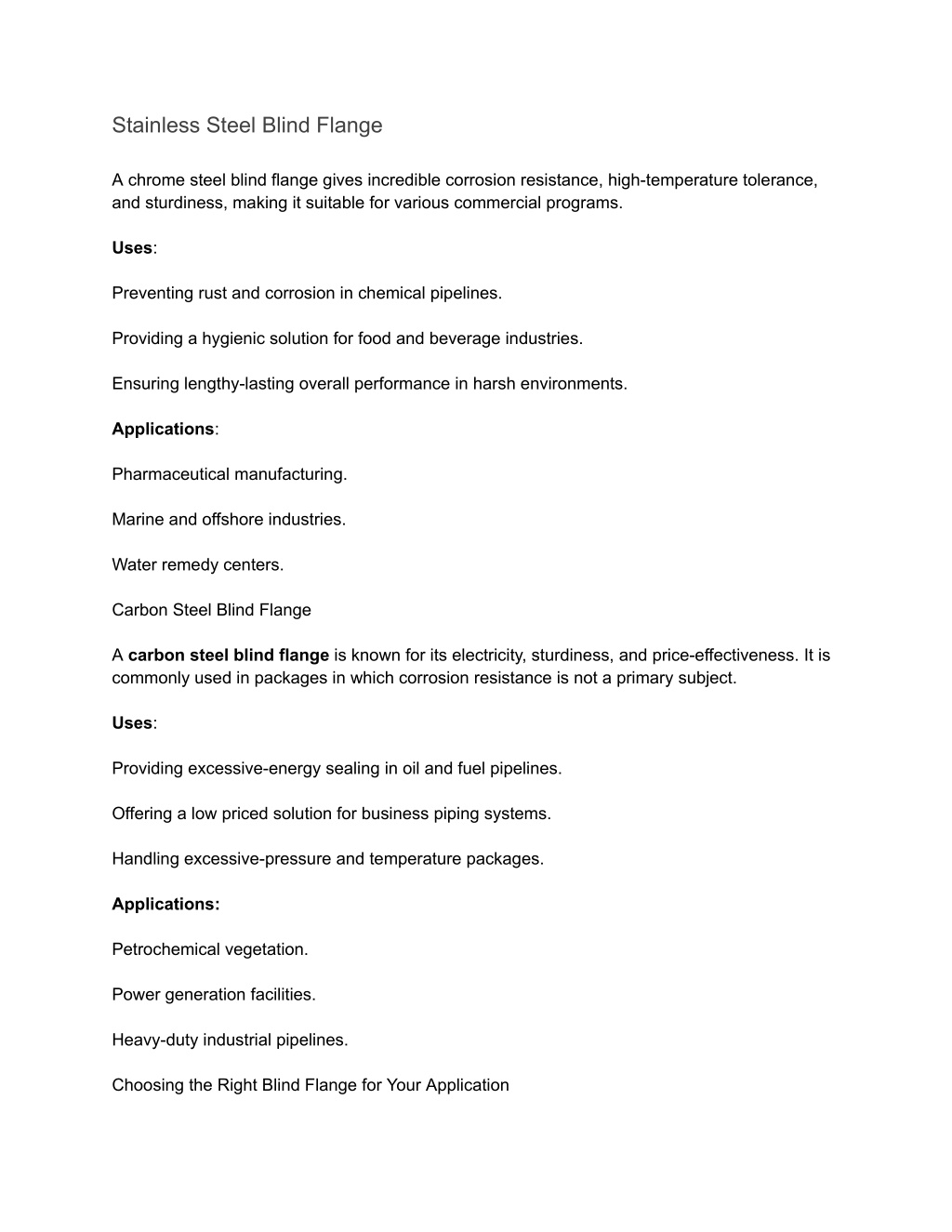

5. Stainless Steel Blind Flange A chrome steel blind flange gives incredible corrosion resistance, high-temperature tolerance, and sturdiness, making it suitable for various commercial programs. Uses: Preventing rust and corrosion in chemical pipelines. Providing a hygienic solution for food and beverage industries. Ensuring lengthy-lasting overall performance in harsh environments. Applications: Pharmaceutical manufacturing. Marine and offshore industries. Water remedy centers. Carbon Steel Blind Flange A carbon steel blind flange is known for its electricity, sturdiness, and price-effectiveness. It is commonly used in packages in which corrosion resistance is not a primary subject. Uses: Providing excessive-energy sealing in oil and fuel pipelines. Offering a low priced solution for business piping systems. Handling excessive-pressure and temperature packages. Applications: Petrochemical vegetation. Power generation facilities. Heavy-duty industrial pipelines. Choosing the Right Blind Flange for Your Application

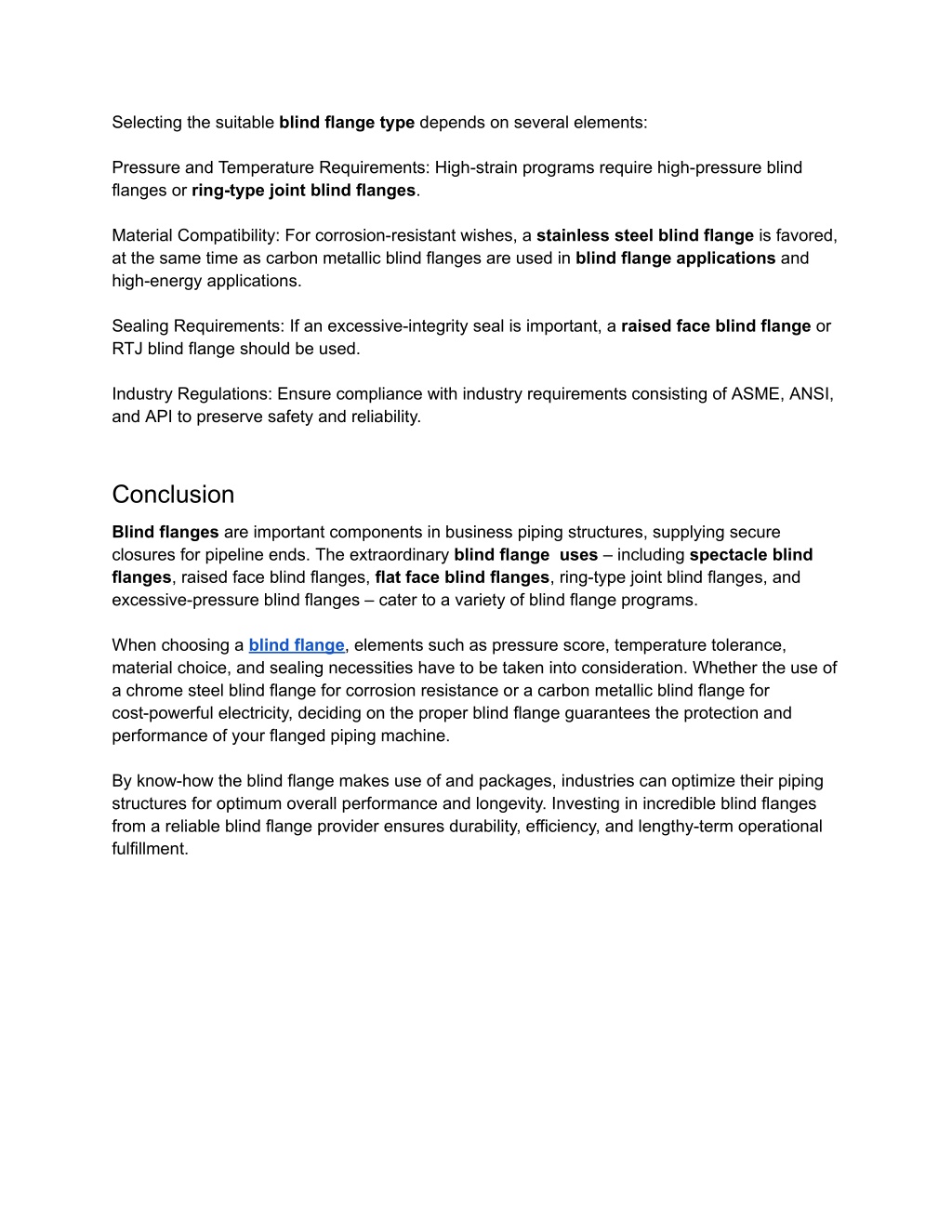

6. Selecting the suitable blind flange type depends on several elements: Pressure and Temperature Requirements: High-strain programs require high-pressure blind flanges or ring-type joint blind flanges. Material Compatibility: For corrosion-resistant wishes, a stainless steel blind flange is favored, at the same time as carbon metallic blind flanges are used in blind flange applications and high-energy applications. Sealing Requirements: If an excessive-integrity seal is important, a raised face blind flange or RTJ blind flange should be used. Industry Regulations: Ensure compliance with industry requirements consisting of ASME, ANSI, and API to preserve safety and reliability. Conclusion Blind flanges are important components in business piping structures, supplying secure closures for pipeline ends. The extraordinary blind flange uses – including spectacle blind flanges, raised face blind flanges, flat face blind flanges, ring-type joint blind flanges, and excessive-pressure blind flanges – cater to a variety of blind flange programs. When choosing a blind flange, elements such as pressure score, temperature tolerance, material choice, and sealing necessities have to be taken into consideration. Whether the use of a chrome steel blind flange for corrosion resistance or a carbon metallic blind flange for cost-powerful electricity, deciding on the proper blind flange guarantees the protection and performance of your flanged piping machine. By know-how the blind flange makes use of and packages, industries can optimize their piping structures for optimum overall performance and longevity. Investing in incredible blind flanges from a reliable blind flange provider ensures durability, efficiency, and lengthy-term operational fulfillment.
