final project presentation on autonomous mobile robot

Final Project Presentation on autonomous mobile robot

Submitted to

Prof, Jaebyung Park

Robotics Lab

Submitted by

Ansu Man Singh

Student ID (201150875)

outline

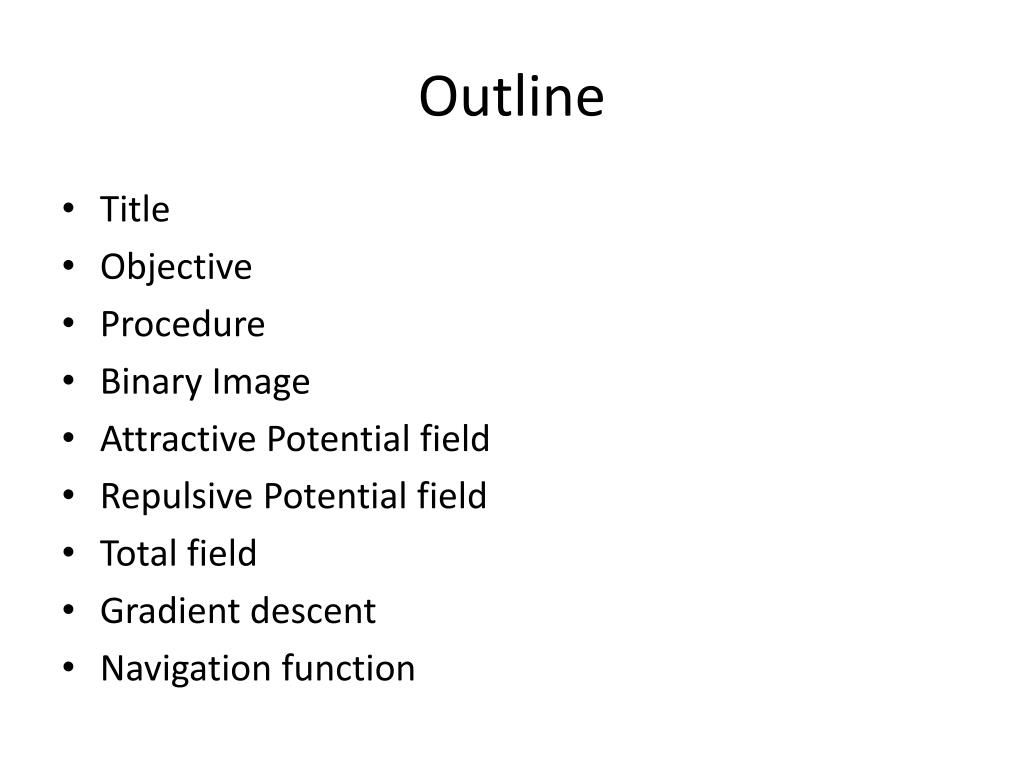

Outline
  • Title
  • Objective
  • Procedure
  • Binary Image
  • Attractive Potential field
  • Repulsive Potential field
  • Total field
  • Gradient descent
  • Navigation function
title
Title
  • Path planning using attractive and Reflective potential field
objective

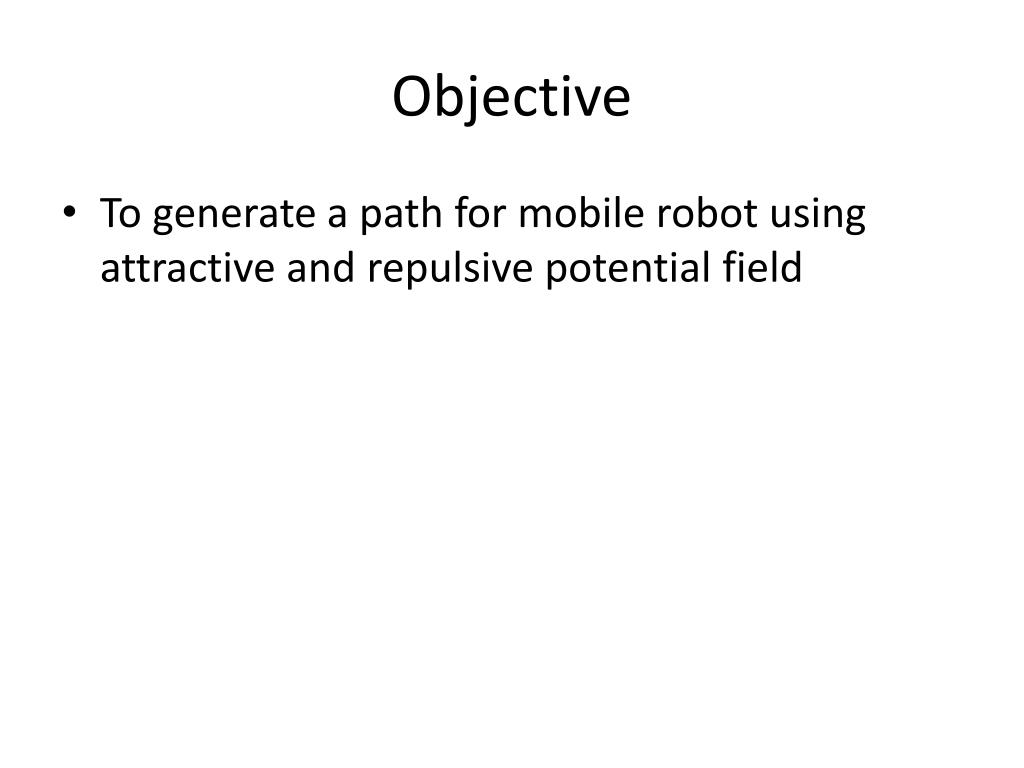

Objective
  • To generate a path for mobile robot using attractive and repulsive potential field
procedure

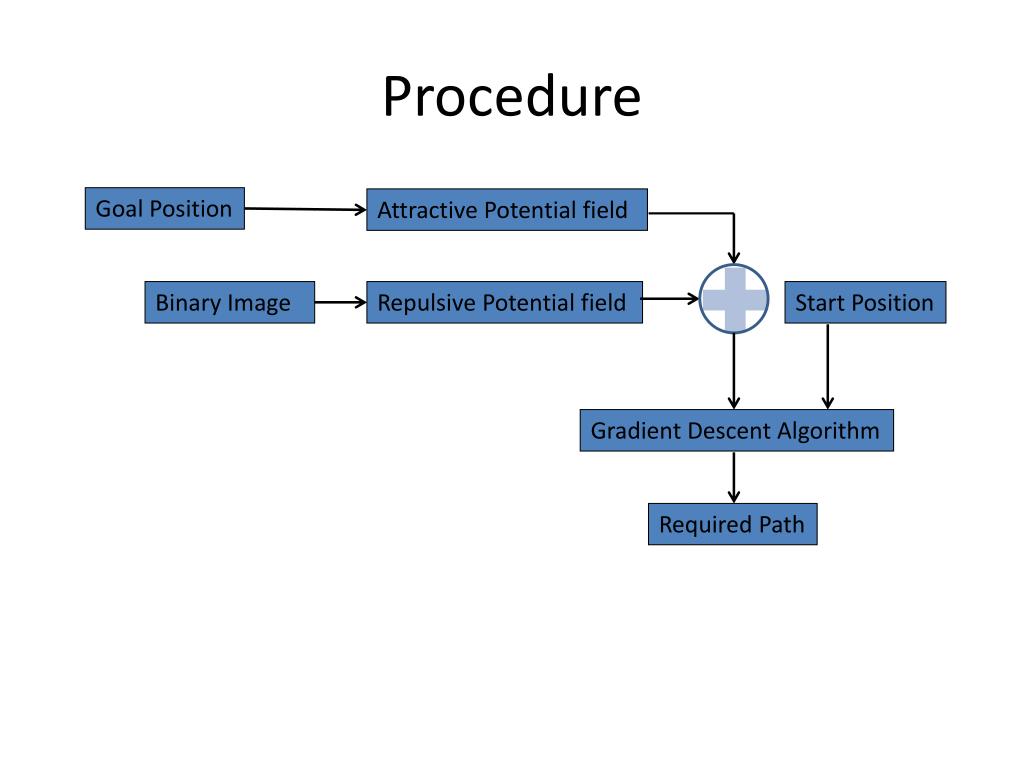

Procedure

Goal Position

Attractive Potential field

Binary Image

Repulsive Potential field

Start Position

Gradient Descent Algorithm

Required Path

binary image

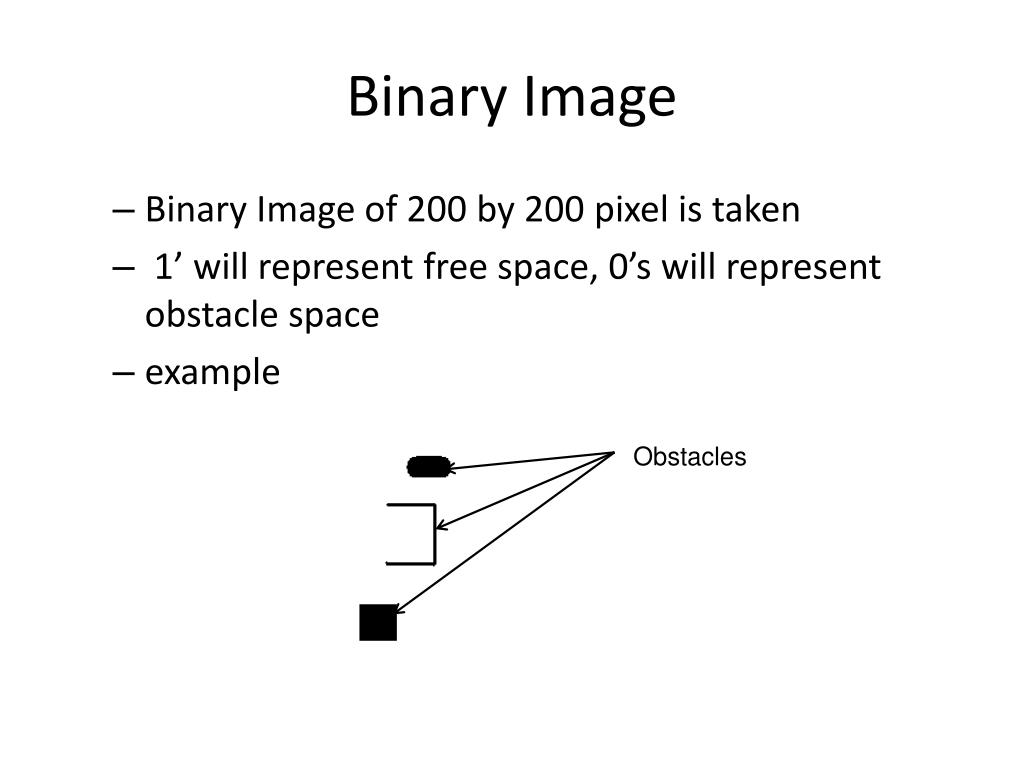

Binary Image
  • Binary Image of 200 by 200 pixel is taken
  • 1’ will represent free space, 0’s will represent obstacle space
  • example

Obstacles

attractive potential field

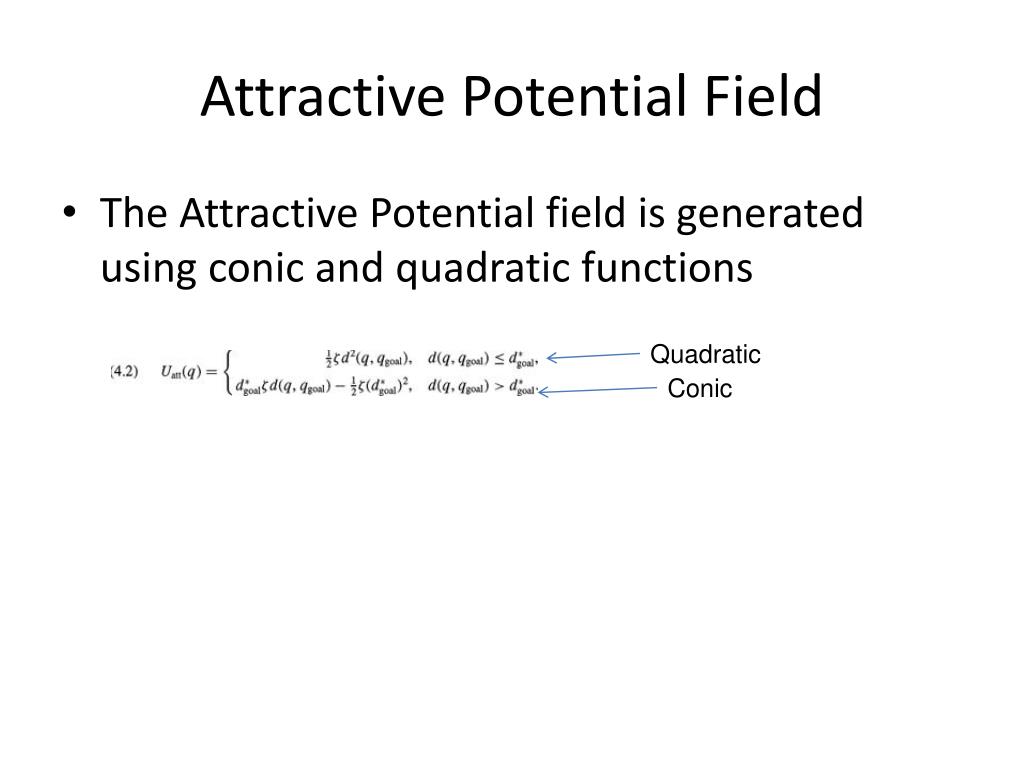

Attractive Potential Field
  • The Attractive Potential field is generated using conic and quadratic functions

Quadratic

Conic

attractive potential field1
Attractive Potential Field
  • Attractive Potential function

Goal Position

attractive potential field2
Attractive Potential Field
  • Code Section

goal_pos = [180 180];

Uatt = zeros(wSpace_Size);

d_xtrix_goal =3;

K=0.06;

const1 = 0.5*K*d_xtrix_goal^2;

for i=1:wSpace_Size(1)

for j=1:wSpace_Size(2);

A=(goal_pos(1)-i)^2+(goal_pos(2)-j)^2;

distance=sqrt(A);

if(distance > d_xtrix_goal)

Uatt(i,j)=d_xtrix_goal*K*distance -const1;

else

Uatt(i,j)=0.5*d_xtrix_goal*K*distance^2 ;

end

end

end

repulsive potential field
Repulsive Potential Field
  • Repulsive function used
  • Repulsive function is generated by the help of binary image.
  • Steps used in generating Repulsive function
    • Find the obstacle position in the binary image
    • Generate field using the equation for the distance Q* above and below the obstacle pixel position
repulsive potential field1
Repulsive Potential Field
  • Repulsive Potential Field
repulsive potential field2
Repulsive Potential Field
  • Code section

for i=1:wSpace_Size(1)

for j=1:wSpace_Size(2);

if(wSpace_Bin(i,j)==0)

Uref(i,j)=8;

for k= -xtrix_OBS:xtrix_OBS

for p =-xtrix_OBS:xtrix_OBS

if((i+k)>wSpace_Size(1)||(i+k)<1||(j+p)>wSpace_Size(2)||(j+p)<1)

else

if(wSpace_Bin(i+k,j+p)~= 0)

distance2 = sqrt((k)^2+(p)^2);

Uref(i+k,j+p)=Uref(i+k,j+p)+ 0.5*2*(1/distance2 - 1/xtrix_OBS)^2;

else

Uref(i+k,j+p)= 8;

end

end

end

end

else

Uref(i,j) = Uref(i,j) +0;

end

end

end

total field
Total Field
  • Total Potential field is addition of attractive and Repulsive field

+

gradient descent

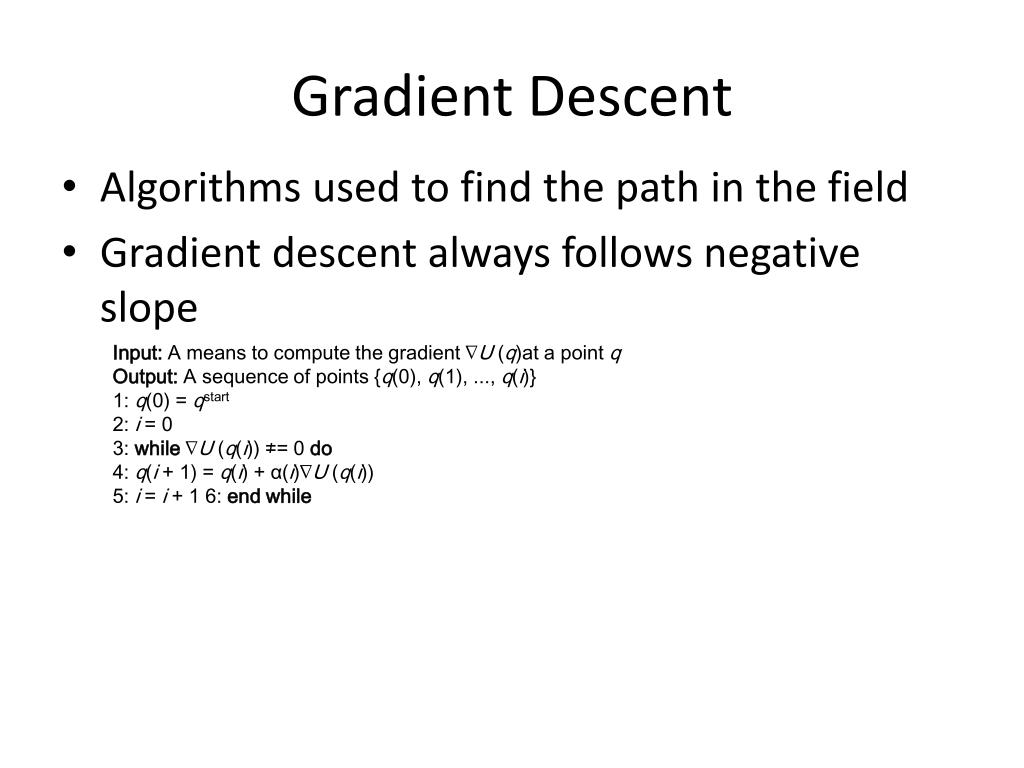

Gradient Descent
  • Algorithms used to find the path in the field
  • Gradient descent always follows negative slope

Input: A means to compute the gradient ∇U (q)at a point q

Output: A sequence of points {q(0), q(1), ..., q(i)}

1: q(0) = qstart

2: i = 0

3: while ∇U (q(i)) ≠= 0 do

4: q(i + 1) = q(i) + α(i)∇U (q(i))

5: i = i + 1 6: end while

gradient descent1

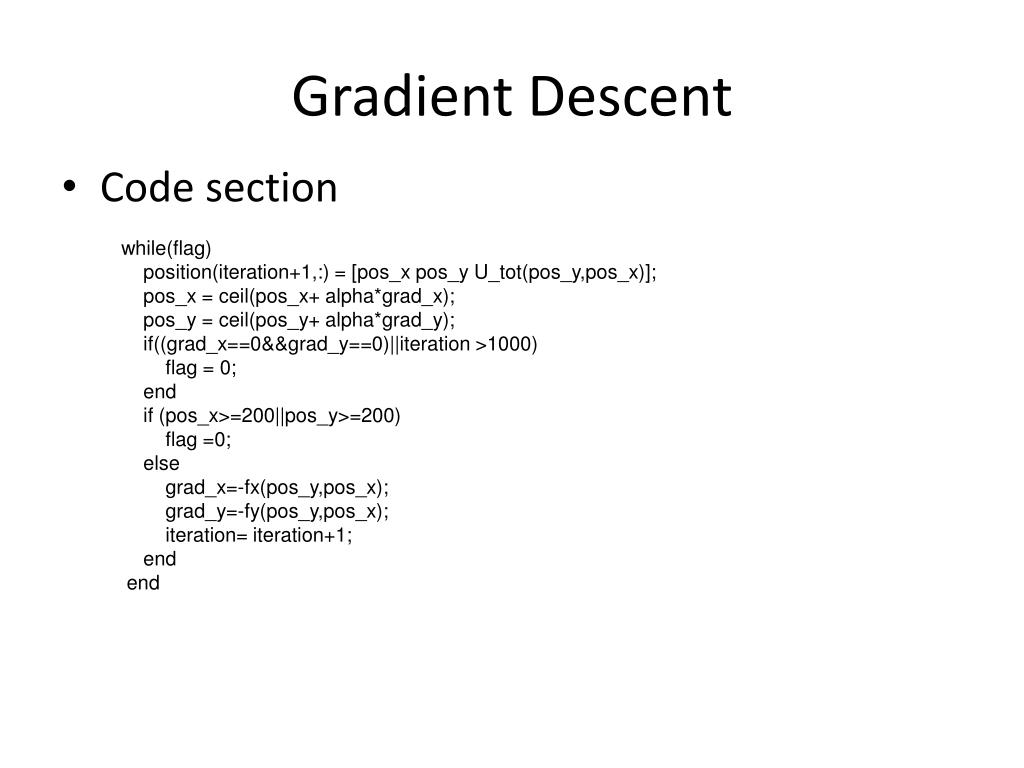

Gradient Descent
  • Code section

while(flag)

position(iteration+1,:) = [pos_xpos_yU_tot(pos_y,pos_x)];

pos_x = ceil(pos_x+ alpha*grad_x);

pos_y = ceil(pos_y+ alpha*grad_y);

if((grad_x==0&&grad_y==0)||iteration >1000)

flag = 0;

end

if (pos_x>=200||pos_y>=200)

flag =0;

else

grad_x=-fx(pos_y,pos_x);

grad_y=-fy(pos_y,pos_x);

iteration= iteration+1;

end

end

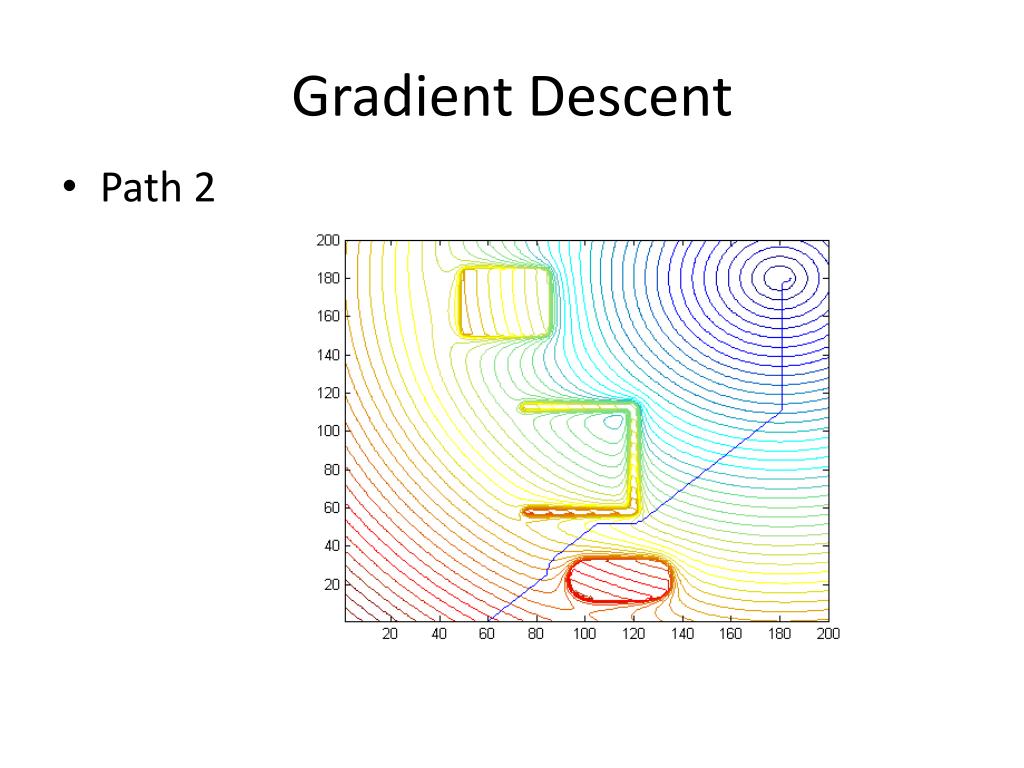

gradient descent2
Gradient Descent
  • Contour map of field with path

Start point = (0,80)

gradient descent4

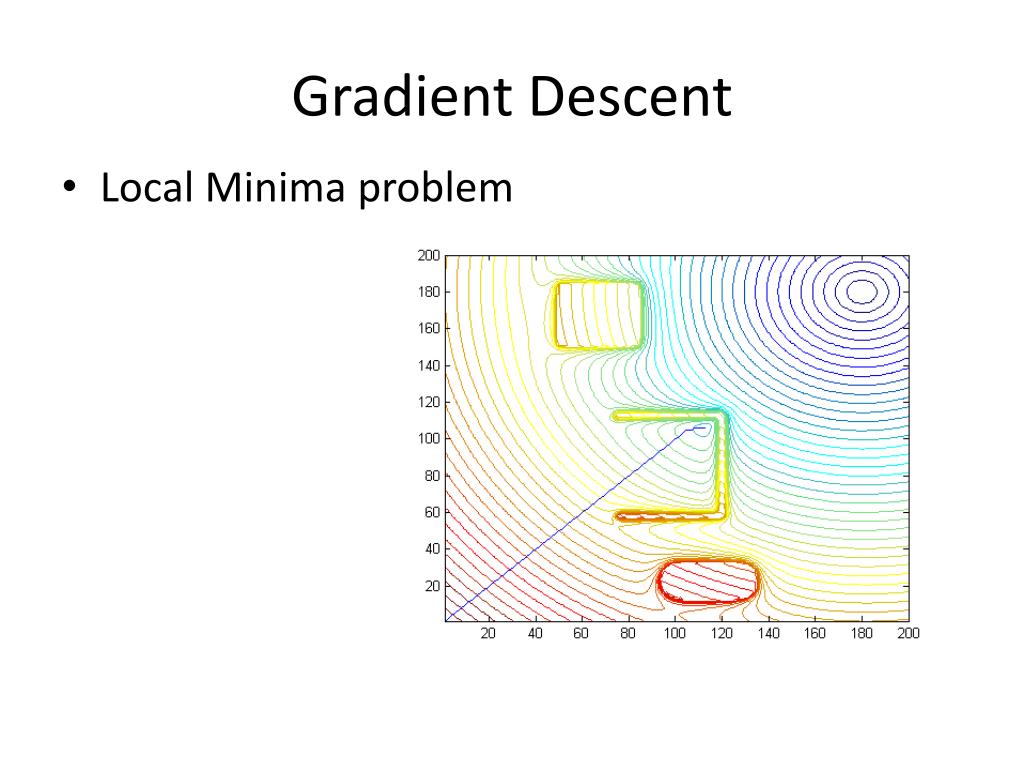

Gradient Descent
  • Local Minima problem
gradient descent5
Gradient Descent
  • Local Minima problem can be using navigation function
  • Navigation function definition

A function is called a navigation function if it

  • is smooth (or at least Ck for k ≥ 2),
  • has a unique minimum at qgoal in the connected component of the free space that contains qgoal,
  • is uniformly maximal on the boundary of the free space, and
  • is Morse.
navigation function

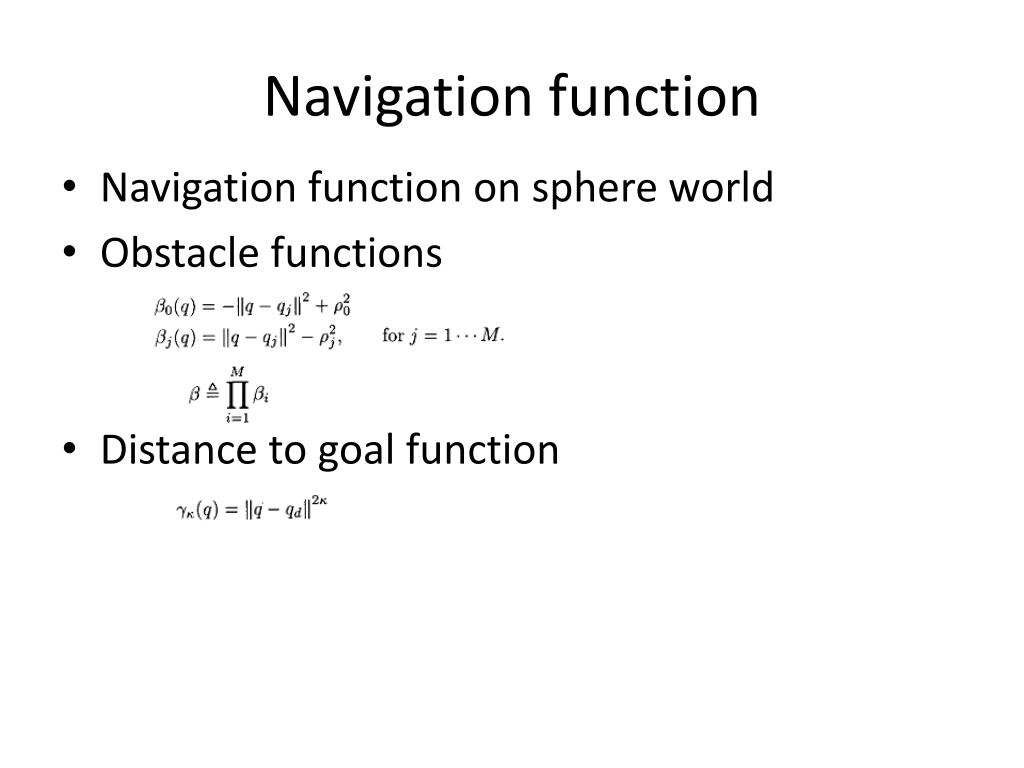

Navigation function
  • Navigation function on sphere world
  • Obstacle functions
  • Distance to goal function
navigation function1

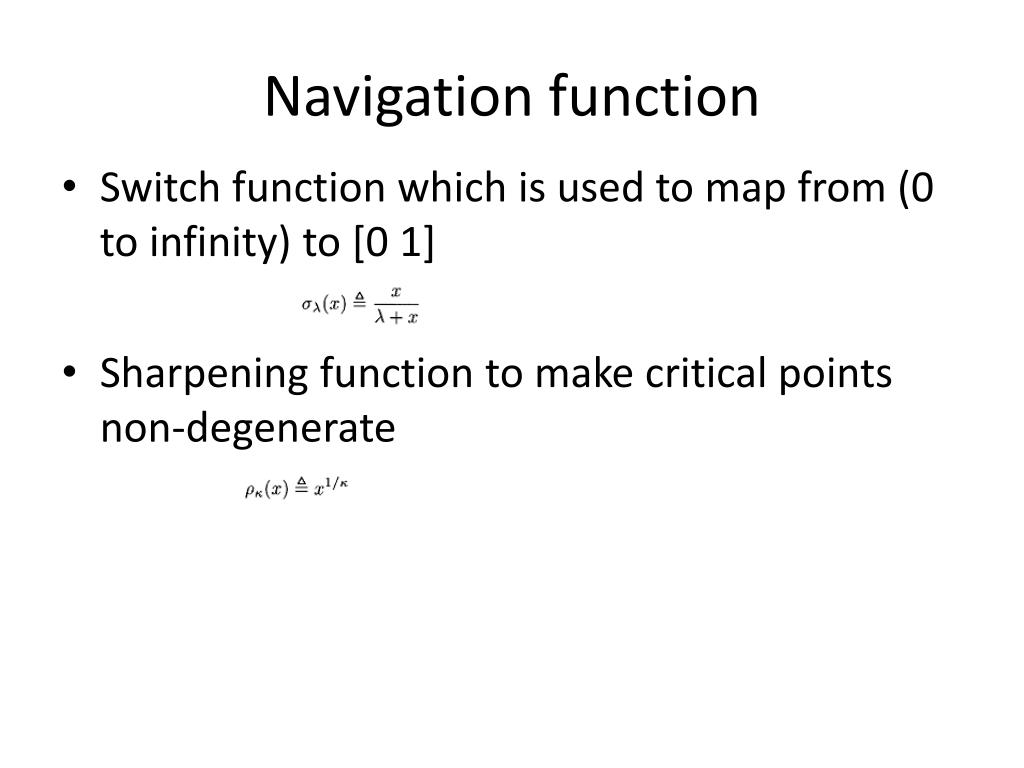

Navigation function
  • Switch function which is used to map from (0 to infinity) to [0 1]
  • Sharpening function to make critical points non-degenerate
navigation function2

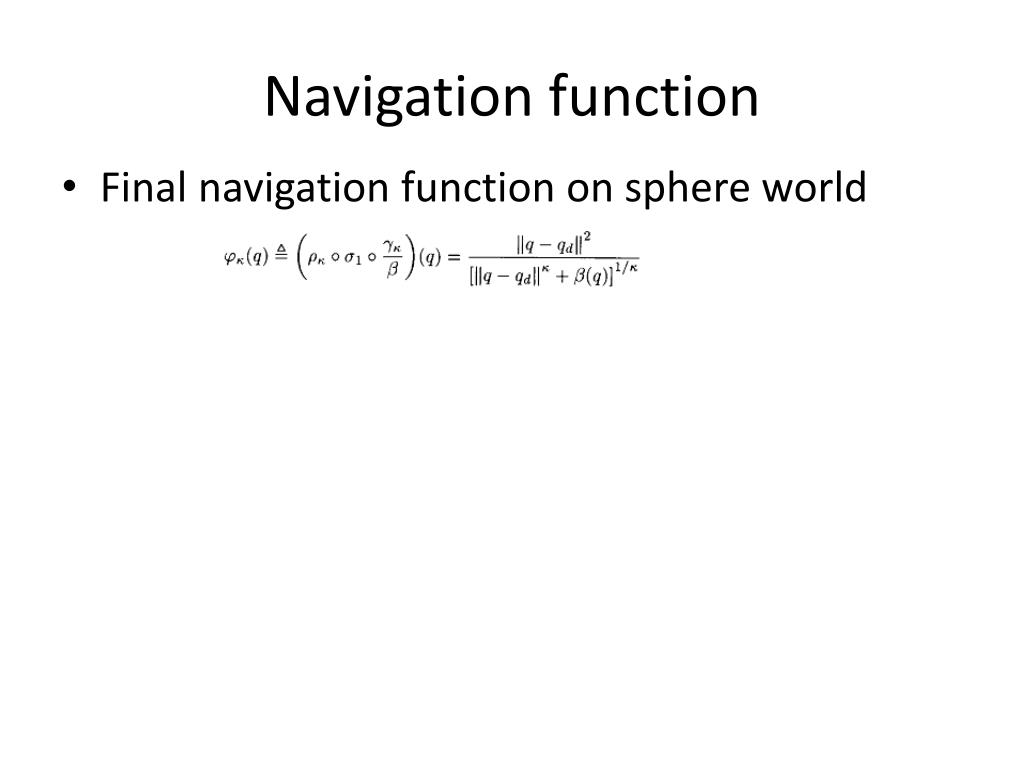

Navigation function
  • Final navigation function on sphere world
navigation function3

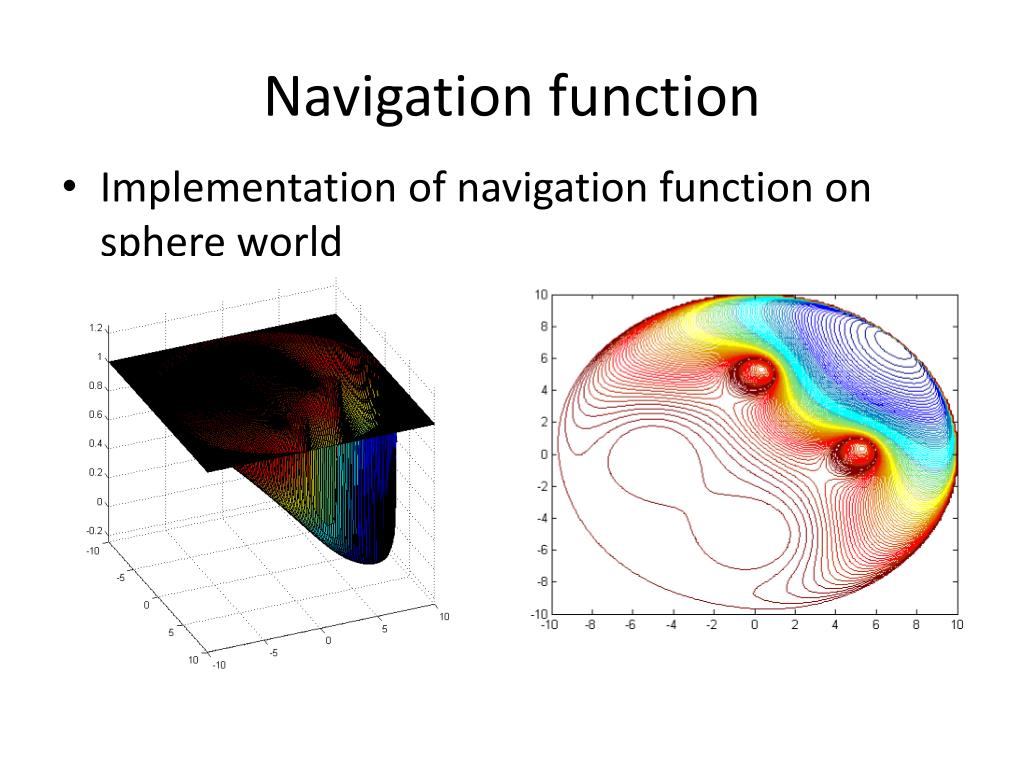

Navigation function
  • Implementation of navigation function on sphere world
navigation function4

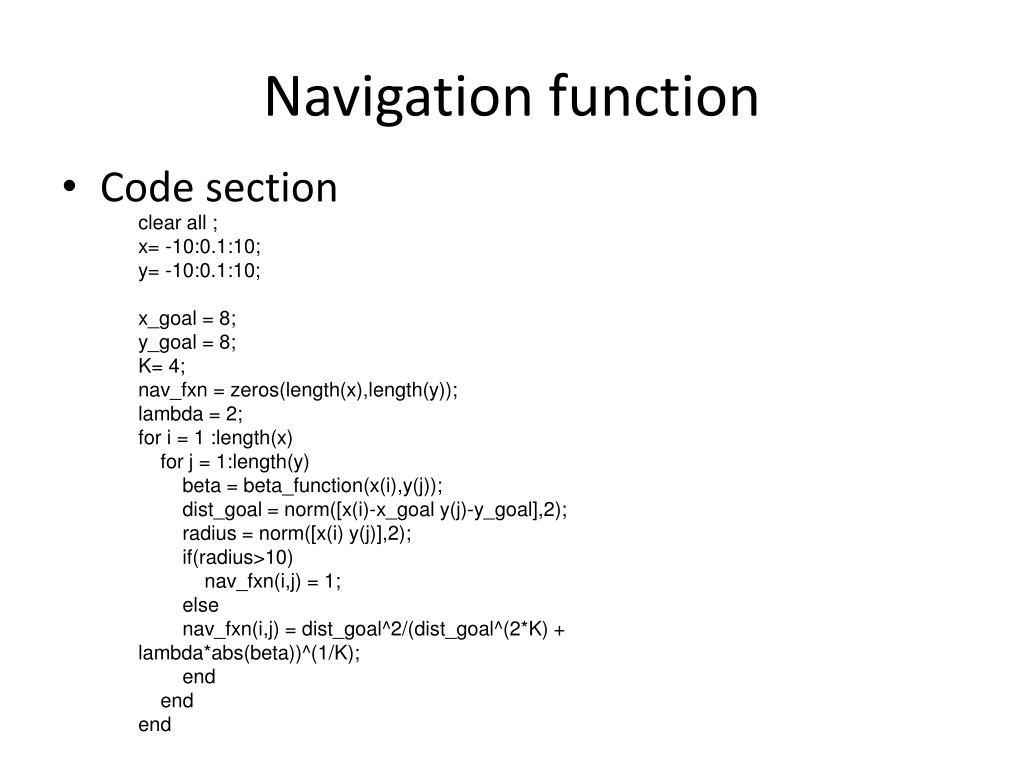

Navigation function
  • Code section

clear all ;

x= -10:0.1:10;

y= -10:0.1:10;

x_goal = 8;

y_goal = 8;

K= 4;

nav_fxn = zeros(length(x),length(y));

lambda = 2;

for i = 1 :length(x)

for j = 1:length(y)

beta = beta_function(x(i),y(j));

dist_goal = norm([x(i)-x_goal y(j)-y_goal],2);

radius = norm([x(i) y(j)],2);

if(radius>10)

nav_fxn(i,j) = 1;

else

nav_fxn(i,j) = dist_goal^2/(dist_goal^(2*K) + lambda*abs(beta))^(1/K);

end

end

end

navigation function5

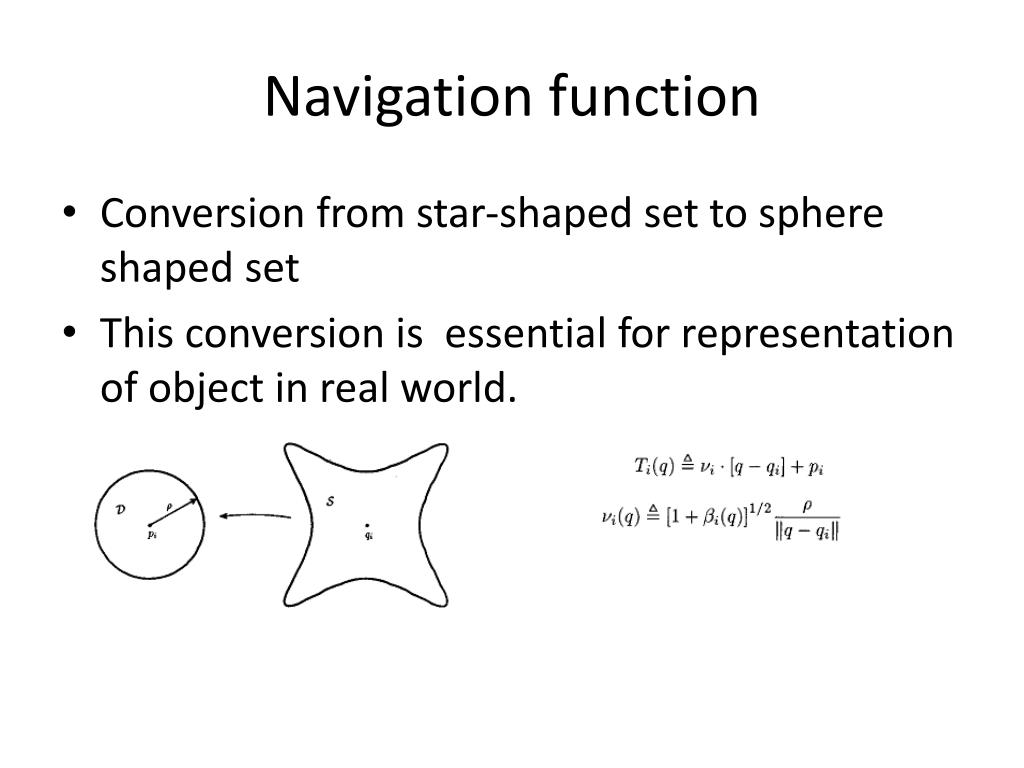

Navigation function
  • Conversion from star-shaped set to sphere shaped set
  • This conversion is essential for representation of object in real world.
references

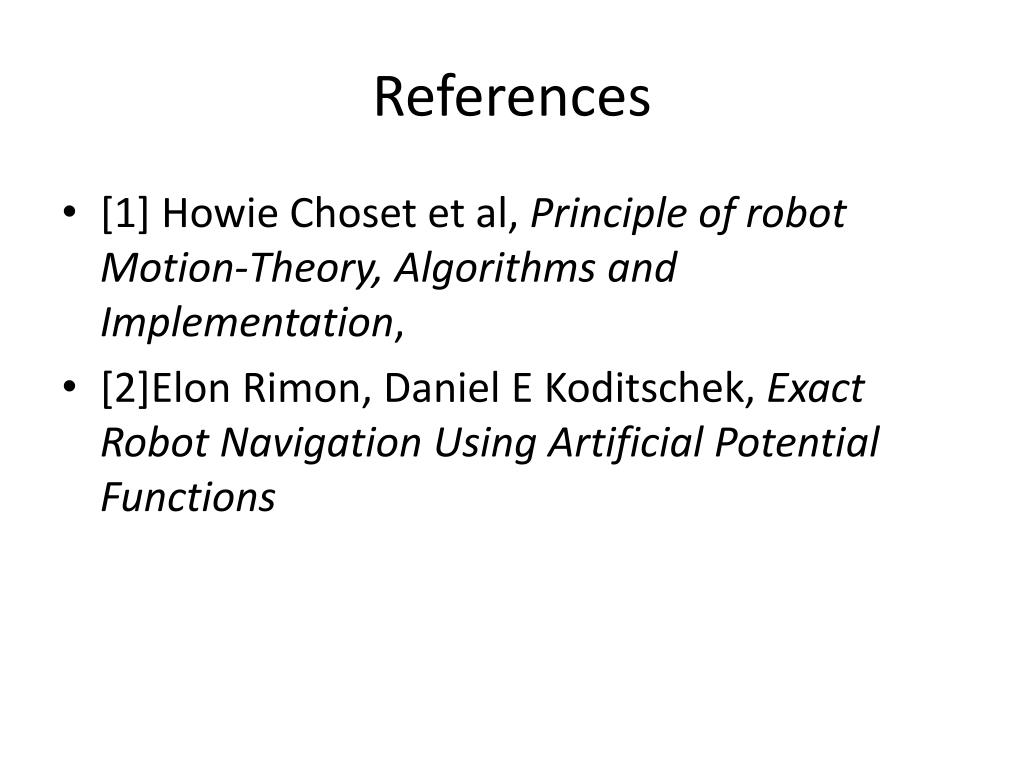

References
  • [1] HowieChoset et al, Principle of robot Motion-Theory, Algorithms and Implementation,
  • [2]ElonRimon, Daniel E Koditschek, Exact Robot Navigation Using Artificial Potential Functions
