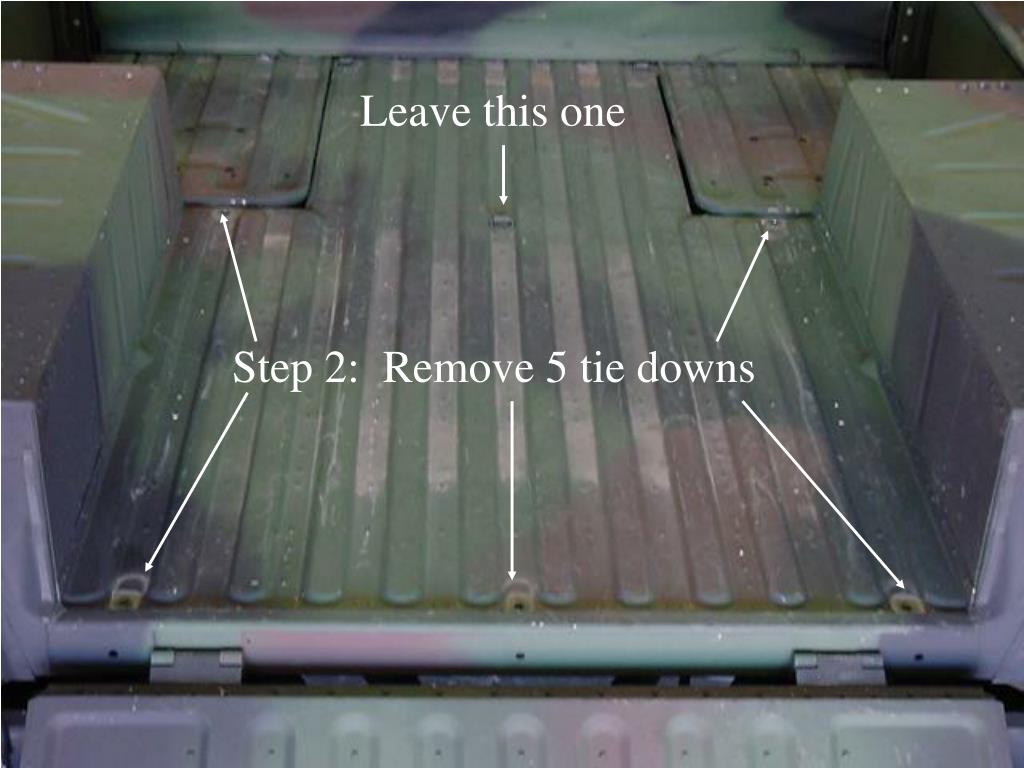

  1. Leave this one Step 2: Remove 5 tie downs

  2. Spot Weld All Connecting Points and Bolts

  3. Step 5: Install M6 Pedestal Mount Install M6 Pedestal platform on Quick Fix Platform

  4. Clearance between the quick fix platform and the Bed of the Cargo HMMWV

  5. Safety Note: Assure Pedestal is positioned high enough to prevent weapon muzzle from pointing at vehicle driver. Recommended minimum is to raise center column to show 3 holes above outer column.
