Lecture 3 molecular evolution and phylogeny

Lecture 3Molecular Evolution and Phylogeny


Facts on the molecular basis of life
Facts on the molecular basis of life

  • Every life forms is genome based

  • Genomes evolves

  • There are large numbers of apparently homlogous intra-genomic (paralog) and inter-genomic (ortholog) genes

  • Some genes, especially those related to the function of transcription and translation, are common to ALL life forms

  • The closer two organisms seem to be phylogenetically, the more similar their genomes and corresponding genes are



Basic assumptions of molecular evolution
Basic assumptions of molecular evolution

  • Closer related organisms have more similar genomes

  • Highly similar genes are homologs (have the same ancestor)

  • A universal ancestor exists for all life forms

  • Molecular difference in homologous genes (or protein sequences) are positively correlated with evolution time

  • Phylogenetic relation can be expressed by a dendrogram (a “tree”)


The five steps in phylogenetics dancing

1

Sequence data

2

Align Sequences

Phylogenetic signal?

Patterns—>evolutionary processes?

3

Distances methods

Characters based methods

Distance calculation

(which model?)

4

Choose a method

MB

ML

MP

Wheighting?

(sites, changes)?

Model?

Model?

Optimality criterion

Single tree

LS

ME

NJ

Calculate or estimate best fit tree

5

Test phylogenetic reliability

Modified from Hillis et al., (1993). Methods in Enzymology 224, 456-487


Why protein phylogenies?

  • For historical reasons - first sequences...

  • Most genes encode proteins...

  • To study protein structure, function and

  • evolution

  • Comparing DNA and protein based

  • phylogenies can be useful

    • Different genes - e.g. 18S rRNA versus EF-2 protein

    • Protein encoding gene - codons versus amino acids


Protein were the first molecular sequences to be used for phylogenetic inference

Fitch and Margoliash (1967) Construction of phylogenetic trees. Science 155, 279-284.


Most of what follows taken from: phylogenetic inference

Statistical Physics and Biological Information

Institute of Theoretical Physics

University of California at Santa Barbara

2001 May 7


Understanding trees phylogenetic inference

Root

30 Mya

Time

22 Mya

7 Mya

same as

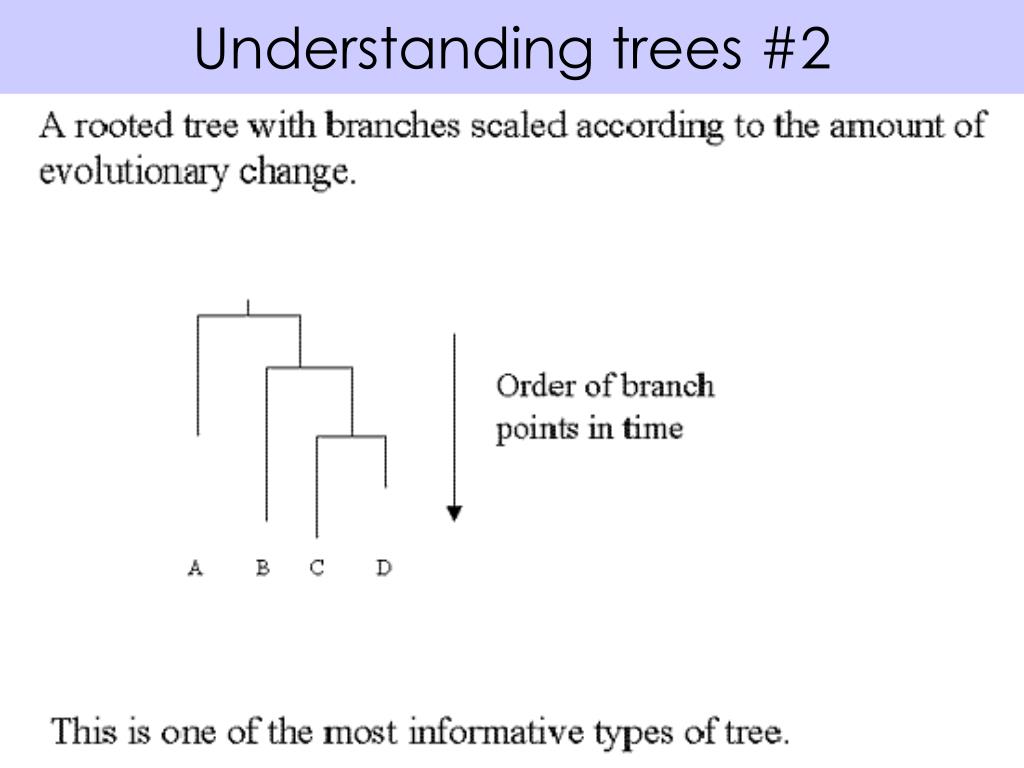

Understanding trees #2 phylogenetic inference


Understanding trees #3 phylogenetic inference


Difference in homologous sequences is a measure of evolution time

Part of multiple sequence alignment of Mitochondrial

Small Sub-Unit rRNA

Full length is ~ 950

11 primate species with mouse as outgroup

靈長目

Change similarity matrix to distance matrix: d = 1 - S

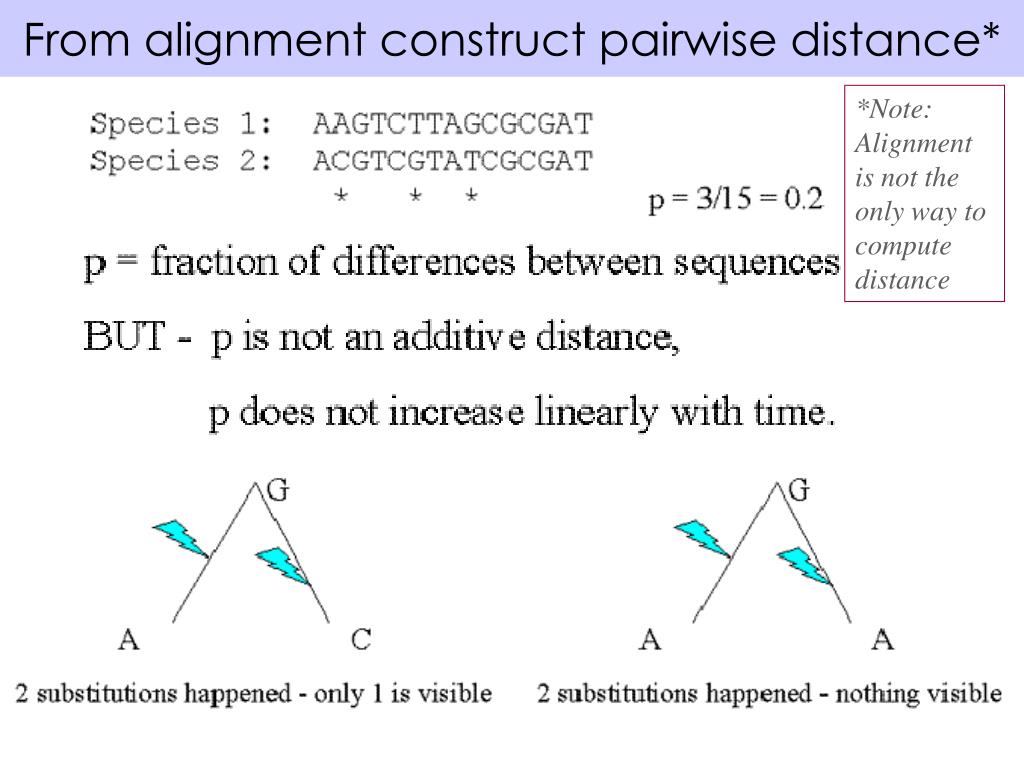

From alignment construct pairwise distance* time

*Note:

Alignment

is not the

only way to

compute

distance



Jukes-Cantor (minimal) Model time

All substitution rates = a all base frequency = 1/4

= 3 Pij(2t)

A

C


Derivation of Jukes-Cantor formula time

  • Let probability of site being a base at time t be P(t)

  • After elapse time Dt

    • mutate to other three bases is –3aDt P(t)

    • Gain from other bases is aDt (1 - P(t))

  • Hence

    • P(t + Dt) = P(t) –3aDt P(t) + aDt (1 - P(t))

    • dP(t)/dt = a - 4a P(t)

  • Write P(t) = a exp(-bt) +c, solution is b= 4a, c=1/4

    • P(t) = a exp(- 4a t) +1/4

  • If P(0) = 1, then a = ¾. If P(0) = 0, then a = -1/4

  • Finally

Psame(t) =1/4 +3/4 exp(- 4a t)

Pchange(t) =1/4 - 1/4 exp(- 4a t)


Hasegawa-Kishino-Yano model time

Has a more general substitution rate

Transition A G or C T

Transversion A T or C G


Part of Jukes-Cantor distance matrix time

for primate examples

(is much larger; for outgroup)

Matrix will be used for clustering methods



UPGMA time




0 distance matrix

Neighbor-Joining Method time

An Example

What is required for the Neighbour joining method?

0. Distance Matrix

Distance matrix


1 first step
1. First Step time

PAM distance 3.3 (Human - Monkey) is the minimum. So we'll join Human and Monkey to MonHum and we'll calculate the new distances.

Mon-Hum

Mosquito

Spinach

Rice

Human

Monkey


2 calculation of new distances

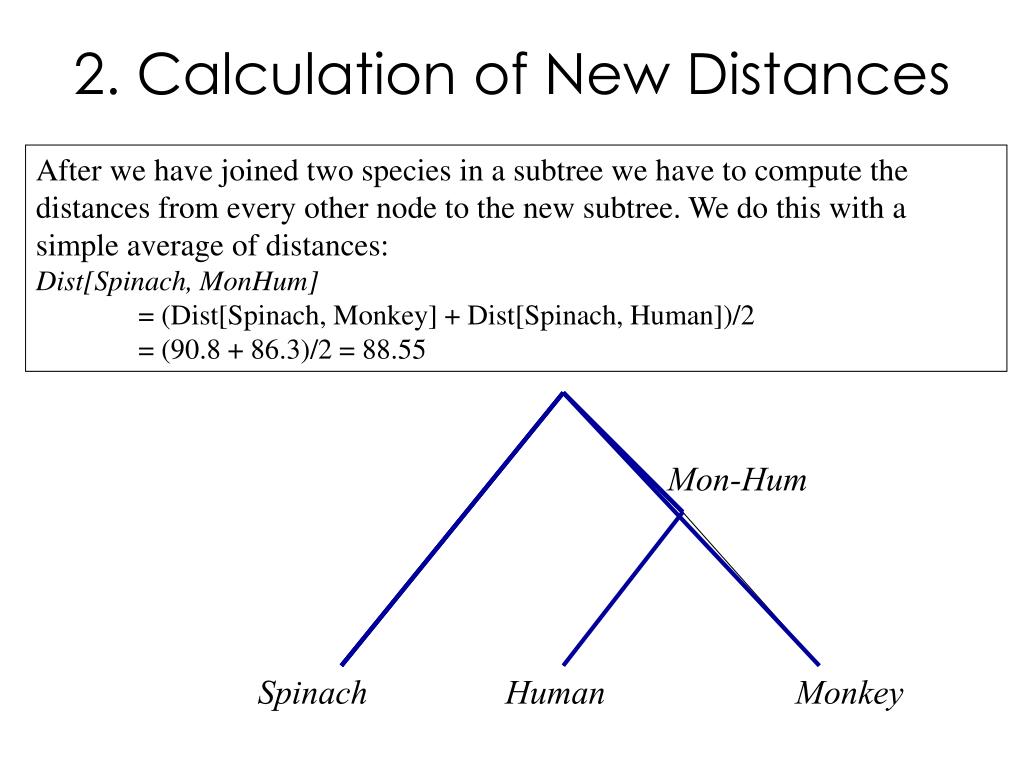

2. Calculation of New Distances time

After we have joined two species in a subtree we have to compute the distances from every other node to the new subtree. We do this with a simple average of distances:

Dist[Spinach, MonHum]

= (Dist[Spinach, Monkey] + Dist[Spinach, Human])/2

= (90.8 + 86.3)/2 = 88.55

Mon-Hum

Spinach

Human

Monkey


3 next cycle

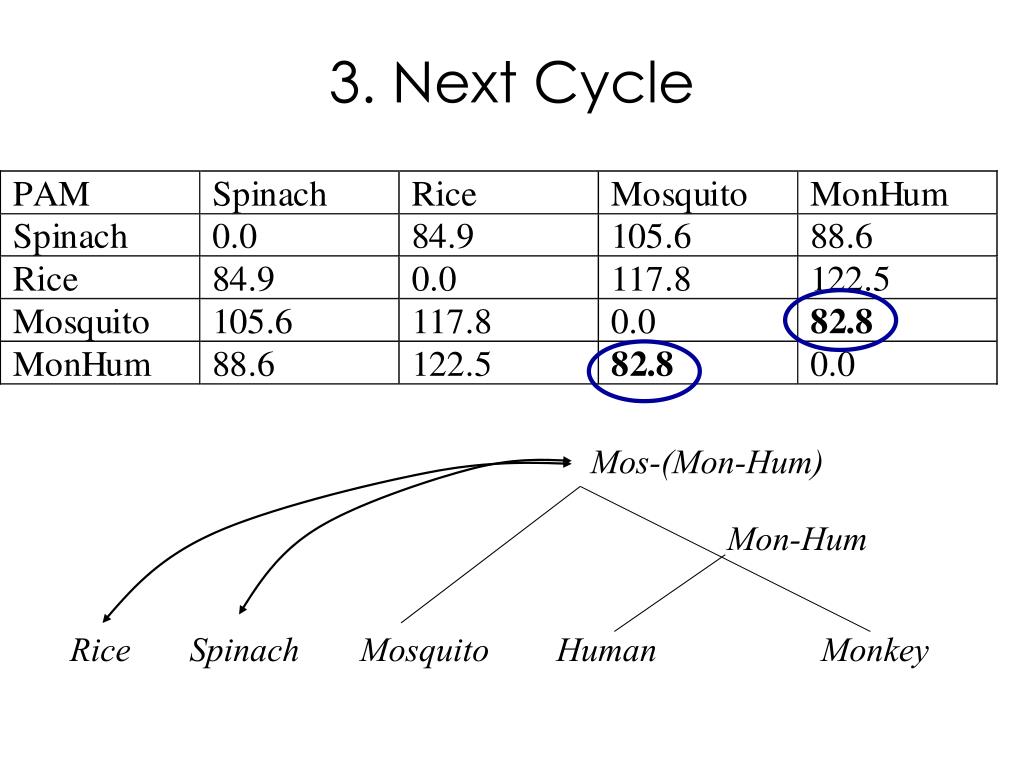

3 time. Next Cycle

Mos-(Mon-Hum)

Mon-Hum

Rice

Spinach

Mosquito

Human

Monkey


4 penultimate cycle
4. Penultimate Cycle time

Mos-(Mon-Hum)

Spin-Rice

Mon-Hum

Rice

Spinach

Mosquito

Human

Monkey


5 last joining
5. Last Joining time

(Spin-Rice)-(Mos-(Mon-Hum))

Mos-(Mon-Hum)

Spin-Rice

Mon-Hum

Rice

Spinach

Mosquito

Human

Monkey


T he result unrooted neighbor joining tree
T timehe result:Unrooted Neighbor-Joining Tree

Human

Spinach

Monkey

Mosquito

Rice

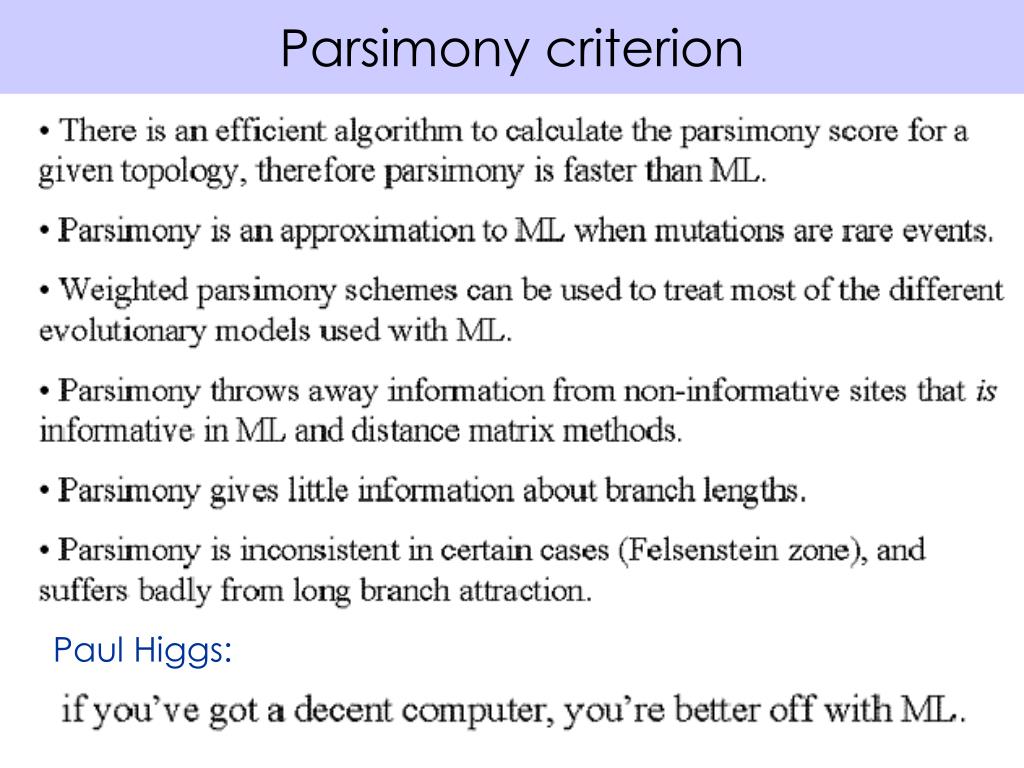

Parsimony criterion time

Paul Higgs:


Is the best tree much better than others? time

L: likelihood at nodes


Use Maximum Likelihood to rank alternate trees time

NJ tree is 2nd best

same topology

yes

yes


Use Parsimony to rank alternate trees time

different topology

; parsimony differentiates weakly





Clade probability compared from tree methods time

NJ method is very fast and close to being the best


Lecture and Book time

  • Lecture by Paul Higgs

    • online.itp.ucsb.edu/online/infobio01/higgs/

    • see online.itp.ucsb.edu/online/infobio01/

    • for many lectures

  • Book by Wen-Hsiong Li 李文雄

    • “Molecular Evolution” (Sinauer Associates, 1997)


Some web sites on Molecular Evolution time

  • CMS Molecular Biology Resource

    • www.unl.edu/stc-95/ResTools/cmshp.html

    • Phylogeny - Molecular Evolution

    • www.unl.edu/stc-95/ResTools/biotools/biotools2.html

  • The Tree of Life Web Project

    • tolweb.org/tree/phylogeny.html

  • Web Resources in Molecular Evolution and

  • Systematics

    • darwin.eeb.uconn.edu/molecular-evolution.html


Some web sites on ClustalW time

  • On-line service

    • www.ebi.ac.uk/clustalw/

    • clustalw.genome.ad.jp/

  • Software

    • ftp-igbmc.u-strasbg.fr/pub/ClustalX/

    • ftp-igbmc.u-strasbg.fr/pub/ClustalW/
