Networks

Networks. Common Xmit Media. Shared Media. Networks are a shared communication resource Only one user can access at a time. Packet and Circuit Switched. Circuit: Public Telephone Network Packet: Internet and US Mail Data divided into small units (packets) for transmission

faith
Download Presentation

Networks

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

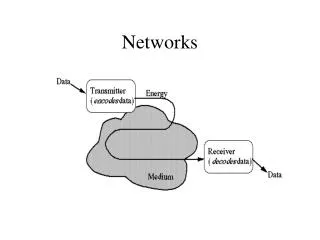

  1. Networks

  2. Common Xmit Media

  3. Shared Media • Networks are a shared communication resource • Only one user can access at a time

  4. Packet and Circuit Switched • Circuit: Public Telephone Network • Packet: Internet and US Mail • Data divided into small units (packets) for transmission • More efficient use of shared resource

  5. Time-Division Multiplexing

  6. Packets and Frames • Packet: A small, self-contained parcel of data sent across a computer network. Each packet contains a header that identifies the sender and recipient, and data to be delivered. • Frame: The form of a packet that the underlying hardware accepts and delivers.

  7. Frames • Header and trailer indicates beginning and end of frame.

  8. Transmission Errors • Error Detection and Error Correction • Both require additional information beyond data, appended to end of frame • Many Schemes • Parity checking, Check Sum, CRC codes • Error Correcting Codes: Hamming, Reed-Solomon, etc...

  9. Parity refers to the number of bits set to 1 in the data item • Even parity - an even number of bits are 1 • Odd parity - an odd number of bits are 1 • A parity bit is an extra bit transmitted with a data item, • chose to give the resulting bits even or odd parity • Even parity - data: 10010011, parity bit 1 • Odd parity - data: 10010111, parity bit 0

  10. Point-to-Point Networks

  11. LAN’s • Reduce complexity and cost by sharing communication channel • TDM • Synchronization • Effective because of locality of reference • Spatial • Temporal

  12. Topologies • Star, Ring, Bus

  13. Ethernet • Widely used LAN technology • Invented at Xerox PARC (Palo Alto Research Center) in 1970s • Defined in a standard by Xerox, Intel and Digital - DIX standard • Standard now managed by IEEE - defines formats, voltages, cable lengths, ... • Uses bus topology • Single coax cable - the ether • Multiple computers connect • One Ethernet cable is sometimes called a segment • Limited to 500 meters in length • Minimum separation between connections is 3 meters

  14. Originally 3 Mbs • Then, 10 Mbs • Fast Ethernet, 100 Mbs • One computer transmits at a time • Signal is a modulated carrier which propagates from transmitter in both directions along length of segment

  15. Hardware Adresses • Identify destination on shared channel • Hardware or physical address • Included in frame

  16. Ethernet Frame

  17. WAN • Packet Switch: Moves complete packets from one connection to another

  18. Protocols and Layering • A rule that specifies format and meaning of messages that computers exchange • Protocols organized in layers, each of which solves specific aspect of communication problem.

  19. ISO 7 Layer Model

  20. Layer 7: Application • Application-specific protocols such as FTP and SMTP (electronic mail) • Layer 6: Presentation • Common formats for representation of data • Layer 5: Session • Management of sessions such as login to a remote computer • Layer 4: Transport • Reliable delivery of data between computers • Layer 3: Network • Address assignment and data delivery across a physical network • Layer 2: Data Link • Format of data in frames and delivery of frames through network interface • Layer 1: Physical • Basic network hardware - such as RS-232 or Ethernet

  21. Nested Headers
