  1. MF Power Quality/Safety Improvements--Neutral-Ground Separation Lloyd Bjurman NAVAIR FRC-SW, MF Engineering

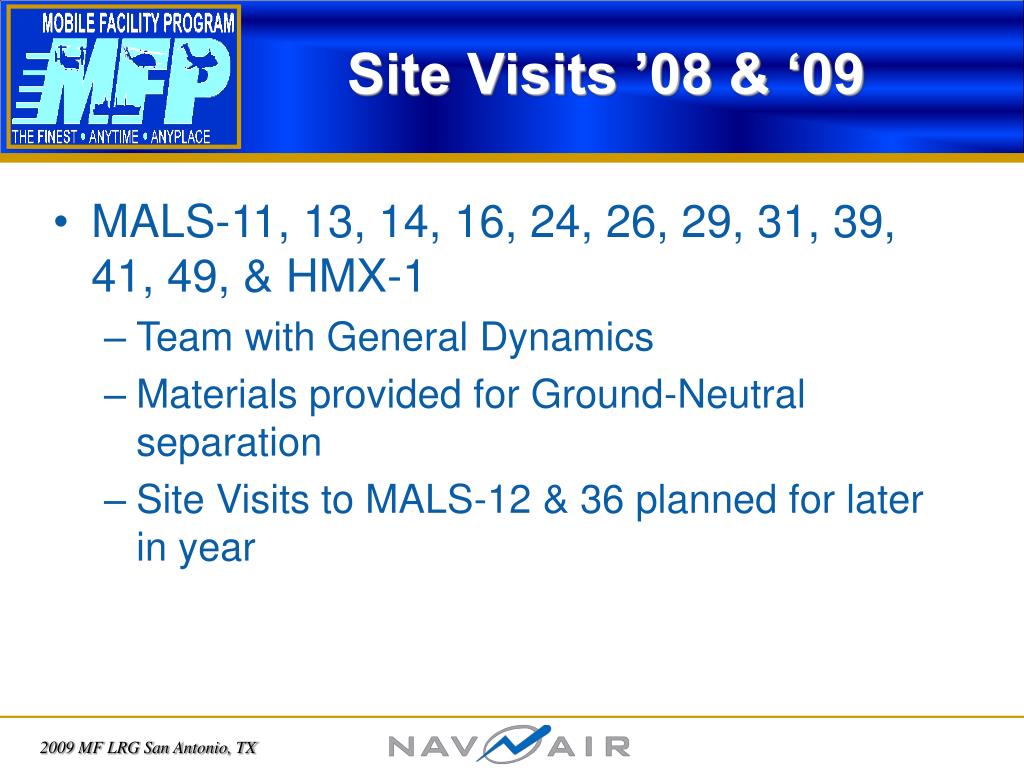

  2. Site Visits ’08 & ‘09 • MALS-11, 13, 14, 16, 24, 26, 29, 31, 39, 41, 49, & HMX-1 • Team with General Dynamics • Materials provided for Ground-Neutral separation • Site Visits to MALS-12 & 36 planned for later in year

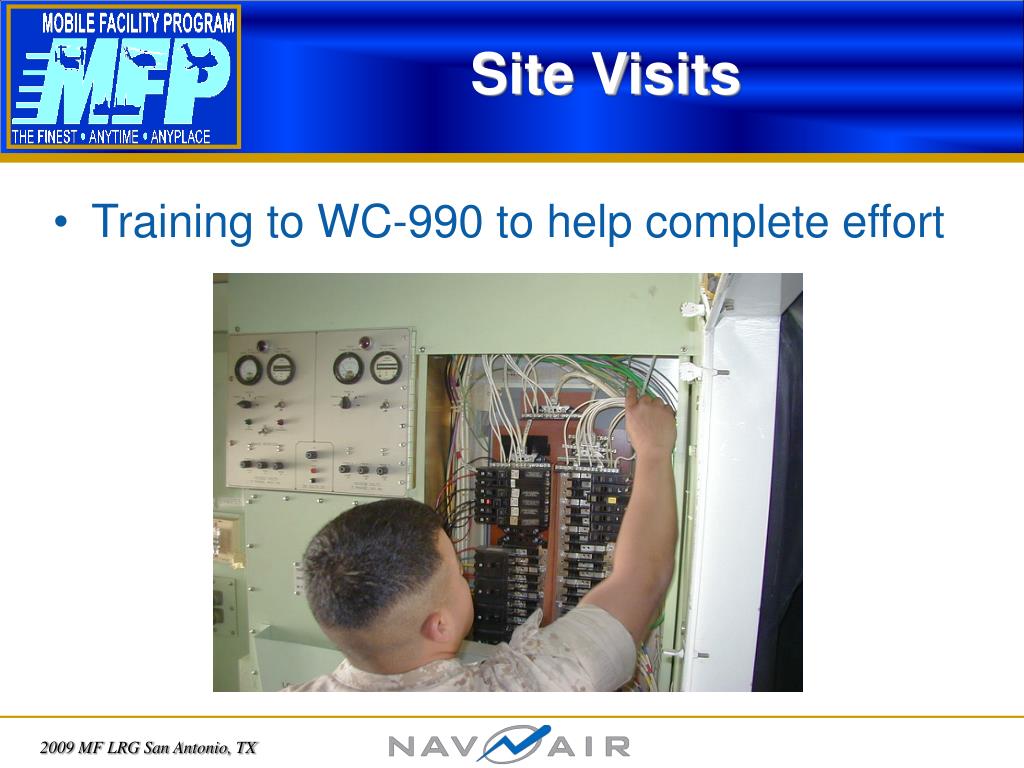

  3. Site Visits • Training to WC-990 to help complete effort

  4. Site Visits • Assistance to Troubleshoot

  5. Site Visits • Test Power Loads

  6. Proposed INU MF meter • Attached to INU MF • Measure 3-phase currents, voltage, watts • Benefits: • Allow you to determine how close to maximum 200A to help you shed power or rebalance feeders • Provides actual load values for planning purposes

  7. Site Visits • Check Grounding

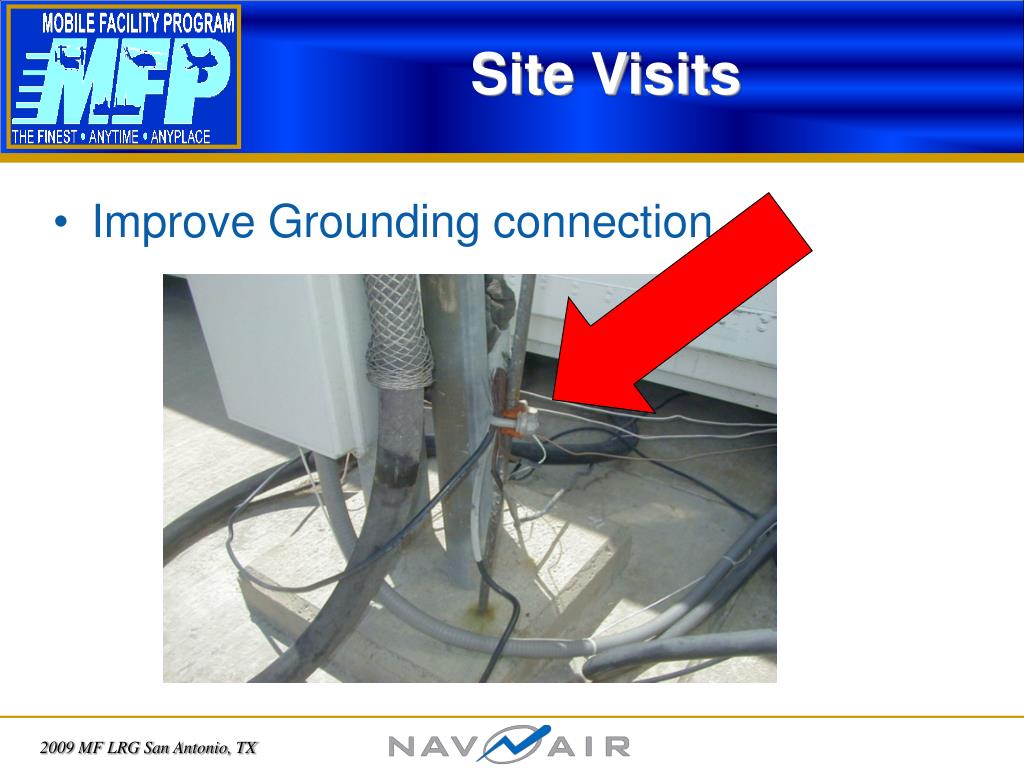

  8. Site Visits • Improve Grounding connection

  9. Site Visits • Electrical Safety Recommendations Ckt# x Ckt# x Ckt# x Ckt# x

  10. Site Visits • Electrical Safety Recommendations

  11. Earth Ground Checks • Sites that comply with CASS FRD Ground ------------------------------------------------------- • Western US MALS: 11, 16, 24, 13 • MALS-13 Has 5 pads with electrolytic rods • Eastern US MALS: 14, 26, 29, 31 • Fort Worth MALS-41 (JRB-NAVFAC Measured) -------------------------------------------------------- • MALS-39 new construction to include upgraded grounding w Lyncole assistance

  12. Power Quality • Remove current on Ground Conductors • Separate Neutral from Ground on MFs nearing conclusion • MMG-1A rehabs, New MF connectors • Benefits • Less damage to electronic components • May create less corrosion to MF exterior • Reduced number of earth ground rods

  13. Questions? • Commercial 619-545-5215 • DSN 735-5215 • Email: LLOYD.BJURMAN@navy.mil
