  1. Elements of Design 2 Prepared by Dr. Ahmed Azmy

  2. SPACE • Space is the relative position of one two or three-dimensional object to another.

  3. SPACE

  4. SPACE

  5. Form and Space: the Unity of opposites Space constantly encompasses our being. Through the volume of space, we move, see forms, hear sounds, feel breezes, smell the fragrances of a flower garden in bloom. It is a material substance like wood or stone. Yet it is an inherently formless vapor. Its visual forms, its dimensions and scale, the quality of its light—all of these qualities depends on our perception of the spatial boundaries defined by elements of form. As spacebegins to be captured, enclosed, modeled, and organized by the elements of mass, architecturecomes into being.

  6. SPACE • Space is one of the most important considerations an architect must think about while designing a building, because the sizes of rooms and hallways, the height of ceilings and the ease of entering and exiting each living area must carefully match the function of the building. • Architects chose dimensions of rooms to match the number of people who will occupy the space and the amount of activity that will occur in it. To make a building more interesting, architects will experiment with aesthetic qualities of space by varying the width and height of rooms through which people will move.

  7. SPACE

  8. SPACE

  9. SPACE

  10. SPACE

  11. SPACE

  12. SPACE Architects also speak of space as the amount of land that will be occupied by a building on a site. The remaining area is called open space.

  13. SPACE

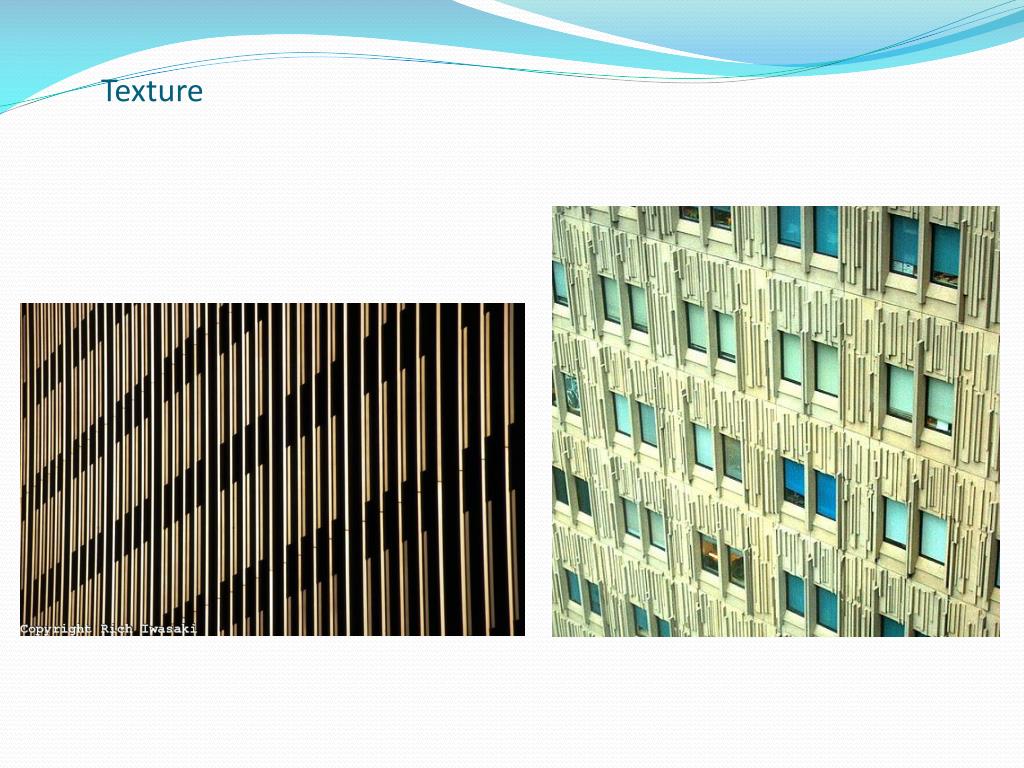

  14. Texture • Refers to surface quality, its smoothness, roughness, and softness. May be Tactile (can be felt with the fingers) or Visual (suggested by the way the artist has painted a certain area of a picture.

  15. Texture • Texture is both a visual and a tactile phenomenon. • Tactile textures are real; we can actually feel their surfaces with our fingers.

  16. Texture • Visual textures are illusionary; they simply give the impression of real textures

  17. Texture

  18. Texture

  19. Texture • Texture often refers to the material that something is made of : Examples include: • Roughness • Smoothness • Coarseness • Fineness

  20. Granite Expression : Natural, Hard, Cold and Strength Brick Expression : Warm, Craftsmanship, Permanency, Heaviness and Practical

  21. Wood Expression : Natural, Organic and warm steel Expression : Efficiency, lightness, Temporality, cold, Hard and Purity of line

  22. Glass Expression : Cold, Clean, Fragile and Open Concrete Expression : Freedom, Stability, Permanency and Solidity

  23. Selection of materials should be done with a high degree of coordination: a) seeking material unity (large number of different materials tend to create a sense of disunity ) b) atmosphere or feeling (expression) c) texture compatibility (association among materials) d) surrounding buildings (uses and patterns)

  24. Texture • An architect creates texture in building by certain choices of materials. Heavy, jagged stone may be used in a building to give it a rough texture, whereas delicate, carvedwoods can give a structure a light and airy look.

  25. Texture

  26. Texture

  27. Texture

  28. Texture

  29. Colour • Colour is the response of the eye to differing wavelengths of radiation within the visible spectrum. • Can strengthen or diminish interest in a project. • Influences the final appearance of any design. • To create effectivedesigns, a designer must understand the nature and relationship of colors.

  30. Colour • There are many different kinds of colour systems, and many different theories on colour. • Secondary Colors: • Can be made from equal mixtures of 2 primary colors • GREEN—combination of yellow and blue • VIOLET—combination of blue and red • ORANGE—combination of red and yellow • Primary Colors: • RED • YELLOW • BLUE • Tertiary Colors: • A combination of a primary color and a neighboring secondary color • RED&ORANGE, YELLOW&ORANGE, YELLOW&GREEN • BLUE&VIOLET, BLUE&GREEN

  31. Properties of Colour Colour 1. Hue • Where the colour is positioned on the colour wheel. A color wheel a chart used to show the relationship between colors. Terms such as red, blue-green, and mauve all define the hue of a given colour

  32. Properties of Colour • 2- Value • The general lightness or darkness of a colour. In general, how close to black or white a given colour is.

  33. Properties of Colour 3-Saturation • The intensity or level of chrome, of a colour. The more gray a colour has in it, the less chrome it has.

  34. Colour Colour Schemes • Monochromatic  Scheme: This colour scheme involves the use of only one hue. The hue can vary in value, and black or white may be added to create various shades or tints.

  35. Colour Schemes • Analogous  Scheme: This colour scheme involves the use of colours that are located adjacent on the colour wheel. The hues may vary in value. The colour scheme for this site is analogous, with the colours varying only slightly from each other.

  36. Colour Schemes • Complementary  Scheme: This colour scheme involves the use of colours that are located opposite on the colour wheel such as red and green, yellow and purple, or orange and blue. Complementary colours produce a very exciting, dynamic pattern.

  37. Colour Warm and Cool Colours

  38. Warm Colours • Warm Colors that create a feeling of warmth, informality, cheer and happiness are: RED, ORANGE, and YELLOW.

  39. Cool Colour • Cool Colors that create a feeling of quiet, formality, restfulness and coolness are: BLUE and GREEN

  40. Colour • Architects use colour in the choice of materials used to construct a building. • However, the architect must consider the colour effect of every element of a building's construction, from the earthy colours of primary construction materials like wood, stone, brick and marble, to the expansive variety of colours available for paint, doors, windows, siding, and trim.

  41. Colour

  42. Colour

  43. Colour

  44. Colour

  45. LIGHT AND DARK Values can be exercised in all colors. The range of the values can be changed by adding white to lighten or tint a color. Adding black will create a shade of the original color which will appear darker.

  46. LIGHT AND DARK

  47. LIGHT AND DARK

  48. LIGHT AND DARK • Light and dark are relative perceptions of light. Architects use the concept of light and dark as they create visual interest on a building by choosing shapes that create a sensation of depth. • When some shapes stick out, they leave others in shadow. Narrowopenings often appear dark, flat spaces look light.

  49. LIGHT AND DARK
