  1. PNEUMATIC SYSTEMS INTERNATIONAL UNLOCKING TOMORROWS TECHNOLOGY TODAY

  2. Products Canadian Distributor: CanRep Inc. 450 434-9898

  3. Products • AM-1- Pellet Launcher • Spooler • Pressure Tester • Flusher • AM-2- Pellet Launcher • AM-3- Pellet Launcher • AM-3 - Flange System • Bazooka Various attachments available to suit each product range Canadian Distributor: CanRep Inc. 450 434-9898

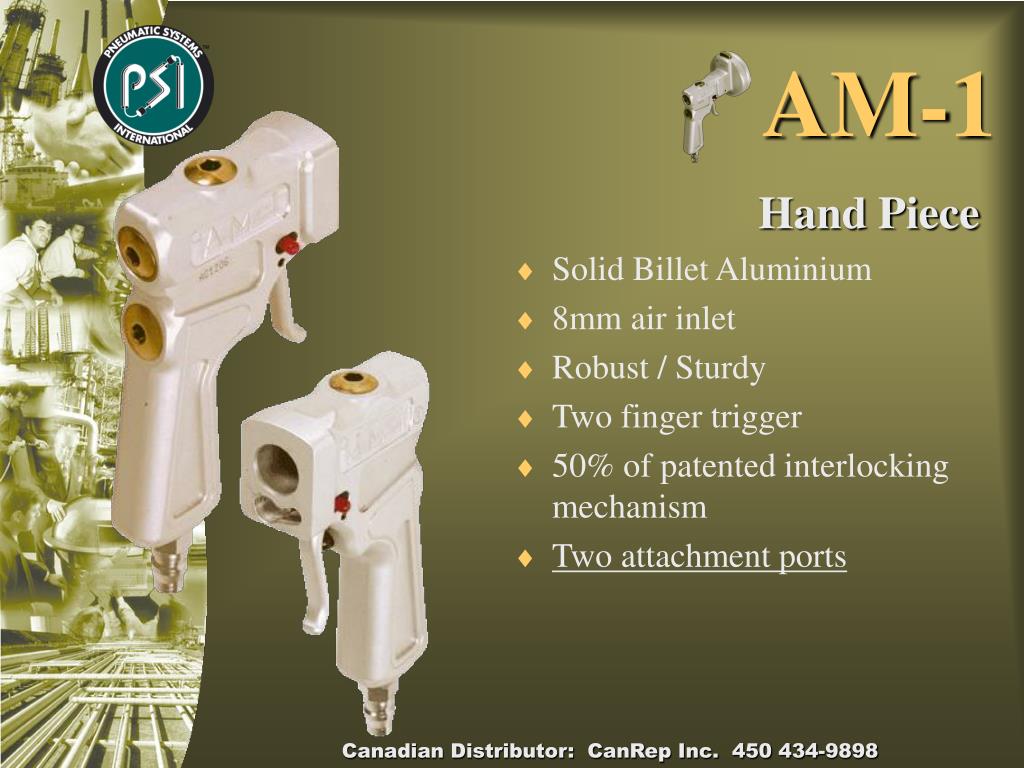

  4. AM-1 Hand Piece • Solid Billet Aluminium • 8mm air inlet • Robust / Sturdy • Two finger trigger • 50% of patented interlocking mechanism • Two attachment ports Canadian Distributor: CanRep Inc. 450 434-9898

  5. AM-1 Pellet Launcher Heads • 32mm (3-32mm) • 50mm crimp (3-50mm) • 75mm crimp (3-75mm) • Machined from solid Aluminium • Quick release face • Easy nozzle insertion • 50% of patented interlocking mechanism Canadian Distributor: CanRep Inc. 450 434-9898

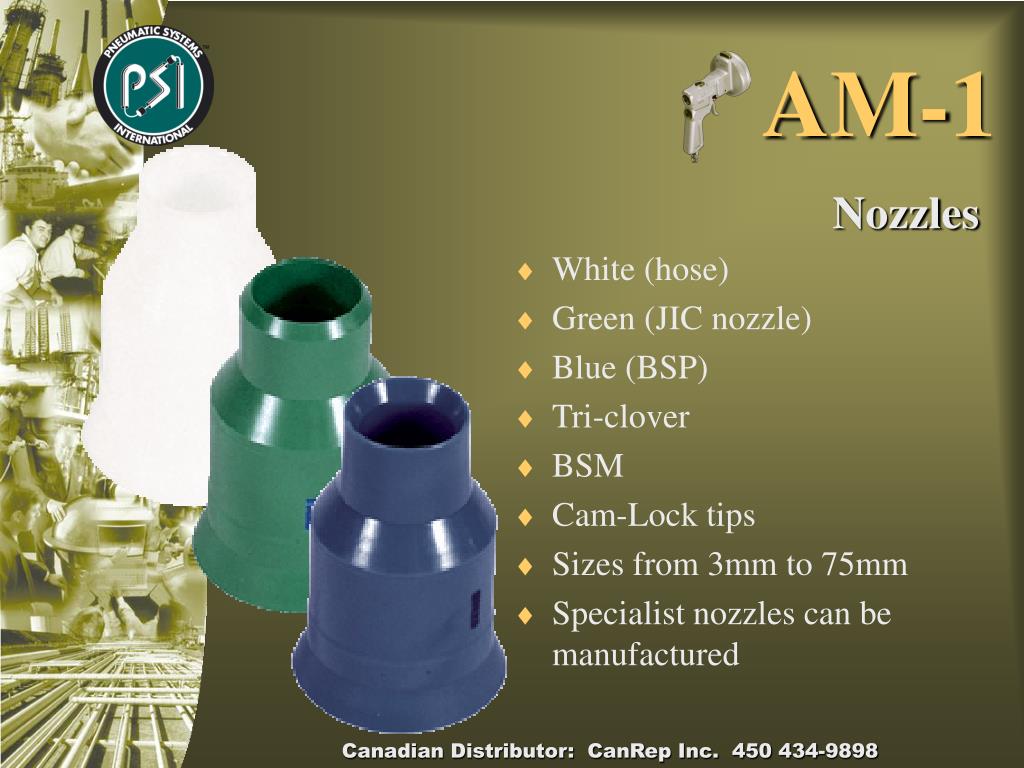

  6. AM-1 Nozzles • White (hose) • Green (JIC nozzle) • Blue (BSP) • Tri-clover • BSM • Cam-Lock tips • Sizes from 3mm to 75mm • Specialist nozzles can be manufactured Canadian Distributor: CanRep Inc. 450 434-9898

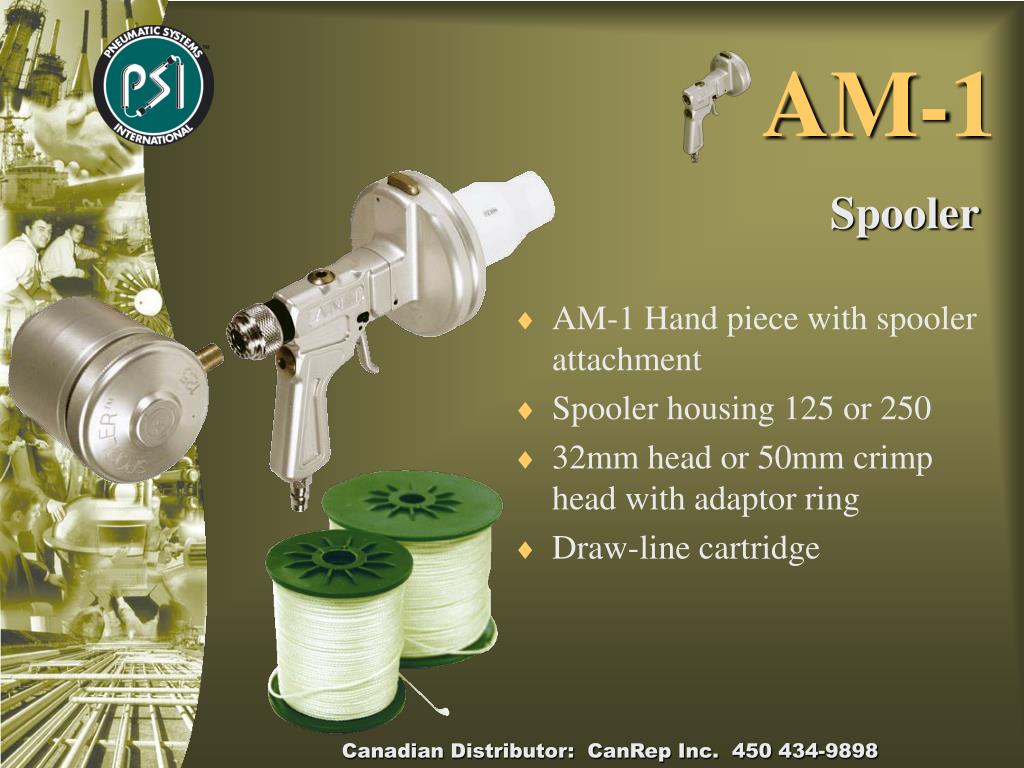

  7. AM-1 Spooler • AM-1 Hand piece with spooler attachment • Spooler housing 125 or 250 • 32mm head or 50mm crimp head with adaptor ring • Draw-line cartridge Canadian Distributor: CanRep Inc. 450 434-9898

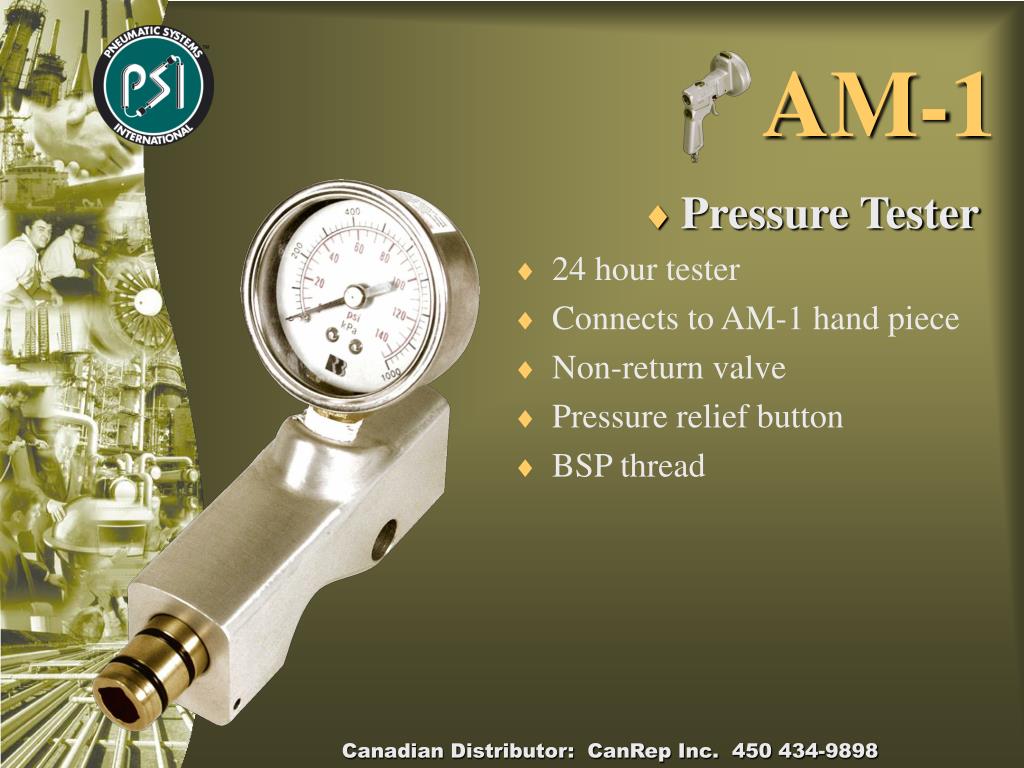

  8. AM-1 • Pressure Tester • 24 hour tester • Connects to AM-1 hand piece • Non-return valve • Pressure relief button • BSP thread Canadian Distributor: CanRep Inc. 450 434-9898

  9. AM-1 Full Kit • Hand piece • 32mm Head (6-32mm) • 50mm Head (38-50mm) • White hose nozzles (6-50mm) • Green tube nozzles (6-50mm) • Blue BSP nozzles (6-50mm) Canadian Distributor: CanRep Inc. 450 434-9898

  10. AM-1 Van Kit • Hand piece • 32mm Head • White hose nozzles (6-32mm) • Green tube nozzles (6-32mm) Canadian Distributor: CanRep Inc. 450 434-9898

  11. AM-1 Crimp Kit • Hand piece • 50mm Crimp Head • White hose nozzles (6 –50mm) Canadian Distributor: CanRep Inc. 450 434-9898

  12. AM-1 Spooler Kit • Spooler Hand piece • 32mm head or 50mm crimp head with adaptor ring • 125 or 250 Spooler • White Nozzles to suit ducting pipe (6-50mm) • Sealing plug Canadian Distributor: CanRep Inc. 450 434-9898

  13. AM-1 Special Kits • Brewery Kit • Fire Mains Kit To Be Added Canadian Distributor: CanRep Inc. 450 434-9898

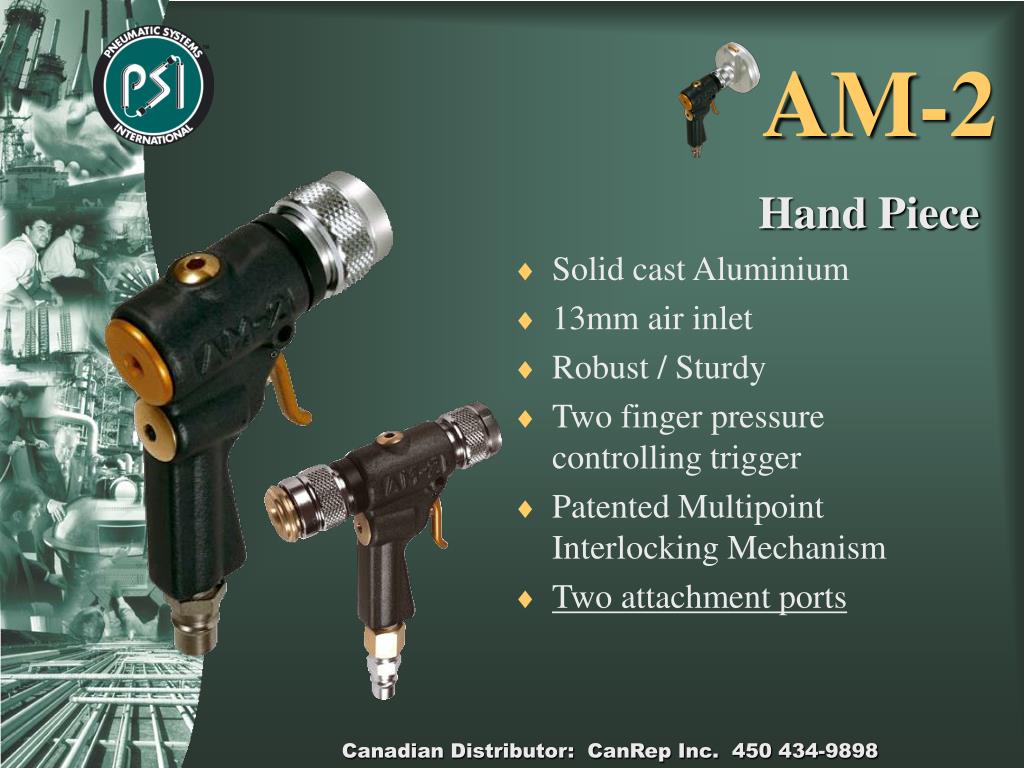

  14. AM-2 Hand Piece • Solid cast Aluminium • 13mm air inlet • Robust / Sturdy • Two finger pressure controlling trigger • Patented Multipoint Interlocking Mechanism • Two attachment ports Canadian Distributor: CanRep Inc. 450 434-9898

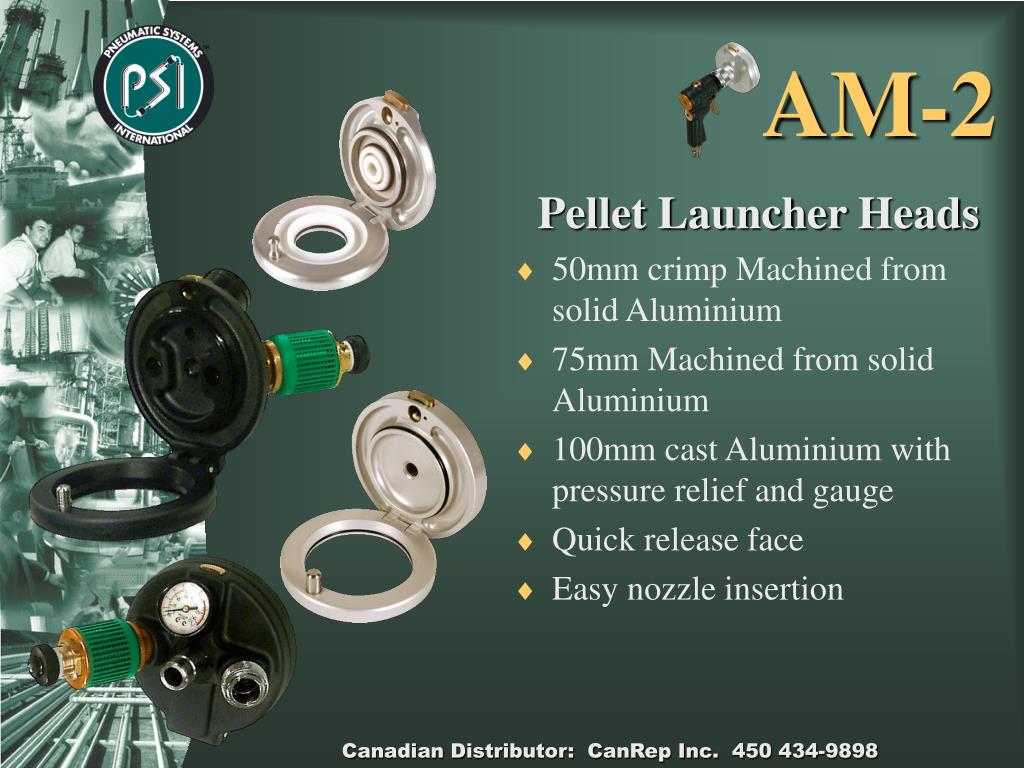

  15. AM-2 Pellet Launcher Heads • 50mm crimp Machined from solid Aluminium • 75mm Machined from solid Aluminium • 100mm cast Aluminium with pressure relief and gauge • Quick release face • Easy nozzle insertion Canadian Distributor: CanRep Inc. 450 434-9898

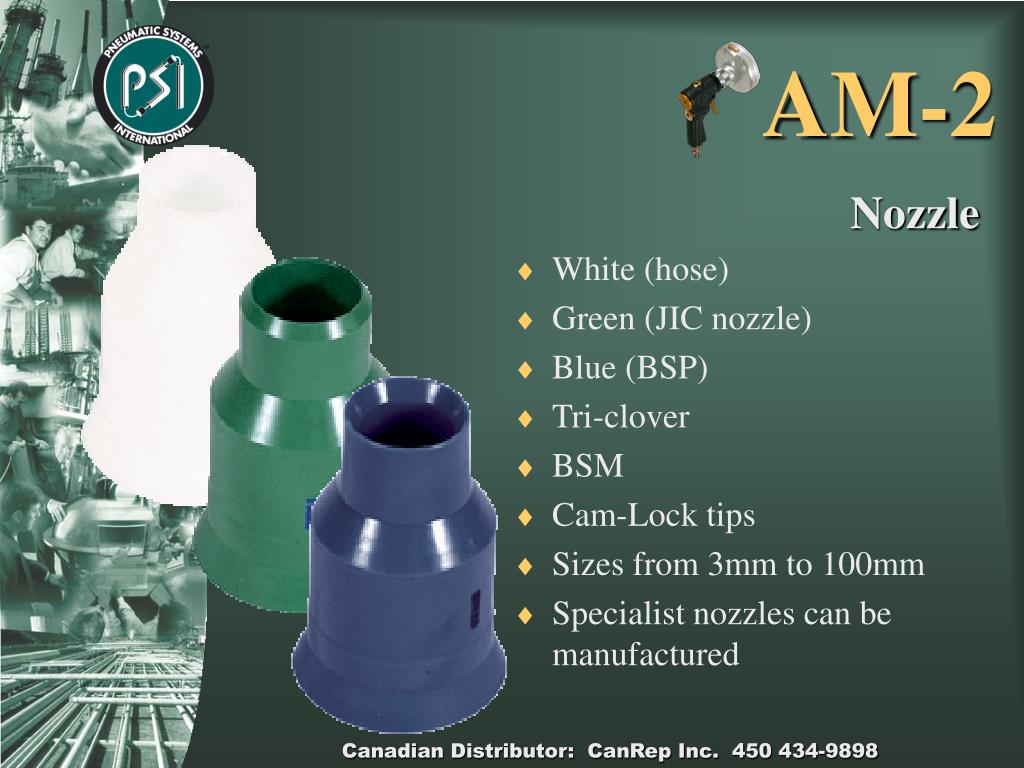

  16. AM-2 Nozzle • White (hose) • Green (JIC nozzle) • Blue (BSP) • Tri-clover • BSM • Cam-Lock tips • Sizes from 3mm to 100mm • Specialist nozzles can be manufactured Canadian Distributor: CanRep Inc. 450 434-9898

  17. AM-3 Hand Piece • Solid cast Aluminium • 19mm air inlet • Robust / Sturdy • Two finger trigger • Specialized air-assisted piston valve trigger • Patented Multipoint Interlocking Mechanism Canadian Distributor: CanRep Inc. 450 434-9898

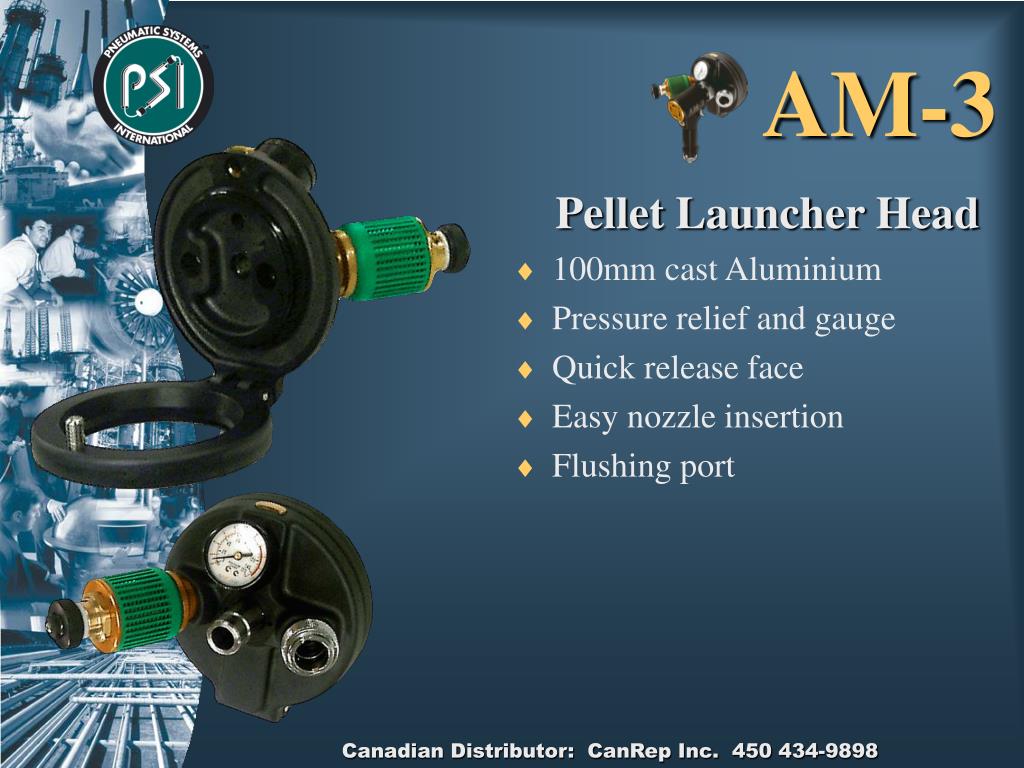

  18. AM-3 Pellet Launcher Head • 100mm cast Aluminium • Pressure relief and gauge • Quick release face • Easy nozzle insertion • Flushing port Canadian Distributor: CanRep Inc. 450 434-9898

  19. AM-3 Nozzle • Sizes from 75mm to 100mm Canadian Distributor: CanRep Inc. 450 434-9898

  20. AM-3 Flange Adaptor Ring • Billet Aluminium • Locator pins • Attachment holes • Safety pin locking holes Canadian Distributor: CanRep Inc. 450 434-9898

  21. AM-3 Flange Head • Cast Aluminium • Safety locking pin • Locating holes • Pressure relief valve • Pressure gauge • Flushing port Canadian Distributor: CanRep Inc. 450 434-9898

  22. AM-3 Flange Kit System • AM-3 hand piece • Flange Head • Adaptor Ring • Pressure relief valve • Pressure gauge Canadian Distributor: CanRep Inc. 450 434-9898

  23. AM-3 Canadian Distributor: CanRep Inc. 450 434-9898

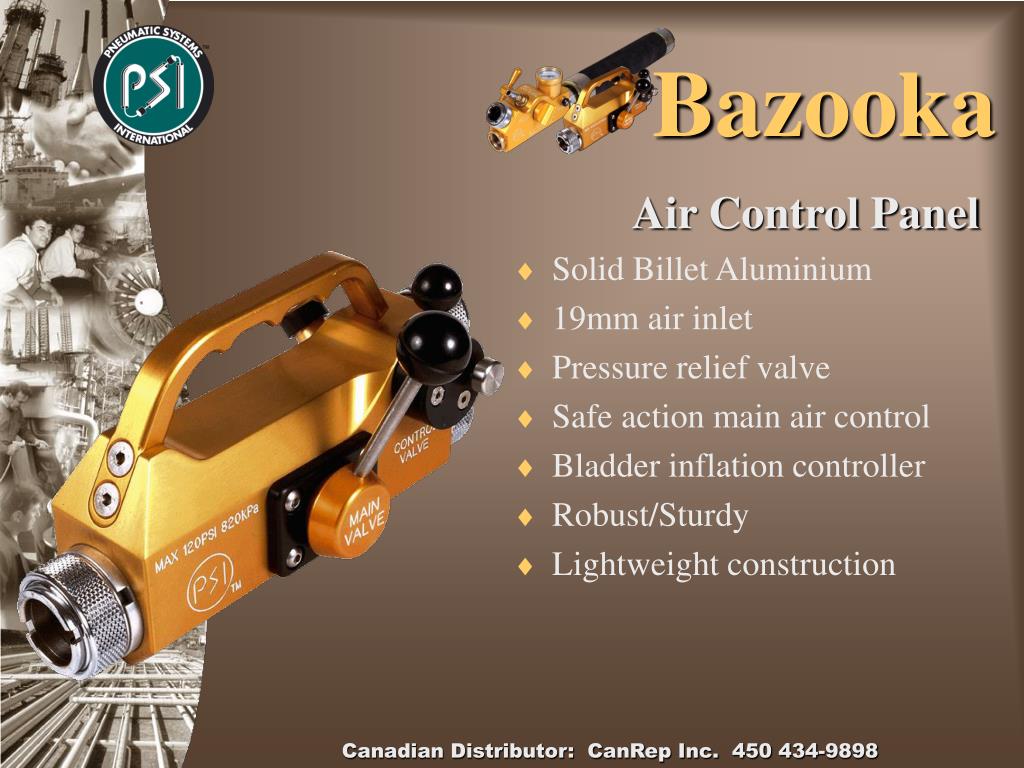

  24. Bazooka Air Control Panel • Solid Billet Aluminium • 19mm air inlet • Pressure relief valve • Safe action main air control • Bladder inflation controller • Robust/Sturdy • Lightweight construction Canadian Distributor: CanRep Inc. 450 434-9898

  25. Bazooka Bazooka Block • Pressure relief valve • Pressure gauge • Shaft inflation control valve • Shaft deflation control valve • Tool free assembly Canadian Distributor: CanRep Inc. 450 434-9898

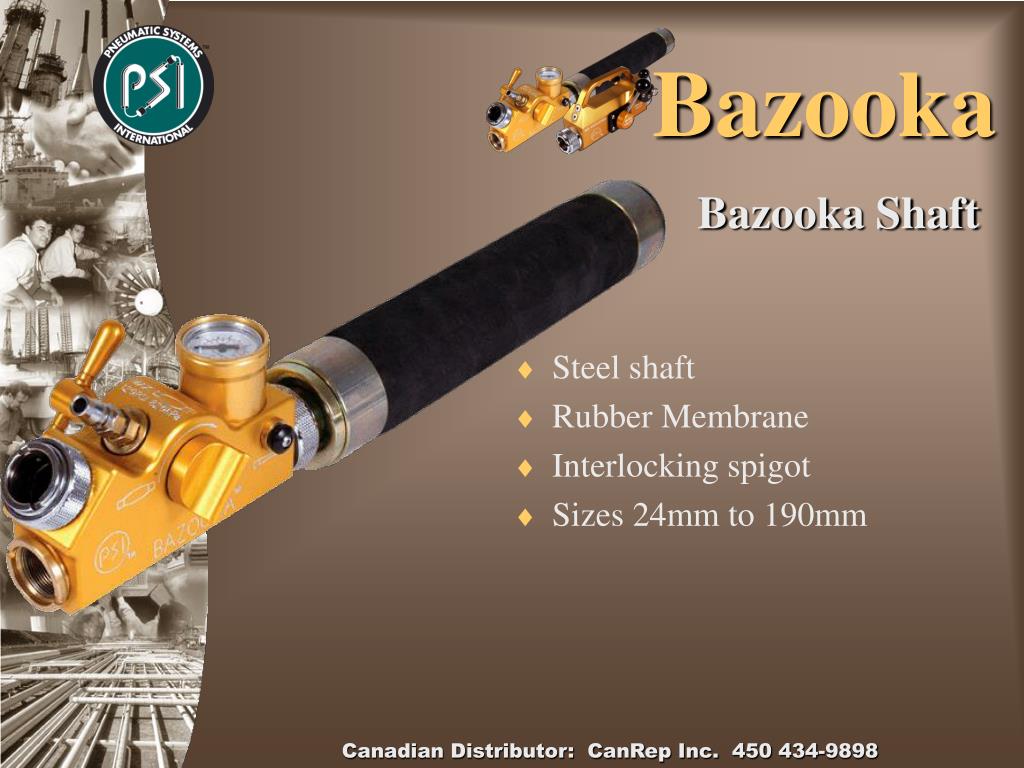

  26. Bazooka Bazooka Shaft • Steel shaft • Rubber Membrane • Interlocking spigot • Sizes 24mm to 190mm Canadian Distributor: CanRep Inc. 450 434-9898

  27. Bazooka • Braking Reeler • Line used 2.5mm – 6mm • Line re winder • Constant braking system • Solid construction Canadian Distributor: CanRep Inc. 450 434-9898

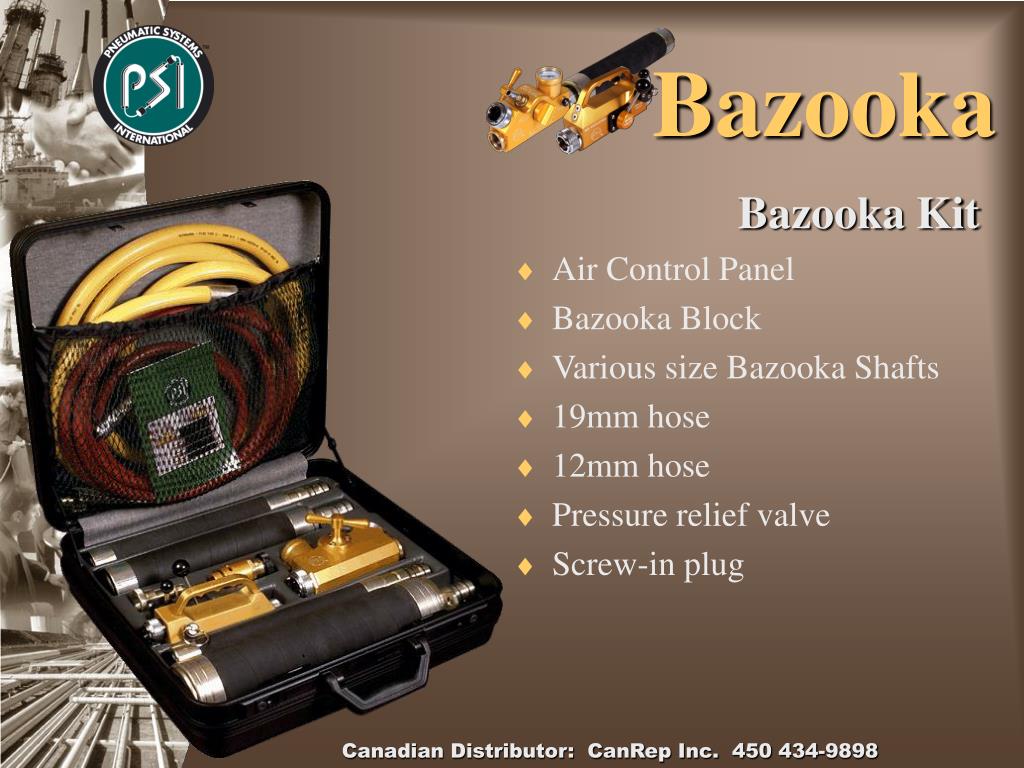

  28. Bazooka Bazooka Kit • Air Control Panel • Bazooka Block • Various size Bazooka Shafts • 19mm hose • 12mm hose • Pressure relief valve • Screw-in plug Canadian Distributor: CanRep Inc. 450 434-9898

  29. Consumables Standard Pellet • Re-constituted foam • 3mm – 150mm • Removal of larger particles • Negotiates straights, 900 1800 and 3600 bends Canadian Distributor: CanRep Inc. 450 434-9898

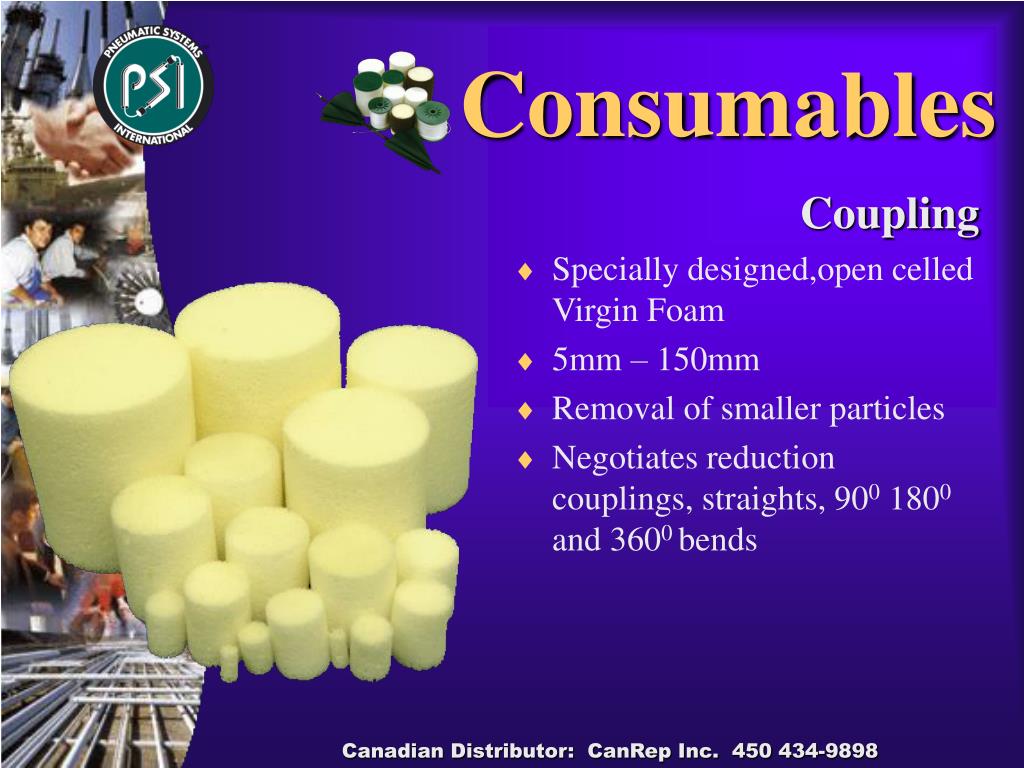

  30. Consumables Coupling • Specially designed,open celled Virgin Foam • 5mm – 150mm • Removal of smaller particles • Negotiates reduction couplings, straights, 900 1800 and 3600 bends Canadian Distributor: CanRep Inc. 450 434-9898

  31. Consumables Abrasive Pellet • Standard Pellet with abrasive pad • 5mm – 150mm • Removal of surface rust and mill scale • Negotiates straights, 900 1800 and 3600 bends Canadian Distributor: CanRep Inc. 450 434-9898

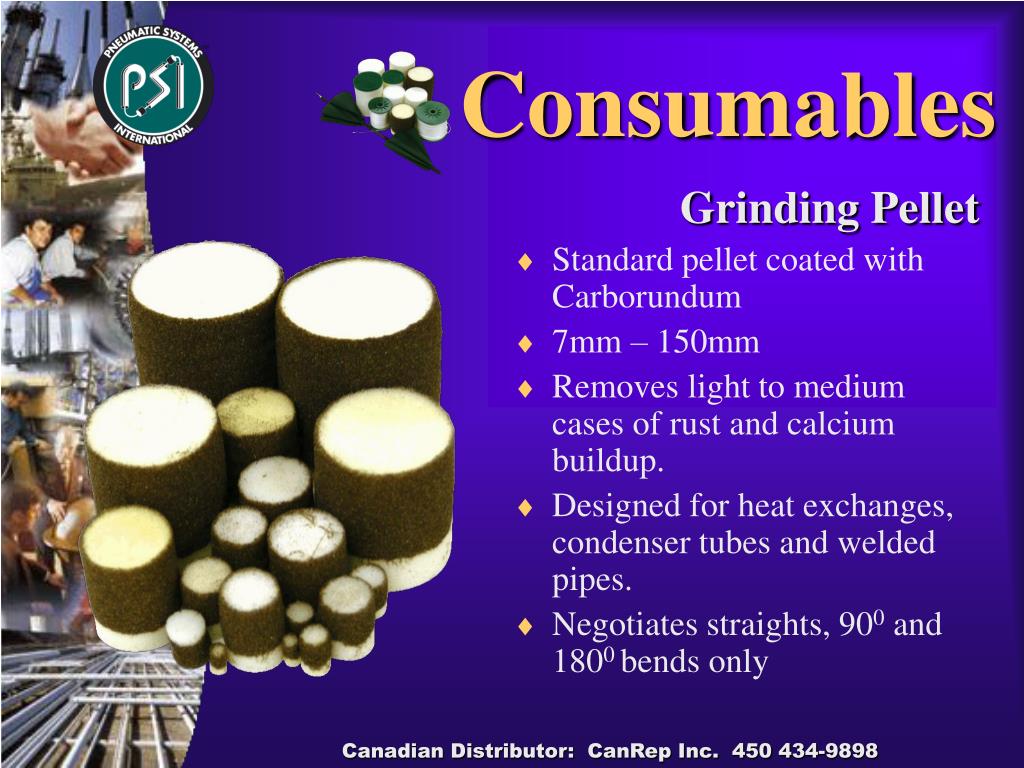

  32. Consumables Grinding Pellet • Standard pellet coated with Carborundum • 7mm – 150mm • Removes light to medium cases of rust and calcium buildup. • Designed for heat exchanges, condenser tubes and welded pipes. • Negotiates straights, 900 and 1800 bends only Canadian Distributor: CanRep Inc. 450 434-9898

  33. Consumables Shuttle • Cone shaped air collectors • Draws line through straight and 90o bends in vacant & occupied conduit • Triples or doubles collectors • 40mm –110mm Canadian Distributor: CanRep Inc. 450 434-9898

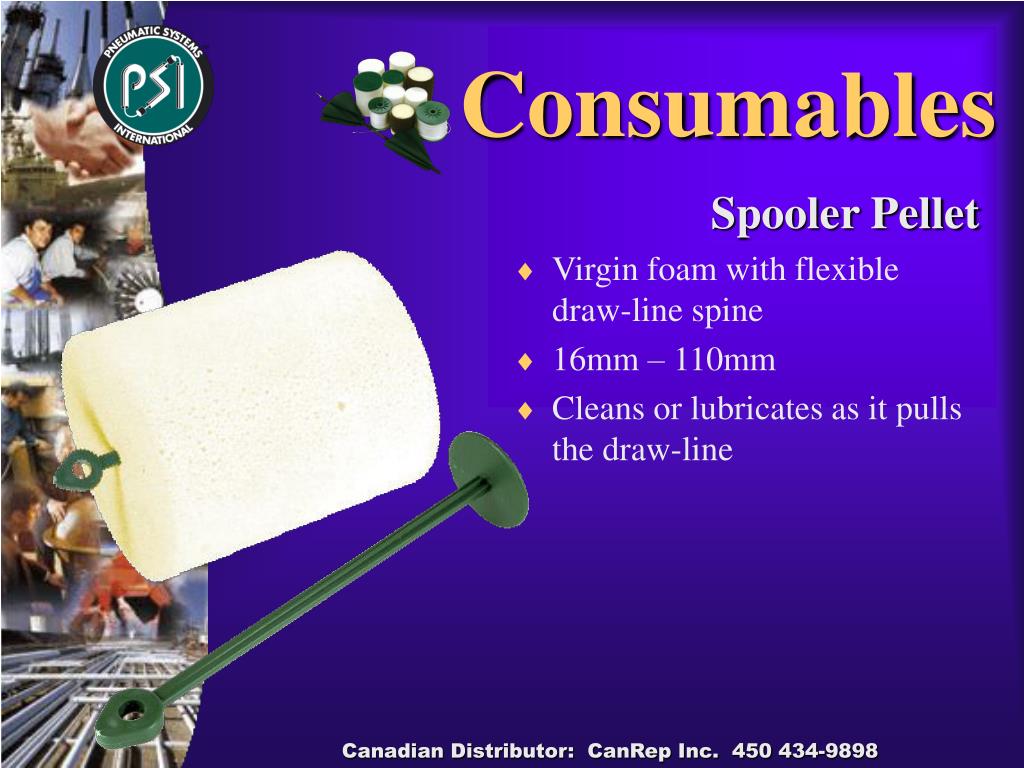

  34. Consumables Spooler Pellet • Virgin foam with flexible draw-line spine • 16mm – 110mm • Cleans or lubricates as it pulls the draw-line Canadian Distributor: CanRep Inc. 450 434-9898

  35. Consumables Cable Packers • Green virgin foam • Profile cut in multiple shapes and sizes • Assists sealing of conduits with existing cables Canadian Distributor: CanRep Inc. 450 434-9898

  36. Consumables Draw-line & Tape • 2mm woven polyester string • 125m or 250m on a spool • Currently experimenting with flat stranded Polyester tape Canadian Distributor: CanRep Inc. 450 434-9898

  37. THANK YOU Tel: (450) 434-9898 Email: sales@canrep.com Canadian Distributor: CanRep Inc. 450 434-9898
