  1. GigaPort Next Generation Network&SURFnet6 Erik Radius Manager Network Services SURFnet, The Netherlands Joint Techs Workshop Columbus, OH - July 20, 2004

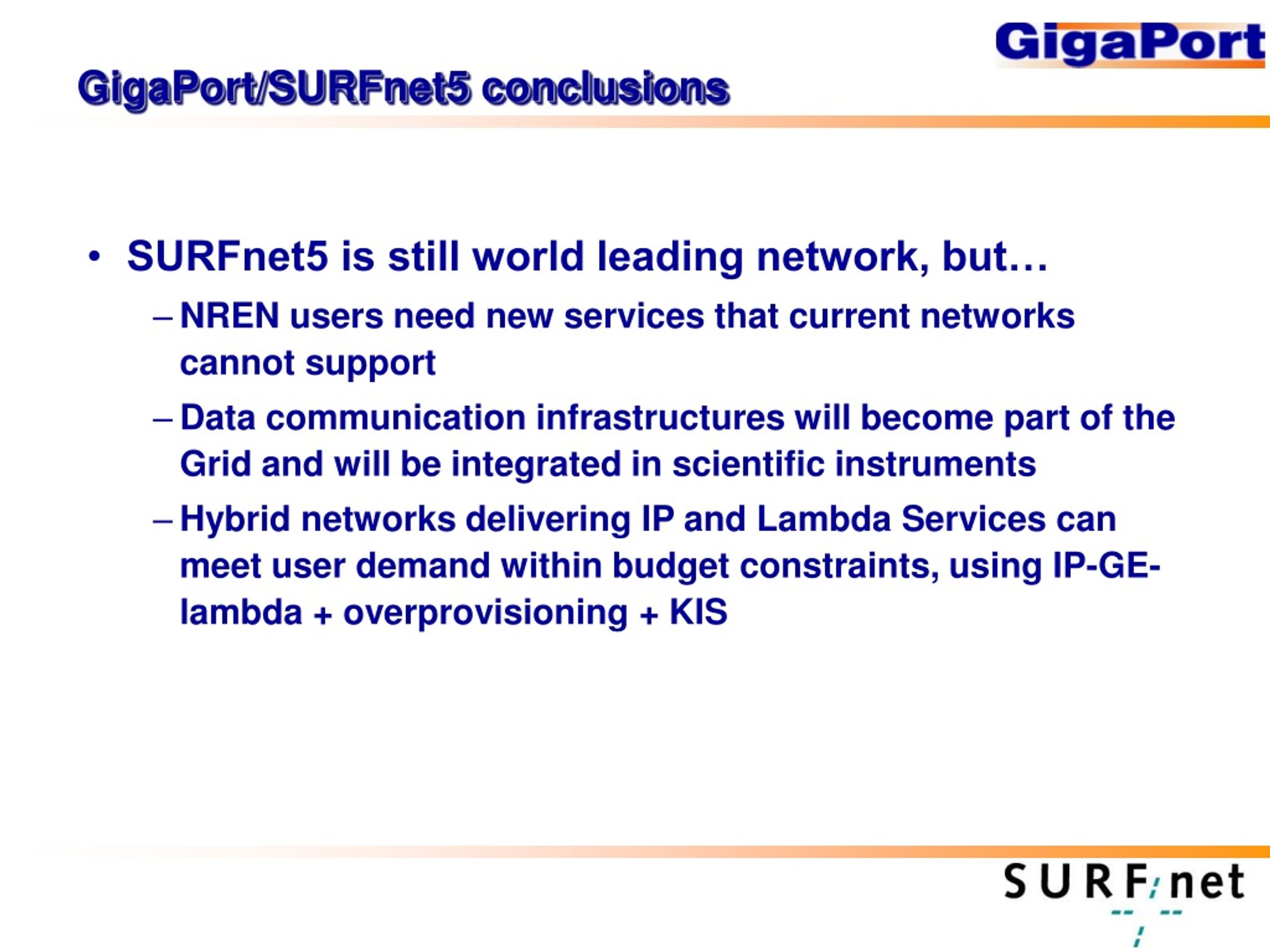

  2. GigaPort/SURFnet5 conclusions • SURFnet5 is still world leading network, but… • NREN users need new services that current networks cannot support • Data communication infrastructures will become part of the Grid and will be integrated in scientific instruments • Hybrid networks delivering IP and Lambda Services can meet user demand within budget constraints, using IP-GE-lambda + overprovisioning + KIS

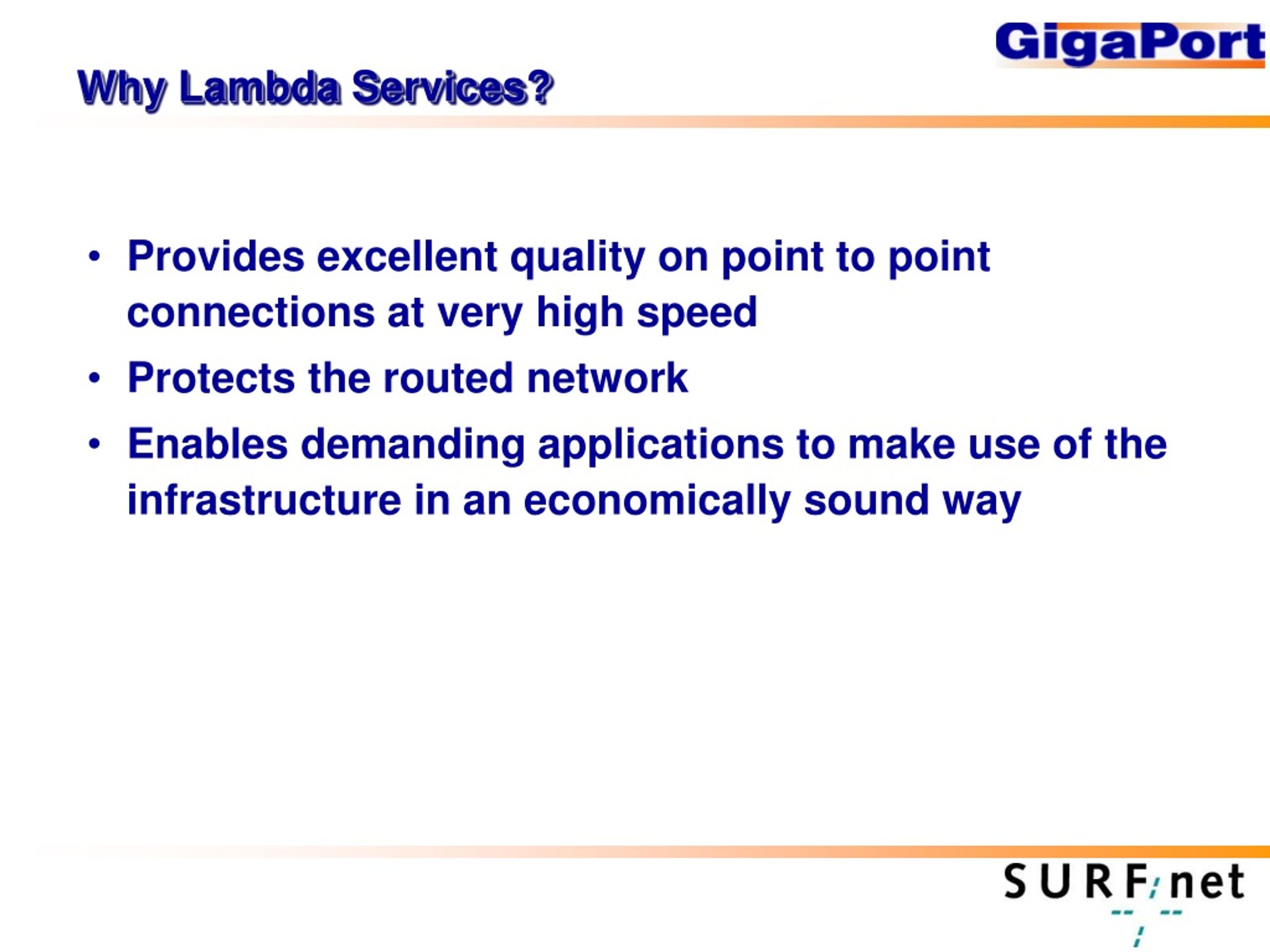

  3. Why Lambda Services? • Provides excellent quality on point to point connections at very high speed • Protects the routed network • Enables demanding applications to make use of the infrastructure in an economically sound way

  4. SURFnet’s new Industry Partners (2004-2010) • Optical equipment • Ethernet equipment • Network management equipment • Routing equipment • Installation services • Maintenance services

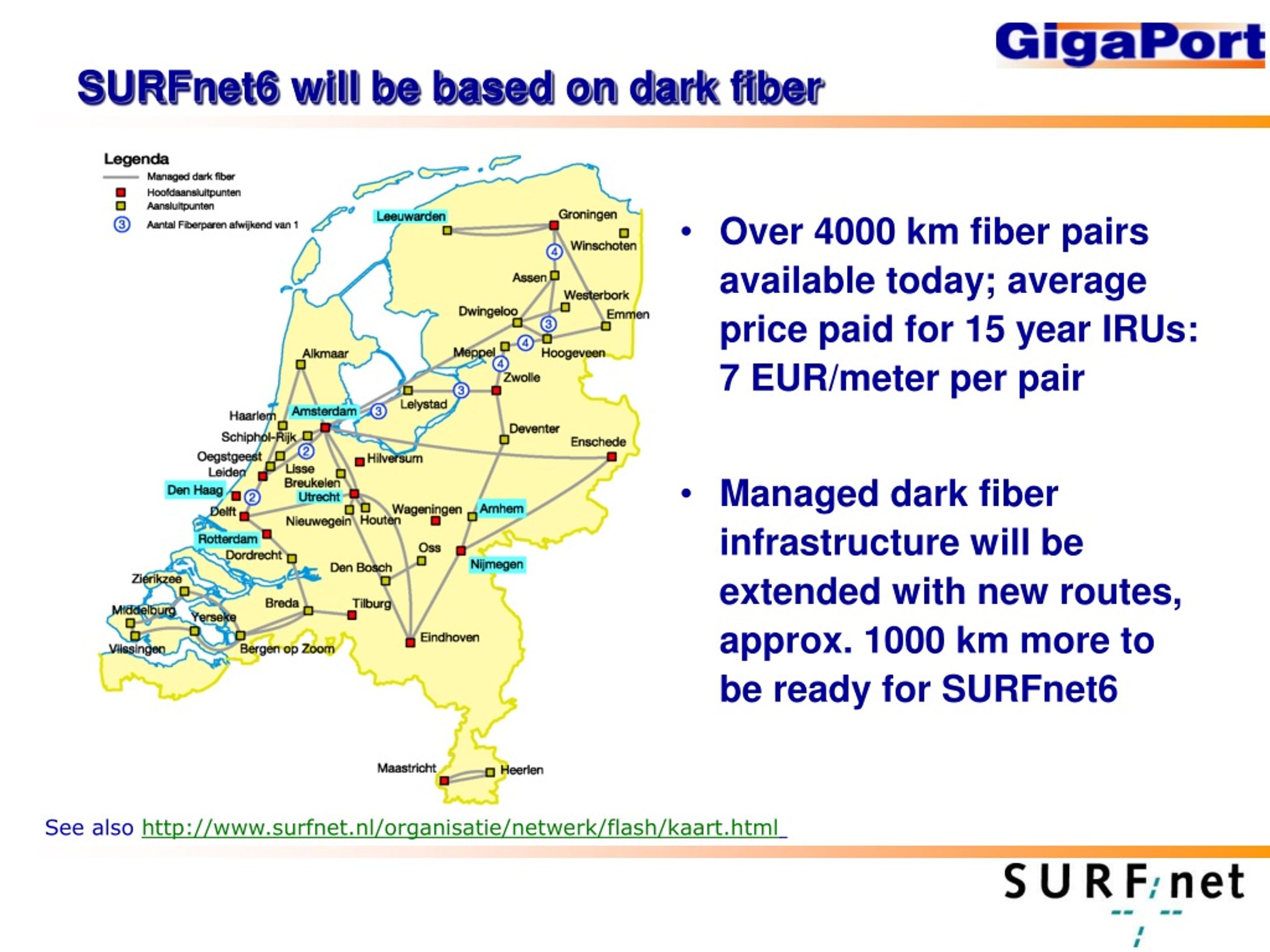

  5. SURFnet6 will be based on dark fiber • Over 4000 km fiber pairs available today; average price paid for 15 year IRUs: 7 EUR/meter per pair • Managed dark fiber infrastructure will be extended with new routes, approx. 1000 km more to be ready for SURFnet6 See also http://www.surfnet.nl/organisatie/netwerk/flash/kaart.html

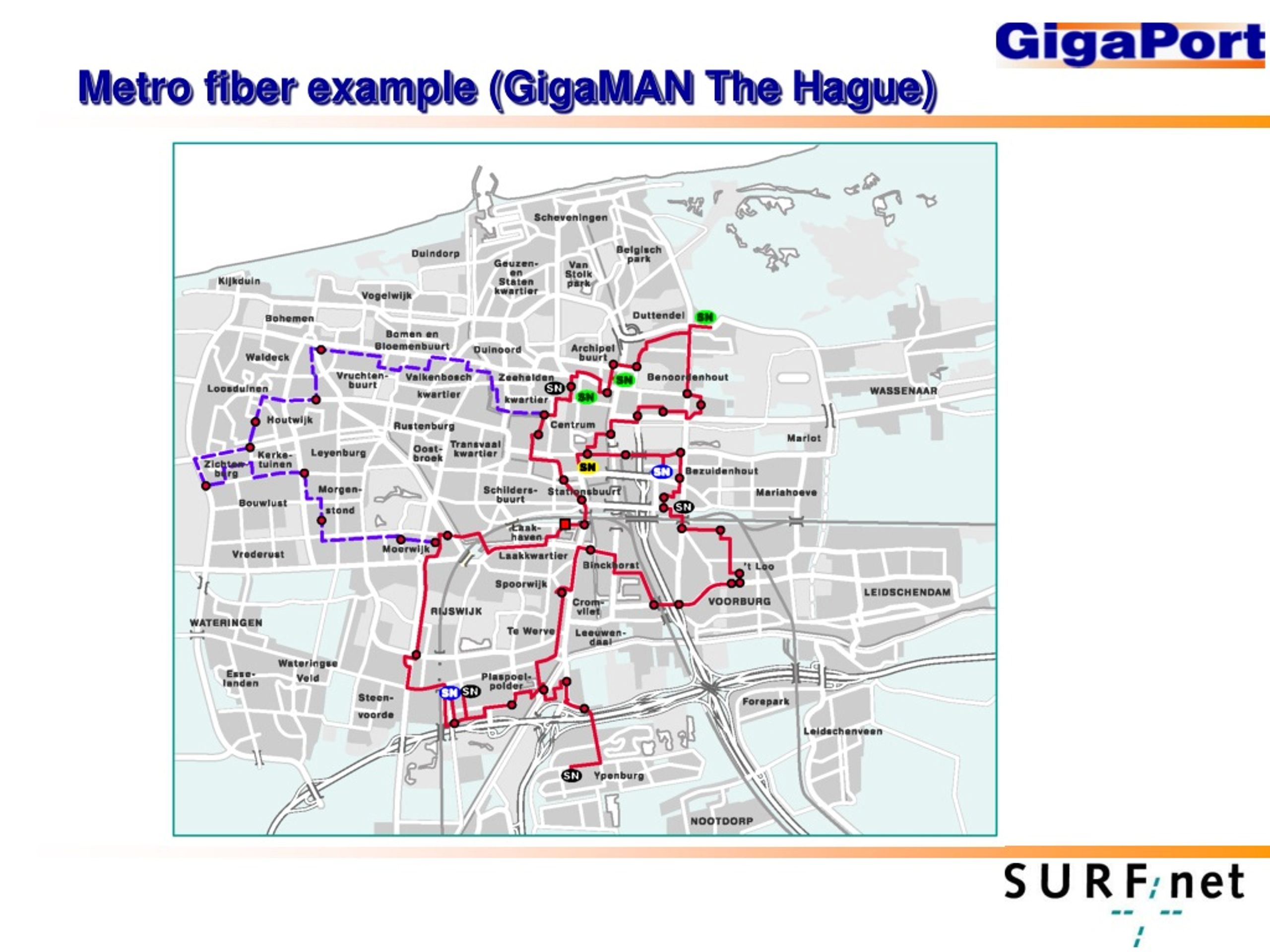

  6. Metro fiber example (GigaMAN The Hague)

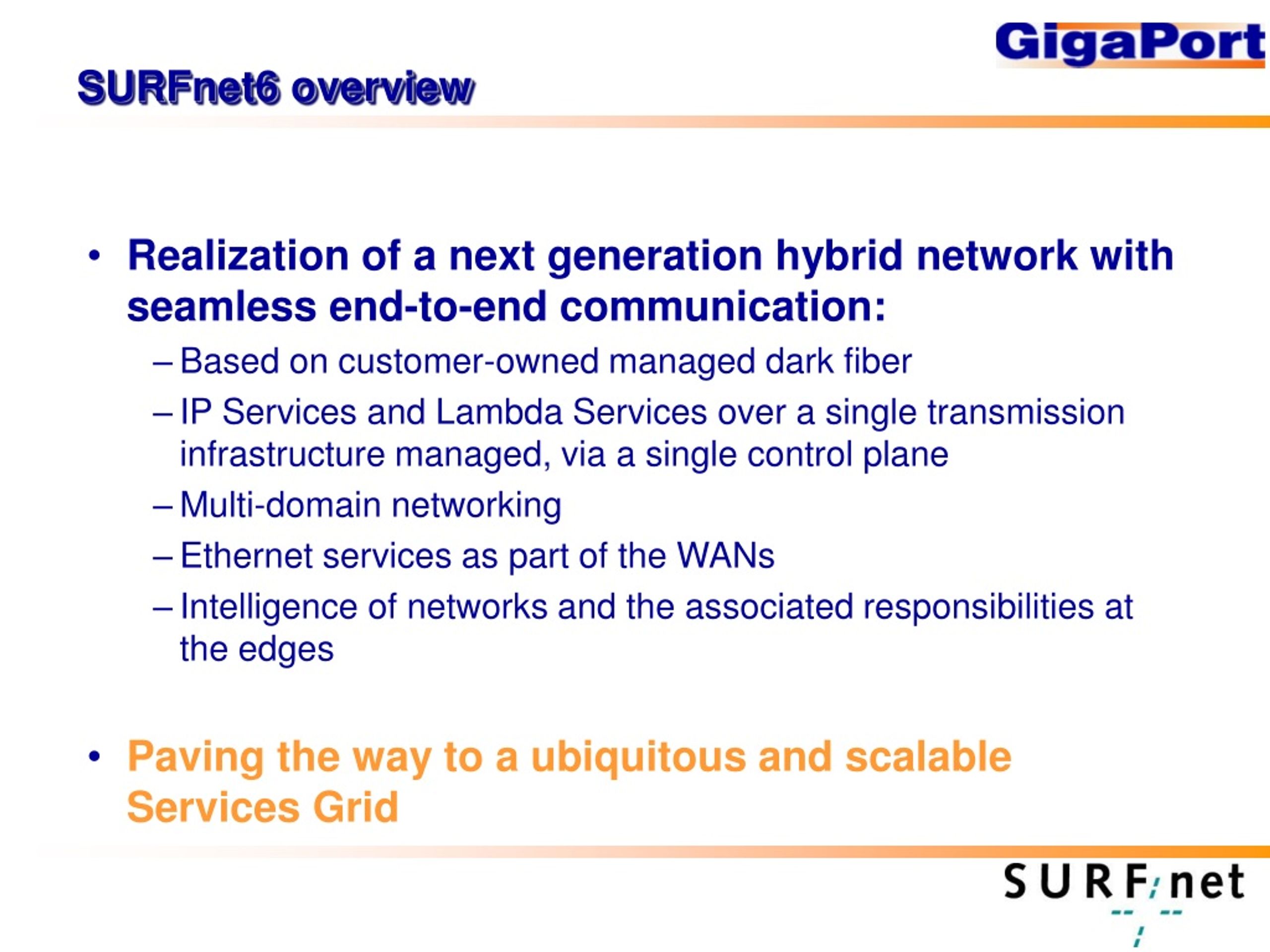

  7. SURFnet6 overview • Realization of a next generation hybrid network with seamless end-to-end communication: • Based on customer-owned managed dark fiber • IP Services and Lambda Services over a single transmission infrastructure managed, via a single control plane • Multi-domain networking • Ethernet services as part of the WANs • Intelligence of networks and the associated responsibilities at the edges • Paving the way to a ubiquitous and scalable Services Grid

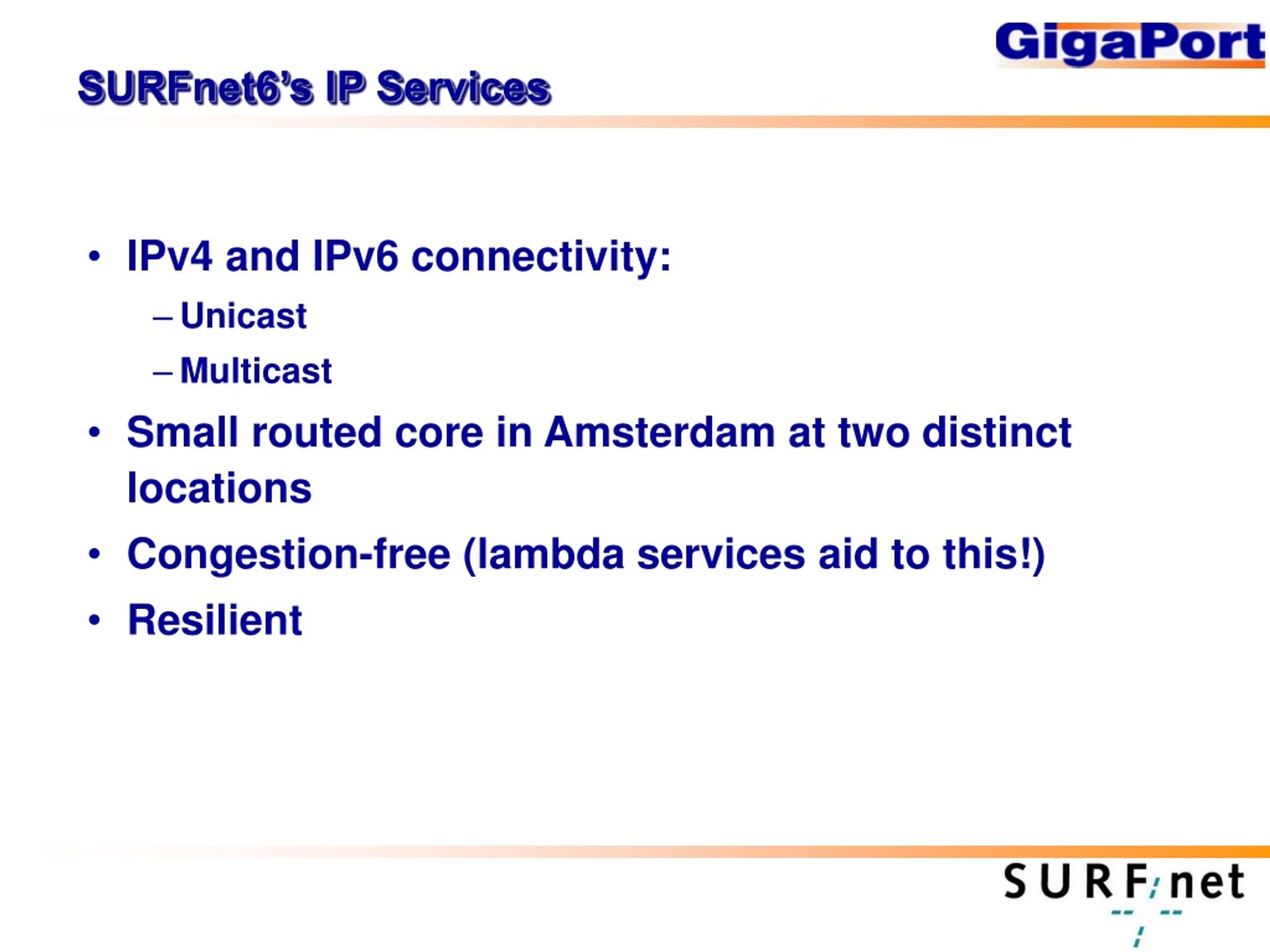

  8. SURFnet6’s IP Services • IPv4 and IPv6 connectivity: • Unicast • Multicast • Small routed core in Amsterdam at two distinct locations • Congestion-free (lambda services aid to this!) • Resilient

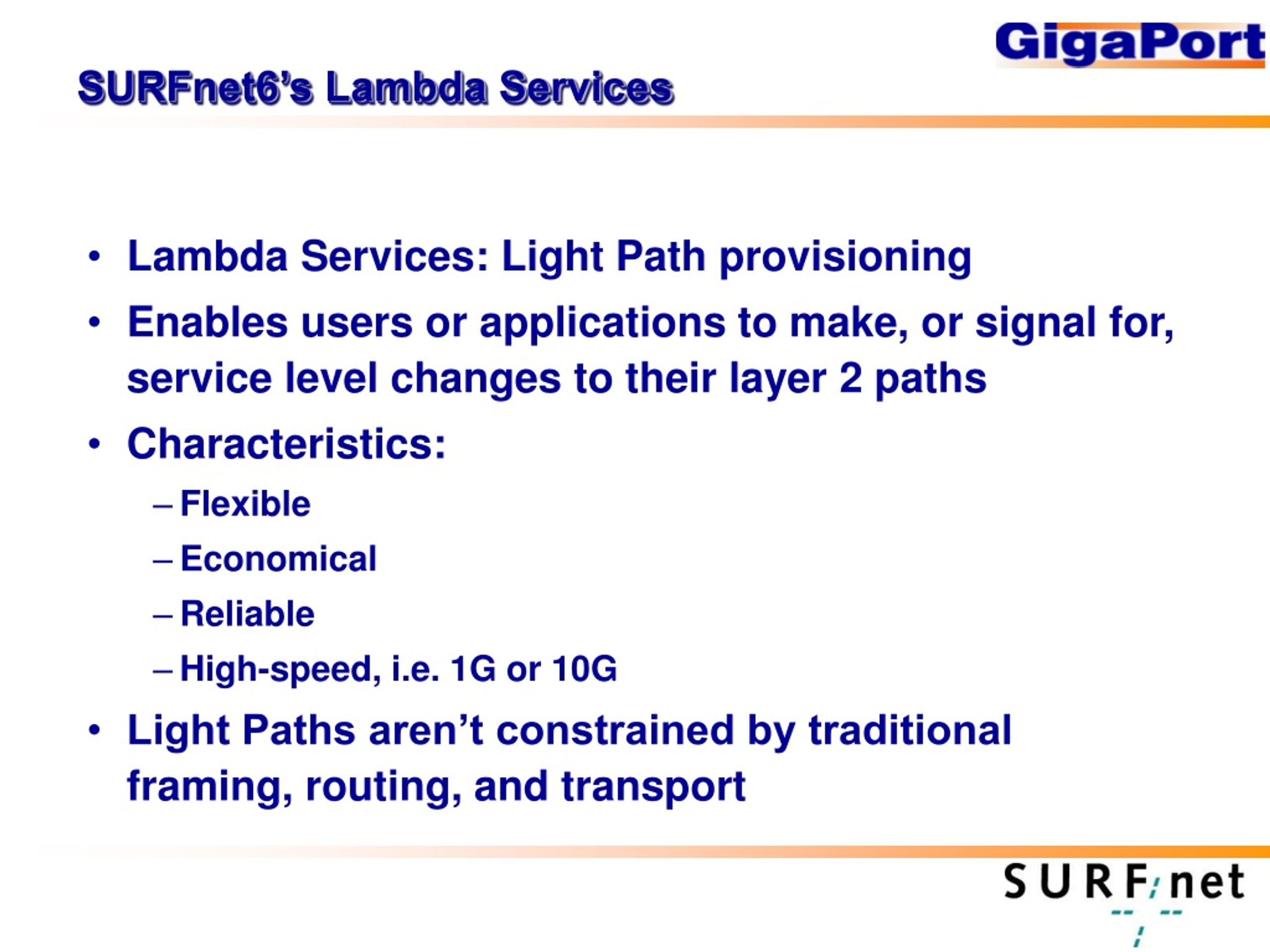

  9. SURFnet6’s Lambda Services • Lambda Services: Light Path provisioning • Enables users or applications to make, or signal for, service level changes to their layer 2 paths • Characteristics: • Flexible • Economical • Reliable • High-speed, i.e. 1G or 10G • Light Paths aren’t constrained by traditional framing, routing, and transport

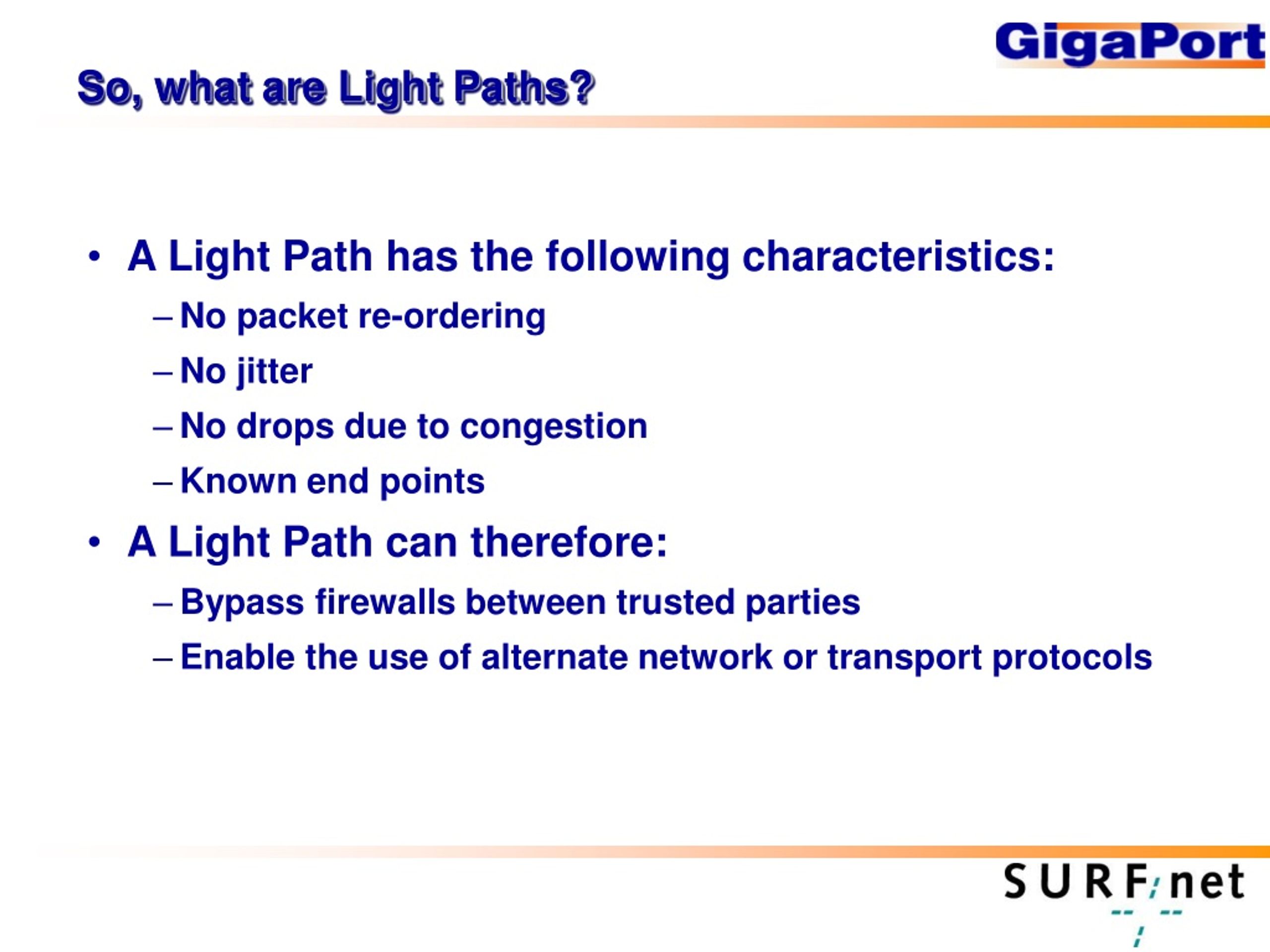

  10. So, what are Light Paths? • A Light Path has the following characteristics: • No packet re-ordering • No jitter • No drops due to congestion • Known end points • A Light Path can therefore: • Bypass firewalls between trusted parties • Enable the use of alternate network or transport protocols

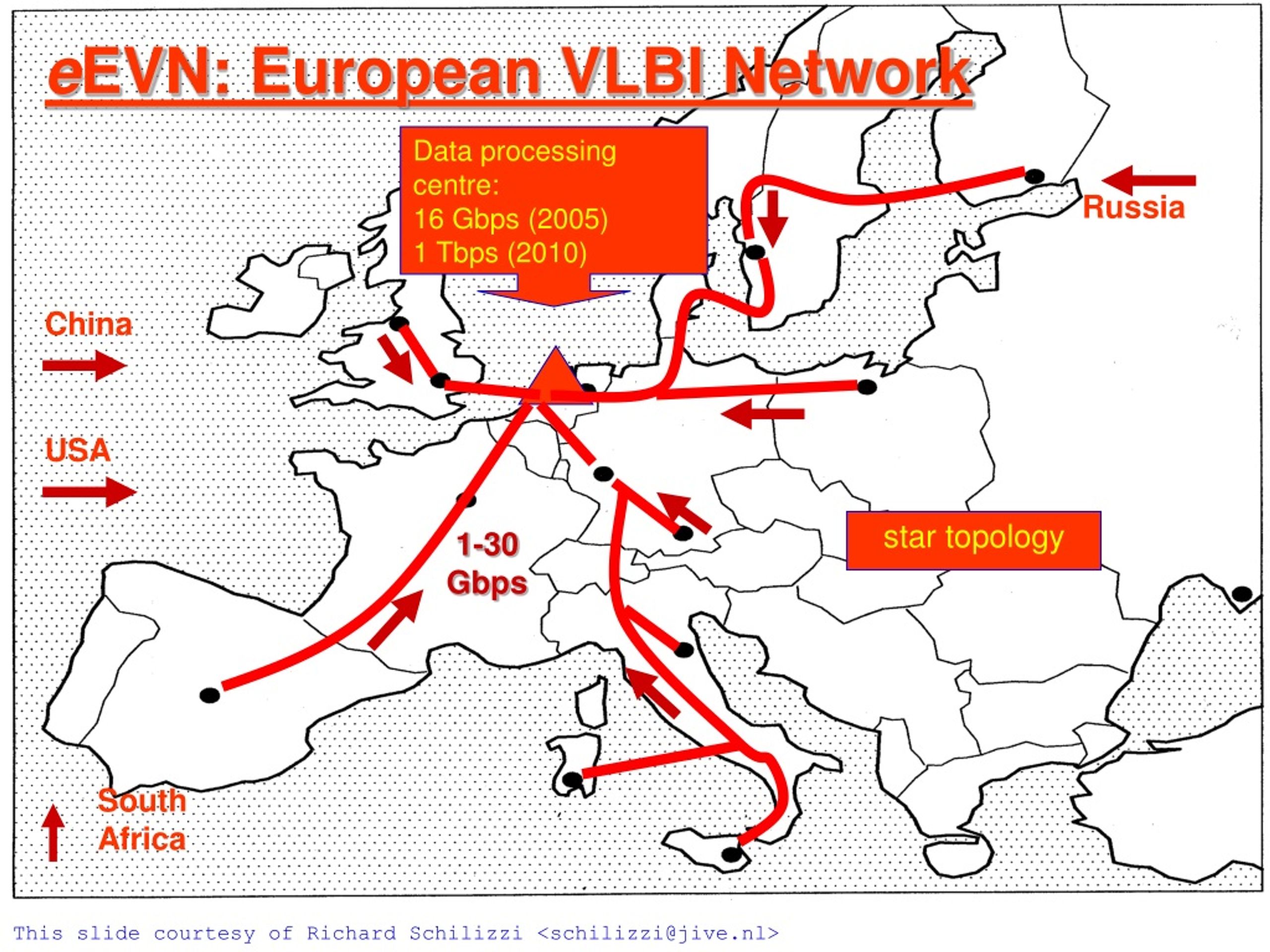

  11. eEVN: European VLBI Network Data processing centre: 16 Gbps (2005)1 Tbps(2010) Russia China USA asymmetric star topology 1-30Gbps South Africa This slide courtesy of Richard Schilizzi <schilizzi@jive.nl>

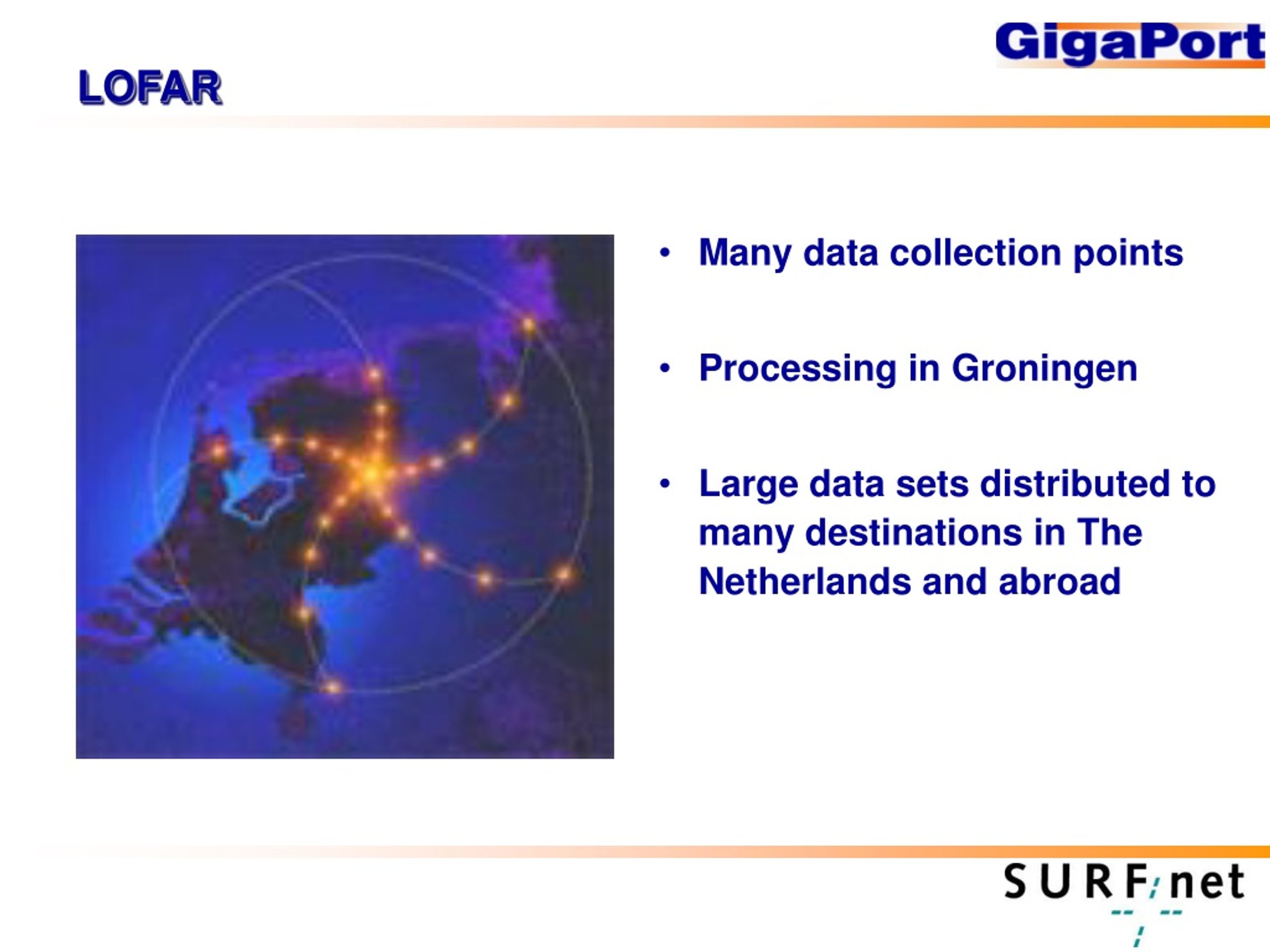

  12. LOFAR • Many data collection points • Processing in Groningen • Large data sets distributed to many destinations in The Netherlands and abroad

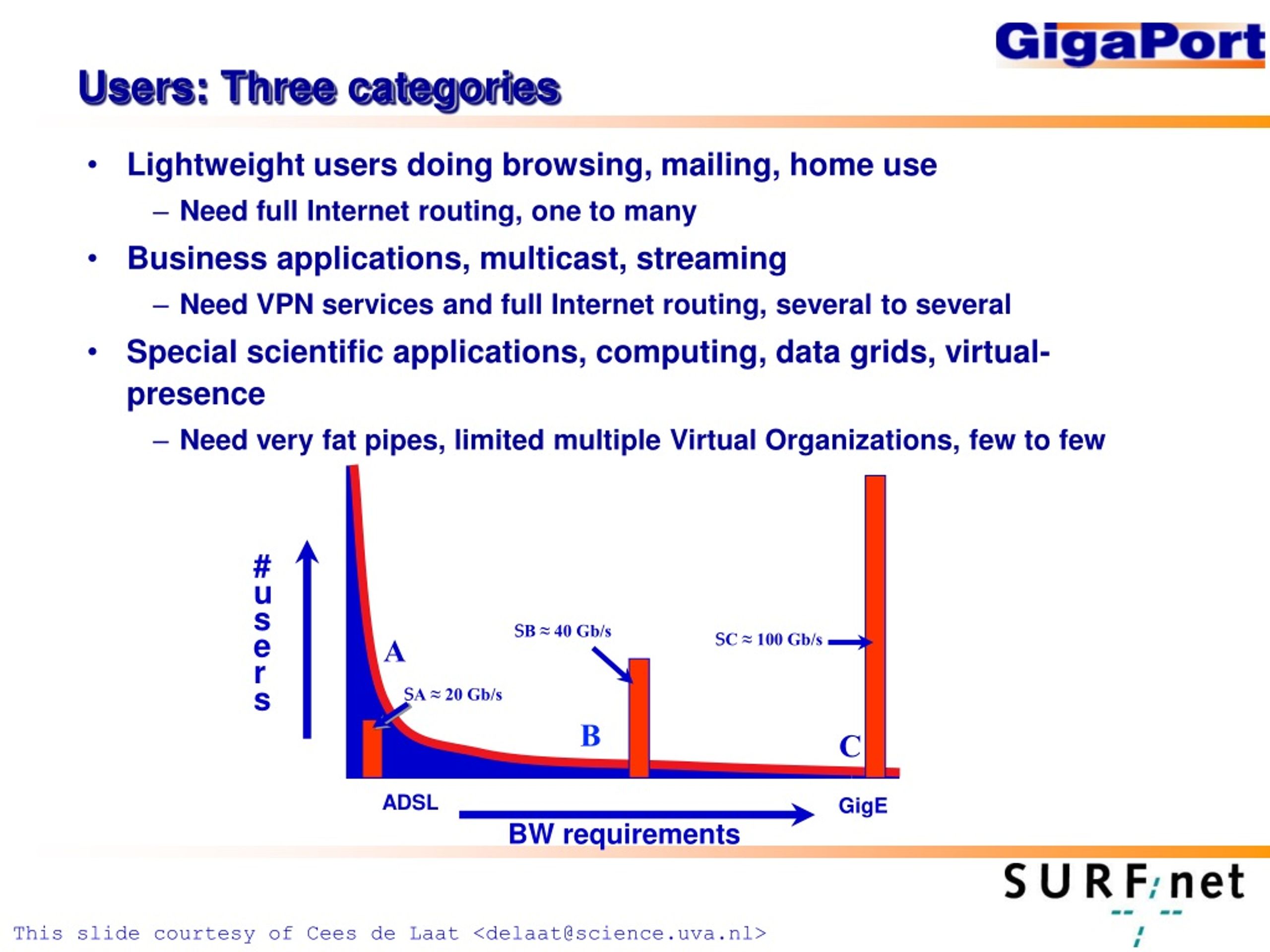

  13. # u s e r s SB ≈ 40 Gb/s SC ≈ 100 Gb/s A SA ≈ 20 Gb/s B C ADSL GigE BW requirements Users: Three categories • Lightweight users doing browsing, mailing, home use • Need full Internet routing, one to many • Business applications, multicast, streaming • Need VPN services and full Internet routing, several to several • Special scientific applications, computing, data grids, virtual-presence • Need very fat pipes, limited multiple Virtual Organizations, few to few This slide courtesy of Cees de Laat <delaat@science.uva.nl>

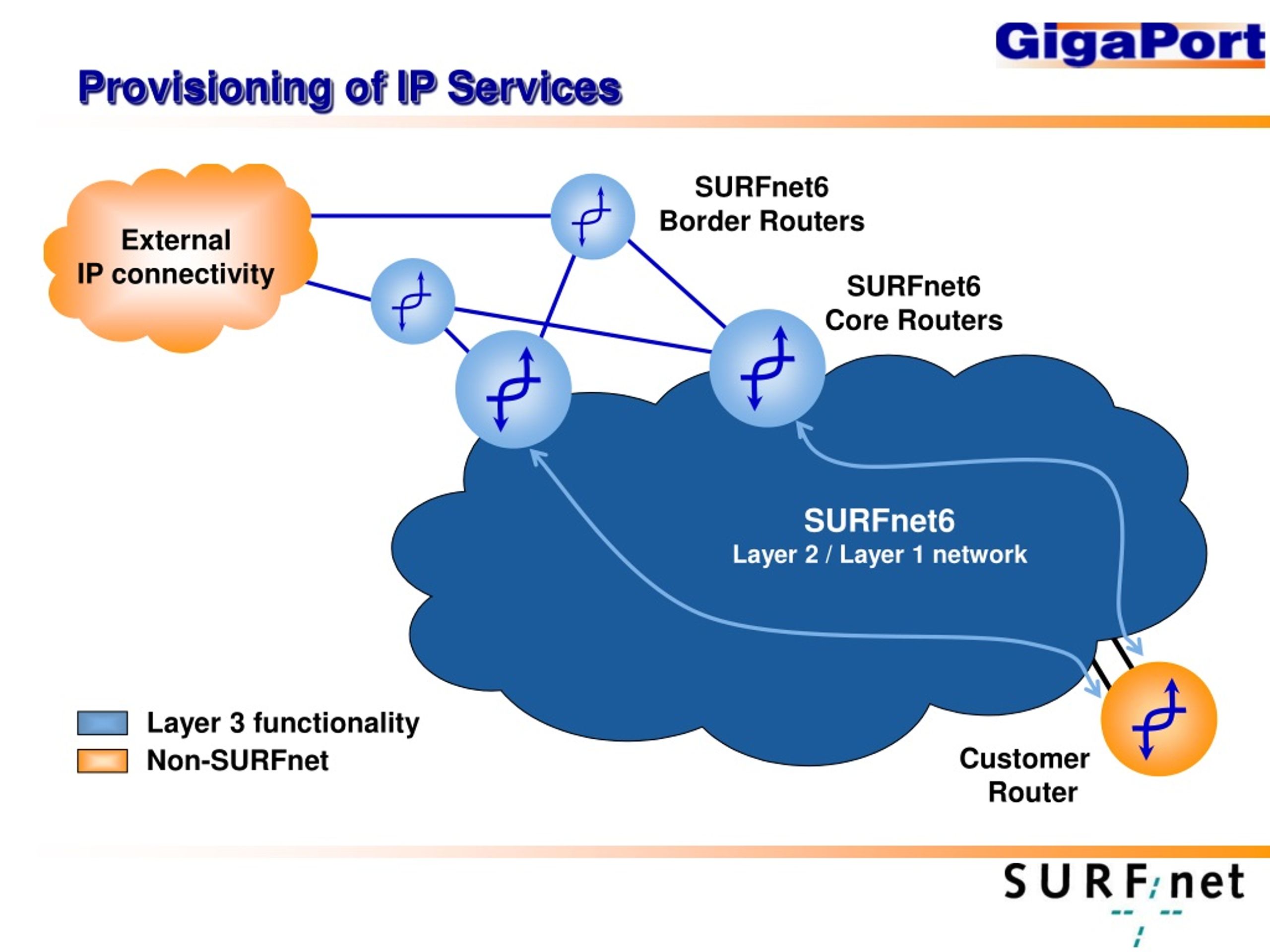

  14. Provisioning of IP Services SURFnet6 Border Routers External IP connectivity SURFnet6 Core Routers SURFnet6 Layer 2 / Layer 1 network Layer 3 functionality Customer Router Non-SURFnet

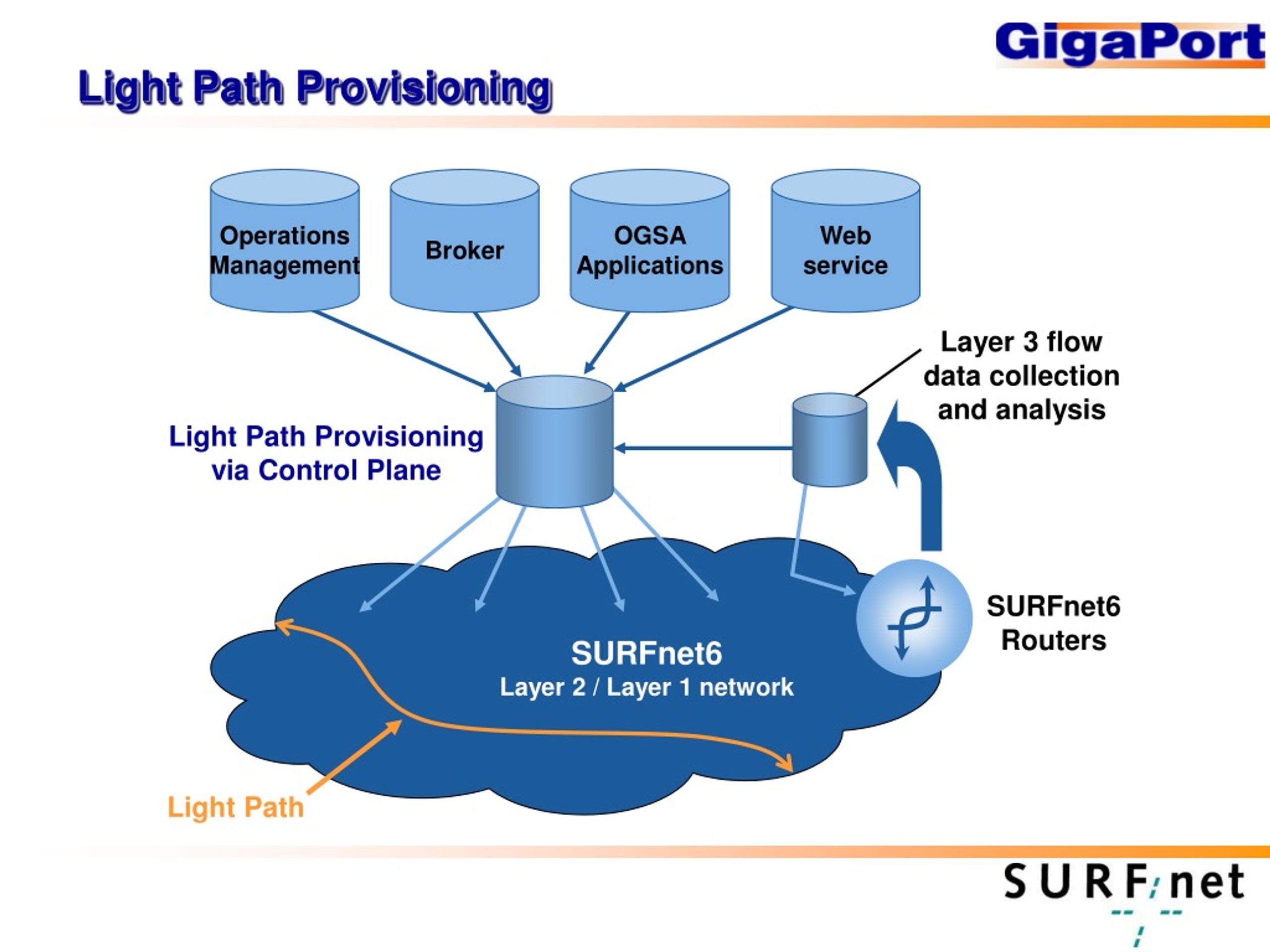

  15. Light Path Provisioning Operations Management Broker OGSA Applications Web service Layer 3 flowdata collectionand analysis Light Path Provisioning via Control Plane SURFnet6 Routers SURFnet6 Layer 2 / Layer 1 network Light Path

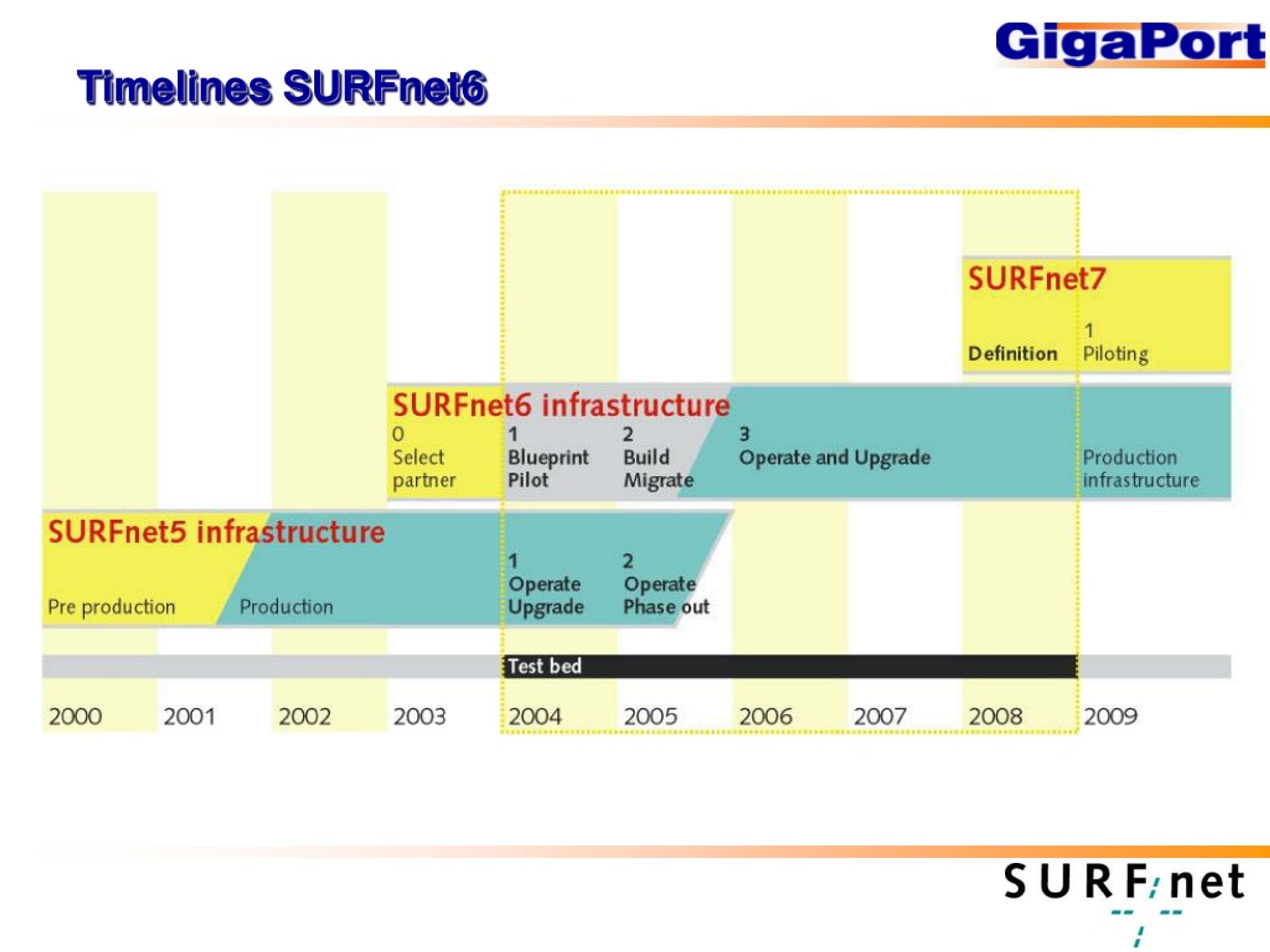

  16. Timelines SURFnet6

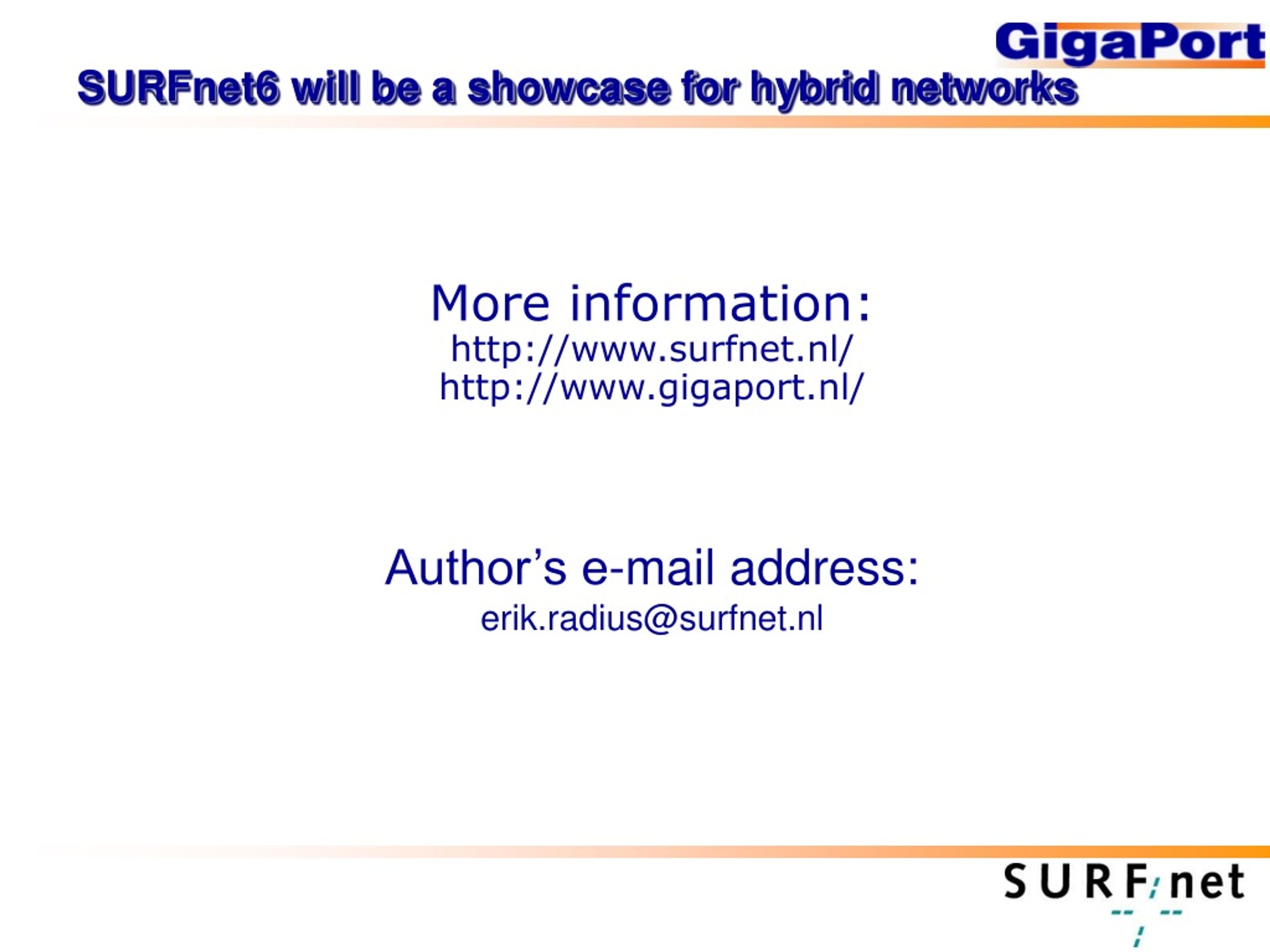

  17. SURFnet6 will be a showcase for hybrid networks More information: http://www.surfnet.nl/ http://www.gigaport.nl/ Author’s e-mail address: erik.radius@surfnet.nl
