Trimble Site Positioning Systems

1. TrimbleSite Positioning Systems SPS Total Station Portfolio

2. Why Purchase A Total Station ? • High Accuracy Work • Structures, control, monitoring, precise measurements • Difficult Operating Conditions • Under bridges, under canopy, in tunnels, tight corridors • Hazardous and Hard to Reach Areas • Safety in high production and hazardous areas such as deep cuttings, rock blasting, stockpiles, deep excavations, mines, quarries, landfills and tunnels where reflectorless and surface scanning make it easy to measure accurately from a safe location • High Accuracy Machine Guidance • Paving, fine grading, finishing with PCS and GCS products • Small Site Construction • Where one universal instrument can be used for site measurement, stakeout, earthworks, grading, paving and checking operations • General Site Measurement and Stakeout tasks

3. Where Is The ROI From Total Stations? • Productivity Gains • Servo, Autolock, Robotic, UTS and Reflectorless alternatives all increase productivity over mechanical instrumentation. • Automated measurements include Autolock aiming, DR+ Servo for scanning, servos for pointing, turning and tracking • Universal Operation • One instrument that meets all your needs from site measurement and staking, through earthworks to grading and finishing provides continuous value throughout a project lifecycle • Accuracy • High accuracy technologies help you to push grading tolerances, saving on expensive materials on each and every project • Labor Saving • Reflectorless and Robotic operation allow you to work with fewer personnel, one person can do the job of two allowing teams to work more effectively • SCS900 Software • Improved data management, instant reporting via MS Excel, faster data preparation and data analysis and processing – increases efficiencies throughout the project

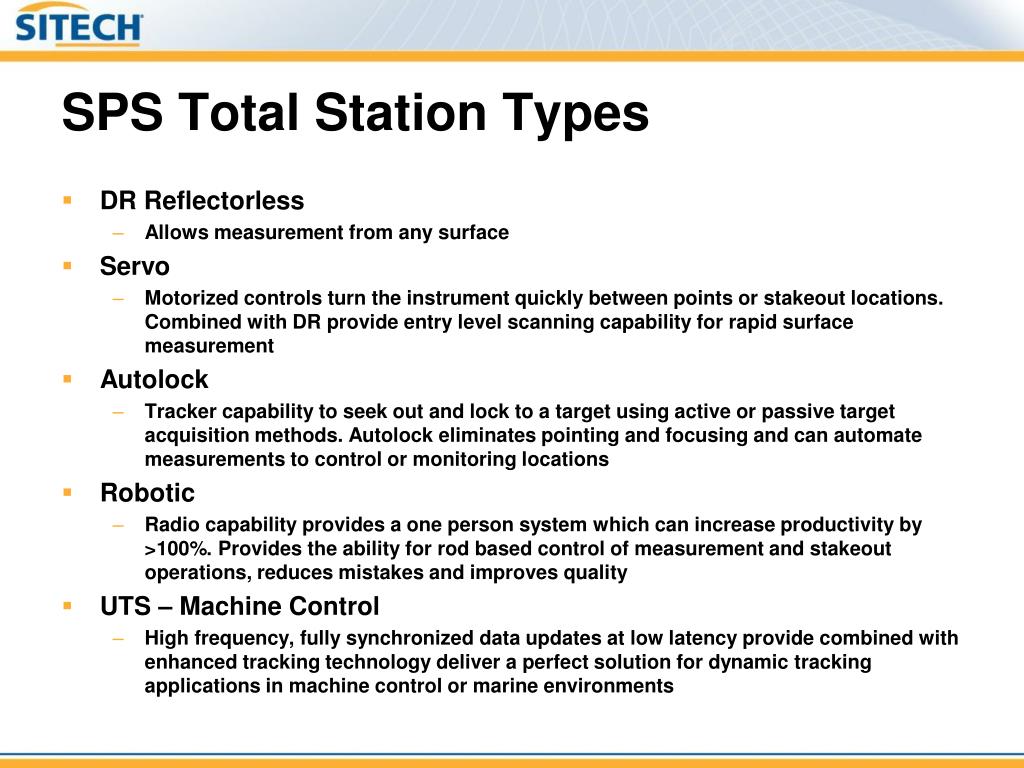

4. SPS Total Station Types • DR Reflectorless • Allows measurement from any surface • Servo • Motorized controls turn the instrument quickly between points or stakeout locations. Combined with DR provide entry level scanning capability for rapid surface measurement • Autolock • Tracker capability to seek out and lock to a target using active or passive target acquisition methods. Autolock eliminates pointing and focusing and can automate measurements to control or monitoring locations • Robotic • Radio capability provides a one person system which can increase productivity by >100%. Provides the ability for rod based control of measurement and stakeout operations, reduces mistakes and improves quality • UTS – Machine Control • High frequency, fully synchronized data updates at low latency provide combined with enhanced tracking technology deliver a perfect solution for dynamic tracking applications in machine control or marine environments

5. Product Family Comparison SPSx20 • Robotic only • Phase comparison DR Std EDM • <500m Robotic range • 86 deg / sec servo speed • No TCU attachment plate • No Bluetooth • No DR scanning capability • Magdrive • Multitrack (Active & Passive) • No Surepoint • No machine control capability • Non synchronized data • 2.5Hz update rate in TRK • Variable latency SPSx30 • Servo, Autolock, Robotic • Pulsed laser DR+ EDM • <800m Robotic range • 115 deg / sec servo speed • TCU attachment plate • Bluetooth • 3Hz scanning • Magdrive • Multitrack (Active & Passive) • Surepoint • UTS Machine control capability • Synchronized data • 20Hz update rate in TRK • Low fixed latency and radio jitter Main Stream / General Purpose High Value / High Performance

6. Accuracy Models

7. Reflectorless Specifications

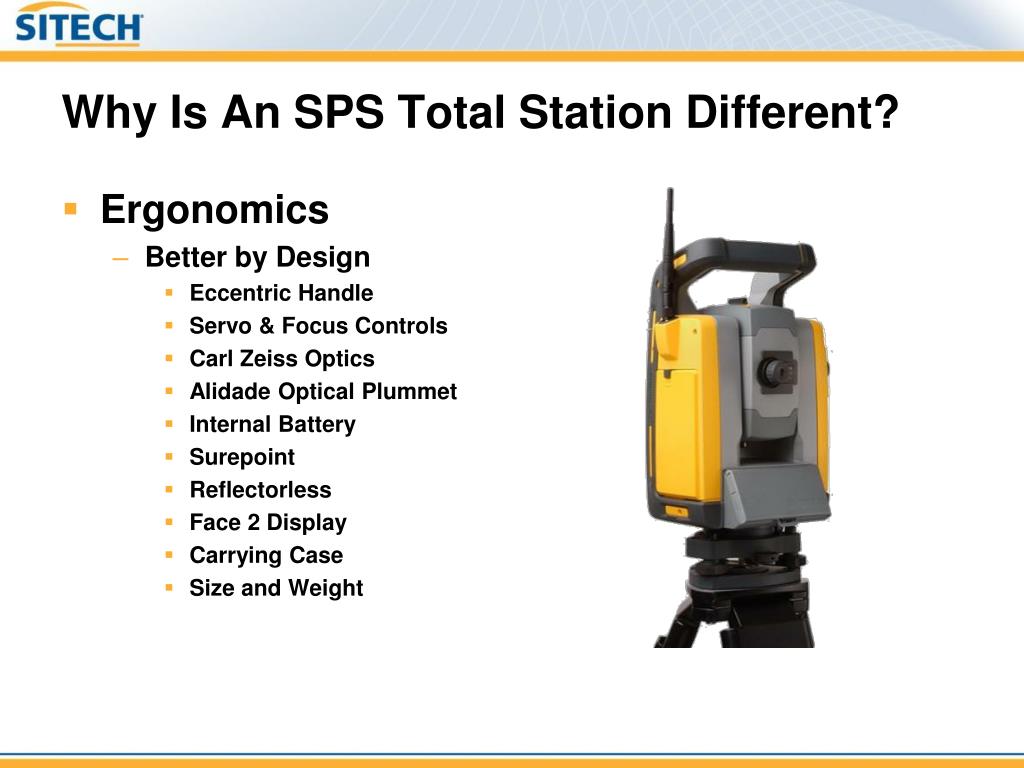

8. Why Is An SPS Total Station Different? • Ergonomics • Better by Design • Eccentric Handle • Servo & Focus Controls • Carl Zeiss Optics • Alidade Optical Plummet • Internal Battery • Surepoint • Reflectorless • Face 2 Display • Carrying Case • Size and Weight

9. Why Is An SPS Total Station Different? • Highest Productivity • MagDrive Servos • 115 deg/sec • Whisper quiet • Fast response • USB communication • Fast response • DR+ Reflectorless • Long range • High speed • MultiTrack • Active targets • Passive targets Click Picture to Play

10. Why Is An SPS Total Station Different? • Universal • All In One Solution • Reflectorless • Servo • Autolock • Robotic • UTS • Site Positioning • Measurement • Stakeout • Scanning • Machine Control • Dozers / Graders • Mills / Pavers

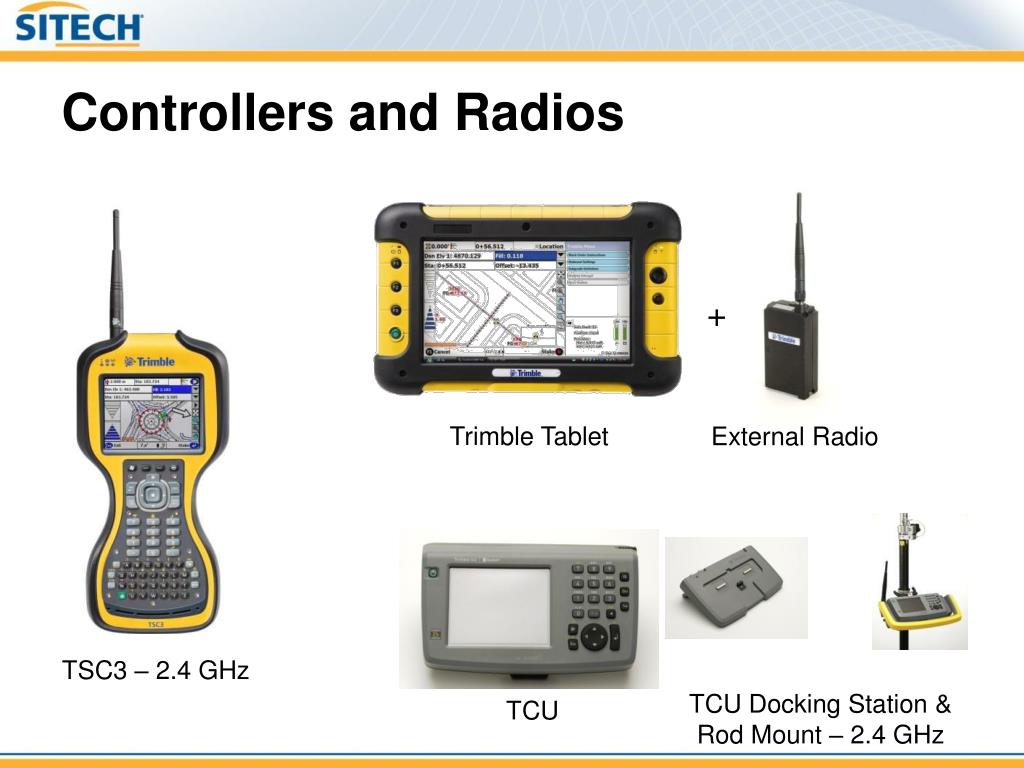

11. Controllers and Radios + Trimble Tablet External Radio TSC3 – 2.4 GHz TCU Docking Station & Rod Mount – 2.4 GHz TCU

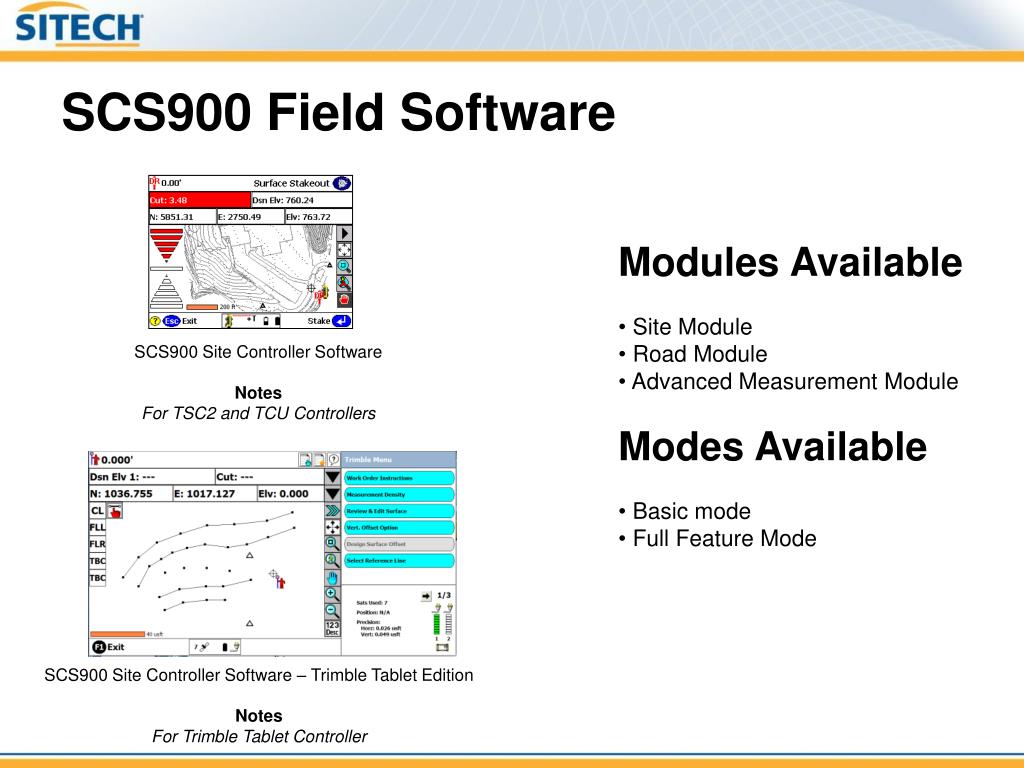

12. SCS900 Field Software • Modules Available • Site Module • Road Module • Advanced Measurement Module • Modes Available • Basic mode • Full Feature Mode SCS900 Site Controller Software Notes For TSC2 and TCU Controllers SCS900 Site Controller Software – Trimble Tablet Edition Notes For Trimble Tablet Controller

13. SPS Total Station w/SCS900 • SCS900 Software • Organized Workflow • Managed Data • Highly Graphical • Powerful Functions • Advanced Staking • Site, Surface, Road • Offsets • Feature coding • High Speed Scanning • Automated Point Measurement • Instrument Sharing • Instant Reports • TCC Synchronization Advanced Feature Pickup With Attribute Details Measure With Offsets

14. Site Measurements and As Builts • Utilizes an SPSx20 or SPSx30 instrument (any type) • MagDrive Servos and Servo focus for rapid pointing and focusing • Autolock with Active Target Technology for tracking and increased productivity • Eliminates repetitive activities and associated eye and neck strain • Eliminates false lock ons and tracking of reflective objects • Increases quality and reduces re-measurement • Robotic for one person operation and advanced control at the rod • Increases productivity and sustains productivity all day in any conditions • Increases quality • Reduces mistakes • Advanced search and target acquisition • Applications include • Initial site measurements to verify elevations and pick up existing features • Periodic progress measurements • As builts of completed construction • Inspection of completed construction

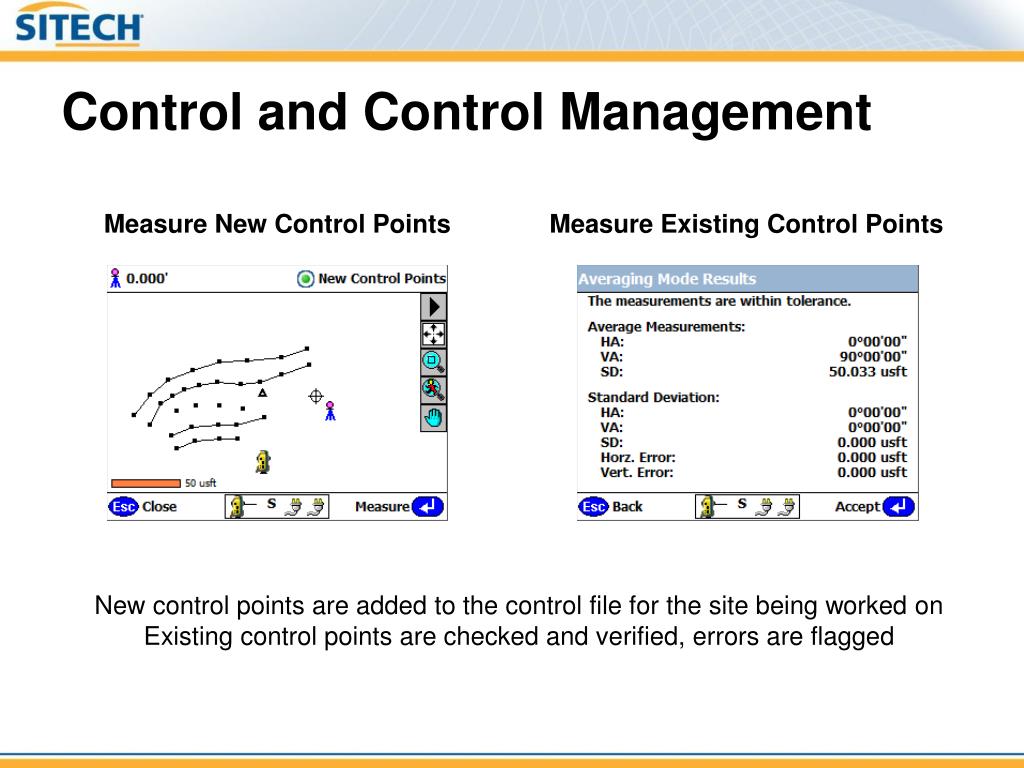

15. Control and Control Management Measure New Control Points Measure Existing Control Points New control points are added to the control file for the site being worked on Existing control points are checked and verified, errors are flagged

16. Machine Control • Earthmoving, Grading, Paving and Milling • (Click Blue Box To Play Movie) • Checking and As Built

17. Machine Control • Trimble UTS Total Stations are optimized for Machine Control • High speed servos • Fully synchronized angle and distance data • Low latency data streaming (<20ms) • Active target tracking • Dedicated radio channels for machine operations • Dedicated active target IDs for machine operations • High accuracy dynamic positioning • Large vertical range +/- 45 degrees • Large distance range >700m • Instrument sharing mode

18. Small Site Management • Site Positioning • Data Preparation • Control • Site Measurements • Site Staking • Utilities • Progress • Checking • As Builts • Reports & QA • Machine Control • Earthmoving • Grading • Paving • Ideal for small machine systems • D3 / D4 Dozers • Small pavers for sub base and asphalt

19. Small Site Management • Ideal for the small site contractor • Use with small graders and dozers for earthworks and grading, and with pavers for paving operations and sub base laying in 3D • Use with Trimble Tablet and SCS900 for all control, site topos, grade checks and as builts • Use with Trimble Tablet and SCS900 for all stakeout operations • Use Trimble Tablet with TBC-HCE for all data preparation requirements • Portable – Quick to setup – Multipurpose Solution • One sensor does it all …..

20. Tunnels • Tunnel Measurement • QA/QC • As Builts • Shotcrete checks • Over / Under break • Machine Control • Bever Control System • Drilling Jumbos • AMV, Atlas Copco, Sandvik Tamrock

21. Supporting Materials • SPS Series Total Station User Guide • Updated May 2010 • SCS900 Total Station User Guide • Updated May 2010 • SCS900 Measurement User Guide • Updated May 2010 • SCS900 Stakeout User Guide • SCS900 Road and Sideslope Stakeout User Guide
