lecture 4

Lecture 4

Introduction to Environmental Engineering

January 20, 2000

engineering dimensions and units

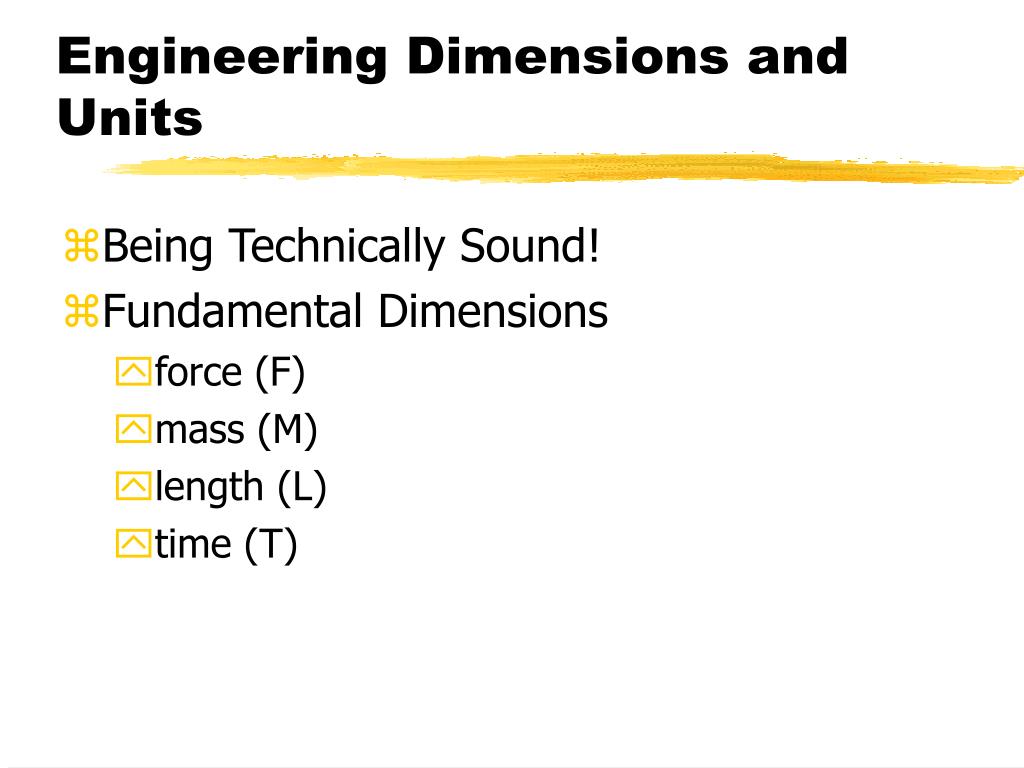

Engineering Dimensions and Units
  • Being Technically Sound!
  • Fundamental Dimensions
    • force (F)
    • mass (M)
    • length (L)
    • time (T)
engineering dimensions and units1
Engineering Dimensions and Units
  • Derived Dimensions
      • calculated dimensions produced by combining fundamentals
      • velocity (L/T)
      • mass balance (M/T)
  • Dimensions do not describe the quantity
    • What? Not HOW Much?
engineering dimensions and units2
Engineering Dimensions and Units
  • Units and their values (SI, American, cgs)
    • 5 lbs = 2.27 kg
    • 20 ft = 62.6 m
    • 12 L = 3.17 gal
    • 30 °C = 86 °F
  • SI units are the best because they increase and decrease by powers of ten
engineering dimensions and units3
Engineering Dimensions and Units
  • Density
  • CA= concentration of A, MA = mass of material A,
  • VA = volume of material A, VB = Volume of material B
engineering dimensions and units4
Engineering Dimensions and Units

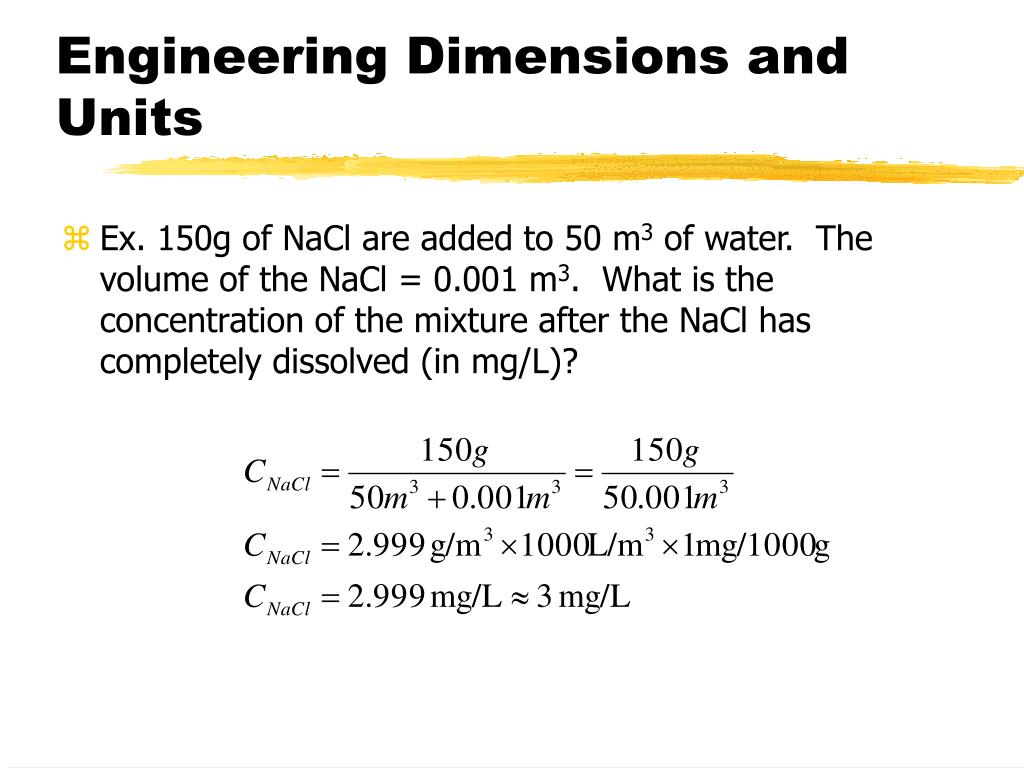

  • Ex. 150g of NaCl are added to 50 m3 of water. The volume of the NaCl = 0.001 m3. What is the concentration of the mixture after the NaCl has completely dissolved (in mg/L)?
engineering dimensions and units5
Engineering Dimensions and Units
  • Notice in the previous example that the volume of the salt was quite small in comparison to the volume of water.
  • Concentration as a percentage (usually by mass)
  • A= percent of material A,
  • MA, MB = mass of materials A and B respectively
engineering dimensions and units6
Engineering Dimensions and Units

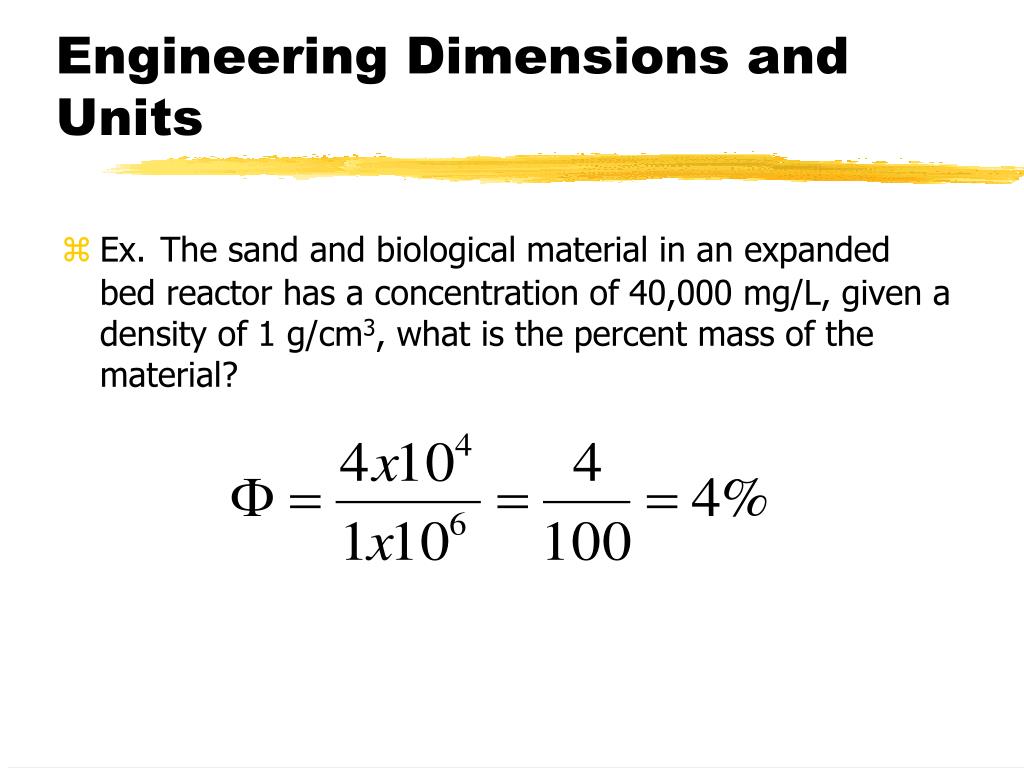

  • Ex.The sand and biological material in an expanded bed reactor has a concentration of 40,000 mg/L, given a density of 1 g/cm3, what is the percent mass of the material?
engineering dimensions and units7
Engineering Dimensions and Units
  • Air Pollution Dimensions
    • generally expressed as mass of pollutant per volume of air at standard temperature and pressure
    • occasionally expressed as ppm or part per million, in which case
      • one volume of a pollutant per 1 x 106 volumes of air
    • conversion from mass/volume (mg/m3) requires knowledge of the molecular weight
engineering dimensions and units8
Engineering Dimensions and Units
  • at standard temperature (0 ° C) and pressure (1 atm) one mole of gas occupies 22.4 L of volume
engineering dimensions and units9
Engineering Dimensions and Units
  • Flow Rate and Residence Time
    • either gravimetric or volumetric
    • kg/s or m3/s
    • they are not independent of each other but related by density of the substance
    • [mass] = [density] x [volume]
    • QM =  QV
engineering dimensions and units10
Engineering Dimensions and Units
  • Ex. The BOD5 of the influent to a WWTP is 500 g/L with the flowrate of 100 m3/s. What are the gravimetric and volumetric flowrates of BOD5?
  • Gravimetric = 100 m3/s x 500 g/L x 1000 L/m3 =
  • = 5 x 107 g/s
  • Volumetric = ?, need to know the percent of the 100 m3/s that is BOD5
engineering dimensions and units11
Engineering Dimensions and Units
  • Residence Time
    •  = V/Q, the amount of time for a particle to pass through a reactor
    • What is the residence time of BOD5 in the previous example for a reactor of 100 m3?
      •  =100 m3/100 m3/s = 1 s
      • it takes 1 second for the water to pass through the reactor
homework 2
Homework #2
  • Chapter 2: 2, 5, 9, 12, 16, 18
