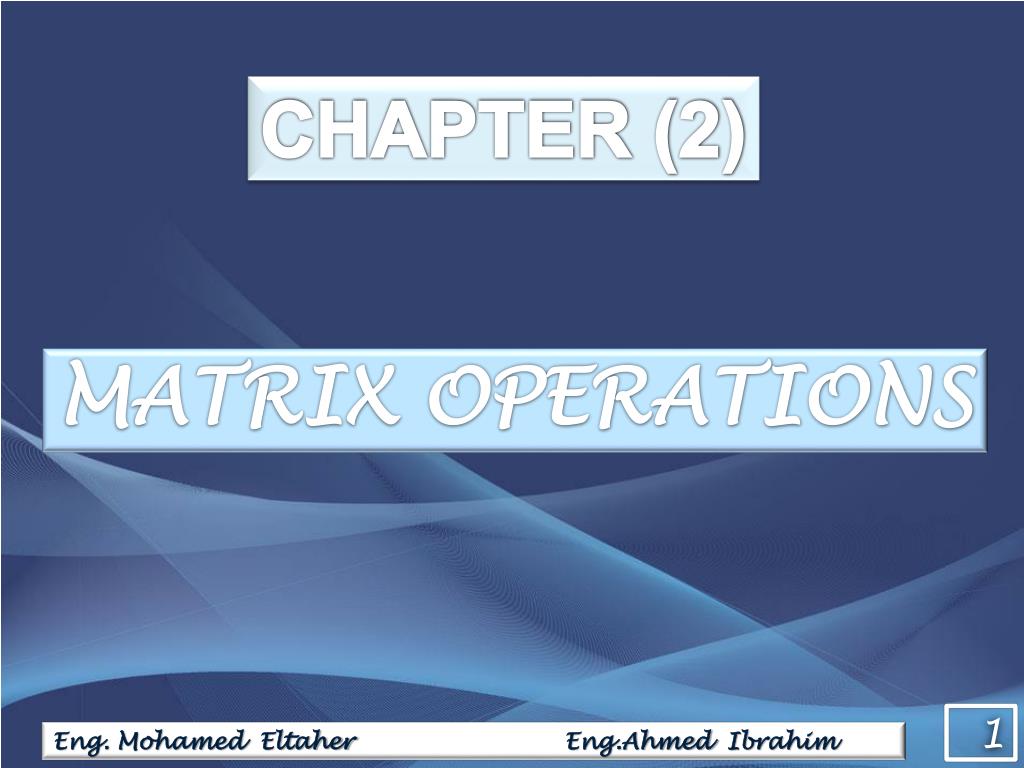

CHAPTER (2)

MATRIX OPERATIONS

Eng. Mohamed EltaherEng.Ahmed Ibrahim

slide2
Matrix Algebra with MATLAB
  • MATRIX is a two-dimensional, rectangular shaped data structure capable of storing multiple elements of data in an easily accessible format. These data elements can be numbers, characters, logical states of true or false.
  • MATLAB is a matrix-based computing environment. All of the data that you enter into MATLAB is stored in the form of a matrix or a multidimensional array. Even a single numeric value like 100 is stored as a matrix.
      • >> A=100;
      • >> whos A
      • Name Size Bytes Class
      • A 1x1 8 double

Eng. Mohamed EltaherEng.Ahmed Ibrahim

slide3

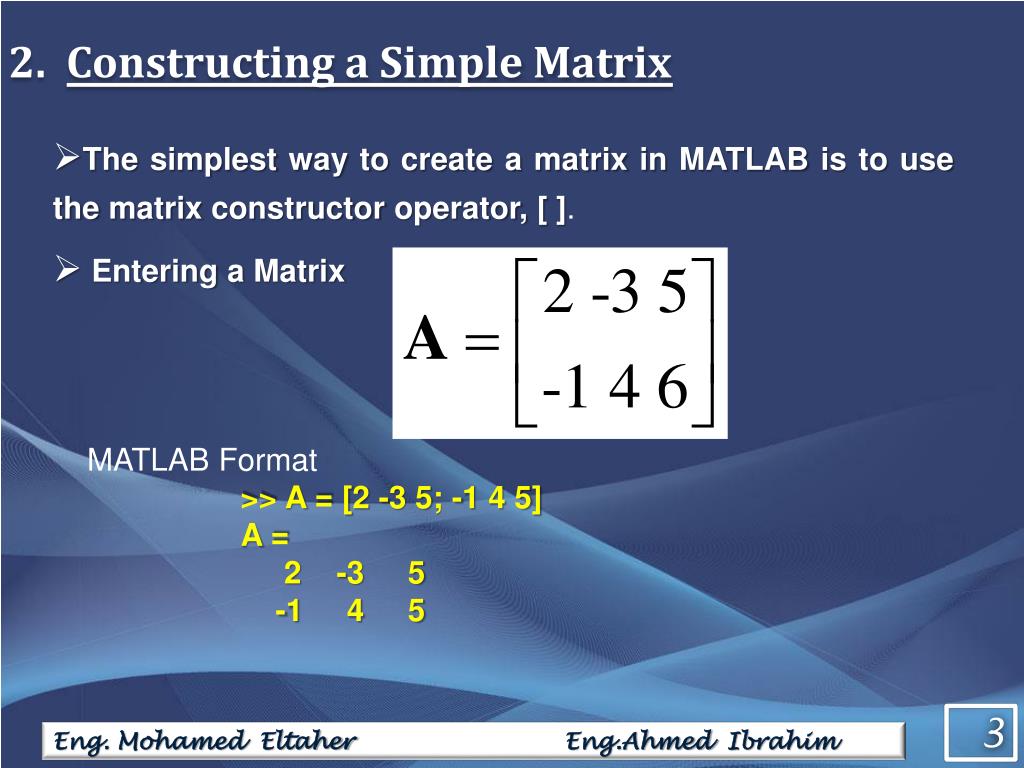

Constructing a Simple Matrix
  • The simplest way to create a matrix in MATLAB is to use the matrix constructor operator, [ ].
  • Entering a Matrix

MATLAB Format

  • >> A = [2 -3 5; -1 4 5]
  • A =
  • 2 -3 5
  • -1 4 5

Eng. Mohamed EltaherEng.Ahmed Ibrahim

slide4

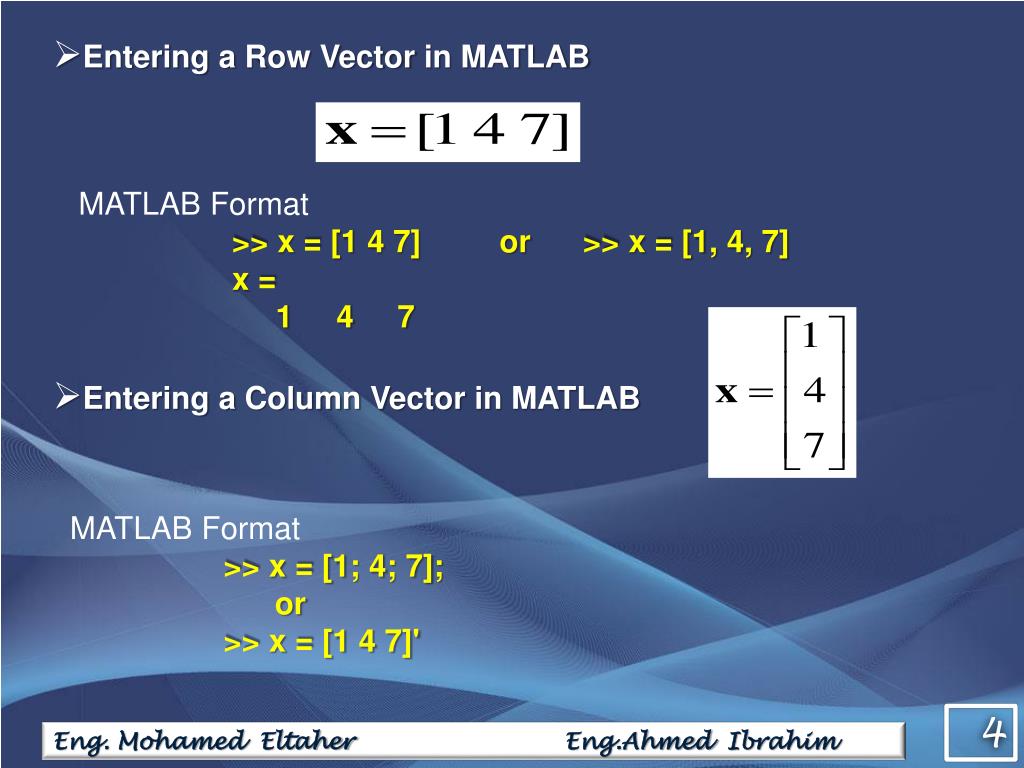

Entering a Row Vector in MATLAB

MATLAB Format

  • >> x = [1 4 7] or >> x = [1, 4, 7]
  • x =
  • 1 4 7
  • Entering a Column Vector in MATLAB

MATLAB Format

  • >> x = [1; 4; 7];
  • or
  • >> x = [1 4 7]'

Eng. Mohamed EltaherEng.Ahmed Ibrahim

slide5

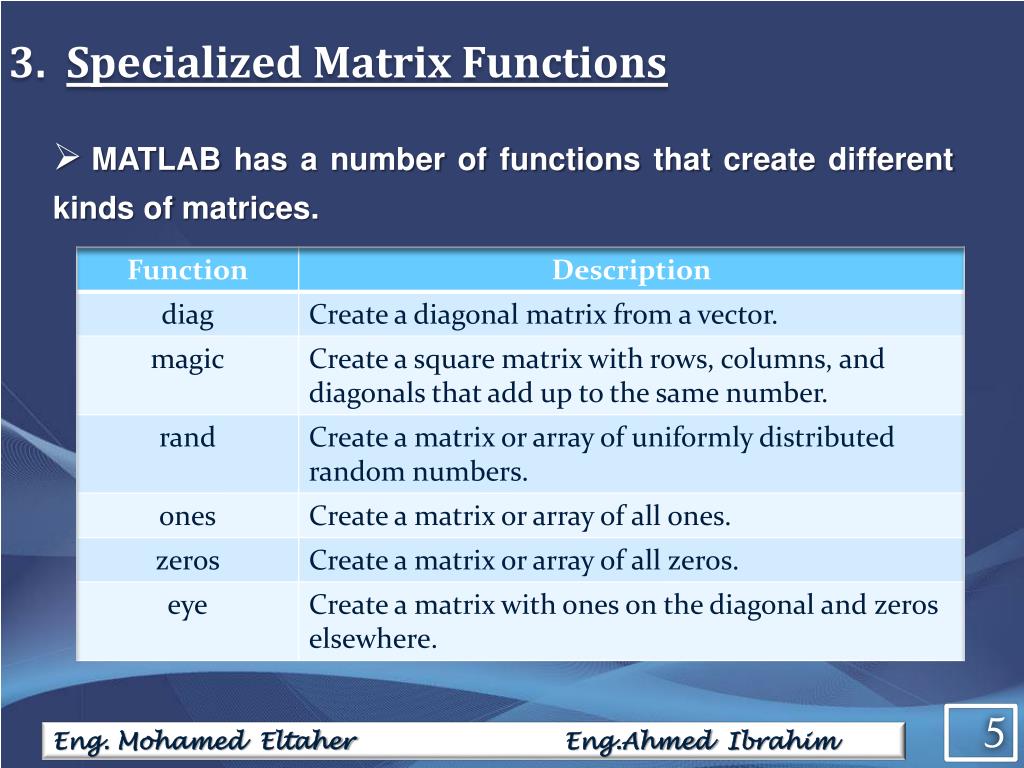

Specialized Matrix Functions
  • MATLAB has a number of functions that create different kinds of matrices.

Eng. Mohamed EltaherEng.Ahmed Ibrahim

slide6

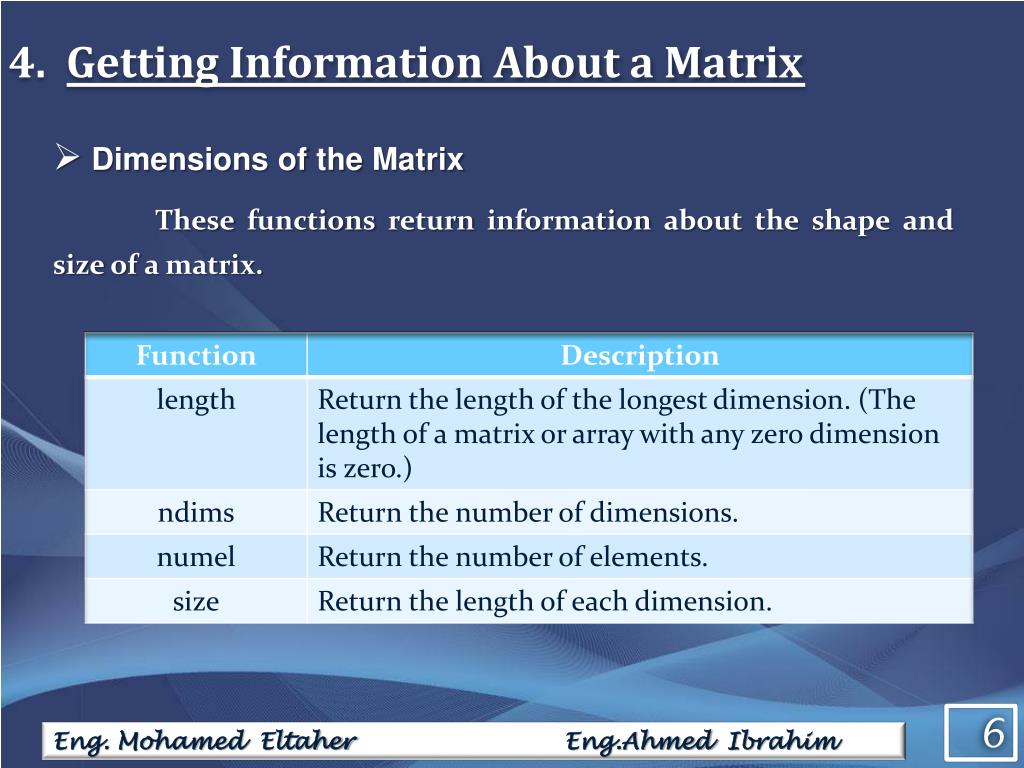

Getting Information About a Matrix
  • Dimensions of the Matrix
  • These functions return information about the shape and size of a matrix.

Eng. Mohamed EltaherEng.Ahmed Ibrahim

slide7

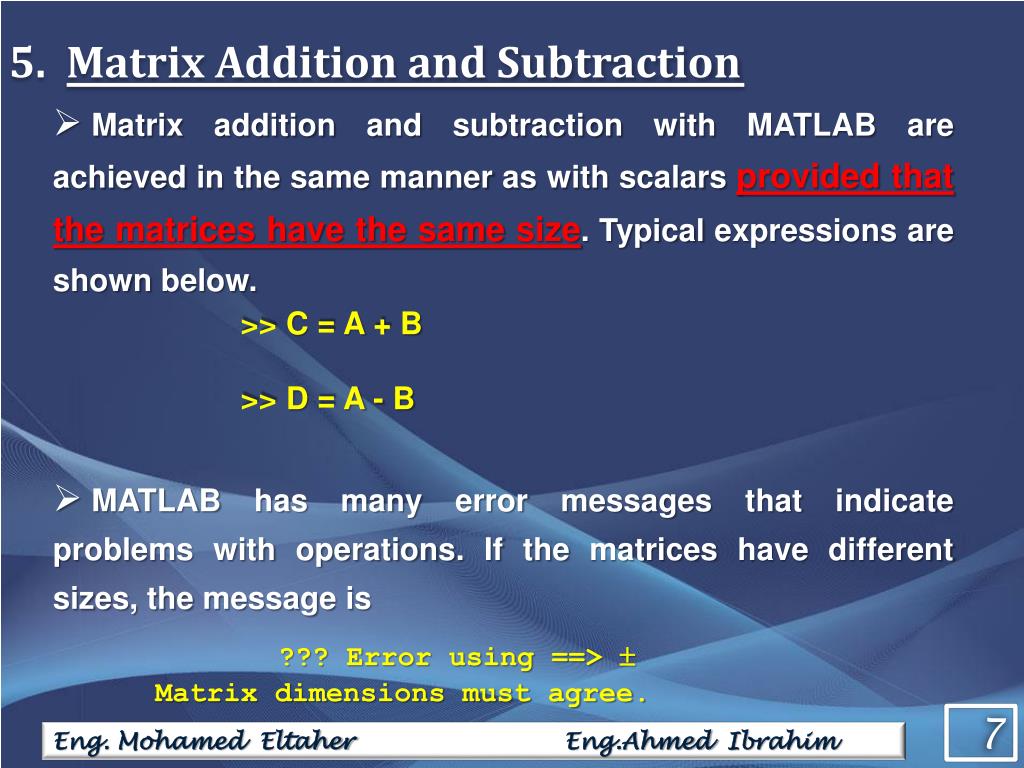

Matrix Addition and Subtraction
  • Matrix addition and subtraction with MATLAB are achieved in the same manner as with scalars provided that the matrices have the same size. Typical expressions are shown below.
  • >> C = A + B
  • >> D = A - B
  • MATLAB has many error messages that indicate problems with operations. If the matrices have different sizes, the message is
      • ??? Error using ==> 
      • Matrix dimensions must agree.

Eng. Mohamed EltaherEng.Ahmed Ibrahim

slide8

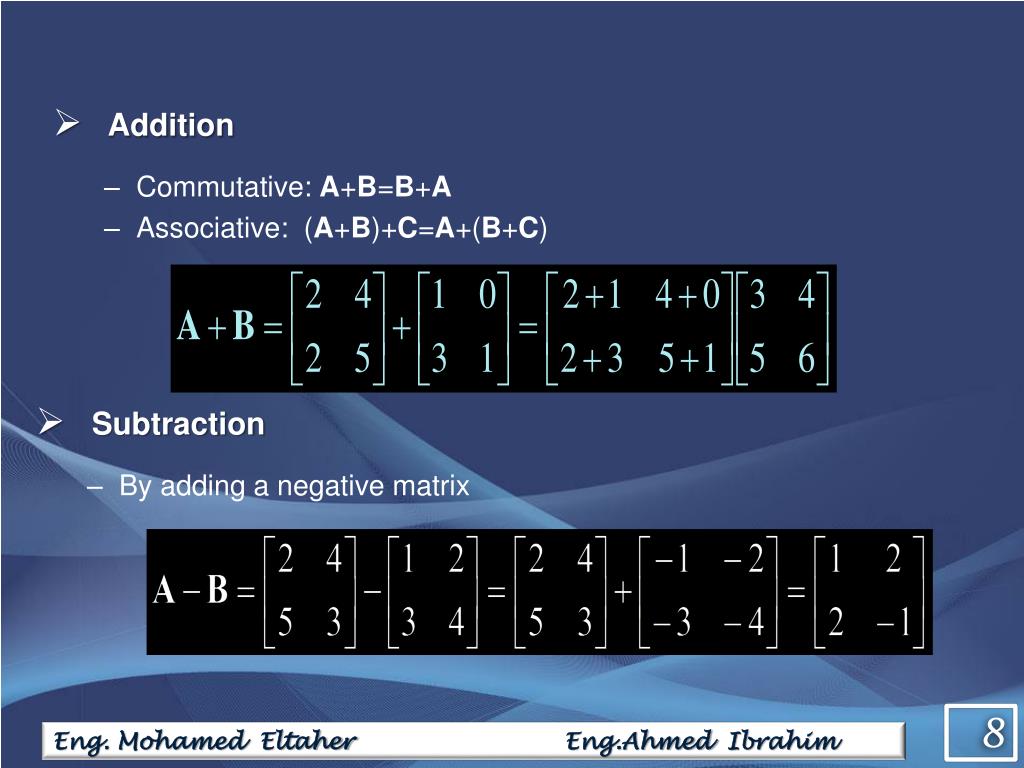

Addition
    • Commutative: A+B=B+A
    • Associative: (A+B)+C=A+(B+C)
  • Subtraction
    • By adding a negative matrix

Eng. Mohamed EltaherEng.Ahmed Ibrahim

slide9

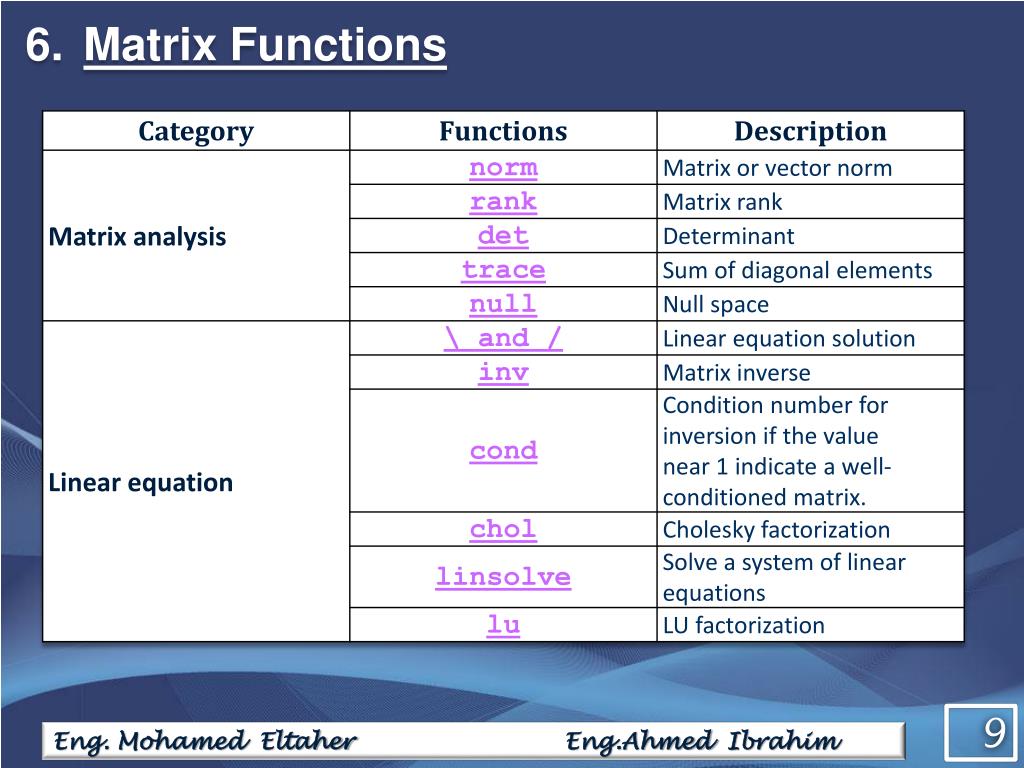

Matrix Functions

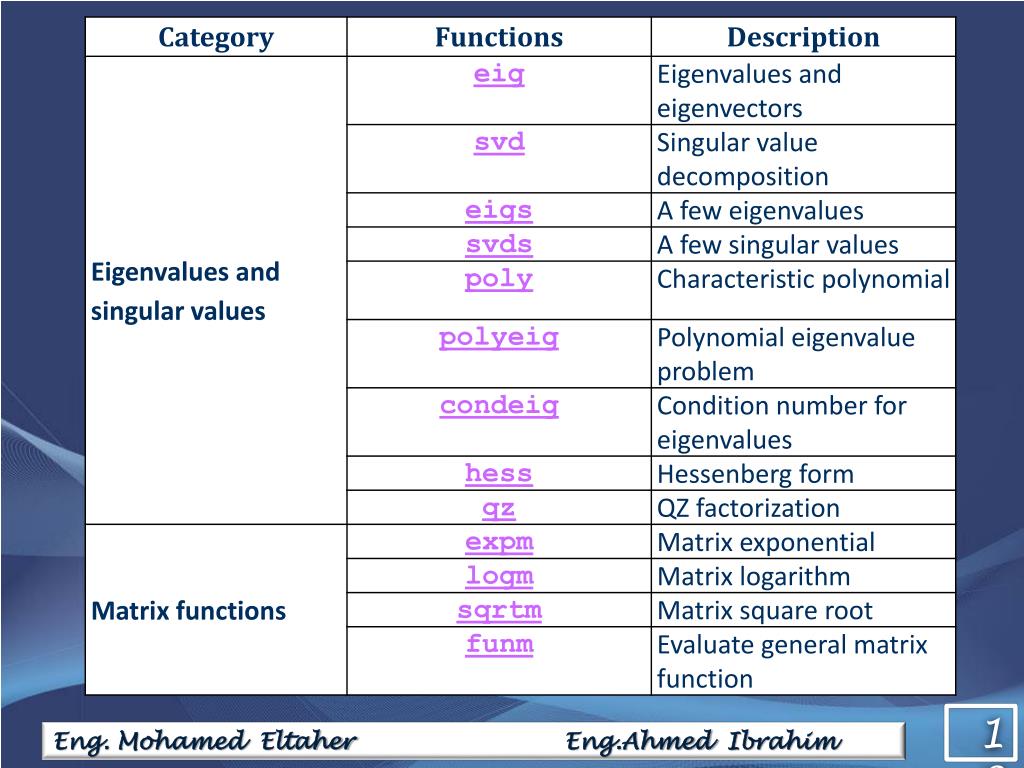

Eng. Mohamed EltaherEng.Ahmed Ibrahim

slide11

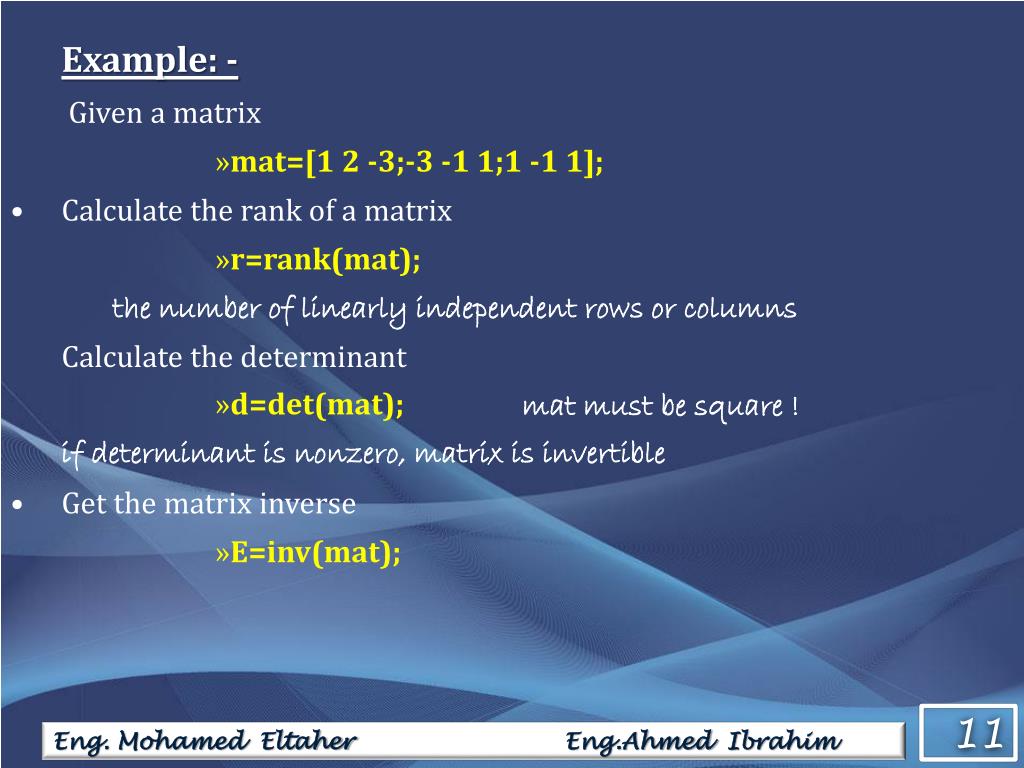

Example: -

Given a matrix

»mat=[1 2 -3;-3 -1 1;1 -1 1];

  • Calculate the rank of a matrix

»r=rank(mat);

the number of linearly independent rows or columns

Calculate the determinant

»d=det(mat); mat must be square !

if determinant is nonzero, matrix is invertible

  • Get the matrix inverse

»E=inv(mat);

Eng. Mohamed EltaherEng.Ahmed Ibrahim

slide12
Two vectors:

Inner product = scalar

  • Vector Products

Inner product XTY is a scalar

(1xn) (nx1)

Outer product = matrix

  • Outer product XYT is a matrix

(nx1) (1xn)

Eng. Mohamed EltaherEng.Ahmed Ibrahim

slide13

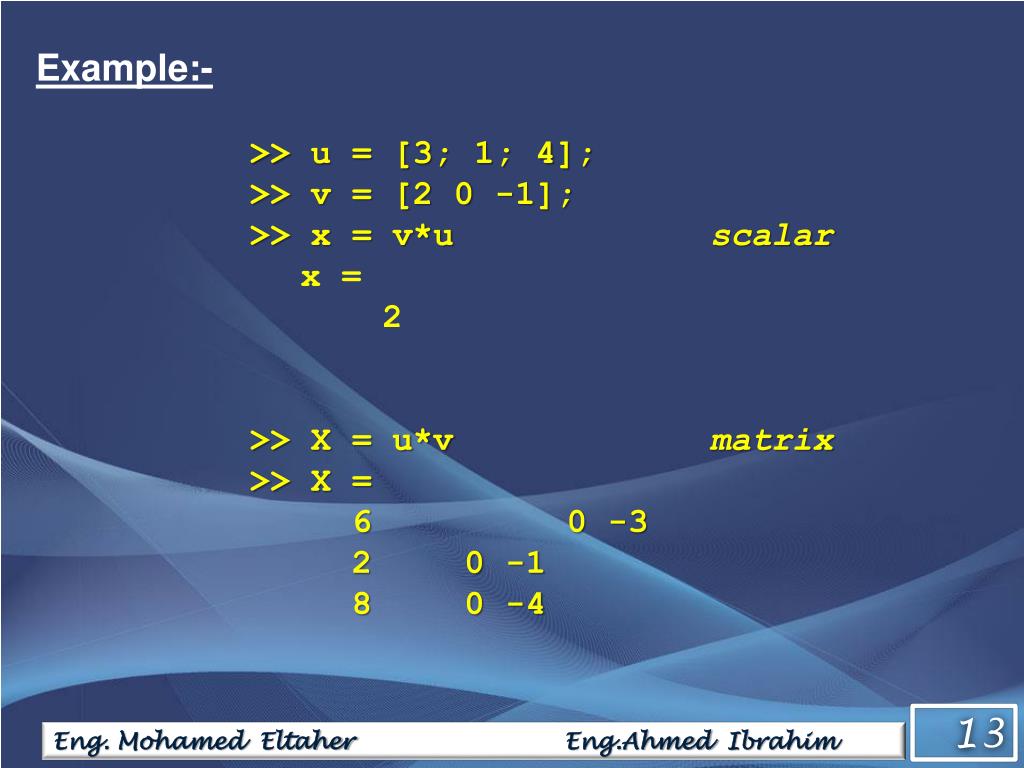

Example:-
  • >> u = [3; 1; 4];
  • >> v = [2 0 -1];
  • >> x = v*uscalar
    • x =
    • 2
  • >> X = u*vmatrix
  • >> X =
      • 6 0 -3
      • 2 0-1
      • 8 0 -4

Eng. Mohamed EltaherEng.Ahmed Ibrahim

slide14

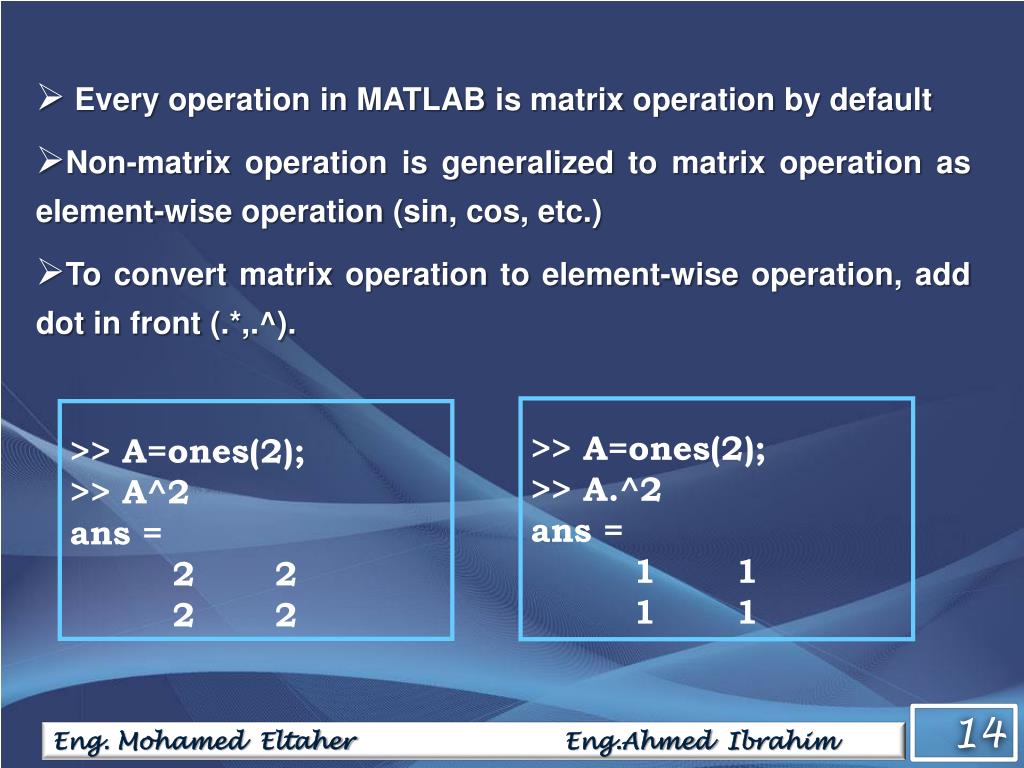

Every operation in MATLAB is matrix operation by default
  • Non-matrix operation is generalized to matrix operation as element-wise operation (sin, cos, etc.)
  • To convert matrix operation to element-wise operation, add dot in front (.*,.^).

>> A=ones(2);

>> A.^2

ans =

1 1

1 1

>> A=ones(2);

>> A^2

ans =

2 2

2 2

Eng. Mohamed EltaherEng.Ahmed Ibrahim

slide15
Transpose
  • The Transpose Operationinterchanges aij and aji. MATLAB uses the apostrophe operator (') to perform a complex conjugate transpose, and uses the dot-apostrophe operator (.') to transpose without conjugation. For matrices containing all real elements, the two operators return the same result.
  • The example matrix A is symmetric, so A' is equal to A. But B is not symmetric:
  • >>B = magic(3);
  • >>X = B'
  • Transposition turns a row vector into a column vector:
  • >>v = [2 0 -1];
  • >>x = v'

Eng. Mohamed EltaherEng.Ahmed Ibrahim

slide16

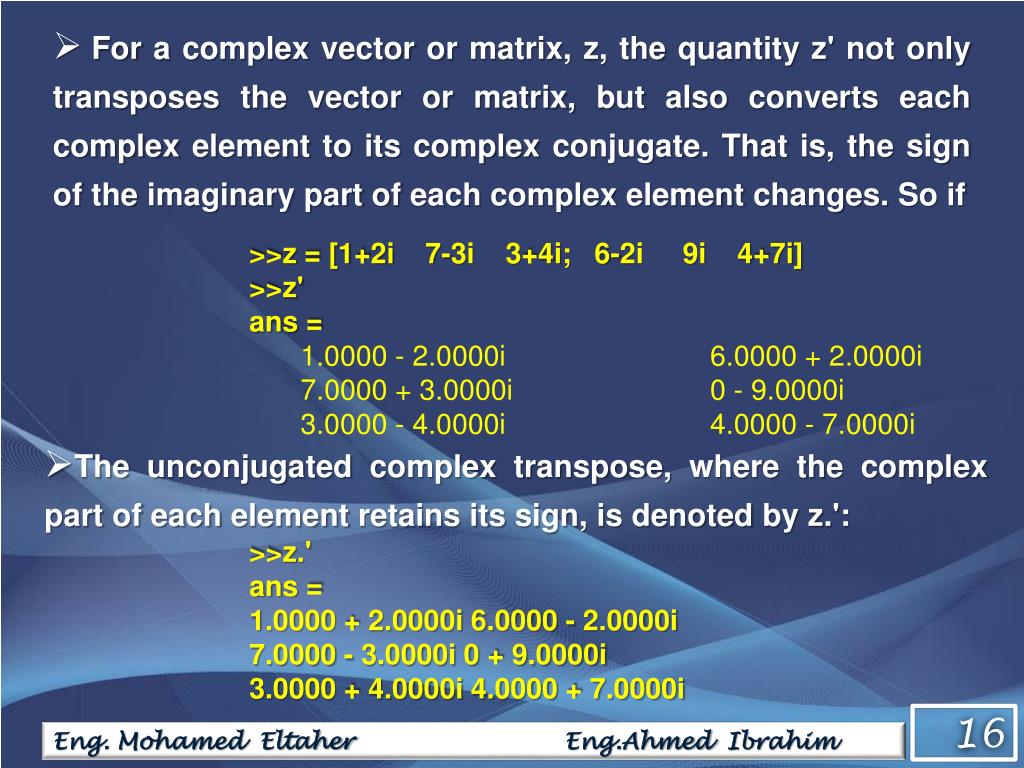

For a complex vector or matrix, z, the quantity z' not only transposes the vector or matrix, but also converts each complex element to its complex conjugate. That is, the sign of the imaginary part of each complex element changes. So if
  • >>z = [1+2i 7-3i 3+4i; 6-2i 9i 4+7i]
  • >>z'
  • ans =
    • 1.0000 - 2.0000i 6.0000 + 2.0000i
    • 7.0000 + 3.0000i 0 - 9.0000i
    • 3.0000 - 4.0000i 4.0000 - 7.0000i
  • The unconjugated complex transpose, where the complex part of each element retains its sign, is denoted by z.':
  • >>z.'
  • ans =
  • 1.0000 + 2.0000i 6.0000 - 2.0000i
  • 7.0000 - 3.0000i 0 + 9.0000i
  • 3.0000 + 4.0000i 4.0000 + 7.0000i

Eng. Mohamed EltaherEng.Ahmed Ibrahim

slide17
Sets of Linear Equation
  • One of the most important problems in technical computing is the solution of systems of simultaneous linear equations. For example, consider the set of equations:-
  • The less favorable, but more straightforward method is to take
  • The preferable solution is found using the matrix left-division operator

The residual error can be computed by

Eng. Mohamed EltaherEng.Ahmed Ibrahim

slide18

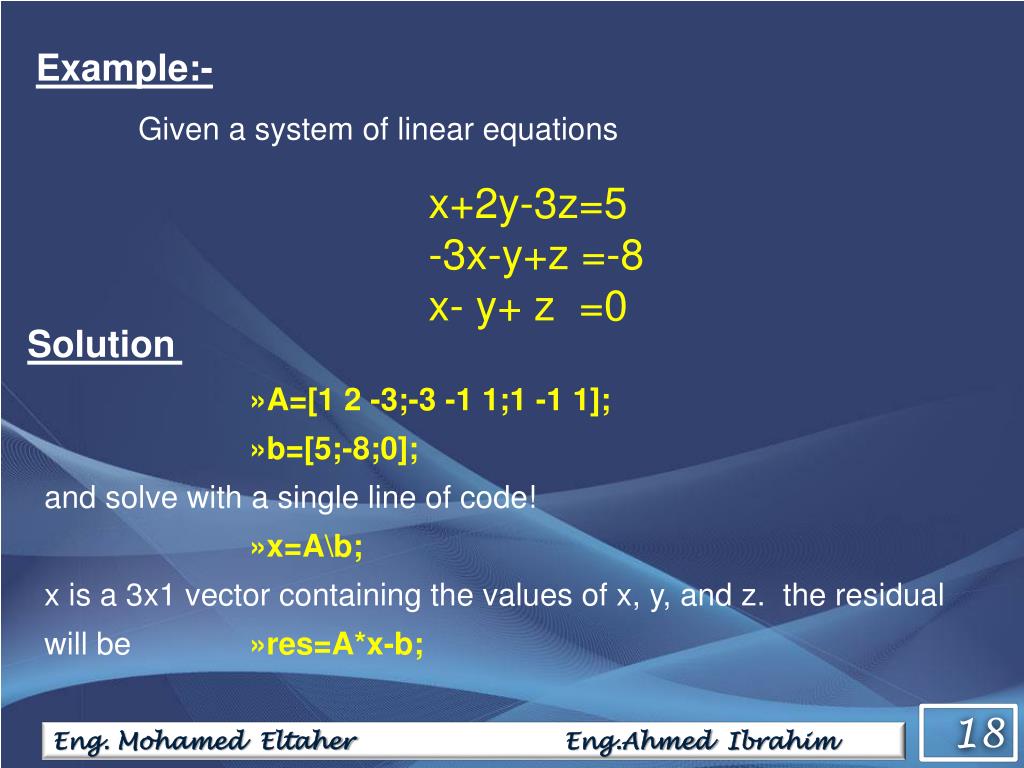

Example:-

Given a system of linear equations

x+2y-3z=5

-3x-y+z =-8

x- y+ z =0

Solution

  • »A=[1 2 -3;-3 -1 1;1 -1 1];
  • »b=[5;-8;0];

and solve with a single line of code!

»x=A\b;

x is a 3x1 vector containing the values of x, y, and z. the residual will be »res=A*x-b;

Eng. Mohamed EltaherEng.Ahmed Ibrahim

slide19
Example:-

Use MATLAB to solve the simultaneous equations below.

Solution

          • »A=[??????];
          • »b=[???? ];

and solve with a single line of code!

»x=A\b;

  • Or » x = inv(A)*b

Eng. Mohamed EltaherEng.Ahmed Ibrahim
