Push Back Test

Test probes for the position test check the correct position of contacting elements in connectors (passive push-back test). In contrast to this, during the active push-back test, a high defined force is applied to the contacting elements by means of a push-back test probe. This provides a mechanical check on the locking of the contacting elements in the connector and, in the case of an error, evaluates an electrical interruption.

equiptest
Download Presentation

Push Back Test

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

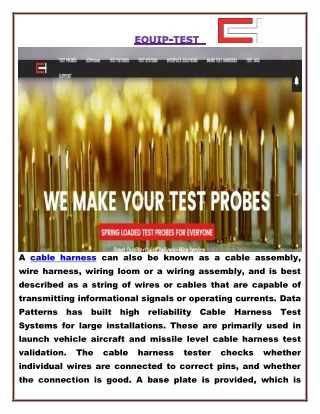

  1. A cable harness can also be known as a cable assembly, wire harness, wiring loom or a wiring assembly, and is best described as a string of wires or cables that are capable of transmitting informational signals or operating currents. Data Patterns has built high reliability Cable Harness Test Systems for large installations. These are primarily used in launch vehicle aircraft and missile level cable harness test validation. The cable harness tester checks whether individual wires are connected to correct pins, and whether the connection is good. A base plate is provided, which is

  2. mounted a plug board for second sockets at the cable harness end. The cable harness tester checks whether individual wires are connected to correct pins, and whether the connection is good. A base plate is provided, which is mounted a plug board for second sockets at the cable harness end.Harness test modules provides a mechanism to perform tests mechanically, running through a series of specified tests and checking the results for a satisfactory outcome.

  3. Harness test modules provides a mechanism to perform tests mechanically, running through a series of specified tests and checking the results for a satisfactory outcome.A variety of switching harness test probes is available from equip-test for cable harness testing. The product selection covers threaded and non-threaded types with a selection of tip styles centre and travel ranges.Wherever a cable harness is being assembled it is essential that the harness or loom is tested for build and or material defects. Testing cable harness typically include: Continuity resistance, short circuit failure, high voltage insulation resistance.

  4. URL:-->https://www.equip-test.com/ Address:-> Equip–Test Kft., Vágóhíd u. 19. H-2220 Vecsés, Hungary +36-29/550-940 Fax: +36-29/356-480
