  1. Measurements Chapter 4

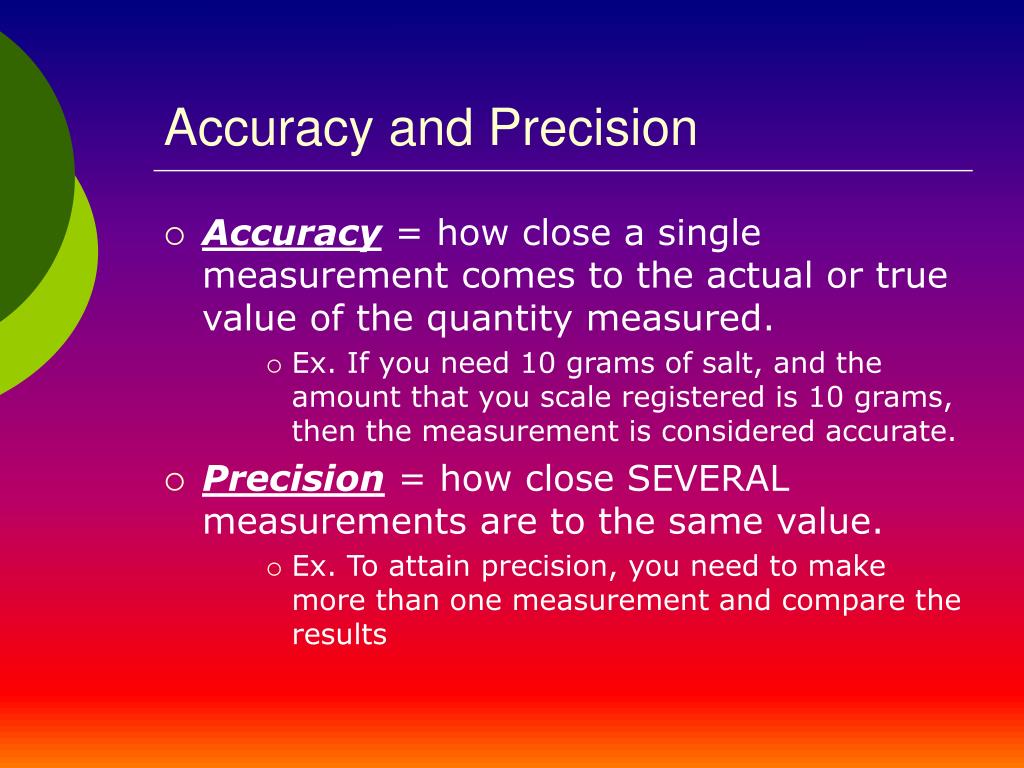

  2. Accuracy and Precision • Accuracy = how close a single measurement comes to the actual or true value of the quantity measured. • Ex. If you need 10 grams of salt, and the amount that you scale registered is 10 grams, then the measurement is considered accurate. • Precision = how close SEVERAL measurements are to the same value. • Ex. To attain precision, you need to make more than one measurement and compare the results

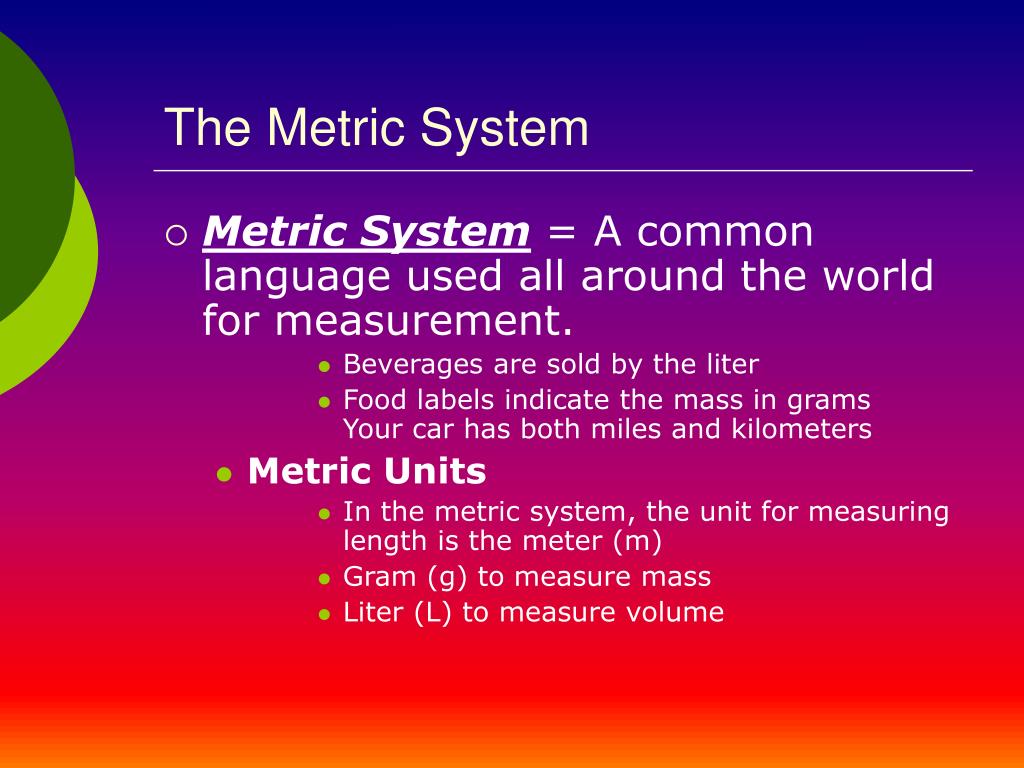

  3. The Metric System • Metric System = A common language used all around the world for measurement. • Beverages are sold by the liter • Food labels indicate the mass in gramsYour car has both miles and kilometers • Metric Units • In the metric system, the unit for measuring length is the meter (m) • Gram (g) to measure mass • Liter (L) to measure volume

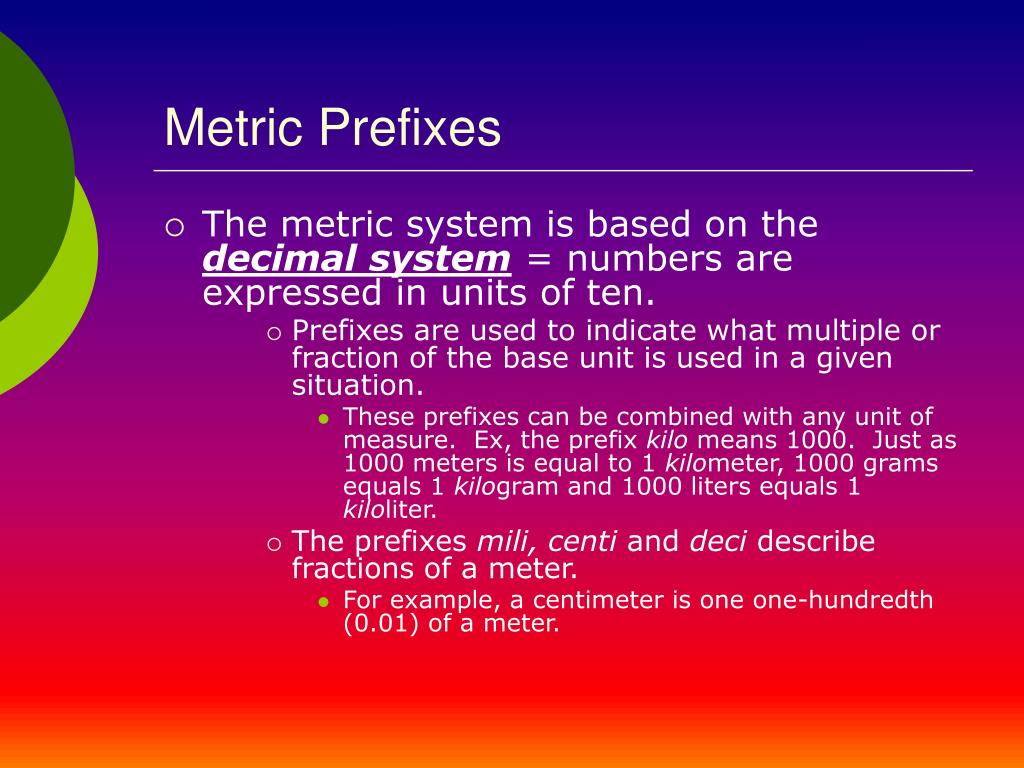

  4. Metric Prefixes • The metric system is based on the decimal system = numbers are expressed in units of ten. • Prefixes are used to indicate what multiple or fraction of the base unit is used in a given situation. • These prefixes can be combined with any unit of measure. Ex, the prefix kilo means 1000. Just as 1000 meters is equal to 1 kilometer, 1000 grams equals 1 kilogram and 1000 liters equals 1 kiloliter. • The prefixes mili, centi and deci describe fractions of a meter. • For example, a centimeter is one one-hundredth (0.01) of a meter.

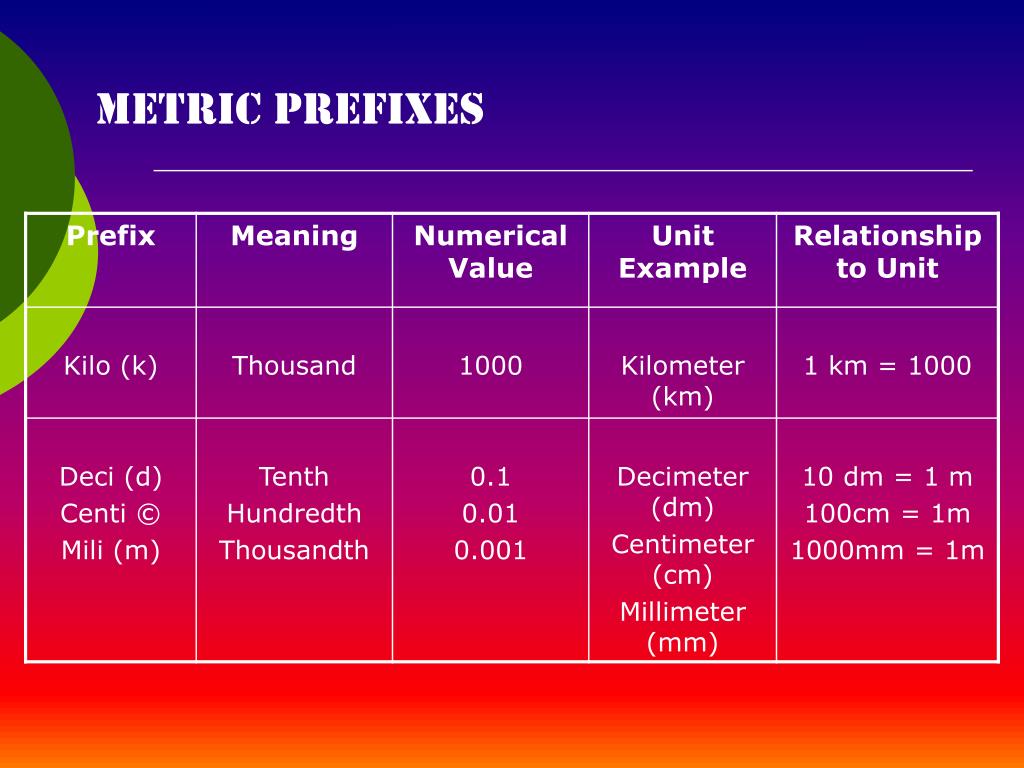

  5. Metric Prefixes

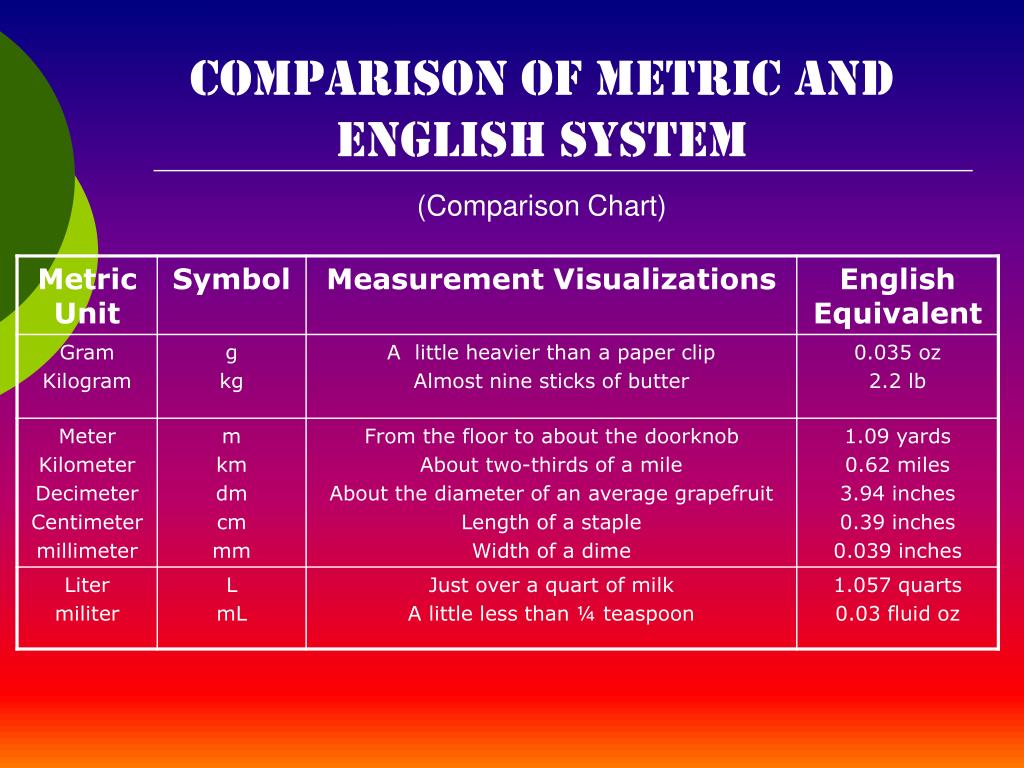

  6. Comparison of Metric and English System (Comparison Chart)

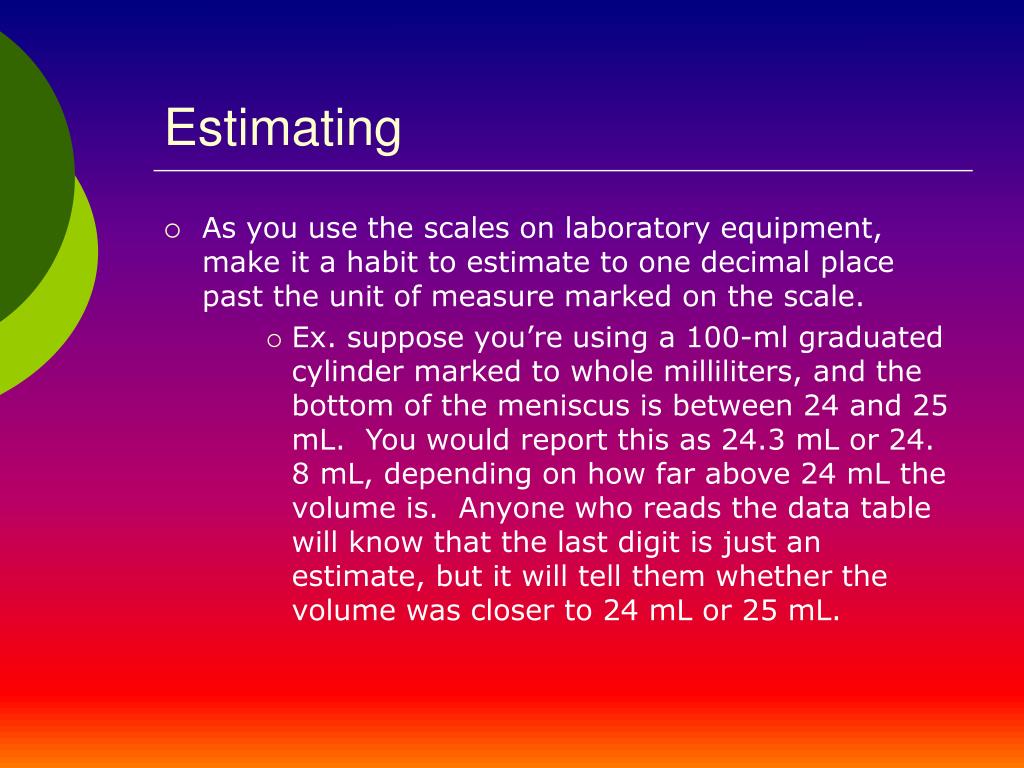

  7. Estimating • As you use the scales on laboratory equipment, make it a habit to estimate to one decimal place past the unit of measure marked on the scale. • Ex. suppose you’re using a 100-ml graduated cylinder marked to whole milliliters, and the bottom of the meniscus is between 24 and 25 mL. You would report this as 24.3 mL or 24. 8 mL, depending on how far above 24 mL the volume is. Anyone who reads the data table will know that the last digit is just an estimate, but it will tell them whether the volume was closer to 24 mL or 25 mL.

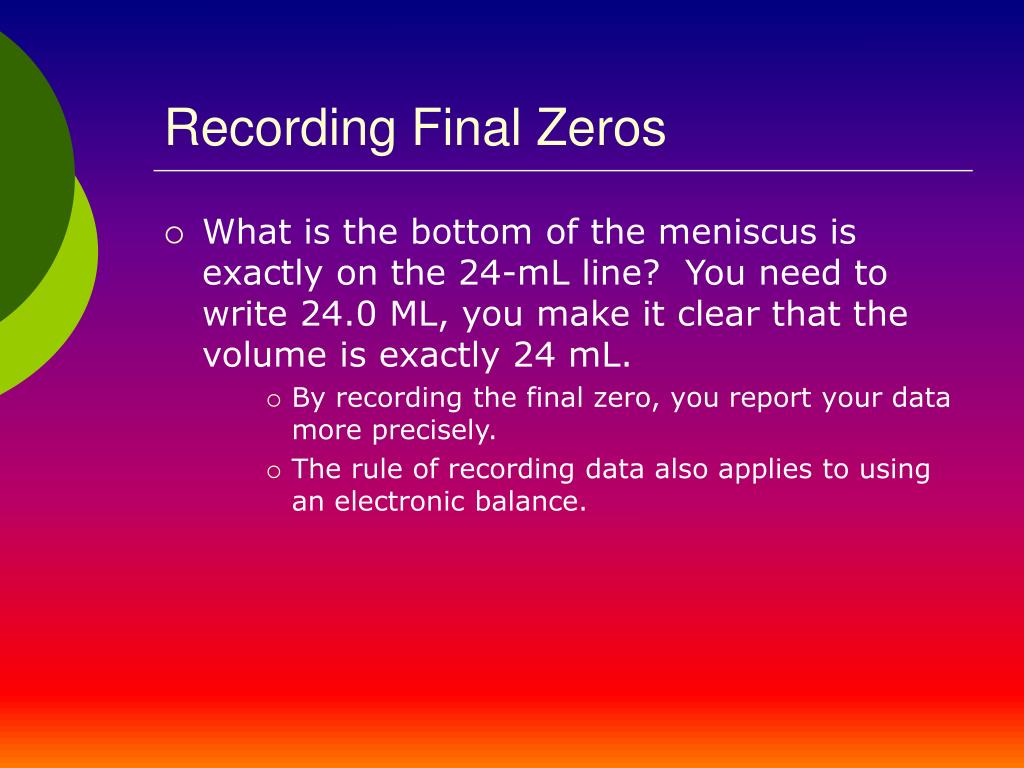

  8. Recording Final Zeros • What is the bottom of the meniscus is exactly on the 24-mL line? You need to write 24.0 ML, you make it clear that the volume is exactly 24 mL. • By recording the final zero, you report your data more precisely. • The rule of recording data also applies to using an electronic balance.

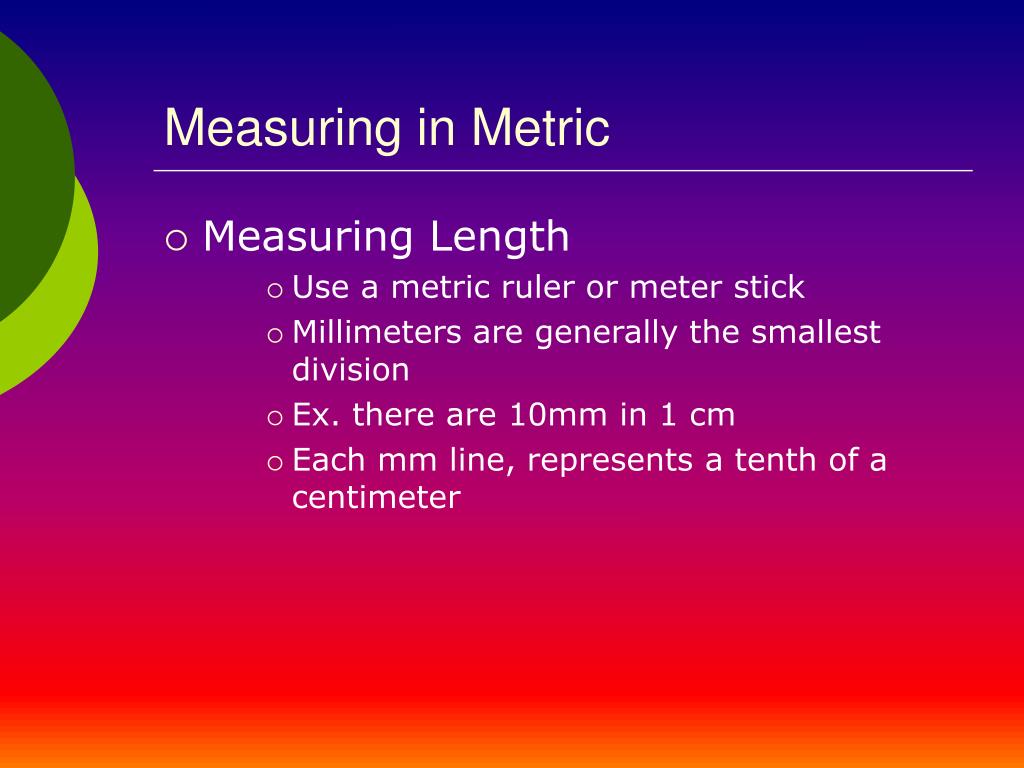

  9. Measuring in Metric • Measuring Length • Use a metric ruler or meter stick • Millimeters are generally the smallest division • Ex. there are 10mm in 1 cm • Each mm line, represents a tenth of a centimeter

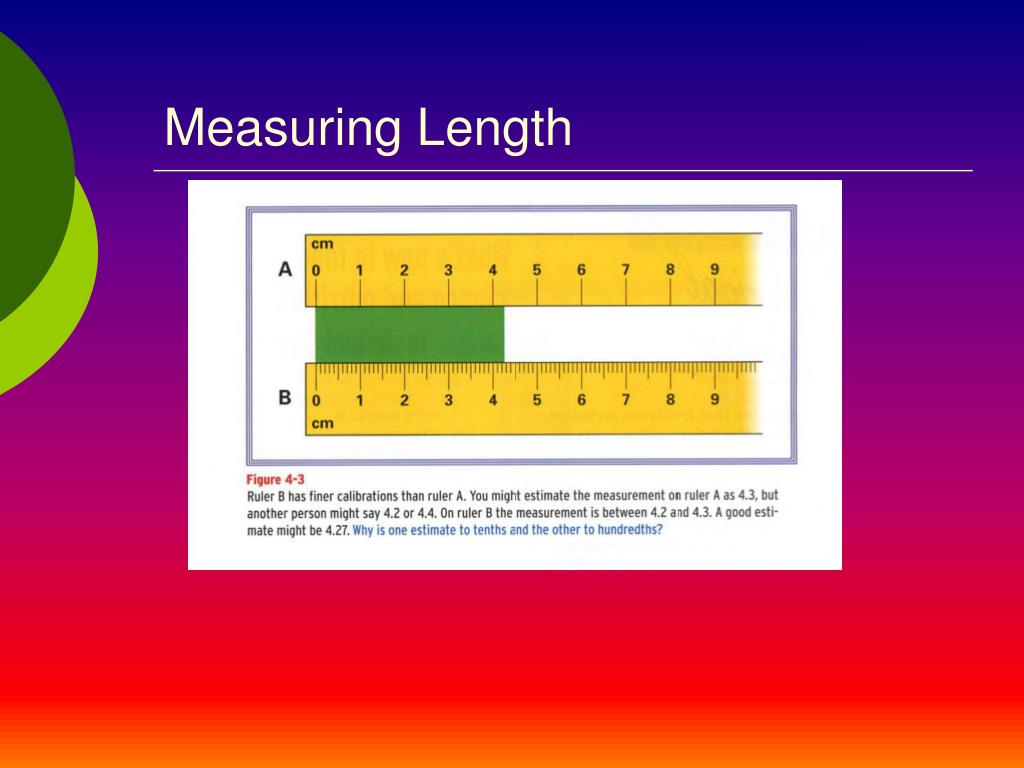

  10. Measuring Length

  11. Measuring Volume

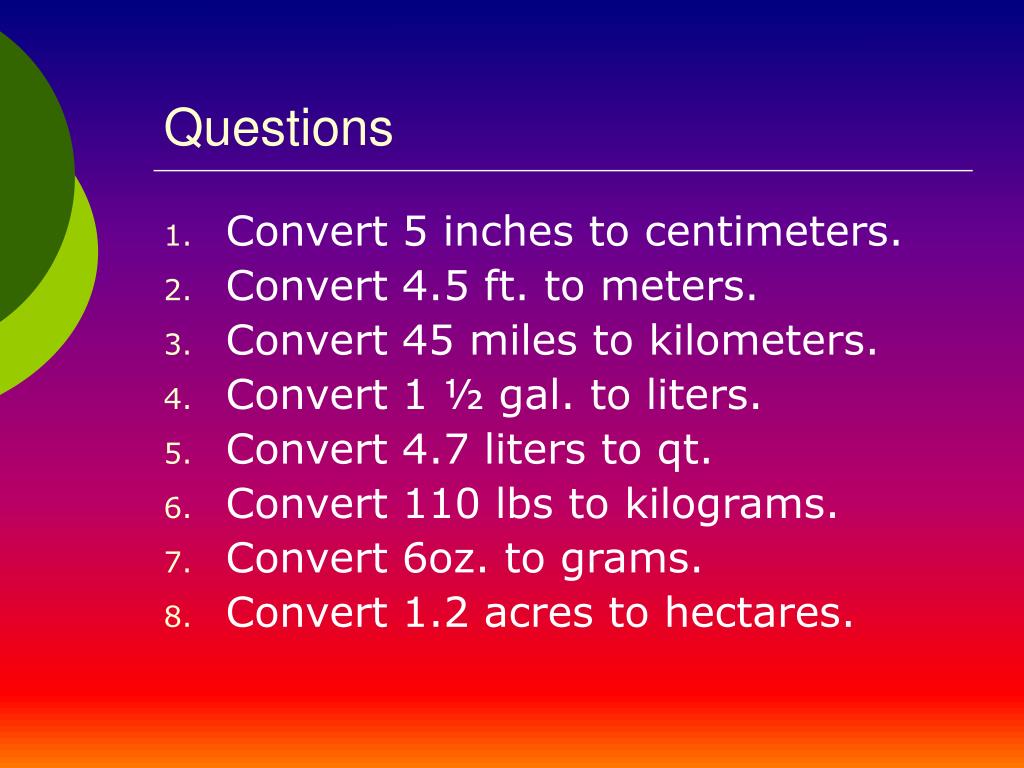

  12. Questions • Convert 5 inches to centimeters. • Convert 4.5 ft. to meters. • Convert 45 miles to kilometers. • Convert 1 ½ gal. to liters. • Convert 4.7 liters to qt. • Convert 110 lbs to kilograms. • Convert 6oz. to grams. • Convert 1.2 acres to hectares.

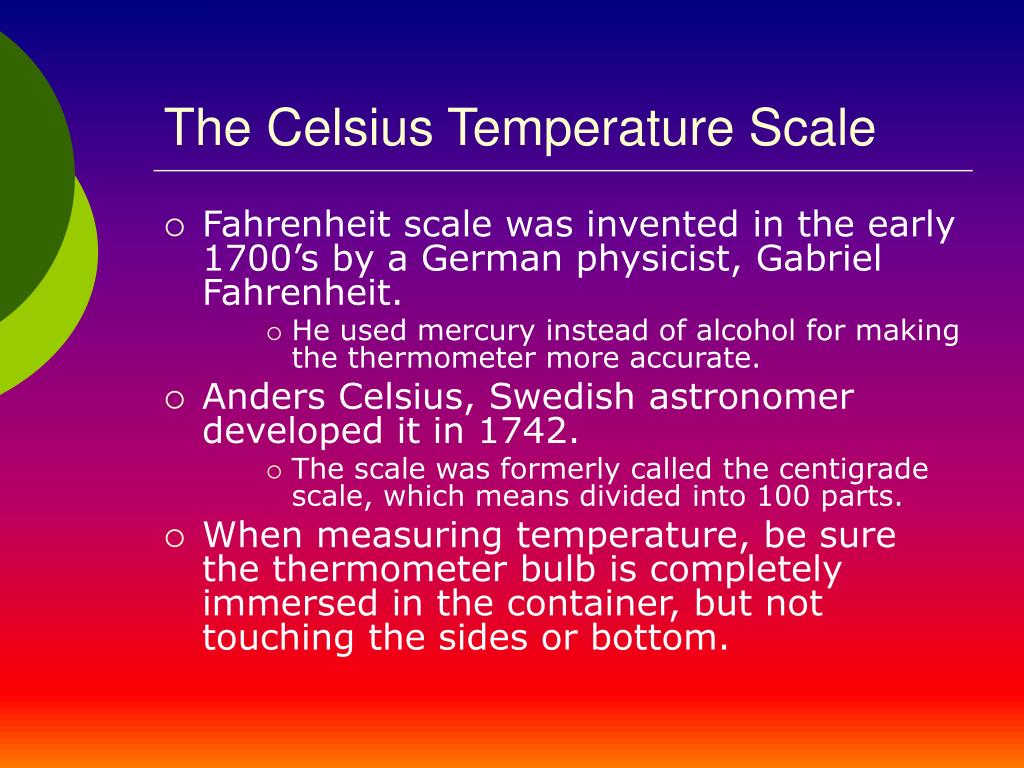

  13. The Celsius Temperature Scale • Fahrenheit scale was invented in the early 1700’s by a German physicist, Gabriel Fahrenheit. • He used mercury instead of alcohol for making the thermometer more accurate. • Anders Celsius, Swedish astronomer developed it in 1742. • The scale was formerly called the centigrade scale, which means divided into 100 parts. • When measuring temperature, be sure the thermometer bulb is completely immersed in the container, but not touching the sides or bottom.

  14. Note that 100 degrees separate freezing and boiling points on the Celsius scale. One the Fahrenheit scale, however the difference is 180 degrees. Therefore a Celsius degree represents almost twice the temperature changes as a Fahrenheit degree.

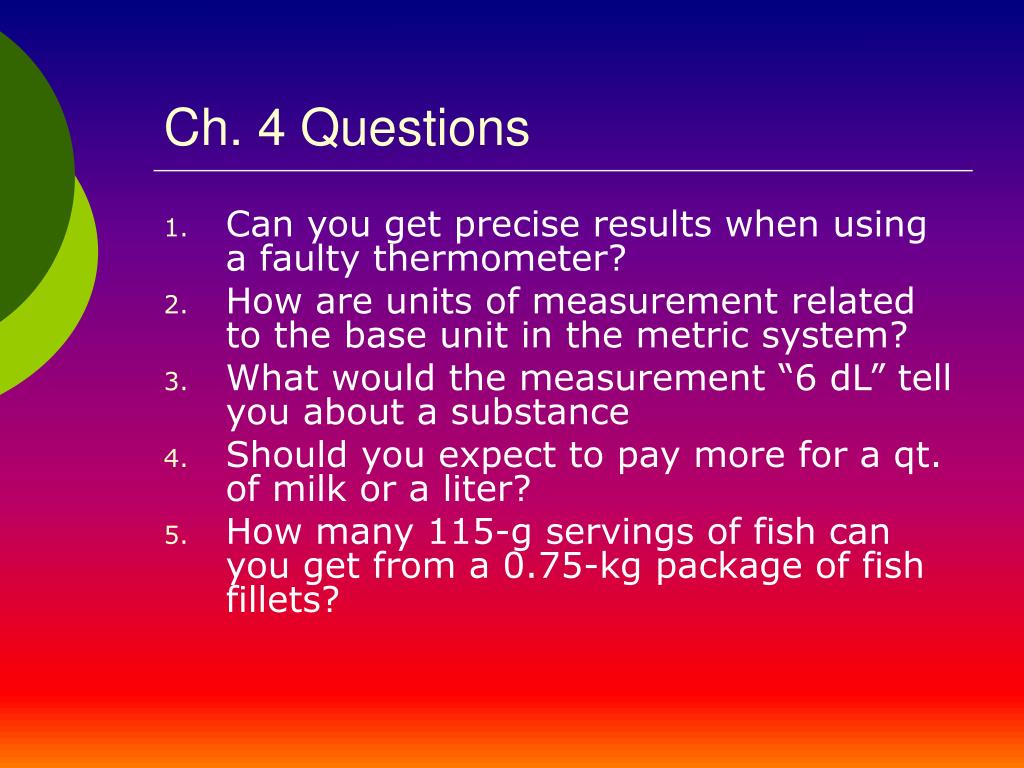

  15. Ch. 4 Questions • Can you get precise results when using a faulty thermometer? • How are units of measurement related to the base unit in the metric system? • What would the measurement “6 dL” tell you about a substance • Should you expect to pay more for a qt. of milk or a liter? • How many 115-g servings of fish can you get from a 0.75-kg package of fish fillets?

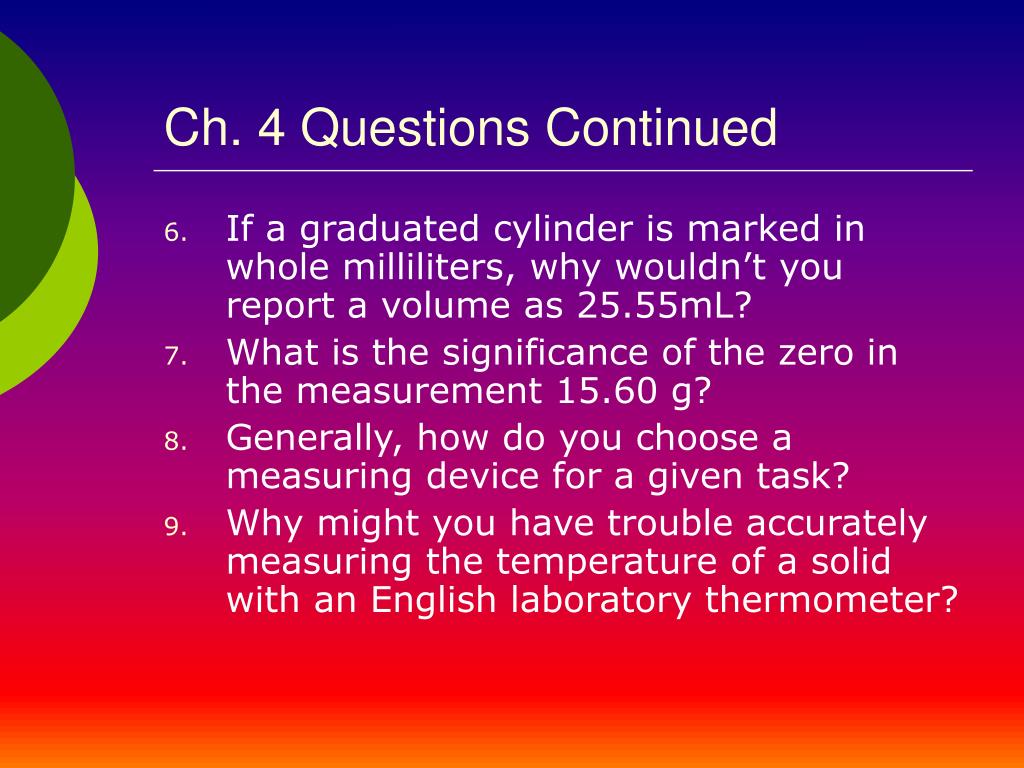

  16. Ch. 4 Questions Continued • If a graduated cylinder is marked in whole milliliters, why wouldn’t you report a volume as 25.55mL? • What is the significance of the zero in the measurement 15.60 g? • Generally, how do you choose a measuring device for a given task? • Why might you have trouble accurately measuring the temperature of a solid with an English laboratory thermometer?
