Presentation Transcript
Amphibious warfare program pms377 l.jpg

AMPHIBIOUS WARFARE PROGRAM(PMS377)

CAPT JEFF RIEDEL, USN

PROGRAM MANAGER

202-781-0940

Jeffery.Riedel@navy.mil


Slide2 l.jpg

MISSION

JMAC

Provide timely

and cost-effective solutions

to Amphibious Ship and

Air-Cushion Assault Craft

requirements


Slide3 l.jpg

A HISTORY OF SERVICE … SINCE 1966

Program Name:

Large General Purpose Amphibious Assault Ship (LHA) Project (July 1966)

General Purpose Amphibious Assault (LHA) Ship Acquisition Project (January 1970)

Amphibious Ship Acquisition Project (February 1976)

Amphibious Warfare and Strategic Sealift Program (February 1984)

Amphibious Warfare Program Office. (June 1992)

Program Managers:

  • CAPT Frank J. Reh, USN (July 1966 to July 1968)

  • CAPT Roland F. Wilkinson, USN (July 1968 to September 1971)

  • CAPT Cabell S. Davis, USN (September 1971 to April 1974)

  • CAPT James W. Lisanby, USN (April 1974 to June 1977)

  • CAPT Edwin F. Spar, USN (June 1977 to July 1978)

  • CAPT Charles H. Piersall, Jr., USN (July 1978 to April 1985)

  • COL (Ret) Eugene E. Shoults, SES (April 1985 to June 1996)

  • CAPT Thomas H. Gorski, USN (June 1996 to Sept 2000)

  • Ms. Allison F. Stiller (September 2000 to November 2000)

  • CAPT James R. Wilkins, III, USN (November 2000 to July 2002)

  • Ms. Allison F. Stiller (July 2002 to August 2002)

  • CAPT Richard W. Hooper, USN (August 2002 to September 2006)

  • CAPT Jeffery S. Riedel, USN (September 2006 to Present)

  • Program Offices Spun Off:

  • Strategic Sealift Program Office (PMS385) (June 1992)

  • LPD 17 Program Office (PMS317). (October 1994)

  • Amphibious / Auxiliary Life Cycle Office (PMS470) (June 2000)

  • Program Offices Absorbed:

  • SEA 91W Navy PARM for PLRS and EPLRS (1995)

  • Surface Ship Life Cycle Program Office (PMS335) (July 1996)

  • Programs Managed / Products Delivered:

  • LHA 1 (TARAWA) Class Amphibious Assault Ship, General Purpose (5 ships)

  • LHD 1 (WASP) Class Amphibious Assault Ship, Multi-Purpose (7 ships)

  • LSD 41 (WHIDBEY ISLAND) Class Dock Landing Ship (8 ships)

  • LSD 49 (HARPERS FERRY) Class Dock Landing Ship (Cargo Variant) (4 ships)

  • T-AKR 287 (ALGOL) Class Fast Sealift Ship (8 ships)

  • T-AVB 3 (WRIGHT) Class Aviation Maintenance Logistics Ship (2 ships)

  • T-ACS 1 (KEYSTONE STATE) Class Auxiliary Crane Ship (9 ships)

  • T-AKX Maritime Prepositioning Ship (12 ships)

  • Sealift Enhancements (Seasheds / Flatracks / OPDS / MSNAP)

  • LX (LPD 17)

  • AADS (AN/KSQ-1) / PLRS / EPLRS

  • JCC(X)

  • LHA(R)

  • AALC / LCAC (91 Craft) / LCAC SLEP

  • Mk V Assault Breaching System / Mine Hunting Kits / PTM

  • In-Service Amphibious and Command & Control Ships


Slide4 l.jpg

CHAIN OF COMMAND

Fleet

Support

OPERATING

AGREEMENT

SECRETARY

OF THE NAVY

ASS’T SECRETARY

OF THE NAVY

(RD&A)

CHIEF OF NAVAL

OPERATIONS

Acquisition

PEO SHIPS

COMMANDER

NAVAL SEA SYSTEMS

COMMAND

By Statute

HEADQUARTERS

TECHNICAL & FUNCTIONAL

LEADERSHIP & SUPPORT

FIELD ACTIVITIES

COST CENTERS

AMPHIBIOUS WARFARE

PROGRAM OFFICE

(PMS377)

4


Slide5 l.jpg

ORGANIZATION

PROGRAM MANAGER

CAPT Jeffery Riedel

DEPUTY PROGRAM MANAGER

Mr. Craig McKay

LCAC ACQUISITION & LIFE CYCLE

Mr. Tom Rivers

LHA(R) ACQUISITION

Mr. Michael Arnold

SEABASE TO SHORE

CONNECTOR

CAPT Tony Mitchell

LHD ACQUISITION

Mr. Ed Hatcher

AN/KSQ-1 / AADS / EPLRS

Mr. Rich Downey

BUSINESS/ FINANCIAL MANAGEMENT

Ms. Debra McGaffin

AMPHIBIOUS GFE

Mrs. Phyllis Banks

TEST & TRIALS

Mr. William Gotwald

LOGISTICS

Ms. Patricia Spencer



Slide7 l.jpg

PROGRAM OVERVIEW

SYSTEM DESCRIPTION LHD 1 Class Amphibious Assault Ship (Multi-Purpose)

PURPOSE / MISSION “Big Deck” element of a three-ship Expeditionary Strike Group (ESG), Provides sustainable, forcible entry capability

  • PRIMARY: Embark, deploy and land elements of a Marine Landing Force in an assault by helicopters, landing craft, amphibious vehicles and combinations of these methods

  • SECONDARY / CONVERTIBLE: Sea control and power projection

    DESCRIPTION Eight-ship program. LHDs 1 through 7 are steam-powered. LHD 8 is a modified repeat of previous LHDs, with the elimination of steam plant and steam systems through the introduction of gas turbine propulsion, all-electric auxiliaries, 4160 VAC electrical distribution system and a computer-based Machinery Control System

    CATEGORY ACAT 1C

    BUILDING YARD Northrop Grumman Ship Systems, Inc.

    (Gulf Coast)

    PROGRAM PHASE Deployment (LHD 1-7)

    Production (LHD 8)


Slide8 l.jpg

LHD 8 CHARACTERISTICS

Shops

Hospital

Offices

Communications and Control

Helo Hangar

Accommodations

Vehicles

Landing Craft Well

Vehicles

Stores

Cargo

Cargo

Propulsion

Vehicle Square – 20,900 ft2

Cargo Cube – 125,000 ft3

Landing Craft – 3 LCAC or 2 LCU

Aircraft – 45 CH-46 Equivalents (Includes 6 AV-8Bs)

Convertible Role – 20 AV-8B, 4-6 SH-60B (LAMPS III)

Accommodations – 3,075

Ships Crew – Officers: 102

CPO: 78

Crew: 1,024

Troops – Officers: 174 (plus 19 surge)

SSNCO: 64 (plus 6 surge)

Enlisted: 1,449 (plus 157 surge)

Length (Overall) – 844 ft

Beam (@ Waterline) – 106 ft

Draft – 27 ft 3 in

Displacement (Maximum) – 42,833 LT

Main Propulsion – Gas Turbine, 2 Shafts, 70,000 BHP

Auxiliary Propulsion – 2 Electric Motors, 10,000 BHP

Self Defense – 2 NSSMS, 2 RAM, SLQ-32A(V)3, 2 CIWS,

4 50Cal, 3 25mm, 6 SRBOC, NIXIE

JP-5 Fuel – 585,000 gals

Cargo Handling – 300 Pallets/Hr

Medical – 6 Operating Rooms, 17 Bed ICU, 47 Bed Ward



Lhd 7 vs lhd 8 l.jpg
LHD 7 vs. LHD 8

LHD 8

LHD 7

PROPULSION: 2 Steam Turbines (70K HP total) 2 Gas Turbines (70K BHP total)

2 600 PSI Boilers 2 Auxiliary Propulsion Motors

(10K BHP total)

ELECTRIC GENERATION: 5 SSTGs - 2.5 MW each 6 SSDGs - 4.0 MW each

2 EDGs - 2.0 MW each

ELECTRIC DISTRIBUTION: 450 VAC Radial 4160 / 450 VAC Zonal

WATER DESALINIZATION: 2 – 100K GPD Evaporators 4 – 50K GPD Reverse Osmosis

AUXILIARIES: Steam / Electric All Electric

MACHINERY CONTROL: Local Control / Copper Wire Central Control / Fiber Optic LAN

MMR FIRE PROTECTION: HALON 1301 Water Mist

PROPELLER: Fixed Pitch Controllable Pitch


Enhancements l.jpg

LHD 8

  • AN/SPQ-9B, Surface Search Radar Set

  • Fiber Optic MCS

  • AN/UPX-37D, IFF

  • AN/USG-2, CEC

  • SSDS MK 2 Mod 3A

  • AN/USQ-T46C(V)7, BFTT

  • AN/SPN-35C Aircraft Control Approach Radar

  • AN/SSN-6H(V)4 NAVSSI

  • CDLS

  • CIWS Block 1B

  • Gas Turbine LM2500+

  • 6 SSDGs/4MW @ 4160 VAC

  • Zonal Electrical Distribution

  • All Electric Laundry, Galley, Water Heaters, Compartment Heating

  • Auxiliary Propulsion Motor

  • Reverse Osmosis Units

  • Water Mist Fire Protection System

  • Controllable Pitch Propeller

  • 7 AC Plants (300 Ton)

ENHANCEMENTS

LHD 7

LHD 7

“+”

  • IVN-ISDN Protocol, New Terminal Equipment, HYDRA

  • Dual EHF, CHBDL, BGPHES, GBS, JWICS / VIXS, SMS, CTT-HR, NITES, STE

  • RNSSMS, ACDS BLK I, Partial BFTT, GCCS-M, CDLMS / CSDTS, SAT Link 11, Video Wall, SVDS (23 TV)

  • VMS, AN/WSN-7, DSVL

  • SCBA

  • Tele-medicine

  • Automated Heat Stress

  • CHRIMP

  • New ROTON Hinges on All Joiner Doors

  • Compensated Fuel Oil System, Lube Oil Cooler Increased Capacity, HELLAN Strainers

  • Sigma Edgeguard Paint System

  • MV-22 (Osprey) Capability

  • Environmental Systems Mods

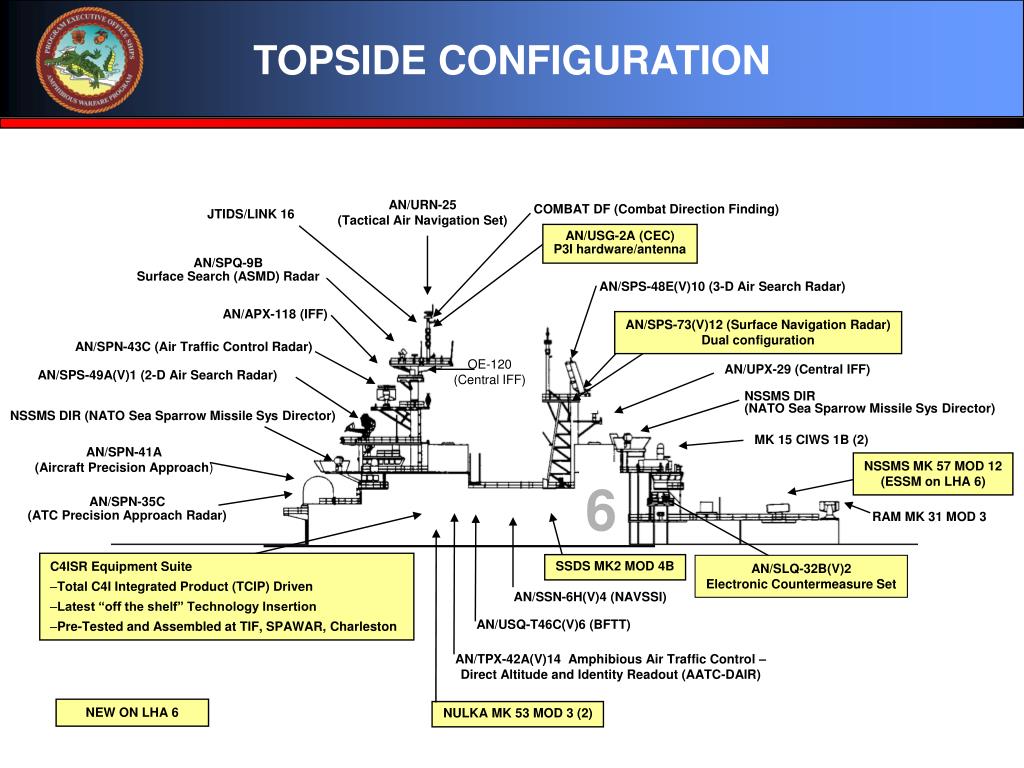

Topside configuration l.jpg

8

TOPSIDE CONFIGURATION

PRIMARY SENSORS

AN/URN-25

(Tactical Air Navigation Set)

AN/USQ-167 (SSEE Increment E)

AN/USG-2 (CETPS)

AN/SPQ-9B

Surface Search (ASMD) Radar

AN/SPS-48E (3-D Air Search Radar)

AN/APX-118 (IFF)

AN/SPS-73 (Surface Navigation Radar)

AN/SPS-67 (Surface Search Radar)

AN/SPN-43C (Air Traffic Control Radar)

AN/UPX-29 (Central IFF)

AN/SPS-49A (2-D Air Search Radar)

AN/UPX-29

(Central IFF)

MK 15 MOD 22 CIWS (Close-In Weapons Sys)

NSSMS DIR (NATO Sea Sparrow Missile Sys Director)

NSSMS DIR

(NATO Sea Sparrow Missile Sys Director)

AN/SPN-41A (Aircraft Approach Radar)

NSSMS Launcher

AN/SPN-35C

(ATC Precision Approach Radar)

RAM w/HAS Mode

SLQ-32

Electronic Countermeasure Set

  • C4ISR Equipment Suite

  • TCIP Driven

  • Latest Technology Insertion

  • Pre-Tested and Assembled at TIF, SPAWAR, Charleston

SSDS MK2 MOD 3A

AN/SSN-6H(V)4 (NAVSSI)

AN/USQ-46C(V)7 (BFTT)

AN/TPX-42A(V)14 (AATC-DAIR)

New on LHD 8

MK 57 MOD 10 (NSSMS)


Slide13 l.jpg

MAJOR CONTRACTORS

CONTRACTOR

Prime Contractor

NGSS

Major Subcontractors

Jered Brown Bros.

General Electric

General Electric

Sperry Marine

Lakeshore, Inc.

L3-NMP Corp.

York International Corp.

C S Controls

Baldt

AAI Corp

Rolls Royce Naval Marine

Converteam

Fairbanks Morse Colt-Pielstick

Government Field Activities

SUPSHIP Gulf Coast

SPAWARSYSCEN Charleston

NSWC PD

NSWC Crane

LOCATION

Pascagoula, MS

Brunswick, GA

Cincinnati, OH

Lynn, MA

Charlottesville, VA

Iron Mountain, MI

Tulsa, OK

York, PA

Houma, LA

Chester, PA

Cockeysville, MD

Walpole, MA

Austin, TX

Beloit, WI

Pascagoula, MS

Charleston, SC

Philadelphia, PA

Crane, IN

ROLE

Prime Contractor

Deck Edge Elevator

Gas Turbines

Reduction Gear

Machinery Control System

Cargo Elevators

SWBDs, Main and Emergency

A/C Plants

Steering/Anchor Windless

Anchor Chain

Cargo Monorail System

Controllable Pitch Propellers

Auxiliary Propulsion System

Diesel Generators

Industrial Planning & Oversight

C4ISR Systems & Integration

HM&E Systems

GFE Management


Slide14 l.jpg

CONSTRUCTION SCHEDULE

2003

2004

2005

2006

2007

2008

2009

J

F

M

A

M

J

J

A

S

O

N

D

M

J

J

A

S

O

N

D

J

F

M

A

M

J

J

A

S

O

N

D

J

F

M

A

M

J

J

A

S

O

N

D

J

F

M

A

M

J

J

A

S

O

N

D

J

F

M

A

M

J

J

A

S

O

N

D

J

F

M

A

M

J

J

A

S

O

N

D

CSACF

STRT

STRT

STRN

FLOAT

LFF

FAB

KEEL

INTEG

RLSE

OFF

ELO

PLO

BT

AT

*Del

FCT

GLO

TBD

5/22

2/16

3/15

7/18

9/22

12/7

9/29

2/14

6/23

11/14

10/26

8/4

*Note: As of Jan 08, delivery projected for 14 Nov 2008

STRIKE

KATRINA

MCS Delay

Plus a 40 year Service Life


Highlights l.jpg
HIGHLIGHTS

  • Main propulsion system completely re-designed and updated

    • Steam eliminated

    • Controllable Pitch Propeller (CPP) replaced fixed pitch

    • Machinery Control System (MCS) added

  • Auxiliary propulsion motors added

  • Auxiliary systems completely re-designed and updated

    • All electric

    • 4160 / 450 VAC electrical system

  • Extensive command and control capability

  • Combat system self-defense suite

  • Able to embark MV-22, JSF, EFV in addition to all legacy craft

  • Designed for fuel efficiency

  • Designed for maintenance efficiency

  • Fuel compensation system



Slide17 l.jpg

PROGRAM OVERVIEW

SYSTEM DESCRIPTION LHA 6 Class Amphibious Assault Ship (General-Purpose)

PURPOSE / MISSION Conduct amphibious assault with an aviation focus

  • Provide forward presence and power projection independently and as an integral part of joint, interagency and multi-national maritime expeditionary forces;

  • Support strategic ability / operational reach / tactical flexibility required for successful Expeditionary Maneuver Warfare;

  • Centerpiece of Expeditionary Strike Group / Marine Expeditionary Unit (ESG/MEU) operations and Marine Expeditionary Brigade (MEB) operations from the seabase;

  • Support tilt-rotor aircraft, helicopters and fixed-wing short take-off vertical landing (STOVL) aircraft in support of expeditionary operations;

  • Support USMC future aviation combat element (MV-22, JSF)

    DESCRIPTION LHA 6 is Flight 0 single-ship

  • Originally a 4-ship program (1 Flt 0, 3 Flt 1), 2nd and 3rd ships in profile moved to MPF(F) with 4th ship outside FYDP

    CATEGORY ACAT 1D

    BUILDING YARD Northrop Grumman Ship Systems, Inc.

    (Gulf Coast)

    PROGRAM PHASE Production


Slide18 l.jpg

PROGRAM HISTORY

  • First brief of the need for LHA Replacement – 1997

  • PMS377 designated Program Manager – November 2000

  • MS A Acquisition Decision Memorandum (ADM) – July 2001

  • Analysis of Alternatives study completed – June 2002

  • ASN (RD&A) concurred with Sole Source Acquisition Strategy – April 2003

  • CNO/CMC/ASN letter redirected program for aviation focus – April 2004

  • Congress added AP funding in FY05 Appropriations Act

  • JROC validated LHA(R) CDD and tasked Aviation Capability KPP Study – February 2005

  • USD(AT&L) ADM approved ASR and authorized FY05 AP contract – February 2005

  • Aviation Manning / Operational Capability Flight Hours Study completed – June 2005

  • AP Contract awarded to NGSS – July 2005

  • COMOPTEVFOR Early Operational Assessment (EOA) completed – August 2005

  • Critical Design Review (CDR) completed – October 2005

  • USD(AT&L) approved updated LHA(R) Acquisition Strategy for Flight 0 ship – October 2005

  • JROC validated aviation and survivability / force protection KPPs – December 2005

  • USD(AT&L) approved Milestone B for LHA 6 – January 2006

  • POM 08 redirected FY10 ship from LHA 7 (Flight 1) warship to MPF(F) LHA (repeat LHA 6)

  • Award LHA 6 Construction Modification: 1 June 2007


Slide19 l.jpg

BIG DECK AMPHIB EVOLUTION

  • Well Deck Designed for LCAC

  • Updated Warfare Systems

  • Aviation improvements and AV-8B capability

  • Seakeeping Bow

LHD 1-4

1989-92

LHD 5-7

1996-2001

  • Updated Warfare System / C4ISR

  • Flt Deck / Island Improvements

  • Additional JP-5

  • Elimination of steam with Gas Turbine Propulsion and Electric Auxiliaries

  • Partial Electric Drive (up to 12 knots)

LHD 8

2008

  • Expanded Aviation Capability

  • Significant Increase in Vehicle Square

  • Well deck designed for LCUs

  • 20 year service life … “administratively” extended to 35 years

LHA 1-5

1976-80

  • LHD 8 Hull and Machinery

  • No Well Deck

  • Optimized for Flight Operations

  • Larger Hangar & Additional Magazines

  • Additional JP5

  • Updated Warfare System/C4ISR

LHAR (LHA 6)

2012


Slide20 l.jpg

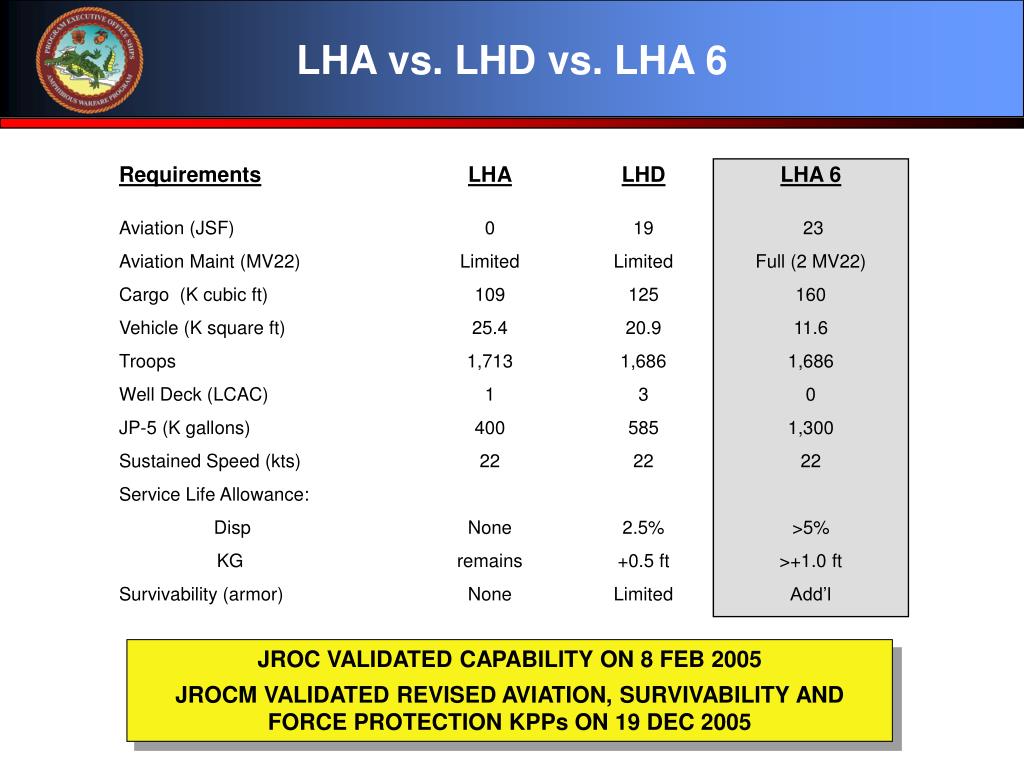

LHA vs. LHD vs. LHA 6

RequirementsLHALHDLHA 6

Aviation (JSF) 0 19 23

Aviation Maint (MV22) Limited Limited Full (2 MV22)

Cargo (K cubic ft) 109 125 160

Vehicle (K square ft) 25.4 20.9 11.6

Troops 1,713 1,686 1,686

Well Deck (LCAC) 1 3 0

JP-5 (K gallons) 400 585 1,300

Sustained Speed (kts) 22 22 22

Service Life Allowance:

Disp None 2.5% >5%

KG remains +0.5 ft >+1.0 ft

Survivability (armor) None Limited Add’l

JROC VALIDATED CAPABILITY ON 8 FEB 2005

JROCM VALIDATED REVISED AVIATION, SURVIVABILITY AND FORCE PROTECTION KPPs ON 19 DEC 2005


Changes from lhd 1 class l.jpg

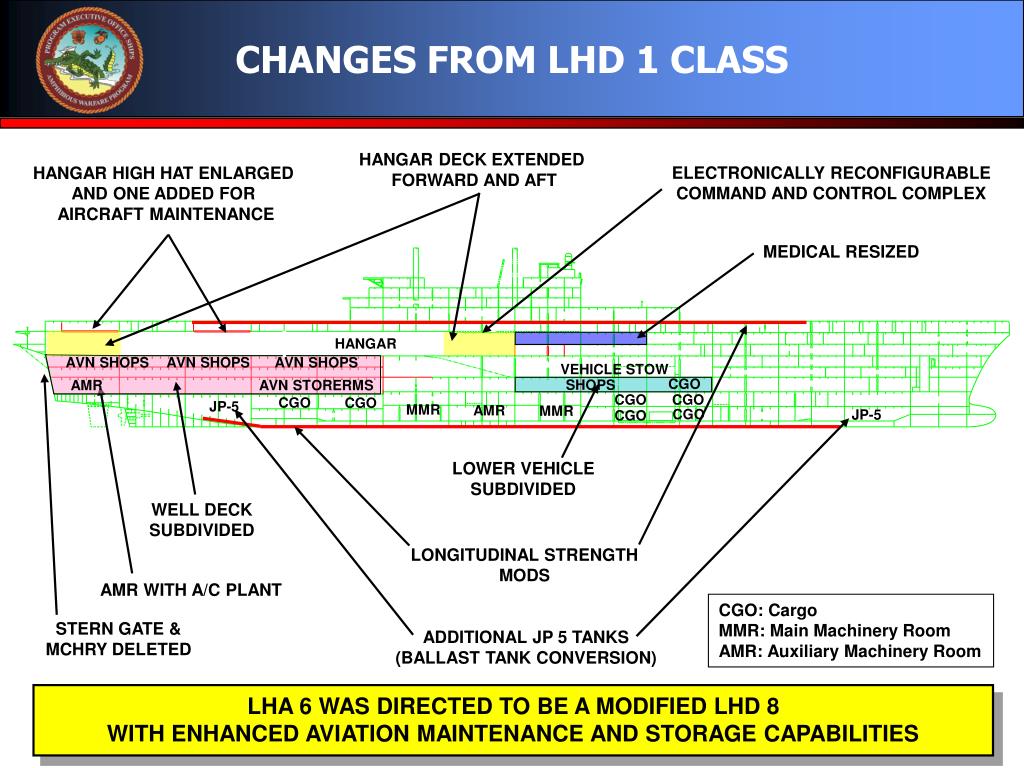

CHANGES FROM LHD 1 CLASS

HANGAR DECK EXTENDED

FORWARD AND AFT

ELECTRONICALLY RECONFIGURABLE COMMAND AND CONTROL COMPLEX

HANGAR HIGH HAT ENLARGED

AND ONE ADDED FOR

AIRCRAFT MAINTENANCE

MEDICAL RESIZED

HANGAR

AVN SHOPS

AVN SHOPS

AVN SHOPS

VEHICLE STOW

CGO

SHOPS

AMR

AVN STORERMS

CGO

CGO

CGO

CGO

JP-5

MMR

AMR

MMR

CGO

JP-5

CGO

LOWER VEHICLE

SUBDIVIDED

WELL DECK

SUBDIVIDED

LONGITUDINAL STRENGTH

MODS

AMR WITH A/C PLANT

CGO: Cargo

MMR: Main Machinery Room

AMR: Auxiliary Machinery Room

STERN GATE &

MCHRY DELETED

ADDITIONAL JP 5 TANKS

(BALLAST TANK CONVERSION)

LHA 6 WAS DIRECTED TO BE A MODIFIED LHD 8

WITH ENHANCED AVIATION MAINTENANCE AND STORAGE CAPABILITIES


Topside configuration22 l.jpg

6

8

TOPSIDE CONFIGURATION

AN/URN-25

(Tactical Air Navigation Set)

COMBAT DF (Combat Direction Finding)

JTIDS/LINK 16

AN/USG-2A (CEC)

P3I hardware/antenna

AN/SPQ-9B

Surface Search (ASMD) Radar

AN/SPS-48E(V)10 (3-D Air Search Radar)

AN/APX-118 (IFF)

AN/SPS-73(V)12 (Surface Navigation Radar)

Dual configuration

AN/SPN-43C (Air Traffic Control Radar)

OE-120

(Central IFF)

AN/UPX-29 (Central IFF)

AN/SPS-49A(V)1 (2-D Air Search Radar)

NSSMS DIR

(NATO Sea Sparrow Missile Sys Director)

NSSMS DIR (NATO Sea Sparrow Missile Sys Director)

MK 15 CIWS 1B (2)

AN/SPN-41A

(Aircraft Precision Approach)

NSSMS MK 57 MOD 12

(ESSM on LHA 6)

AN/SPN-35C

(ATC Precision Approach Radar)

RAM MK 31 MOD 3

  • C4ISR Equipment Suite

  • Total C4I Integrated Product (TCIP) Driven

  • Latest “off the shelf” Technology Insertion

  • Pre-Tested and Assembled at TIF, SPAWAR, Charleston

SSDS MK2 MOD 4B

AN/SLQ-32B(V)2

Electronic Countermeasure Set

AN/SSN-6H(V)4 (NAVSSI)

AN/USQ-T46C(V)6 (BFTT)

AN/TPX-42A(V)14 Amphibious Air Traffic Control –

Direct Altitude and Identity Readout (AATC-DAIR)

NEW ON LHA 6

NULKA MK 53 MOD 3 (2)


Aviation maintenance hangar high hat l.jpg
AVIATION MAINTENANCE & HANGAR HIGH HAT

Added 7-Frame (49 ft) High Hat

Extended existing High Hat 2-Frames (14 ft) aft


Hangar comparison l.jpg
HANGAR COMPARISON

LHD

LHA 6

BOAT POCKET

2500 SQ FT

LHA 6 HANGAR

27254 SQ FT

LHD HANGAR

21480 SQ FT

LHA 6 HANGAR BAY FWD

3136 SQ FT

FRAMES 81–130

20 FT DK HGHT

FRAMES 121-130

19-20 FT DK HGHT

FRAMES 83–121

20 FT DK HGHT

FRAMES 73-81

19 FT DK HGHT

Total LHD Hangar Area (w/o Boat Pocket) = 21,480 ft2

Total LHD Hangar Area (with Boat Pocket) = 23,980 ft2

Total LHA 6 Hangar Area = 30,390 ft2 (42/27% area increase, respectively)


Program milestones l.jpg

O

N

D

J

F

M

A

M

J

J

A

S

PROGRAM MILESTONES

FY05

FY06

FY07

FY08

FY09

O

N

D

J

F

M

A

M

J

J

A

S

O

N

D

J

F

M

A

M

J

J

A

S

O

N

D

J

F

M

A

M

J

J

A

S

O

N

D

J

F

M

A

M

J

J

A

S

O

N

D

J

F

M

A

M

J

J

A

S

LHA 6

ISSUE

RFP

PROPOSAL

RECVD

DD&C MOD

STRT FAB

KEEL

MS B

DAB

2/1

11/22

1/11

3/13

6/1

4/7

10/6

CDD APPROVAL

CDD REVISION

12/19

2/8

FEASIBILITY

STUDIES / DESIGN

AP RFP

ISSUE

AP

AWARD

LHA 7/

MPF(F)

CONCEPT / TRADE STUDIES

R3B

7/15

11/15

1/15

TRANSITION TO MPF(F)

FY10

FY11

FY12

FY13

FY14

O

N

D

J

F

M

A

M

J

J

A

S

O

N

D

J

F

M

A

M

J

J

A

S

O

N

D

J

F

M

A

M

J

J

A

S

O

N

D

J

F

M

A

M

J

J

A

S

LHA 6

CSACF

FLOAT

OFF

10/1

10/18

ELO

BT

AT

DEL

FCT

PSA

OWLD

4/2

8/31

7/15

10/15

12/31

2/25

6/13

5/18

TBD

LHA 7/

MPF(F)


Highlights26 l.jpg

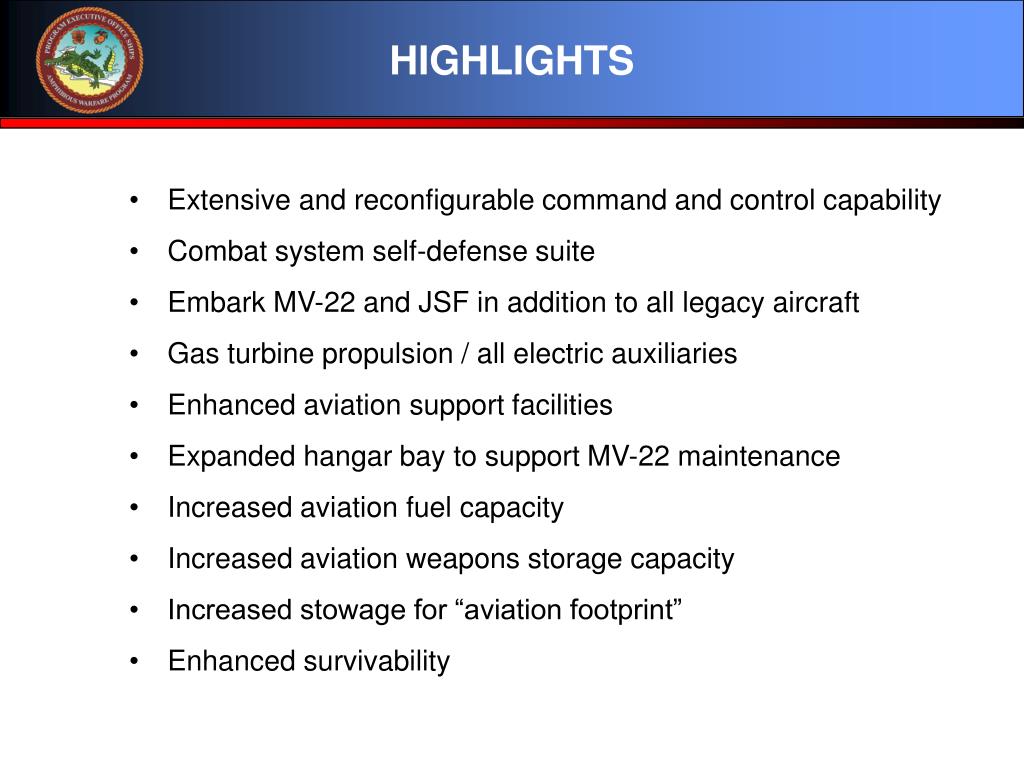

HIGHLIGHTS

  • Extensive and reconfigurable command and control capability

  • Combat system self-defense suite

  • Embark MV-22 and JSF in addition to all legacy aircraft

  • Gas turbine propulsion / all electric auxiliaries

  • Enhanced aviation support facilities

  • Expanded hangar bay to support MV-22 maintenance

  • Increased aviation fuel capacity

  • Increased aviation weapons storage capacity

  • Increased stowage for “aviation footprint”

  • Enhanced survivability



Mission l.jpg
MISSION

  • High Speed, Over-The-Beach, Ship-To-Shore Amphibious Capability to Lift All Equipment Organic to the Ground Elements of a Marine Air / Ground Task Force

  • Ability to Operate Independent of Tides, Water Depth, Underwater Obstacles, or Beach Gradients


Slide29 l.jpg

CHARACTERISTICS

TLR# AND DATE OPNAVINST C9010.319 22 APR 80

BUILDING / SLEP YARD TEXTRON MARINE AND LAND SYSTEMS

(TM&LS) NEW ORLEANS, LA

SECOND SOURCE AVONDALE GULFPORT MARINE (AGM)

GULFPORT, MS

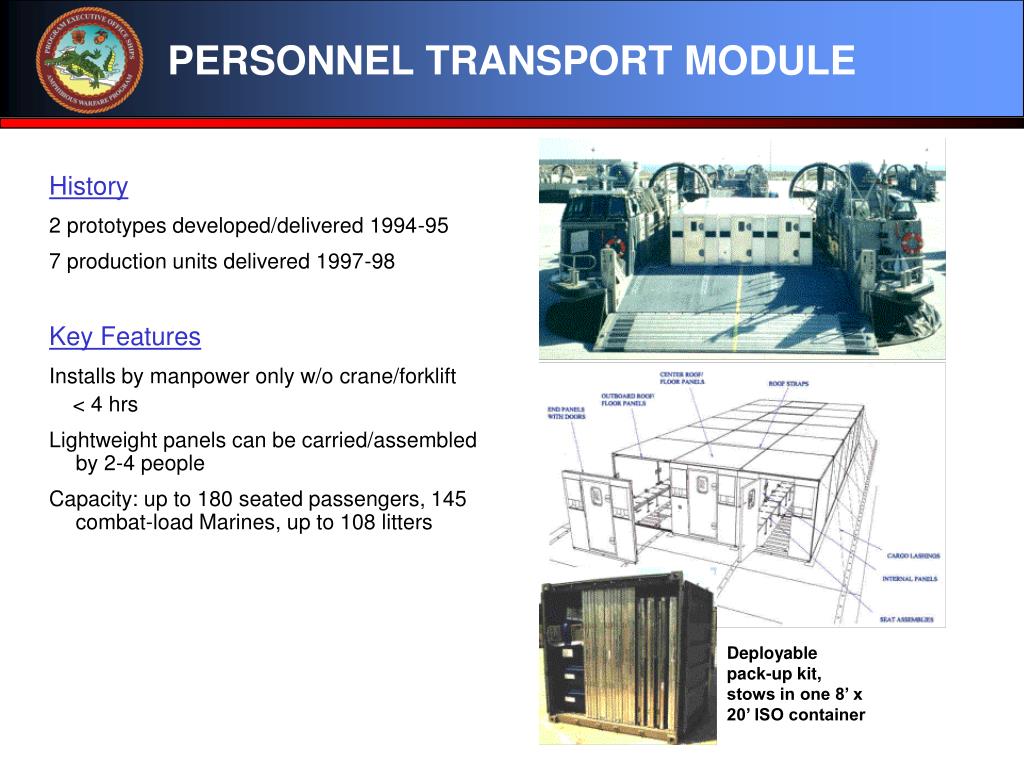

PERSONNEL TRANSPORT MODULE (PTM):

COMBAT READY TROOPS

MEDEVAC

NONCOMBATANT EVACUATION OPERATIONS (NEO)

HUMANITARIAN ASSISTANCE

LENGTH, MAX, ON CUSHION: 91’ 9"

BEAM, MAX, ON CUSHION: 47’ 9"

HEIGHT, MAX, ON CUSHION: 25’ 8"

CARGO DECK: 1809 SQ FT

WIDTH OF FORWARD RAMP: 28’ 04"

WIDTH OF STERN RAMP: 14’ 10"

SPEED: 40+ KNOTS

PAYLOAD: 60 TON DESIGN

72 TON OVERLOAD

PROPULSION: ETF40B GAS TURBINES

ACCOMMODATIONS: CREW MEMBERS: 5

COMMANDER SEAT: 1

TROOPS: 24

TOTAL: 30


Slide30 l.jpg

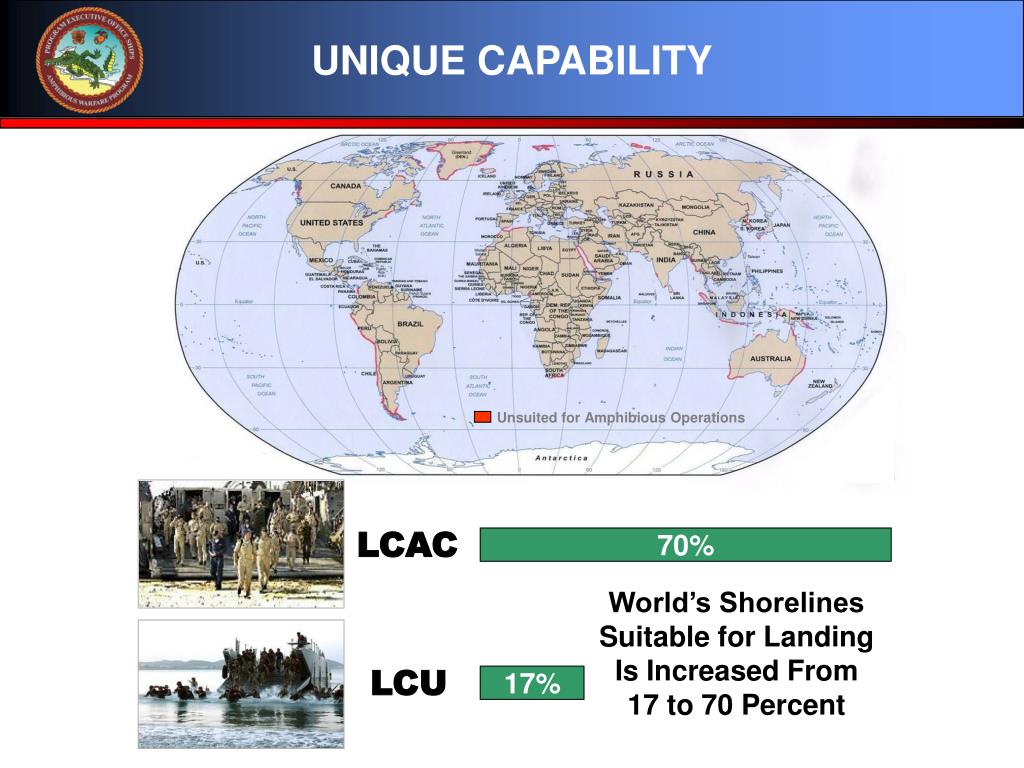

UNIQUE CAPABILITY

Unsuited for Amphibious Operations

LCAC

70%

World’s Shorelines Suitable for Landing Is Increased From 17 to 70 Percent

LCU

17%


Slide31 l.jpg

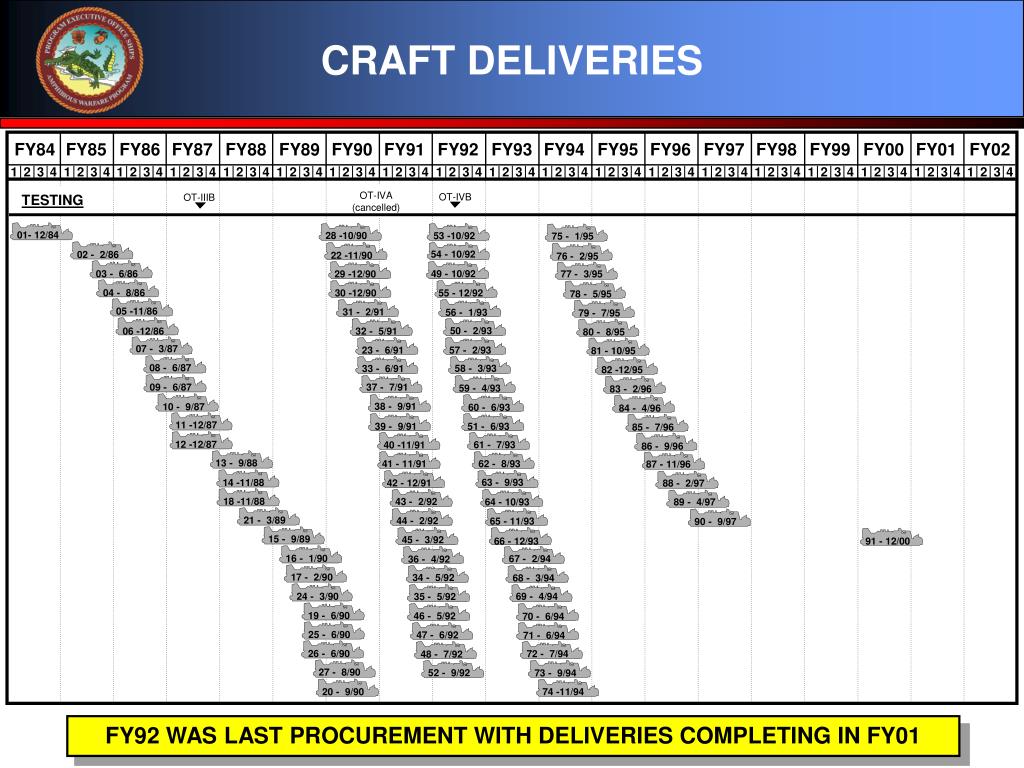

CRAFT DELIVERIES

1

1

1

1

1

1

1

1

1

1

1

1

1

1

1

1

1

1

1

2

2

2

2

2

2

2

2

2

2

2

2

2

2

2

2

2

2

2

3

3

3

3

3

3

3

3

3

3

3

3

3

3

3

3

3

3

3

4

4

4

4

4

4

4

4

4

4

4

4

4

4

4

4

4

4

4

FY84

FY85

FY86

FY87

FY88

FY89

FY90

FY91

FY92

FY93

FY94

FY95

FY96

FY97

FY98

FY99

FY00

FY01

FY02

OT-IVA

(cancelled)

TESTING

OT-IVB

OT-IIIB

01- 12/84

28 -10/90

53 -10/92

75 - 1/95

54 - 10/92

02 - 2/86

22 -11/90

76 - 2/95

03 - 6/86

49 - 10/92

77 - 3/95

29 -12/90

04 - 8/86

30 -12/90

55 - 12/92

78 - 5/95

05 -11/86

31 - 2/91

56 - 1/93

79 - 7/95

50 - 2/93

06 -12/86

32 - 5/91

80 - 8/95

07 - 3/87

23 - 6/91

57 - 2/93

81 - 10/95

08 - 6/87

58 - 3/93

33 - 6/91

82 -12/95

09 - 6/87

37 - 7/91

59 - 4/93

83 - 2/96

38 - 9/91

10 - 9/87

60 - 6/93

84 - 4/96

11 -12/87

39 - 9/91

51 - 6/93

85 - 7/96

12 -12/87

61 - 7/93

40 -11/91

86 - 9/96

13 - 9/88

41 - 11/91

62 - 8/93

87 - 11/96

63 - 9/93

14 -11/88

42 - 12/91

88 - 2/97

18 -11/88

43 - 2/92

64 - 10/93

89 - 4/97

21 - 3/89

44 - 2/92

65 - 11/93

90 - 9/97

15 - 9/89

45 - 3/92

66 - 12/93

91 - 12/00

16 - 1/90

67 - 2/94

36 - 4/92

17 - 2/90

34 - 5/92

68 - 3/94

24 - 3/90

69 - 4/94

35 - 5/92

19 - 6/90

46 - 5/92

70 - 6/94

25 - 6/90

47 - 6/92

71 - 6/94

26 - 6/90

72 - 7/94

48 - 7/92

27 - 8/90

52 - 9/92

73 - 9/94

20 - 9/90

74 -11/94

FY92 WAS LAST PROCUREMENT WITH DELIVERIES COMPLETING IN FY01


Slide32 l.jpg

CURRENT REQUIREMENT

  • 72 Operationally Available (Ao) LCAC are required to comply with ROC / POE and 3.0 MEB

  • 72 LCAC are required to comply with OPLAN and 2.5 MEB, given training requirements and craft Ao

  • PLUS … requirement to support MPF(F) IOC in 2020

    • 21 LCAC Equivalents per MPF(F) Squadron


Slide33 l.jpg

CURRENT READINESS

~57% MC rate

non-deployed

original

design

goal

100%

72 craft

NMC

RAVs

RAVs

78%

56 craft

repairs

85%

NMC

repairs

PMC

48 craft

67%

61%

PMC

(average for 2000-2005)

FRP

deployed

FMC

FMC

today

(and historic average)

4th Qtr FY05

5-yr best

(Operation Iraqi Freedom)

Jun 03

deployed

~95% MC rate

COMBINED: 61% MISSION CAPABLE RATE


Slide34 l.jpg

RECENT EMPLOYMENT

As of 1/10/08


Amphibious ship lcac capacity l.jpg

LCAC Capacity

LPD 4

1

LHD

1

2

3

Relative Welldeck Entry Size

AMPHIBIOUS SHIP LCAC CAPACITY

LPD 17

1

2

(5) TRSP

LSD 41

1

2

3

4

LSD 49

1

2

height

LHA 1

1

LHA 6

N/A

width

SHIP

WELLDECK

width @ entry

WELLDECK

limiting width

WELLDECK

height @ entry

WELLDECK

usable length

LPD 4

50’

48’5” (Batterboard to Batterboard)

26’

164’

LHD

60’

49’5” (Batterboard to Batterboard)

32’9”

266’

LPD 17

58’9”

49’2” (Batterboard to Batterboard)

31’

188’7”

LSD 41

57’6”

50’ (Forward of Frame 134)

30’10”

440’

LSD 49

57’6”

49’5” (Aft Frame 100 to Taper Min)

27’11”

180’

LHA 1

78’

76’ (Sill to Aft End Center Island)

28’

109’


Slide36 l.jpg

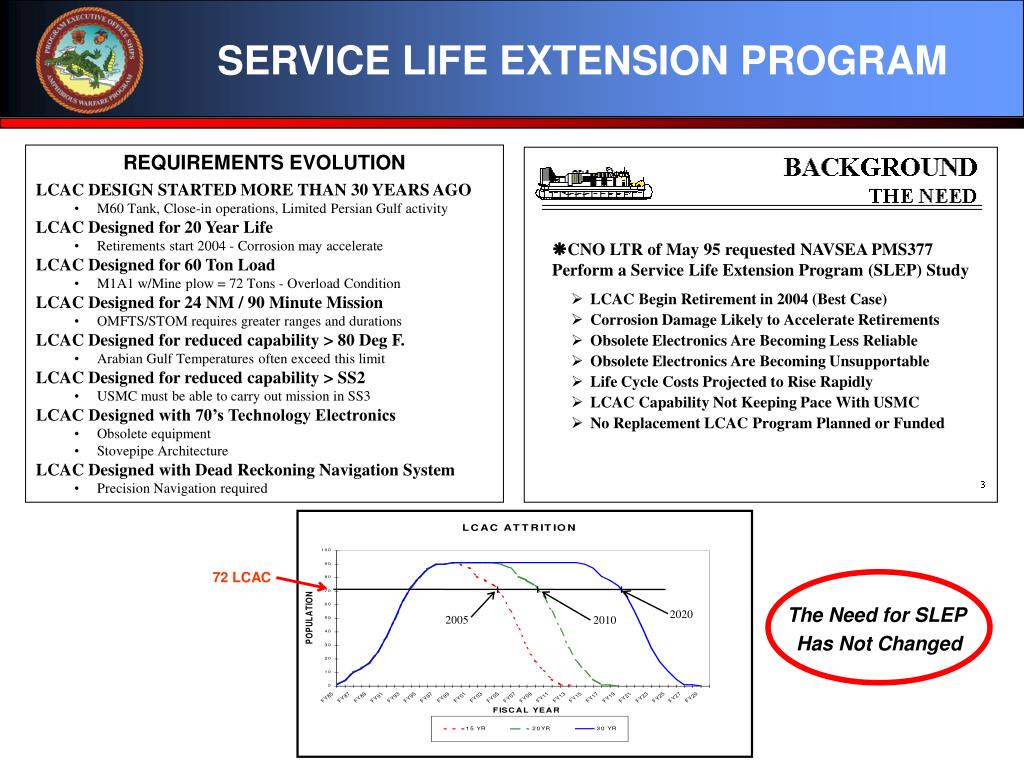

SERVICE LIFE EXTENSION PROGRAM

  • REQUIREMENTS EVOLUTION

  • LCAC DESIGN STARTED MORE THAN 30 YEARS AGO

    • M60 Tank, Close-in operations, Limited Persian Gulf activity

  • LCAC Designed for 20 Year Life

    • Retirements start 2004 - Corrosion may accelerate

  • LCAC Designed for 60 Ton Load

    • M1A1 w/Mine plow = 72 Tons - Overload Condition

  • LCAC Designed for 24 NM / 90 Minute Mission

    • OMFTS/STOM requires greater ranges and durations

  • LCAC Designed for reduced capability > 80 Deg F.

    • Arabian Gulf Temperatures often exceed this limit

  • LCAC Designed for reduced capability > SS2

    • USMC must be able to carry out mission in SS3

  • LCAC Designed with 70’s Technology Electronics

    • Obsolete equipment

    • Stovepipe Architecture

  • LCAC Designed with Dead Reckoning Navigation System

    • Precision Navigation required

  • CNO LTR of May 95 requested NAVSEA PMS377 Perform a Service Life Extension Program (SLEP) Study

    • LCAC Begin Retirement in 2004 (Best Case)

    • Corrosion Damage Likely to Accelerate Retirements

    • Obsolete Electronics Are Becoming Less Reliable

    • Obsolete Electronics Are Becoming Unsupportable

    • Life Cycle Costs Projected to Rise Rapidly

    • LCAC Capability Not Keeping Pace With USMC

    • No Replacement LCAC Program Planned or Funded

72 LCAC

The Need for SLEP

Has Not Changed

2020

2005

2010


Slide37 l.jpg

SLEP REQUIREMENTS

* LCAC SLEP Requirements:

  • Extend Service Life of LCAC from 20 to 30 Years

  • Sustain / Enhance Craft Capability

  • Replace Obsolete Electronics

  • Correct / Repair Corrosion Damage

  • Reduce Life Cycle Cost by Improving Reliability / Maintainability

  • Establish Common Configuration Baseline

  • Increase Survivability

* CNO Ltr 3056 Ser N853L-5U655747, Dated 17 May 1995, Subject: Service Life Extension of the Landing Craft, Air Cushion


Slide38 l.jpg

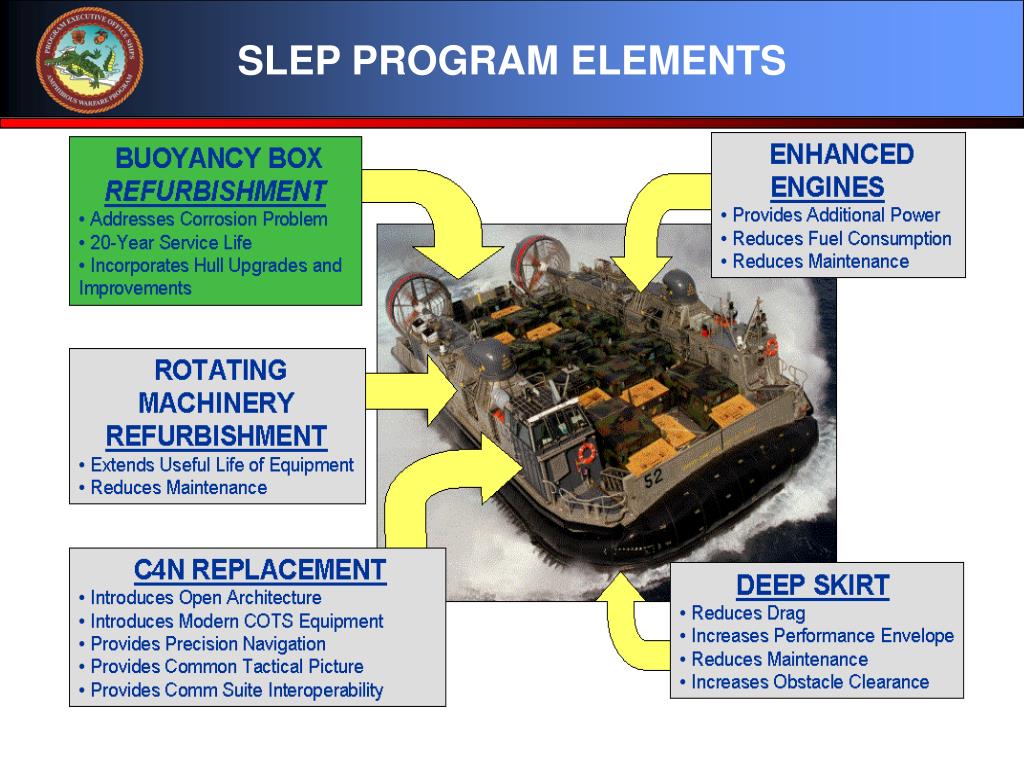

LCAC SLEP HIGHLIGHTS

  • Least Cost Alternative to Extend Life to 30 Years

  • Program Execution in Two Phases

  • Program Commenced in FY96



Slide40 l.jpg

COCKPIT UPGRADE - C4N REPLACEMENT

Post SLEP

Fully

Integrated

Electronics

Suite

Flat

Panel

Displays

Universal

Keyboard

Pre SLEP

  • Introduces:

    • Open Architecture

    • Modern COTS Equipment

  • Provides:

    • Precision Navigation

    • Common Tactical Picture

    • Comm Suite Interoperability

  • Upgrades:

    • LN-66 to P-80 Radar

    • KSQ-1 to EPLRS


Slide41 l.jpg

Reduces Drag

Increases Performance Envelope

Reduces Maintenance

Increases Obstacle Clearance

SKIRT UPGRADE

Standard Skirt (5’)

Deep Skirt (7’)


Slide42 l.jpg

PERSONNEL TRANSPORT MODULE

History

2 prototypes developed/delivered 1994-95

7 production units delivered 1997-98

Key Features

Installs by manpower only w/o crane/forklift

< 4 hrs

Lightweight panels can be carried/assembled by 2-4 people

Capacity: up to 180 seated passengers, 145 combat-load Marines, up to 108 litters

Deployable pack-up kit, stows in one 8’ x 20’ ISO container


Fleet modernization program l.jpg
FLEET MODERNIZATION PROGRAM

Scope

  • Incorporates high cost, critical items that affect MC rates

  • ACUs/Contractors/ AIT installs

Benefit

  • Increases reliability of craft

  • Reduces maintenance burden on ACU

  • Enhances capability

Issues

  • Only 22% of C/A & AERs incorporated to date – huge backlog

Significant Effort Beginning in FY06


Slide44 l.jpg

Oct

Oct

Feb

Jun

Nov

Mar

Jul

Nov

Aug

Dec

Dec

Apr

Sep

Jan

May

Jan

9/29

10/3

2/28

1/6

6/2

8/29

6/16

1/16

5/30

11/14

11/6

4/11

1/9

1/27

FY08 LCAC FMP OVERVIEW

2007

2008

LC 15

LC 4/7

LC 2/25

Awarded –

Oceaneering Intl

LC 19

C/A 358K Main Engine Filter Maint Mods

C/A 407K Hyd Filter

C/A 445KR1 Limited Comp Painting

C/A 515K Craft Mods For Port ESS A/C

C/A 518K Craft Mods For Lt Wt Armor

C/A 532K AN/ARC-210 (RT-1794) (LC 2&25 Only)

C/A 361D Lift Fan Structural Mods

AER 514 Lift Fan Isomag Seals

AER 520 APU SBV Exhaust Relocate

LC 69/71/77/78

4 TBD

C/A 434K Bridgemaster E Radar

C/A 445K Limited Comp Painting

C/A 515K Craft Mods For Port ESS A/C

C/A 517K AN/ARC-210&220 Radios (RT-1794) (AIT)

C/A 518K Craft Mods For Lt Wt Armor

C/A 522K Craft Mods For Legacy Stbd A/C

AER 512 Aft Fuel Tk Wet Deck Repl

AER 514 ISOMAG Seals

C/A 448K Deep Skirt

  • C/A 515K Port A/C

  • C/A 522K Stbd A/C

  • C/A 518K LWA

C/A 518K LWA

12 TBD

C/A 530K BC 5

C/A 534K DAGR

C/A 535K AADS

C/A 536K Autopilot

$515K FY 07 GFM + 500K FY 08 GFM

5000 Mandays + 400K CFM = $3M FY 08 Contract

$292K FY 07 GFM

2400 Mandays + 300K CFM = $2.0M FY 08 Contract

21

NSWCCD AIT

LCAC 80

LCAC 75

LCAC 82

C/A 358K M/E Filter Maint Mods

AER 520 APU SBV

AER 397 M/E Drain Plugs

C/A 445K Comp Ptng

C/A 321K PTM Elec Mods

AER 524/526

C/A 506K BM E on NDI Craft

C/A 515K Craft Mods For Port ESS A/C

C/A 517K AN/ARC-210&220 Radios (RT-1794)

C/A 518K Craft Mods For Lt Wt Armor

C/A 522K Craft Mods For Legacy Stbd A/C

AER 512 Aft Fuel Tk Wet Deck Repl

AER 520 APU SBV Exhaust Relocate

C/A 358K Main Engine Filter Maint Mods

C/A 445KR1 Limited Comp Painting

IDIQ /Miller Marine

$2.2M FY 07 GFM + $1.4M FY 08 GFM

13500 Mandays + 1.8M CFM = $8.0M FY 08

Contract

4 TBD

59

C/A 515K Port A/C

C/A 522K Stbd A/C

C/A 518K LWA

12 TBD

C/A 506K/517K

79

C/A 530K BC 5

C/A 534K DAGR

C/A 535K AADS

C/A 536K Autopilot

  • C/A 506K/517K

LC 73/81/90

ACU FOUR

ACU FIVE

LC 52/63

AITs

16/17

  • C/A 515K Port A/C

  • C/A 522K Stbd A/C

  • C/A 518K LWA

C/A 515K Port A/C

C/A 522K Stbd A/C

C/A 518K LWA

C/A 434K+517K


Slide45 l.jpg

2008

2009

Oct

Feb

Jun

Oct

Jul

Nov

Mar

Nov

Aug

Dec

Apr

Dec

May

Sep

Jan

Jan

LC 20

LC 35

C/A 434K BM E

C/A 445K R1 Comp Painting

C/A 448K Deep Skirt

C/A 515K Port A/C

C/A 517K Radios

C/A 518K Armor

C/A 522K Stbd A/C

AER 512 Aft Fuel Tk

AER 520 APU SBV

C/A 361D Lift Fan Str Mods

AER 514 Lift Fan Isomag Seals

C/A 445K R1 Comp Painting

C/A TBD P&E Fwd Armor

AER 512 Aft Fuel Tk

AER 514 ISOMAG Seals

AER 520 APU SBV

AER 541 Fuel Oil Tanks

Alts TBD

Repair Package

3000 Mandays + 400K CFM =

$3M FY 09 Contract

LC TBD

LC TBD

$500K FMP/Craft FY 09 Contract=

800 Mandays + 100K CFM/Craft

LC TBD

$515K FY 07 GFM + 500K FY 08 GFM

3000 Mandays + 400K CFM = $3M FY 09 Contract

LC 14

23

LC 24

C/A 434K BM E

C/A 445K R1 Comp Painting

C/A 448K Deep Skirt

C/A 517K ARC-210&220 Radios

C/A 518K Armor

AER 512 Aft Fuel Tk

AER 514 Lift Fan Isomag Seals

AER 520 APU SBV

C/A 361D Lift Fan Str Mods

C/A 434K+517K

C/A 434K BM E

C/A 445K R1 Comp Painting

C/A 448K Deep Skirt

C/A 517K ARC-210&220 Radios

C/A 518K Armor

AER 512 Aft Fuel Tk

AER 514 Lift Fan Isomag Seals

AER 520 APU SBV

C/A 361D Lift Fan Str Mods

$515K FY 07 GFM + 500K FY 08 GFM

5000 Mandays + 400K CFM =

$3M FY 09 Contract

10/12

TBD

TBD

4/16

TBD

TBD

11/17

TBD

TBD

TBD

TBD

TBD

11/17

4/16

TBD

TBD

TBD

TBD

TBD

LC 73*

LC 81*

LC 90*

$2.2M FY 07 GFM

2500 Mandays + 300K CFM = $1.5M FY 09 Contract

C/A 506K + 517K + 445K + TBD

ACU FOUR

ACU FIVE

AITs

*If returned from WPA

FY09 LCAC FMP OVERVIEW


Slide46 l.jpg

HIGHLIGHTS

  • 91 LCAC Planned / Delivered

  • Fast, heavy lift capability required well into next century

  • Service Life extended to 30 years by SLEP

  • Safe Engineering and Operations (SEAOPS) Program

  • ASSAULT CRAFT UNIT 4 and ASSAULT CRAFT UNIT 5

  • LCAC-M cost accounting model

  • Annual Fleet Support Conference

  • Maintenance Availabilities

  • Craft-alts

  • Personnel Transport Modules (PTMs)


Slide47 l.jpg

JOINT MARITIME ASSAULT CONNECTOR

Seabase Enabled Forcible Entry



Slide49 l.jpg

WHY WE NEED JMAC

FY14

72 craft

JMAC

LCAC

Service Life

20-years

LCAC SLEP

Service Life

30-years

LCAC SLEP PROGRAM IS UNDERWAY – SLEP CRAFT BEGIN PHASE-OUT IN 2015

REPLACEMENT CRAFT REQUIRED


Slide50 l.jpg

PRELIMINARY SPONSOR GUIDANCE

  • Able to operate in well decks of U.S. Navy amphibious ships

  • Able to operate in well decks of future amphibious and MPF(F) ships if well deck equipped

  • Able to operate over beaches, ice, mud, and marsh areas

  • Able to operate in inland regions

  • Able to ascend a beach gradient of 5 degrees from a standstill and 6 degrees at a minimum approach speed of 5 knots with a cargo load of 72 short tons


Desired improvements over lcac l.jpg
DESIRED IMPROVEMENTS OVER LCAC

  • Ability to operate in higher sea states (SS 4)

  • Increased range, speed and payload

  • Increased crew day

  • Reduced number of crew

  • Greater clearance over man-made and naturally occurring obstacles

  • Reduced maintenance and operational cost

  • Increased RMA

  • Decreased noise (internal and external)

  • Increased Infra-Red (IR) suppression


Slide52 l.jpg

NOTIONAL SCHEDULE - FY11 AWARD

O

O

O

O

O

O

N

N

N

N

N

N

D

D

D

D

D

D

J

J

J

J

J

J

F

F

F

F

F

F

M

M

M

M

M

M

A

A

A

A

A

A

M

M

M

M

M

M

J

J

J

J

J

J

J

J

J

J

J

J

A

A

A

A

A

A

S

S

S

S

S

S

FY 07

FY 08

FY 09

FY 10

FY 11

FY 12

CONCEPT DECISION

PHASE II TECHNOLOGY INITIATIVE

TECHNOLOGY INITIATIVE AT WARFARE CENTERS

ANALYSIS OF ALTERNATIVES

MILESTONE A

CONCEPT REFINEMENT

CDD DEVELOPMENT

PRELIMINARY/CONTRACT DESIGN

SOURCE SELECTION

MILESTONE B

AWARD

DETAIL DESIGN AND CONSTRUCTION


Amphibious assault direction system l.jpg

  • USER TERMINAL

  • GROUP

  • UTG – LCAC/LCU

  • Provides PLI

  • PRIMARY

  • CONTROL GROUP

  • PCG

  • Directs Ship-to-Shore Movement

  • Mission Changes

  • Dynamic Reference Unit

  • SECONDARY

  • CONTROL GROUP

  • SCG

  • Backup to PCG

  • Dynamic Reference Unit

  • AMPHIBIOUS

  • COMMAND GROUP

  • ACG

  • Controls EPLRS Net

AMPHIBIOUS ASSAULT DIRECTION SYSTEM

Description

Amphibious Assault Direction System, AN/KSQ-1 with Enhanced Position Location Reporting System (EPLRS), integrates the NAVSTAR Global Positioning System (GPS) to form a jam / intercept resistant, friendly force tracking and command and control system that supports the surface assault ship-to-shore movement in amphibious operations

Provides

  • Capability to Launch, Monitor, Track and Control Surface or Combined Surface and Air Amphibious Assaults up to 100 NM OTH

  • Seamless Integration with USMC S-T-O-M

  • Perform OTH Operations

  • Integration with GCCS-M

    Sub-Systems

  • AN/KSQ-1

  • EPLRS

Programmatic

  • ACAT III

  • ORD Signed May 89

  • MS III Dec 95

  • OPEVAL Apr 95

  • IOC Mar 97

  • FSTR Strategy Approved Jul 02





Aads evolution l.jpg
AADS EVOLUTION

Obsolete AADS w/PLRS

Legacy AADS w/EPLRS

FSTR


Slide58 l.jpg

LEGACY AADS vs. FSTR

FOOTPRINT

585 (in2)

3325 (in2)

AADS W/ EPLRS (V11.X) FSTR

REDUCED FOOTPRINT

80 %

LEGACY AADS W/ EPLRS


Legacy aads vs fstr l.jpg

2215

625

LEGACY AADS vs. FSTR

ANTENNA

LEGACY AADS W/ EPLRS AADS FSTR W/ EPLRS

PERSONNEL PER SHIFT

LEGACY AADS W/ EPLRS AADS FSTR W/ EPLRS

ENVIRONMENT

POWER HEAT

WEIGHT (LBS)

LEGACY AADS W/ EPLRS AADS FSTR W/ EPLRS

NCS OPERATOR

KSQ-1 OPERATOR

REMOTE OPERATOR

KSQ-1 / ENM OPERATOR

REDUCED ANTENNAE

50%

REDUCED PERSONNEL

66%

REDUCED

70%

REDUCED WEIGHT

72%


Ship configuration interfaces l.jpg

OJ-731C/KSQ

Computer Workstation

SHIP CONFIGURATION / INTERFACES

EPLRS

NETWORK

LHD, LHA, LPD, LSD

LCAC

LCU

AS-4454 KSQ-1

Antennas

HUMV

AAAV

HELO

GPS Receiver/Ships

Distribution Point for

AN/WRN-6 or AN/SSN-6(V)

GENSER LAN

Ethernet

Or

10BaseT

Or

100BaseT

23 TV

GCCS-M

Computer Workstation


Slide61 l.jpg

LCAC AADS FSTR EQUIPMENT

EPLRS User Unit (EPUU)

Junction Box


Eplrs airborne relay l.jpg
EPLRS AIRBORNE RELAY

RT-1720 Radios - Installed in FER

Flight Equipment Rack (FER)

AIRBORNE RELAY EQUIPMENT FLIGHT CERTIFIED FOR MH-60 SAR HELO


Program installation plan l.jpg

LPD 21 (4/08-12/08)

LPD 23 (12/09-6/10)

LPD 24 (6/10-11/10)

LHD 8 (3/08-6/08)

LPD 22 (9/09-2/10)

FY 06

FY 08

FY 09

FY 10

FY 07

2 ESG

2 ESG

2 ESG

4 ESG

MISC

6LCAC

20LCAC

10LCAC

22 + 18LCAC

4LCU

21LCU

10LCU

-SHIPALTS/CRAFTALTS-

DEC 05 (PAC)

TORTUGA

APR 06 (PAC)

ESSEX

HARPERS FERRY

AUG-SEP 06 (PAC)

JUNEAU

JUL-AUG 06 (PAC)

TARAWA

CLEVELAND

PEARL HARBOR

SEP 07-FEB 08 (LANT)

JAN-FEB BATAAN

OAK HILL

APR-JUN 08 (PAC)

NEW ORLEANS

MAR-APR 08 (LANT)

WASP

JAN–MAY 08 (PAC)

APR-MAY BONHOMME RICHARD

JAN DENVER

FEB RUSHMORE

JUN 08 (LANT)

PONCE

AUG 08 (LANT)

FORT MCHENRY

AUG-DEC 08 (LANT)

MESA VERDE

JAN-FEB 09 (LANT)

GUNSTON HALL

MAR 09 (LANT)

KEARSARGE

JUL-AUG 09 (LANT)

WHIDBEY ISLAND

SEP-DEC 09 (PAC)

GREEN BAY

NOV 06-JUL 07 (LANT)

NASSAU

SAN ANTONIO

ASHLAND

DEC 06-AUG 07 (PAC)

PELELIU

GERMANTOWN

AUG-DEC 07 (PAC)

BOXER

DUBUQUE

COMSTOCK

JAN-NOV 07 (LANT)

IWO JIMA

NASHVILLE

CARTER HALL

BLUE – INSTALLATION COMPLETE

RED – INSTALLATION SCHEDULED

Rev 9 JAN 08

PROGRAM INSTALLATION PLAN


Slide64 l.jpg

HIGHLIGHTS

  • Uses equipment common with USMC and other services

  • New construction amphibious ships receive during construction

  • Robust system

  • 59% of in-service amphibious ships have the system installed

  • Adaptable to new technology
