Presentation Transcript
ansi a10 47 2009 work zone safety for highway construction

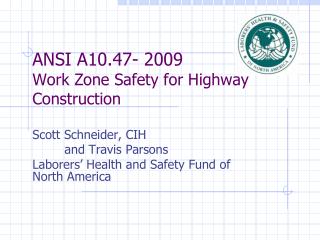

ANSI A10.47- 2009Work Zone Safety for Highway Construction

Scott Schneider, CIH

and Travis Parsons

Laborers’ Health and Safety Fund of North America

agenda
Agenda
  • Introductions
  • History
  • Overview of the Standard
  • Major Issues
history of the standard
History of the Standard
  • First proposed in 2004
  • Intended to fill a gap
  • Few OSHA or ANSI A10 standards addressed road/highway construction
  • One of the few A10 “vertical” standards to address hazards in one industry sector
outline of the standard
Outline of the Standard
  • 1) Scope and Purpose, Exceptions, Referenced Standards
  • 2) Definitions
  • 3) Traffic Control
  • 4) Flagger Safety
  • 5) Runover/Backover Prevention
  • 6) Equipment Operator Safety
  • 7) Excavation Safety
  • 8) Electrical Safety
outline of the standard1
Outline of the Standard
  • 9) Power Tool Safety
  • 10) Fall Prevention
  • 11) Reduction of Musculoskeletal Problems
  • 12) Protection from Health Hazards
  • 13) Illumination for Night Work
  • 14) Personal Protective Equipment
  • 15) Paving Operations
scope purpose exceptions
Scope, Purpose, Exceptions
  • Scope: Covers workers doing construction, maintenance or repair work on any area of a highway
  • Purpose:
    • To prevent worker injuries and illnesses
    • To establish safe work practices and
    • To prevent vehicular crashes
  • Exceptions:
    • Practical difficulty
    • Unnecessary hardship
    • New developments
    • But must provide equivalent protection
referenced standards
Referenced Standards
  • ANSI standards
  • FHWA standards- MUTCD
  • ASTM standards
  • OSHA standards
  • NCHRP 350
  • ANSI standards often go beyond Federal regulations and represent best practices
definitions
Definitions
  • 41 definitions, such as
    • Competent persons
    • Highway
    • Internal Traffic Control Plans
    • Positive Protective Devices
    • Transportation Management Plan
traffic control
Traffic Control
  • Must comply with the latest MUTCD
  • Must pre-plan the job for Safety, Materials, Staffing, Traffic control
  • Must prepare a traffic control plan, communicate it to the authority in charge before work and when it changes
positive protection
Positive Protection
  • Positive Protection is required when:
    • There is no means of escape (e.g. bridge and tunnel work)
    • 2 weeks or longer duration
    • High speed traffic (≥ 45 mph) with high volumes
    • Workers working close to the traffic lane
traffic control setup removal
Traffic Control Setup/Removal
  • Requires proper training and supervision
  • Use automatic deployment devices where feasible or protected area of a vehicle with fall restraint
  • Deploy and retrieve in a safe direction
  • Add a Truck Mounted Attenuator or law enforcement if high speed traffic
  • Inspect setup:
    • Daily by a qualified person
    • More often if heavy traffic, frequent damage, poor visibility, bad weather or vehicle intrusion
  • Remove or cover signs when not working
  • Distinguish Construction vehicles with lighting and signage for work zone access
  • Close traffic lane when working in aerial lifts over a traffic lane or shoulder
speed management
Speed Management
  • Reduce speeds when needed by use of:
    • Reduced speed limits
    • Speed advisories
    • Increased fines
    • Photoenforcement (where allowed)
    • Speed displays
    • Law enforcement
    • Portable Changing Message Signs (PCMS)
flagger safety
Flagger Safety
  • Use flaggers only when other means of slowing traffic are infeasible
  • Position flaggers
    • in the safest location,
    • facing traffic,
    • in a closed lane or on shoulder and
    • only in an open lane once traffic has stopped
  • Single flaggers are only allowed on the shoulder when there is good visibility
  • Use more than one flagger if low visibility
  • If exposure to traffic cannot be minimize
    • Give visual warnings of the flagger
    • Use Jersey barriers, spotters and/or visual assistance devices (such as hardhat mirrors)
flagger safety 2
Flagger Safety 2
  • Wear Class 2 clothing during the day and Class 3 clothing at night
  • Illuminate flagger stations at night
  • Provide an escape plan
  • Flaggers must be provided with adequate breaks, replacement flaggers
  • Flaggers must use stop/slow paddles and only use flags in emergency situations
  • Traffic control devices must conform to the latest MUTCD
  • Traffic signals should not be in conflict with flagger signals
flagger training
Flagger Training
  • Flaggers must be trained on:
    • Communication skills
    • Escape procedures
    • Using signaling devices
    • Traffic control procedures
    • Recognizing dangerous situations
    • Emergency response
    • Personal protective equipment
    • Other worksite conditions
  • Employer must keep training records for at least a year
flagger safety cont
Flagger Safety cont.
  • Flaggers must use two way radios when visual/audio contact between flaggers is not possible
  • Automated Flagger Assistance Devices (AFADs) should be used only when 1 lane of approaching traffic and must be illuminated at night
  • Flaggers must not respond to or retaliate against frustrated motorists. They should notify their supervisor
  • Intrusion warning devices should be used
runover backover prevention
Runover/Backover Prevention
  • Mirrors must be working properly
  • Workers must be protected from traffic by Jersey barriers, spotters and other assistive devices
  • Workers must not stand or walk on the side of a raised dump body
  • Back up alarms must be supplemented with mechanical backing assistance devices
  • Backup alarms must be supplemented by visual alarms at night
  • If not feasible, then spotters must be used
spotters
Spotters
  • Spotters must be:
    • Trained
    • Not stand in the path of equipment
    • Remain in the driver’s sight
    • Train drivers to stop if they can’t see the spotter
    • Wear high visibility clothing
internal traffic control plans
Internal Traffic Control Plans
  • Internal Traffic Control Plans must be developed
    • They must be communicated to all workers and vehicle operators
    • They can only be modified by the supervisor or safety person
    • Everyone must be notified of any changes
    • They must include:
      • Diagram
      • List of equipment and personnel
      • Hazard checklist
      • Safety notes
      • Communication plan
worker access egress
Worker Access-Egress
  • Site-specific plan for worker access-egress required to cover
      • Parking
      • Sanitation
      • Breaks
      • Paths to minimize pedestrian exposure to vehicles
equipment operator safety
Equipment Operator Safety
  • Equipment must be inspected and defects corrected prior to use
  • Equipment must be locked and tagged out for maintenance and repair work as required by A10.44
  • Rollover Protection and Seatbelts are required on most construction vehicles
  • Seatbelts must be worn during operation
  • Seatbelts and their anchor points must be inspected
  • Operators must be qualified for the type and size of equipment they will be operating
  • No riders are allowed unless equipment is designed for multiple occupancy
electrical safety underground utilities
Electrical Safety-Underground Utilities
  • Determine the location of utilities before work starts (e.g. 811)
  • Maintain markings until work is complete
  • Use hand digging, vacuum excavation, etc. when close to determine exact location
  • Excavations must be protected during the operation from workers and the public
electrical safety overhead power lines
Electrical Safety- Overhead Power lines
  • De-energize overhead lines and transmission towers whenever possible prior to work
  • Treat them as energized unless written verification from owner/utility
  • Daily briefing before work begins
  • Contact owner/utility before work begins
  • Minimum clearance distances specified, increased in wind/rain/fog
    • Accurate measuring devices required
    • Proximity alarms, boom guards, insulating links should be used
  • Qualified spotters required for work near energized lines
overhead lines cont
Overhead Lines cont.
  • Keep all workers away from high reaching equipment until operator/qualified person determines it is safe
  • Avoid using tag lines or use non-conductive ones
  • Do not store materials or equipment near powerlines
  • Plan the job to avoid powerlines
  • Plan, mark and inspect travel routes for high reaching equipment
    • Tie down equipment during transport
    • Do not move haul or dump trucks with the box raised without a spotter
fall prevention
Fall Prevention
  • Slips and Trips- Provide clear pedestrian walkways, working/walking surfaces
  • Heights- Use guardrails, where feasible, and fall protection (A10.32) above 6 feet
  • Floor openings- Keep them covered, secured and designed for twice expected weight
    • Inspected by qualified person
    • Follow A10.32 fall protection if cannot be covered
  • Equipment access-egress- Provide safe access ladders, free of debris
  • Ladders- Keep in good working order, train workers, require 3 point contact, follow OSHA subpart X and ANSI A10.14
  • Scaffolds- Follow A10.8
  • Excavations- Ensure all workers are protected from falls into excavations, guard crosswalks over 6 ft with guardrails
health hazards
Health Hazards
  • Hazards covered include, but not limited to:
    • Heat/cold
    • Noise
    • Airborne hazards (silica, lead, etc.)
    • Dermal (cement)
    • Chemicals
    • Sunlight/Solar radiation
    • Lack of sleep
  • Control hazards using the hierarchy of controls- engineering controls, then administrative controls and lastly PPE
illumination night work
Illumination/Night Work
  • Night projects require an illumination plan to describe lighting locations, illumination levels, light and power sources, glare control
  • Illumination levels and uniformity set for different tasks
  • Discontinue work if lighting fails, except in emergencies
  • Vehicles lights must be in good order, supplemented
  • Glare must be minimized, e.g. with balloon lights
personal protective equipment
Personal Protective Equipment
  • High visibility clothing- Follow MUTCD
  • Head protection- Follow ANSI Z89.1- Class C, E, G helmets
  • Eye/Face Protection- Follow ANSI E87.1, OSHA 1926.95
  • Hearing Protection- Follow ANSI A10.46, Use engineering controls first
  • Weather protection- Should wear appropriate clothing
  • Gloves- Use when needed
  • Respirators- Required when needed, Requires Respiratory Protection Program as in 1910.134 and ANSI Z 88.6
  • Footwear- Follow ASTM F2413, Sandals and Athletic footware prohibited
other requirements
Other Requirements
  • Power tools
    • Guarding and grounding (GFCIs) required
    • Gloves required to meet ANSI S3.40 for reduced vibration
  • Musculoskeletal Problems- Follow A10.40
  • Excavation Safety- Follow A10.12
  • Paving Operations- Follow ANSI A10.17
