  1. A Latent Approach to the Statistical Analysis of Space-time Data Dani Gamerman Instituto de Matemática Universidade Federal do Rio de Janeiro Brasil http://acd.ufrj.br/~dani 17th International Workshop on Statistical Modelling Chania, Crete, Greece, 8-12 July 2002

  2. World Cup Algorithm 1958 1962 1966 1970 1974 1978 1982 1986 1990 1994 1998 2002  One-time only home win Europe  25 miles apart Played in Europe Played in exotic place Played in (L) America Played in Europe Played in L. America Center of the world football ? 2006

  3. A Latent Approach to the Statistical Analysis of Space-time Data Dani Gamerman Instituto de Matemática Universidade Federal do Rio de Janeiro Brasil http://acd.ufrj.br/~dani Joint work with Marina S. Paez (IM-UFRJ) Flavia Landim (IM-UFRJ) Victor de Oliveira (Arkansas) Alan Gelfand (Connecticut) Sudipto Banerjee (Minnesota) 17th International Workshop on Statistical Modelling Chania, Crete, Greece, 8-12 July 2002

  4. Introduction Environmental science – data in the form of a collection of time series that are geographically referenced. Some examples can be found in other areas • Examples: • 1) measurements of pollutants in time over a set of monitoring stations 2) selling price of properties around a neighborhood of interest 3) counts of morbidity/mortality events in time over a collection of geographic regions

  5. Main Objective: spatial interpolation Example: Pollution in Rio de Janeiro Paez, M.S. and Gamerman, D. (2001). Technical report. Statistical Laboratory, UFRJ.

  6. Picture showed mean interpolated values Other features of interest can be obtained Example: Pollution in Rio de JaneiroProb ( PM10 > 100 mg/m3 | Yobs )

  7. SpatialInterpolation • m = number of observations • g = number of grid points • s1, ... ,sm = observed sites • s1n,...,sgn = grid points (to interpolate) • Y1n,...,Ygn = observations in the grid points

  8. Interpolation • 1. Frequentist inference: generate Yn from • 2. Bayesian inference: i ) generate y from • ii ) generate Yn from • y- all model parameters • Ymis - missing data, treated as parameters • If y = y* with probability 1 then • Obtain P(Yn|Yobs)by simulation. • Steps to generate from Yn|Yobs :

  9. GaussianProcess (GP) (or Gaussian Random Field) S - region of Rp (in general, p=2) { w(s) : s S } is a GP if n, s1 , ... , sm S ( w(s1) , ... , w(sn) ) ~ Nn (, ) where  = ( 1, ... , n ) with i=E[w(si)] and  = (ij[w(si), w(sj)] )i,j Usual simplifications: 1) Isotropy [w(si),w(sj)]= q(hij) with hij=|si– sj| 2) Homoscedasticity i = , i Notation: w(.) ~ GP((.),,q)

  10. Statistical Analysis Starting point: regression models Yt(s) = t(s) + e t(s) where t(s) = 0 + 1 X t1(s) + ... + pXtp(s) and et(s) ~ N(0, e2) independent Suppose that Xtj(s) handles temporal autocorrelation Otherwise, we can include a temporal component t Usually et(s) remains spatially correlated In this case, et(s) = e0(s) + et1(s) e0(s)  errors spatially correlated et1(s)  pure residual (white noise) 0(s) = 0 + e0(s)

  11. How to estimate 0(s) ? (c) Inference based on Traditional approach: geostatistical 0(.) ~ GP(0,,q) or e0(.) = 0(.) 0 ~ GP(0,,q) then, 0obs ~ N(0 1, , R) 0obs = (0(s1) , ... , 0(sm) ) Hiperparameters: e2, 2 and 0 Inference 1. At first (3 steps) (a) 0 , 1 , ... , p estimated in the regression model and the residuals rt0(s) = Yt (s) mt(s) are constructed (b) e2, 2 and 0estimated from rt0(s)

  12. Problems: (a) rt0(s)  et (s) (b)  • 2) next step: • 0 , 1 , ... , p and estimated jointly •  solves (a) • but to incorporate uncertainty about is complicated • 3) Natural solution (Kitanidis, 1986; Handcock & Stein, 1993): • specify distribution for 0 • perform Bayesian inference

  13. Model generalization Recall: E[Yt(s)]=0(s) + 1Xt1(s) + ... + pXtp(s) Spatial heterogeneity doesn’t have to be restricted to 0 Example: site by site effect of temperature in the Rio pollution data

  14. We can accommodate spatial variation for other coefficients j, j=1, ... , p. a) prior independence b) same spatial structure and prior correlation between the j(.)´s previous model E [Yt(s)] = 0(s) + 1 Xt1(s) + ... + pXtp(s) Extension of the previous model E [Yt(s)] = 0(s) + 1(s)Xt1(s) + ... + p(s)Xtp(s) (.) = (0(.), 1(.),..., p(.)) One possibility: (.) ~ GP(, , ) Hyperparameters: Y = (g , se , S , q0), where g = (g0, g1,..., gp) Special cases for the j(.)´s:

  15. 1) classical solution (Oehlert, 1993; Solna & Switzer, 1996): (a) 0 (s), 1 (s), ... , p (s) estimated by b0(s), b1(s), ... , bp (s) in the local regression model (b) estimated from the bj(s) (c) inference based on Problems (the same as before): (a) bj(s) j(s) (b)  How to estimate j(s), j=0,1,...,p ? 2) natural solutions: Specify prior distribution for Y In general, independent and non informative priors are used

  16. Model Summary • Parameters: obs , where  = ( ,e2, ,) • jobs = (j(s1) , ... , j(sm) ), j=0, 1, ... , p • obs = (0obs , ... , pobs ) • = ( 0 , 1 , ... , p ) • Data: Yobs = (Y1(s1) , ... , YT(sm)) • Xobs = (X1(s1) , ... , XT(sm))

  17. Simulated data Yt(s) = mt(s) + et(s), t=1,...,30mt(s) = b0(s)+ b1(s) Xt(s)et(s) ~ N(0, e2) independent with e2=1 b0 ~N(g0, s0 ,0(.)) b1 ~N(g1, s1 ,1(.)) Xt(s)~N(g2, s2 ,2(.)), for all time tExponential correlation functions: rj(x) = exp{- qj x} g0= 100 g1= 5 g2= 0 q0= 0.4 q1= 0.8 q2= 1.5s02= 0.1 s12= 1 s22= 0.333

  18. Simulated Data b0 Y b1X e + = +

  19. Inference Parameters: (obs ,) = ( ,e2, ,) Likelihood: L(obs ,) = p(Yobs | obs , e2 ) Prior: p(obs ,)=p( obs | Y) p()p(e2) p(S) p(q) Posterior: (obs ,)  L (obs ,)  p(obs ,) • Many parameters • Complicated functional form • Solution by MCMC

  20. Full Conditionals (a) [ obs | rest ] ~ Normal (b) [  | rest] ~ Normal  use jobs as if they were data (c) [ e2 | rest ] ~ [ e2 | Yobs , obs ] ~ Inverse Gamma (d) [  |rest ] ~ [  | bobs ,  , q] ~Inverse Wishart (e) [  | rest ] ~ j p(j | jobs , j,) p()  again, use jobs as data (geostatistical analysis) hard to sample  Metropolis - Hastings

  21. Results (based on a regular grid of m=25 sites) Histogram of the parameters g0 g1 q0 q1 te t0 t1 ti = si-2

  22. Spatial Interpolation Interpolation grid: s1n , ... , sgn jn = (j(s1n) , ... , j(sgn) ), j=0, 1, ... , p n = (0n , ... , pn ) We need to obtain the interpolation of j´s to interpolate Yn

  23. Spatial Interpolation of ´s (n,obs,| Yobs) = ( n | obs, , Yobs) ( obs, | Yobs) = ( n | obs ,) ( obs, | Yobs) Simulation of [ n | Yobs ] in 2 steps: (a)[ obs, | Yobs ]  using MCMC (b)[ n | obs ,]  using Multivariate Normal • Interpolation of Y´s (Yn,n,| Yobs) = (Yn|n, , Yobs) (n,| Yobs) = (Yn| n ,) (n,| Yobs) Simulation of [Yn |Yobs] also in 2 steps: (a) [ n, | Yobs ]  MCMC and Spatial Interpolation (b) [ Yn| n ,]  using Multivariate Normal

  24. Simulated data: Interpolation of b1 Simulated values Interpolated values

  25. Simulated data: Interpolation of Y30(.) Simulated values Interpolated values

  26. Interpolation of X´s These interpolations assume that the interpolated covariates Xj are available for j=1, ... , p Otherwise, we must interpolate them

  27. Model may be completed with X(.) | x , x ,Sx ~ GP(x, Sx,x(.)) (Xn, x | Yobs , Xobs) = (Xn , x| Xobs ) = (Xn| x, Xobs) (x | Xobs ) Simulation of [Xn|Yobs,Xobs] in 2 steps: (a) [x | Xobs ]  MCMC (b) [Xn| x, Xobs ]  using Multivariate Normal

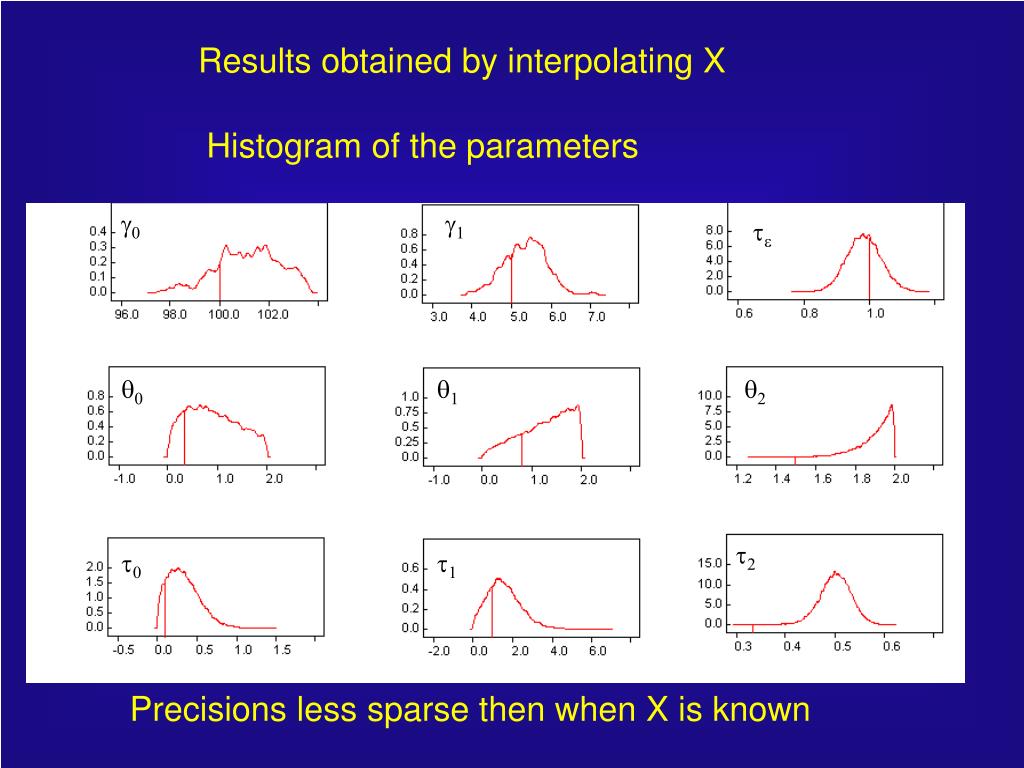

  28. Histogram of the parameters g0 g1 te q0 q1 q2 t2 t0 t1 Results obtained by interpolating X Precisions less sparse then when X is known

  29. Interpolation of X30(.) Simulated values Interpolated values

  30. Interpolation of Y30(.) Known X Unknown X

  31. Now, the temperature coefficient varies in space Yt(s)= b0 (s)+ b1(s)TEMPt + b´ Xt+ et(s) Application to the pollution data Yt (s) = square root of PM10 at site s and time tXt= (MON, TUE, WED, THU, FRI, SAT) et(s) independents N(0,se2)b0~N(g0, s0 ,0(.))b1~N(g1, s1 ,1(.))ri(.), i=0,1 are exponential correlation functions

  32. Histogram of the hiperparameters sample b0 te q0 t0 t1 q1 where ti = si-2 Results for the pollution data in Rio

  33. G(10-3,10-3) G(10,10c) SSDE = 0.1444 SSDE = 0.0637 where SSDE = Interpolation of the b1 coefficient Prior for t c  obtained by exploratory analysis site by site (OLS) Same idea can be used for q (explanatory geostatistical analysis)

  34. Extension of the previous model previous model Yt(s)= t(s) + et(s) where t(s)=t0(s)+t1(s)Xt1(s)+...+tp(s)Xtp(s) et(s) ~ N(0, e2) independent Yt(s)= t(s) + et(s) where t(s)= 0(s)+ 1(s)Xt1(s)+...+ p(s)Xtp(s) et(s) ~ N(0, e2) independent We can also accommodate temporal variation of the coefficients j, j=0,...,p. Natural specification t(.) | g t ~ GP(t ,S,), independent in time The model must be completed with: (a) prior for (se , S , q) as before (b) specification of the temporal evolution of the t´s

  35. Suggestion - use dynamic models (SVP/TVM) • (Landim & Gamerman, 2000) • t | t-1 ~ N( Gt t-1 , Wt ) •  unknown parameters of the  evolution Model parameters: obs , ,   = ( 0 , e2 , S ,  , W ) where  = ( 1, ... , T) and t= ( t0 , t1, ... , tp ), t=1, ... , T Simulation cycle has 2 changes: I) additional step to  II) modified step to 

  36. Histogram of the posterior of q Application to simulated data Multivariate observations: Yt (s) = (Yt1 (s), Yt2 (s)) Yt (s) = bt0 (s) + bt1(s)Xt1(s) + et(s) bt(.) ~GP (gt, S,) gt = gt-1 + wt same spatial correlation to b0 and b1 r(.) - exponential correlation function with q=1.

  37. Trajectory of g (t) - mean and credibility limits

  38. Interpolation Samples from ytn|yobs are obtained through the algorithm below: 1. Sample from btobs, y| yobs - through MCMC 2. Sample from btn| btobs, y - through Gaussian process 3. Sample from ytn| btn, y - Independent Normal draws Once again, Xtn must be known, otherwise, they will have to be interpolated.

  39. Spatially- and time-varying parameters (STVP) SVP/TVM: STVP: Another possibility: temporal evolution applied directly to the bt processes rather than to their means Yt (s) = bt0 (s) + bt1(s)Xt1(s) + et(s) bt(.) = bt-1(.) + wt(.) wt(.) ~ GP (gt, s,) independent in time Completed with: b0(.) = g0 ~ N(g0,R) Marginal Prior: bt(.)| gt ~ GP (gt, tS,) Not separable at the latent level, unlike SVP/TVM

  40. Computations MCMC algorithm must explore the correlation structures  parameters are visited in blocks (Landim and Gamerman, 2000; Fruhwirth-Schnatter, 1994) • Prediction Based on the forecast distribution of YT+h|Yobs, for YT+h = (YT+h(s1f ),..., YT+h(sFf )), and any collection (s1f,..., sFf) 1. Sample from bTobs, y| Yobs - through MCMC 2. Sample from bT+hf| bTobs, Y - obtained by introduction of bT+hobs bTobs bT+hobs by successive evolution of the b process bT+hobs  bT+hfby interpolation with gaussian process 3. Sample from Ytn| bTn, Y - Independent normal draws

  41. Time-varying locations SVP/TVM: Easily adapted STVP: requires introduction of for updated locations Assume locations st = (st1,..., stnt) at time t btobs is a nt-dimensional vector, t = 1,...,T Both densities in the integrand are multivariate normal The convolution of these two densities can be shown to be normal and required evolution equation for b can be obtained

  42. Can be normalized after suitable transformation gl(y) Example: Rio pollution data Non-Gaussian Observations Two distinct types of non-normality data: • Continuous: l estimated jointly with other model parameters (de Oliveira, Kedem and Short, 1997) • Count data: For example, in the bernoulli or poisson form standard approach: yt(s) ~ EF(mt(s)) spatio-temporal modeling issues: similar computations: harder

  43. Non-Gaussian Evolution Abrupt changes in the process  normality is not suitable Robust alternative: wt(.) ~ GP(gt,S,rq) is replaced by wt(.)| lt ~ GP(gt,lt-1S, rq) and lt ~ G(nt, nt), independent for t=1,...,T Therefore, wt(.) ~ tP(gt,S,rq) lt’s control the magnitude of the evolution

  44. Final Comments • More flexibility to accommodate variations in time and space. • Static coefficient models: samples from the posterior were generated in the software BUGS, with interpolation made in FORTRAN • Extensions to observations in the exponential family and estimation of the normalizing transformation. • Extension to accommodate anisotropic processes to some components of the model.

  45. A Latent Approach to the Statistical Analysis of Space-time Data Dani Gamerman Instituto de Matemática Universidade Federal do Rio de Janeiro Brasil http://acd.ufrj.br/~dani 17th International Workshop on Statistical Modelling Chania, Crete, Greece, 8-12 July 2002
