informed source separation of orchestra and soloist using masking and unmasking

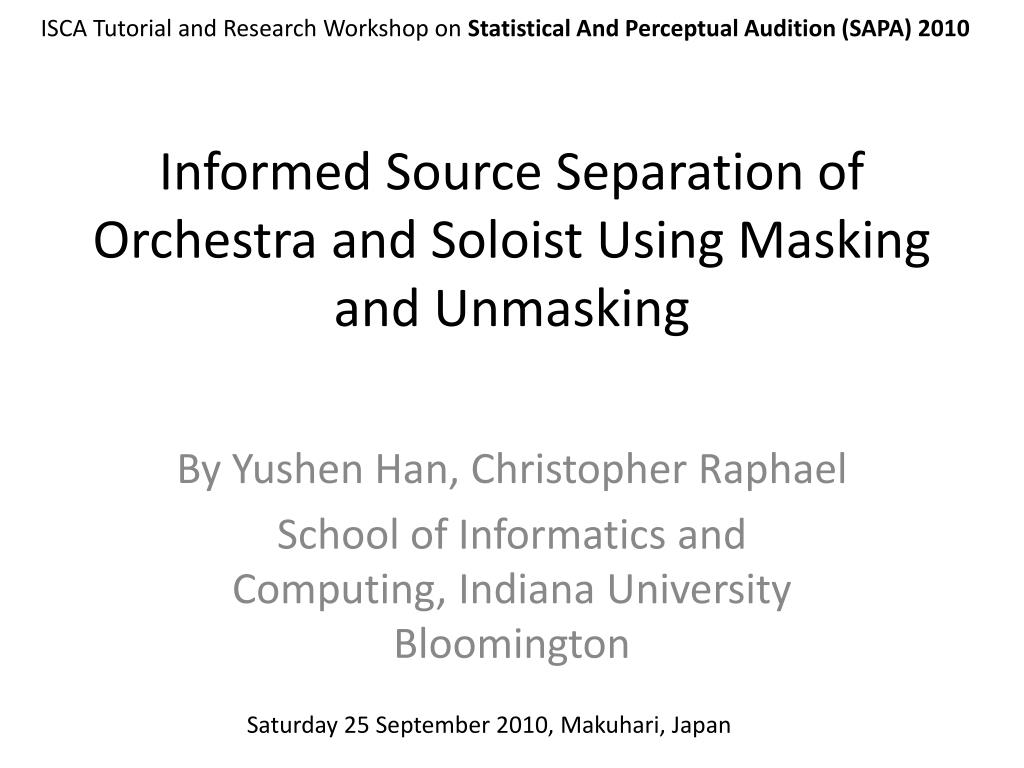

ISCA Tutorial and Research Workshop on Statistical And Perceptual Audition (SAPA) 2010

Informed Source Separation of Orchestra and Soloist Using Masking and Unmasking

By Yushen Han, Christopher Raphael

School of Informatics and Computing, Indiana University Bloomington

Saturday 25 September 2010, Makuhari, Japan

motivation musical source separation in general
Motivation – Musical Source Separation In General
  • To extract the orchestra accompaniment from any desirable recordings given the score

- can be used in automatic accompaniment system (e.g. a piano concerto) or Karaoke

  • To isolate one chosen instrument from an ensemble
    • can be used in performance analysis of soloist
motivation this project
Motivation – This Project
  • Problem: separation procedures cause damage to each of the separated sources
  • Object: to address the degradation of the separation results
  • Strategy: by exploiting the information redundancy of the musical audio within each source
overview
Overview
  • Motivation and introduction – system diagram
  • Previous – Separation by Spectrogram Masking
  • Recent – Repair by Spectrogram Unmasking
    • harmonicity hypothesis tested by Kalman phase smoothing
    • repair by amplitude inference and harmonic transposition
  • Examples with evaluation by spectrogram reassignment
  • Relevant works – ISS?
  • Conclusion and Discussion
informed source separation system diagram

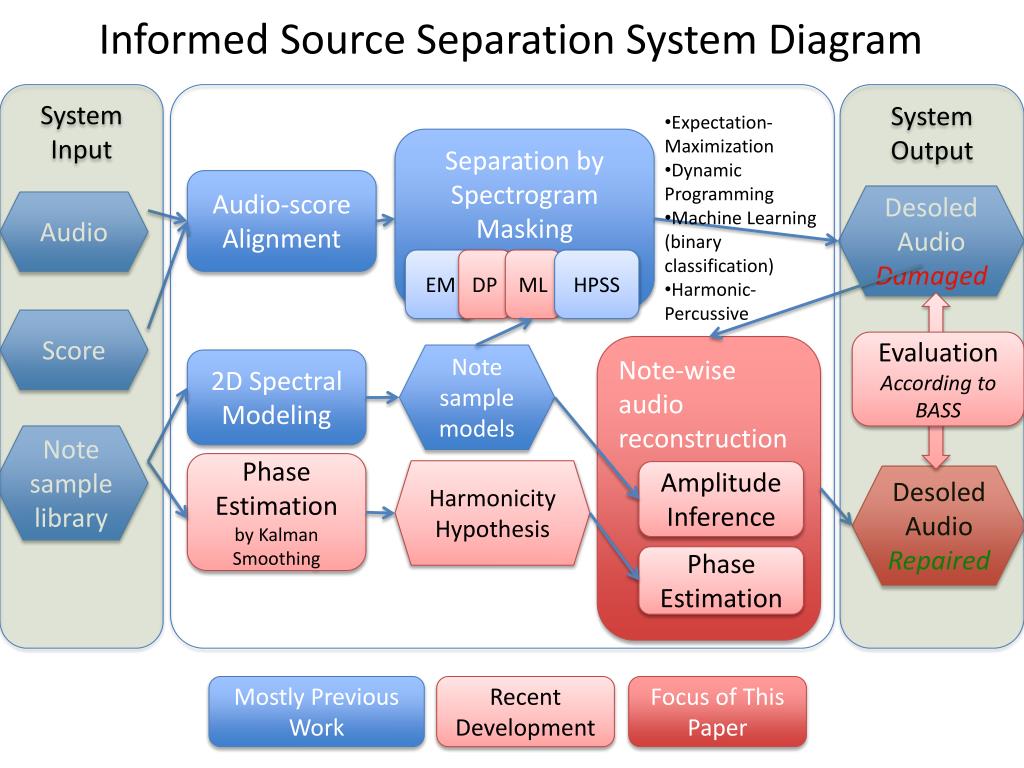

Informed Source Separation System Diagram

System Input

System Output

  • Expectation- Maximization
  • Dynamic Programming
  • Machine Learning
  • (binary classification)
  • Harmonic- Percussive

Separation by Spectrogram

Masking

Audio-score Alignment

Desoled Audio

Damaged

Audio

EM

DP

ML

HPSS

Score

Evaluation

According to BASS

Note-wise

audio reconstruction

Note sample models

2D Spectral Modeling

Note sample library

Phase Estimation by Kalman Smoothing

Harmonicity Hypothesis

Amplitude

Inference

Desoled Audio

Repaired

Phase Estimation

Mostly Previous Work

Recent Development

Focus of This Paper

previous binary spectrogram masking

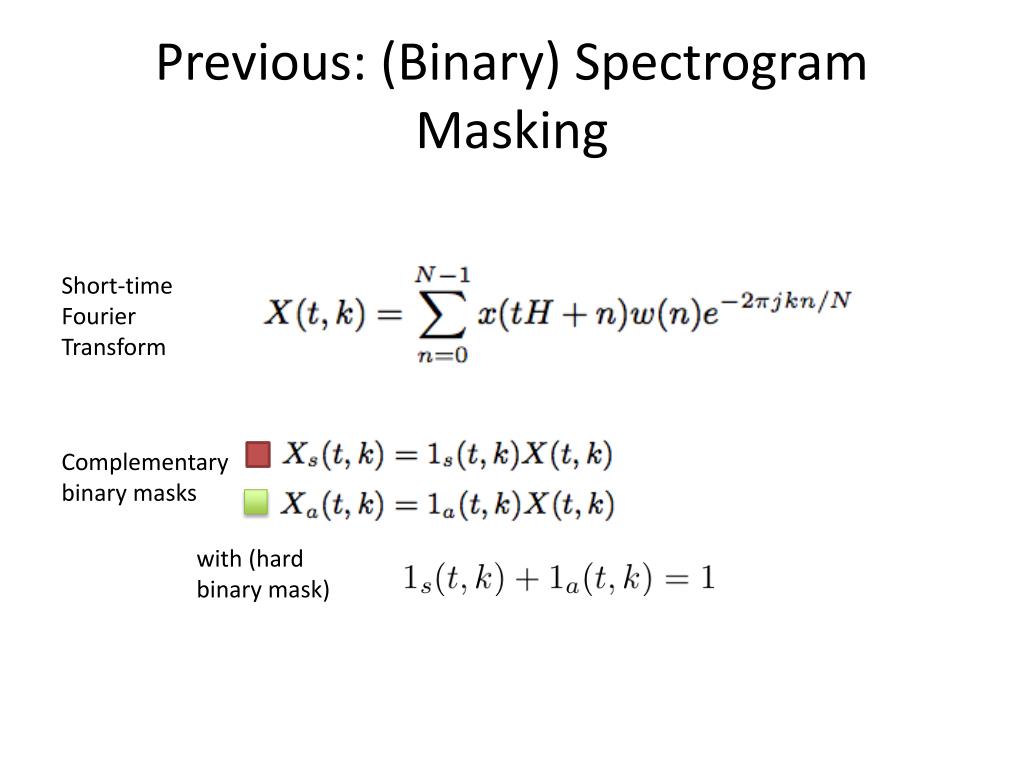

Previous: (Binary) Spectrogram Masking

Short-time Fourier Transform

Complementary binary masks

with (hard binary mask)

previous 2d note based model
Previous: 2D Note-based Model

a “template” function qm of note model indexed by m

informed source separation system diagram1

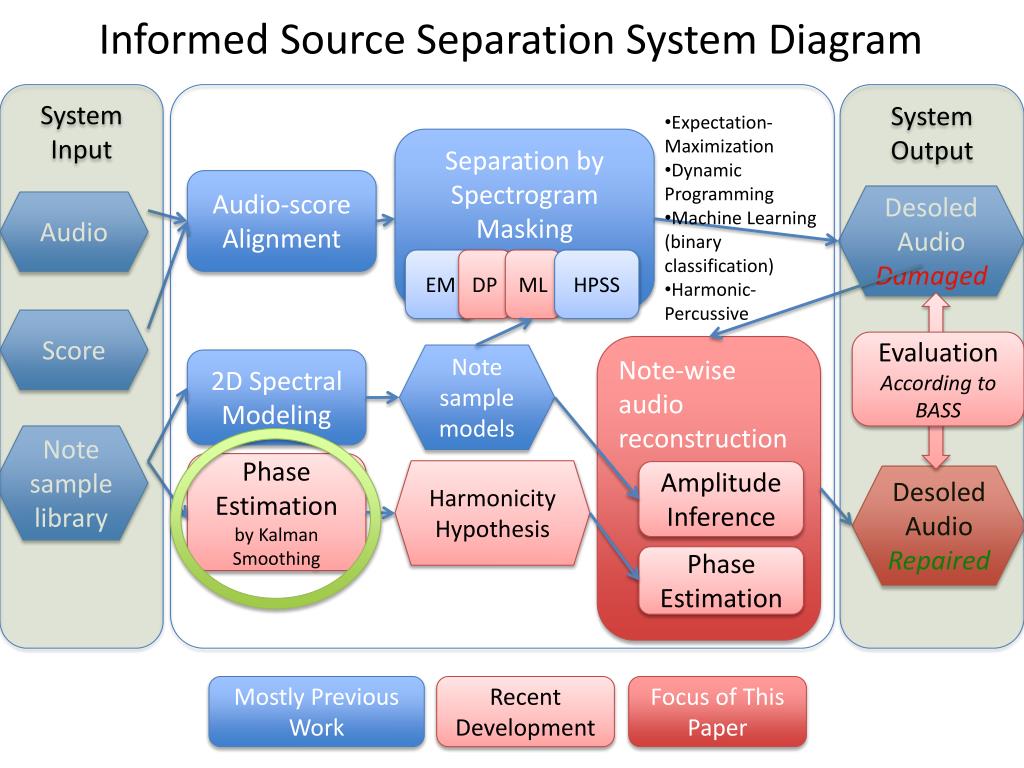

Informed Source Separation System Diagram

System Input

System Output

  • Expectation- Maximization
  • Dynamic Programming
  • Machine Learning
  • (binary classification)
  • Harmonic- Percussive

Separation by Spectrogram

Masking

Audio-score Alignment

Desoled Audio

Damaged

Audio

EM

DP

ML

HPSS

Score

Evaluation

According to BASS

Note-wise

audio reconstruction

Note sample models

2D Spectral Modeling

Note sample library

Phase Estimation by Kalman Smoothing

Harmonicity Hypothesis

Amplitude

Inference

Desoled Audio

Repaired

Phase Estimation

Mostly Previous Work

Recent Development

Focus of This Paper

phase estimation

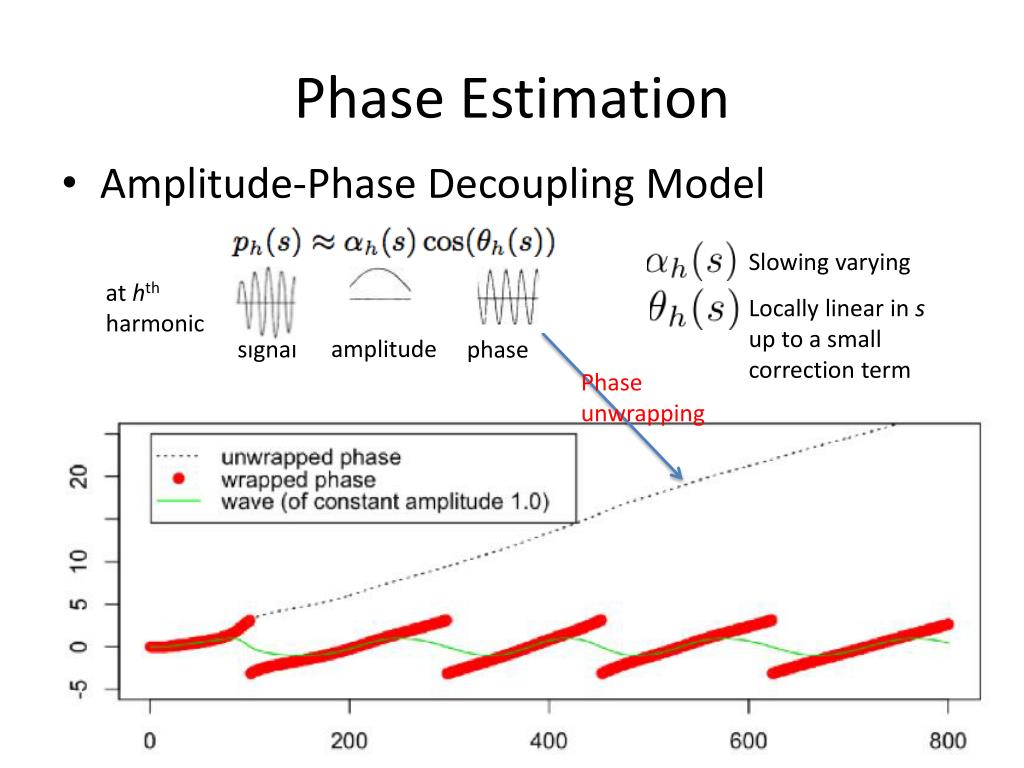

Phase Estimation
  • Amplitude-Phase Decoupling Model

Slowing varying

at hth harmonic

Locally linear in s up to a small correction term

amplitude

signal

phase

Phase unwrapping

state space model for phase cont
State-space Model for Phase (cont.)
  • This idea of using state-space model to estimate phase should be credited to A. TaylanCemgil.

For observable phase sequence at hth harmonic

we introduce state vector

with an unobservable component

As timesprogresses (discretely), the state vector propagates via the state equation

Where state transition matrix

governs the the sinusoidal movement of phase according to the average phase advance at harmonic h over a relative long period (s0, s1)

and w(s)is an unobservable, zero-man random (state) perturbation.

illustration of state space model for phase estimation
Illustration of State-space Model for Phase Estimation

s

s + 1

x2

x1

= (x1(s), x2(s) )t, but only observe y = x1

connects the observed and unobservable where H(s)=[1 0] and r(s) = 0 is the degenerated random (observation) perturbation

kalman smoothing
Kalman Smoothing

Follows the state-space model, we can obtain the amplitude and phase

This state-space model can be computed by Kalman filter but since the phase estimation is offline, we can update the state estimates backward to incorporate the observation that were not “available” at sample t in the forward pass by Kalman smoothing

informed source separation system diagram2

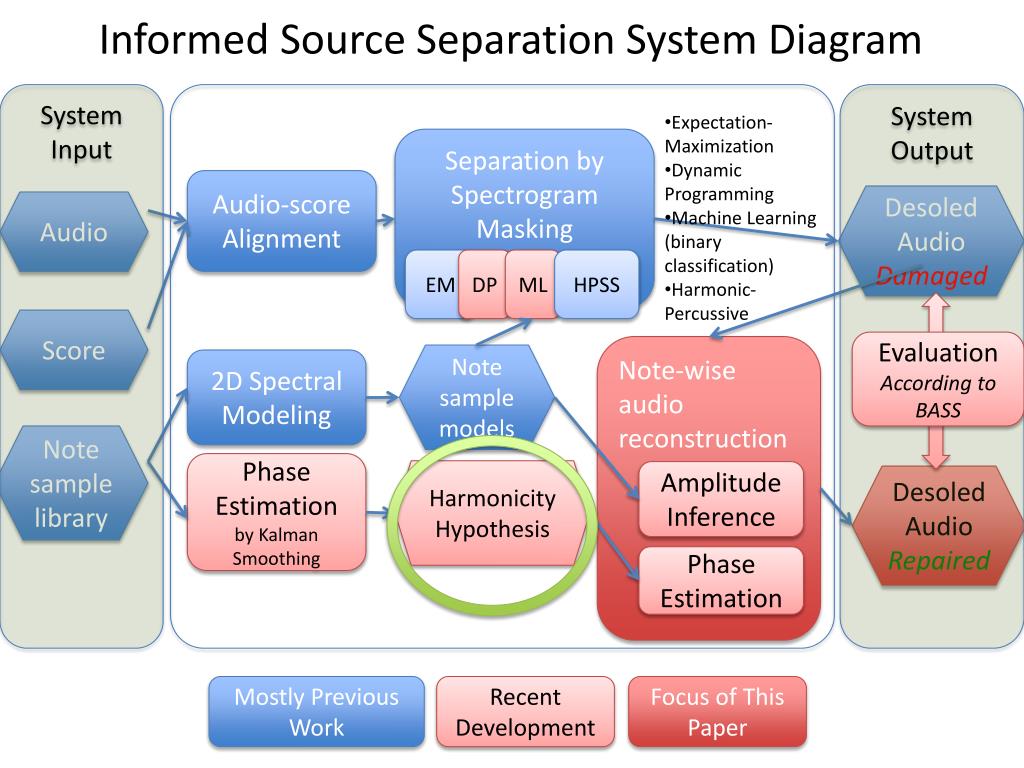

Informed Source Separation System Diagram

System Input

System Output

  • Expectation- Maximization
  • Dynamic Programming
  • Machine Learning
  • (binary classification)
  • Harmonic- Percussive

Separation by Spectrogram

Masking

Audio-score Alignment

Desoled Audio

Damaged

Audio

EM

DP

ML

HPSS

Score

Evaluation

According to BASS

Note-wise

audio reconstruction

Note sample models

2D Spectral Modeling

Note sample library

Phase Estimation by Kalman Smoothing

Harmonicity Hypothesis

Amplitude

Inference

Desoled Audio

Repaired

Phase Estimation

Mostly Previous Work

Recent Development

Focus of This Paper

phase estimation and pairwise unwrapped phase difference
Phase Estimation And Pairwise Unwrapped Phase Difference

?

pitch G#3 (written A#3 on Bb clarinet) over a crescendo

clarinet

slide17
Application of Phase Estimation – Using Pairwise Unwrapped Phase Difference to Test the Harmonicity Hypothesis

By projecting the unwrapped phase θi(s) from harmonic i to j

we visualize the unwrapped phase difference between harmonics in woodwinds and strings to test the harmonicity hypothesis

informed source separation system diagram3
Informed Source Separation System Diagram

System Input

System Output

  • Expectation- Maximization
  • Dynamic Programming
  • Machine Learning
  • (binary classification)
  • Harmonic- Percussive

Separation by Spectrogram

Masking

Audio-score Alignment

Desoled Audio

Damaged

Audio

EM

DP

ML

HPSS

Score

Evaluation

According to BASS

Note-wise

audio reconstruction

Note sample models

2D Spectral Modeling

Note sample library

Phase Estimation by Kalman Smoothing

Harmonicity Hypothesis

Amplitude

Inference

Desoled Audio

Repaired

Phase Estimation

Mostly Previous Work

Recent Development

Focus of This Paper

informed source separation system diagram4

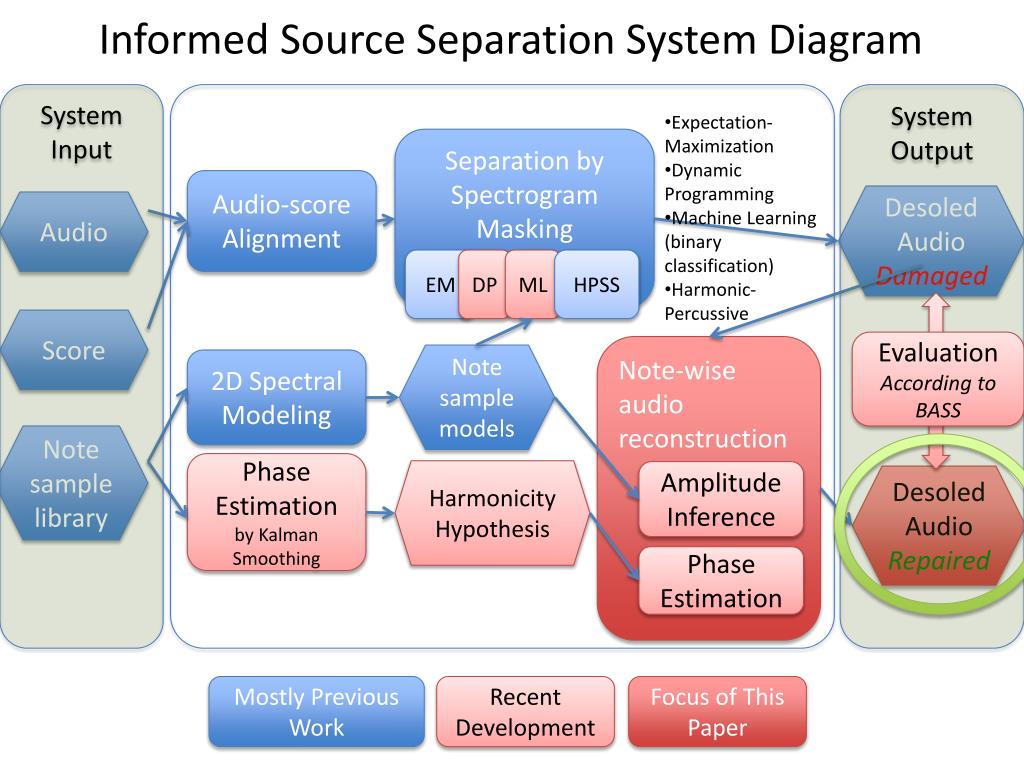

Informed Source Separation System Diagram

System Input

System Output

  • Expectation- Maximization
  • Dynamic Programming
  • Machine Learning
  • (binary classification)
  • Harmonic- Percussive

Separation by Spectrogram

Masking

Audio-score Alignment

Desoled Audio

Damaged

Audio

EM

DP

ML

HPSS

Score

Evaluation

According to BASS

Note-wise

audio reconstruction

Note sample models

2D Spectral Modeling

Note sample library

Phase Estimation by Kalman Smoothing

Harmonicity Hypothesis

Amplitude

Inference

Desoled Audio

Repaired

Phase Estimation

Mostly Previous Work

Recent Development

Focus of This Paper

experiment
Experiment

an excerpt of 45 seconds from the 2nd movement of Ravel’s piano concerto in G major

relevant works

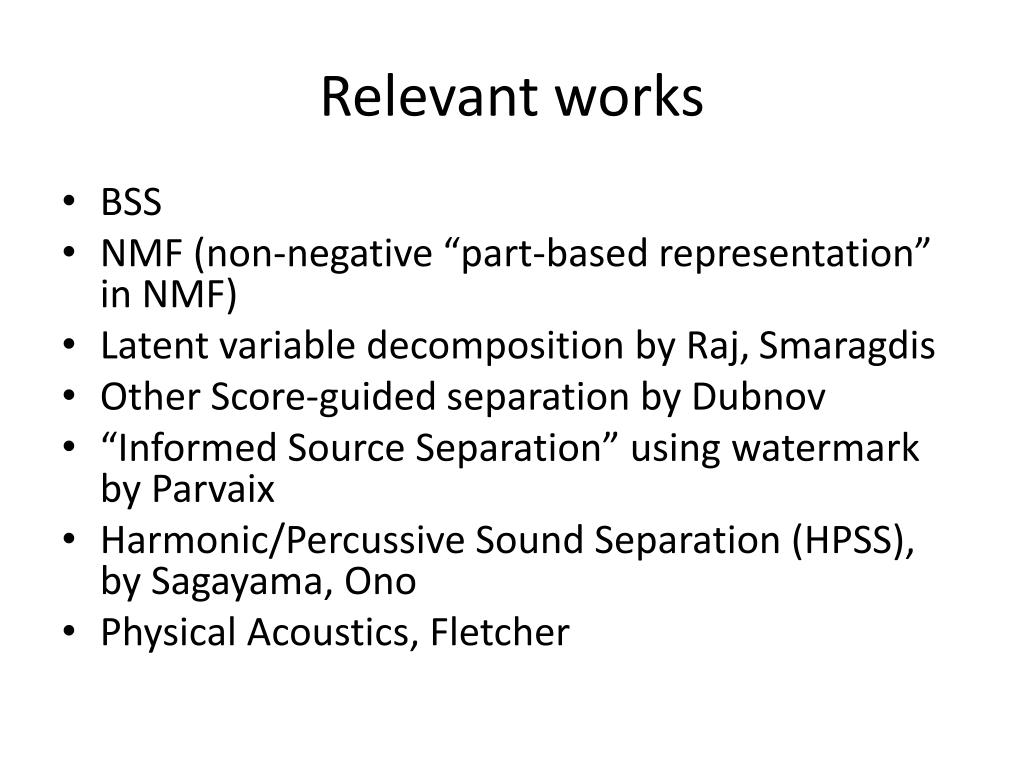

Relevant works
  • BSS
  • NMF (non-negative “part-based representation” in NMF)
  • Latent variable decomposition by Raj, Smaragdis
  • Other Score-guided separation by Dubnov
  • “Informed Source Separation” using watermark by Parvaix
  • Harmonic/Percussive Sound Separation (HPSS), by Sagayama, Ono
  • Physical Acoustics, Fletcher
conclusion and future work

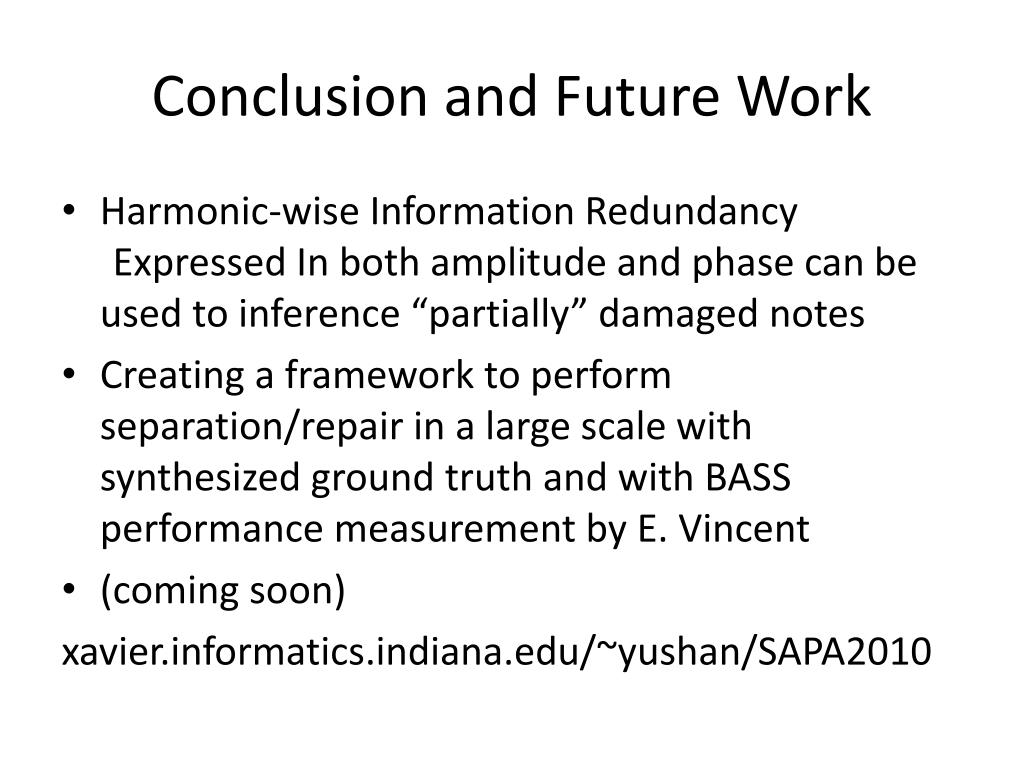

Conclusion and Future Work
  • Harmonic-wise Information Redundancy Expressed In both amplitude and phase can be used to inference “partially” damaged notes
  • Creating a framework to perform separation/repair in a large scale with synthesized ground truth and with BASS performance measurement by E. Vincent
  • (coming soon)

xavier.informatics.indiana.edu/~yushan/SAPA2010

slide27

FINE

Thank you for your attention
