Presentation Transcript
Slide1 l.jpg

Astronomy C12, Earth & Planetary Science C12, Letters & Science C70

The Planets

Prof. Geoff Marcy

Prof. Michael Manga

Saturn’s Moon,


Saturn & Ring

Tu, Th 11-12:30 am

LeConte 4

Slide2 l.jpg


Michael Manga 177 McCone Hall

(office hours MWF 11:15-12:00)

Geoff Marcy 417 Campbell Hall

(office hours T,Th, 1pm)

Departments of Earth & Planetary Science and Astronomy


Gilead Wurman

Alyssa Sarid

Shuleen Martin

Jim Watkins

8 Discussion Sections 1 hr each (Start Next Week)

Review, Clarification, Homework Help

Sign up for Section on Telebears

Slide3 l.jpg

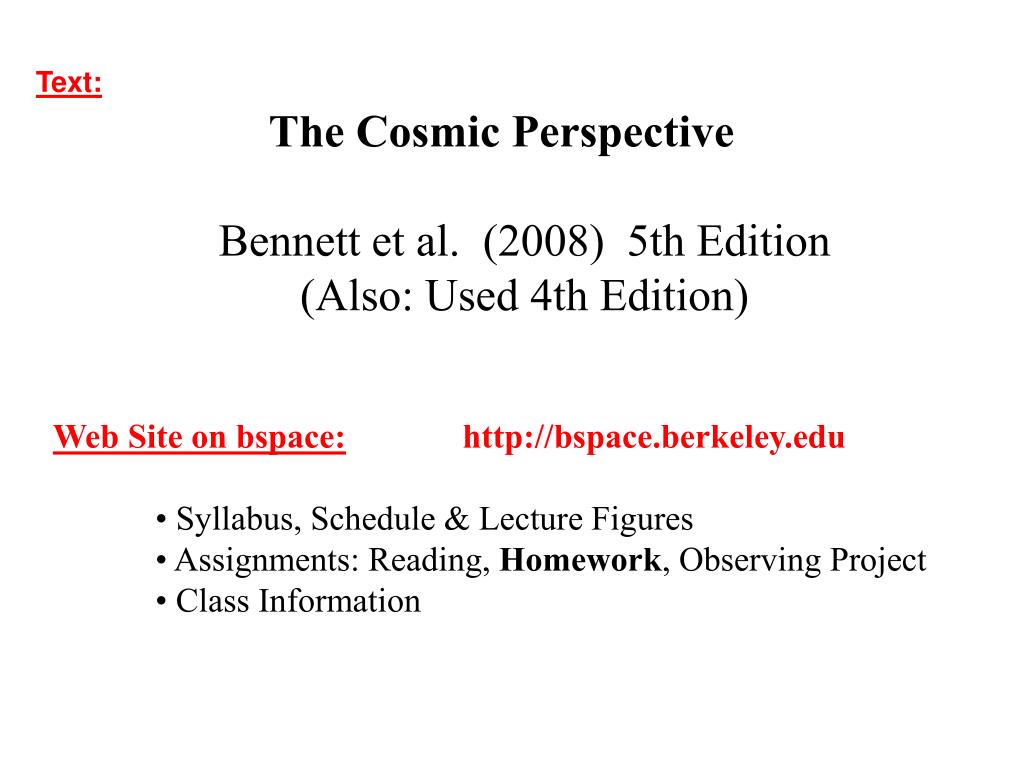

The Cosmic Perspective

Bennett et al. (2008) 5th Edition

(Also: Used 4th Edition)

  • Web Site on bspace:

    • Syllabus, Schedule & Lecture Figures

    • Assignments: Reading, Homework, Observing Project

    • Class Information

Homework 50 of your grade l.jpg

Homework: 50% of your grade

12 assignments during semester

Most questions from your text

The Astronomy Learning Center (TALC):

264 Evans Time: Wed @ 6pm

First homework set available Friday

Due by Friday Feb 1

Turn in HW every Friday at noon:

Box labeled Astro/EPS 12 in the basement of Campbell Hall.

Homework l.jpg


You are encouraged to work together, but MUST turn in your own work, in your own words

The graders can recognize copying, and answers found with Google

Refer to the Berkeley Code of Student conduct if you are unclear about what constitutes cheating or plagiarism

Slide6 l.jpg


  • No discussion sections this week

  • Read Ch 1 of the text this week; Ch 2 by next

  • First Homework Assignment: posted Friday.

Slide7 l.jpg

Last Time ::

The Solar System

The solar system l.jpg
The Solar System

Inner Solar System

Outer Solar System

Our place in the universe l.jpg


Our place in the Universe

13 billion

Light Years

The solar system sun and 8 planets moons asteroids comets and dust l.jpg
The Solar System:Sun and 8 PlanetsMoons, Asteroids, Comets, and Dust

Milky way galaxy l.jpg
Milky Way Galaxy

200 Billion Stars

Photo taken from Earth

You Are Here

Slide12 l.jpg

Our Sun moves relative to the other stars in the local Solar neighborhood.

Our Sun and the stars orbit around the center of the Milky Way Galaxy every 230 million years.

Spiral galaxies l.jpg
Spiral Galaxies Solar neighborhood.

Elliptical galaxies l.jpg
Elliptical Galaxies Solar neighborhood.

Irregular galaxies l.jpg
Irregular Galaxies Solar neighborhood.

The galactic neighborhood l.jpg

The ``Local Group” Solar neighborhood.

of Galaxies

100,000 Light Years

The Galactic Neighborhood

The local group of galaxies l.jpg
The ``Local Group’’ Solar neighborhood.of Galaxies

And outward l.jpg
And outward… Solar neighborhood.

10 Million Light Years

The universe l.jpg
The Universe: Solar neighborhood.

All matter and energy

> 100 Billion Galaxies

Slide20 l.jpg

Exponential notation is handy: Solar neighborhood.

10N x 10M = 10(N+M)

Astronomical Numbers

Best to use Exponential Notation

103 = 1000 Thousand

106 = 1,000,000 Million

109 = 1,000,000,000 Billion


10–3 = 1/1000

= 0.001


103 x 106 = 109

thousand million billion

How many stars in our visible universe l.jpg

How many stars in our Solar neighborhood.visible Universe?

106 (1 million)

1012 (1 million million

1018 (1 billion billion)



Slide22 l.jpg

The National Debt is Solar neighborhood.

$7.6 Trillion

Federal Debt

= $7.6 x 1012

U.S. Population = 300 x 106

Calculate Your Debt:

$7.6 x 1012 / 3 x 108 =

$2.5 x 104

Trillions of Dollars

$25,000 per person

02 03 04 05

Debt Total

Slide23 l.jpg

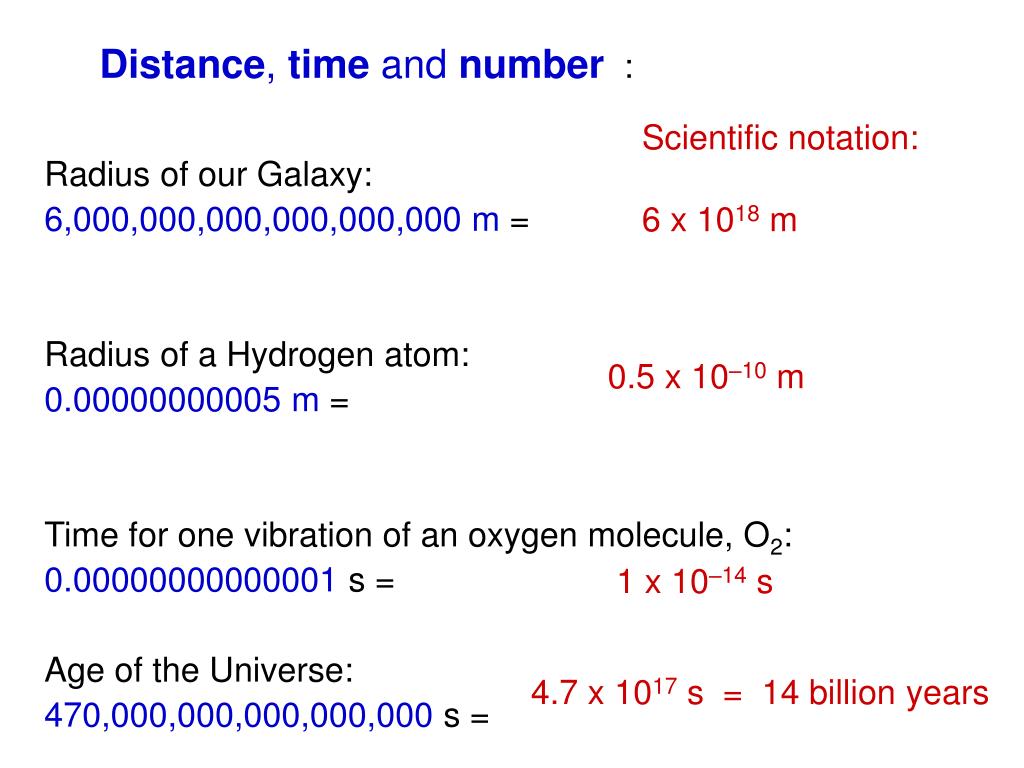

Distance Solar neighborhood., time and number :

Radius of our Galaxy:

6,000,000,000,000,000,000 m =

Radius of a Hydrogen atom:

0.00000000005 m =

Time for one vibration of an oxygen molecule, O2:

0.00000000000001 s =

Age of the Universe:

470,000,000,000,000,000 s =

Scientific notation:

6 x 1018 m

0.5 x 10–10 m

1 x 10–14 s

4.7 x 1017 s = 14 billion years

Slide24 l.jpg

  • SI (Systeme International) Units Solar neighborhood.

  • Base units: 1 meter (m) length ~ 3.3 ft

  • 1 kilogram (kg) mass ~ 2.2 lb

  • 1 second (s) time

    • MKS System of units and measure

Slide25 l.jpg

  • SI (Systeme International) Units Solar neighborhood.

  • Base units: 1 meter (m) length

  • 1 kilogram (kg) mass

  • 1 second (s) time

    • MKS System of units and measure

      Sometimes easier to derive other units from these:

      km, g, ms, µs, … km = 103 m kilo

      g = 10-3 kg kilo

      ms = 10-3 s milli

      µs = 10-6 s micro

Slide26 l.jpg

$ Solar neighborhood.Billion error


Mars Climate Orbiter: Launch: 11 Dec. 1998

Orbit insertion: 23 Sep. 1999

Followed by: Loss of Communication


Failed to convert from English units (inches, feet, pounds) to Metric units (MKS)

Slide27 l.jpg

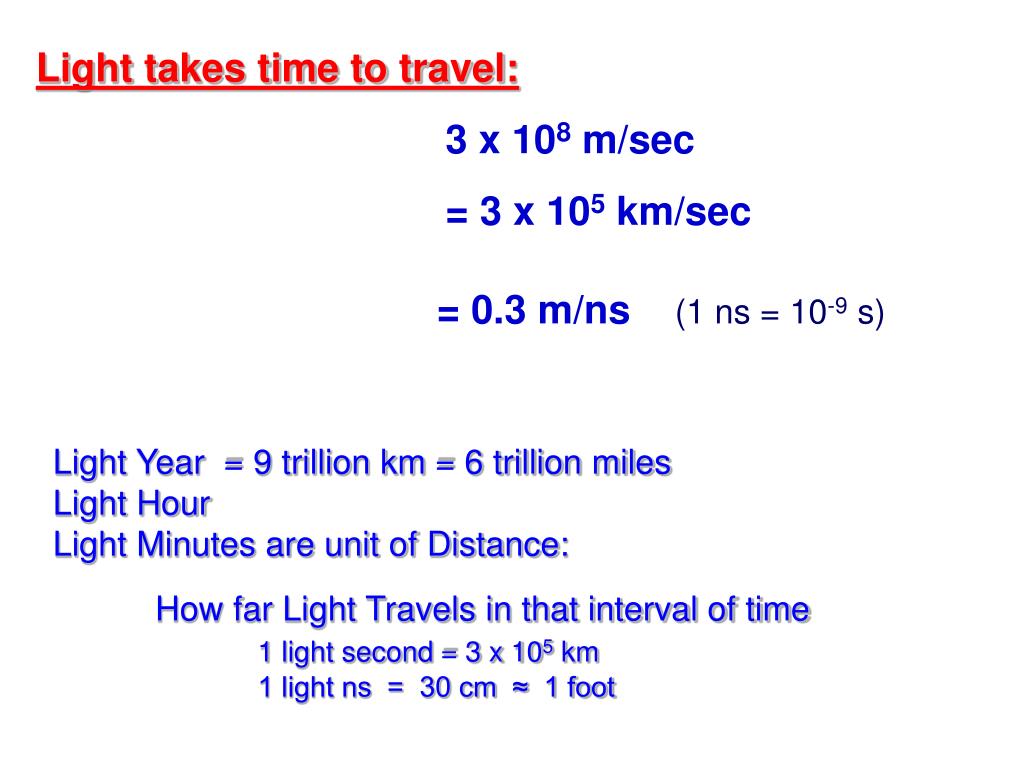

Light takes time to travel: Solar neighborhood.

3 x 108 m/sec

= 3 x 105 km/sec

= 0.3 m/ns (1 ns = 10-9 s)

Light Year = 9 trillion km = 6 trillion miles

Light Hour

Light Minutes are unit of Distance:

How far Light Travels in that interval of time

1 light second = 3 x 105 km

1 light ns = 30 cm ≈ 1 foot

Driving the mars exploration rovers mer l.jpg

NASA/JPL/Cornell Solar neighborhood.

Driving the Mars Exploration Rovers (MER)

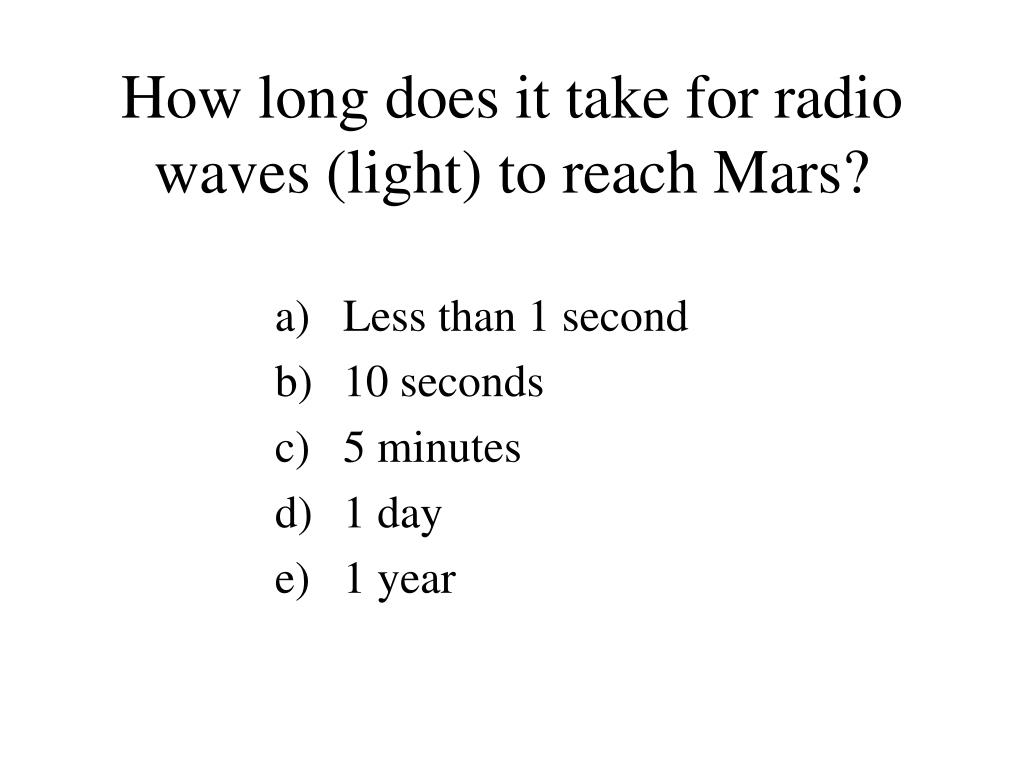

  • How long does it take to communicate with the rovers?

How long does it take for radio waves light to reach mars l.jpg
How long does it take for radio waves (light) to reach Mars? Solar neighborhood.

  • Less than 1 second

  • 10 seconds

  • 5 minutes

  • 1 day

  • 1 year

Powers of ten cosmic voyage the movie l.jpg
Powers of Ten Solar neighborhood.“Cosmic Voyage”The Movie

Slide31 l.jpg

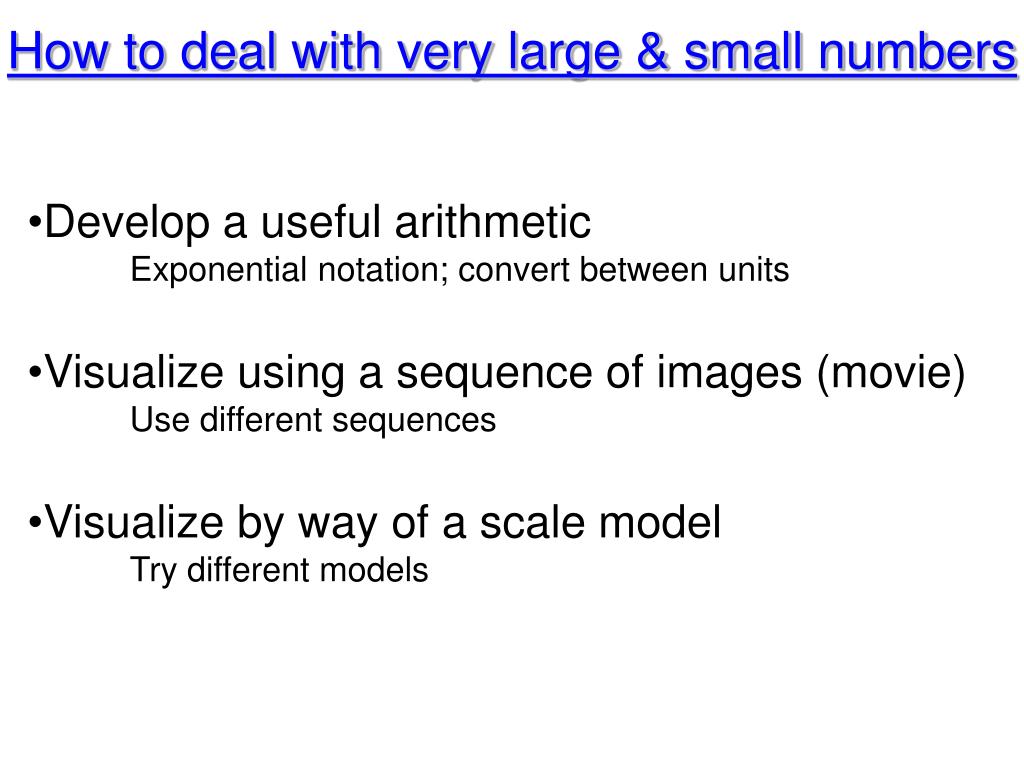

How to deal with very large & small numbers Solar neighborhood.

  • Develop a useful arithmetic

    • Exponential notation; convert between units

  • Visualize using a sequence of images (movie)

    • Use different sequences

  • Visualize by way of a scale model

    • Try different models

  • Slide32 l.jpg

    A Scaled Model of the Solar System Solar neighborhood.

    10 Billion x Smaller

    Sun’s diameter: 14 x 1010 cm (~ 106 miles)

    Scale 1010: 14 cm

    Earth diameter: 1.3 x 104 km 0.13 cm

    Jupiter’s diameter: 150,000 km 1.5 cm

    Earth’s distance from Sun: 1 “Astronomical Unit” = 1 “AU”

    = 1.5 x 108 km


    Scaled Down



    1 AU ?? cm

    0.15 cm

    1.5 cm

    15 cm

    150 cm

    1500 cm

    Ans: 1500 cm = 15 meters

    How large is the solar system l.jpg
    How large is the Solar System? Solar neighborhood.

    • Let’s view it to scale

      • say the Sun is the size of a large grapefruit, 15 cm (6 inches)

        - then:

    Slide34 l.jpg

    Planet dist (AU) Scaled dist (m) Where? Solar neighborhood.

    Mercury 0.4 6 6 rows back

    Venus 0.7 10 10 rows

    Earth 1.0 15 15 rows

    Mars 1.5 22 22 rows

    Jupiter 5 75 3/4 football field away

    Saturn 10 150 1.5 football field away

    Uranus 20 300 Sproul Plaza

    Neptune 30 450 Bancroft Ave

    Pluto 50 750 Durant Ave

    Oort Cloud 50,000 5 x 105 Oakland

    Slide35 l.jpg

    You Are Here: Solar neighborhood.

    Earth’s Orbit








    100 m



    How far is the nearest star l.jpg

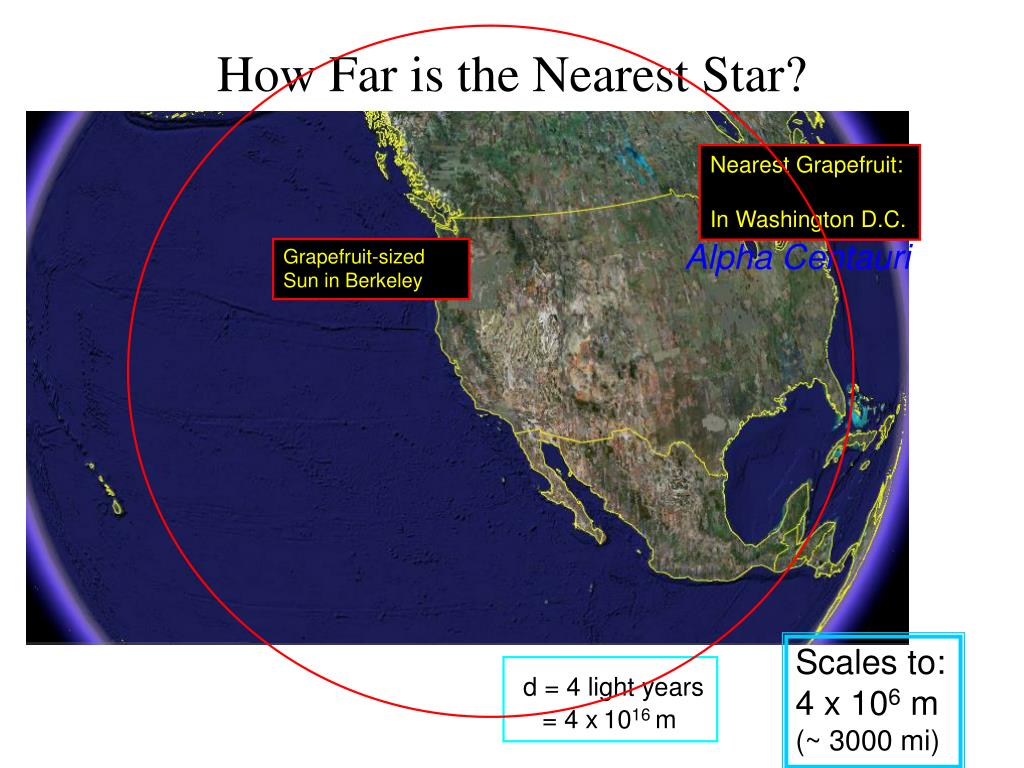

    How Far is the Nearest Star? Solar neighborhood.

    Nearest Grapefruit:

    In Washington D.C.

    Alpha Centauri


    Sun in Berkeley

    Scales to:

    4 x 106 m

    (~ 3000 mi)

    d = 4 light years

    = 4 x1016 m

    How old is the universe l.jpg
    How old is the Solar neighborhood.Universe?

    • The Cosmic Calendar

      • if the entire age of the Universe were one calendar year

      • one month would be approximately 1 billion real years

    Slide38 l.jpg

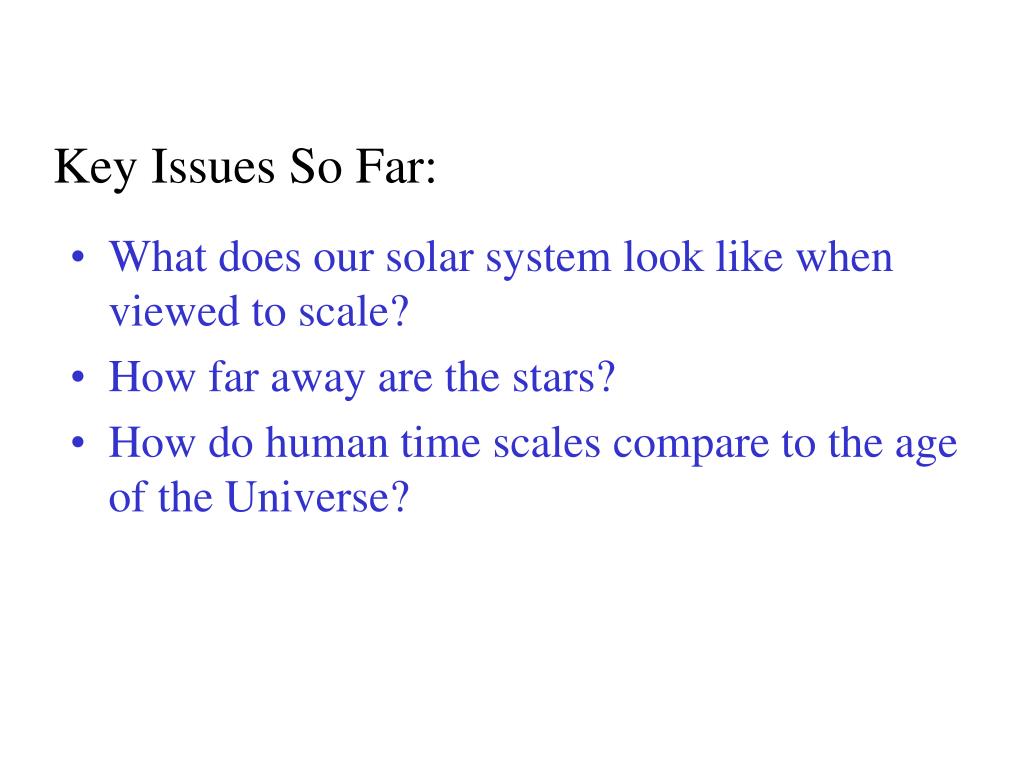

    Key Issues So Far: Solar neighborhood.

    • What does our solar system look like when viewed to scale?

    • How far away are the stars?

    • How do human time scales compare to the age of the Universe?

    Slide39 l.jpg

    • TODAY’S LECTURE Solar neighborhood.

    • Solar System Resides within our Milky Way Galaxy

    • Ranges of distances and time are huge.

    • Exponential notation and models are a real Help!

    • Distance Units:

    • 1 Astronomical Unit (AU) = Earth - Sun Distance

    • = 93 million miles

    • = 150 million km

    What is the origin of the universe l.jpg
    What is the origin of the Universe? Solar neighborhood.

    • The two simplest atoms (H and He) were created during the Big Bang.

    • More complex atoms were created in stars.

    • When the star dies, chemical elements are expelled into space…. to form new stars and planets!

    Most of the atoms in our bodies were created in the core of a star!

    The universe in a day l.jpg
    The Universe in a Day Solar neighborhood.

    Look at the entire history of the Universe as though it took place in a single day. The present is at the stroke of midnight at the end of that day. Since it is about 13.5 billion years old, each hour will be ~0.5 billion years. A million years takes only a little over 7 seconds.

    The Big Bang (a dense, hot explosion) and the formation of H and He all take place in the first nanosecond. The Universe becomes transparent in about 2 seconds. The first stars and galaxies appear after about 2am.

    Our Galaxy forms at 4am. Generations of stars are born and die.

    The universe in a day42 l.jpg
    The Universe in a Day Solar neighborhood.

    The Solar System does not form until 3pm. The first life (bacterial) appears on the Earth by 4pm. Our atmosphere begins to have free oxygen at 7 or 8 pm, and this promotes the development of creatures which can move more aggressively and eat each other. Life does not begin to take on complex forms (multicellular) until 10:45pm. It moves onto land at 11:10. The dinosaurs appear at about 11:40, and become extinct at 11:52. Pre-human primates appear at around 14 seconds before midnight, and all of recorded history occurs in the last 70 milliseconds.

    Looking to the future, we can expect the Universe of stars to go on for at least another millennium (using the same time compression factor). After that, there are other ages of the Universe (not dominated by stars), which grow colder and more bizarre, and take place on astronomical timescales…

    Slide43 l.jpg

    The Earth orbits around the Sun once every year! Solar neighborhood.

    The Earth’s axis is tilted by 23.5º!

    Slide44 l.jpg

    What is the Earth’s velocity about the Sun? Solar neighborhood.

    Radius of Orbit (1 AU): 150 x 106 km

    Circumference: 2 π x radius

    Distance around the Sun that the Earth travels:

    2 π x (1.5 x 108 km) = 9 x 1011 m

    Earth orbits the Sun once a year:

    1 yr = 3 x 107 s

    Velocity = Distance/Time = 9 x 1011 m / 3 x 107 s

    = 3 x 104 m/s = 30 km/s

    110,000 km/hr or 75,000 miles/hr!

    A universe in motion l.jpg
    A Universe in motion Solar neighborhood.

    • Contrary to our perception, we are not “sitting still.”

    • We are moving with the Earth.

      • and not just in one direction

    The Earth rotates around it’s axis once every day!

    Looking back in time l.jpg
    Looking back in time Solar neighborhood.

    • Light, although fast, travels at a finite speed.

    • It takes:

      • 8 minutes to reach us from the Sun

      • 8 years to reach us from Sirius (8 light-years away)

      • 1,500 years to reach us from the Orion Nebula

    • The farther out we look into the Universe, the farther back in time we see!

    The milky way moves with the expansion of the universe l.jpg
    The Milky Way moves with the expansion of the Universe! Solar neighborhood.

    • Mostly all galaxies appear to be moving away from us.

    • The farther away they are, the faster they are moving.

      • Just like raisins in a raisin cake; they all move apart from each other as the dough (space itself) expands.

    Slide48 l.jpg

    You Are Here: Solar neighborhood.

    Earth’s Orbit










    100 m

    How far is the nearest star49 l.jpg

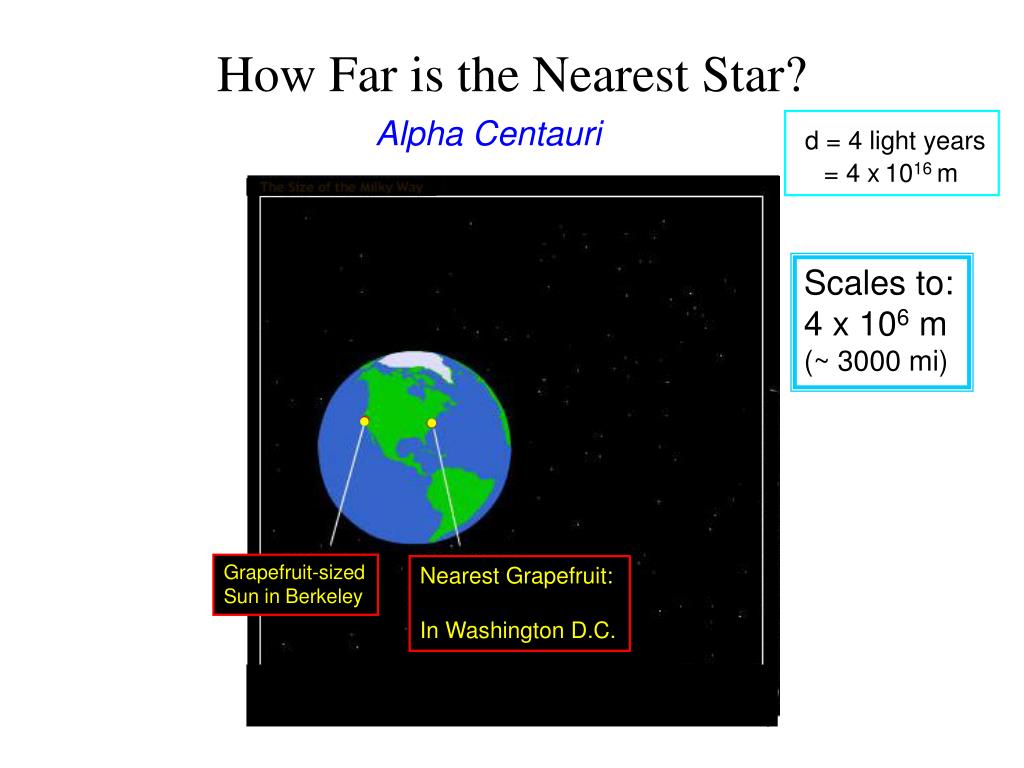

    How Far is the Nearest Star? Solar neighborhood.

    Alpha Centauri

    d = 4 light years

    = 4 x1016 m

    Scales to:

    4 x 106 m

    (~ 3000 mi)


    Sun in Berkeley

    Nearest Grapefruit:

    In Washington D.C.
