    1. Project Management 7. Project Cost Management Romi Satria Wahonoromi@romisatriawahono.net

    2. Romi Satria Wahono • SD SompokSemarang (1987) • SMPN 8 Semarang (1990) • SMA Taruna Nusantara, Magelang (1993) • B.Eng, M.Eng and Dr.Eng (on-leave)Department of Computer ScienceSaitama University, Japan (1994-2004) • Research Interests: Software Engineering and Intelligent Systems • Founder IlmuKomputer.Com • LIPI Researcher (2004-2007) • Founder and CEO PT BrainmaticsCiptaInformatika

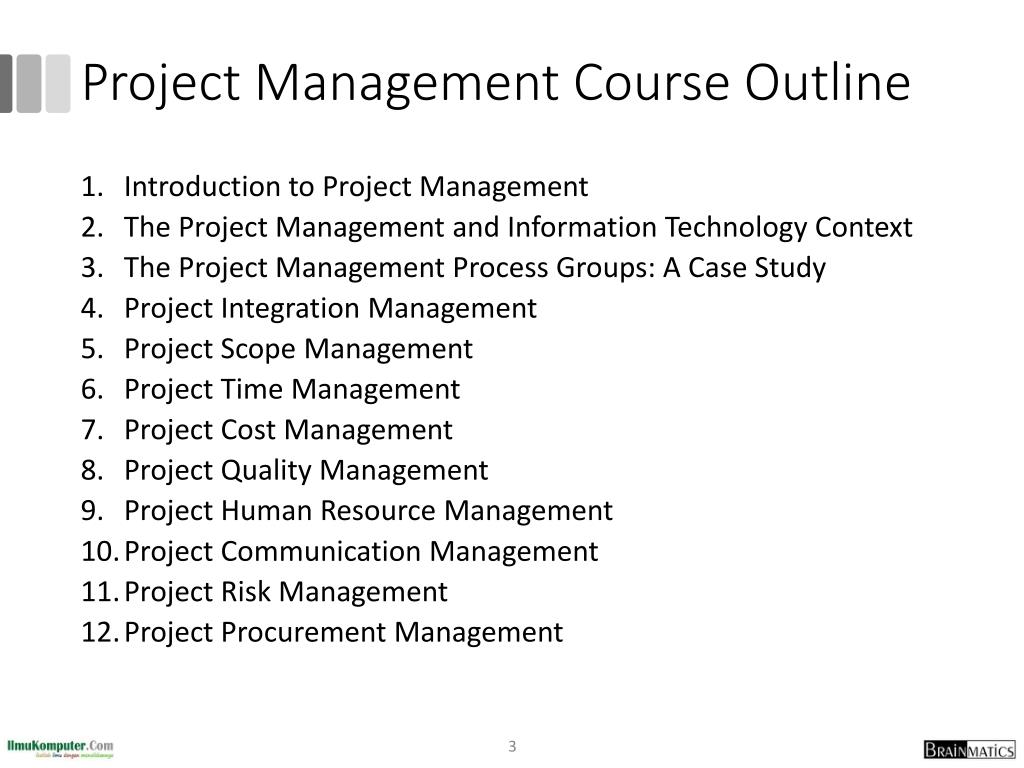

    3. Project Management Course Outline • Introduction to Project Management • The Project Management and Information Technology Context • The Project Management Process Groups: A Case Study • Project Integration Management • Project Scope Management • Project Time Management • Project Cost Management • Project Quality Management • Project Human Resource Management • Project Communication Management • Project Risk Management • Project Procurement Management

    4. 7. Project Cost Management

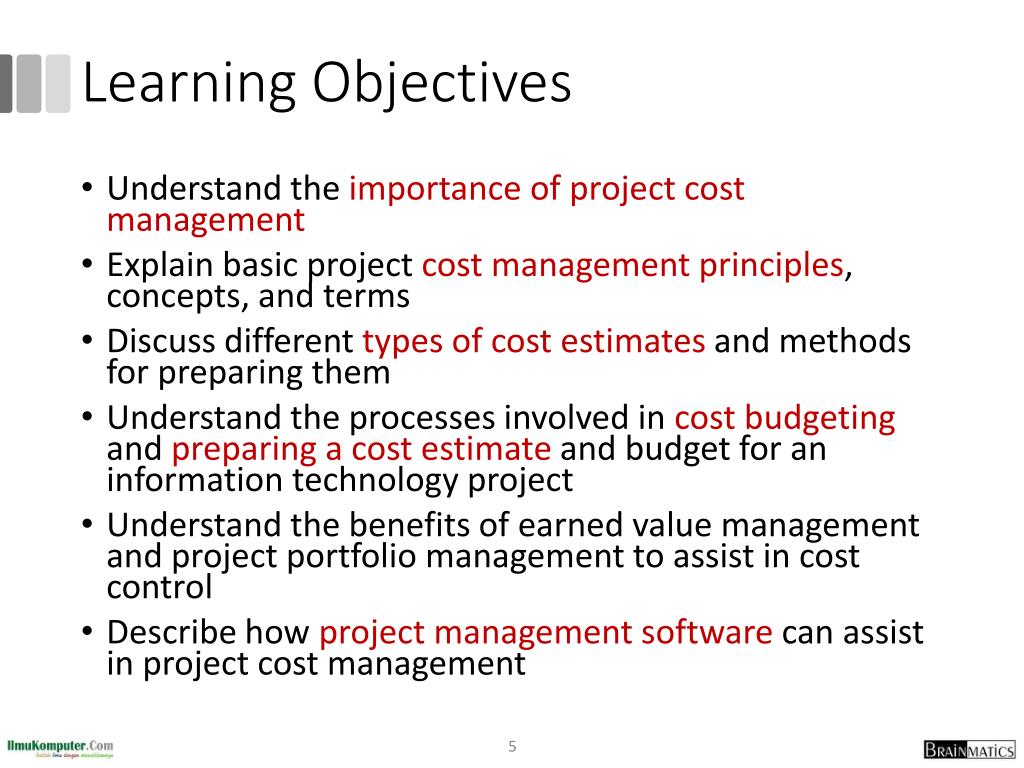

    5. Learning Objectives • Understand the importance of project cost management • Explain basic project cost management principles, concepts, and terms • Discuss different types of cost estimates and methods for preparing them • Understand the processes involved in cost budgeting and preparing a cost estimate and budget for an information technology project • Understand the benefits of earned value management and project portfolio management to assist in cost control • Describe how project management software can assist in project cost management

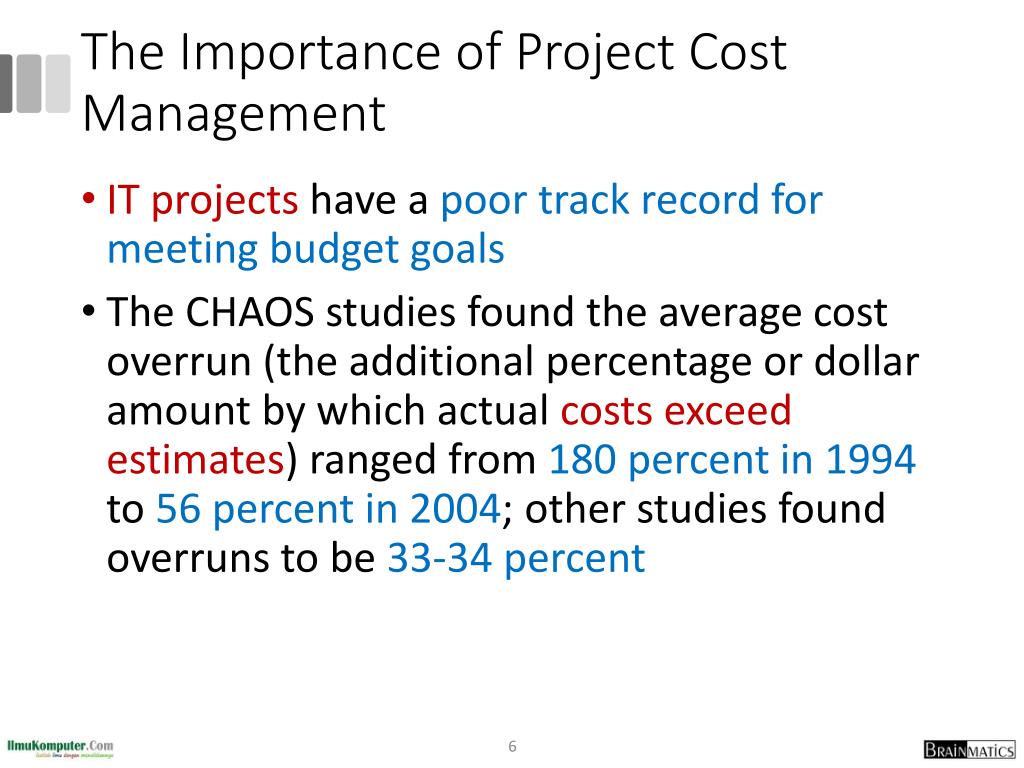

    6. The Importance of Project Cost Management • IT projects have a poor track record for meeting budget goals • The CHAOS studies found the average cost overrun (the additional percentage or dollar amount by which actual costs exceed estimates) ranged from 180 percent in 1994 to 56 percent in 2004; other studies found overruns to be 33-34 percent

    7. What Went Wrong? • The U.S. government, especially the Internal Revenue Service (IRS), continues to provide examples of how not to manage costs • A series of project failures by the IRS in the 1990s cost taxpayers more than $50 billion a year • In 2006, the IRS was in the news for a botched upgrade to its fraud-detection software, costing $318 million in fraudulent refunds that didn’t get caught • A 2008 Government Accountability Office (GAO) report stated that more than 400 U.S. government agency IT projects, worth an estimated $25 billion, suffer from poor planning and underperformance • The United Kingdom’s National Health Service IT modernization program was called the greatest IT disaster in history with an estimated $26 billion overrun

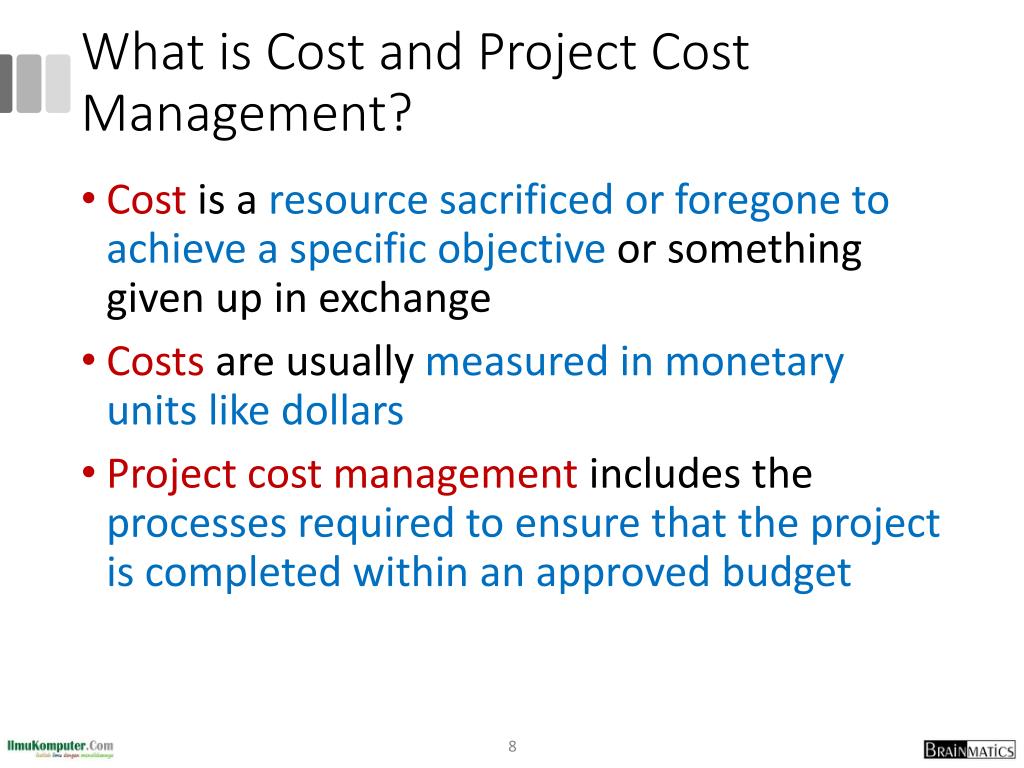

    8. What is Cost and Project Cost Management? • Cost is a resource sacrificed or foregone to achieve a specific objective or something given up in exchange • Costs are usually measured in monetary units like dollars • Project cost management includes the processes required to ensure that the project is completed within an approved budget

    9. Project Cost Management Processes • Estimating costs: developing an approximation or estimate of the costs of the resources needed to complete a project • Determining the budget: allocating the overall cost estimate to individual work items to establish a baseline for measuring performance • Controlling costs: controlling changes to the project budget

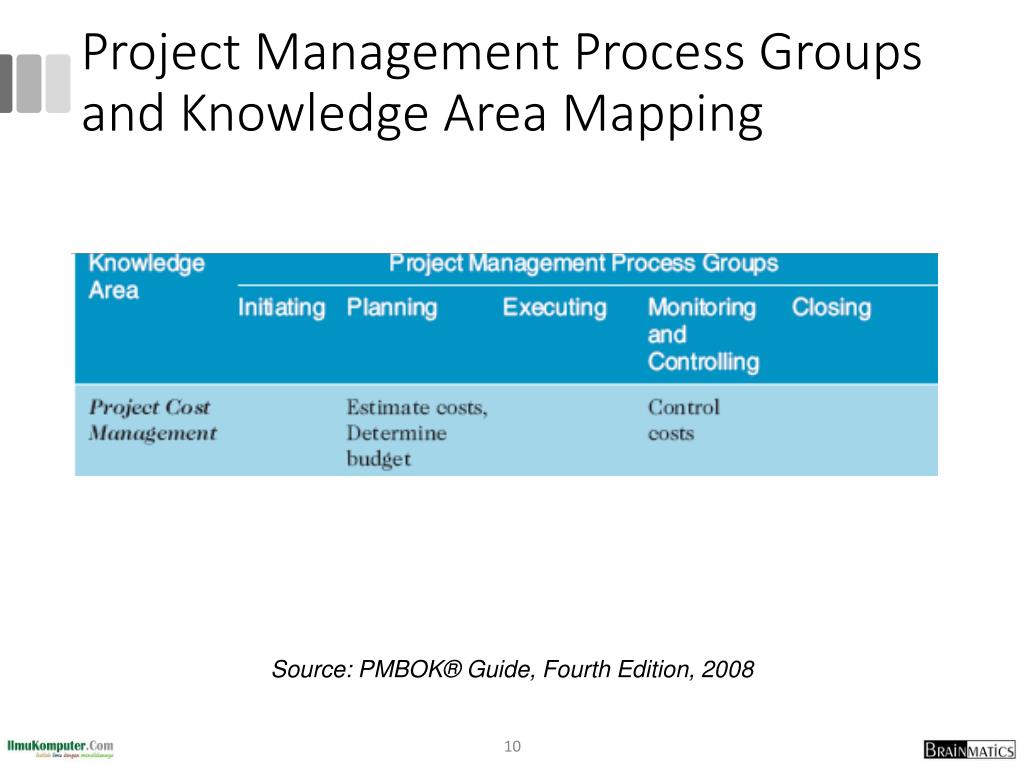

    10. Project Management Process Groups and Knowledge Area Mapping Source: PMBOK® Guide, Fourth Edition, 2008

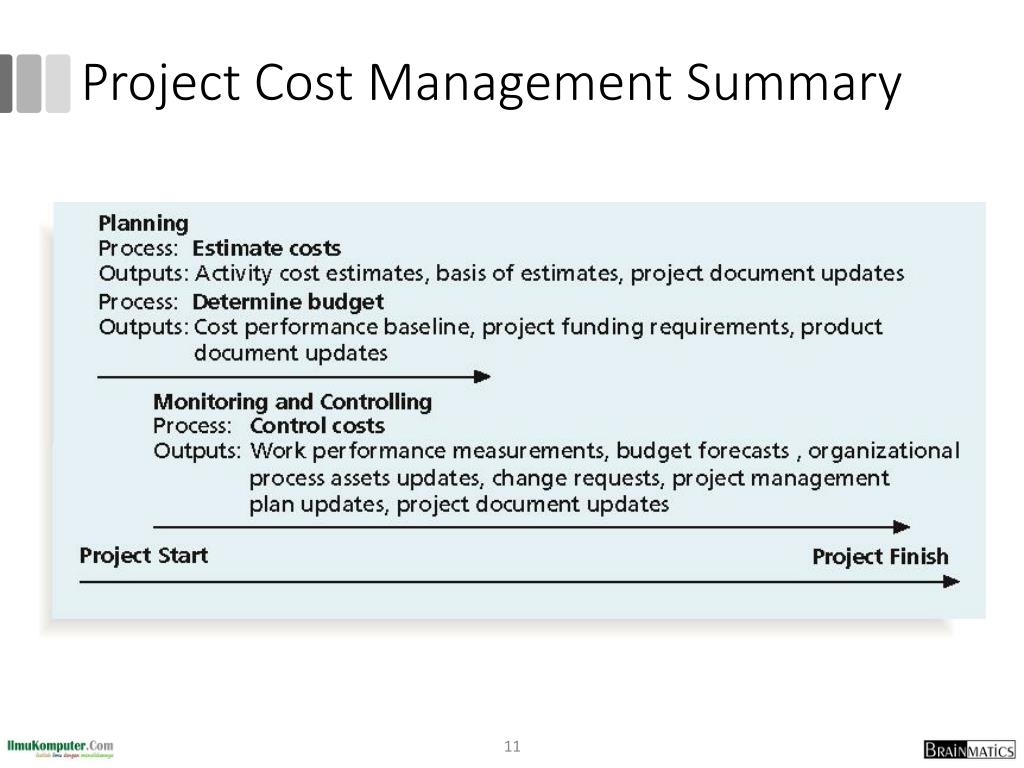

    11. Project Cost Management Summary

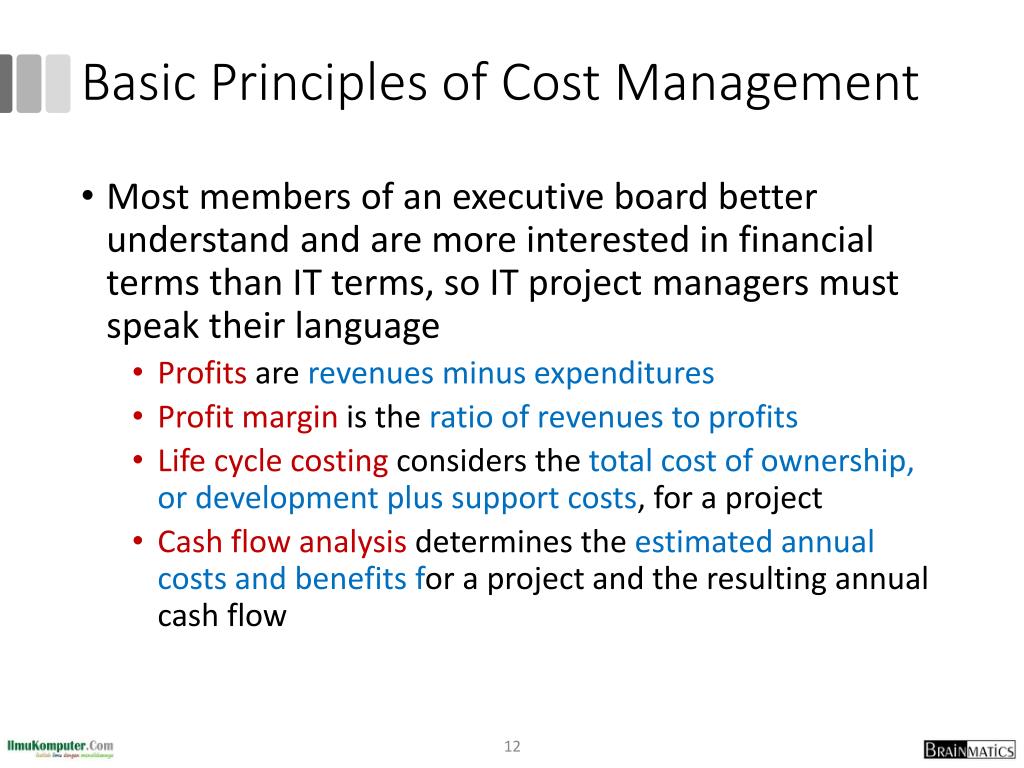

    12. Basic Principles of Cost Management • Most members of an executive board better understand and are more interested in financial terms than IT terms, so IT project managers must speak their language • Profits are revenues minus expenditures • Profit margin is the ratio of revenues to profits • Life cycle costing considers the total cost of ownership, or development plus support costs, for a project • Cash flow analysis determines the estimated annual costs and benefits for a project and the resulting annual cash flow

    13. Cost of Downtime for IT Applications

    14. What Went Right? • Many organizations use IT to reduce operational costs • Technology has decreased the costs associated with processing an ATM transaction: • In 1968, the average cost was $5 • In 1978, the cost went down to $1.50 • In 1988, the cost was just a nickel • In 1998, it only cost a penny • In 2008, the cost was just half a penny! • Investing in green IT and other initiatives has helped both the environment and companies’ bottom lines; Michael Dell, CEO of Dell, reached his goal to make his company “carbon neutral” in 2008

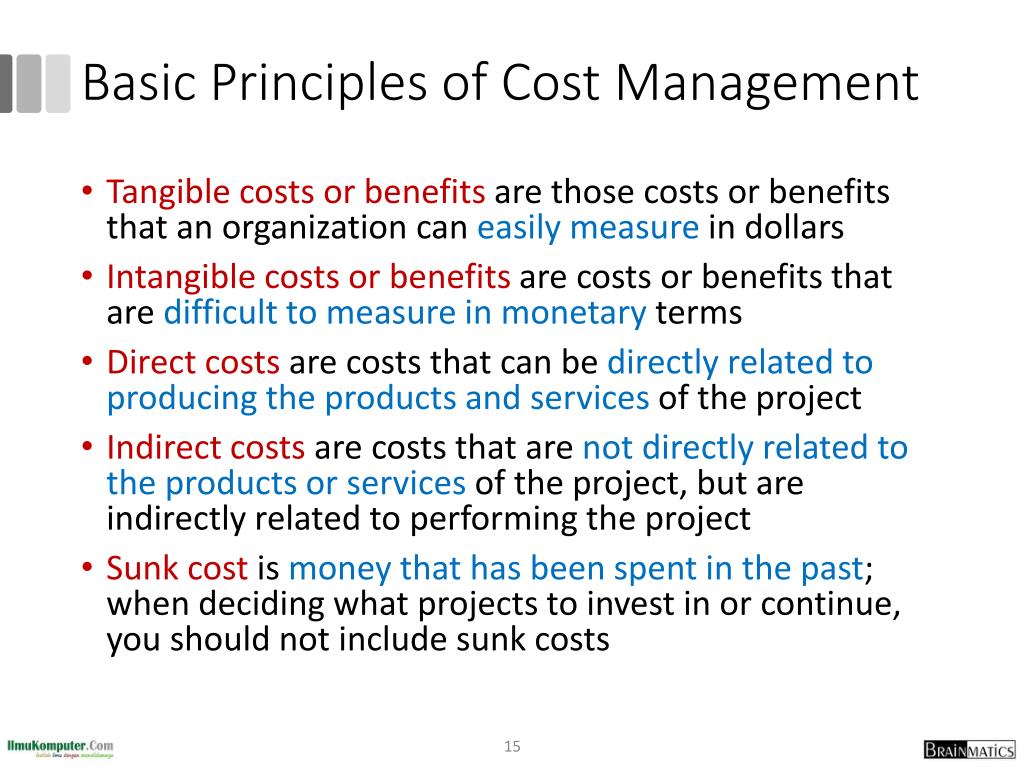

    15. Basic Principles of Cost Management • Tangible costs or benefits are those costs or benefits that an organization can easily measure in dollars • Intangible costs or benefits are costs or benefits that are difficult to measure in monetary terms • Direct costs are costs that can be directly related to producing the products and services of the project • Indirect costs are costs that are not directly related to the products or services of the project, but are indirectly related to performing the project • Sunk cost is money that has been spent in the past; when deciding what projects to invest in or continue, you should not include sunk costs

    16. Basic Principles of Cost Management • Learning curve theory states that when many items are produced repetitively, the unit cost of those items decreases in a regular pattern as more units are produced • Reserves are dollars included in a cost estimate to mitigate cost risk by allowing for future situations that are difficult to predict • Contingency reserves allow for future situations that may be partially planned for (sometimes called known unknowns) and are included in the project cost baseline • Management reserves allow for future situations that are unpredictable (sometimes called unknown unknowns)

    17. 1. Estimating Costs • Project managers must take cost estimates seriously if they want to complete projects within budget constraints • It’s important to know the types of cost estimates, how to prepare cost estimates, and typical problems associated with IT cost estimates

    18. Types of Cost Estimates

    19. Cost Management Plan • A cost management plan is a document that describes how the organization will manage cost variances on the project • A large percentage of total project costs are often labor costs, so project managers must develop and track estimates for labor

    20. Maximum Departmental Headcounts by Year

    21. Cost Estimation Tools and Techniques • Analogous or top-down estimates: use the actual cost of a previous, similar project as the basis for estimating the cost of the current project • Bottom-up estimates: involve estimating individual work items or activities and summing them to get a project total • Parametric modeling uses project characteristics (parameters) in a mathematical model to estimate project costs

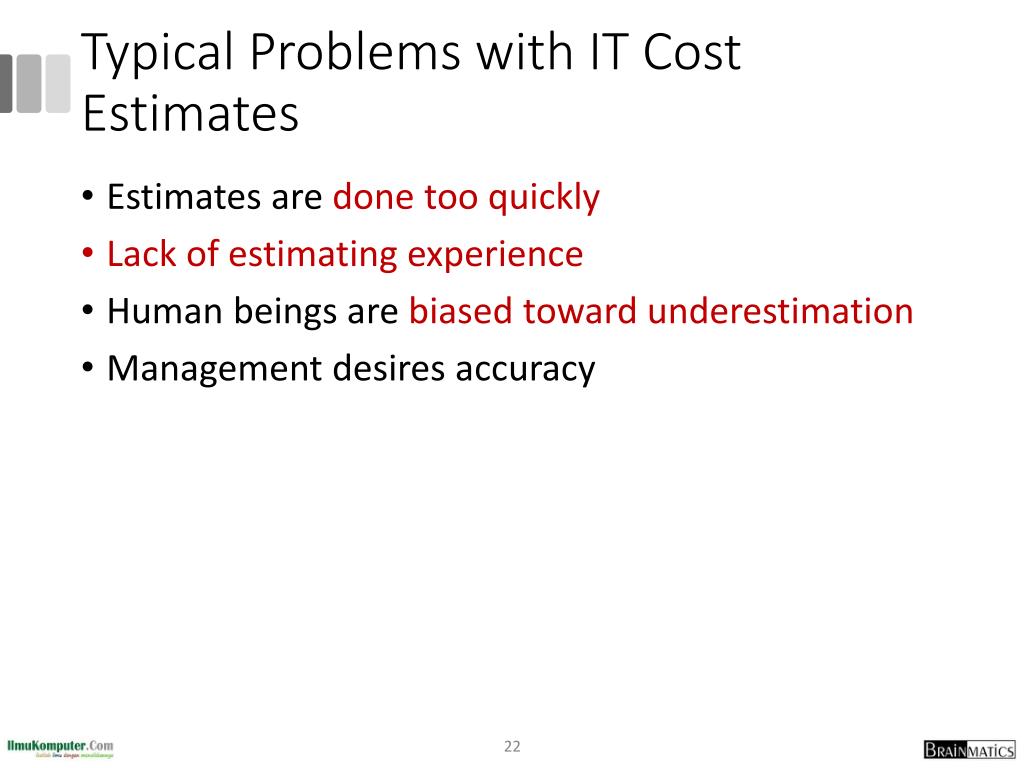

    22. Typical Problems with IT Cost Estimates • Estimates are done too quickly • Lack of estimating experience • Human beings are biased toward underestimation • Management desires accuracy

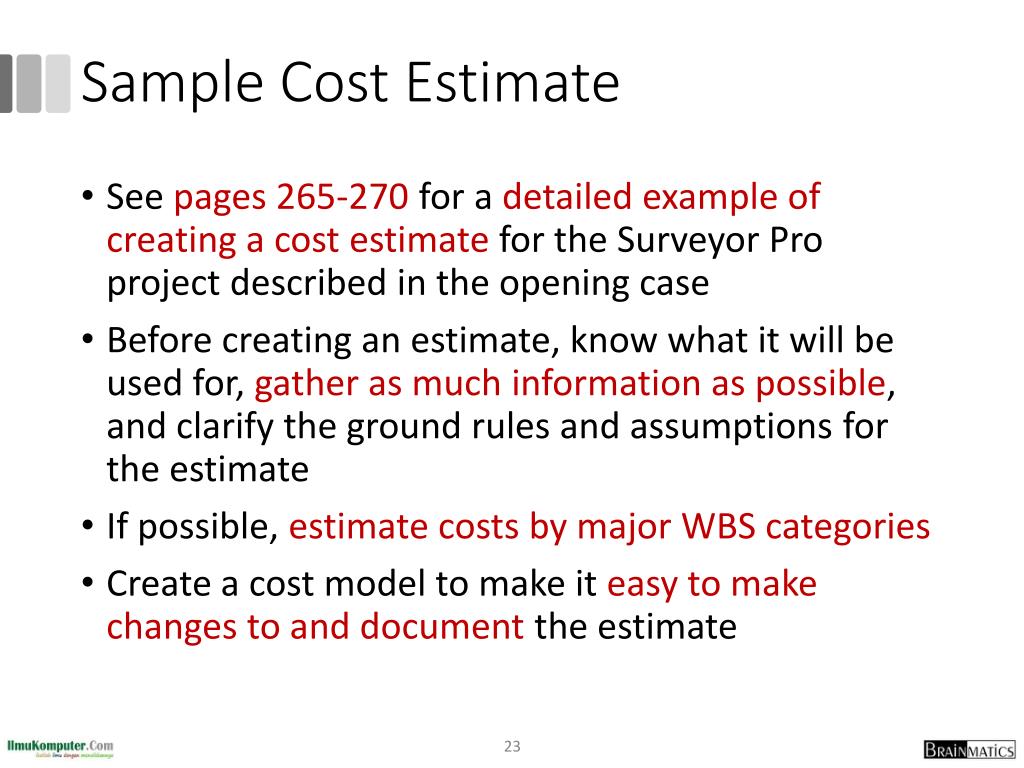

    23. Sample Cost Estimate • See pages 265-270 for a detailed example of creating a cost estimate for the Surveyor Pro project described in the opening case • Before creating an estimate, know what it will be used for, gather as much information as possible, and clarify the ground rules and assumptions for the estimate • If possible, estimate costs by major WBS categories • Create a cost model to make it easy to make changes to and document the estimate

    24. Surveyor Pro Project Cost Estimate

    25. Surveyor Pro Software Development Estimate

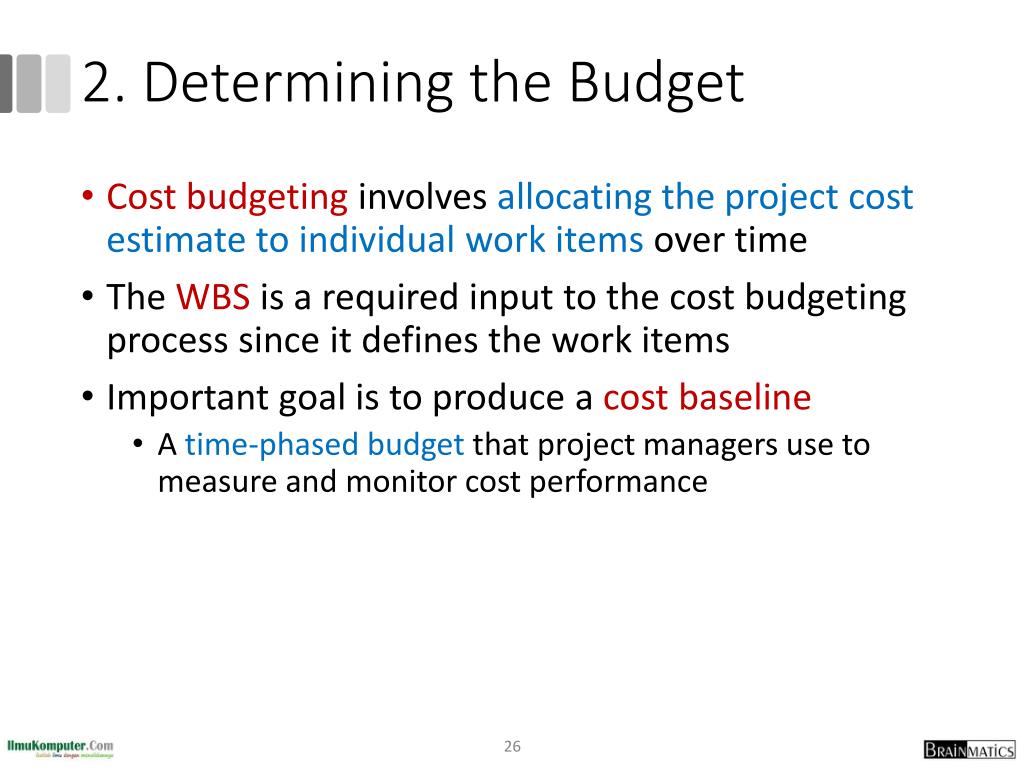

    26. 2. Determining the Budget • Cost budgeting involves allocating the project cost estimate to individual work items over time • The WBS is a required input to the cost budgeting process since it defines the work items • Important goal is to produce a cost baseline • A time-phased budget that project managers use to measure and monitor cost performance

    27. Surveyor Pro Project Cost Baseline

    28. Media Snapshot • U.S. President Barack Obama successfully used the media and information technology in his campaign • The Obama campaign used 16 different online social platforms to interact with people of various backgrounds; sources say 80 percent of all contributions originated from these social networks • In a 60 Minutes episode shortly after the election, campaign leaders discussed some of the details of the campaign • The Web site My.BarackObama was created to develop an online community with more than a million members

    29. 3. Controlling Costs • Project cost control includes: • Monitoring cost performance • Ensuring that only appropriate project changes are included in a revised cost baseline • Informing project stakeholders of authorized changes to the project that will affect costs • Many organizations around the globe have problems with cost control

    30. Earned Value Management (EVM) • EVM is a project performance measurement technique that integrates scope, time, and cost data • Given a baseline (original plan plus approved changes), you can determine how well the project is meeting its goals • You must enter actual information periodically to use EVM • More and more organizations around the world are using EVM to help control project costs

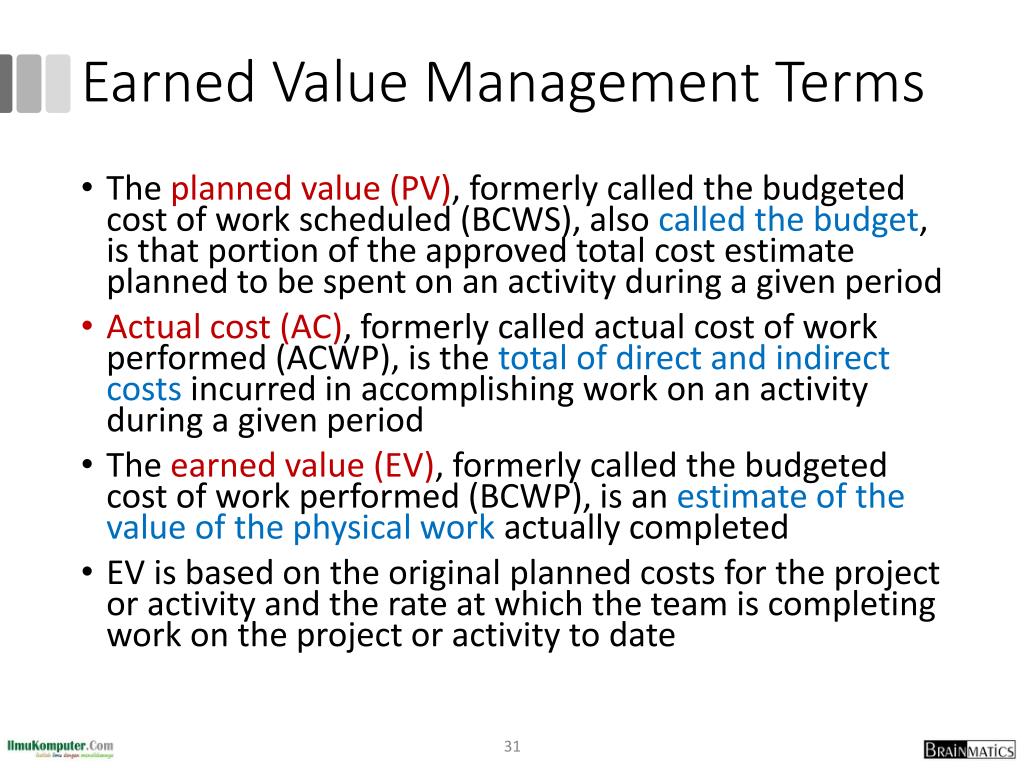

    31. Earned Value Management Terms • The planned value (PV), formerly called the budgeted cost of work scheduled (BCWS), also called the budget, is that portion of the approved total cost estimate planned to be spent on an activity during a given period • Actual cost (AC), formerly called actual cost of work performed (ACWP), is the total of direct and indirect costs incurred in accomplishing work on an activity during a given period • The earned value (EV), formerly called the budgeted cost of work performed (BCWP), is an estimate of the value of the physical work actually completed • EV is based on the original planned costs for the project or activity and the rate at which the team is completing work on the project or activity to date

    32. Rate of Performance • Rate of performance (RP) is the ratio of actual work completed to the percentage of work planned to have been completed at any given time during the life of the project or activity • Brenda Taylor, Senior Project Manager in South Africa, suggests this term and approach for estimating earned value • For example, suppose the server installation was halfway completed by the end of week 1: the rate of performance would be 50% because by the end of week 1, the planned schedule reflects that the task should be 100 percent complete and only 50 percent of that work has been completed

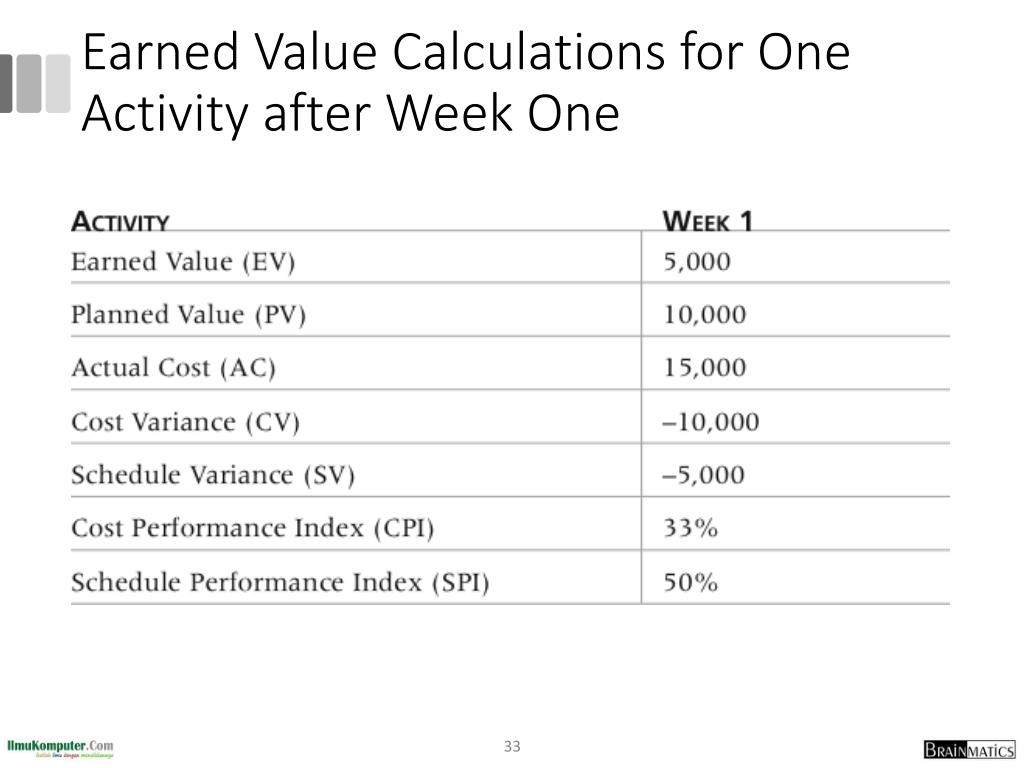

    33. Earned Value Calculations for One Activity after Week One

    34. Earned Value Formulas

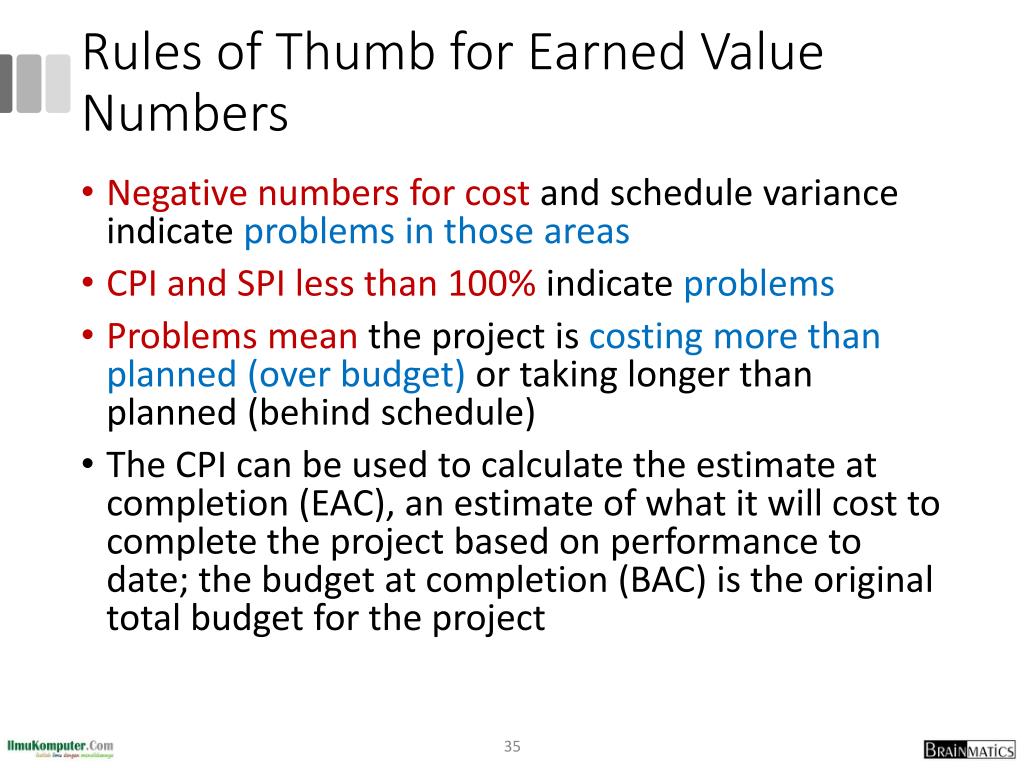

    35. Rules of Thumb for Earned Value Numbers • Negative numbers for cost and schedule variance indicate problems in those areas • CPI and SPI less than 100% indicate problems • Problems mean the project is costing more than planned (over budget) or taking longer than planned (behind schedule) • The CPI can be used to calculate the estimate at completion (EAC), an estimate of what it will cost to complete the project based on performance to date; the budget at completion (BAC) is the original total budget for the project

    36. Earned Value Chart for Project after Five Months

    37. Project Portfolio Management • Many organizations collect and control an entire suite of projects or investments as one set of interrelated activities in a portfolio • Five levels for project portfolio management • Put all your projects in one database • Prioritize the projects in your database • Divide your projects into two or three budgets based on type of investment • Automate the repository • Apply modern portfolio theory, including risk-return tools that map project risk on a curve

    38. Benefits of Portfolio Management • Schlumberger saved $3 million in one year by organizing 120 information technology projects into a portfolio • ROI of implementing portfolio management software by IT departments: • Savings of 6.5 percent of the average annual IT budget by the end of year one • Improved annual average project timeliness by 45.2 percent • Reduced IT management time spent on project status reporting by 43 percent and IT labor capitalization reporting by 55 percent • Decreased the time to achieve financial sign-off for new IT projects by 20.4 percent, or 8.4 days

    39. Best Practice • A global survey released by Borland Software in 2006 suggests that many organizations are still at a low level of maturity in terms of how they define project goals, allocate resources, and measure overall success of their information technology portfolios • Some of the findings include the following: • Only 22 percent of survey respondents reported that their organization either effectively or very effectively uses a project plan for managing projects • Only 17 percent have either rigorous or very rigorous processes for project plans, which include developing a baseline and estimating schedule, cost, and business impact of projects • Only 20 percent agreed their organizations monitor portfolio progress and coordinate across inter-dependent projects

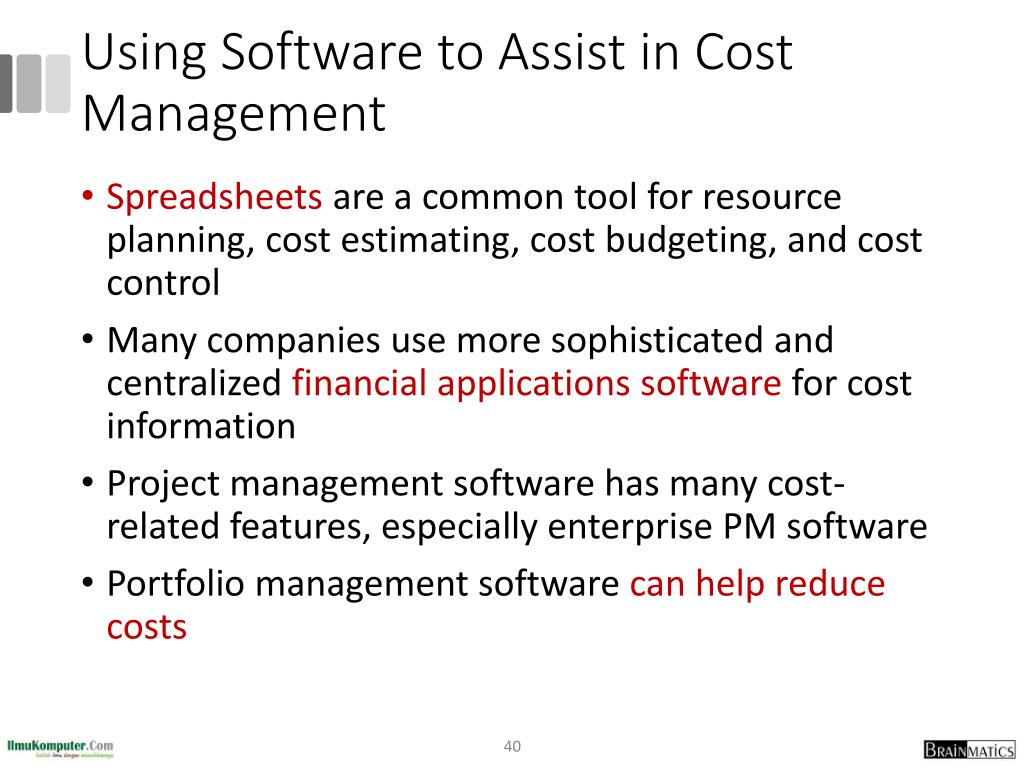

    40. Using Software to Assist in Cost Management • Spreadsheets are a common tool for resource planning, cost estimating, cost budgeting, and cost control • Many companies use more sophisticated and centralized financial applications software for cost information • Project management software has many cost-related features, especially enterprise PM software • Portfolio management software can help reduce costs

    41. Summary • Project cost management is a traditionally weak area of IT projects, and project managers must work to improve their ability to deliver projects within approved budgets • Main processes include: • Estimate costs • Determine the budget • Control costs

    42. References • Kathy Schwalbe, Managing Information Technology Projects 6th Edition, Course Technology, Cengage Learning, 2010 • A Guide to the Project Management Body of Knowledge: PMBOK Guide 4th Edition, Project Management Institute, 2008
