Presentation Transcript

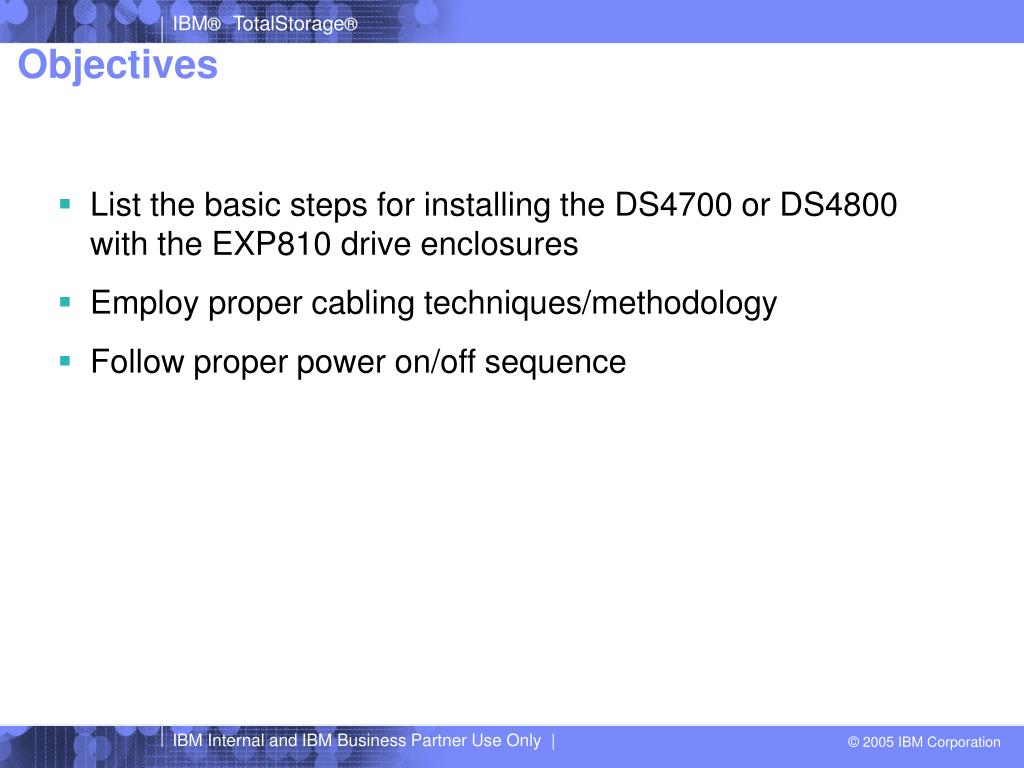

objectives
Objectives
  • List the basic steps for installing the DS4700 or DS4800 with the EXP810 drive enclosures
  • Employ proper cabling techniques/methodology
  • Follow proper power on/off sequence
steps for hardware install
Steps for Hardware Install
  • Unpack the hardware according to the directions in the unpacking guide that should be attached to the outside of the shipping carton.
  • Install the cabinet, controller enclosure and drive expansion enclosures by following the directions in the hardware installation guide.
  • Attach the power cables.
  • Attach Ethernet cables - one to each controller.
  • Cable the controller and drive expansion enclosures.
  • Check the link rate switch on all enclosures.
  • Turn on the power in the correct sequence.
  • Set the controllers’ IP addresses
  • Attach the host interface cables

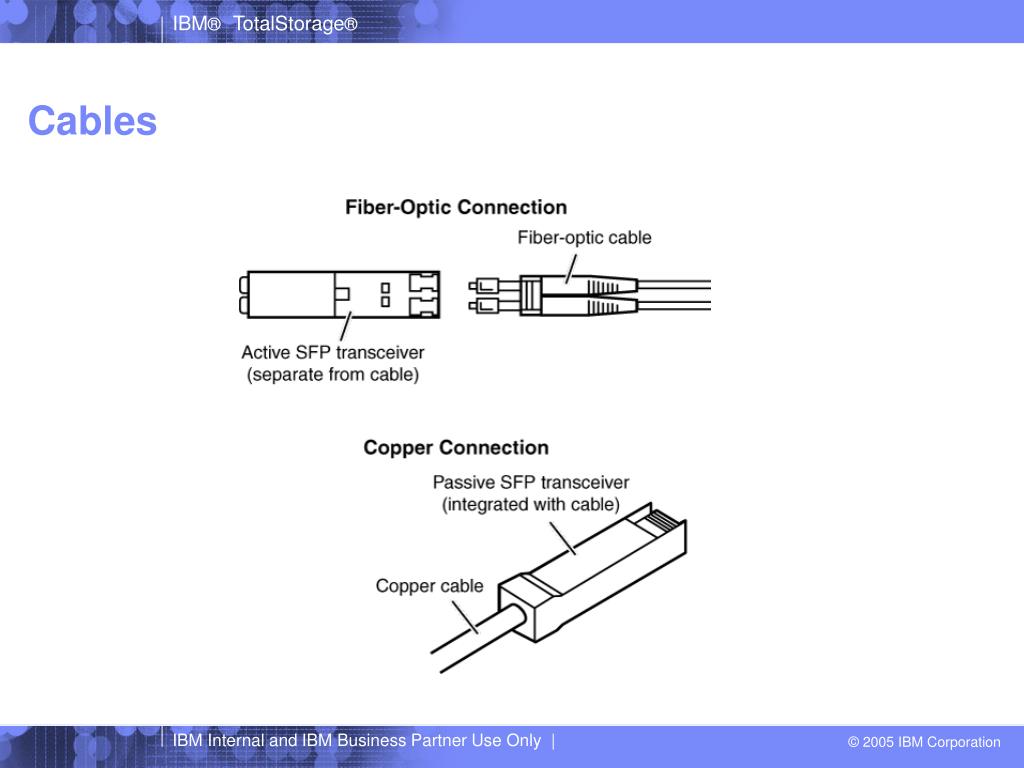

cabling6

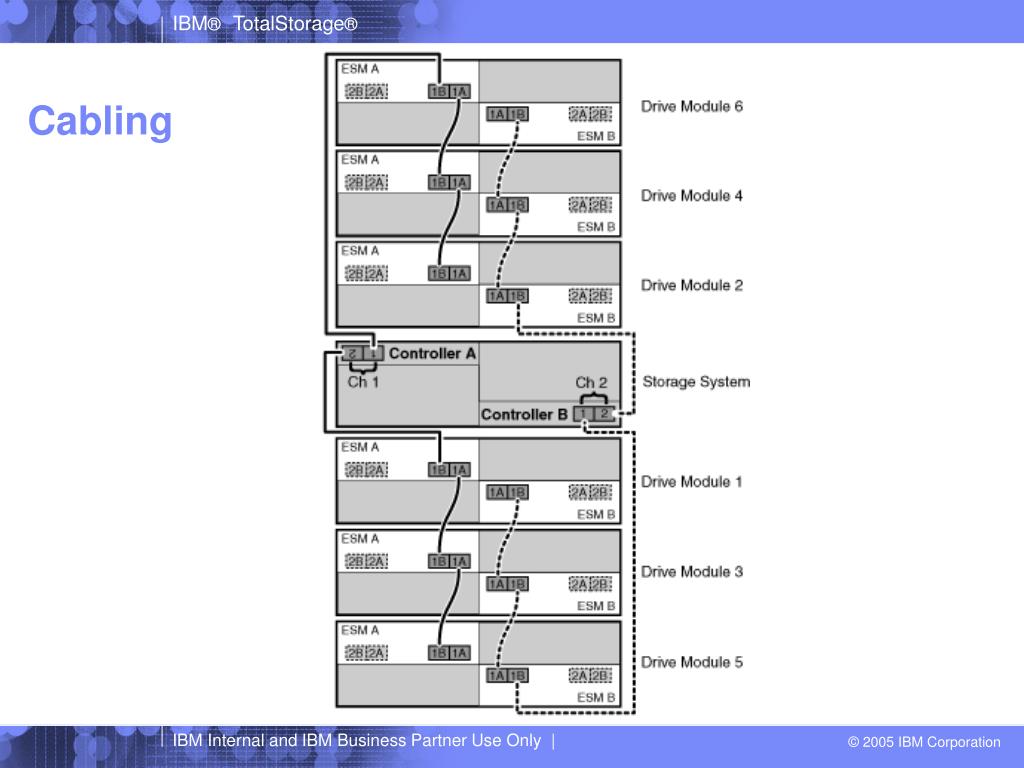

Cabling

B

A

A

B

Expansion Trays

Controller Tray

1 expansion tray
1 Expansion Tray

Expansion Tray

Controller Tray

2 expansion trays
2 Expansion Trays

Expansion Tray

Expansion Tray

Controller Tray

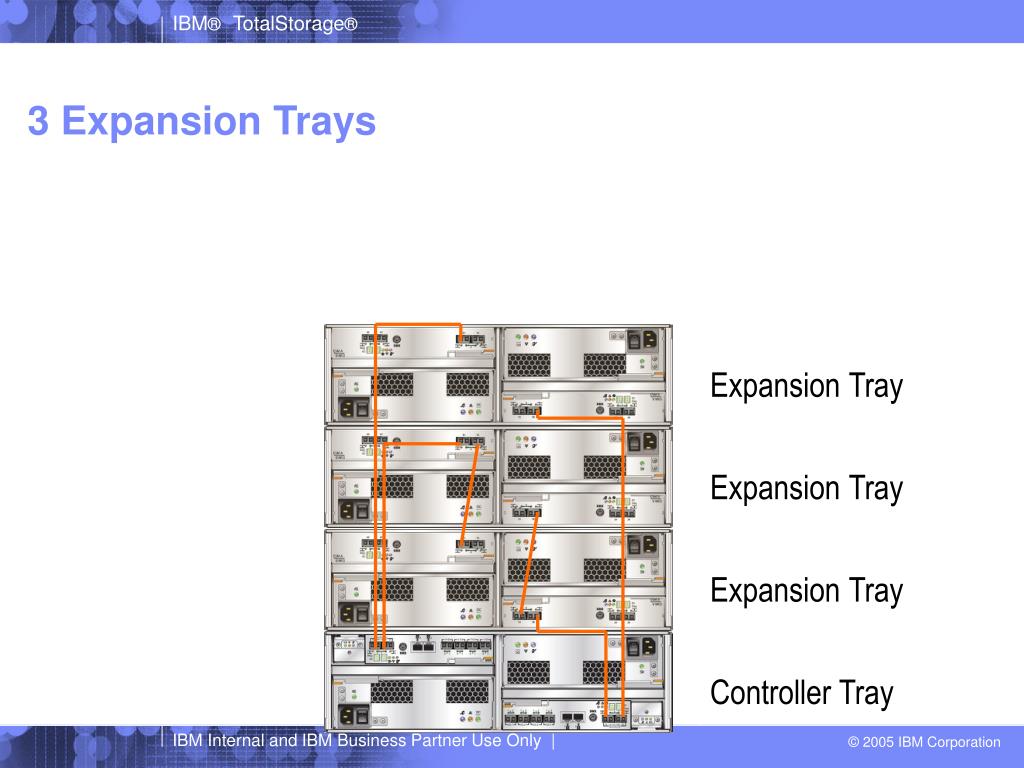

3 expansion trays
3 Expansion Trays

Expansion Tray

Expansion Tray

Expansion Tray

Controller Tray

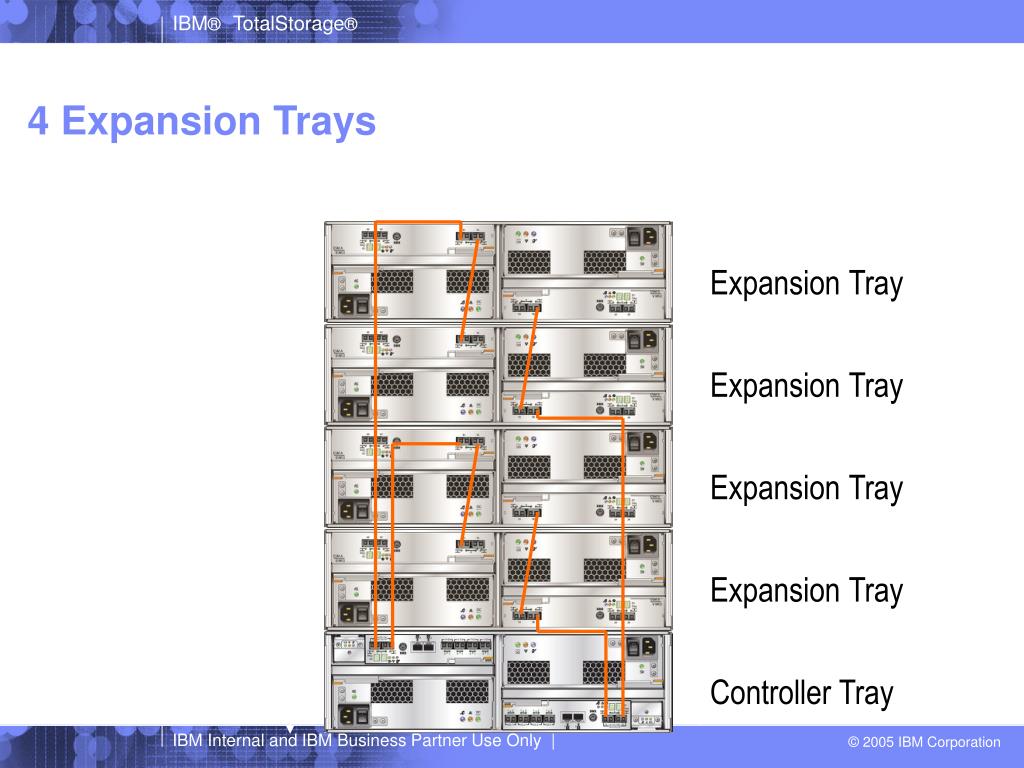

4 expansion trays
4 Expansion Trays

Expansion Tray

Expansion Tray

Expansion Tray

Expansion Tray

Controller Tray

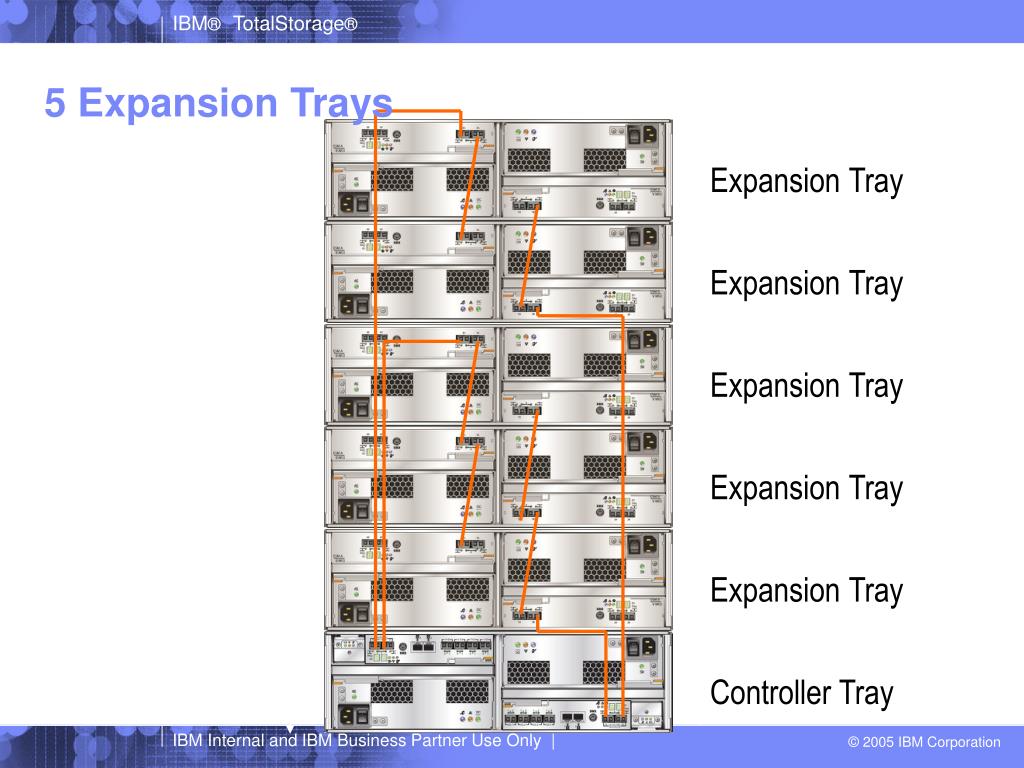

5 expansion trays
5 Expansion Trays

Expansion Tray

Expansion Tray

Top-Down

Bottom-Up

Expansion Tray

Expansion Tray

Expansion Tray

Controller Tray

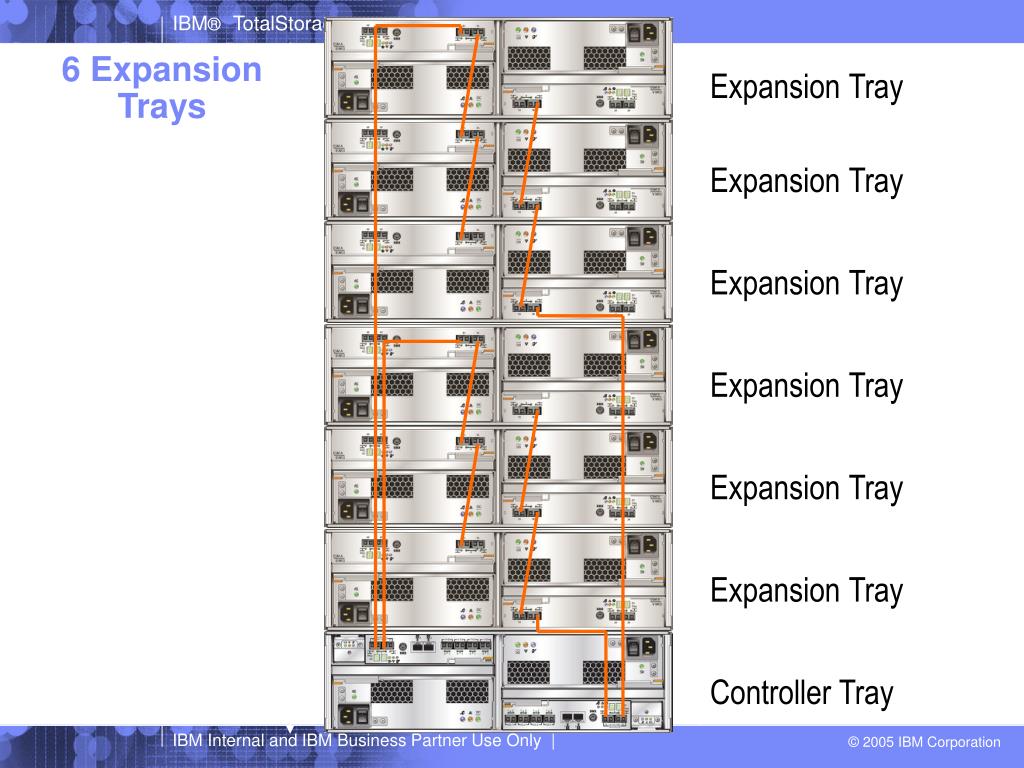

6 expansion trays
6 Expansion Trays

Expansion Tray

Expansion Tray

Expansion Tray

Top-Down

Bottom-Up

Expansion Tray

Expansion Tray

Expansion Tray

Controller Tray

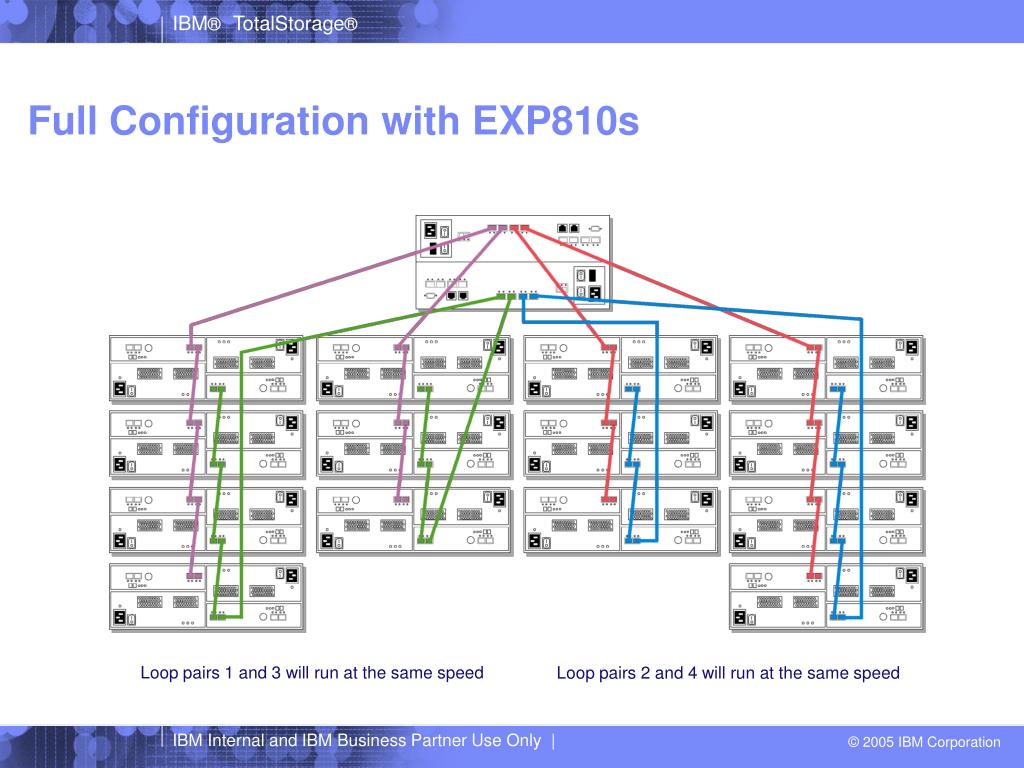

full configuration with exp810s
Full Configuration with EXP810s

Loop pairs 1 and 3 will run at the same speed

Loop pairs 2 and 4 will run at the same speed

ds4800 and exp810 and exp710 intermix guidelines per loop
DS4800 and EXP810 and EXP710 Intermix Guidelines – Per Loop

Configurations where a total number of drives over 112 per loop are not supported.

slide17

DS4700 / EXP810 - enclosure LED's

Link Rate Switch: Left – 4Gbps Right – 2Gbps

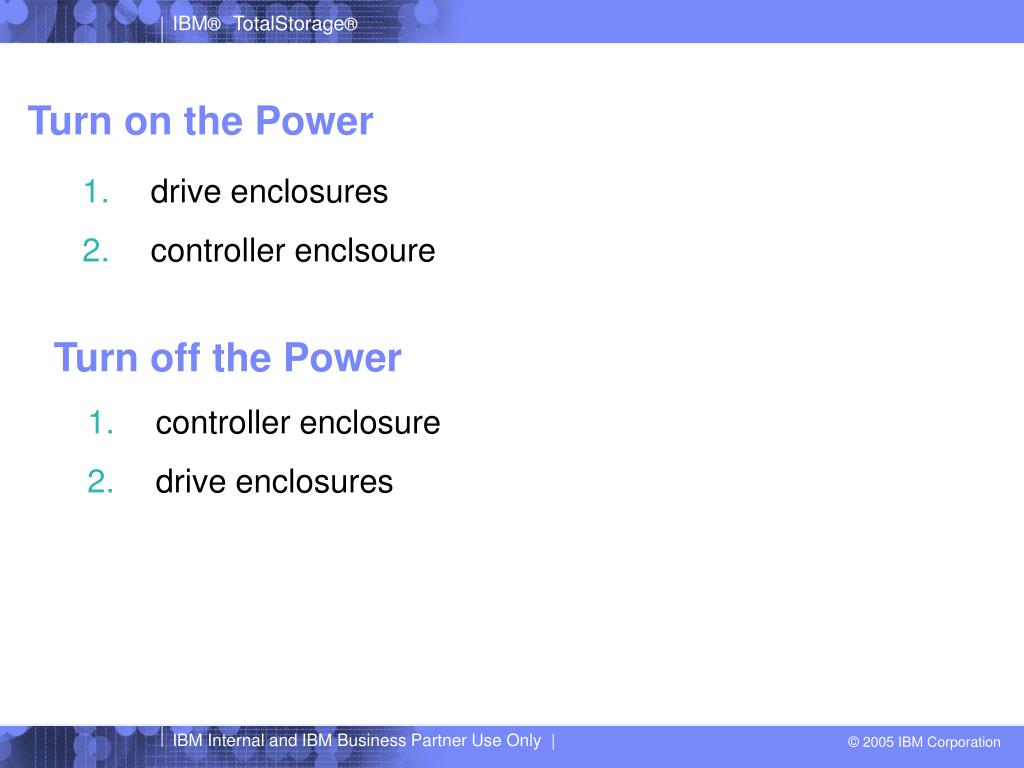

turn on the power
Turn on the Power
  • drive enclosures
  • controller enclsoure

Turn off the Power

  • controller enclosure
  • drive enclosures
