Presentation Transcript
sxr can locations

SXR Can locations

1/30/06

Model: stb-machine_asm-0. Rep. dog collar se340-001.drw

slide2

4

3

5

2

6

1

7

8

1

2

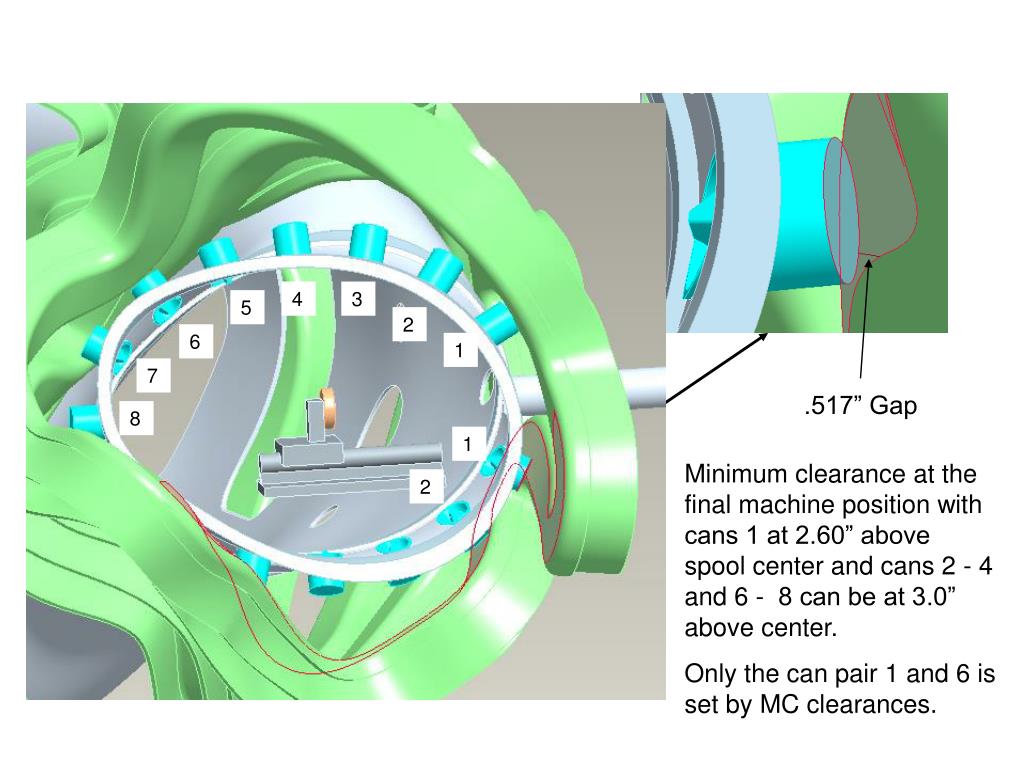

.517” Gap

Minimum clearance at the final machine position with cans 1 at 2.60” above spool center and cans 2 - 4 and 6 - 8 can be at 3.0” above center.

Only the can pair 1 and 6 is set by MC clearances.

slide3

2

1

1

2

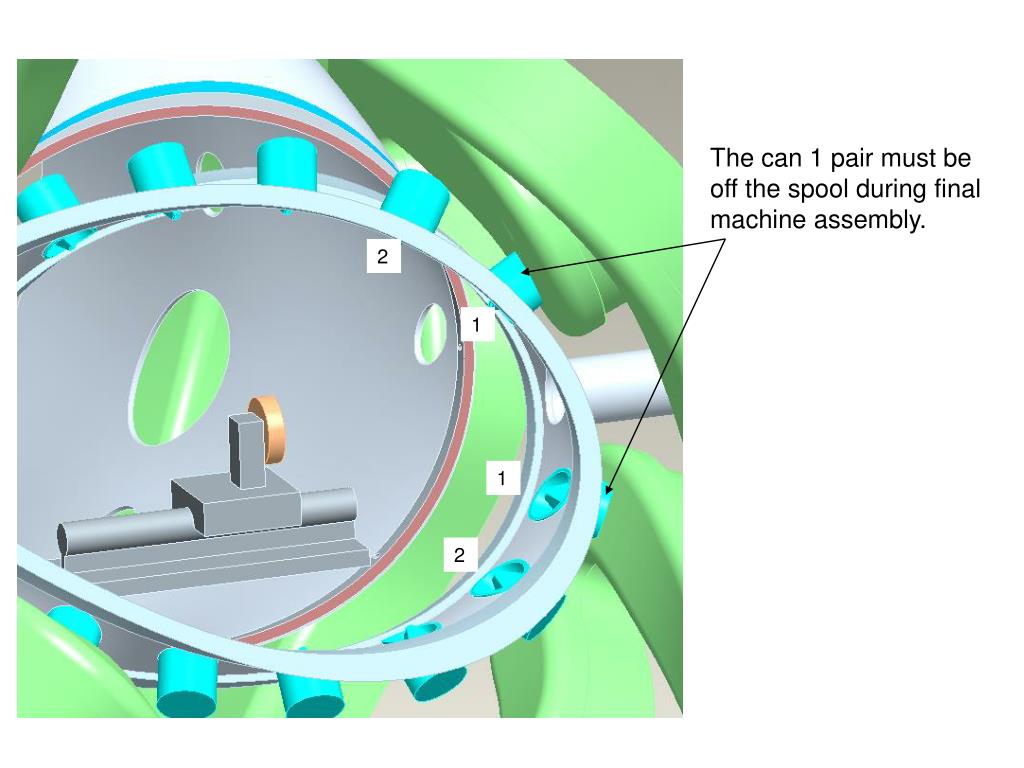

The can 1 pair must be off the spool during final machine assembly.

slide4

6

7

8

7

8

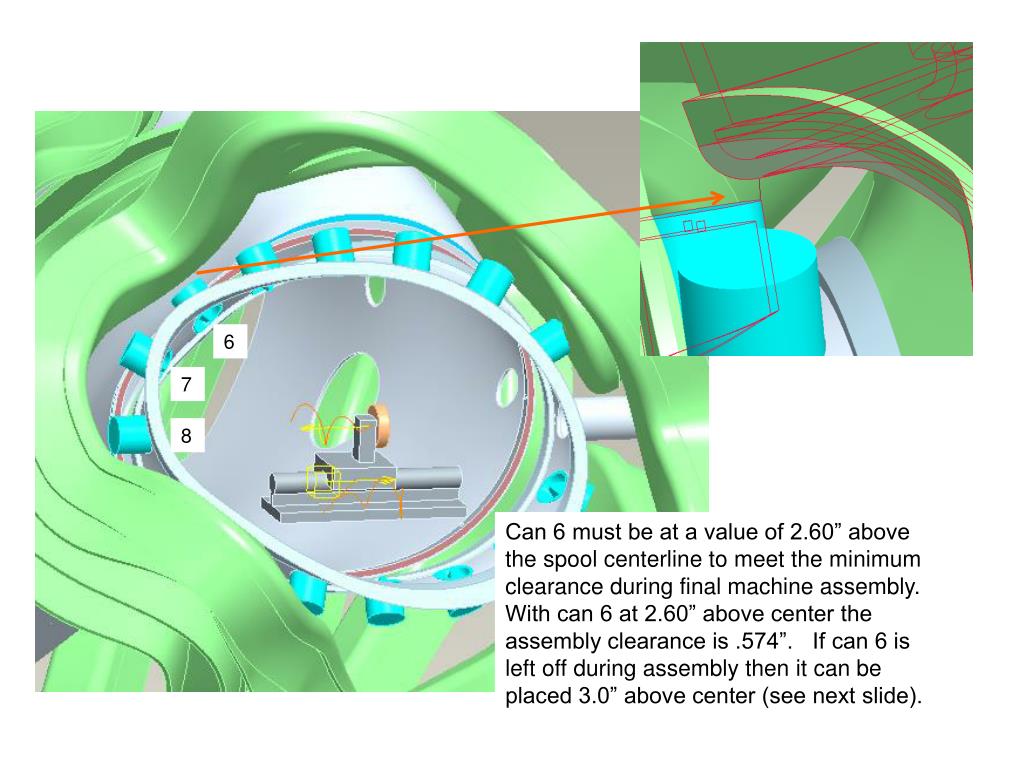

Can 6 must be at a value of 2.60” above the spool centerline to meet the minimum clearance during final machine assembly. With can 6 at 2.60” above center the assembly clearance is .574”. If can 6 is left off during assembly then it can be placed 3.0” above center (see next slide).

slide5

6

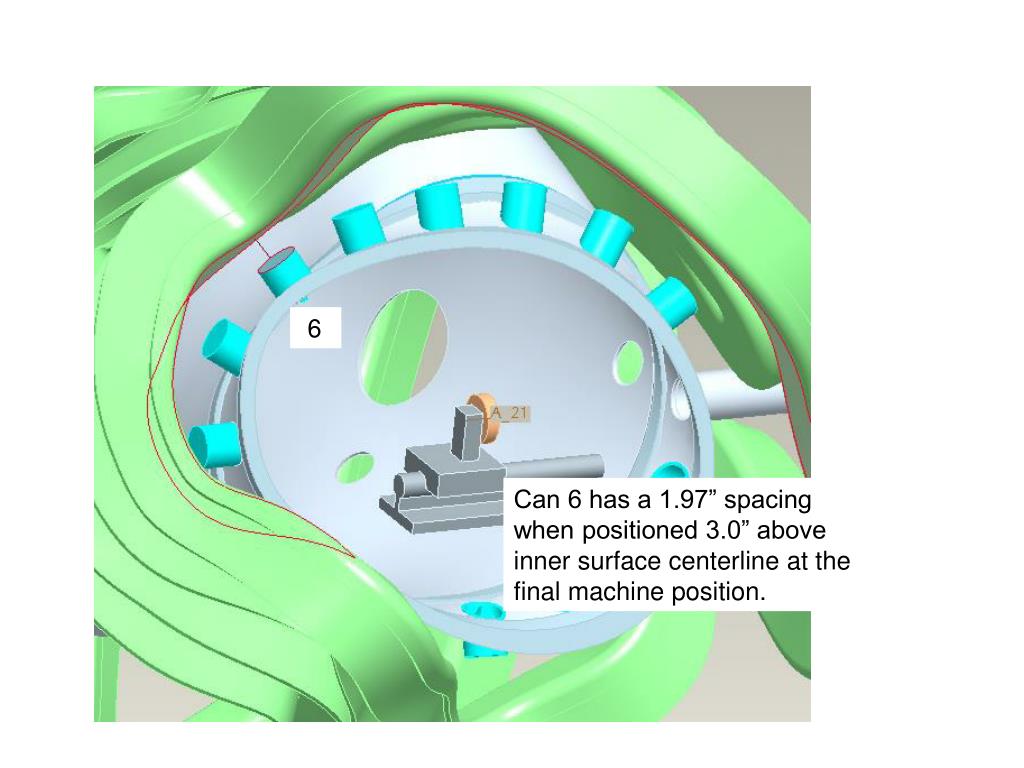

Can 6 has a 1.97” spacing when positioned 3.0” above inner surface centerline at the final machine position.
