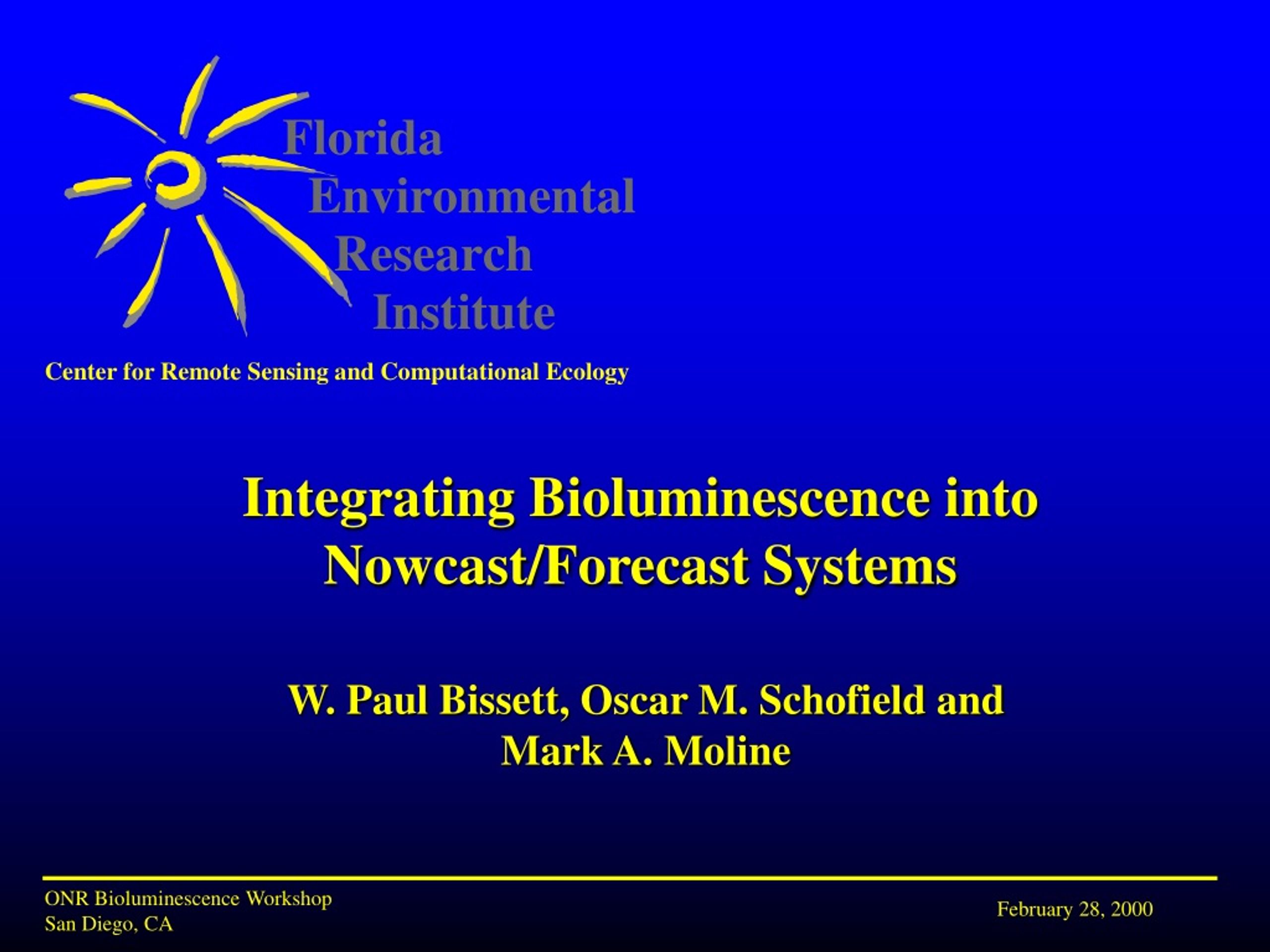

  1. Integrating Bioluminescence into Nowcast/Forecast Systems W. Paul Bissett, Oscar M. Schofield and Mark A. Moline ONR Bioluminescence Workshop San Diego, CA

  2. Issues • How do we couple observational nowcast/forecast systems with bioluminescence sensors to yield: • 1) a framework for when and where to deploy detection systems? • 2) detection avoidance maps? ONR Bioluminescence Workshop San Diego, CA

  3. Optically-Deep Optically-Shallow Whitecaps Micro-bubbles Shallow Ocean Floor Suspended Sediments Phytoplankton Benthic Plants 1/Kd CDOM-Rich Water IOPs, AOPs, and Ocean Color ONR Bioluminescence Workshop San Diego, CA

  4. HyCODE Application Scenarios Satellite ocean sensors: - NEMO - SeaWiFS - AVHRR Remote sensing products Sensor performance Environment Prediction Imagery Aircraft sensors: - Hyperspectral - Lidar In Situ Data Mission Planning Sampling Strategy Expendable sensors Underwater imaging systems: - Mine ID - Benthic characterization Autonomous Sampling Networks - Environmental characterization - Communication ONR Bioluminescence Workshop San Diego, CA

  5. Light Propagation in EcoSim For each depth interval light attenuation c(l,t) = a(l,t) + b(l,t) absorption a(l,t) = awater(l) + aphyto(l) + aCDOM(l) + ased(l) scattering b(l,t) = bwater(l) + bphyto(l) + bCDOM(l) + bsed(l) backscattering bb(l,t) = bb,water(l) + bb,phyto(l) + bb,CDOM(l) + bb,sed(l) geometric structure of light md(l) = fxn[b(l,t),c(l ,t), m0(l)] diffuse light attenuation Kd(l) = [a(l,t) + bb(l ,t)]/md(l)] water leaving radiance to a satellite Lu(l) = fxn[a(l,t),b(l ,t), bb(l ,t),Ed(l,t), md(l), md(l), mu(l)] ONR Bioluminescence Workshop San Diego, CA

  6. EcoSim 2.0 Model Formulation Air/Sea CO2 Dust Physical Mixing and Advection Light N2 Iron CO2 NH4 NO3 PO4 SiO4 Relict DOM Cocco-litho-phores Benthic Flora Pelagic Diatoms Dino- flagellate Tricho-desmium Synecho- coccus G. breve Excreted DOM Lysed DOM Hetero- Flagellet Viruses Copepod Ciliates Bacteria Sediment Detritus Predator Closure ONR Bioluminescence Workshop San Diego, CA

  7. Optically-Deep Optically-Shallow Whitecaps Micro-bubbles Shallow Ocean Floor Suspended Sediments Phytoplankton Benthic Plants 1/Kd CDOM-Rich Water IOPs, AOPs, and Ocean Color ONR Bioluminescence Workshop San Diego, CA

  8. EcoSim 2.0 Model Formulation Air/Sea CO2 Dust Physical Mixing and Advection Light N2 Iron CO2 NH4 NO3 PO4 SiO4 Relict DOM Cocco-litho-phores Benthic Flora Pelagic Diatoms Dino- flagellate Tricho-desmium Synecho- coccus G. breve Excreted DOM Lysed DOM Hetero- Flagellet Ctenp- phores Viruses Copepod Ciliates Bacteria Sediment Detritus Predator Closure ONR Bioluminescence Workshop San Diego, CA

  9. Bioluminescent Light Propagation in EcoSim For each depth interval light attenuation c(l,t) = a(l,t) + b(l,t) absorption a(l,t) = awater(l) + aphyto(l) + aCDOM(l) + ased(l) scattering b(l,t) = bwater(l) + bphyto(l) + bCDOM(l) + bsed(l) backscattering bb(l,t) = bb,water(l) + bb,phyto(l) + bb,CDOM(l) + bb,sed(l) geometric structure of light md(l) = fxn[b(l,t),c(l ,t), m0(l)] diffuse light attenuation Kd(l) = [a(l,t) + bb(l ,t)]/md(l)] water leaving radiance to a satellite Lu(l) = fxn[a(l,t),b(l ,t), bb(l ,t),Ed(l,t), md(l), md(l), mu(l)] ONR Bioluminescence Workshop San Diego, CA

  10. IOPs from LEO-15 - July 16, 1999 ONR Bioluminescence Workshop San Diego, CA

  11. Kd(490) and Predicted Surface Bioluminescence Yield 10-11 W m-2 sr-1 is approximately 2.5 x 107 photons m-2 sr-1 10-5 W m-2 sr-1 is approximately 2.5 x 1013 photons m-2 sr-1 ONR Bioluminescence Workshop San Diego, CA

  12. Predicted Surface Bioluminescence Yield from 10 m event 10-11 10-7 W m-2 sr-1 ONR Bioluminescence Workshop San Diego, CA

  13. Predicted Surface Bioluminescence Yield from 10 m event 10-11 10-7 W m-2 sr-1 ONR Bioluminescence Workshop San Diego, CA

  14. Summary • Optical properties of the water column directly impact bioluminescence signal propagation. • Accurate knowledge of the IOPs and AOPs is required for any instrument performance modeling, as well as determining detection horizons. • Bioluminescence can be incorporated into nowcast/forecast systems currently under development. • Optical properties derived from current remote sensing tools can be used to estimate detection horizons for hypothesized bioluminescence event. • Remote sensing and nowcast/forecast tools may be coupled to yield probability horizons and performance prediction tools. ONR Bioluminescence Workshop San Diego, CA
