Installation Guide for Fog Lights on 2013 Ford Police Interceptor Utility

DESCRIPTION

This installation guide provides step-by-step instructions for adding fog lights to the 2013 Ford Police Interceptor Utility, which does not come equipped with them. The front fascia, made of solid plastic, requires a cutout for fog light mounting. Essential parts, such as driver and passenger side brackets, mounting screws, and fog lights, need to be procured from a local Ford dealer. Follow each step carefully to ensure a proper installation and enjoy improved visibility with your new fog lights.

1 / 13

Download Presentation

Installation Guide for Fog Lights on 2013 Ford Police Interceptor Utility

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. PAR-28 Installation 2013 Ford Police Interceptor Utility 8/30/12

  2. PAR-28 Installation • 2013 Ford Police Interceptor Utility does not come with fog lights • Front facia is made from solid plastic • Round area in facia needs to be cut out for fog light to mount • Bracketry on the back side of front facia to support fog lights needs to be purchased from Ford

  3. The following parts need to be purchased • from your local Ford dealer: • (1) Driver Side Bracket – (BB5Z-15266-A) • (1) Passenger Side Bracket – (BB5Z-15266-B) • (6) Bracket Mounting Screws – (W706805-S902) • (6) Mounting Nuts – (W715051-S439) • (8) Light Mounting Screws – (N807011-S424)

  4. PARTS • Fog Light – (PAR28) • Explorer/Utility Bracket - (P28FX11)

  5. STEP 1 Using a 3.5” Hole Saw, Cut Out Fog Light Hole in Facia

  6. STEP 2 Remove Plastic Tabs from Ford Mounting Brackets (BB5Z-A & BB5Z-15266-B) Before After

  7. STEP 3 Install Mounting Nuts into facia (W715051-S439)

  8. STEP 4 Mount PAR-28 Lighthead and P28FX11 together per Installation Guide

  9. Install PAR-28 and Bracket Assembly into Ford Mounting Bracket using the Light Mounting Screws (N807011-S424) STEP 5

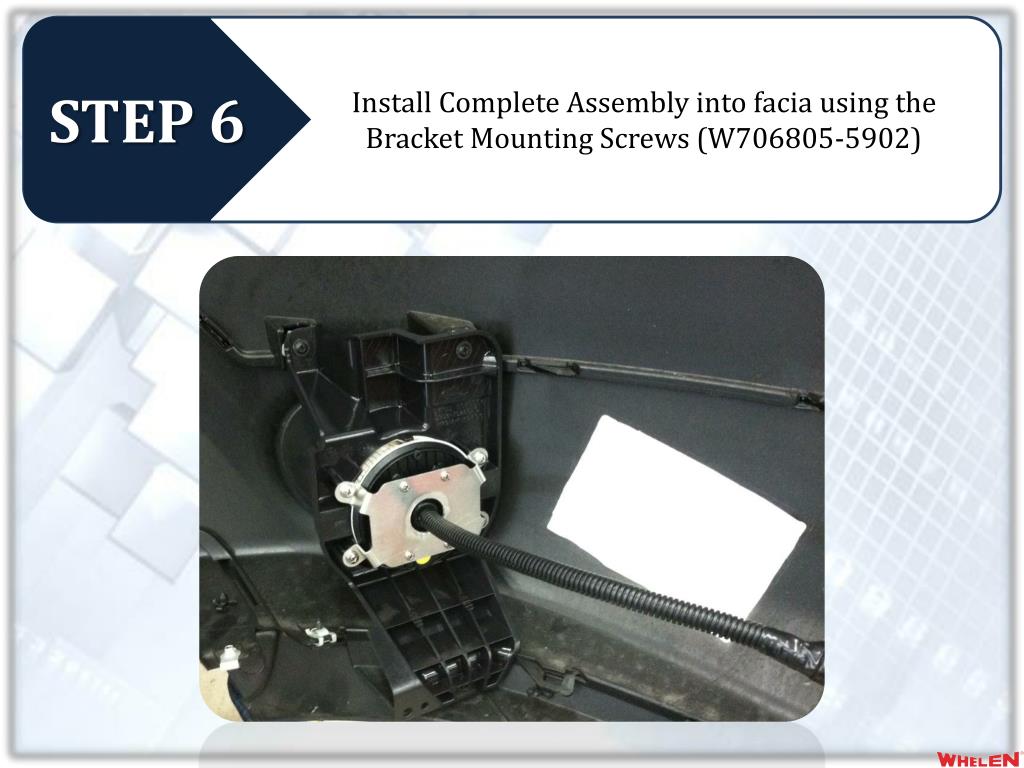

  10. STEP 6 Install Complete Assembly into facia using the Bracket Mounting Screws (W706805-5902)

  11. Finished Product
