  1. Users Guide:Fast IP Lookup (FIPL) in the FPX Gigabit Kits Workshop 1/2002

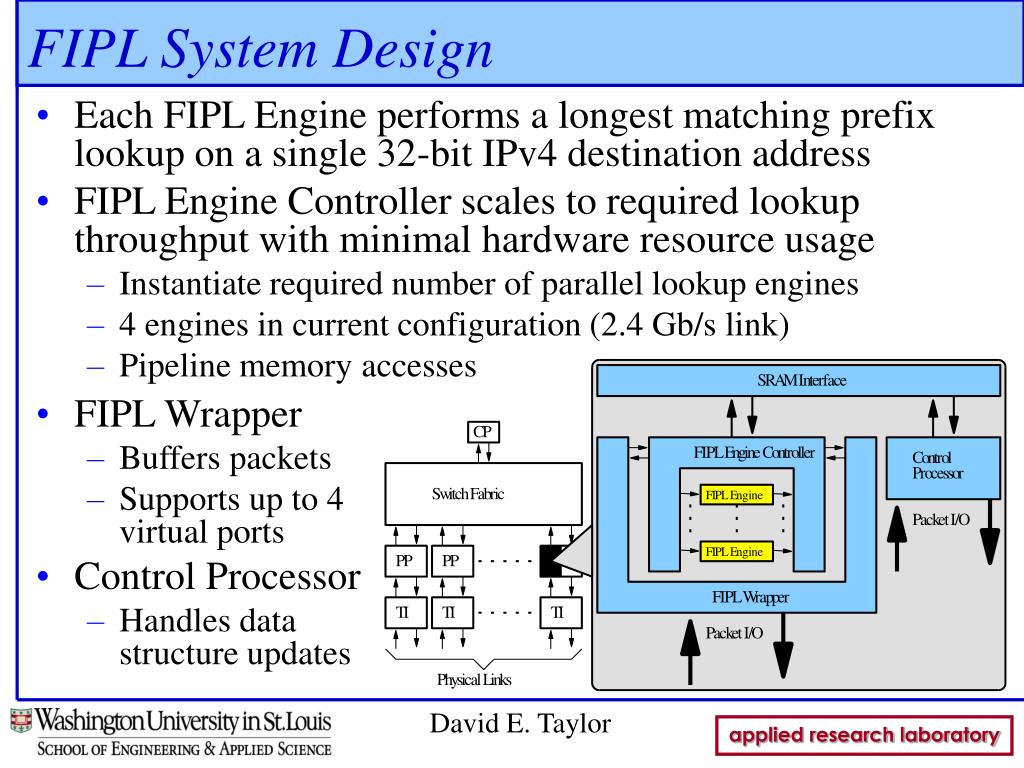

  2. FIPL System Design • Each FIPL Engine performs a longest matching prefix lookup on a single 32-bit IPv4 destination address • FIPL Engine Controller scales to required lookup throughput with minimal hardware resource usage • Instantiate required number of parallel lookup engines • 4 engines in current configuration (2.4 Gb/s link) • Pipeline memory accesses • FIPL Wrapper • Buffers packets • Supports up to 4 virtual ports • Control Processor • Handles data structure updates

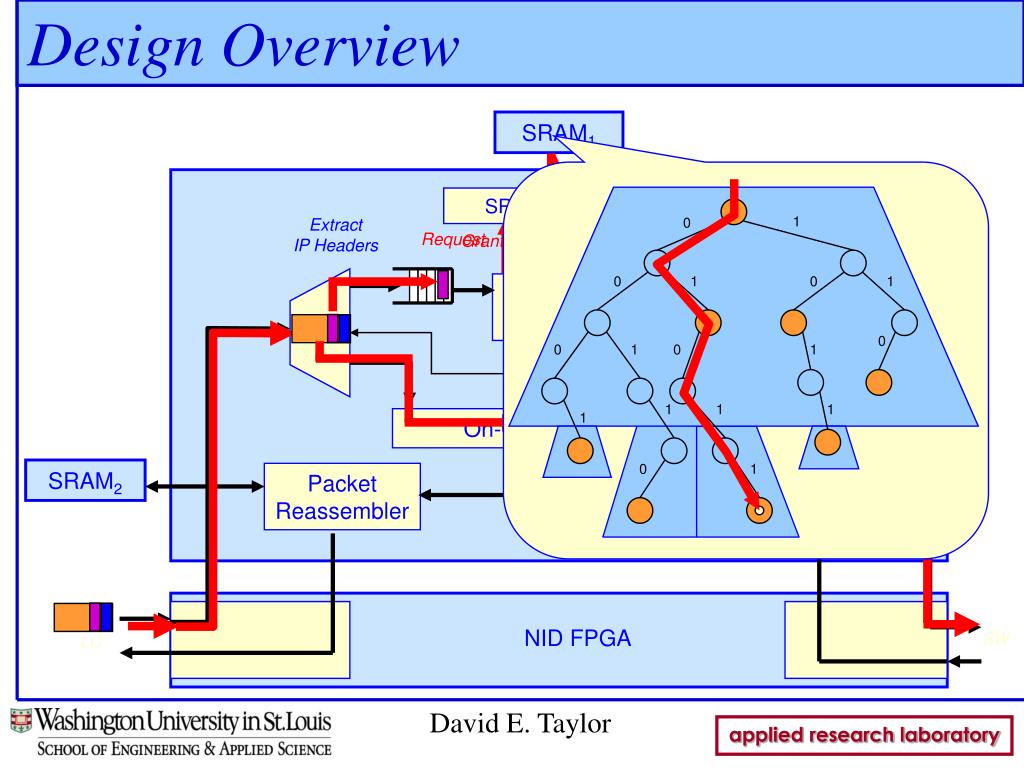

  3. Design Overview Grant 1 0 Request 0 1 0 1 0 0 1 0 1 1 1 1 1 0 1 SRAM1 SRAM1 Interface Remap VCIs for IP packets Extract IP Headers IP Lookup Engine counter On-Chip Cell Store SRAM2 Packet Reassembler Control Cell Processor RAD FPGA NID FPGA SW LC

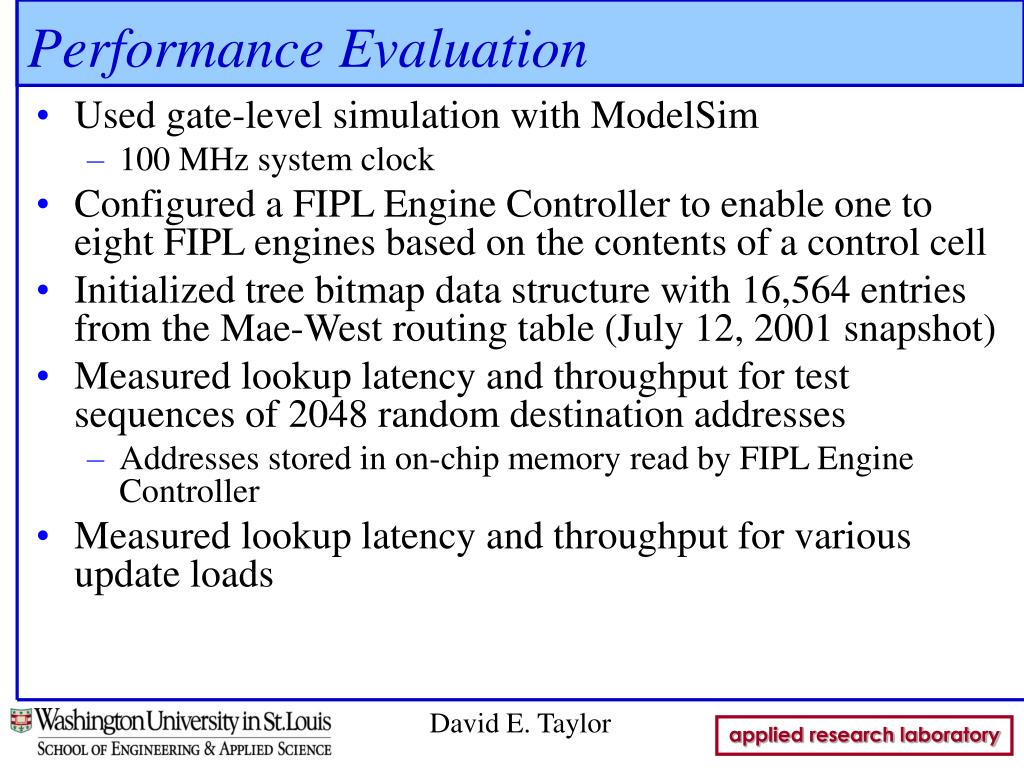

  4. Performance Evaluation • Used gate-level simulation with ModelSim • 100 MHz system clock • Configured a FIPL Engine Controller to enable one to eight FIPL engines based on the contents of a control cell • Initialized tree bitmap data structure with 16,564 entries from the Mae-West routing table (July 12, 2001 snapshot) • Measured lookup latency and throughput for test sequences of 2048 random destination addresses • Addresses stored in on-chip memory read by FIPL Engine Controller • Measured lookup latency and throughput for various update loads

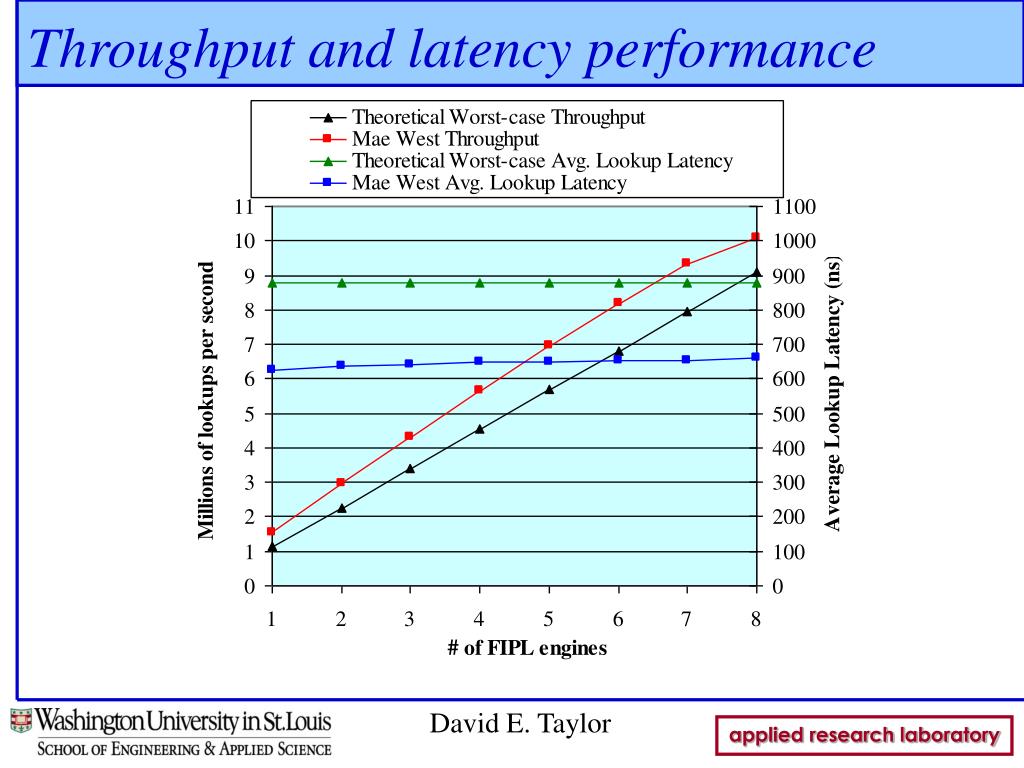

  5. Throughput and latency performance

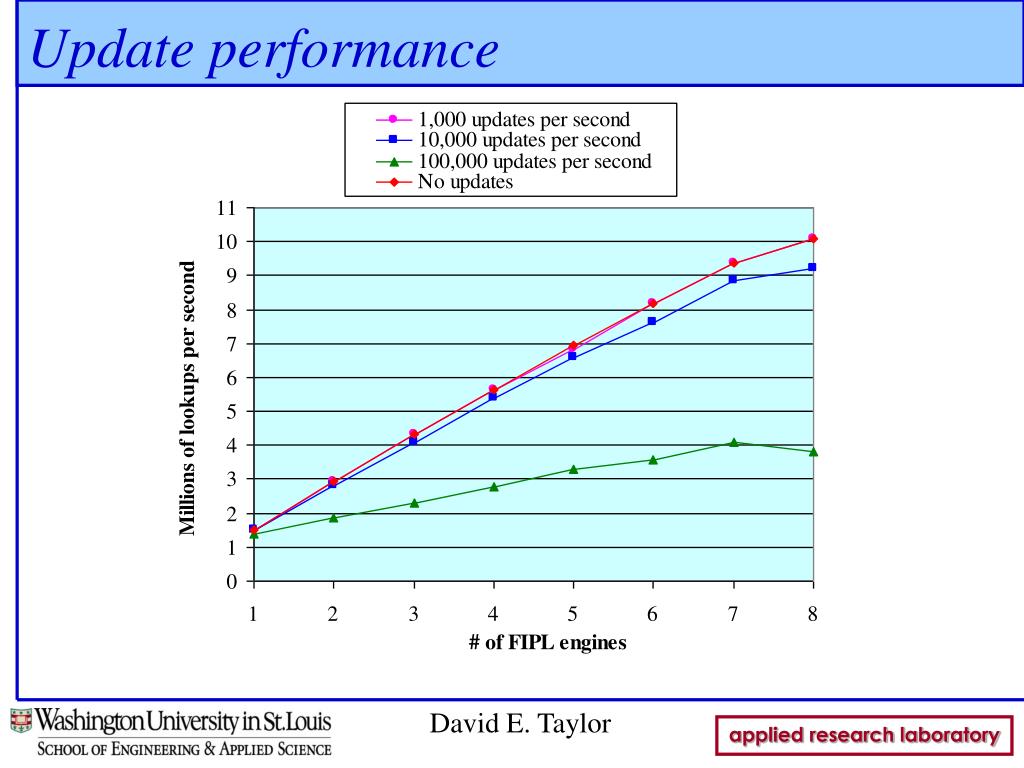

  6. Update performance

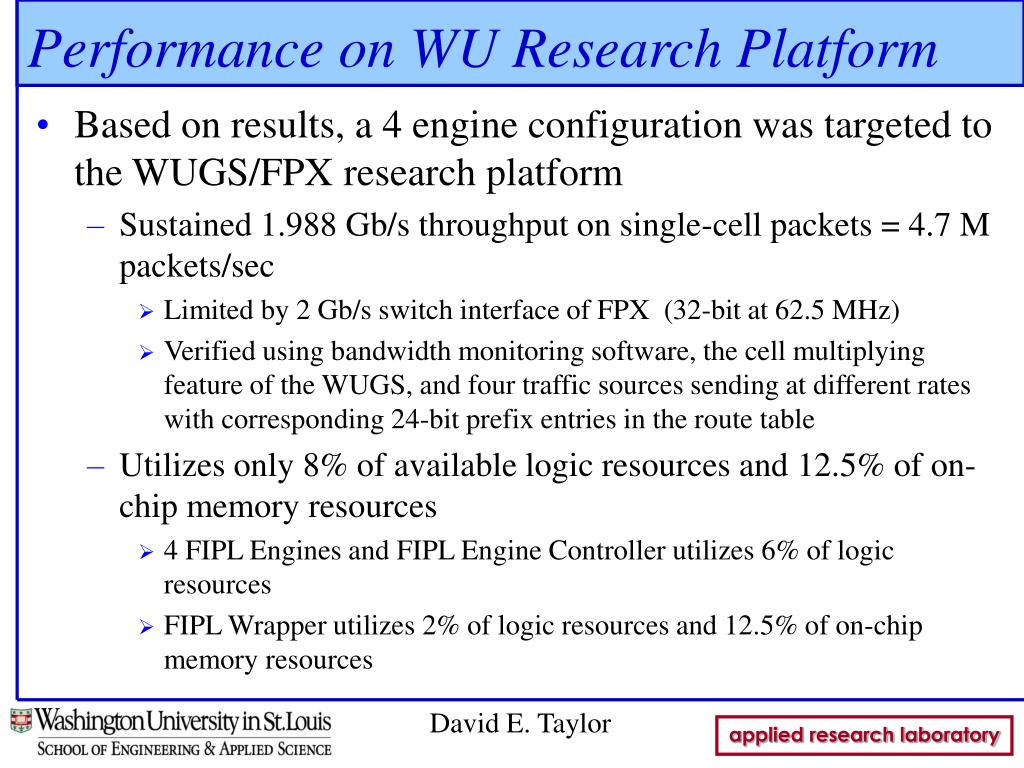

  7. Performance on WU Research Platform • Based on results, a 4 engine configuration was targeted to the WUGS/FPX research platform • Sustained 1.988 Gb/s throughput on single-cell packets = 4.7 M packets/sec • Limited by 2 Gb/s switch interface of FPX (32-bit at 62.5 MHz) • Verified using bandwidth monitoring software, the cell multiplying feature of the WUGS, and four traffic sources sending at different rates with corresponding 24-bit prefix entries in the route table • Utilizes only 8% of available logic resources and 12.5% of on-chip memory resources • 4 FIPL Engines and FIPL Engine Controller utilizes 6% of logic resources • FIPL Wrapper utilizes 2% of logic resources and 12.5% of on-chip memory resources

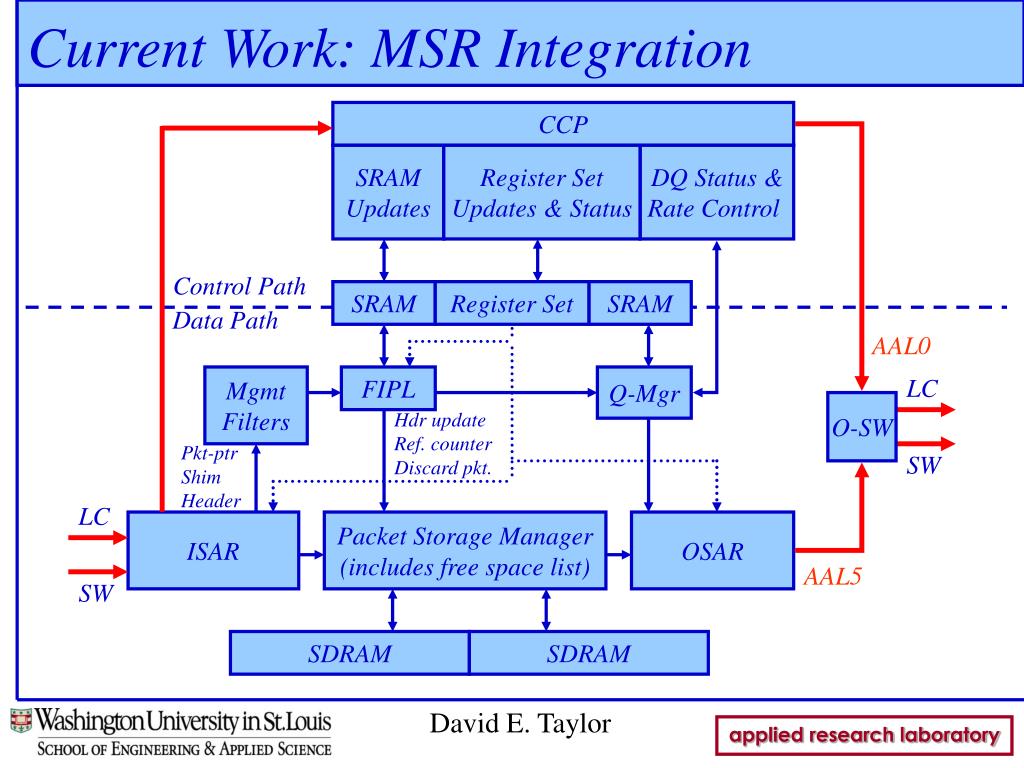

  8. Current Work: MSR Integration CCP SRAM Updates Register Set Updates & Status DQ Status & Rate Control SRAM Register Set SRAM Control Path Data Path AAL0 Mgmt Filters FIPL Q-Mgr LC O-SW Hdr update Ref. counter Discard pkt. Pkt-ptr Shim Header SW LC ISAR Packet Storage Manager (includes free space list) OSAR AAL5 SW SDRAM SDRAM

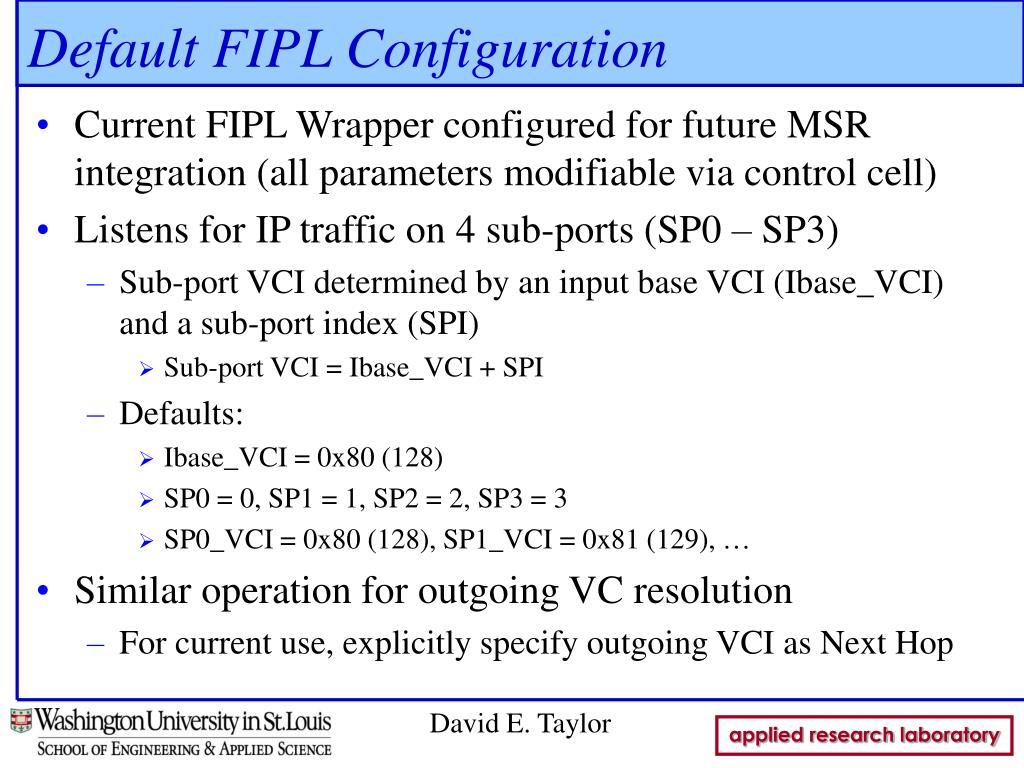

  9. Default FIPL Configuration • Current FIPL Wrapper configured for future MSR integration (all parameters modifiable via control cell) • Listens for IP traffic on 4 sub-ports (SP0 – SP3) • Sub-port VCI determined by an input base VCI (Ibase_VCI) and a sub-port index (SPI) • Sub-port VCI = Ibase_VCI + SPI • Defaults: • Ibase_VCI = 0x80 (128) • SP0 = 0, SP1 = 1, SP2 = 2, SP3 = 3 • SP0_VCI = 0x80 (128), SP1_VCI = 0x81 (129), … • Similar operation for outgoing VC resolution • For current use, explicitly specify outgoing VCI as Next Hop

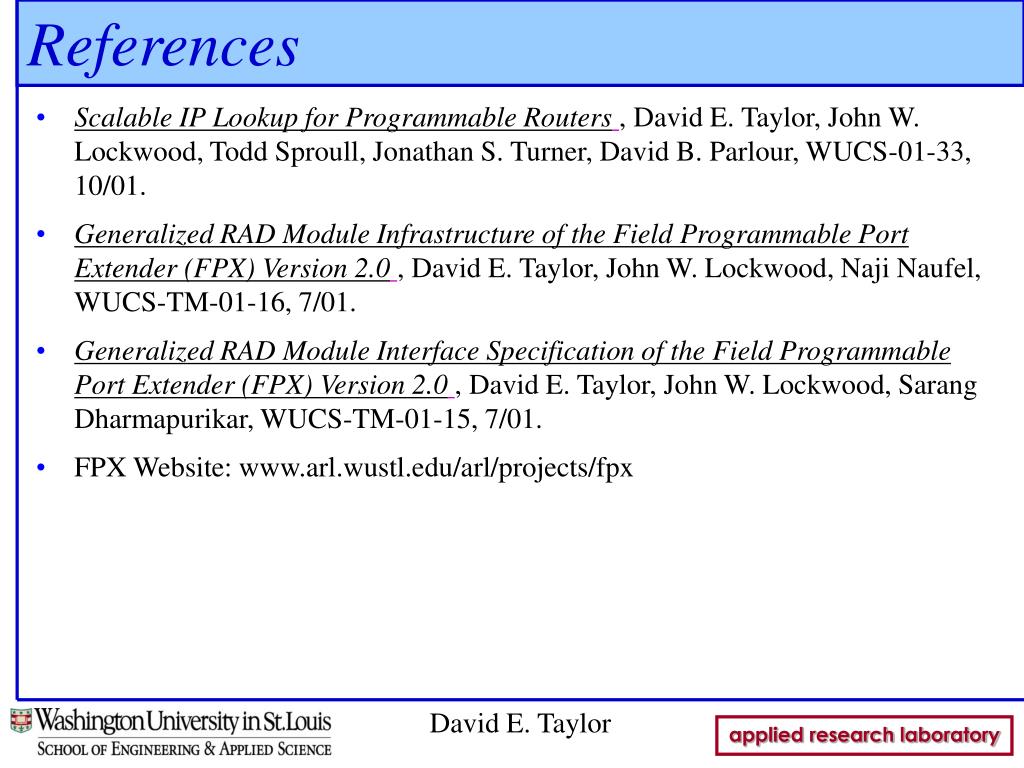

  10. References • Scalable IP Lookup for Programmable Routers, David E. Taylor, John W. Lockwood, Todd Sproull, Jonathan S. Turner, David B. Parlour, WUCS-01-33, 10/01. • Generalized RAD Module Infrastructure of the Field Programmable Port Extender (FPX) Version 2.0, David E. Taylor, John W. Lockwood, Naji Naufel, WUCS-TM-01-16, 7/01. • Generalized RAD Module Interface Specification of the Field Programmable Port Extender (FPX) Version 2.0, David E. Taylor, John W. Lockwood, Sarang Dharmapurikar, WUCS-TM-01-15, 7/01. • FPX Website: www.arl.wustl.edu/arl/projects/fpx

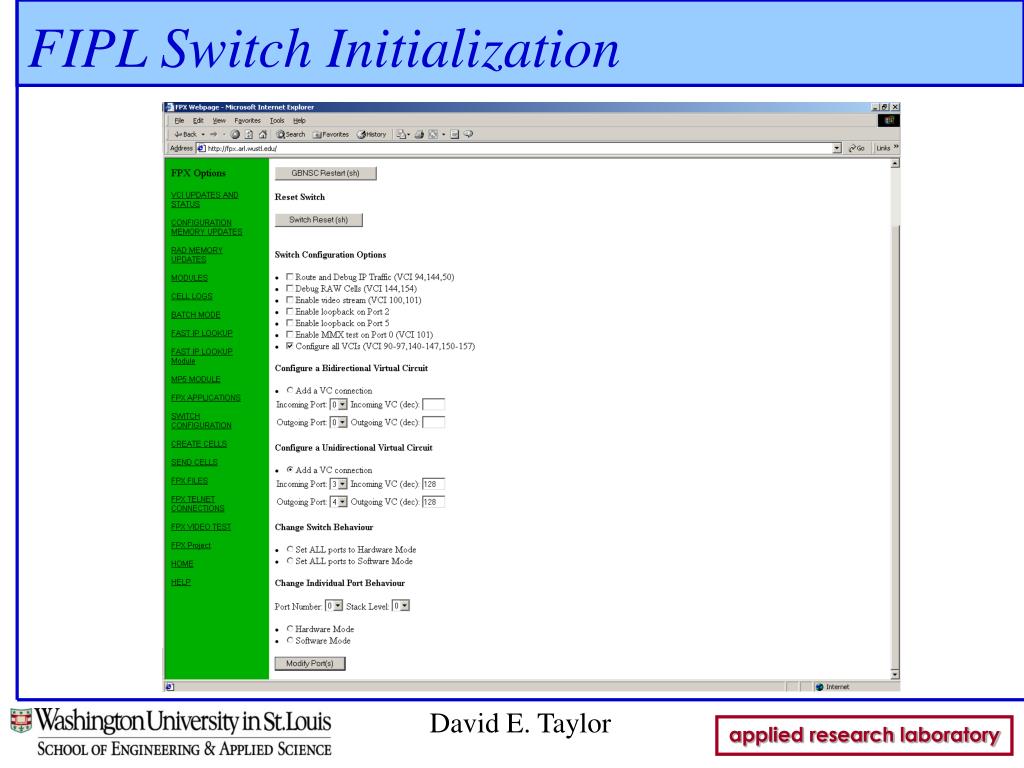

  11. FIPL Switch Initialization

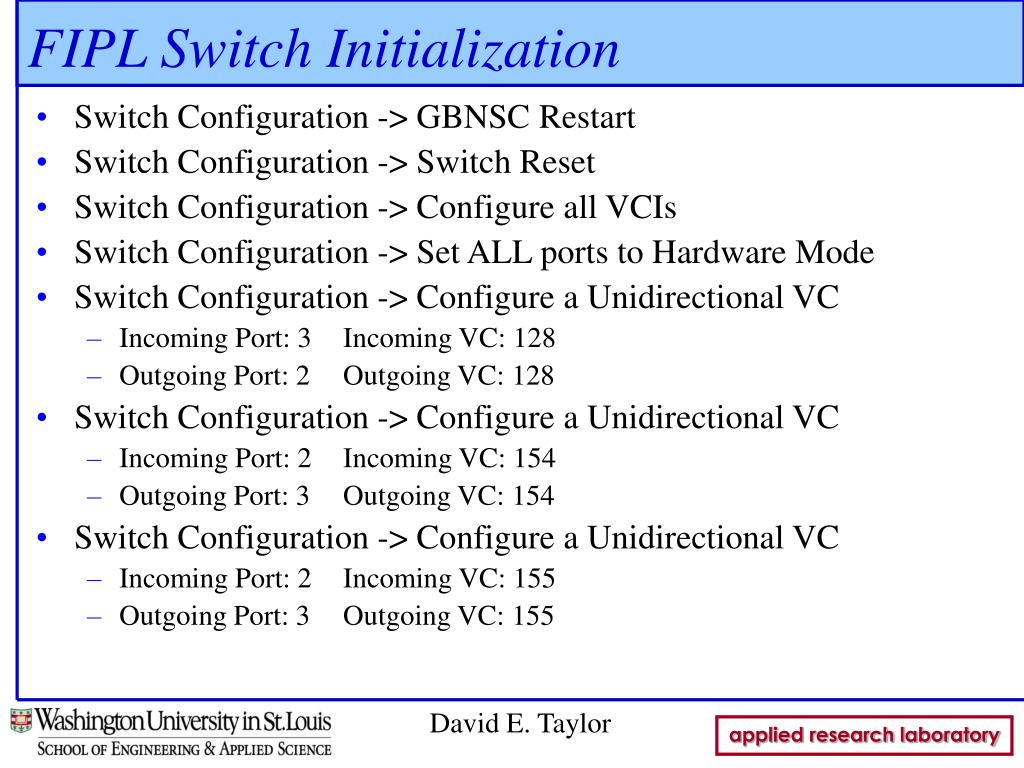

  12. FIPL Switch Initialization • Switch Configuration -> GBNSC Restart • Switch Configuration -> Switch Reset • Switch Configuration -> Configure all VCIs • Switch Configuration -> Set ALL ports to Hardware Mode • Switch Configuration -> Configure a Unidirectional VC • Incoming Port: 3 Incoming VC: 128 • Outgoing Port: 2 Outgoing VC: 128 • Switch Configuration -> Configure a Unidirectional VC • Incoming Port: 2 Incoming VC: 154 • Outgoing Port: 3 Outgoing VC: 154 • Switch Configuration -> Configure a Unidirectional VC • Incoming Port: 2 Incoming VC: 155 • Outgoing Port: 3 Outgoing VC: 155

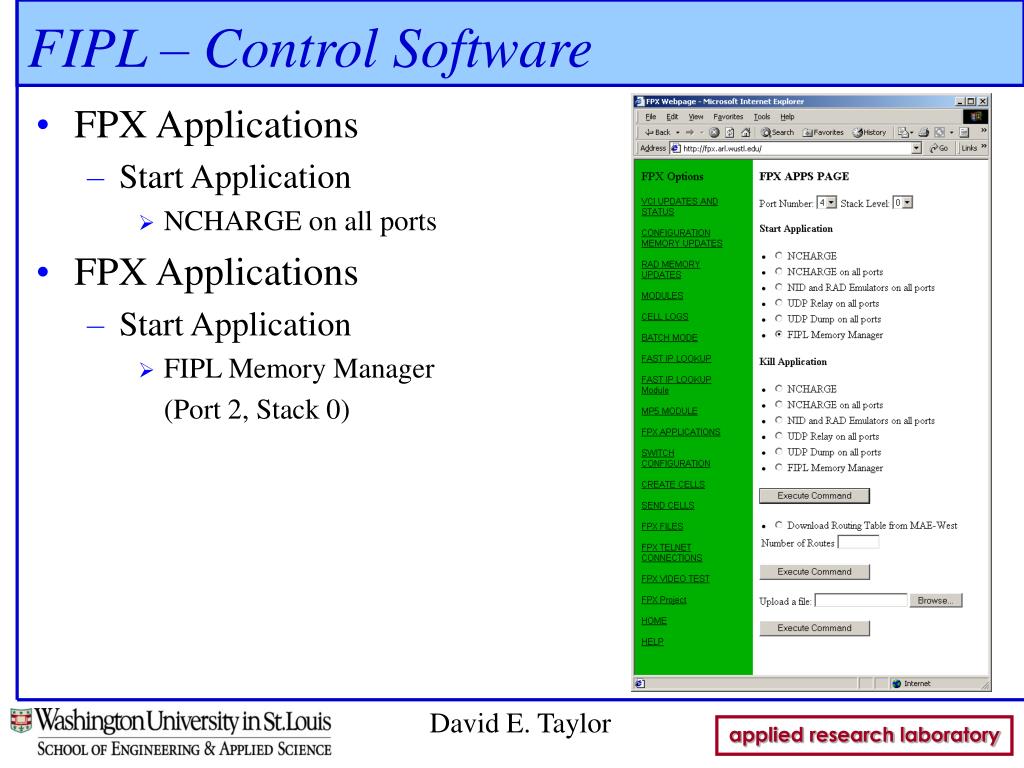

  13. FIPL – Control Software • FPX Applications • Start Application • NCHARGE on all ports • FPX Applications • Start Application • FIPL Memory Manager (Port 2, Stack 0)

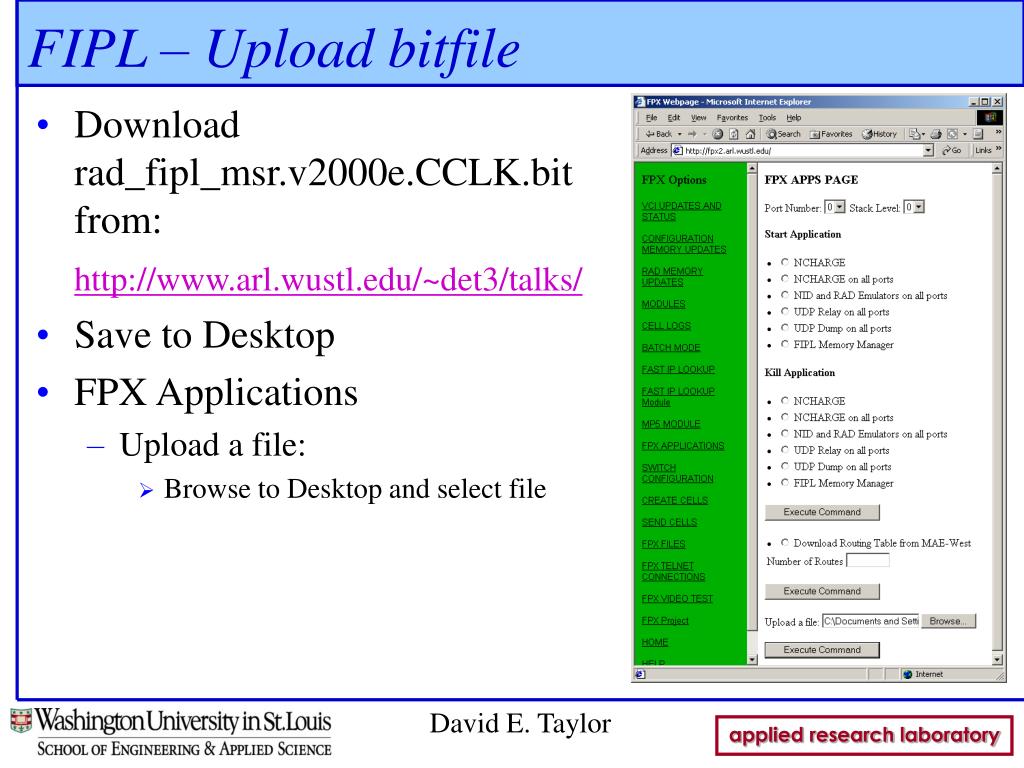

  14. FIPL – Upload bitfile • Download rad_fipl_msr.v2000e.CCLK.bit from: http://www.arl.wustl.edu/~det3/talks/ • Save to Desktop • FPX Applications • Upload a file: • Browse to Desktop and select file

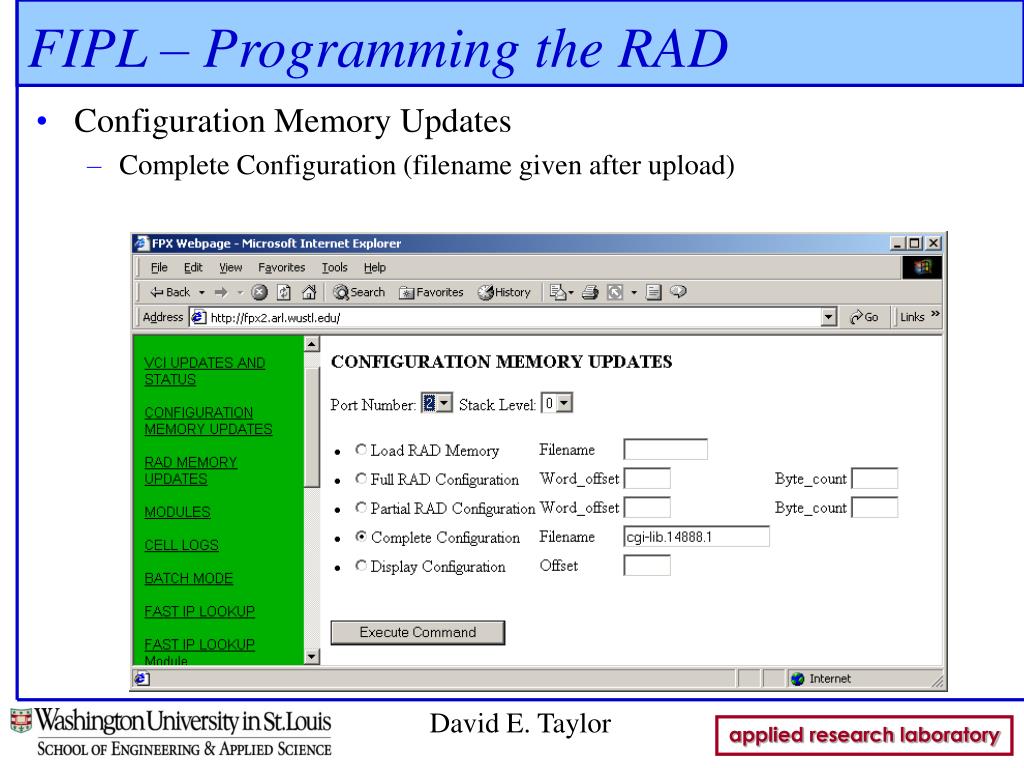

  15. FIPL – Programming the RAD • Configuration Memory Updates • Complete Configuration (filename given after upload)

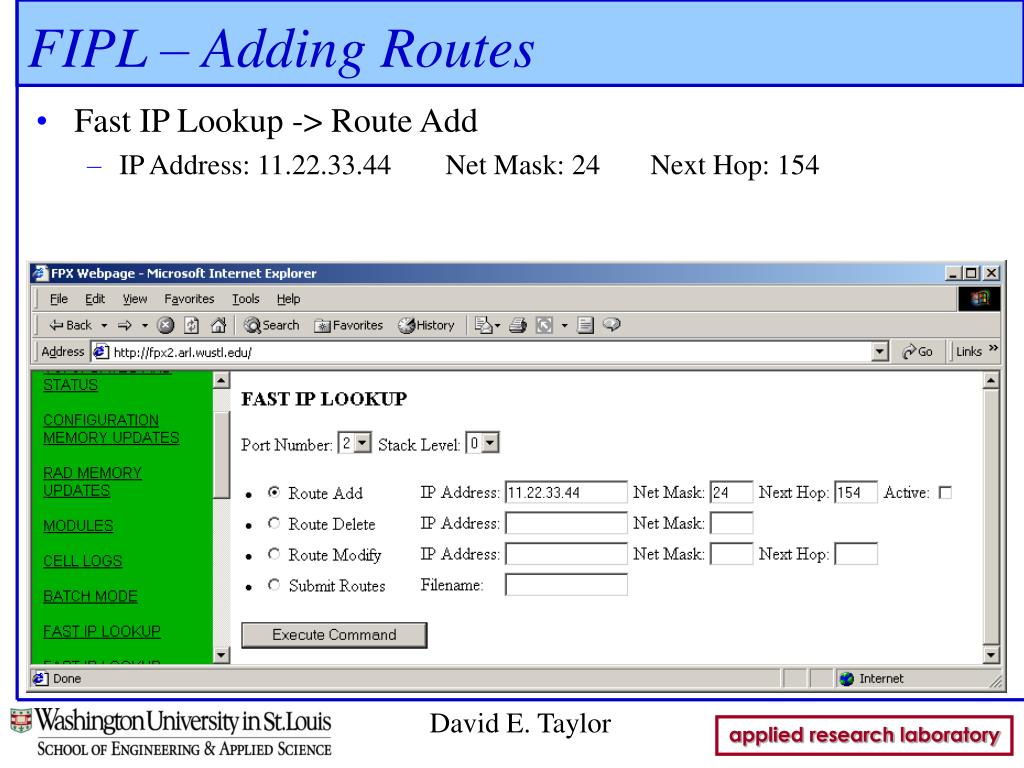

  16. FIPL – Adding Routes • Fast IP Lookup -> Route Add • IP Address: 11.22.33.44 Net Mask: 24 Next Hop: 154

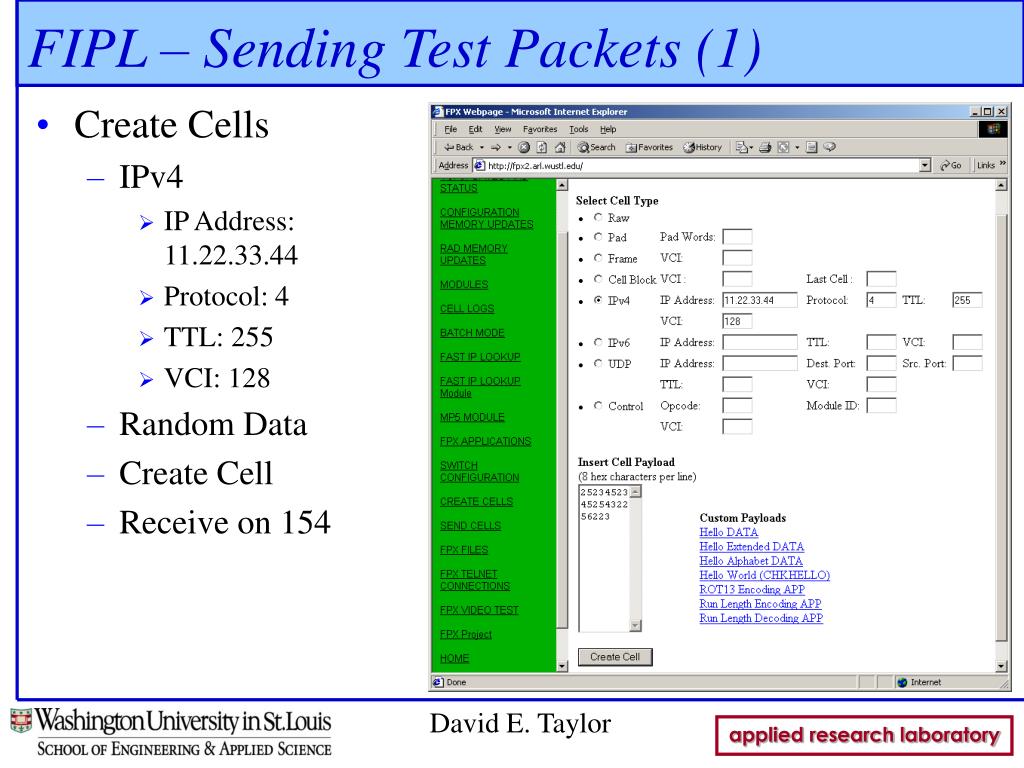

  17. FIPL – Sending Test Packets (1) • Create Cells • IPv4 • IP Address: 11.22.33.44 • Protocol: 4 • TTL: 255 • VCI: 128 • Random Data • Create Cell • Receive on 154

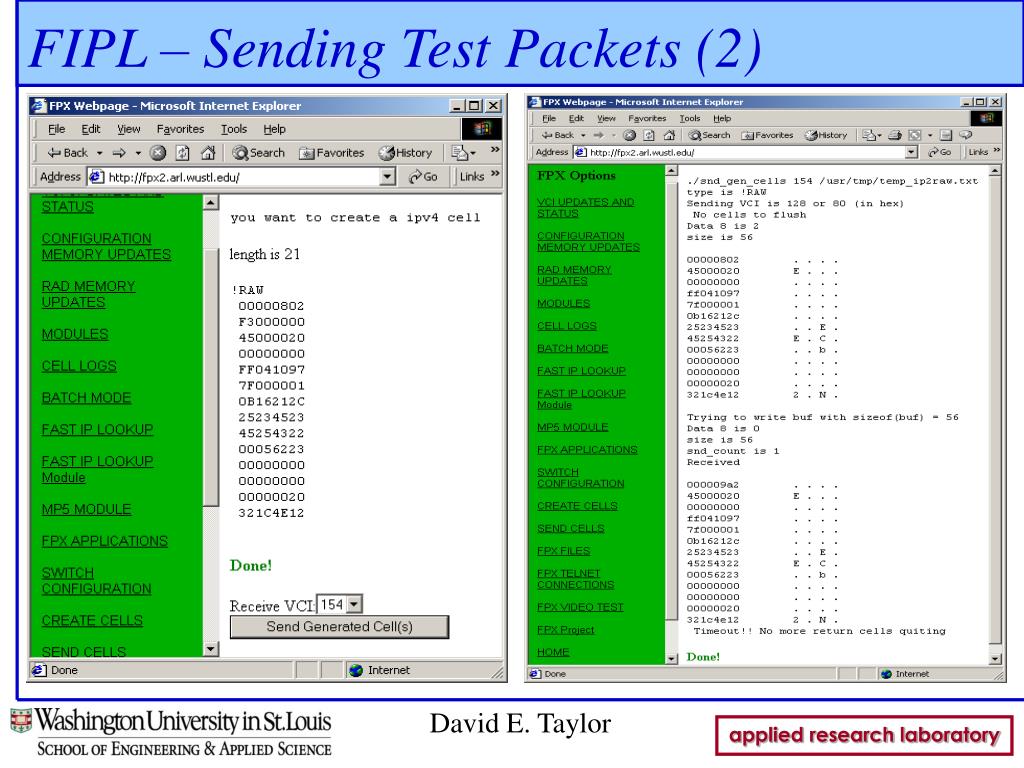

  18. FIPL – Sending Test Packets (2)

  19. Route Modify and Delete • Modify Route 11.22.33.44/24 155 • Create Cell 11.22.33.44 (transmit on 128) • Receive on 155 • Receive on 154 (should timeout, no cell received) • Add Route 11.22.55.66/16 154 • Create cell 11.22.33.44 • Should still receive on 155 (not 154) • Delete Route 11.22.33.44/24 • Create cell 11.22.33.44 • Should now receive on 154
