Divide and Conquer for Nearest Neighbor Problem

1. Lecture 4Divide and Conquer for Nearest Neighbor Problem Shang-Hua Teng

2. Merge-Sort(A,p,r)A procedure sorts the elements in the sub-array A[p..r] using divide and conquer • Merge-Sort(A,p,r) • ifp >= r, do nothing • ifp< rthen • Merge-Sort(A,p,q) • Merge-Sort(A,q+1,r) • Merge(A,p,q,r) • Starting by calling Merge-Sort(A,1,n)

3. A = MergeArray(L,R)Assume L[1:s] and R[1:t] are two sorted arrays of elements: Merge-Array(L,R) forms a single sorted array A[1:s+t] of all elements in L and R. • A = MergeArray(L,R) • fork 1tos + t • do if • then • else

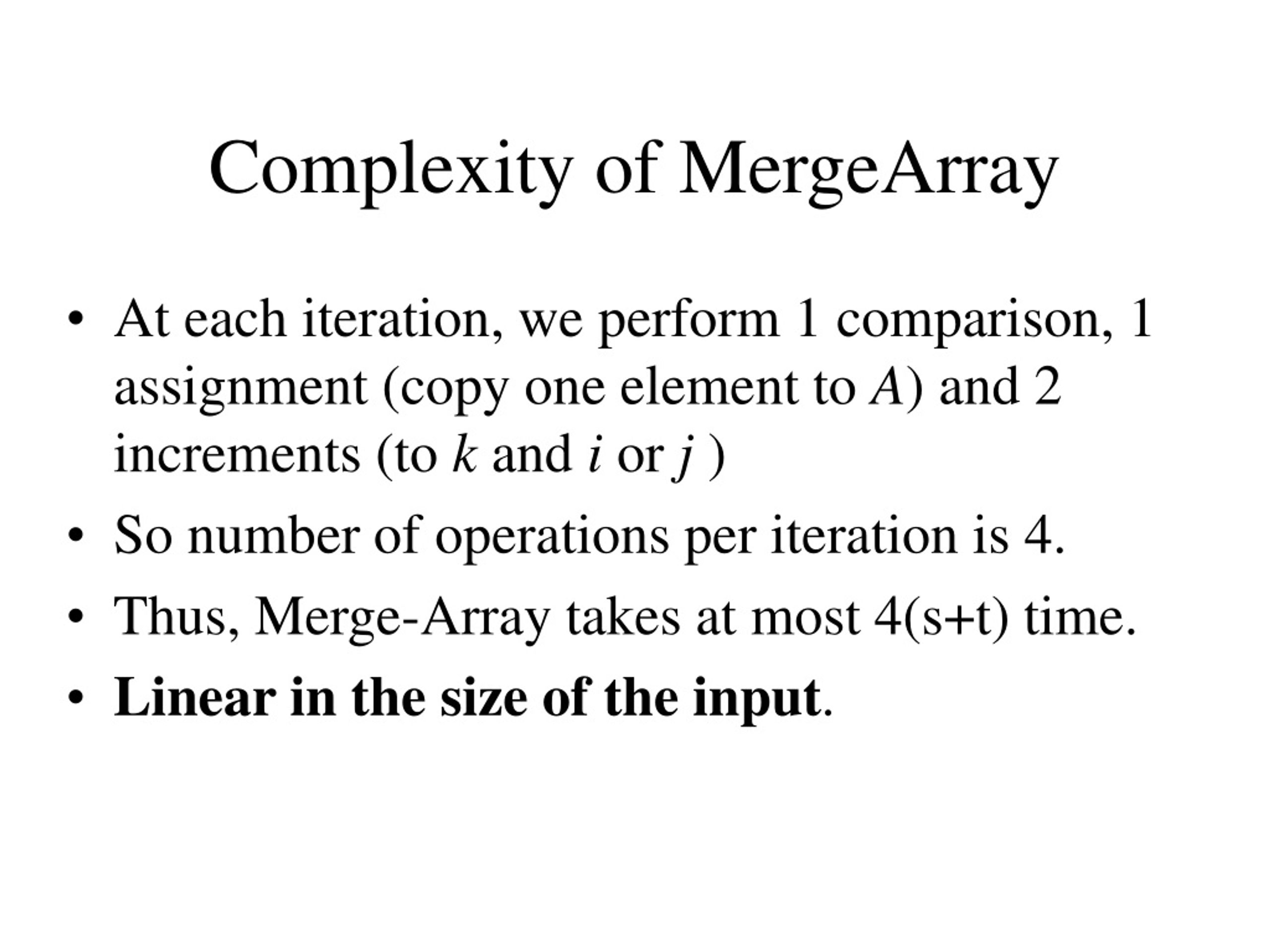

4. Complexity of MergeArray • At each iteration, we perform 1 comparison, 1 assignment (copy one element to A) and 2 increments (to k and i or j ) • So number of operations per iteration is 4. • Thus, Merge-Array takes at most 4(s+t) time. • Linear in the size of the input.

5. Merge (A,p,q,r)Assume A[p..q] and A[q+1..r] are two sorted Merge(A,p,q,r) forms a single sorted array A[p..r]. • Merge (A,p,q,r)

6. Merge-Sort(A,p,r)A procedure sorts the elements in the sub-array A[p..r] using divide and conquer • Merge-Sort(A,p,r) • ifp >= r, do nothing • ifp< rthen • Merge-Sort(A,p,q) • Merge-Sort(A,q+1,r) • Merge(A,p,q,r)

7. Divide and Conquer • Divide the problem into a number of sub-problems (similar to the original problem but smaller); • Conquer the sub-problems by solving them recursively (if a sub-problem is small enough, just solve it in a straightforward manner. • Combine the solutions to the sub-problems into the solution for the original problem

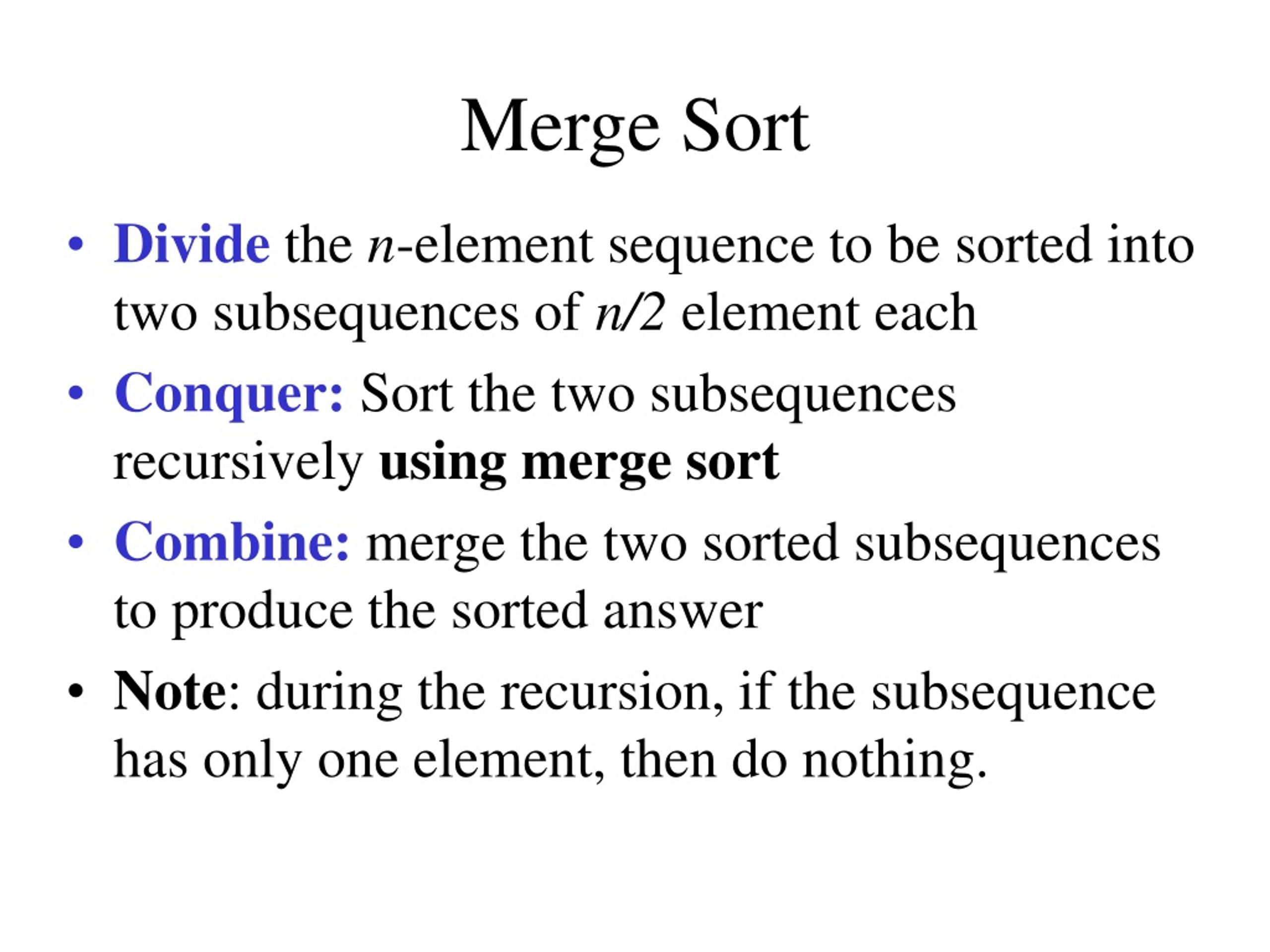

8. Merge Sort • Divide the n-element sequence to be sorted into two subsequences of n/2 element each • Conquer: Sort the two subsequences recursively using merge sort • Combine: merge the two sorted subsequences to produce the sorted answer • Note: during the recursion, if the subsequence has only one element, then do nothing.

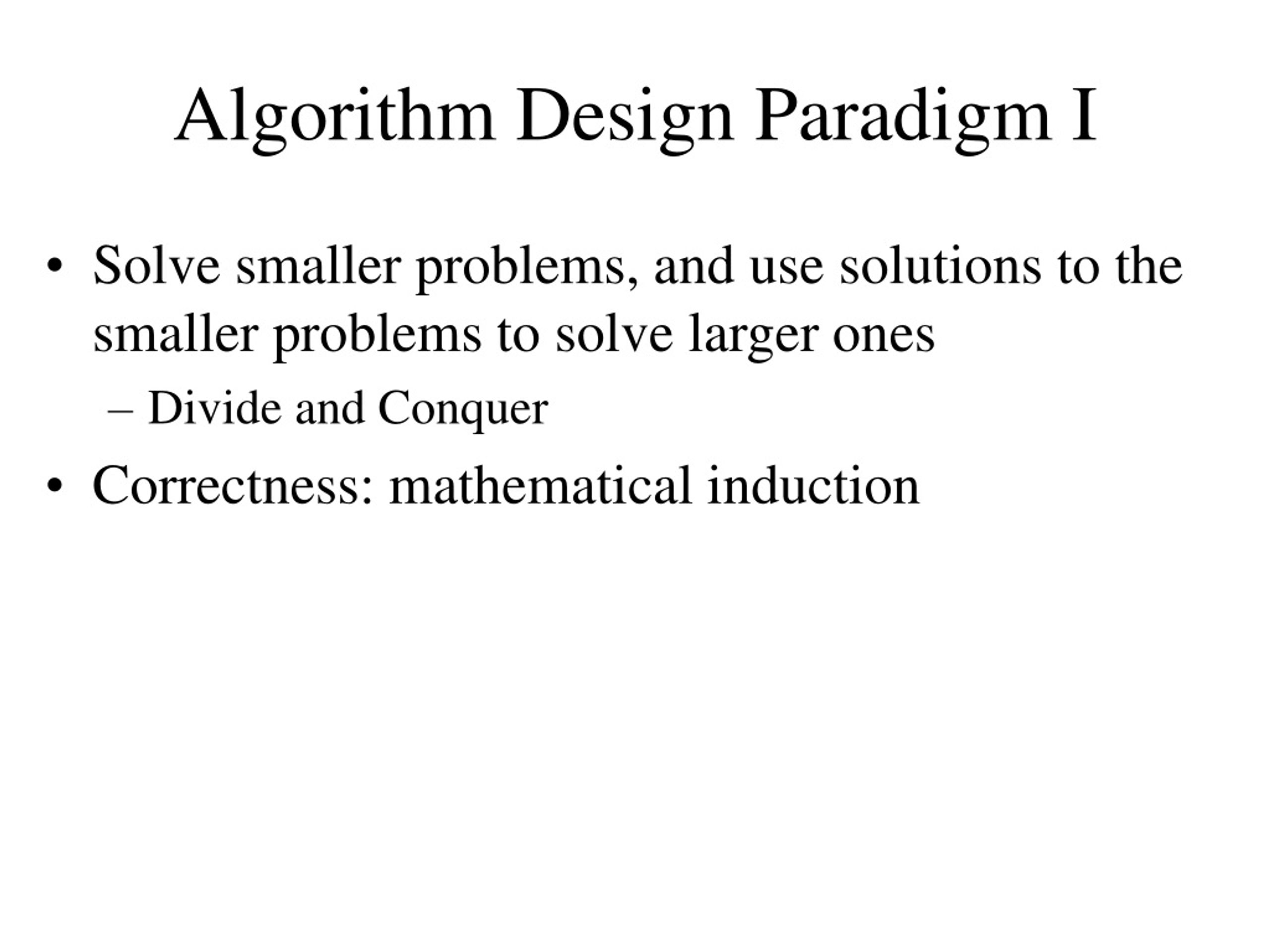

9. Algorithm Design Paradigm I • Solve smaller problems, and use solutions to the smaller problems to solve larger ones • Divide and Conquer • Correctness: mathematical induction

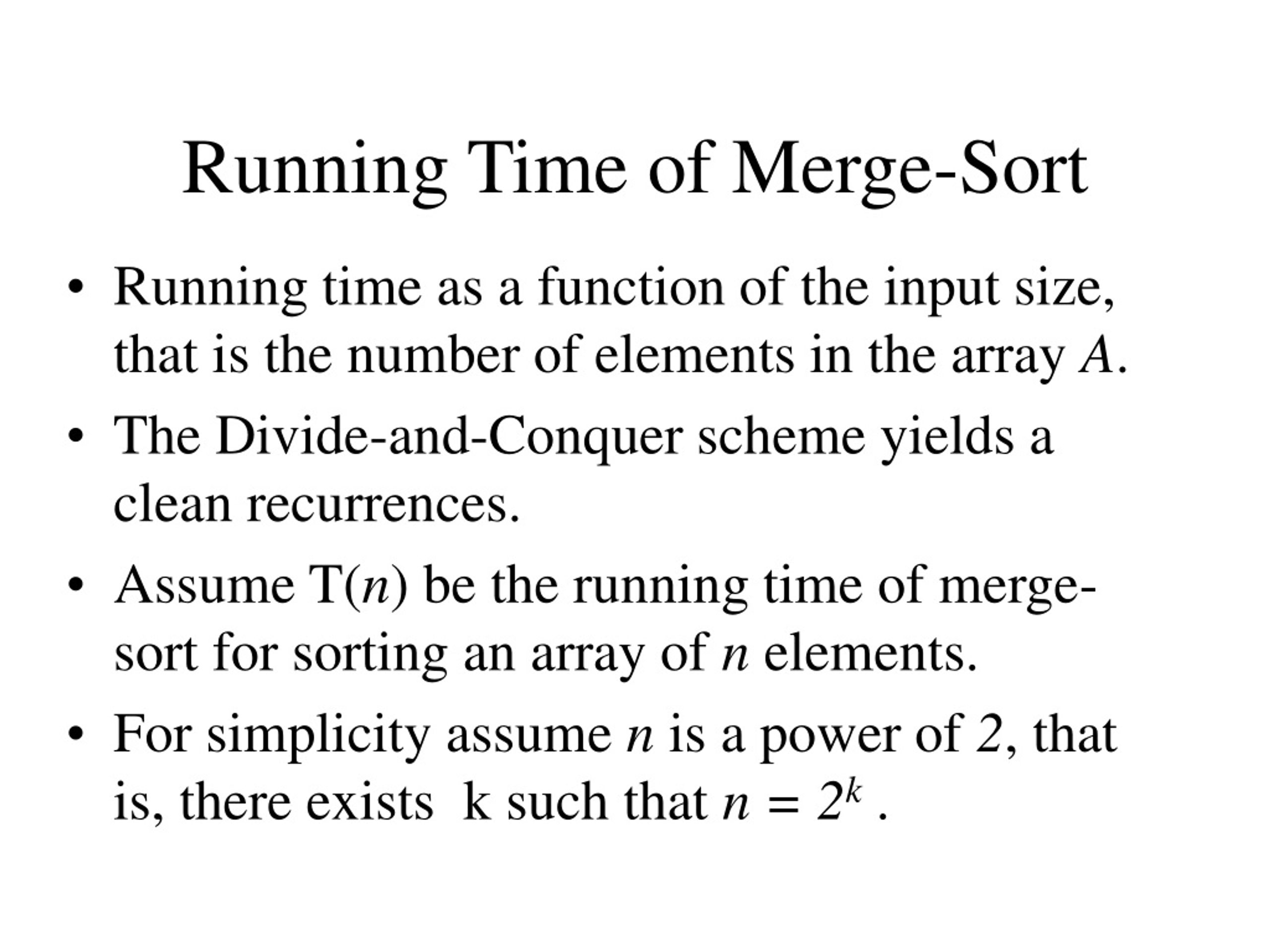

10. Running Time of Merge-Sort • Running time as a function of the input size, that is the number of elements in the array A. • The Divide-and-Conquer scheme yields a clean recurrences. • Assume T(n) be the running time of merge-sort for sorting an array of n elements. • For simplicity assume n is a power of 2, that is, there exists k such that n = 2k .

11. Recurrence of T(n) • T(1) = 1 • for n > 1, we have if n = 1 if n > 1

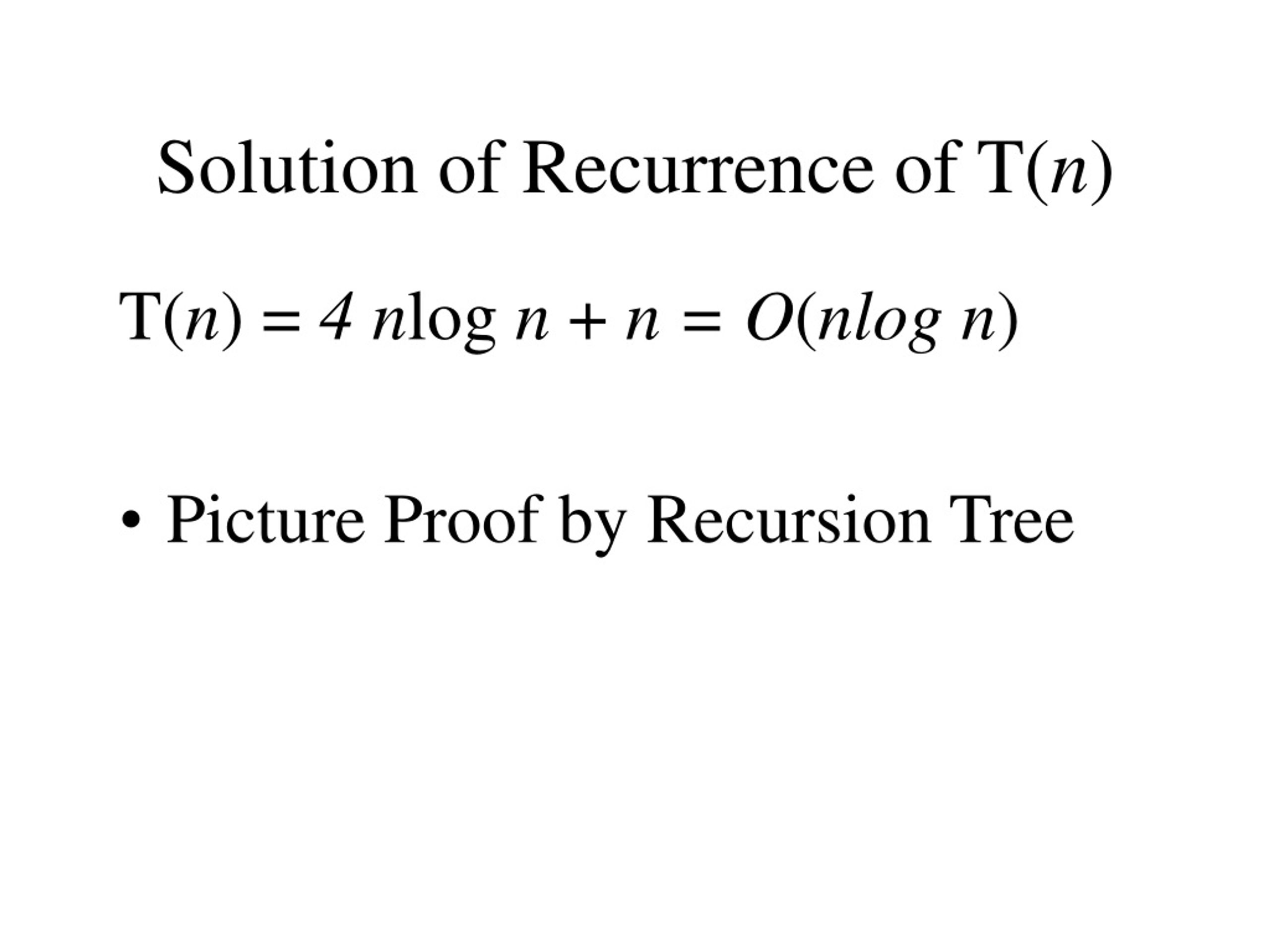

12. Solution of Recurrence of T(n) T(n) = 4nlog n + n = O(nlog n) • Picture Proof by Recursion Tree

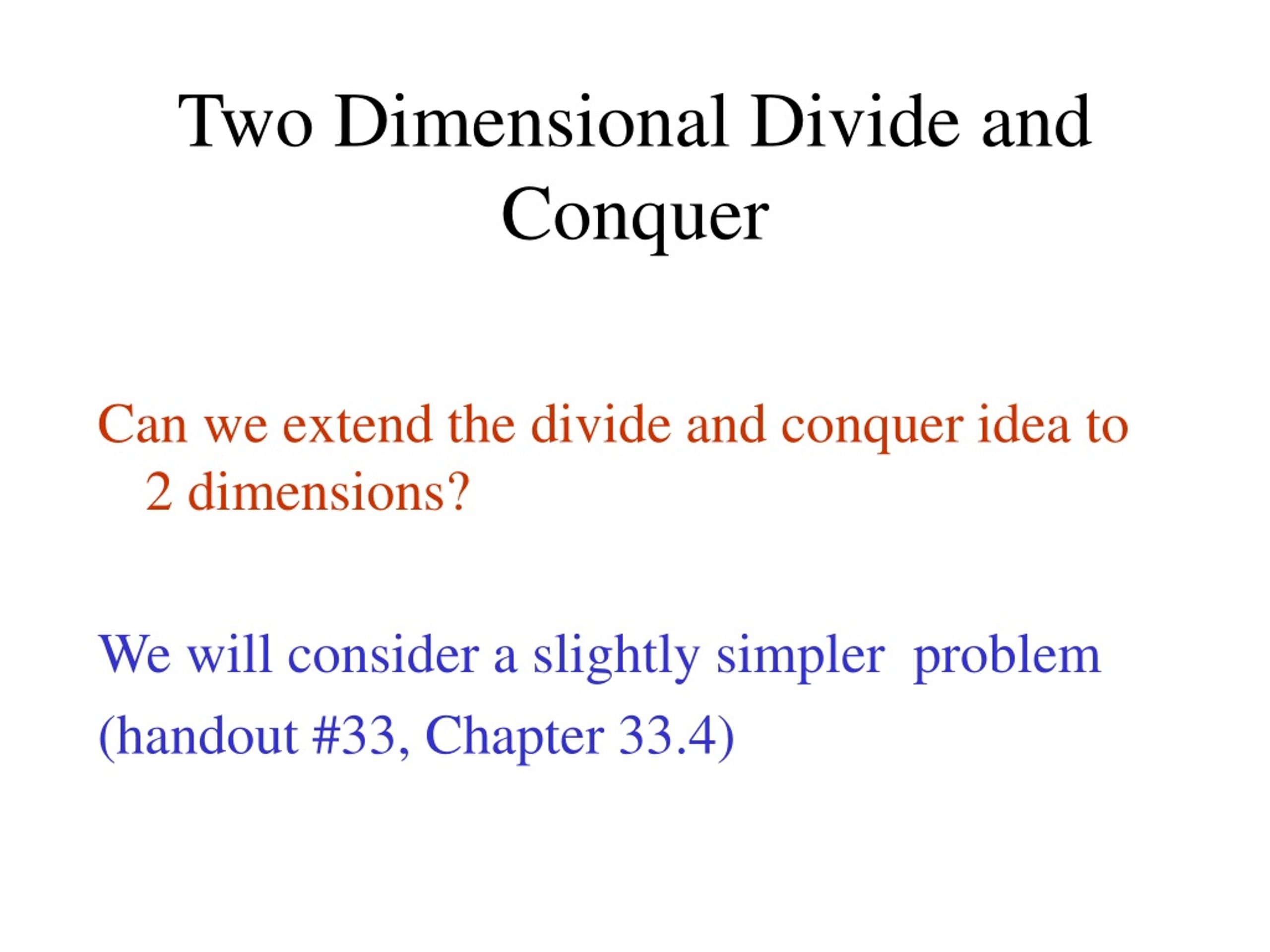

13. Two Dimensional Divide and Conquer Can we extend the divide and conquer idea to 2 dimensions? We will consider a slightly simpler problem (handout #33, Chapter 33.4)

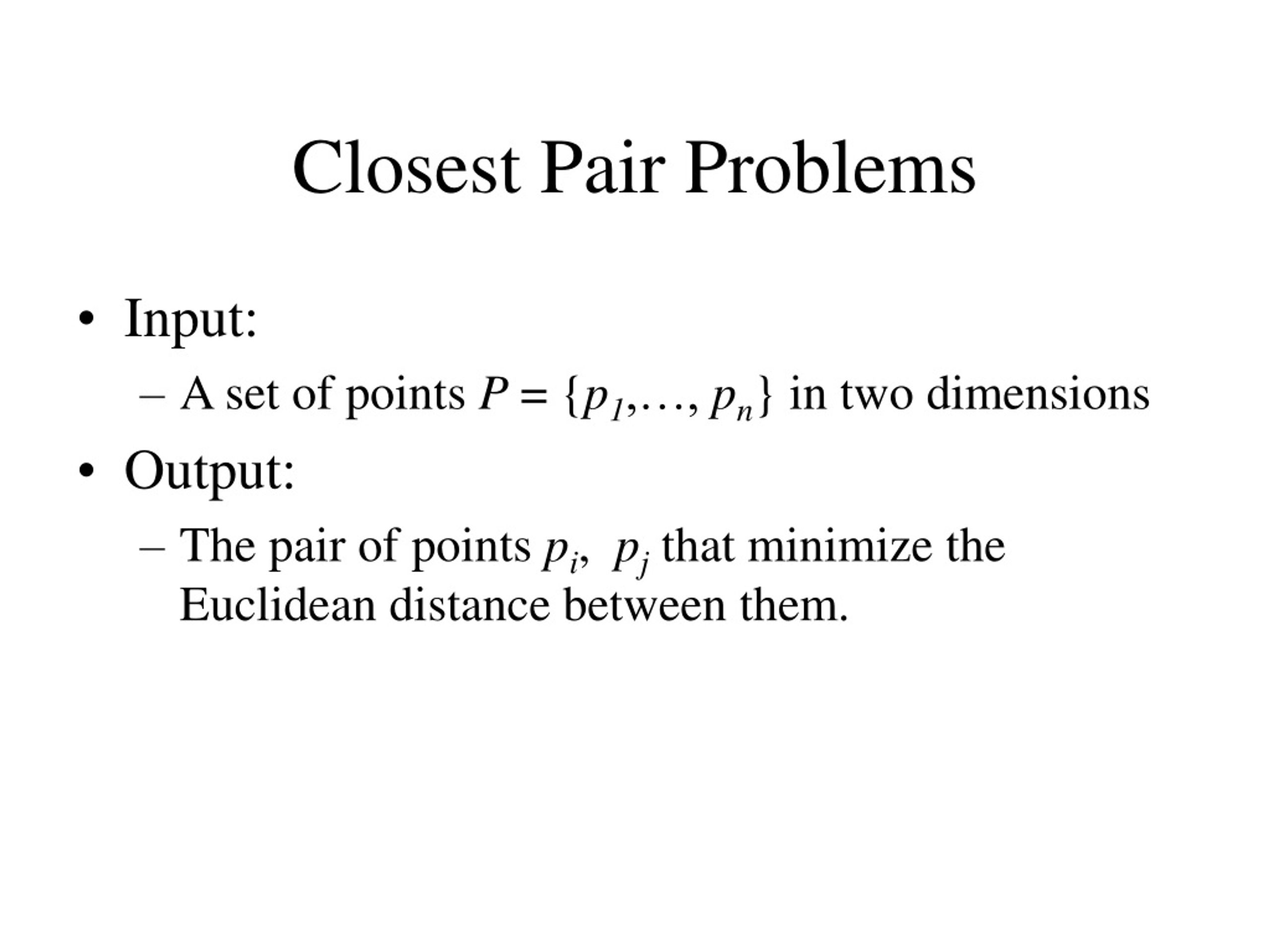

14. Closest Pair Problems • Input: • A set of points P = {p1,…, pn} in two dimensions • Output: • The pair of points pi, pj that minimize the Euclidean distance between them.

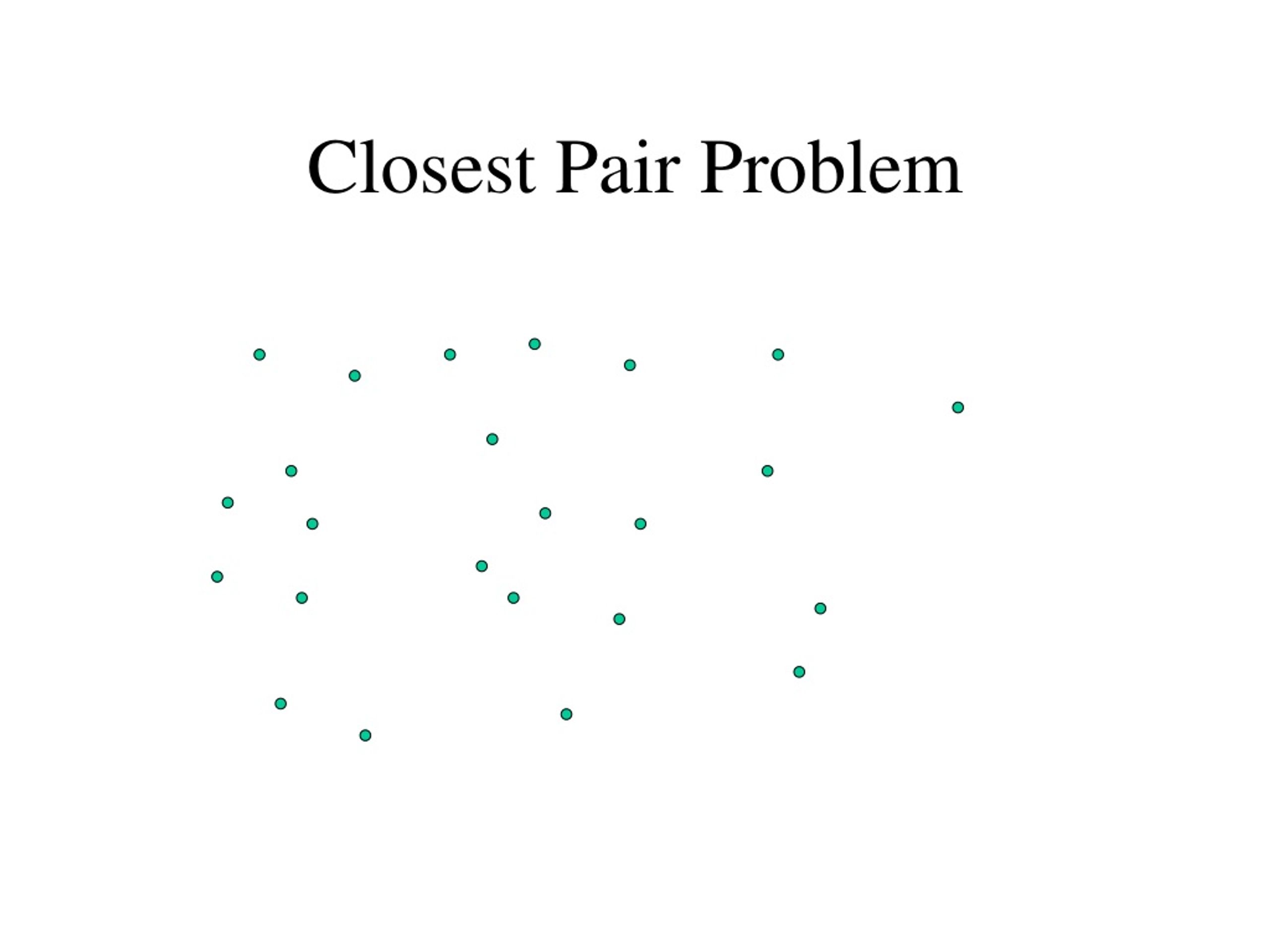

15. Closest Pair Problem

16. Closest Pair Problem

17. Divide and Conquer • O(n2) time algorithm is easy • Assumptions: • No two points have the same x-coordinates • No two points have the same y-coordinates • How do we solve this problem in 1 dimensions? • Sort the number and walk from left to right to find minimum gap

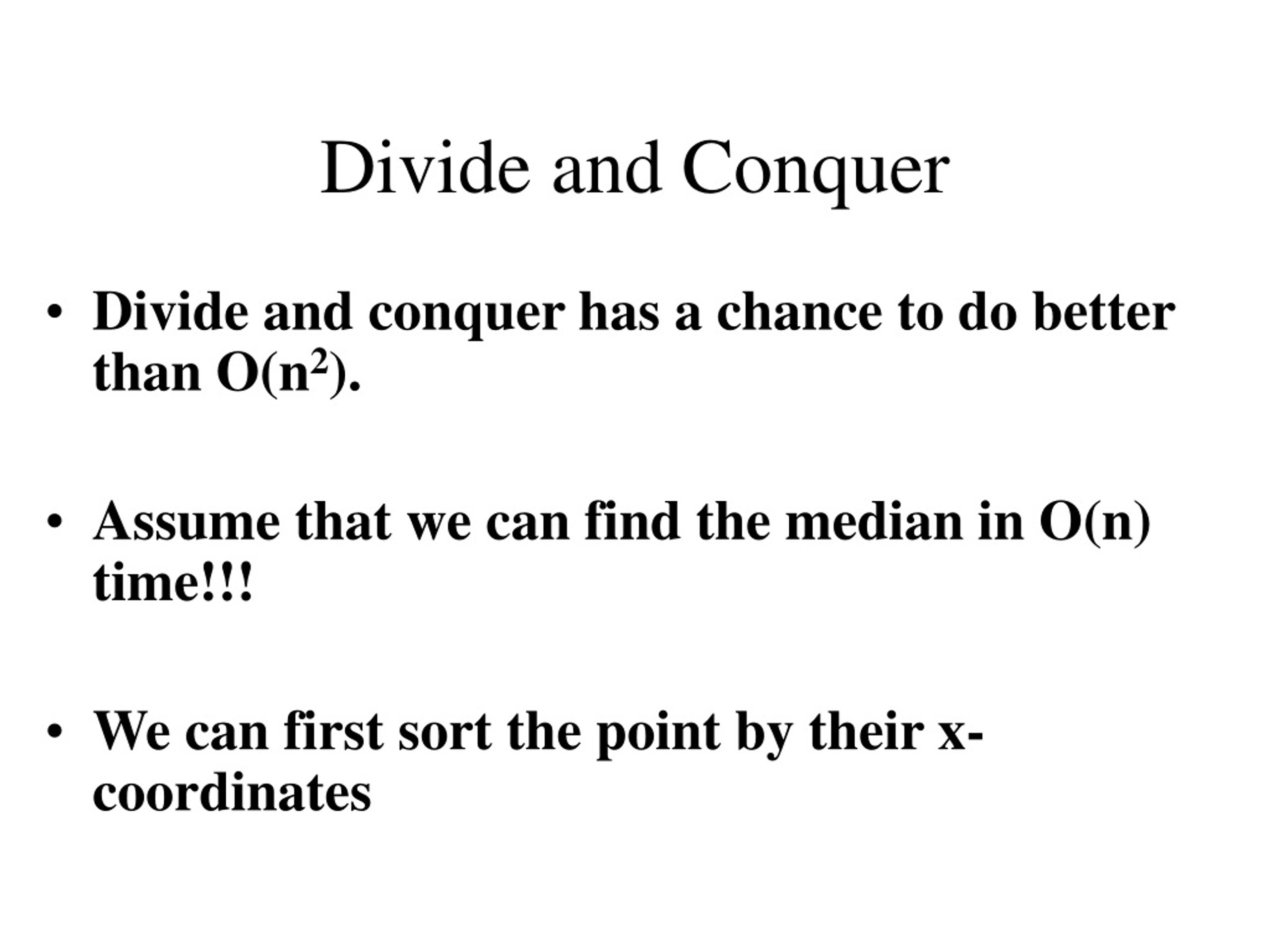

18. Divide and Conquer • Divide and conquer has a chance to do better than O(n2). • Assume that we can find the median in O(n) time!!! • We can first sort the point by their x-coordinates

19. Closest Pair Problem

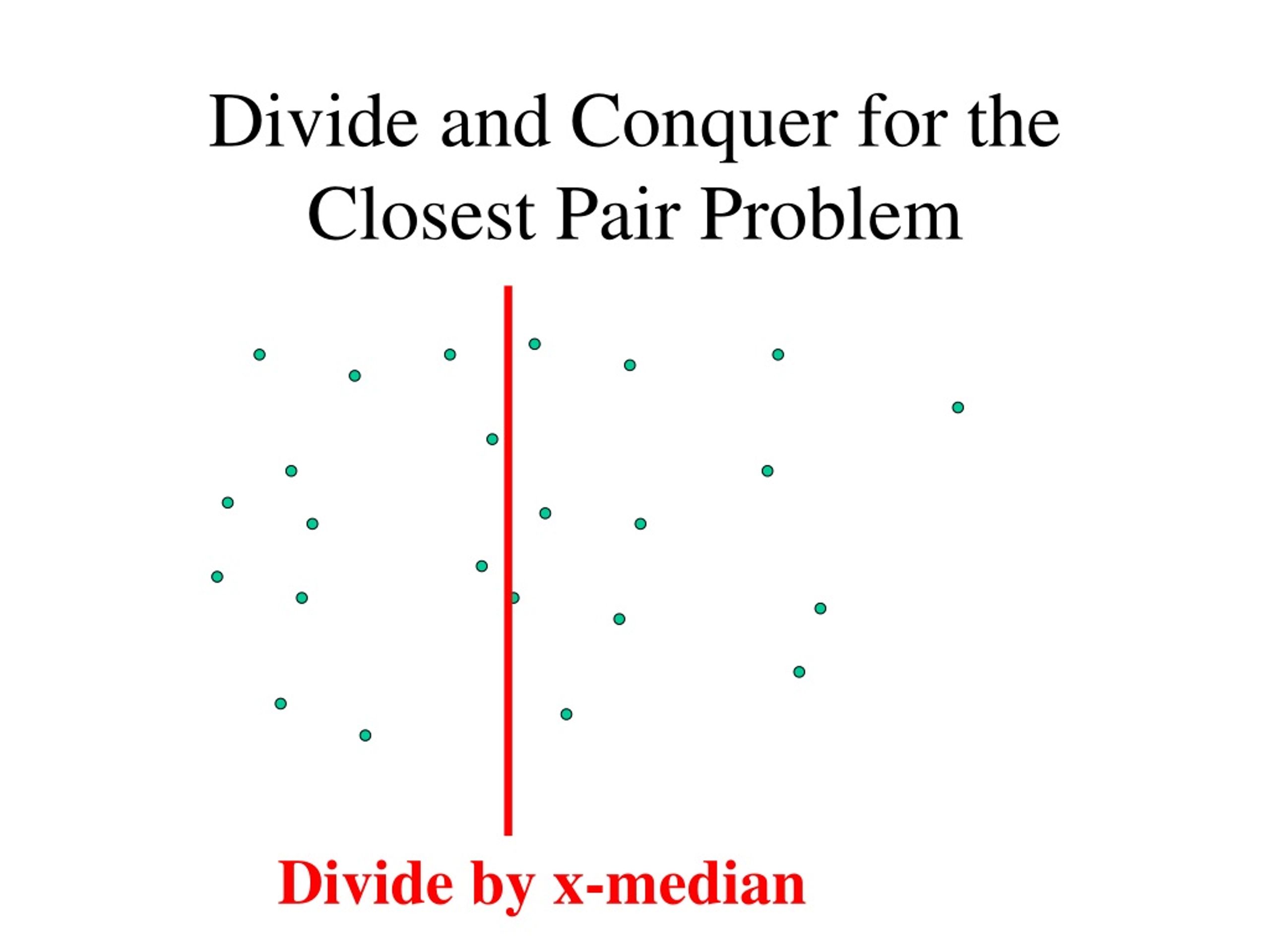

20. Divide and Conquer for the Closest Pair Problem Divide by x-median

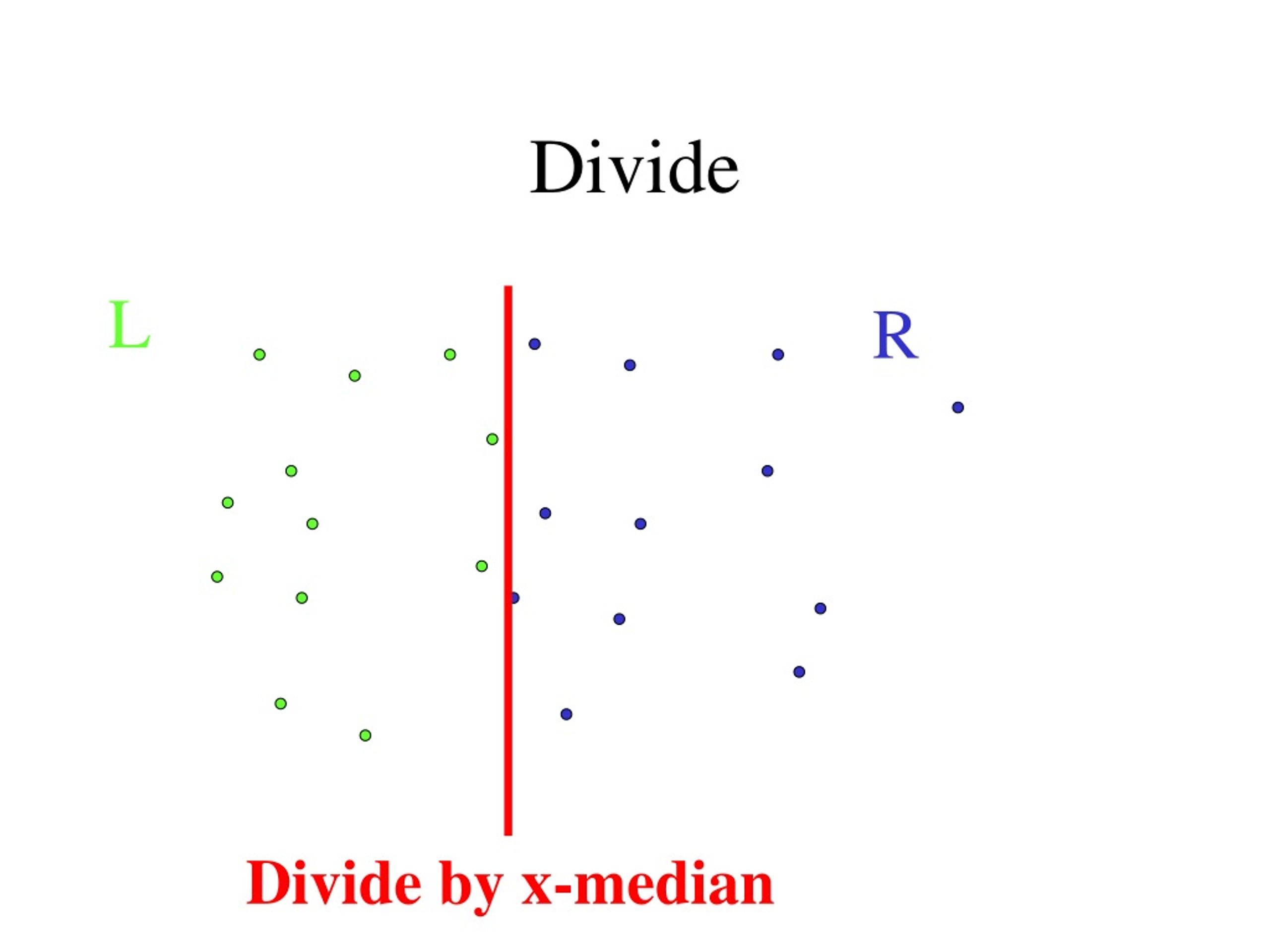

21. Divide L R Divide by x-median

22. Conquer L R Conquer: Recursively solve L and R

23. Combination I L R d2 Takes the smaller one of d1 , d2 : d = min(d1 , d2 )

24. Combination IIIs there a point in L and a point in R whose distance is smaller than d ? L R Takes the smaller one of d1 , d2 : d = min(d1 , d2 )

25. Combination II • If the answer is “no” then we are done!!! • If the answer is “yes” then the closest such pair forms the closest pair for the entire set • Why???? • How do we determine this?

26. Combination IIIs there a point in L and a point in R whose distance is smaller than d ? L R Takes the smaller one of d1 , d2 : d = min(d1 , d2 )

27. Combination IIIs there a point in L and a point in R whose distance is smaller than d ? L R Need only to consider the narrow band O(n) time

28. Combination IIIs there a point in L and a point in R whose distance is smaller than d ? L R Denote this set by S, assume Sy is sorted list of S by y-coordinate.

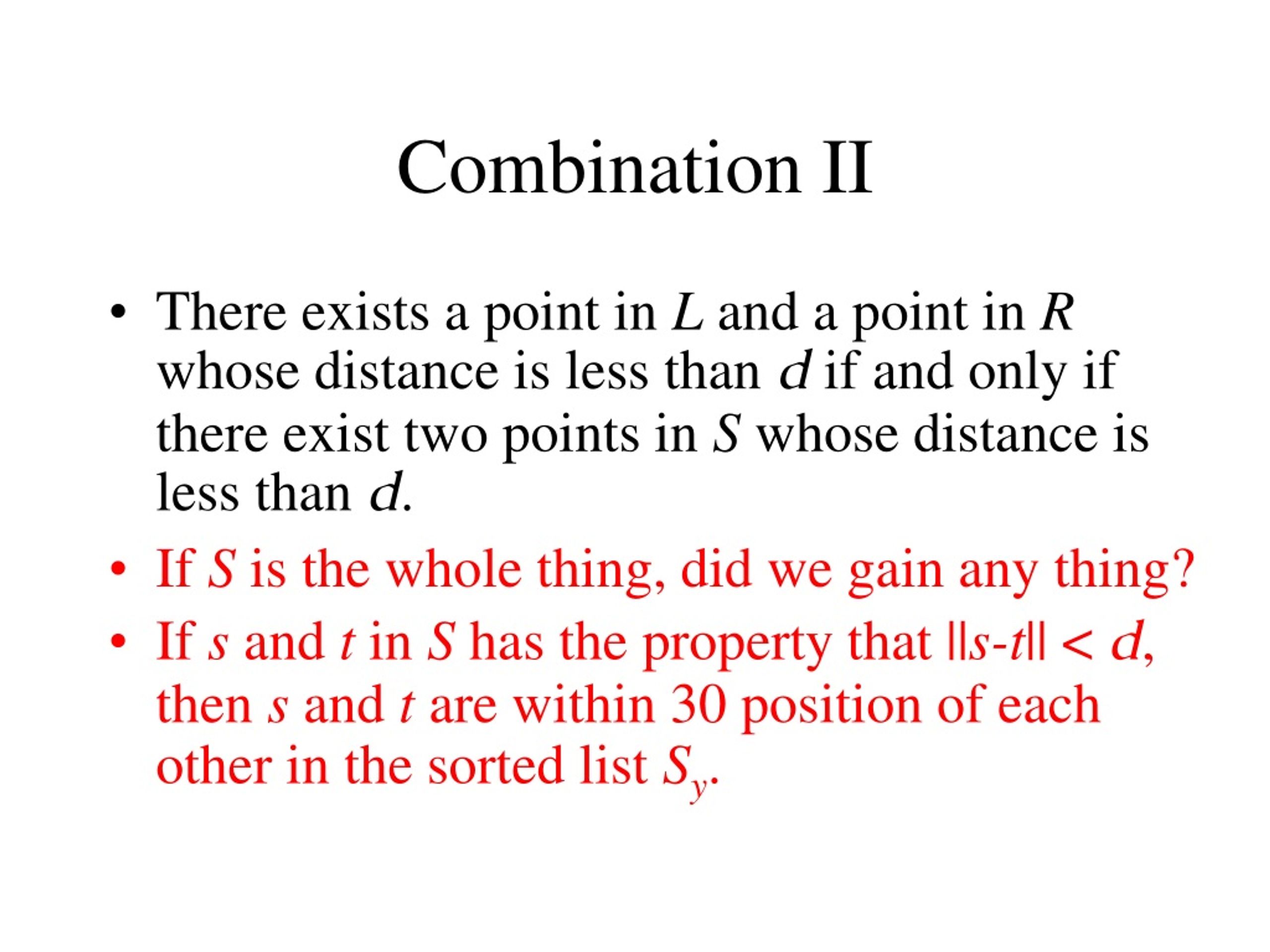

29. Combination II • There exists a point in L and a point in R whose distance is less than d if and only if there exist two points in S whose distance is less than d. • If S is the whole thing, did we gain any thing? • If s and t in S has the property that ||s-t|| <d, then s and t are within 30 position of each other in the sorted list Sy.

30. Combination IIIs there a point in L and a point in R whose distance is smaller than d ? L R There are at most one point in each box

31. Closest-Pair • Closest-pair(P) • Preprocessing: • Construct Pxand Pyas sorted-list by x- and y-coordinates • Divide • Construct L, Lx, Lyand R, Rx, Ry • Conquer • Let d1= Closest-Pair(L, Lx, Ly) • Let d2= Closest-Pair(R, Rx, Ry) • Combination • Let d = min(d1 , d2 ) • Construct S and Sy • For each point in Sy, check each of its next 30 points down the list • If the distance is less than d, update the das this smaller distance

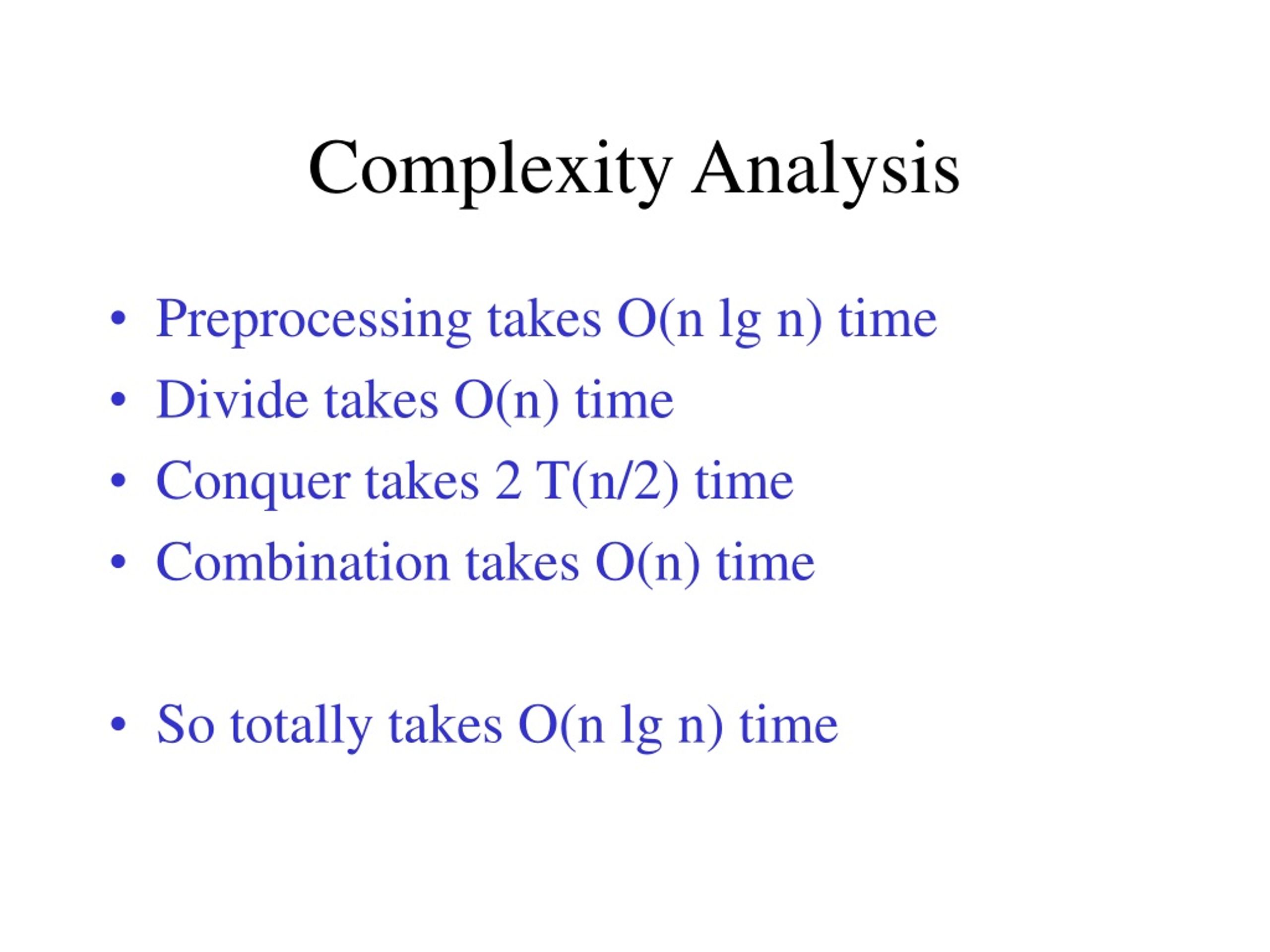

32. Complexity Analysis • Preprocessing takes O(n lg n) time • Divide takes O(n) time • Conquer takes 2 T(n/2) time • Combination takes O(n) time • So totally takes O(n lg n) time
