  1. io Single Crystal Silicon Wafer Manufacturing School of Microelectronic Engineering

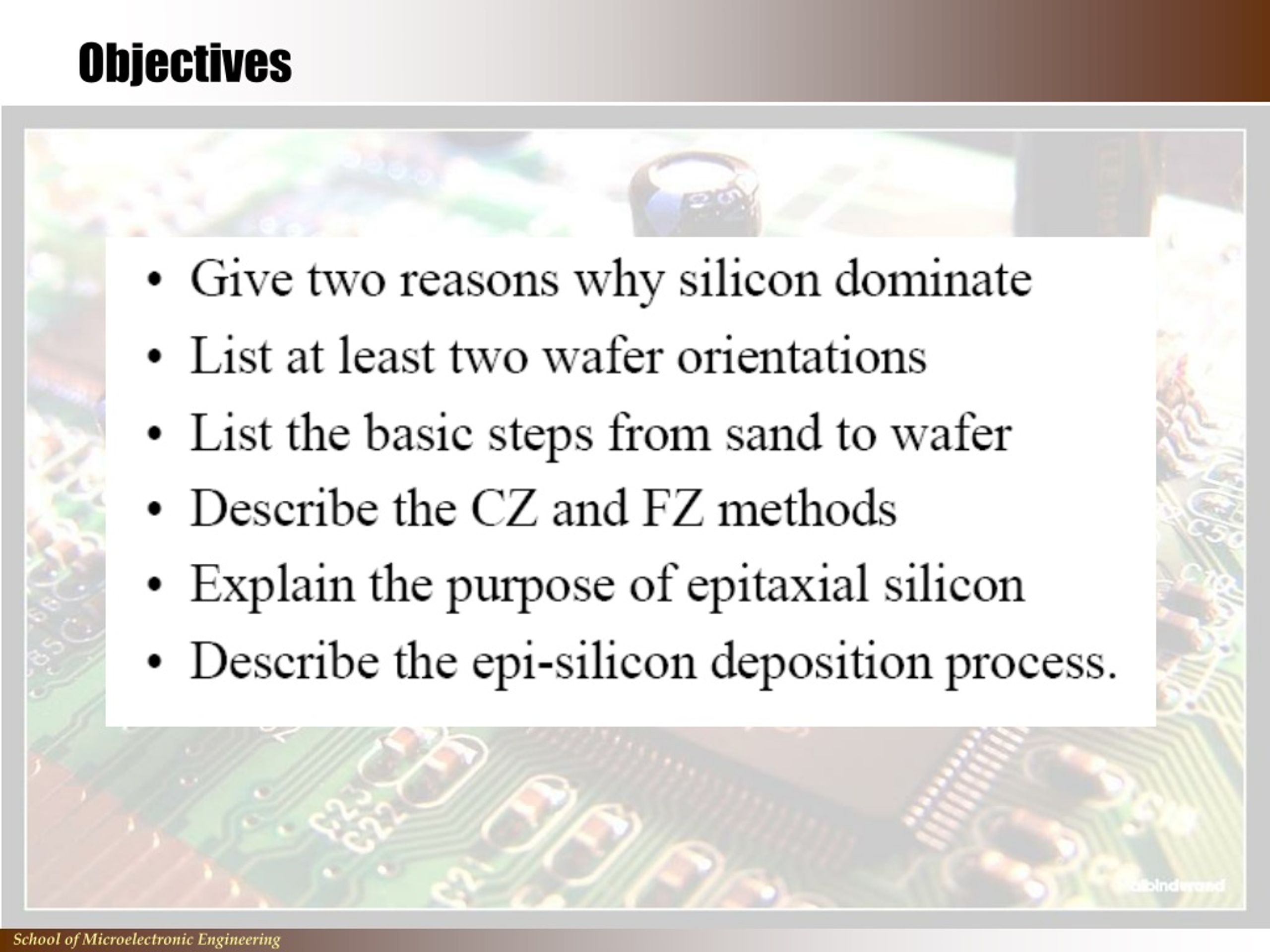

  2. Objectives School of Microelectronic Engineering

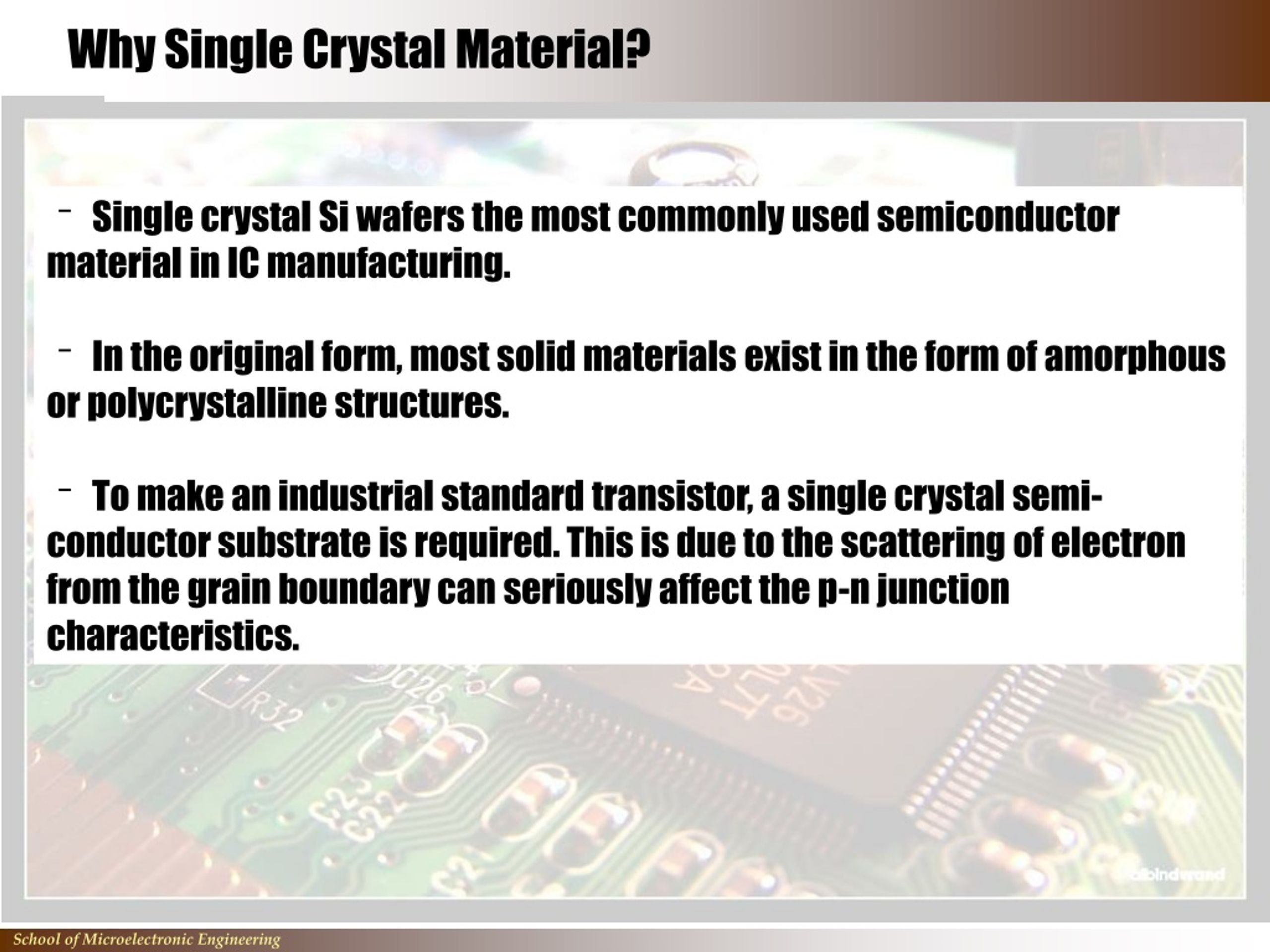

  3. Why Single Crystal Material? • Single crystal Si wafers the most commonly used semiconductor material in IC manufacturing. • In the original form, most solid materials exist in the form of amorphous or polycrystalline structures. • To make an industrial standard transistor, a single crystal semi- conductor substrate is required. This is due to the scattering of electron from the grain boundary can seriously affect the p-n junction characteristics. School of Microelectronic Engineering

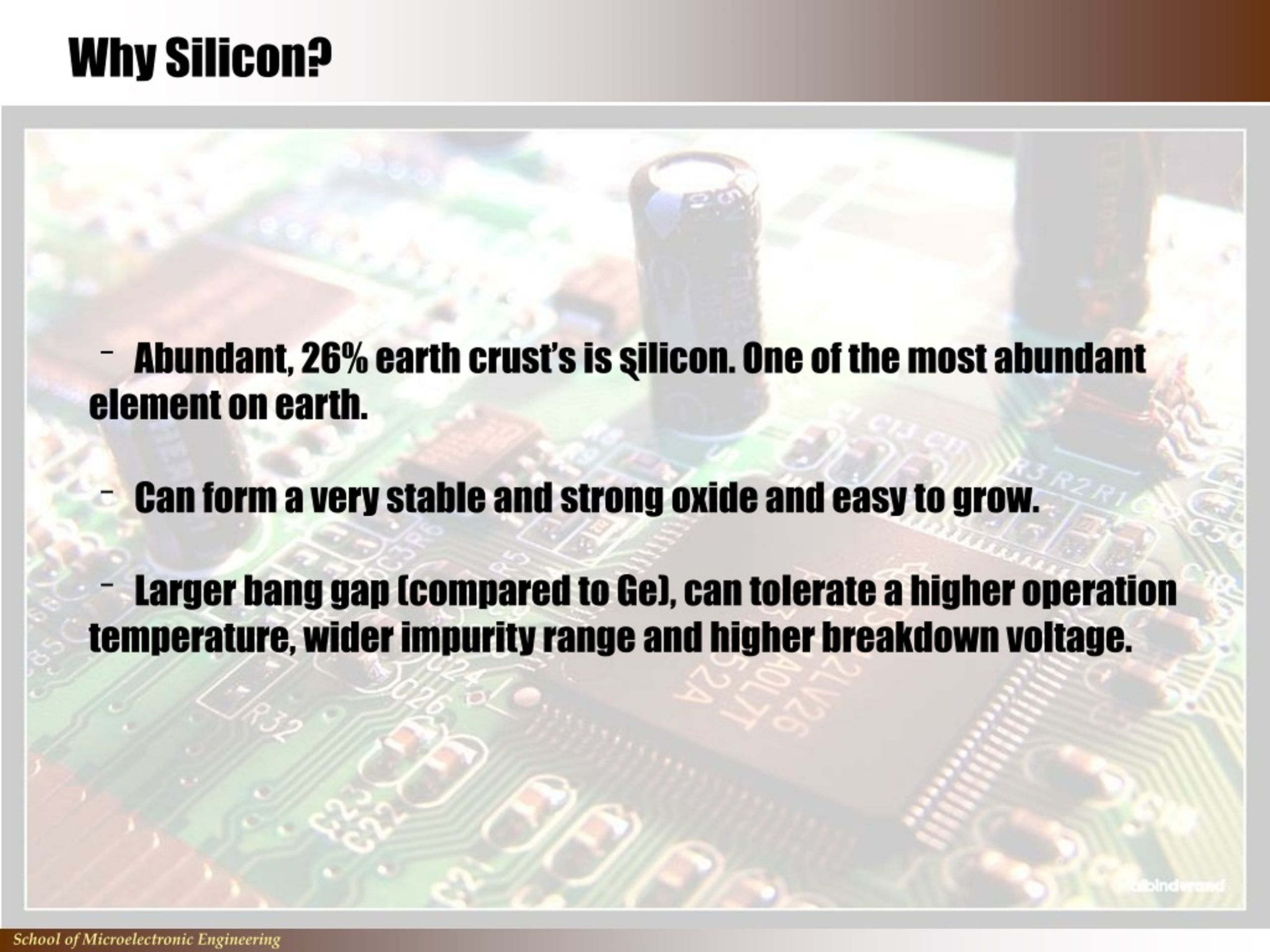

  4. Why Silicon? ` • Abundant, 26% earth crust’s is silicon. One of the most abundant element on earth. • Can form a very stable and strong oxide and easy to grow. • Larger bang gap (compared to Ge), can tolerate a higher operation temperature, wider impurity range and higher breakdown voltage. School of Microelectronic Engineering

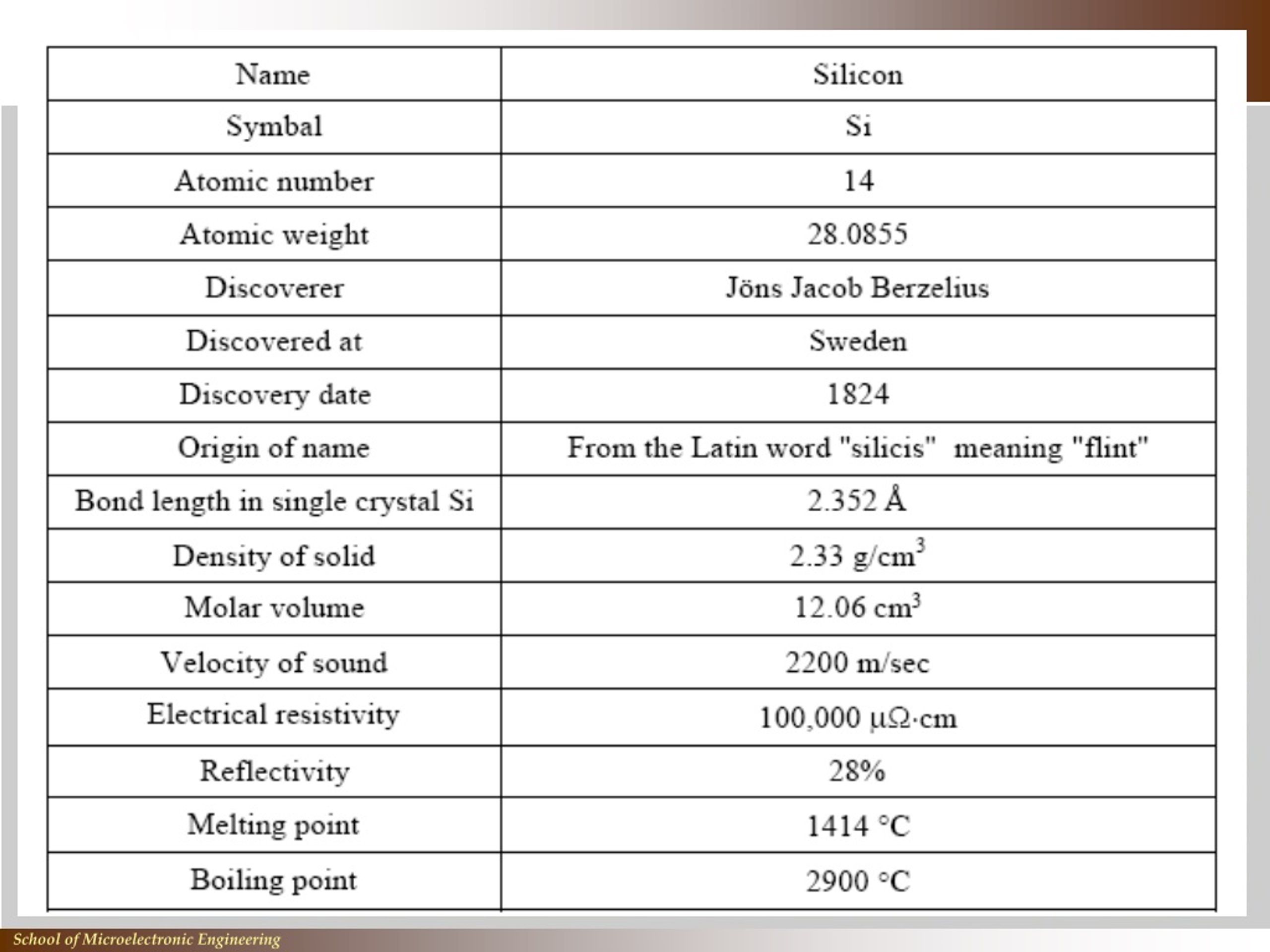

  5. ` School of Microelectronic Engineering

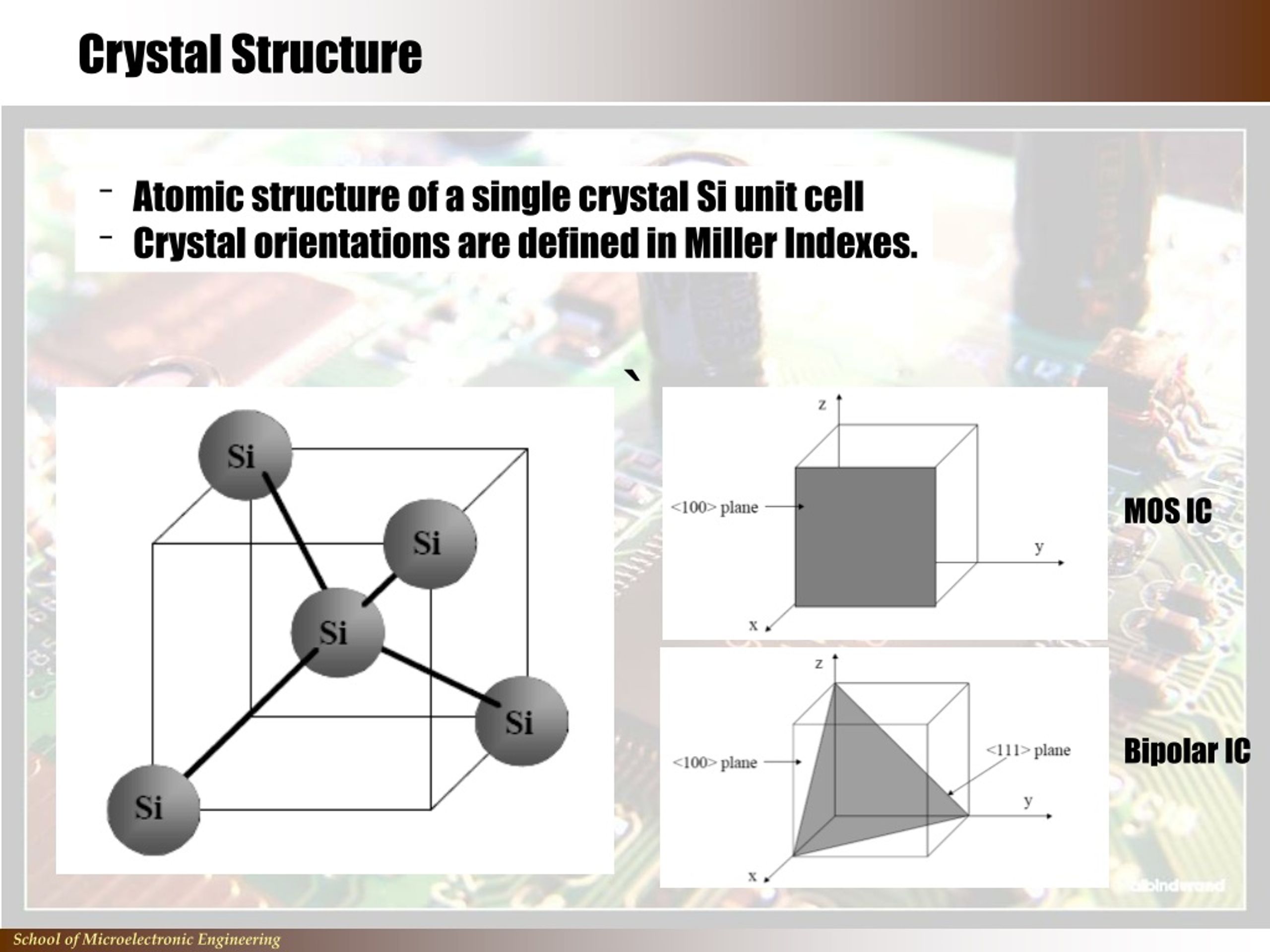

  6. Crystal Structure ` • Atomic structure of a single crystal Si unit cell • Crystal orientations are defined in Miller Indexes. MOS IC Bipolar IC School of Microelectronic Engineering

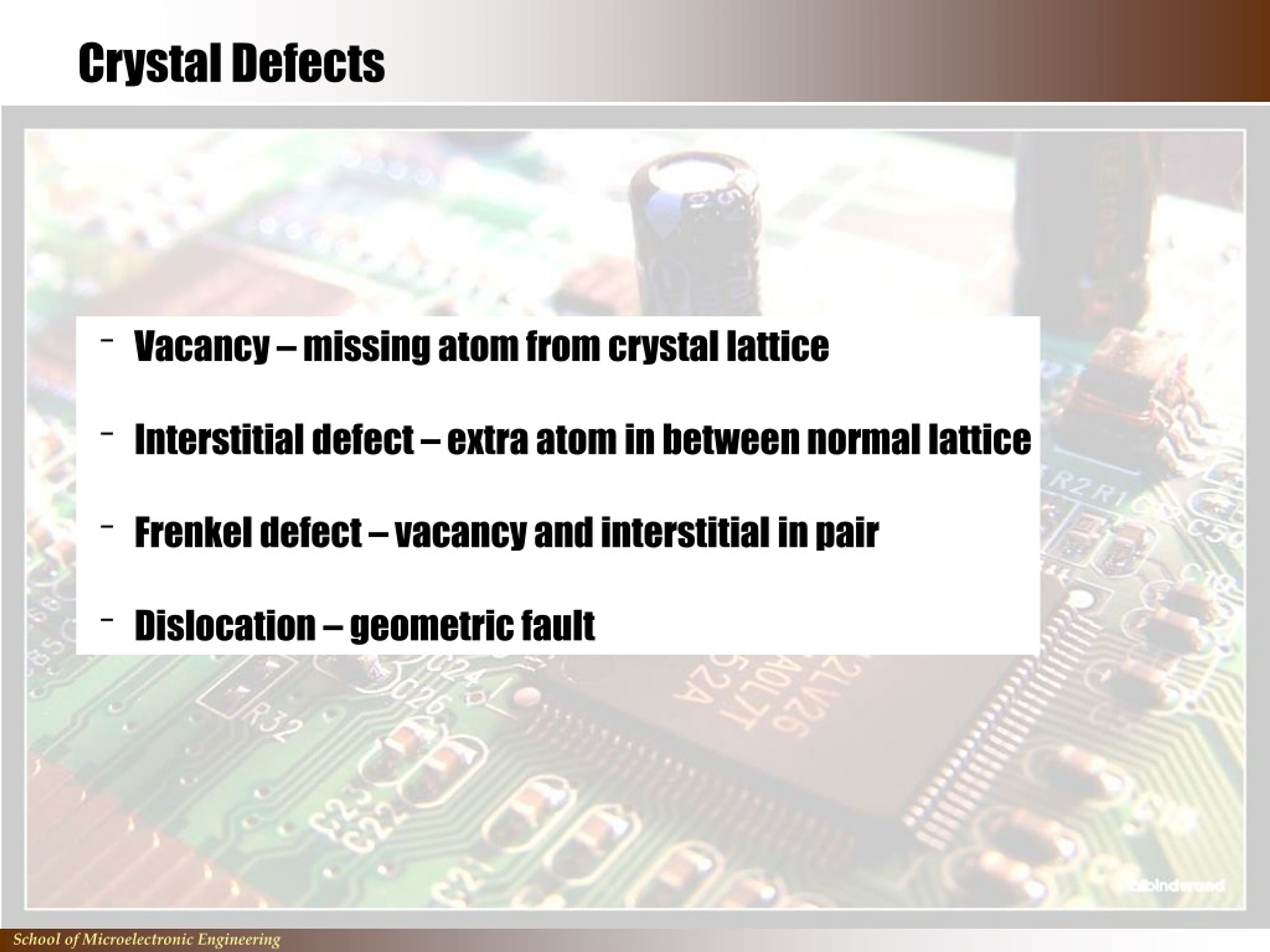

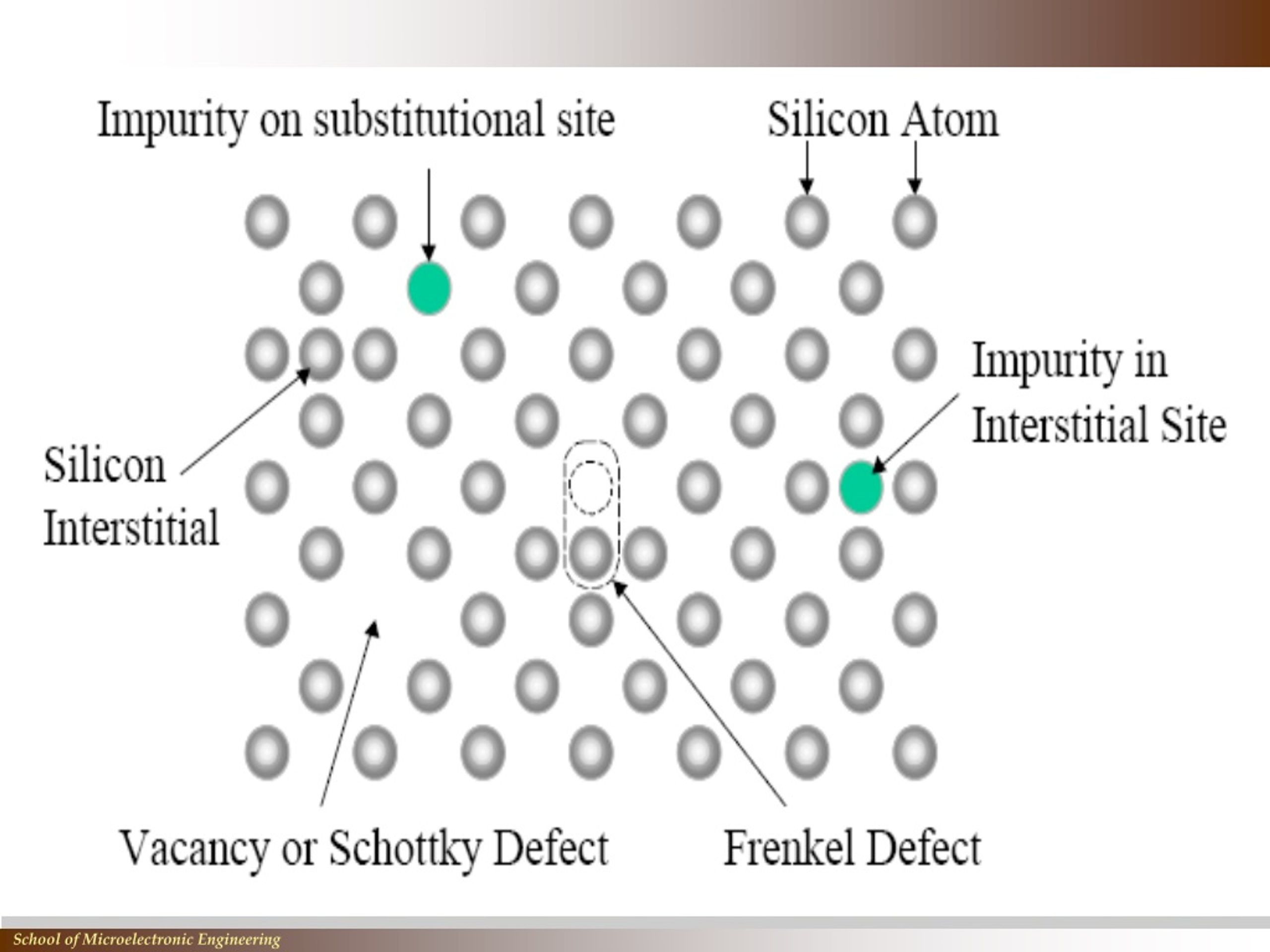

  7. Crystal Defects ` • Vacancy – missing atom from crystal lattice • Interstitial defect – extra atom in between normal lattice • Frenkel defect – vacancy and interstitial in pair • Dislocation – geometric fault School of Microelectronic Engineering

  8. School of Microelectronic Engineering

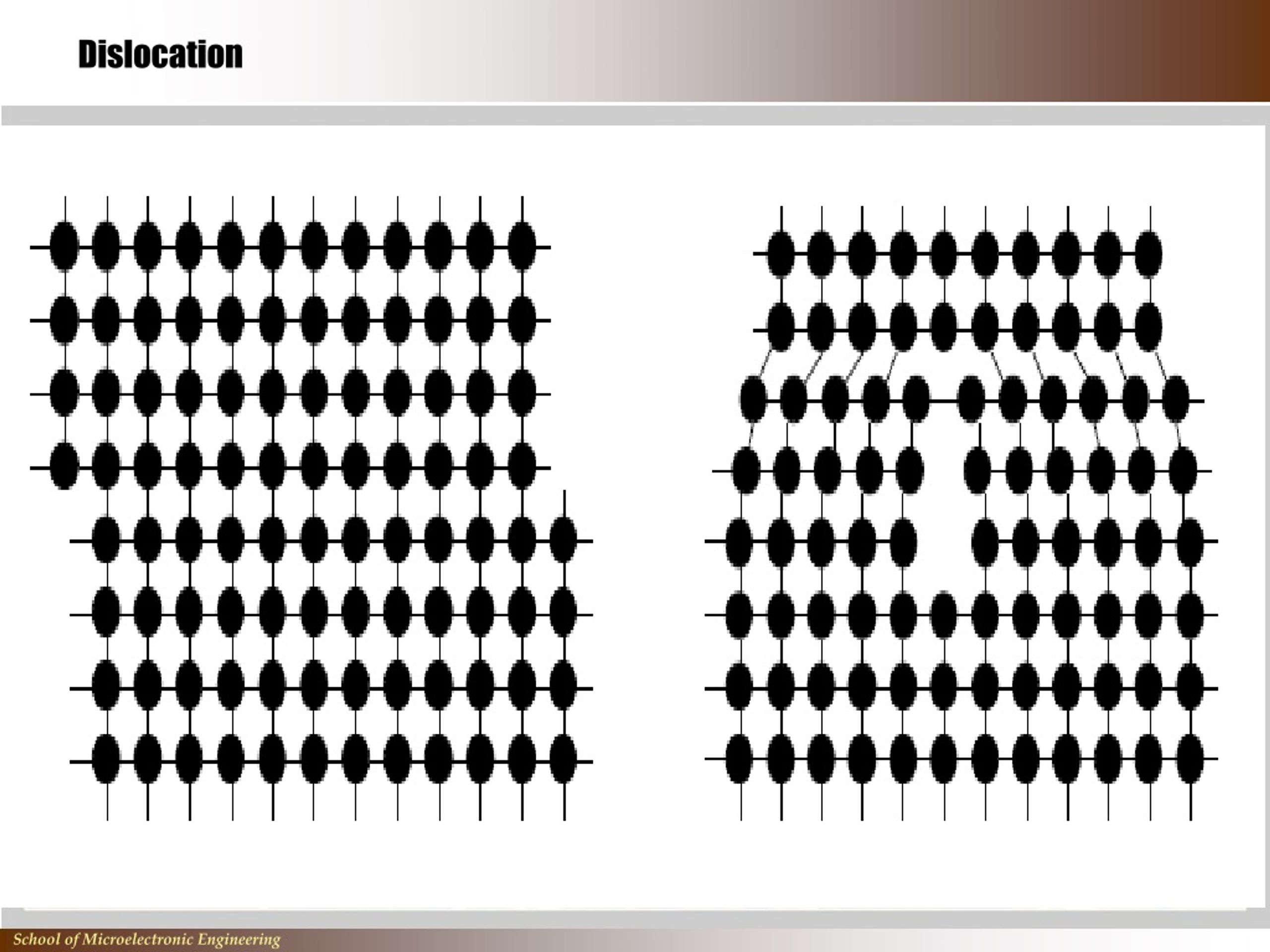

  9. Dislocation School of Microelectronic Engineering

  10. From Sand to Wafer ` School of Microelectronic Engineering

  11. From Sand to Wafer ` • 1st step: Crude Silicon or MGS (~ 99% poly-crystal silicon) School of Microelectronic Engineering

  12. From Sand to Wafer • 2nd step: High Purity TCS Formation (Trichlorosilane, SiHCl3) • MGS grinded into powder • MGS powder react with HCL to form TCS • TCS is purified up to 99.9999999% ` School of Microelectronic Engineering

  13. From Sand to Wafer ` • 3rd step: EGS (Electronic Grade Silicon) Formation – polycrystal form School of Microelectronic Engineering

  14. From Sand to Wafer • 4th Step: Crystal Pulling • EGS to be heated at high temperature and pulled using single- Crystal silicon seed. • 2 methods; • Czochralski (CZ) Method – larger diameter, lower cost, in situ doping. • Floating Zone (FZ) Method School of Microelectronic Engineering

  15. From Sand to Wafer • CZ Method School of Microelectronic Engineering

  16. From Sand to Wafer • CZ Method School of Microelectronic Engineering

  17. From Sand to Wafer • FZ Method School of Microelectronic Engineering

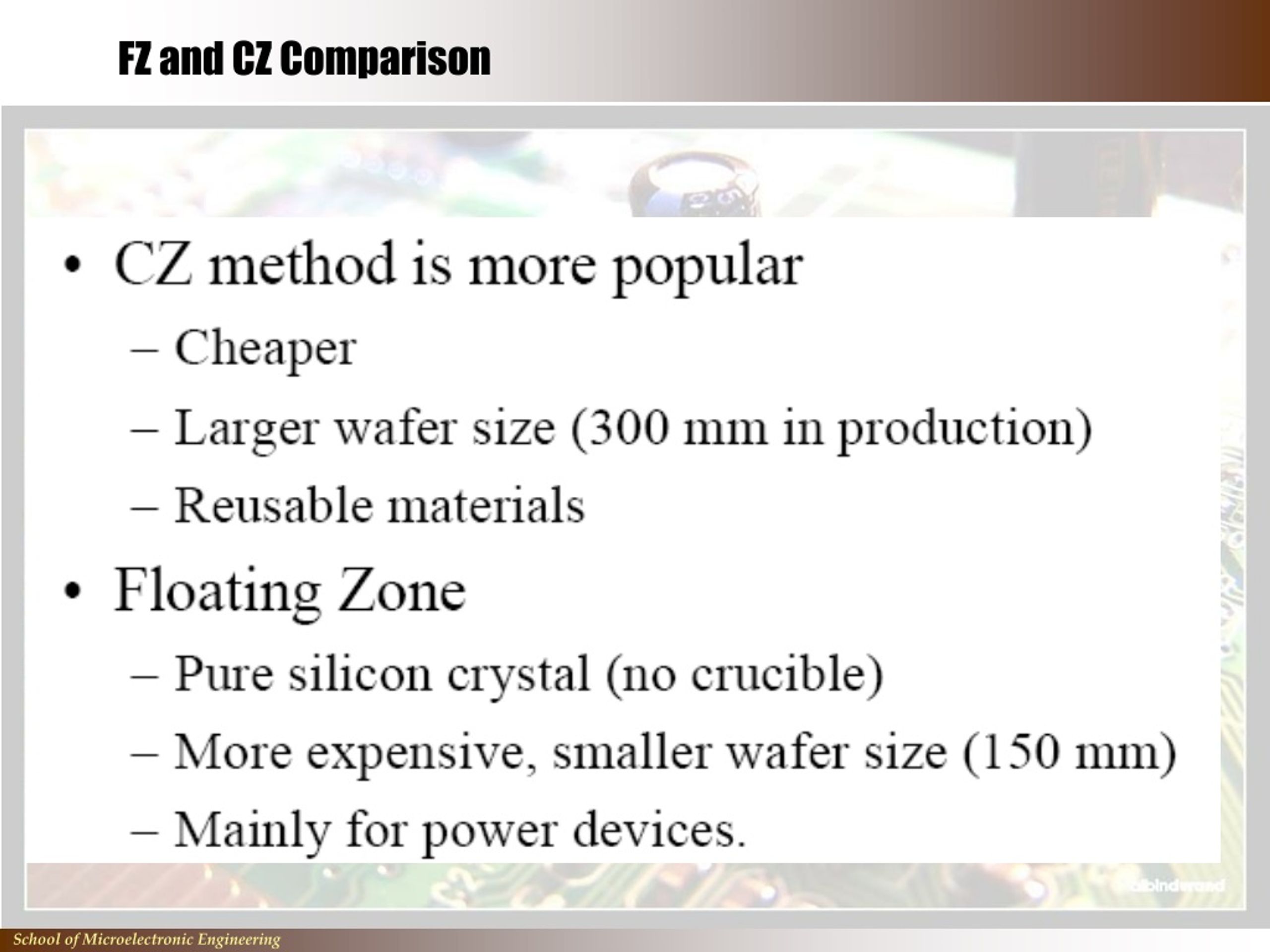

  18. FZ and CZ Comparison ` School of Microelectronic Engineering

  19. From Sand to Wafer • 5th Step: Ingot Polishing and Wafer Sawing • Ingot polishing to remove the grooves created during pulling • Wafer slicing School of Microelectronic Engineering

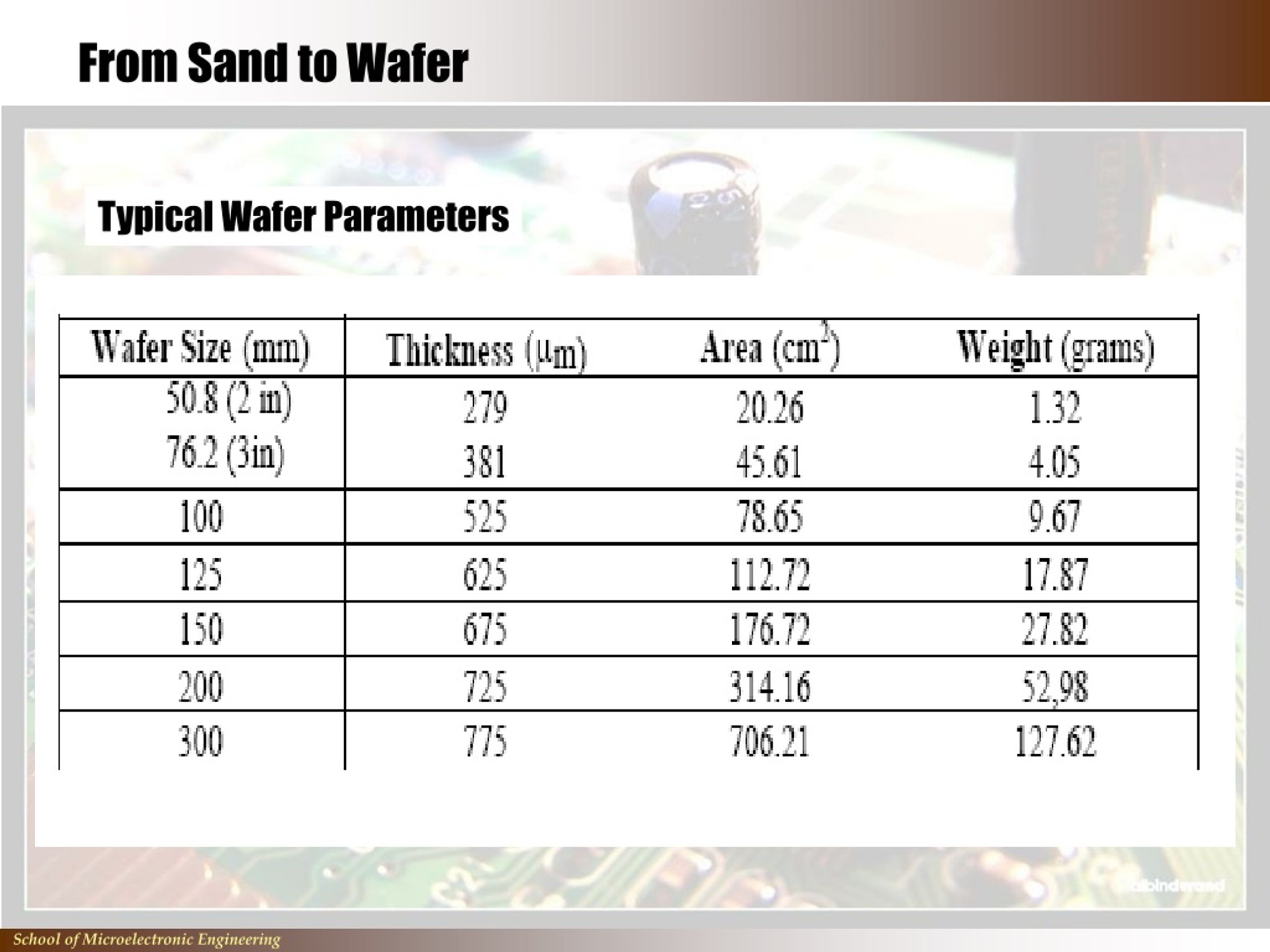

  20. From Sand to Wafer Typical Wafer Parameters School of Microelectronic Engineering

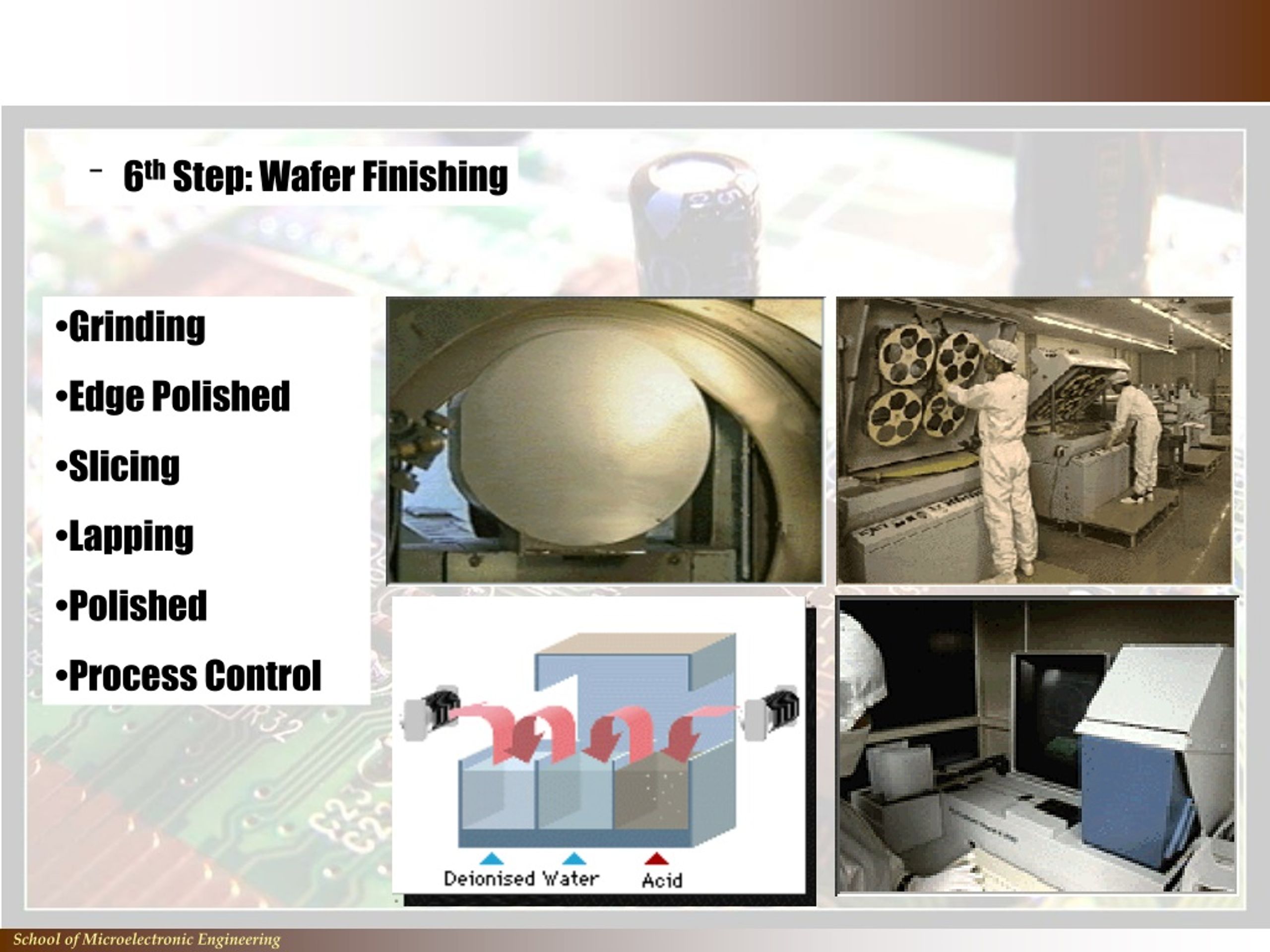

  21. 6th Step: Wafer Finishing • Grinding • Edge Polished • Slicing • Lapping • Polished • Process Control School of Microelectronic Engineering

  22. Epitaxial Wafer School of Microelectronic Engineering

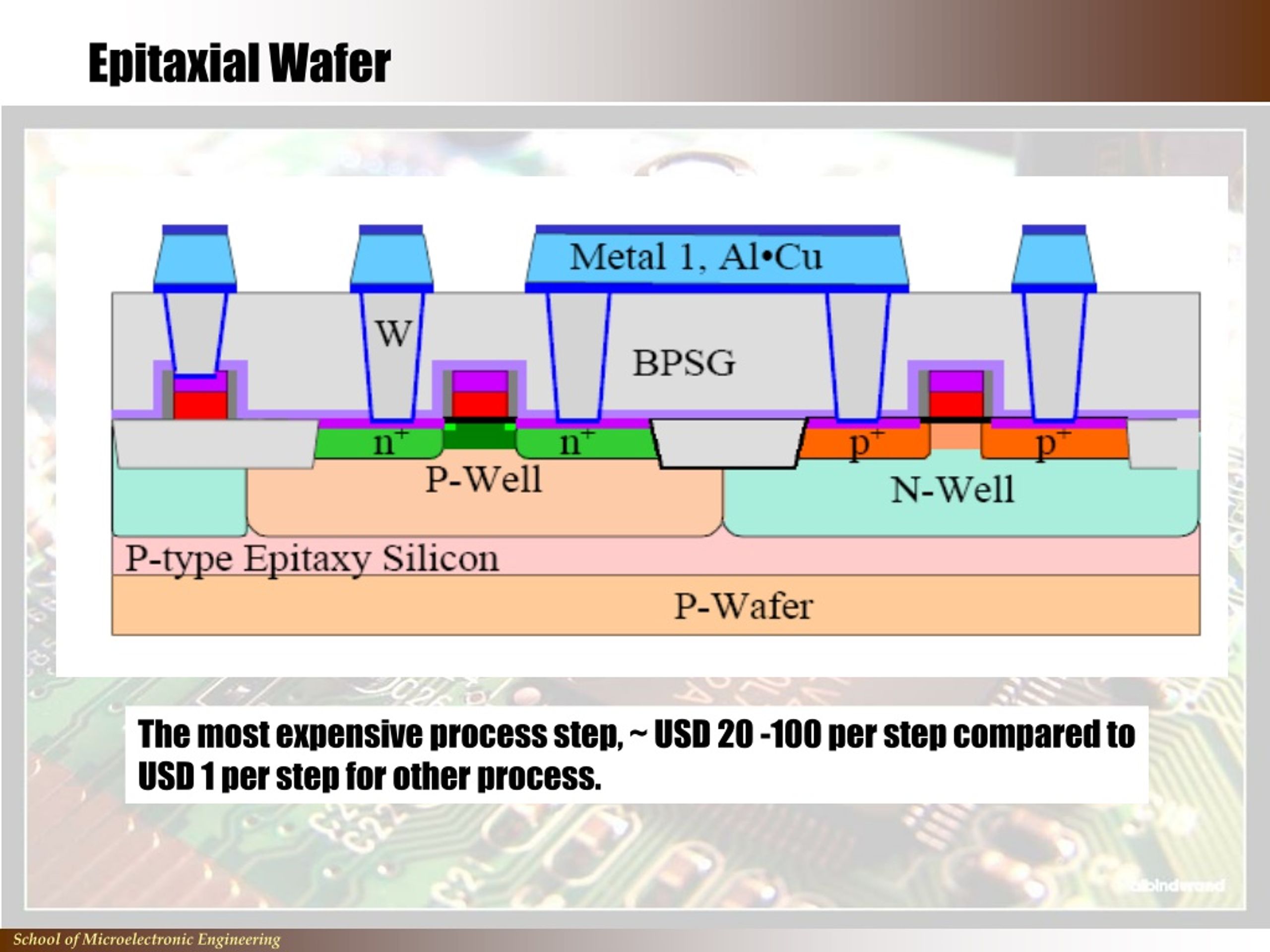

  23. Epitaxial Wafer The most expensive process step, ~ USD 20 -100 per step compared to USD 1 per step for other process. School of Microelectronic Engineering
