DEF Sensor for Paccar Applications with Compatible Applications

The DEF Sensor for Paccar Applications ensures optimal engine performance by accurately monitoring the diesel exhaust fluid levels. This precision helps maintain the vehicle's efficiency, reducing emissions and improving fuel economy for a cleaner, more powerful drive.

dura4
Download Presentation

DEF Sensor for Paccar Applications with Compatible Applications

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

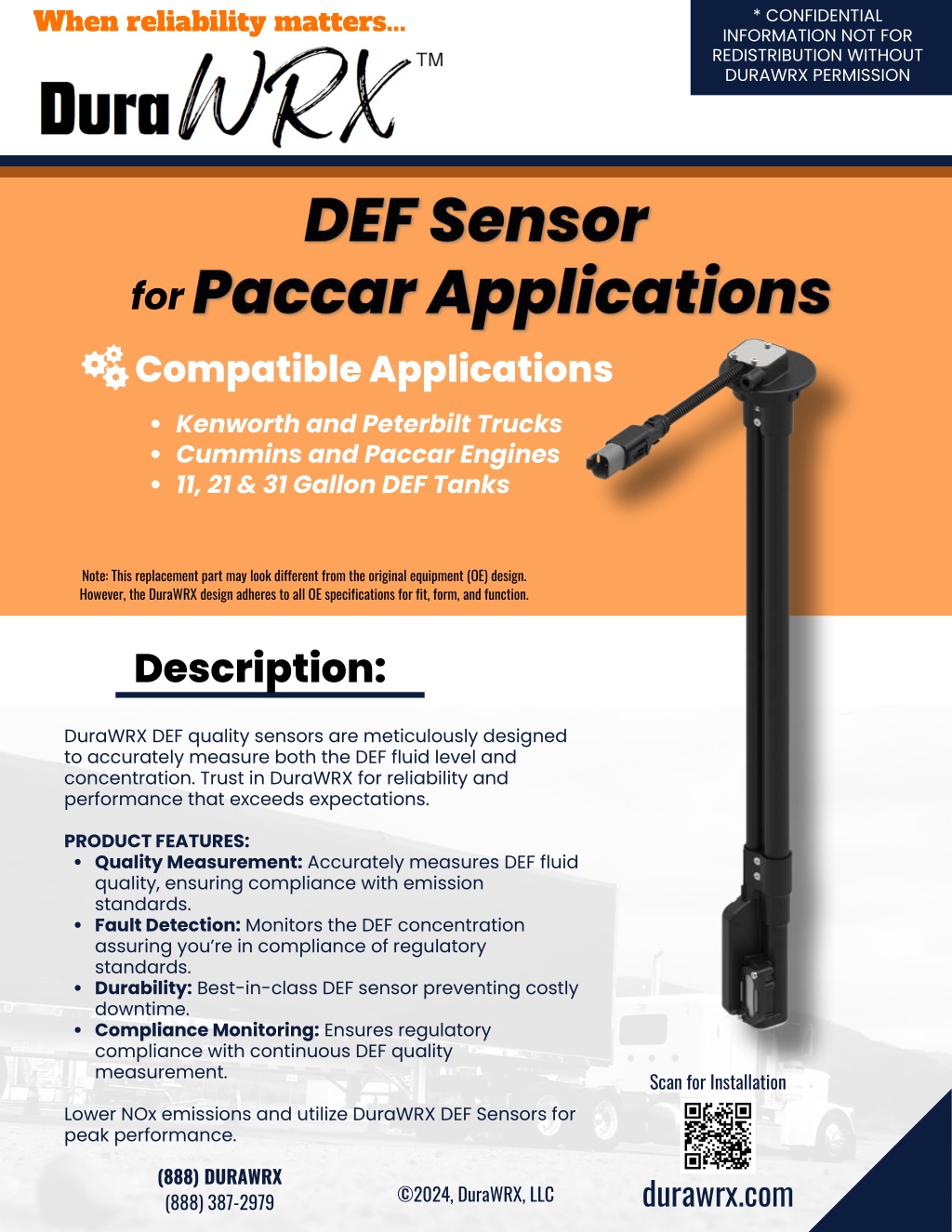

  1. When reliability matters... * CONFIDENTIAL INFORMATION NOT FOR REDISTRIBUTION WITHOUT DURAWRX PERMISSION for Compatible Applications Kenworth and Peterbilt Trucks Cummins and Paccar Engines 11, 21 & 31 Gallon DEF Tanks Note: This replacement part may look different from the original equipment (OE) design. However, the DuraWRX design adheres to all OE specifications for fit, form, and function. Description: DuraWRX DEF quality sensors are meticulously designed to accurately measure both the DEF fluid level and concentration. Trust in DuraWRX for reliability and performance that exceeds expectations. PRODUCT FEATURES: Quality Measurement: Accurately measures DEF fluid quality, ensuring compliance with emission standards. Fault Detection: Monitors the DEF concentration assuring you’re in compliance of regulatory standards. Durability: Best-in-class DEF sensor preventing costly downtime. Compliance Monitoring: Ensures regulatory compliance with continuous DEF quality measurement. Scan for Installation Lower NOx emissions and utilize DuraWRX DEF Sensors for peak performance. (888) DURAWRX (888) 387-2979 durawrx.com ©2024, DuraWRX, LLC

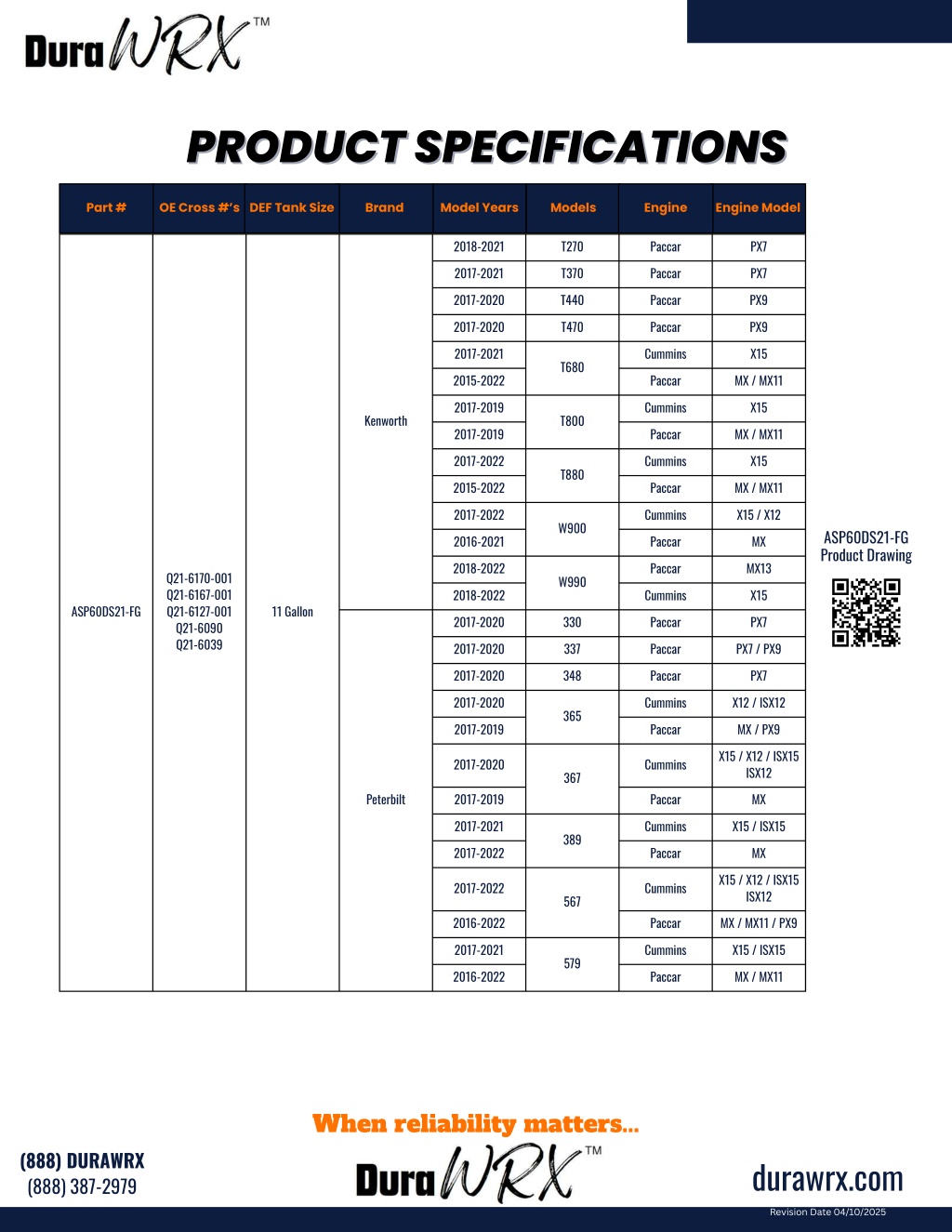

  2. PRODUCT SPECIFICATIONS PRODUCT SPECIFICATIONS Part # OE Cross #’s DEF Tank Size Brand Model Years Models Engine Engine Model 2018-2021 T270 Paccar PX7 2017-2021 T370 Paccar PX7 2017-2020 T440 Paccar PX9 2017-2020 T470 Paccar PX9 2017-2021 Cummins X15 T680 2015-2022 Paccar MX / MX11 2017-2019 Cummins X15 Kenworth T800 2017-2019 Paccar MX / MX11 2017-2022 Cummins X15 T880 2015-2022 Paccar MX / MX11 2017-2022 Cummins X15 / X12 W900 ASP60DS21-FG Product Drawing 2016-2021 Paccar MX 2018-2022 Paccar MX13 Q21-6170-001 Q21-6167-001 Q21-6127-001 Q21-6090 Q21-6039 W990 2018-2022 Cummins X15 ASP60DS21-FG 11 Gallon 2017-2020 330 Paccar PX7 2017-2020 337 Paccar PX7 / PX9 2017-2020 348 Paccar PX7 2017-2020 Cummins X12 / ISX12 365 2017-2019 Paccar MX / PX9 X15 / X12 / ISX15 ISX12 2017-2020 Cummins 367 Peterbilt 2017-2019 Paccar MX 2017-2021 Cummins X15 / ISX15 389 2017-2022 Paccar MX X15 / X12 / ISX15 ISX12 2017-2022 Cummins 567 2016-2022 Paccar MX / MX11 / PX9 2017-2021 Cummins X15 / ISX15 579 2016-2022 Paccar MX / MX11 When reliability matters... (888) DURAWRX (888) 387-2979 durawrx.com Revision Date 04/10/2025

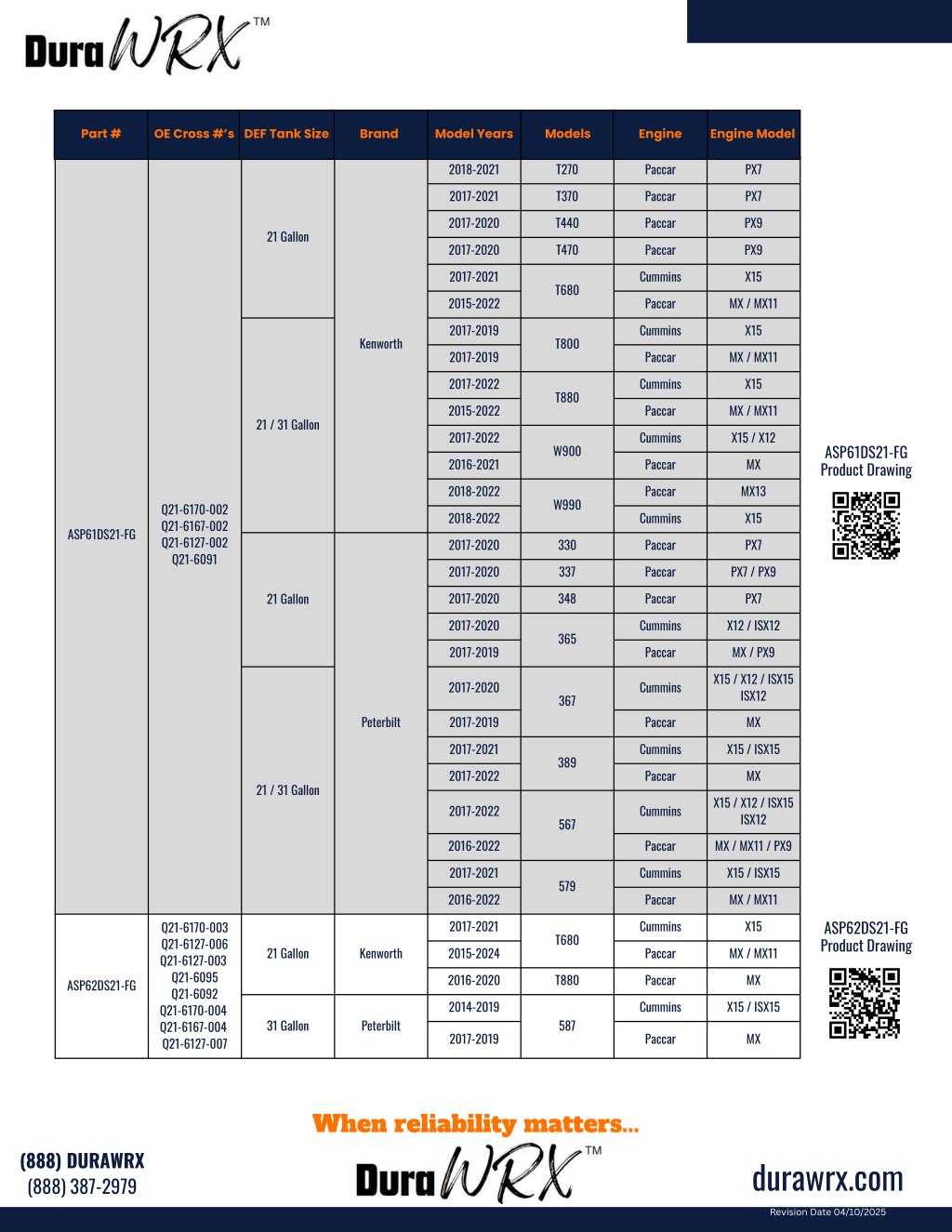

  3. Part # OE Cross #’s DEF Tank Size Brand Model Years Models Engine Engine Model 2018-2021 T270 Paccar PX7 2017-2021 T370 Paccar PX7 2017-2020 T440 Paccar PX9 21 Gallon 2017-2020 T470 Paccar PX9 2017-2021 Cummins X15 T680 2015-2022 Paccar MX / MX11 2017-2019 Cummins X15 Kenworth T800 2017-2019 Paccar MX / MX11 2017-2022 Cummins X15 T880 2015-2022 Paccar MX / MX11 21 / 31 Gallon 2017-2022 Cummins X15 / X12 ASP61DS21-FG Product Drawing W900 2016-2021 Paccar MX 2018-2022 Paccar MX13 W990 Q21-6170-002 Q21-6167-002 Q21-6127-002 Q21-6091 2018-2022 Cummins X15 ASP61DS21-FG 2017-2020 330 Paccar PX7 2017-2020 337 Paccar PX7 / PX9 2017-2020 348 Paccar PX7 21 Gallon 2017-2020 Cummins X12 / ISX12 365 2017-2019 Paccar MX / PX9 X15 / X12 / ISX15 ISX12 2017-2020 Cummins 367 Peterbilt 2017-2019 Paccar MX 2017-2021 Cummins X15 / ISX15 389 2017-2022 Paccar MX 21 / 31 Gallon X15 / X12 / ISX15 ISX12 2017-2022 Cummins 567 2016-2022 Paccar MX / MX11 / PX9 2017-2021 Cummins X15 / ISX15 579 2016-2022 Paccar MX / MX11 ASP62DS21-FG Product Drawing 2017-2021 Cummins X15 Q21-6170-003 Q21-6127-006 Q21-6127-003 Q21-6095 Q21-6092 Q21-6170-004 Q21-6167-004 Q21-6127-007 T680 2015-2024 Paccar MX / MX11 21 Gallon Kenworth 2016-2020 T880 Paccar MX ASP62DS21-FG 2014-2019 Cummins X15 / ISX15 31 Gallon Peterbilt 587 2017-2019 Paccar MX When reliability matters... (888) DURAWRX (888) 387-2979 durawrx.com Revision Date 04/10/2025
