Stimulated Raman scattering

 L.  AS.  L.  S. E 2. E 1. Stimulated Raman scattering. If high enough powered radiation is incident on the molecule, stimulated Anti-Stokes radiation can be generated. The occurrence of Stokes emission populates E 2. This allows Anti-Stokes scattering to occur.

duane
Download Presentation

Stimulated Raman scattering

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

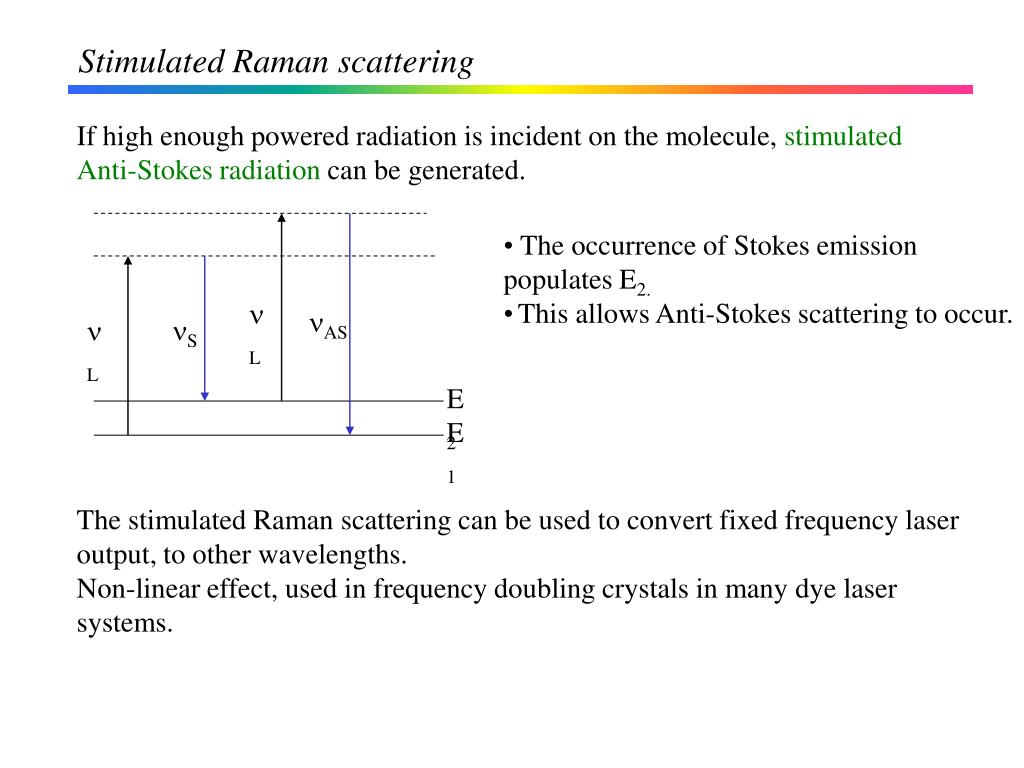

  1. L AS L S E2 E1 Stimulated Raman scattering If high enough powered radiation is incident on the molecule, stimulated Anti-Stokes radiation can be generated. • The occurrence of Stokes emission populates E2. • This allows Anti-Stokes scattering to occur. The stimulated Raman scattering can be used to convert fixed frequency laser output, to other wavelengths. Non-linear effect, used in frequency doubling crystals in many dye laser systems.

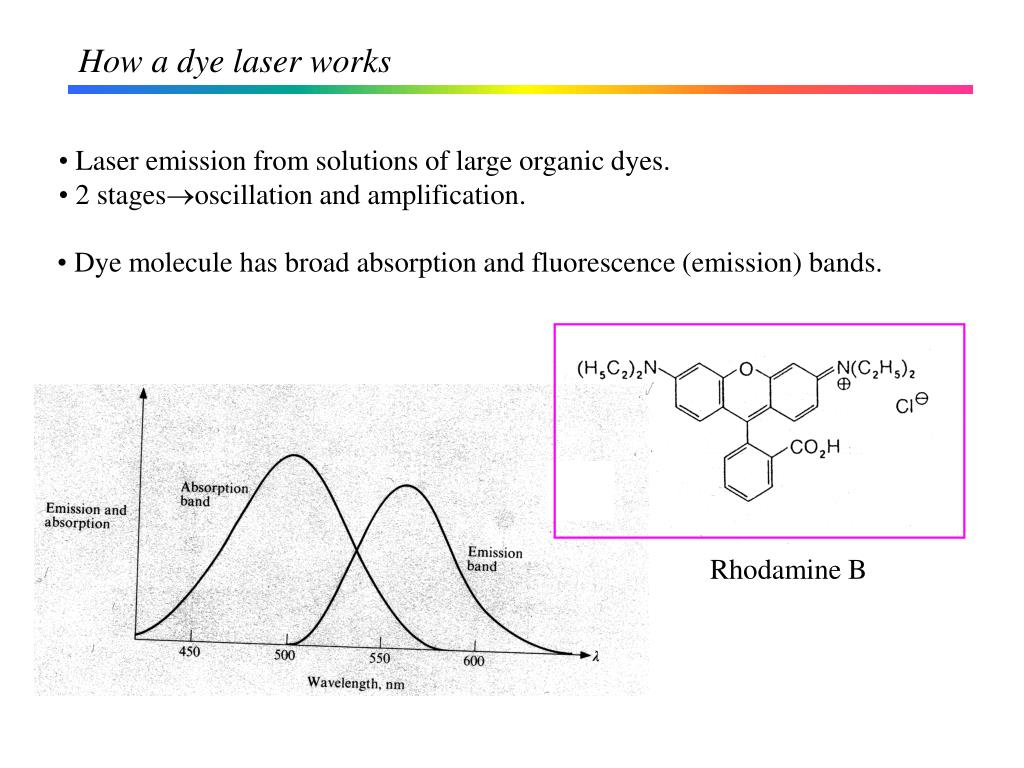

  2. How a dye laser works • Laser emission from solutions of large organic dyes. • 2 stagesoscillation and amplification. • Dye molecule has broad absorption and fluorescence (emission) bands. Rhodamine B

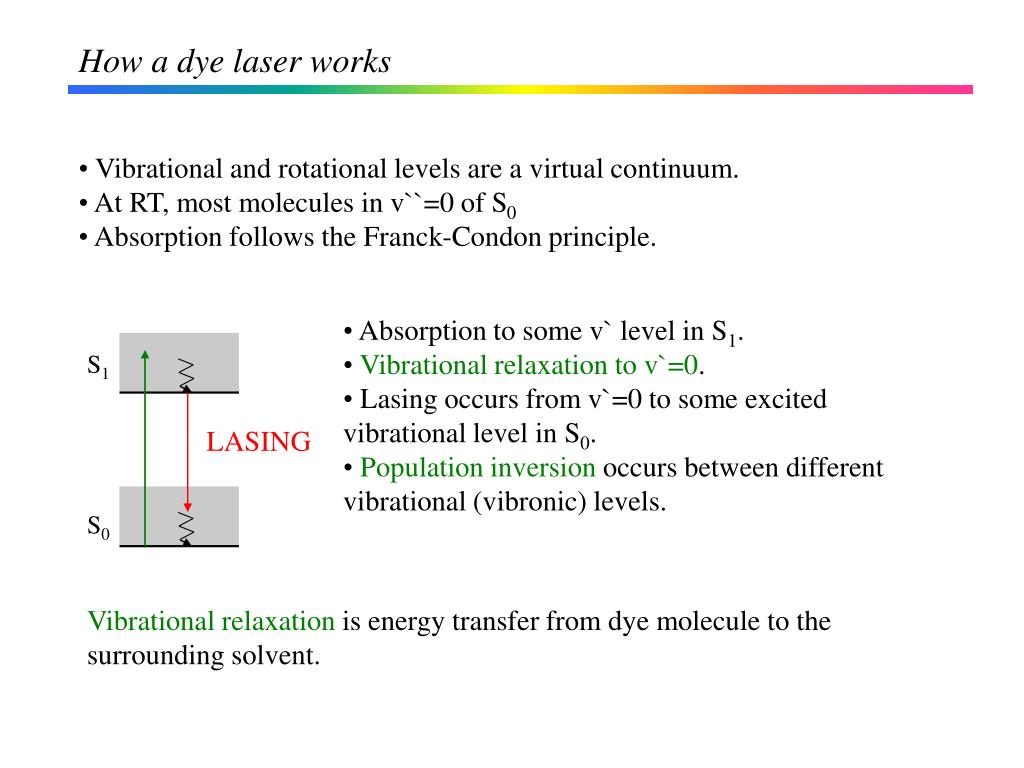

  3. S1 LASING S0 How a dye laser works • Vibrational and rotational levels are a virtual continuum. • At RT, most molecules in v``=0 of S0 • Absorption follows the Franck-Condon principle. • Absorption to some v` level in S1. • Vibrational relaxation to v`=0. • Lasing occurs from v`=0 to some excited vibrational level in S0. • Population inversion occurs between different vibrational (vibronic) levels. Vibrational relaxation is energy transfer from dye molecule to the surrounding solvent.

  4. Dye Fluorescence Diffraction Grating Pump laser Dye Cell  How a dye laser works Oscillator • Concentrated solution of dye. • Excited by fixed frequency pump laser. • Dye molecule fluorescence is collected, and dispersed using diffraction grating. • Radiation of the chosen wavelength allowed to exit the oscillator cavity

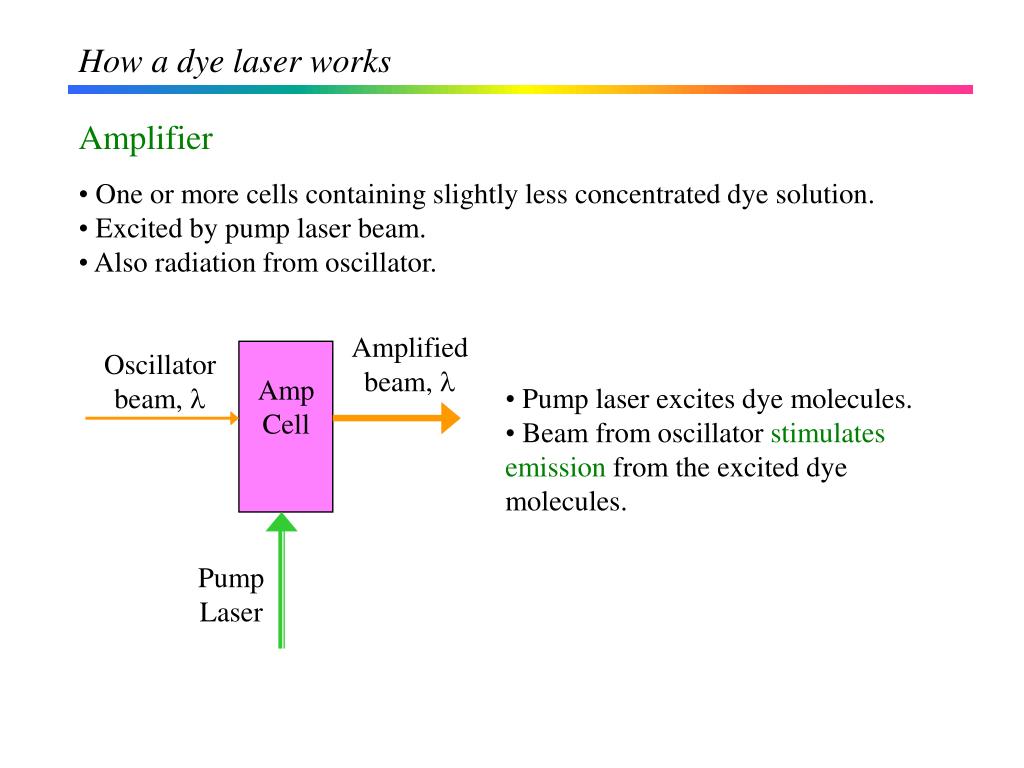

  5. Amplified beam,  Oscillator beam,  Amp Cell Pump Laser How a dye laser works Amplifier • One or more cells containing slightly less concentrated dye solution. • Excited by pump laser beam. • Also radiation from oscillator. • Pump laser excites dye molecules. • Beam from oscillator stimulates emission from the excited dye molecules.

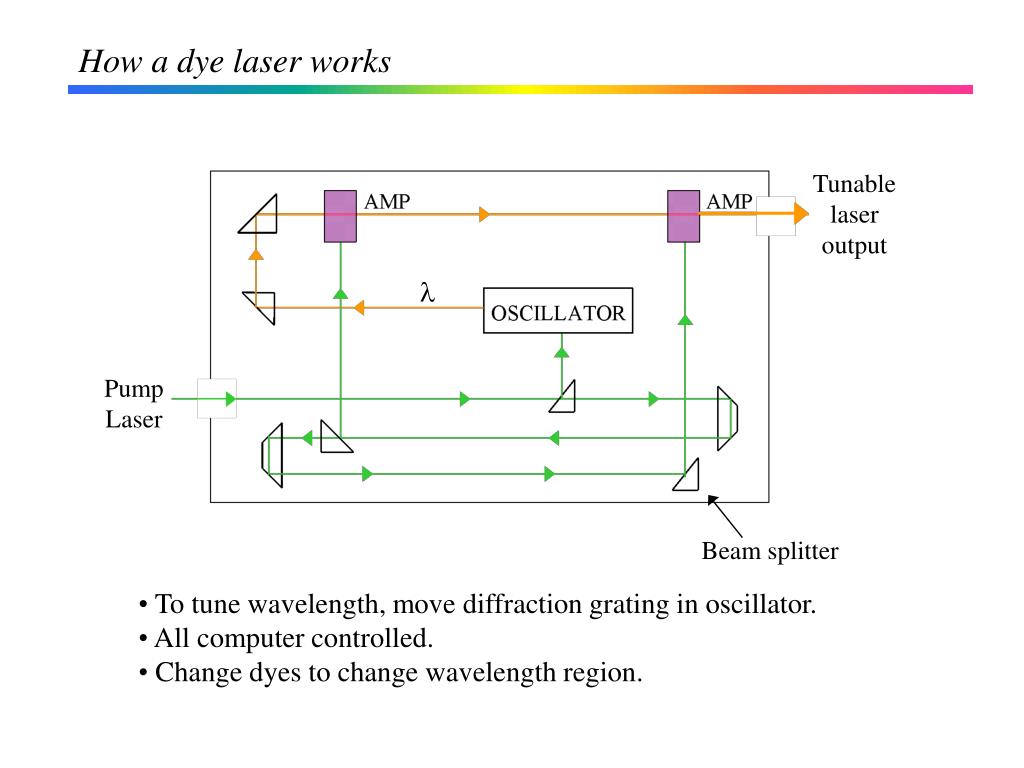

  6. Tunable laser output  Pump Laser Beam splitter How a dye laser works • To tune wavelength, move diffraction grating in oscillator. • All computer controlled. • Change dyes to change wavelength region.

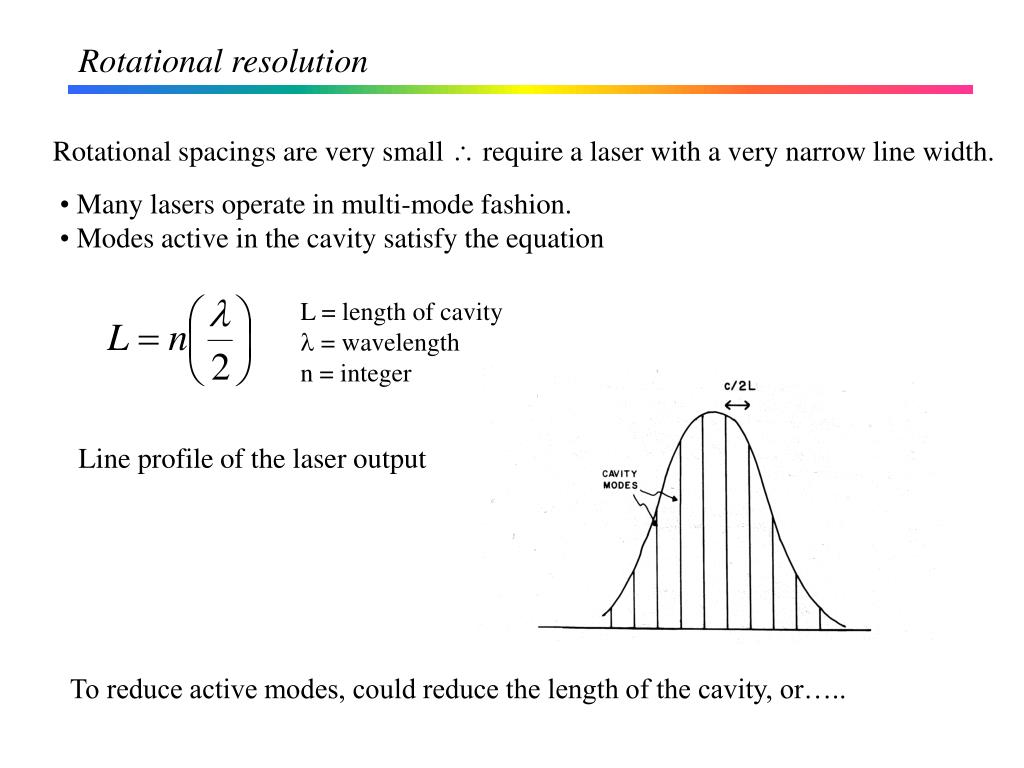

  7. Rotational resolution Rotational spacings are very small  require a laser with a very narrow line width. • Many lasers operate in multi-mode fashion. • Modes active in the cavity satisfy the equation L = length of cavity  = wavelength n = integer Line profile of the laser output To reduce active modes, could reduce the length of the cavity, or…..

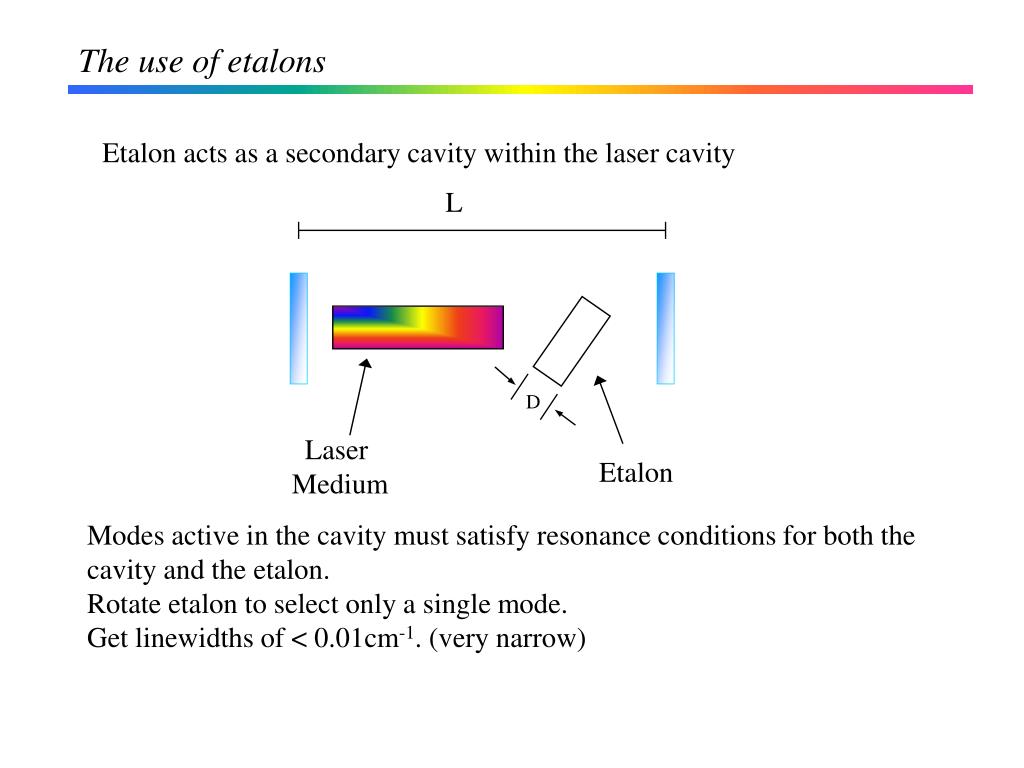

  8. L D Laser Medium Etalon The use of etalons Etalon acts as a secondary cavity within the laser cavity Modes active in the cavity must satisfy resonance conditions for both the cavity and the etalon. Rotate etalon to select only a single mode. Get linewidths of < 0.01cm-1. (very narrow)

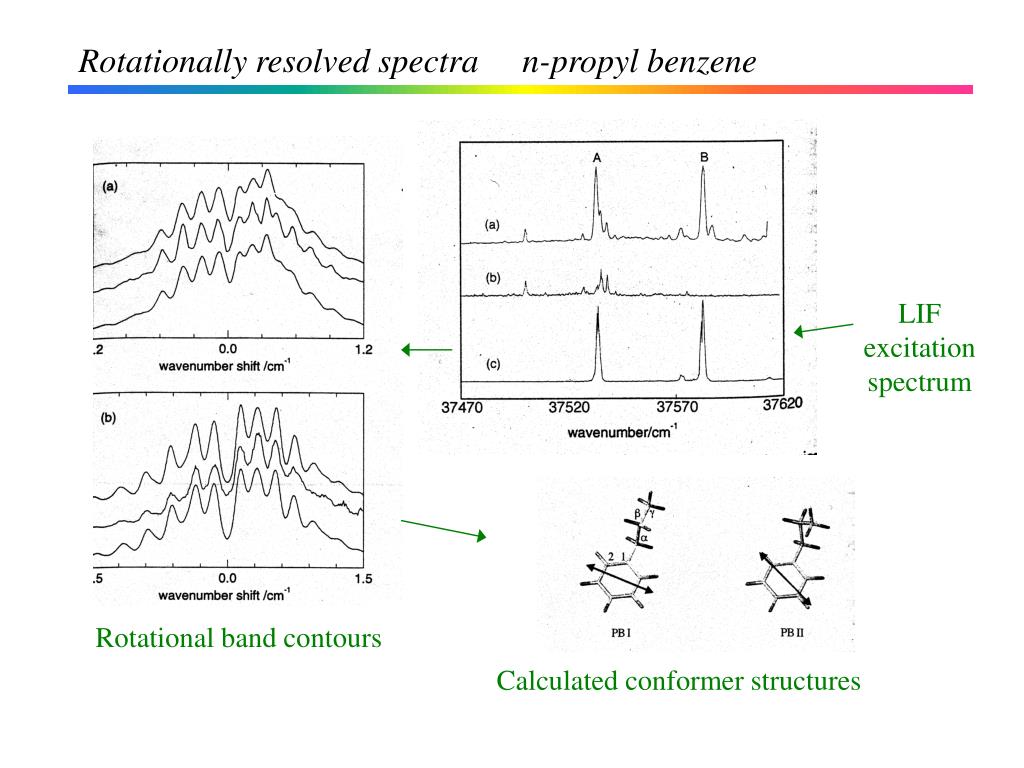

  9. Rotationally resolved spectra n-propyl benzene LIF excitation spectrum Rotational band contours Calculated conformer structures

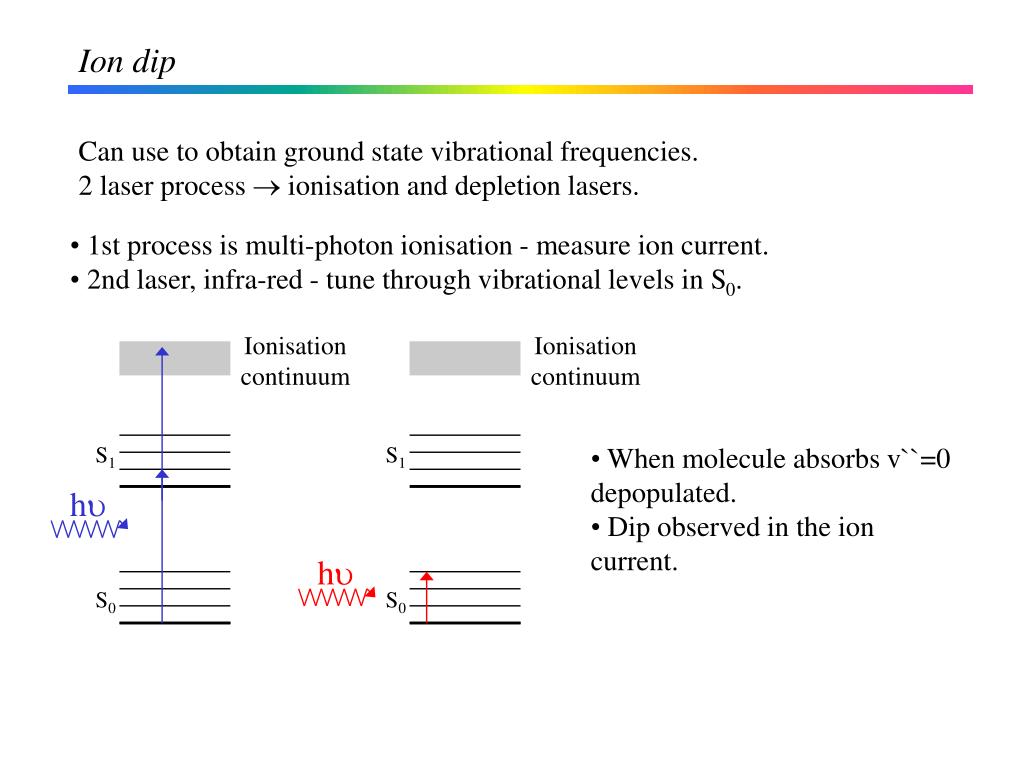

  10. Ionisation continuum Ionisation continuum S1 S1 h h S0 S0 Ion dip Can use to obtain ground state vibrational frequencies. 2 laser process  ionisation and depletion lasers. • 1st process is multi-photon ionisation - measure ion current. • 2nd laser, infra-red - tune through vibrational levels in S0. • When molecule absorbs v``=0 depopulated. • Dip observed in the ion current.

  11. Ion dip N-phenyl formamide Bands in the 3400-3600cm-1 region describe the N-H and O-H stretches

  12. Ionisation continuum S1 h S0 Hole-burning Useful for untangling fluorescence or MPI spectra from different conformers. 2 laser process  interogation and depletion lasers. • Depletion laser saturates electronic transition. • Fluorescence or MPI experiment carried out simultaneously. • Vibronic bands due to depleted electronic transition disappear. Can use with ion-dip technique, missing transitions show up as a dip in the ion current.

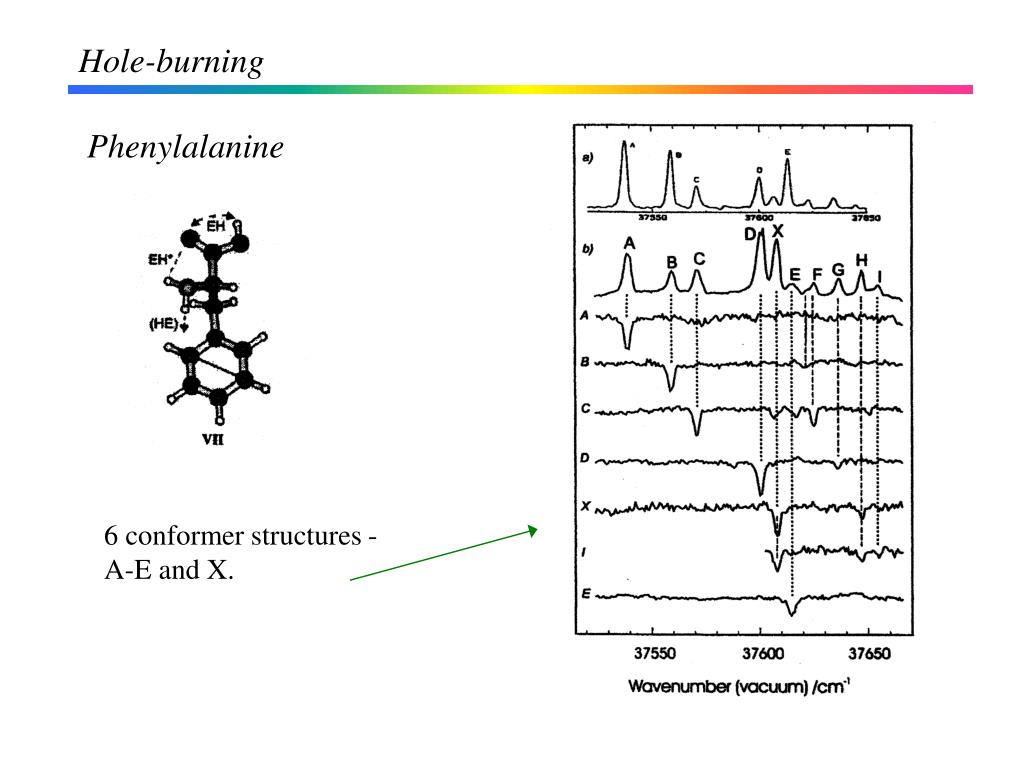

  13. Hole-burning Phenylalanine 6 conformer structures - A-E and X.
