Multiwave stimulated Raman scattering with quasi-phase matching

1. Multiwave stimulated Raman scattering with quasi-phase matching Nikolai S. Makarov Saint-Petersburg State Institute of Fine Mechanics and Optics (Technical University) Victor G. Bespalov Russian Research Center "S. I. Vavilov State Optical Institute"

2. Outline • Principle of quasi-phase matching • System of multiwave SRS equations • Multiwave SRS with/without Raman gain dispersion • QPM Multiwave SRS • Conclusions • References 2

3. Principle of quasi-phase matching Nonlinearity (2) Nonlinearity (3) Raman active medium 3

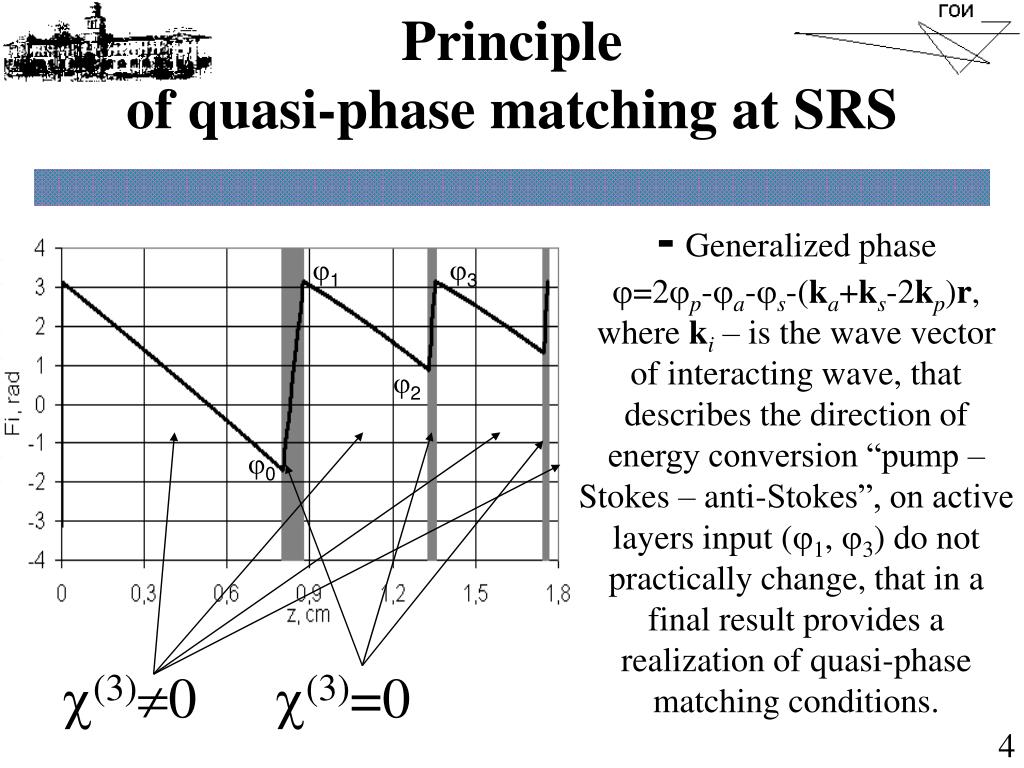

4. Principle of quasi-phase matching at SRS -Generalized phase =2p-a-s-(ka+ks-2kp)r, where ki – is the wave vector of interacting wave, that describes the direction of energy conversion “pump – Stokes – anti-Stokes”, on active layers input (1, 3) do not practically change, that in a final result provides a realization of quasi-phase matching conditions. 1 3 2 0 (3)0 (3)=0 4

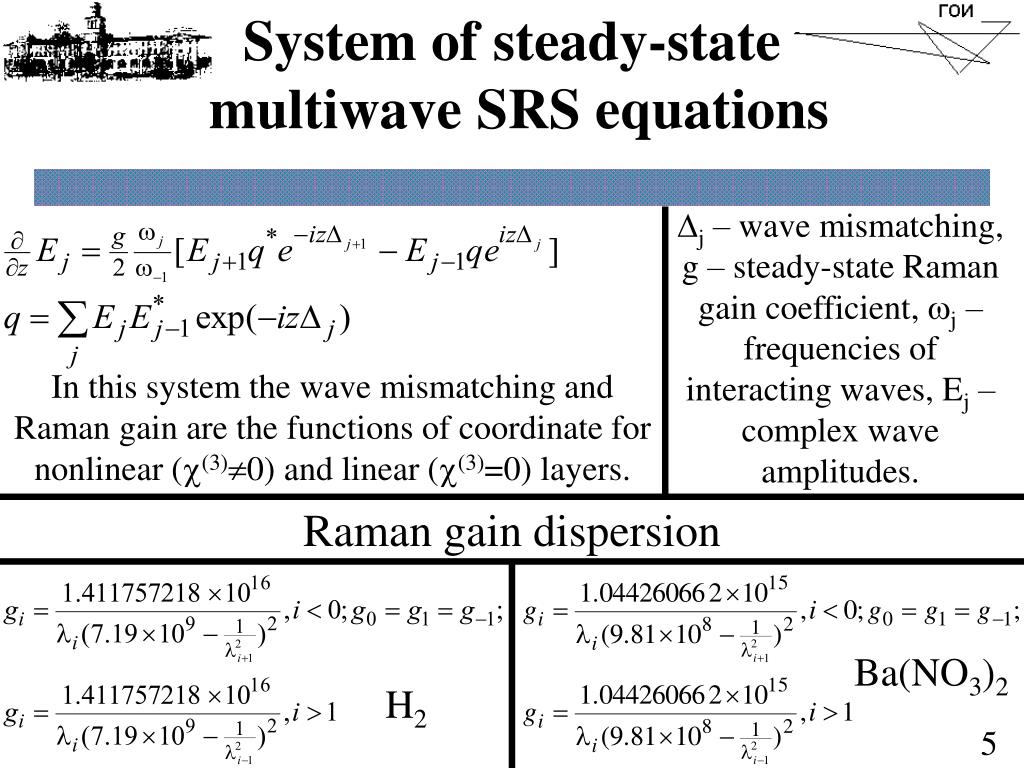

5. System of steady-state multiwave SRS equations j – wave mismatching, g – steady-state Raman gain coefficient, j – frequencies of interacting waves, Ej– complex wave amplitudes. In this system the wave mismatching and Raman gain are the functions of coordinate for nonlinear ((3)0) and linear ((3)=0) layers. Raman gain dispersion Ba(NO3)2 H2 5

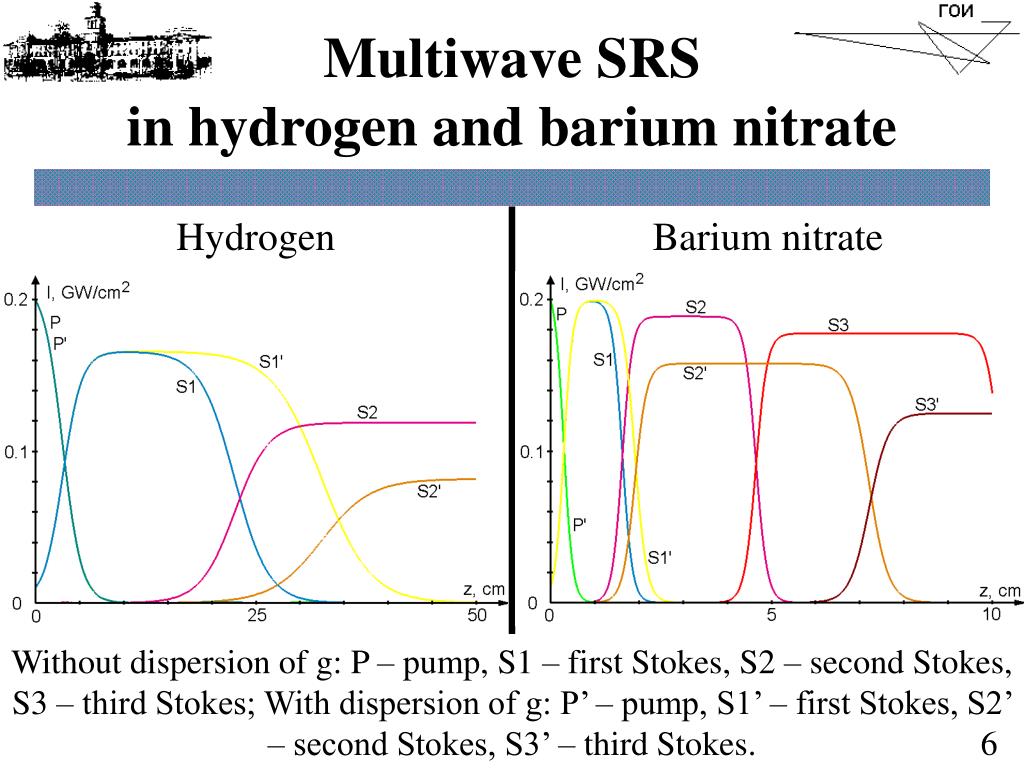

6. Multiwave SRS in hydrogen and barium nitrate Hydrogen Barium nitrate Without dispersion of g: P – pump, S1 – first Stokes, S2 – second Stokes, S3 – third Stokes; With dispersion of g: P’ – pump, S1’ – first Stokes, S2’ – second Stokes, S3’ – third Stokes. 6

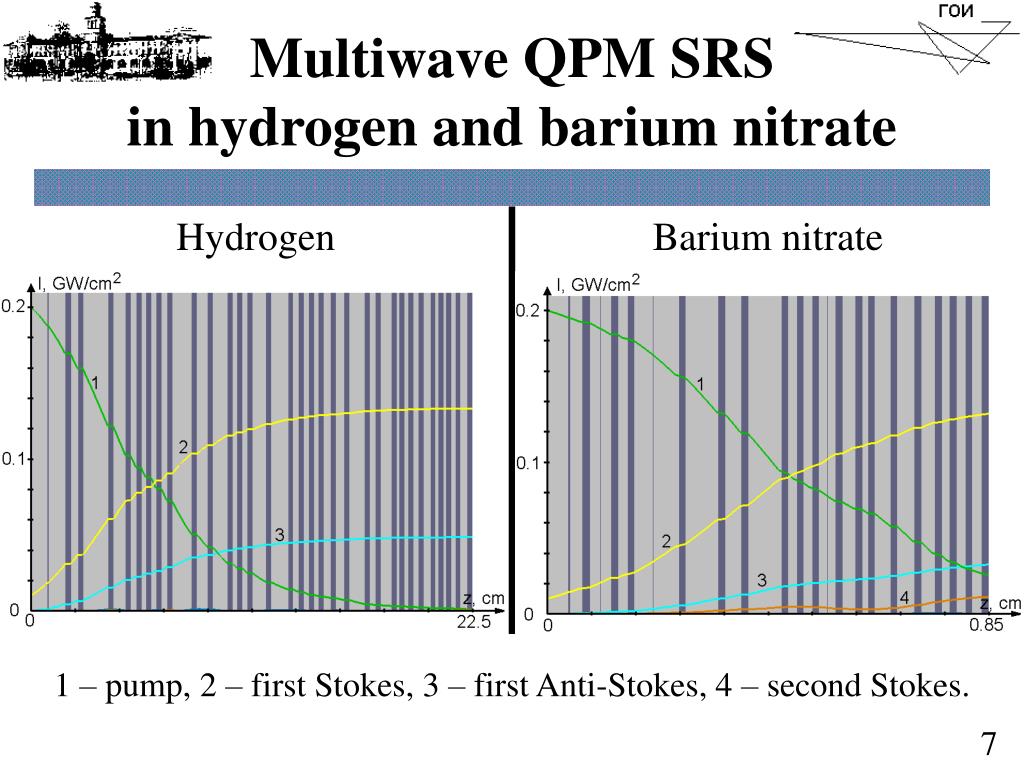

7. Multiwave QPM SRS in hydrogen and barium nitrate Hydrogen Barium nitrate 1 – pump, 2 – first Stokes, 3 – first Anti-Stokes, 4 – second Stokes. 7

8. Influence of highSRS components on calculations precision • For best calculation accuracy it is necessary to take into account at least the generation of 4 Stokes and 4 anti-Stokes SRS components. 8

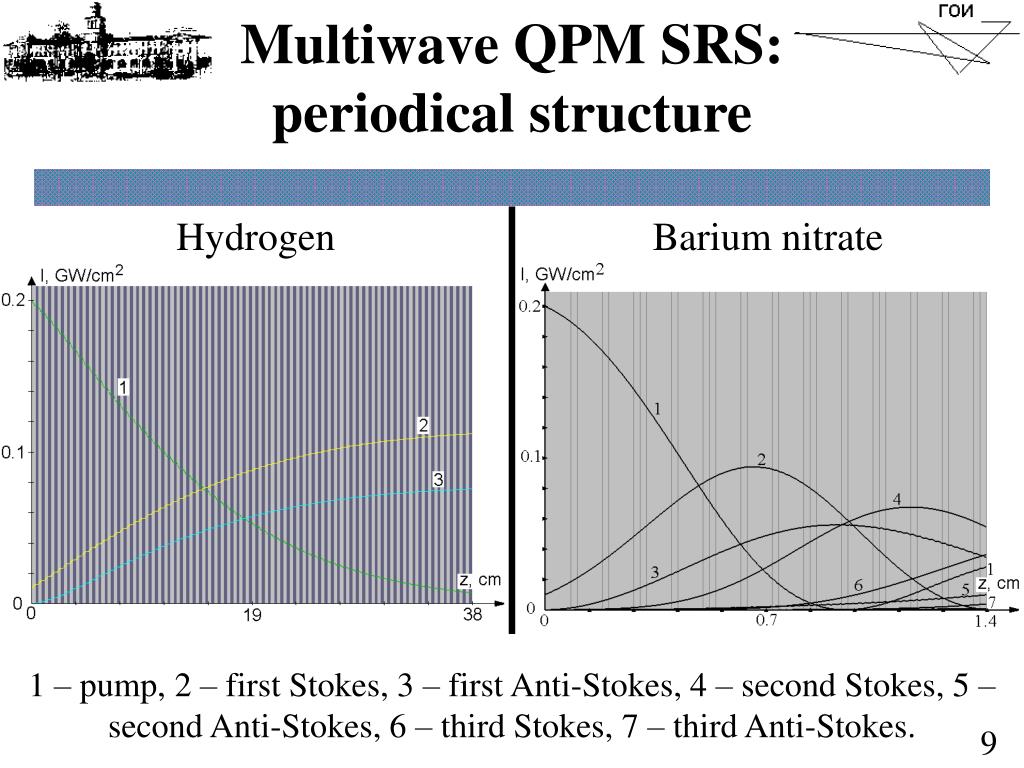

9. Multiwave QPM SRS:periodical structure Hydrogen Barium nitrate 1 – pump, 2 – first Stokes, 3 – first Anti-Stokes, 4 – second Stokes, 5 – second Anti-Stokes, 6 – third Stokes, 7 – third Anti-Stokes. 9

10. Layers length errorsfor periodical QPM structure Maximum allowed error is 15% Maximum allowed error is 0.2% • For periodical QPM structure it is necessary to choose the passive layers length with high accuracy, because even the small error in layer length causes the essential decreasing of anti-Stokes SRS generation efficiency, whereas for aperiodical QPM structure the error may reached more than 5% of layer length. 10

11. Our numerical calculations have shown that for best accuracy of QPM SRS simulations it is necessary to take into account the dispersion of Raman gain coefficient and for studying of multiwave SRS influence on QPM structure realization it is necessary to take into account the generation at least of 4 Stokes and 4 anti-Stokes SRS components. • We received the model of periodical QPM Raman media in which the efficiency of multiwave anti-Stokes generation reached ~40%. • We determined that high precision of passive layers length of periodical QPM structure in hydrogen is required due to strongly influence of layers length error on anti-Stokes SRS generation efficiency. • In barium nitrate it is possible to realize periodical structure for efficient generation of 3 Stokes and 3 Anti-Stokes SRS components. Conclusion 11

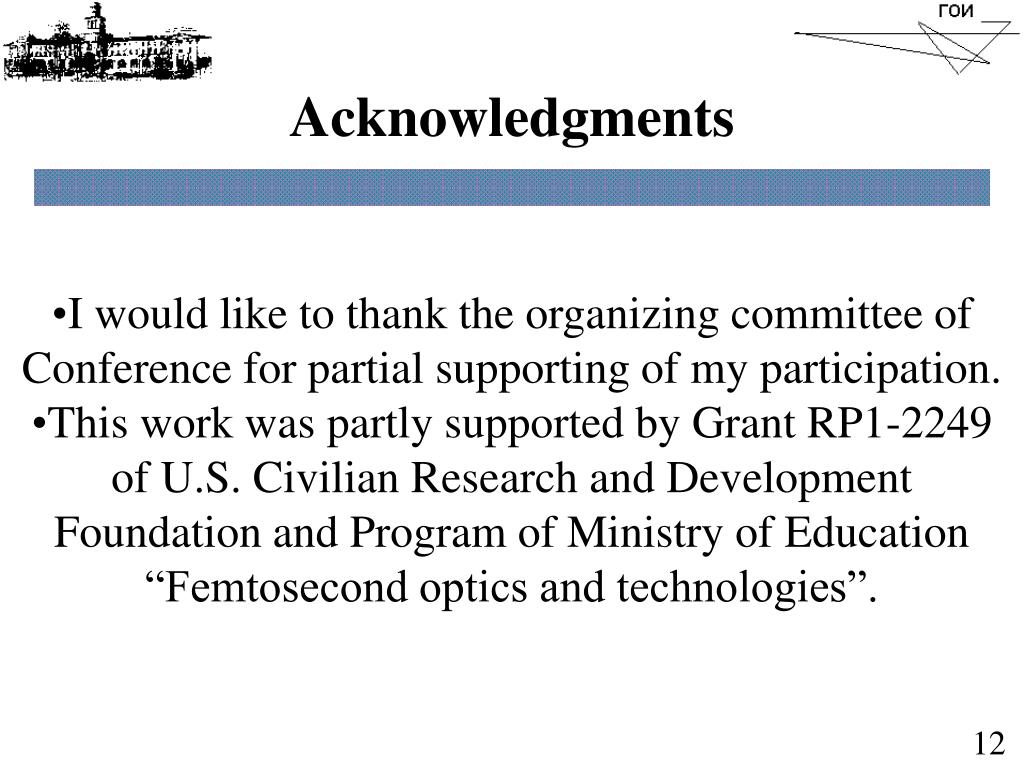

12. Acknowledgments • I would like to thank the organizing committee of Conference for partial supporting of my participation. • This work was partly supported by Grant RP1-2249 of U.S. Civilian Research and Development Foundation and Program of Ministry of Education “Femtosecond optics and technologies”. 12
