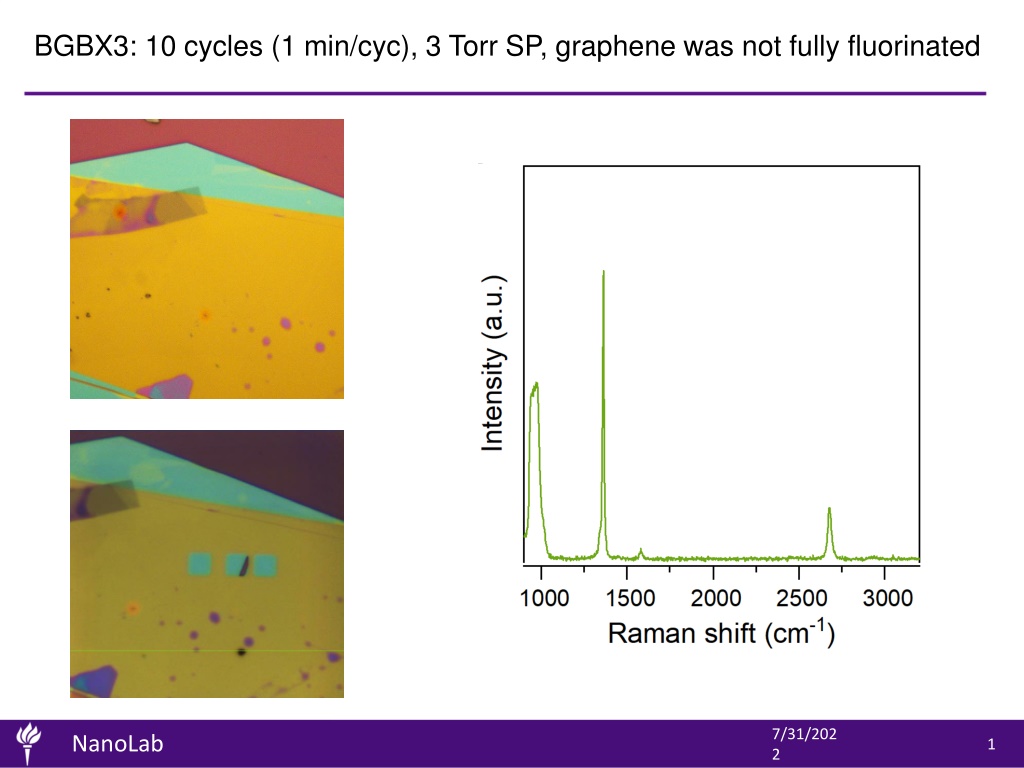

  1. BGBX3: 10 cycles (1 min/cyc), 3 Torr SP, graphene was not fully fluorinated

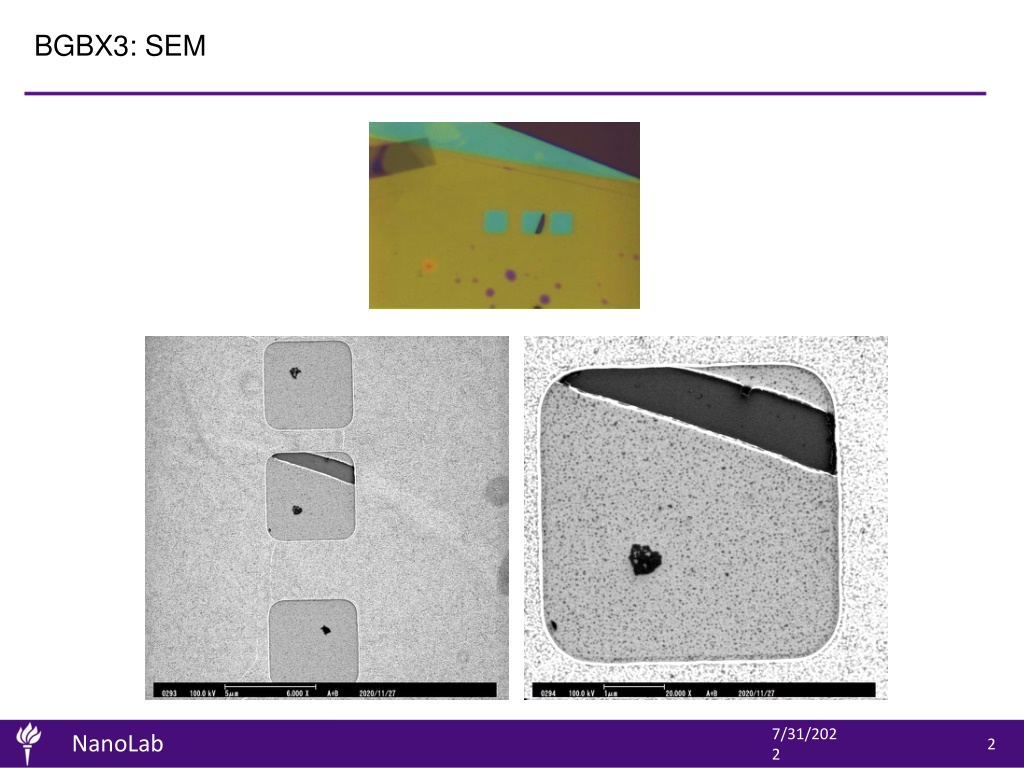

  2. BGBX3: SEM

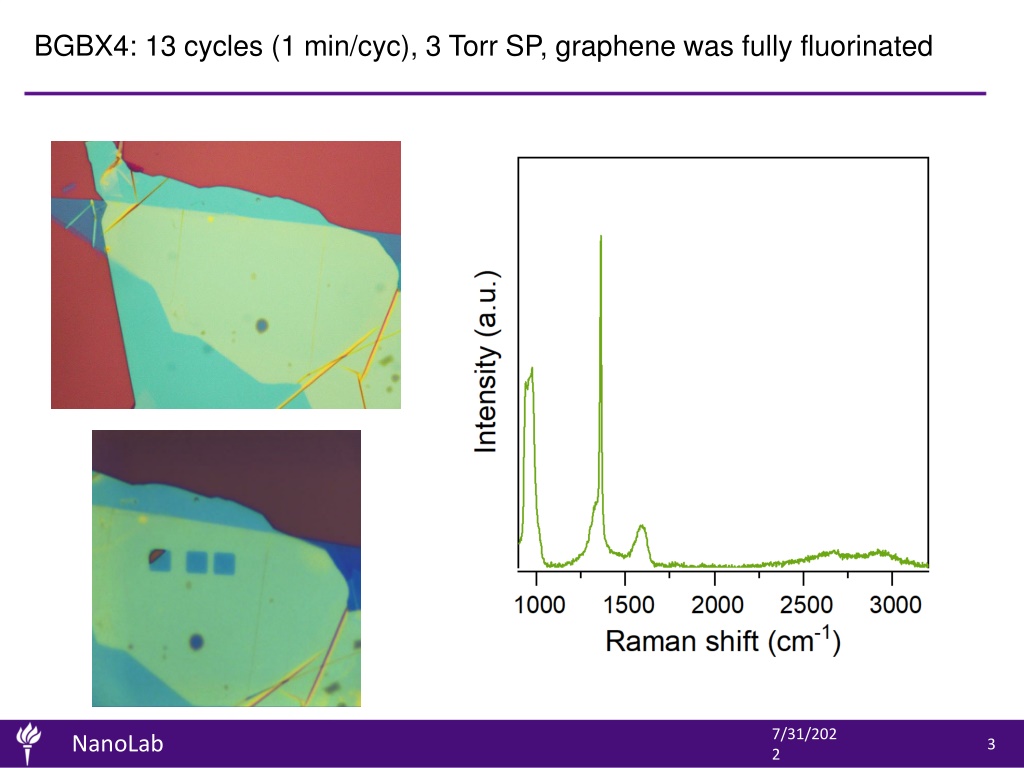

  3. BGBX4: 13 cycles (1 min/cyc), 3 Torr SP, graphene was fully fluorinated

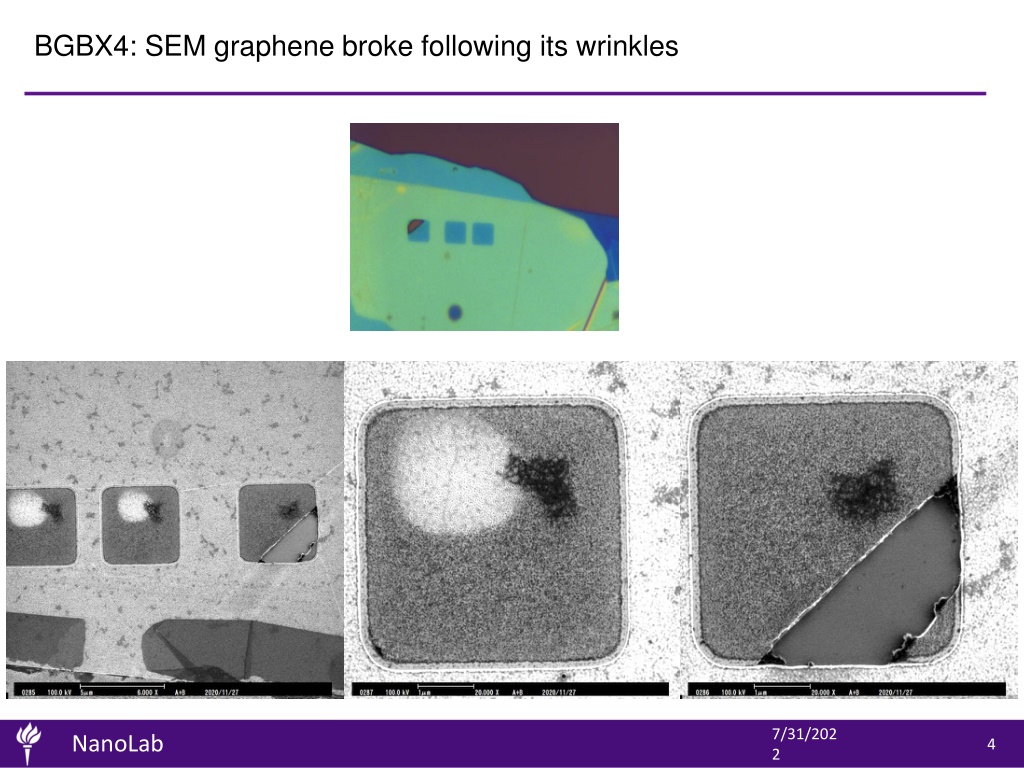

  4. BGBX4: SEM graphene broke following its wrinkles

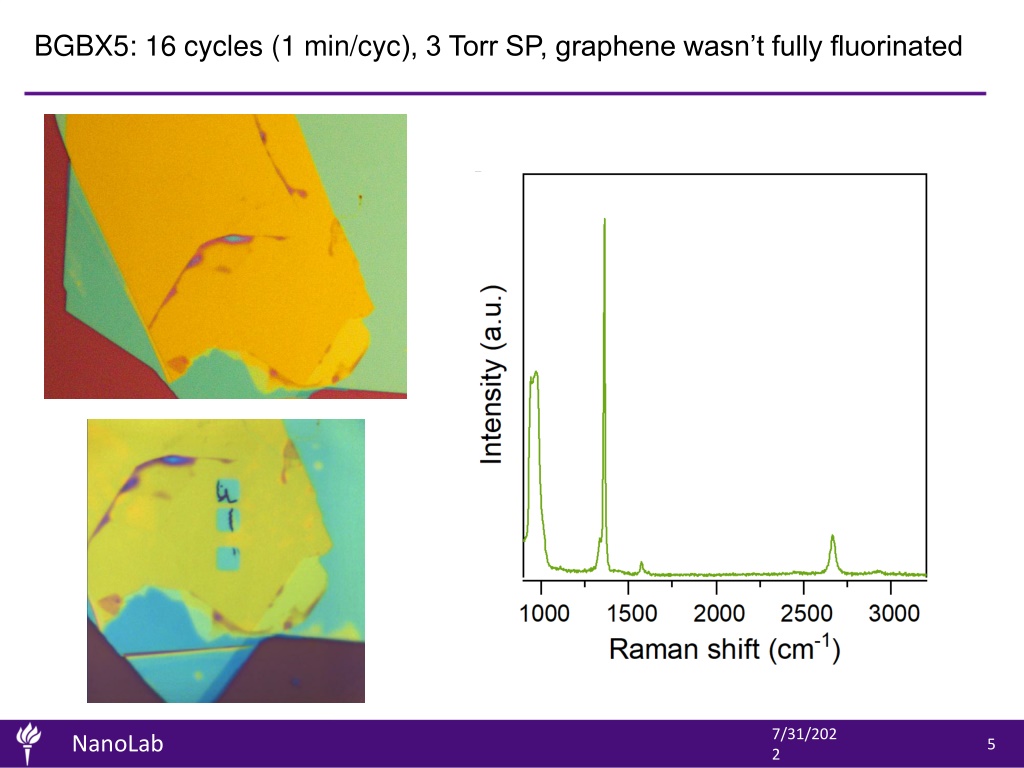

  5. BGBX5: 16 cycles (1 min/cyc), 3 Torr SP, graphene wasn’t fully fluorinated

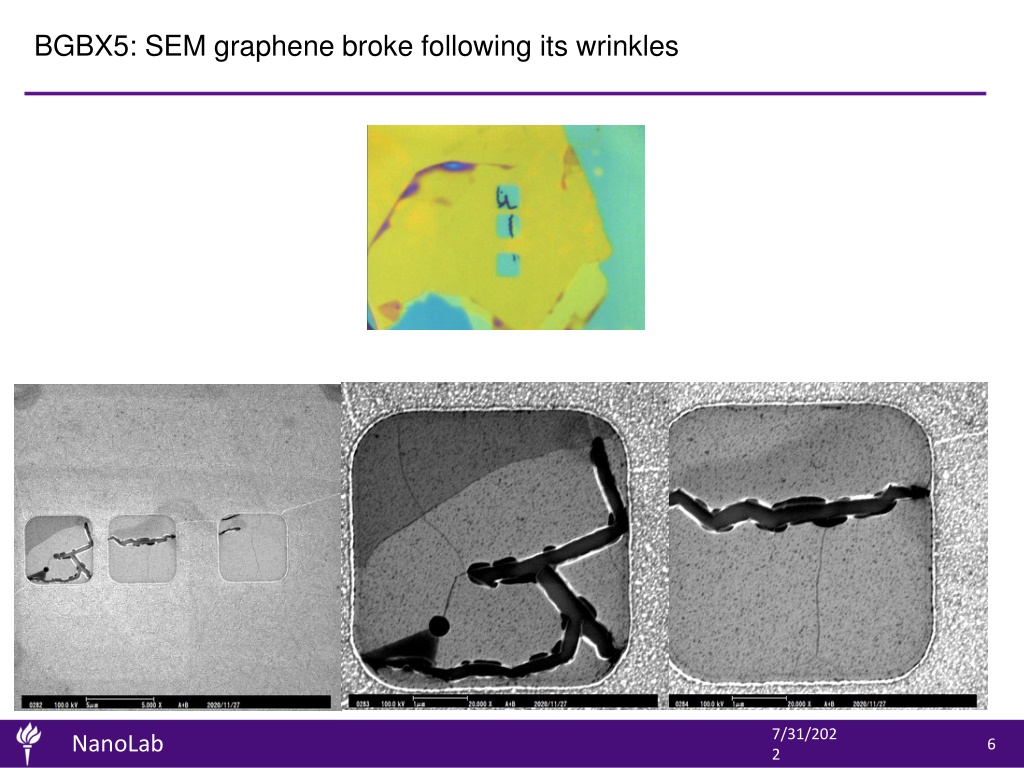

  6. BGBX5: SEM graphene broke following its wrinkles

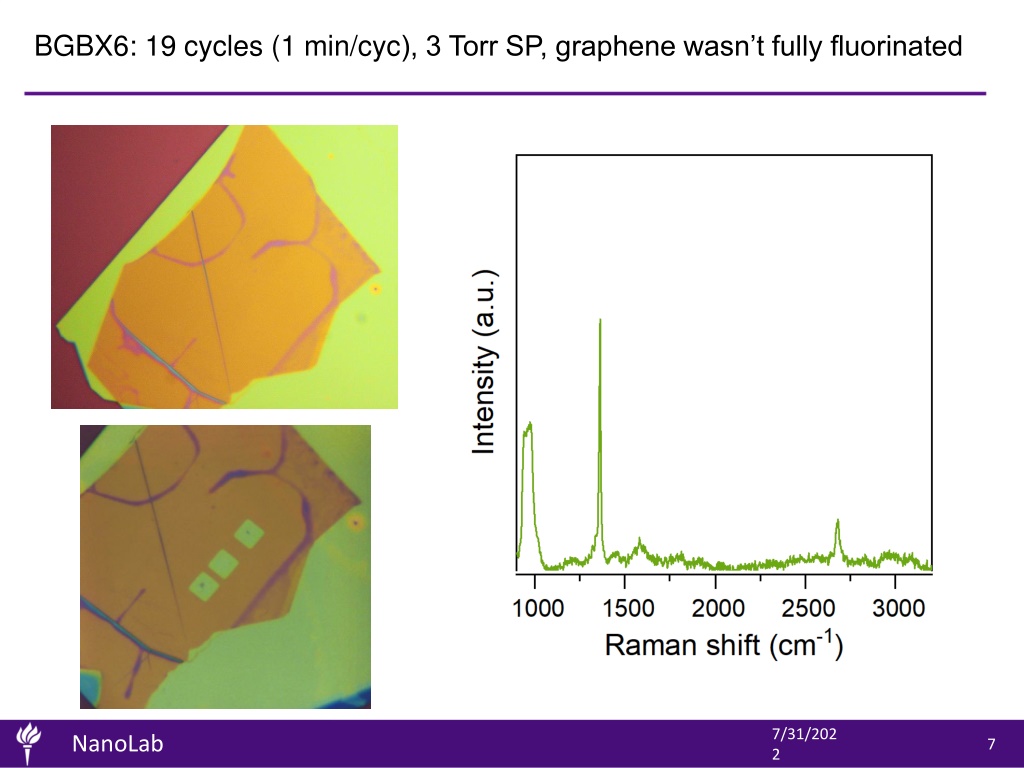

  7. BGBX6: 19 cycles (1 min/cyc), 3 Torr SP, graphene wasn’t fully fluorinated

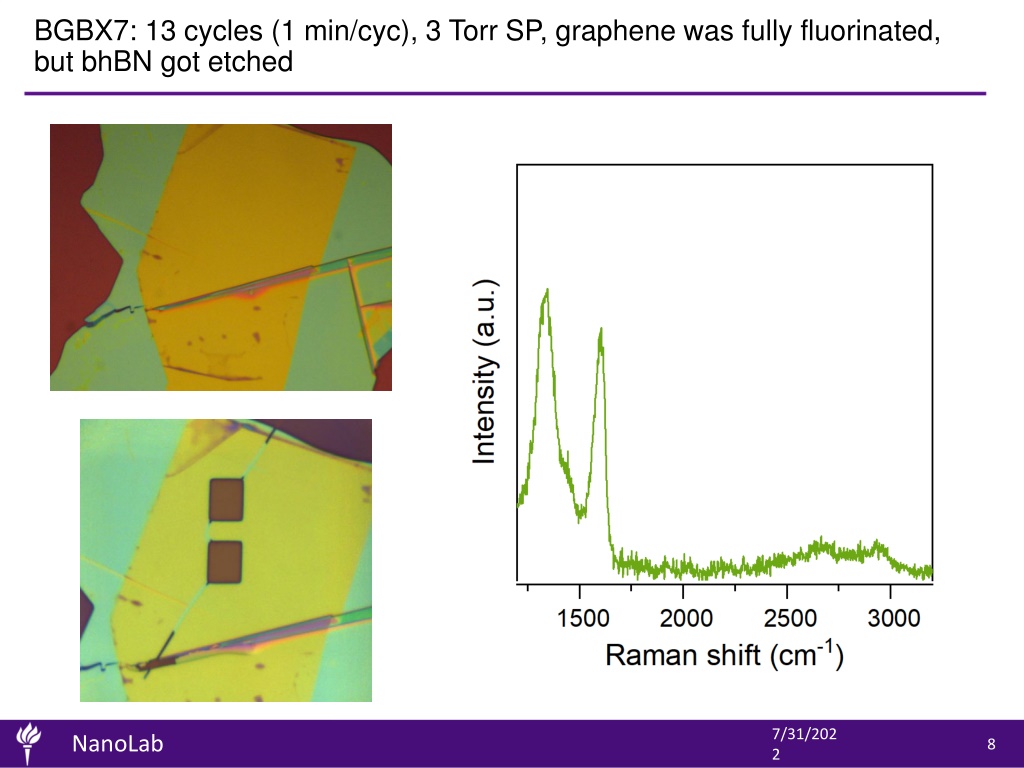

  8. BGBX7: 13 cycles (1 min/cyc), 3 Torr SP, graphene was fully fluorinated, but bhBN got etched

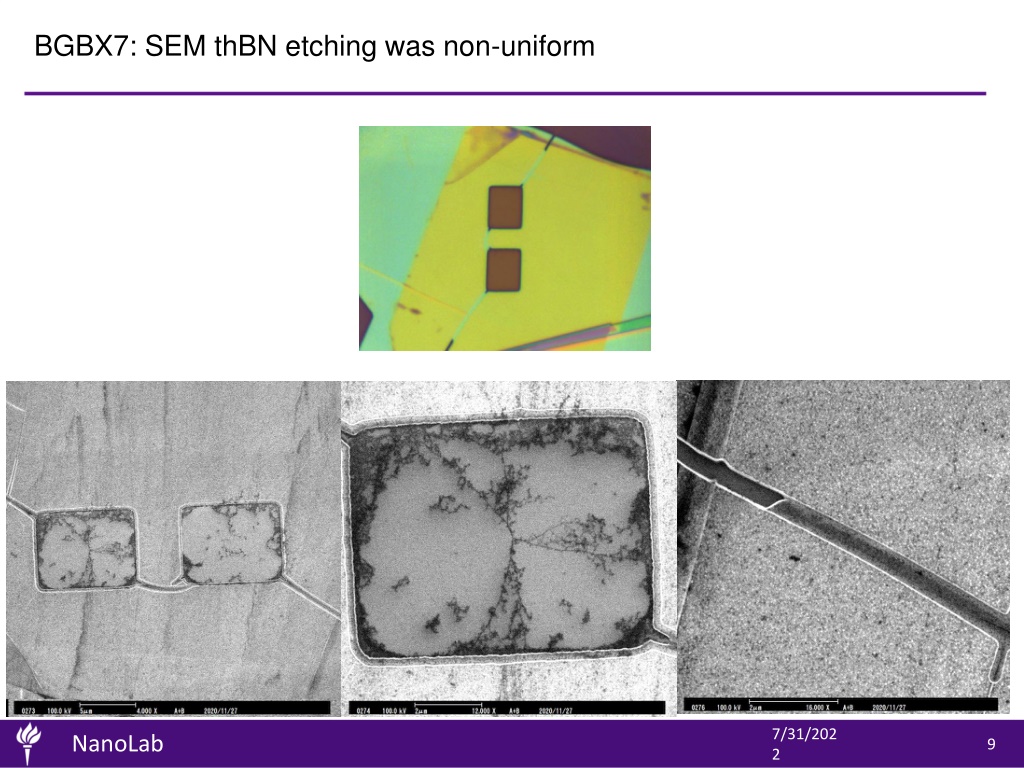

  9. BGBX7: SEM thBN etching was non-uniform

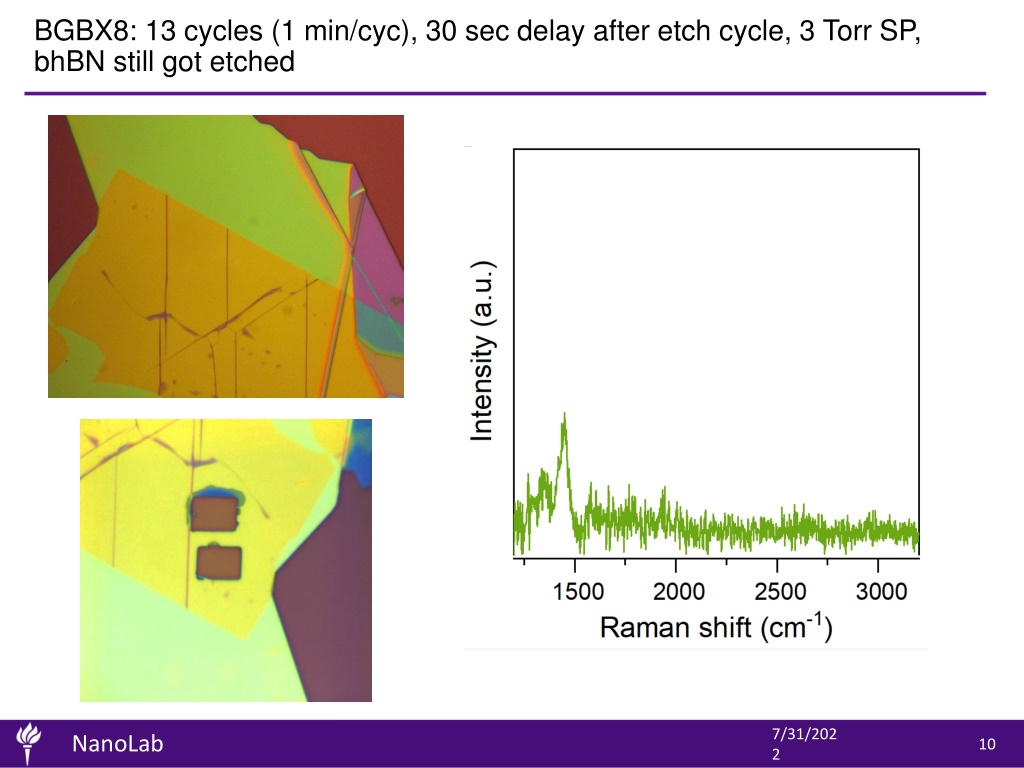

  10. BGBX8: 13 cycles (1 min/cyc), 30 sec delay after etch cycle, 3 Torr SP, bhBN still got etched

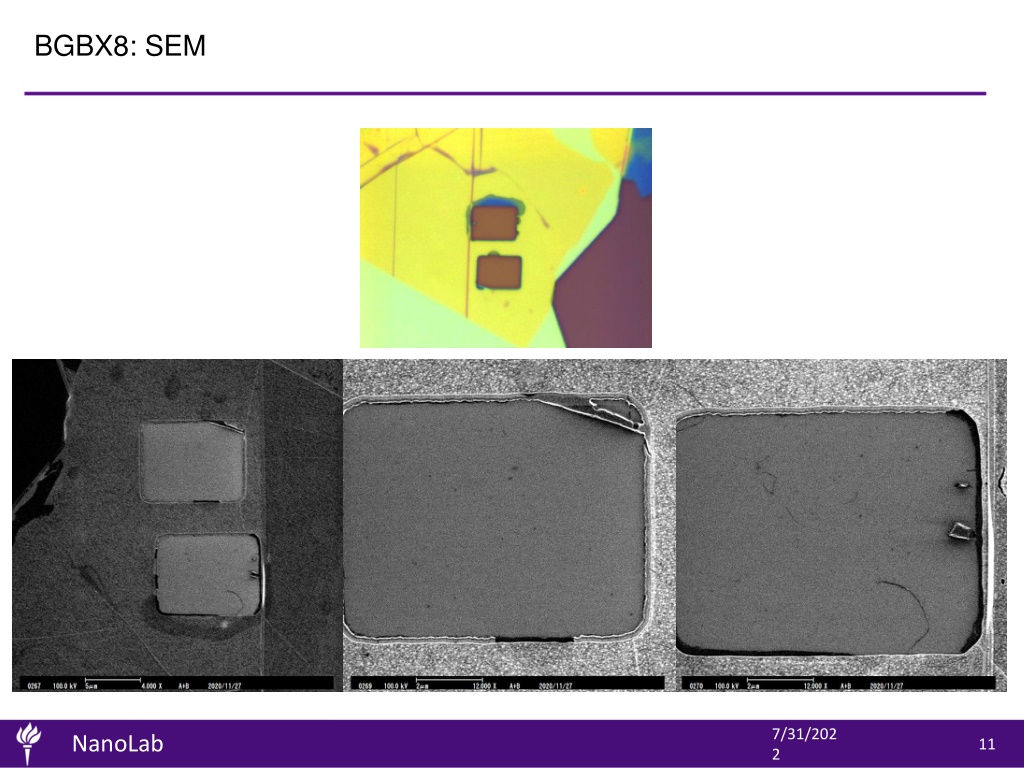

  11. BGBX8: SEM

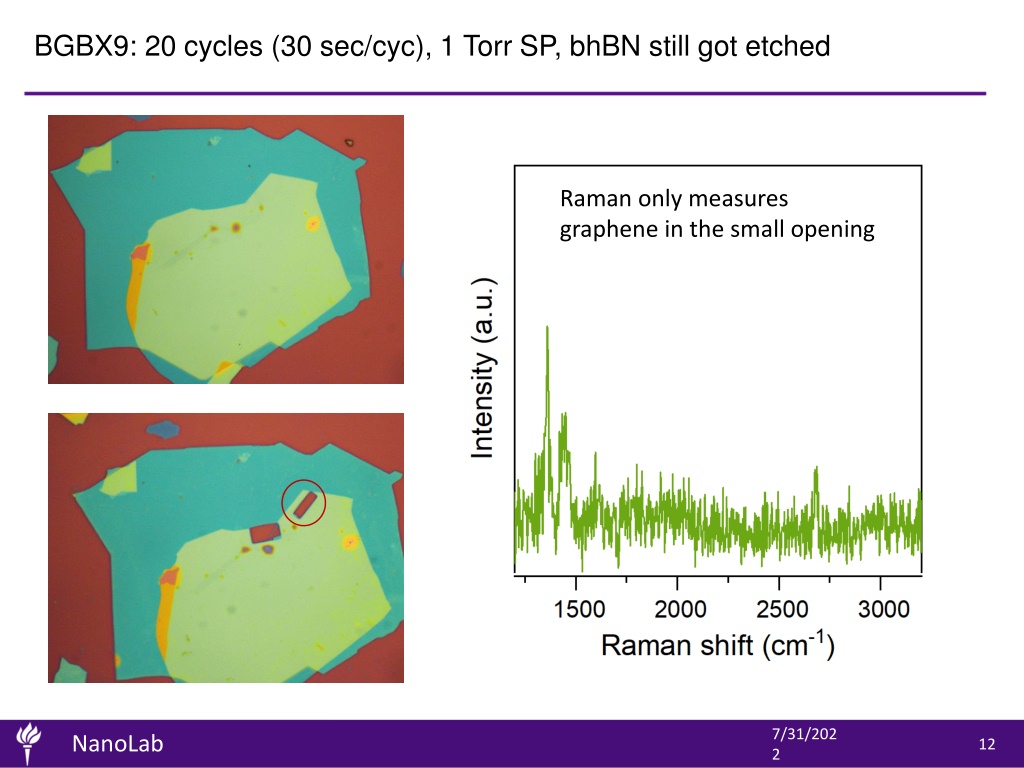

  12. BGBX9: 20 cycles (30 sec/cyc), 1 Torr SP, bhBN still got etched Raman only measures graphene in the small opening

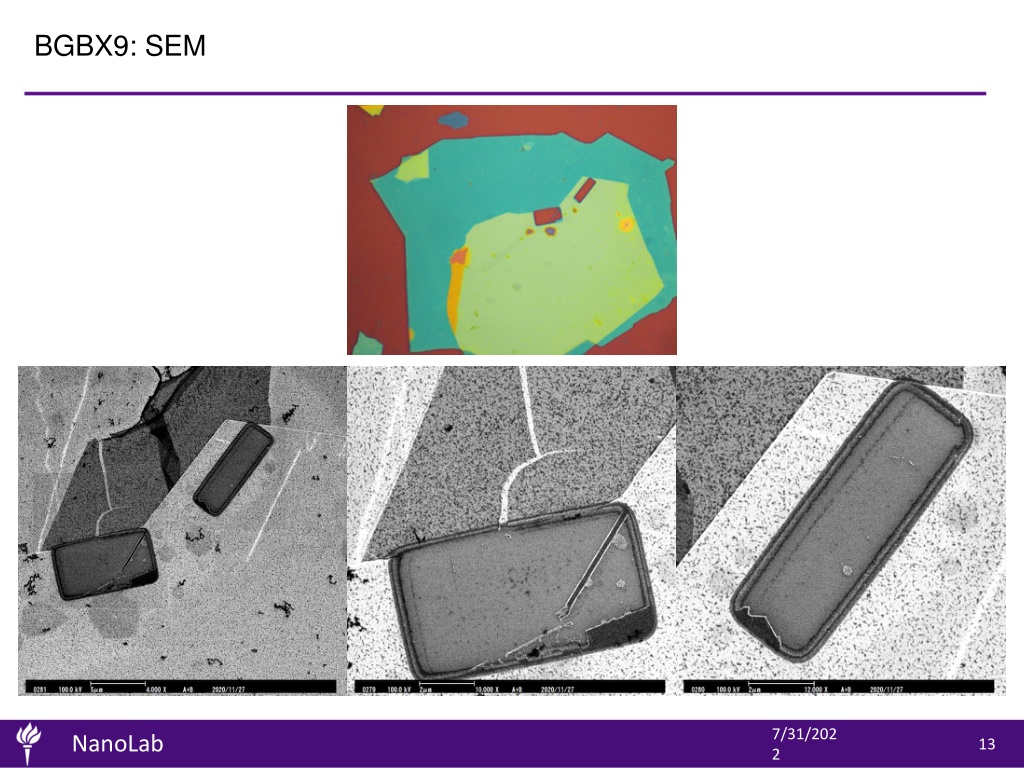

  13. BGBX9: SEM

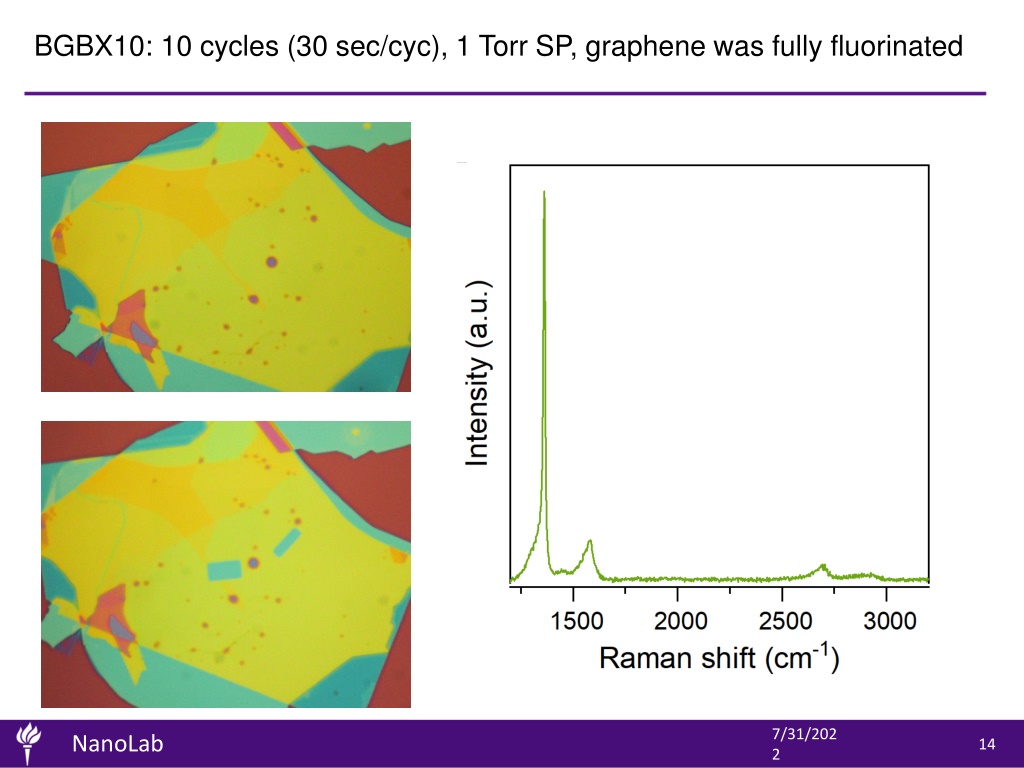

  14. BGBX10: 10 cycles (30 sec/cyc), 1 Torr SP, graphene was fully fluorinated

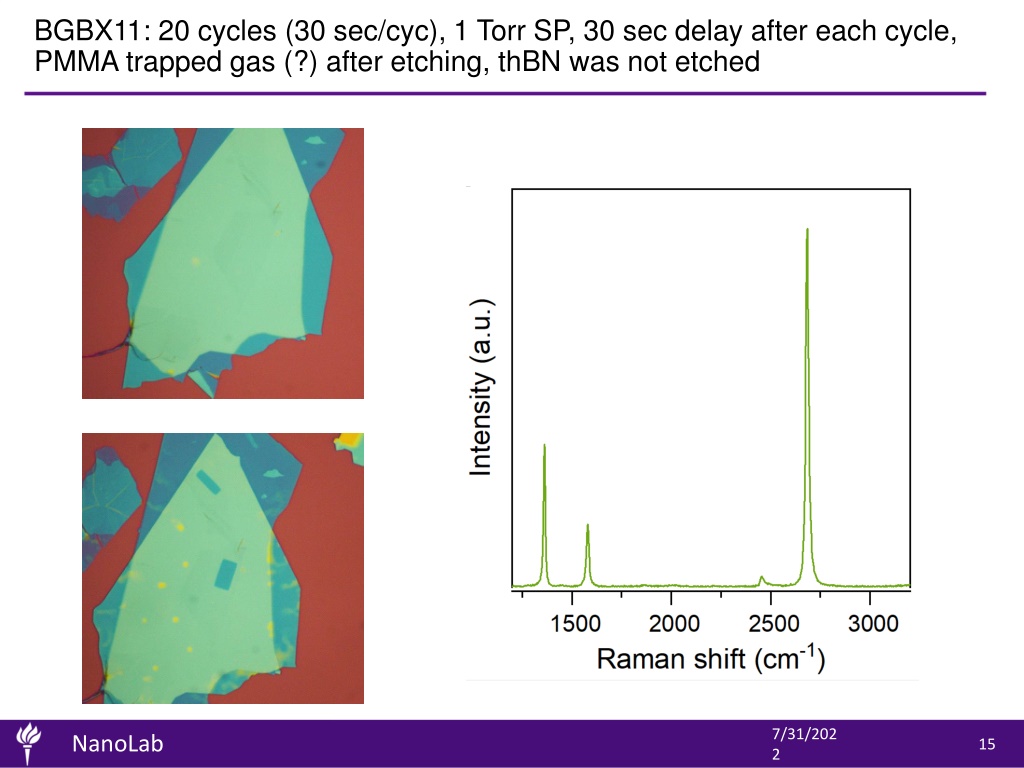

  15. BGBX11: 20 cycles (30 sec/cyc), 1 Torr SP, 30 sec delay after each cycle, PMMA trapped gas (?) after etching, thBN was not etched

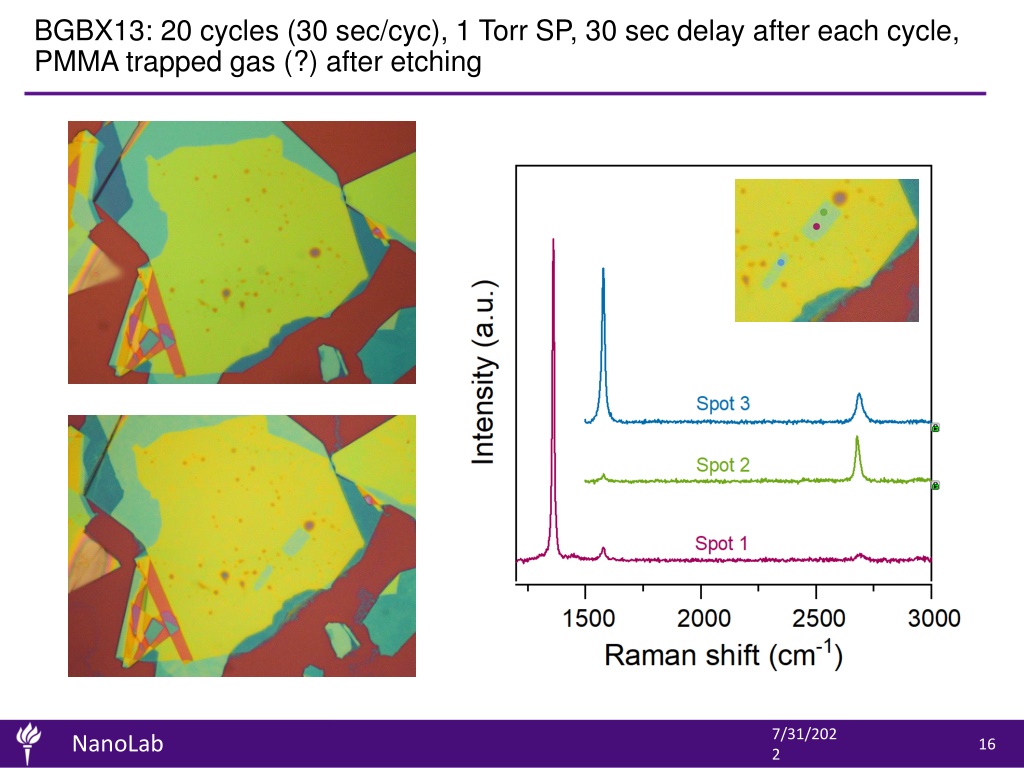

  16. BGBX13: 20 cycles (30 sec/cyc), 1 Torr SP, 30 sec delay after each cycle, PMMA trapped gas (?) after etching

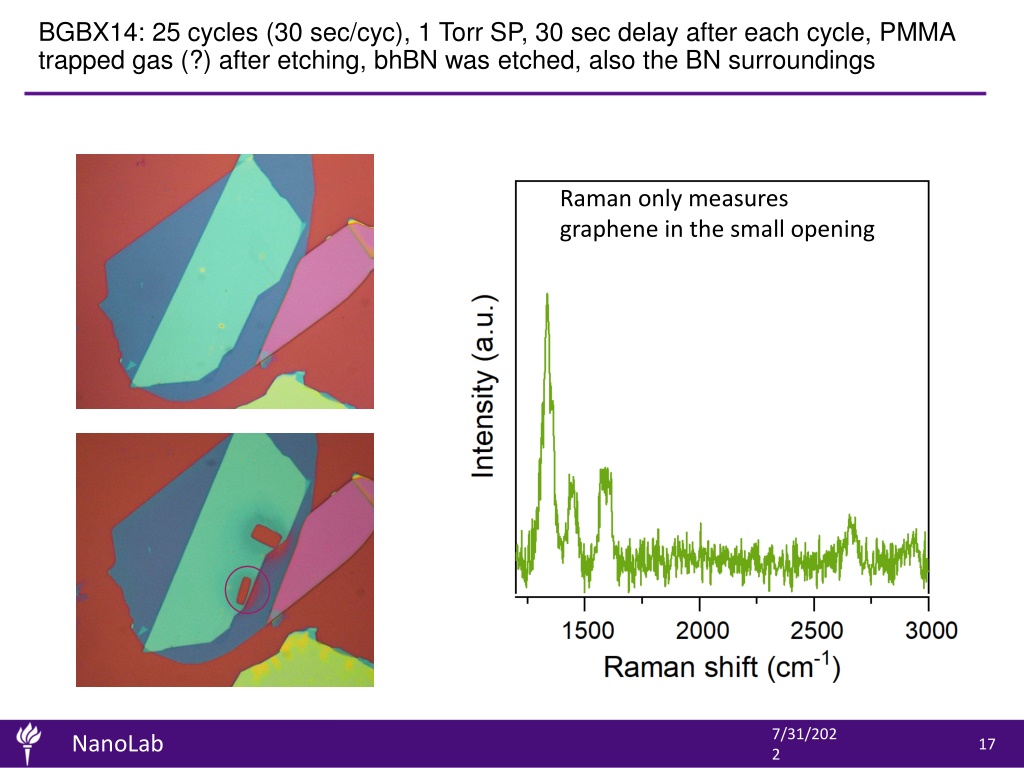

  17. BGBX14: 25 cycles (30 sec/cyc), 1 Torr SP, 30 sec delay after each cycle, PMMA trapped gas (?) after etching, bhBN was etched, also the BN surroundings Raman only measures graphene in the small opening

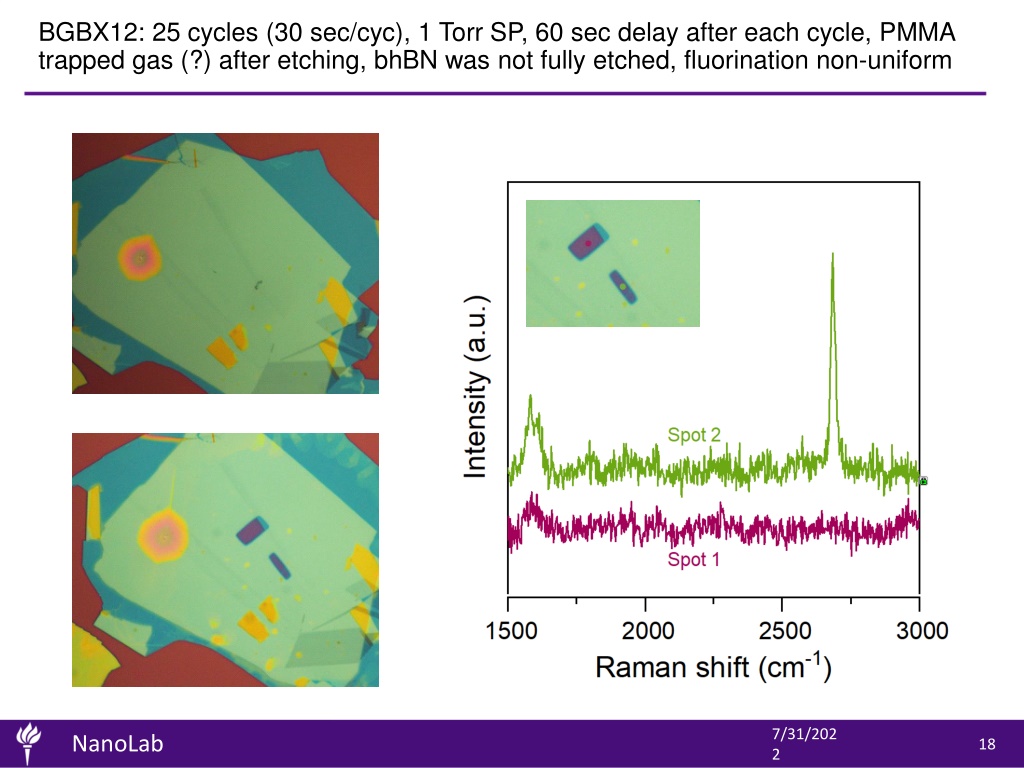

  18. BGBX12: 25 cycles (30 sec/cyc), 1 Torr SP, 60 sec delay after each cycle, PMMA trapped gas (?) after etching, bhBN was not fully etched, fluorination non-uniform

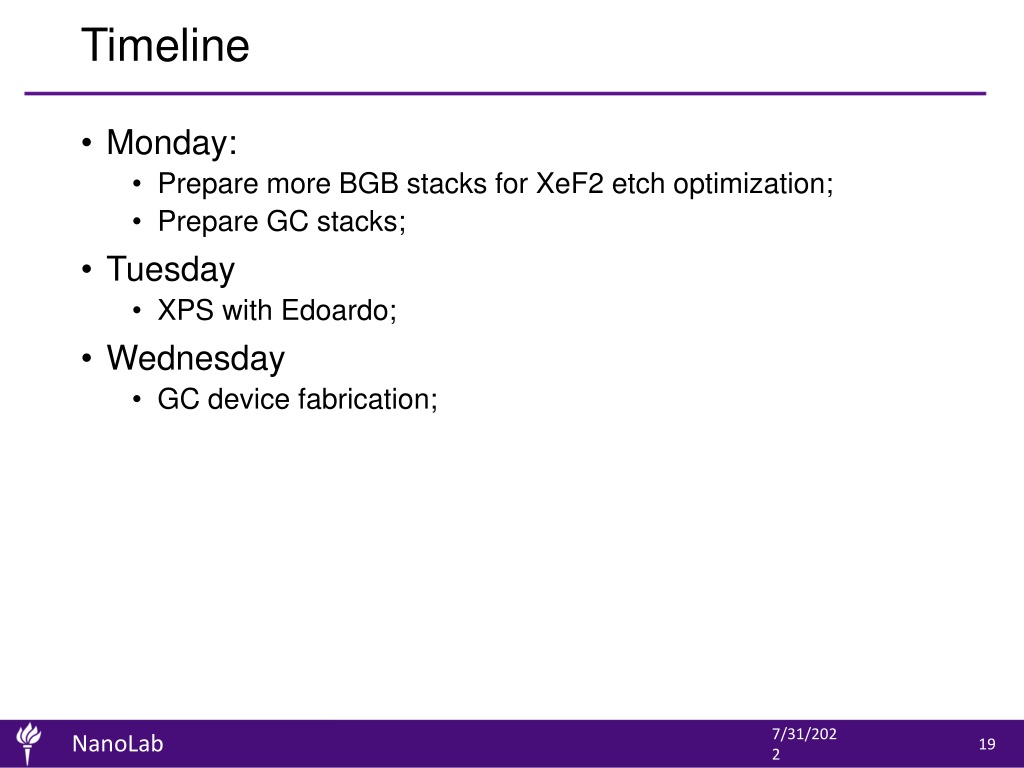

  19. Timeline • Monday: • Prepare more BGB stacks for XeF2 etch optimization; • Prepare GC stacks; • Tuesday • XPS with Edoardo; • Wednesday • GC device fabrication;
