Revisions to Chapter 2D – Guide Signs for Conventional Roads. Option to use all upper-case letters for place names and street names is deleted. Guide signs should have no more than 3 lines of destination info. Provisions for use of pictographs on guide signs.

loader
I am the owner, or an agent authorized to act on behalf of the owner, of the copyrighted work described.
capcha
Download Presentation

PowerPoint Slideshow about 'Revisions to Chapter 2D – Guide Signs for Conventional Roads' - donkor


An Image/Link below is provided (as is) to download presentation

Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author.While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server.


- - - - - - - - - - - - - - - - - - - - - - - - - - E N D - - - - - - - - - - - - - - - - - - - - - - - - - -

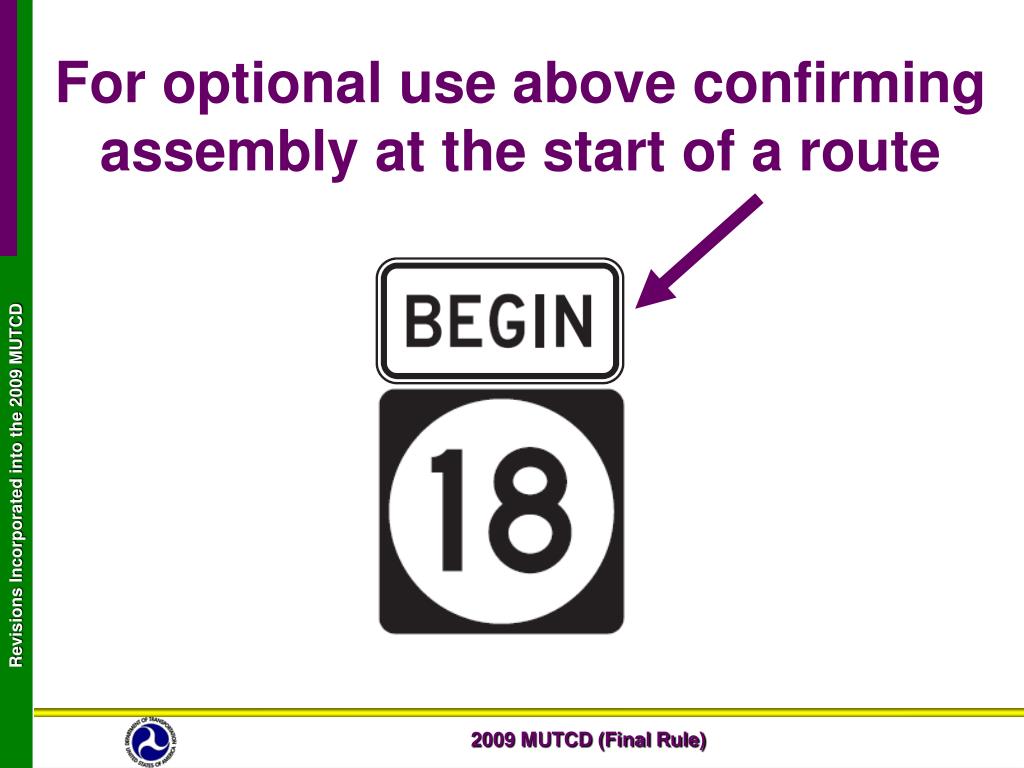

Presentation Transcript
option to use all upper case letters for place names and street names is deleted
Option to use all upper-case letters for place names and street names is deleted
provisions for use of pictographs on guide signs
Provisions for use of pictographs on guide signs

Exceeds maximum size, not official seal

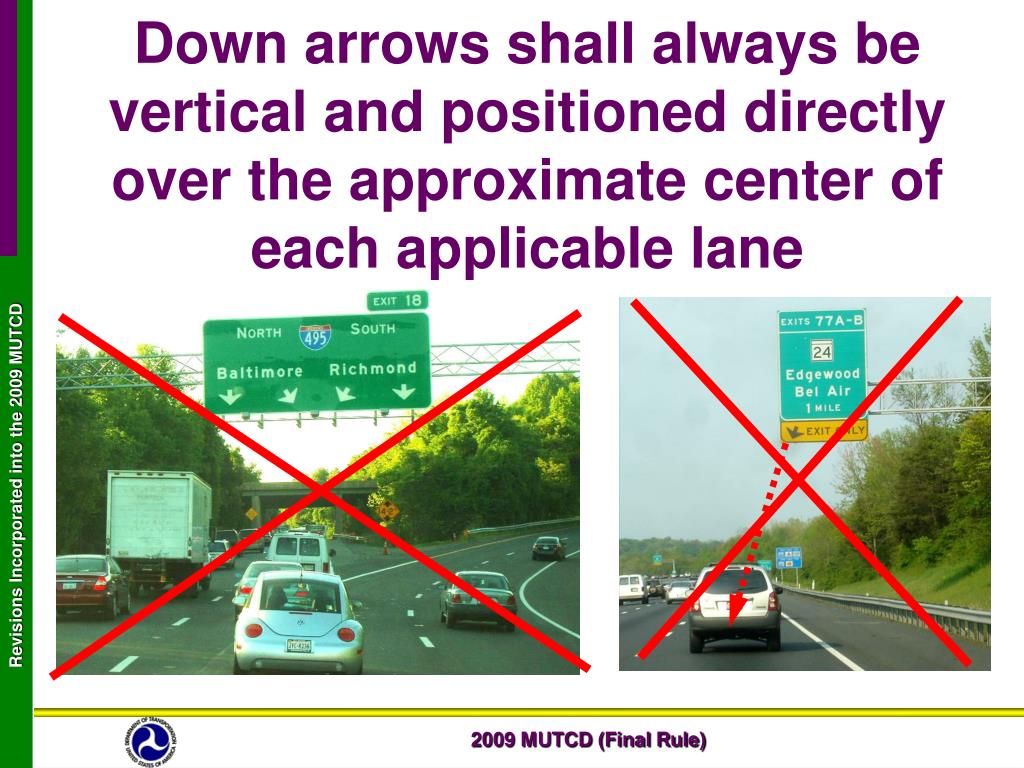

slide5
Down arrows shall always be vertical and positioned directly over the approximate center of each applicable lane
lane designation auxiliary signs

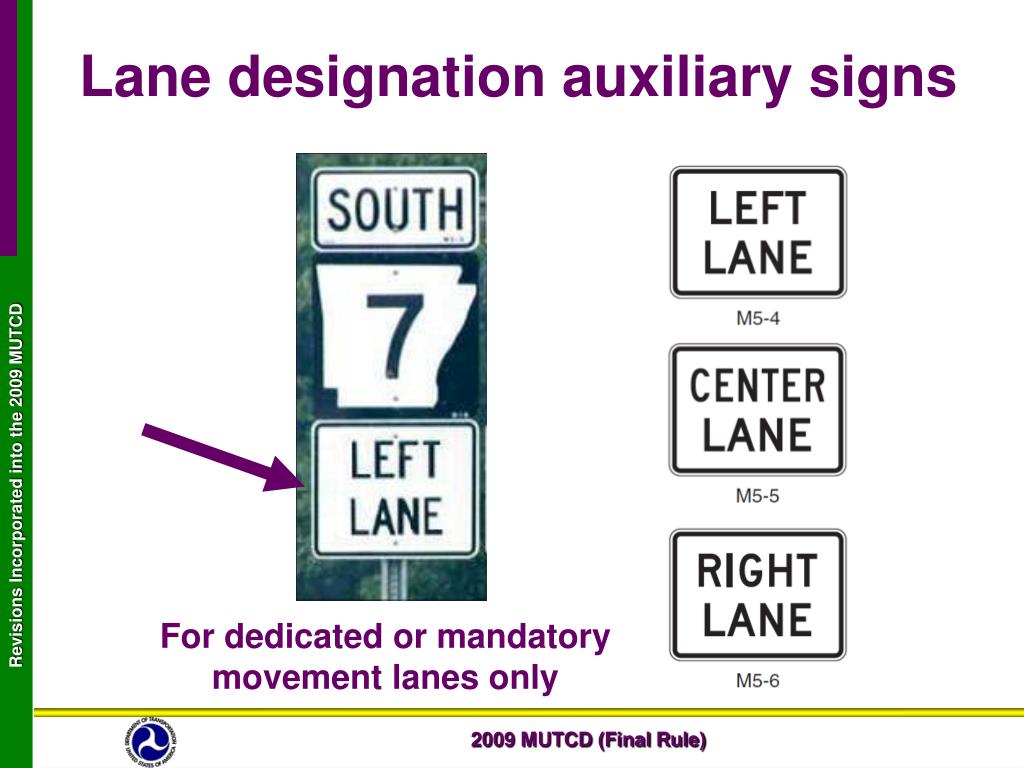

Lane designation auxiliary signs

For dedicated or mandatory movement lanes only

only alternatives to the green background color for street name signs are blue brown or white
Only alternatives to the green background color for Street Name signs are blue, brown, or white*

* A black legend shall be used if a white background is used, otherwise the legend color shall be white

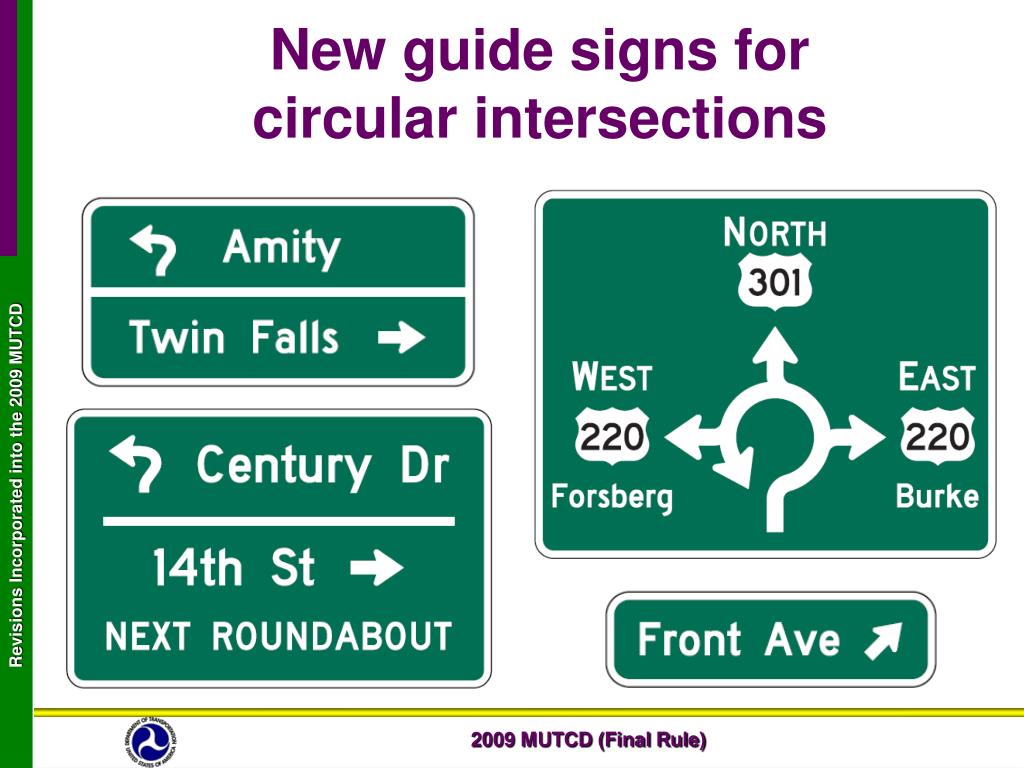

slide16

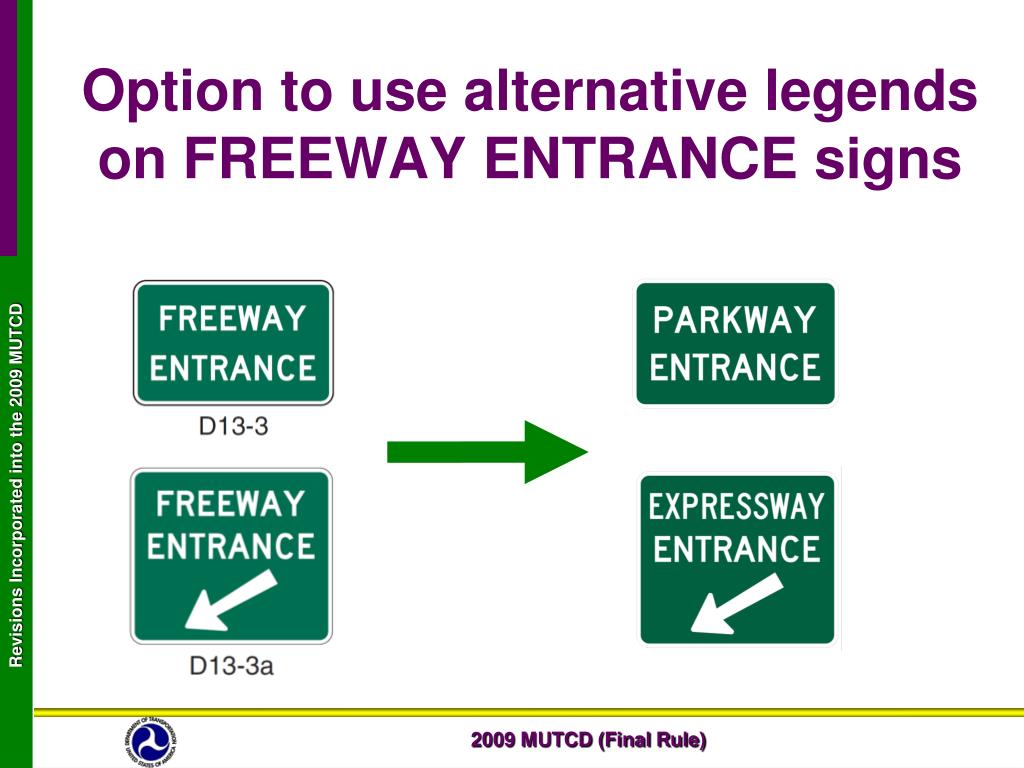

On multi-lane conventional road approaches to interchanges, guide signs identifying the direction of turn or lane to use for each ramp shall be provided

new provisions for the design and use of community wayfinding guide signs

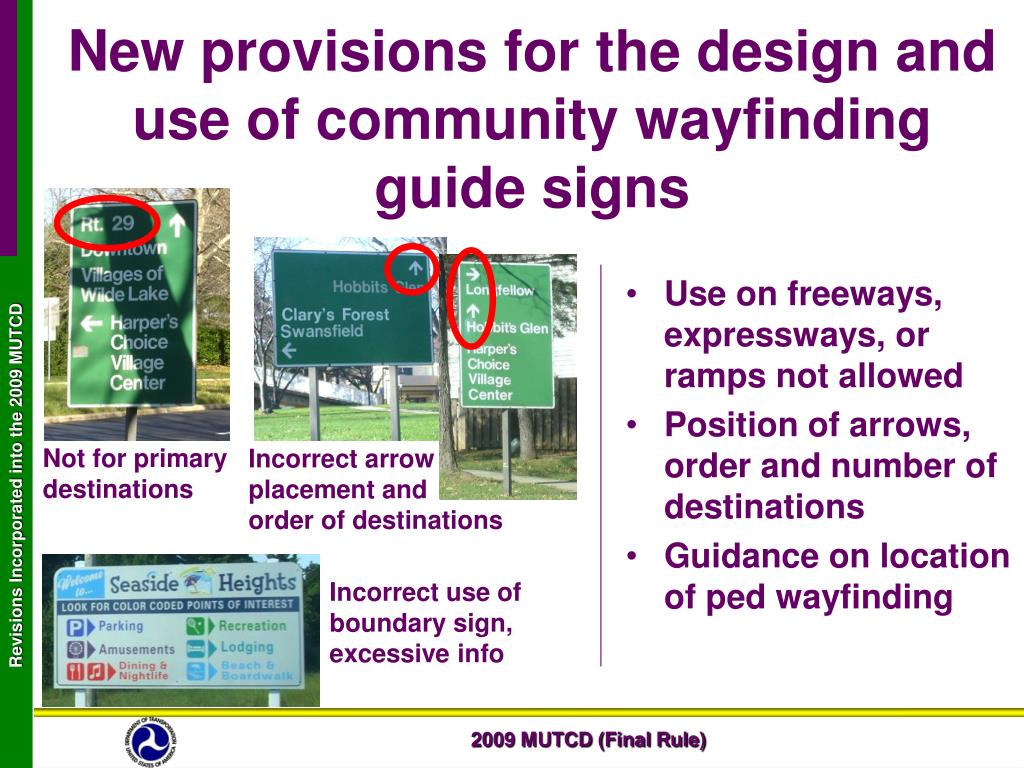

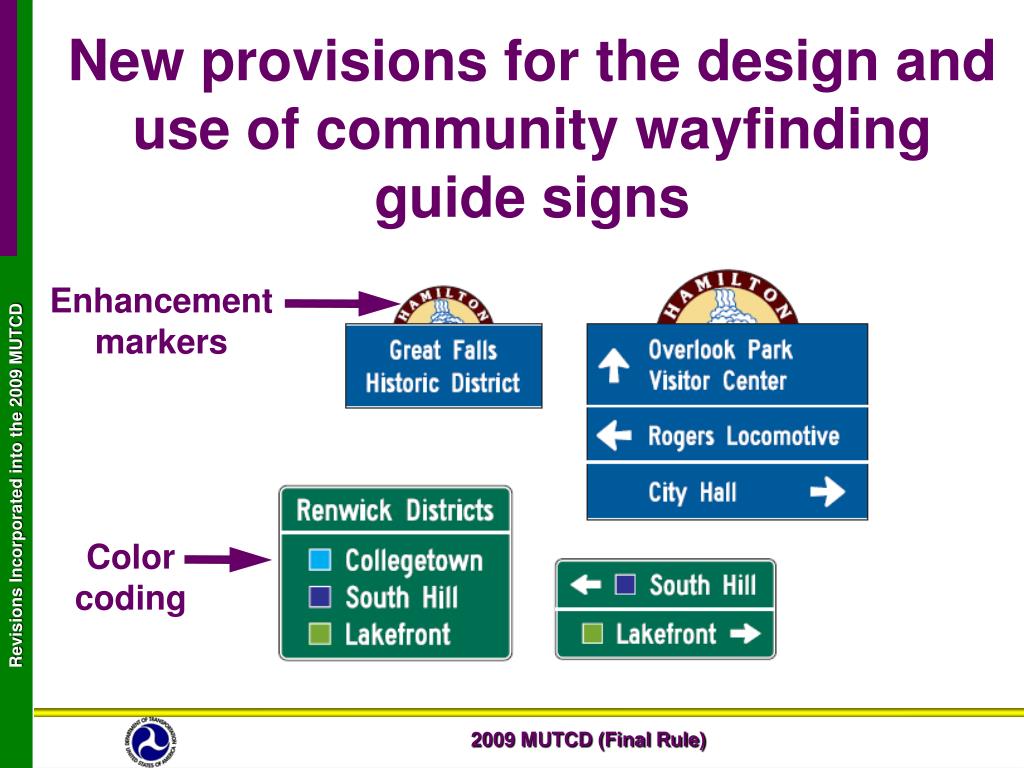

New provisions for the design and use of community wayfindingguide signs

Enhancement markers

Color coding

new provisions for the design and use of community wayfinding guide signs1
New provisions for the design and use of community wayfindingguide signs
  • Use on freeways, expressways, or ramps not allowed
  • Position of arrows, order and number of destinations
  • Guidance on location of ped wayfinding

Not for primary destinations

Incorrect arrow placement andorder of destinations

Incorrect use of boundary sign, excessive info
