Glaciers as records of climate

Glaciers as records of climate. Ice cores: Detailed records of temperature, precipitation, volcanic eruptions Go back hundred of thousands years. Past climate reconstructions. Instrumental records Global air temperature: limited records Proxy records of climate

donkor
Download Presentation

Glaciers as records of climate

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. Glaciers as records of climate • Ice cores: • Detailed records of temperature, precipitation, volcanic eruptions • Go back hundred of thousands years

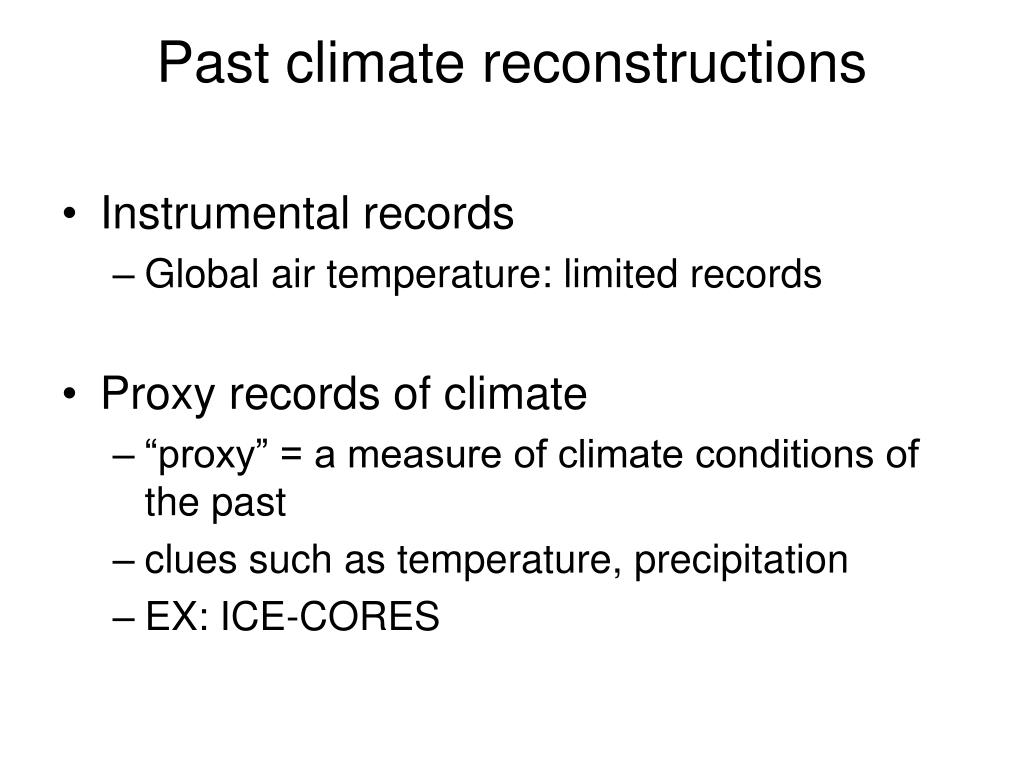

  2. Past climate reconstructions • Instrumental records • Global air temperature: limited records • Proxy records of climate • “proxy” = a measure of climate conditions of the past • clues such as temperature, precipitation • EX: ICE-CORES

  3. Global temperature- instrumental record

  4. Global temperature- reconstructed

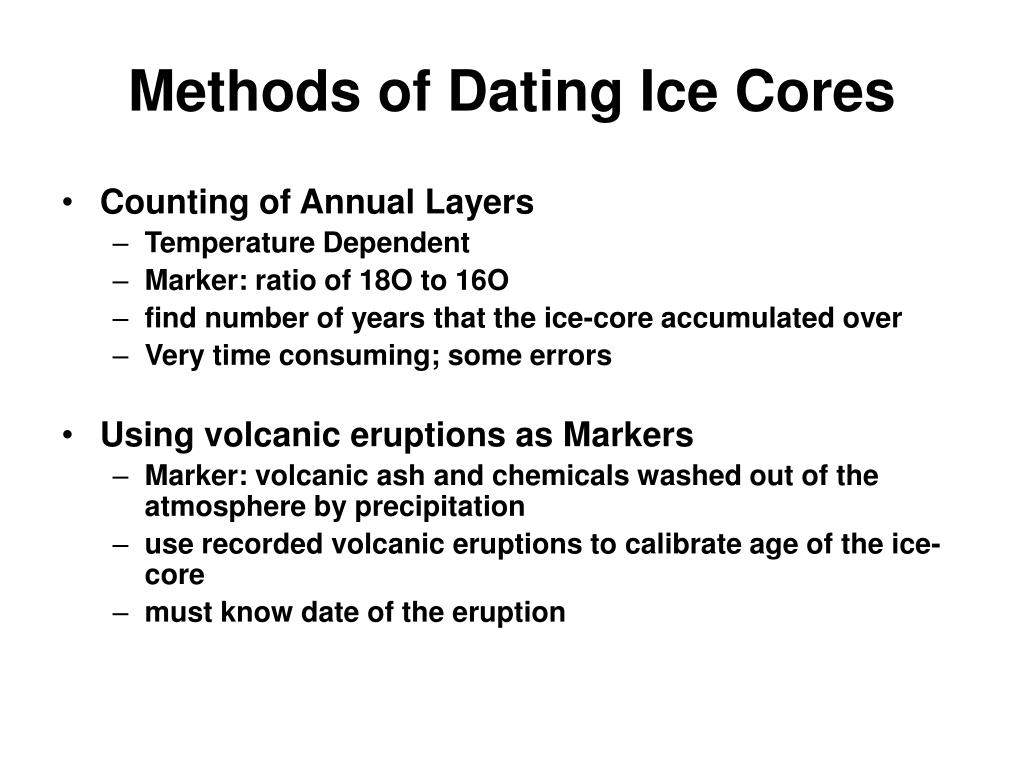

  5. Methods of Dating Ice Cores • Counting of Annual Layers • Temperature Dependent • Marker: ratio of 18O to 16O • find number of years that the ice-core accumulated over • Very time consuming; some errors • Using volcanic eruptions as Markers • Marker: volcanic ash and chemicals washed out of the atmosphere by precipitation • use recorded volcanic eruptions to calibrate age of the ice-core • must know date of the eruption

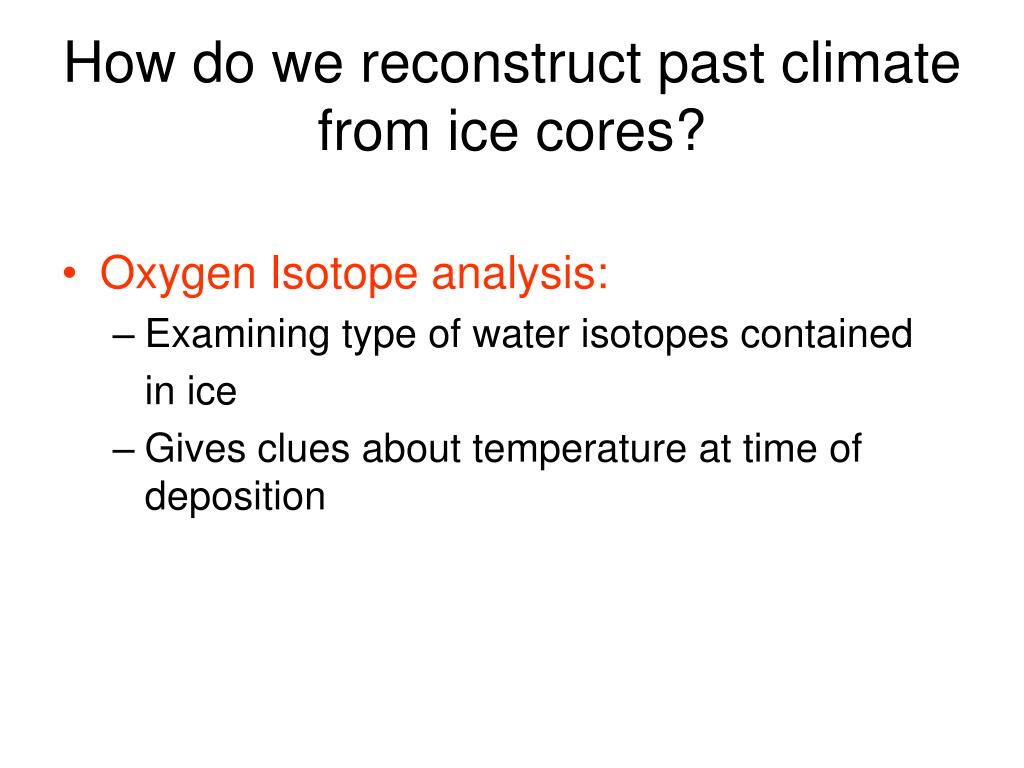

  6. How do we reconstruct past climate from ice cores? • Oxygen Isotope analysis: • Examining type of water isotopes contained in ice • Gives clues about temperature at time of deposition

  7. Isotopes Defined Isotope = atoms of the same element with a different number of neutrons (different mass) Example: Oxygen Isotopes

  8. Stable Isotopes 16O (Light Element) 18O (Heavy Element) Chemical and Biological processes can sort the light elements from the heavy elements Fractionation Change in d18O value

  9. Oxygen isotopes • Three isotopes: 18O,17O and 16O • Important isotopes: 18O and 16O • Modern 18O/16O ratio: • 1:500

  10. Isotopic change • Evaporation: lighter 16O evaporates more easily from a water body resulting atmospheric H2O vapor is poorer in 18O than oceanic water • Condensation: heavier 18O are precipitated faster than lighter 16O; • So: coldest snow is lightest (less heavy 18O isotopes, more lighter 16O isotopes)

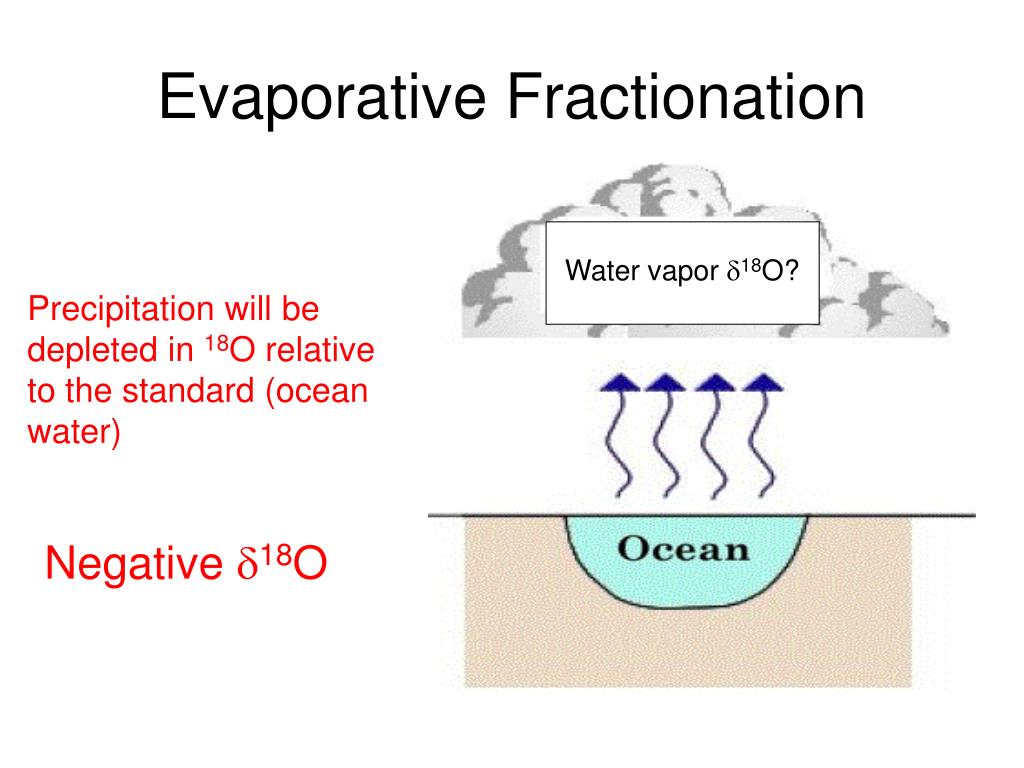

  11. Evaporative Fractionation Water vapor d18O? Precipitation will be depleted in 18O relative to the standard (ocean water) Negative d18O

  12. 18O/16O ratio: “delta 18O” • Stable isotope ratios are expressed as parts per thousand (per mil – ‰) relative to a standard • Ratio expressed as deviation of 18O from the Standard Mean Ocean Water ratio (SMOW)

  13. Delta O18 and temperature • Temperature affects 18O/16O ratio: • colder temperatures  more negative values for the delta 18O • warmer temperatures  delta 18O values that are less negative (closer to the standard ratio of ocean water)

  14. Delta 18O and temperature

  15. Seasonal variations • Summer (warmer) and winter (colder) periods in glacial ice can be observed as long as the delta 18O ratio is locked into the ice

  16. Continental effect

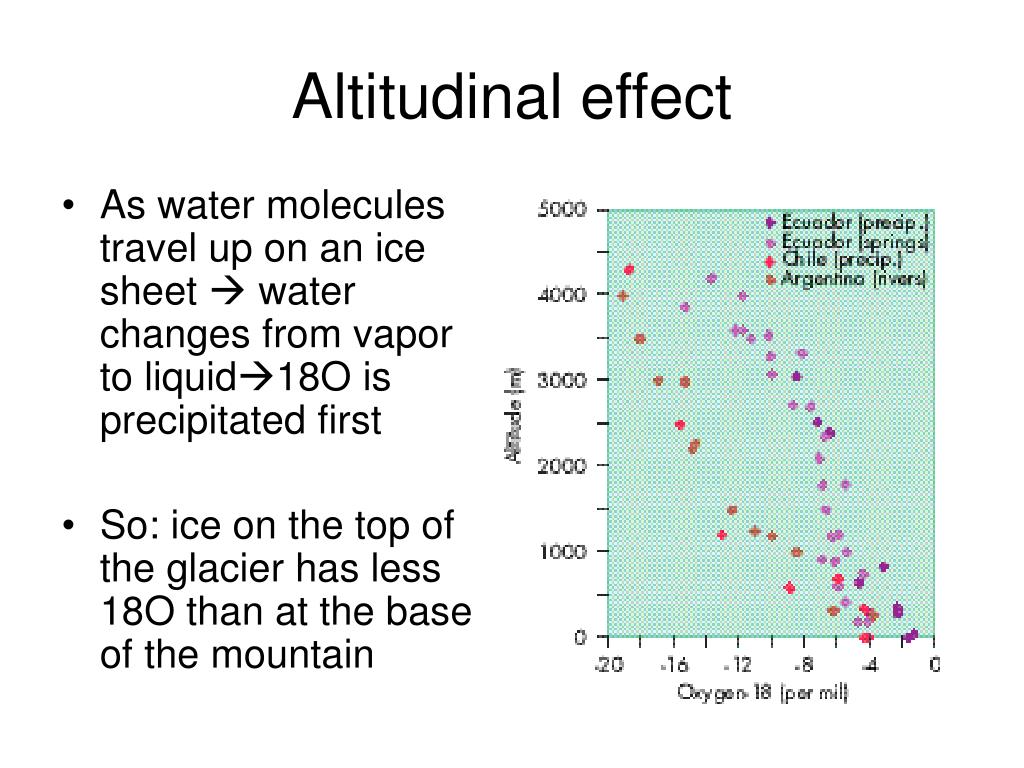

  17. Altitudinal effect • As water molecules travel up on an ice sheet  water changes from vapor to liquid18O is precipitated first • So: ice on the top of the glacier has less 18O than at the base of the mountain

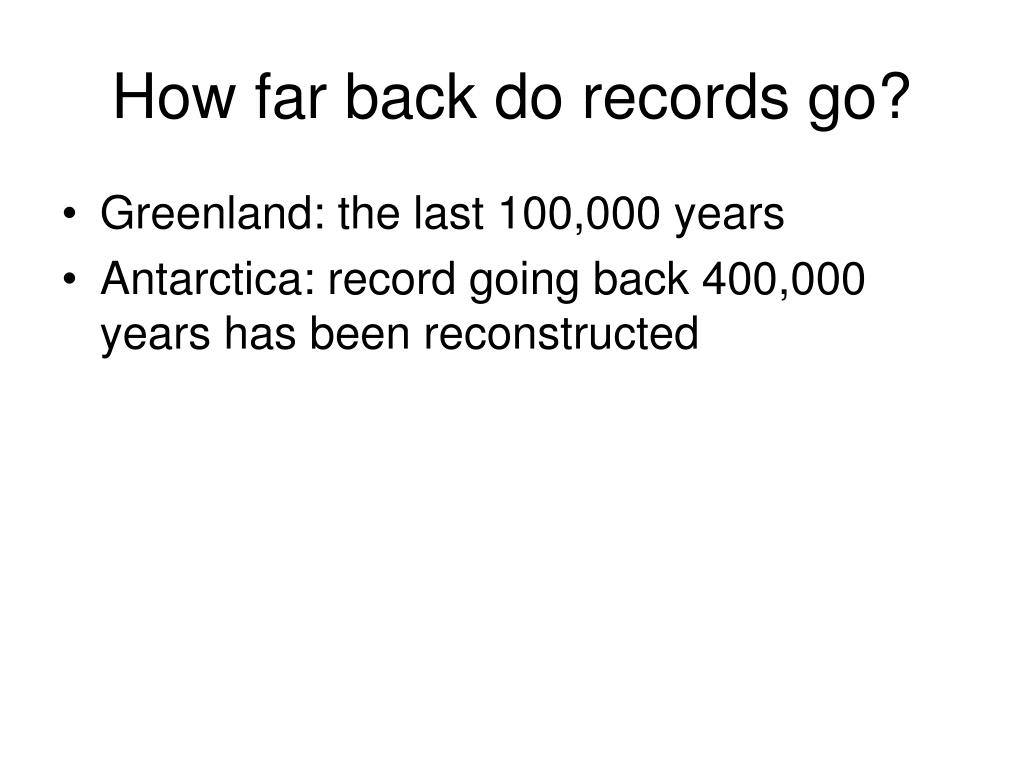

  18. How far back do records go? • Greenland: the last 100,000 years • Antarctica: record going back 400,000 years has been reconstructed

  19. Temperature reconstructed from Greenland Ice core
