land measurement

Land Measurement

Metes and Bounds

and

Public Land Survey

land measurement is needed for
Land Measurement is needed for:
  • Purchase/sale
  • Agricultural crop compliance
  • Taxes
  • Management activities
commonly used length units
Commonly used length units
  • 1 mile = 5280 feet = 80 chains
  • 1 chain = 66 feet = 100 links
  • 1 rod = 16.5 feet
  • 4 rods = 1 chain
commonly used area units
Commonly used area units
  • 1 acre = 43,560 square feet
  • 10 square chains = 1 acre
  • 1 square mile = 640 acres m/l
  • 1 hectare = 10,000 square meters
  • 1 hectare = 2.471 acres
all distance measurement is assumed to be horizontal

All distance measurement is assumed to be horizontal

Distance measured along a slope must be adjusted to horizontal distance

to adjust slope distance must know slope

Elevation change .

% Slope =

Horizontal distance

10 feet

3.5 feet

To adjust slope distance, must know % slope

% slope = 3.5/10

= 0.35 or 35%

adjusting slope distance to horizontal distance
Adjusting slope distance to horizontal distance

(Slope distance)2

Horizontal distance =

(%Slope)2

+ 1

adjusting 1 chain slope to horizontal

(0.35)2

+ 1

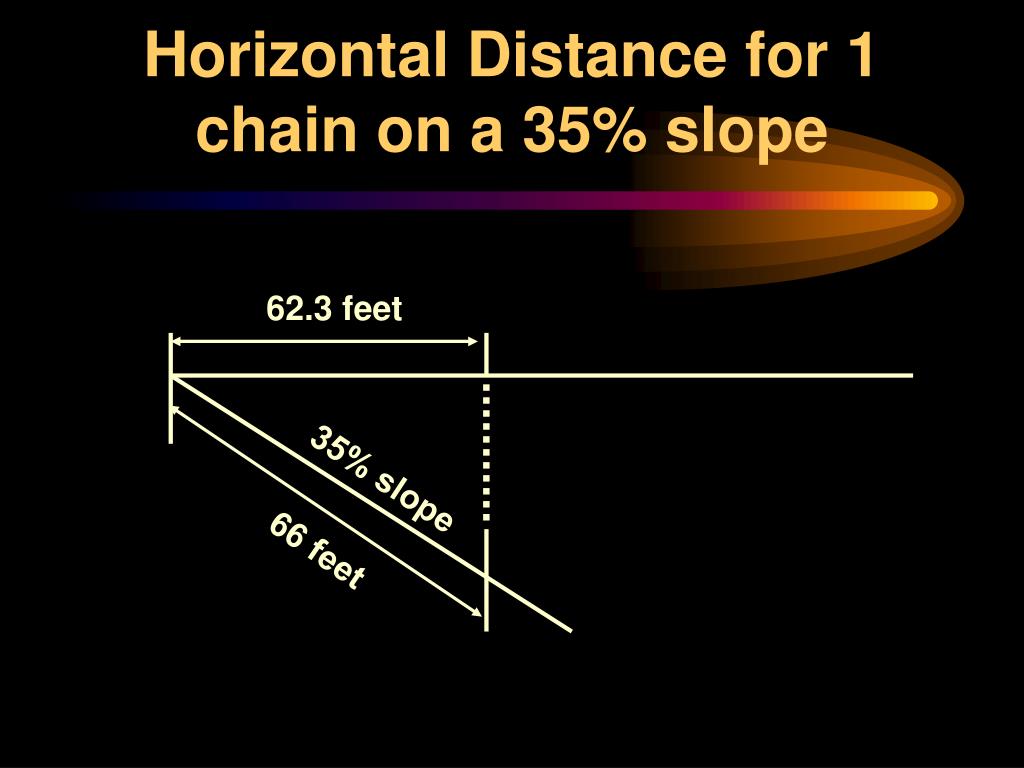

Adjusting 1 chain slope to horizontal

(66 feet)2

Horizontal distance =

= 62.3 feet

two systems used in u s
Metes and bounds

Original 13 colonies

Maine

Vermont

West Virginia

Kentucky

Tennessee

Texas

Public Land Survey

Remaining continental states

Alaska

Hawaii

Two systems used in U.S.
survey systems in u s
Survey Systems in U.S.

Metes & Bounds

Public Land Survey

metes and bounds system
Metes and Bounds System

Mete: A direction, or more often a combination of a distance and direction

i.e. N 42o E, 16.3 chains

Bound: description of the boundary of an adjoining property

i.e. the southwest boundary of the Johnson property

metes bounds problems
Metes & Bounds Problems
  • Difficult to reconstruct
  • Often inaccurate
    • Kentucky had 1,275,000 acres not recorded
    • Virginia
      • 40 counties with 554,000 ac. more than their combined area
      • 55 counties with 370,000 ac. less than their combined land area
public land survey

Public Land Survey

Sometimes referred to as Rectangular Survey

public land survey17
Public Land Survey
  • Started in Ohio in 1785
  • Provides a very uniform method for land description
  • Easy to re-establish
  • Less likelihood of errors than with Metes and Bounds
slide18

Burt

Solar

Compass

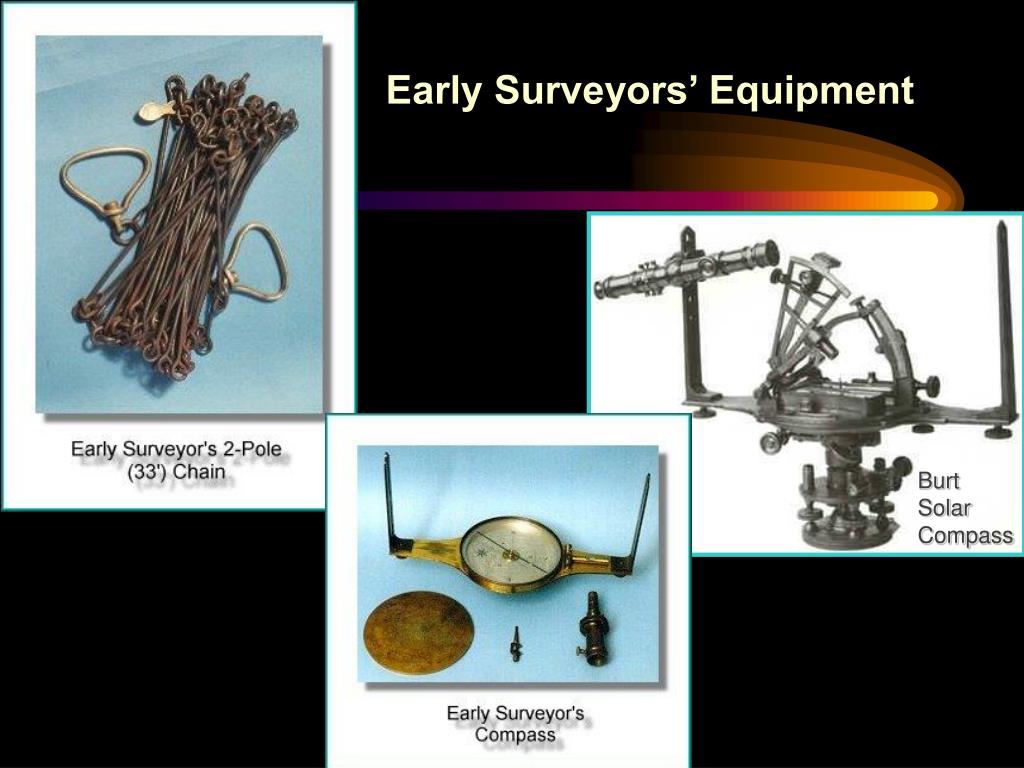

Early Surveyors’ Equipment

each pls survey starts from a known hub
Each PLS survey starts from a known hub
  • Hubs were usually established at the confluence of two rivers
  • Locations were determined accurately by celestial observation
slide21

The Stage is Set in Iowa

On December 18, 1832, Jenifer T. Sprigg crossed the Mississippi into Iowa near what is now Fort Madison and set a marker at the common corner of sections 1, 12, 6, and 7 in Tier 67 North Ranges 4 and 5 West.

slide23

5th Principal Meriaian

The Beginning of PLS in Iowa

Lyon completes 5th PM in Iowa, Dec. 1837

Burt ties in across river, Nov. 20, 1836

Burt sets first point on 5th PM in Iowa

W. A. Burt starts survey Oct. 25, 1836

iowa public land survey years

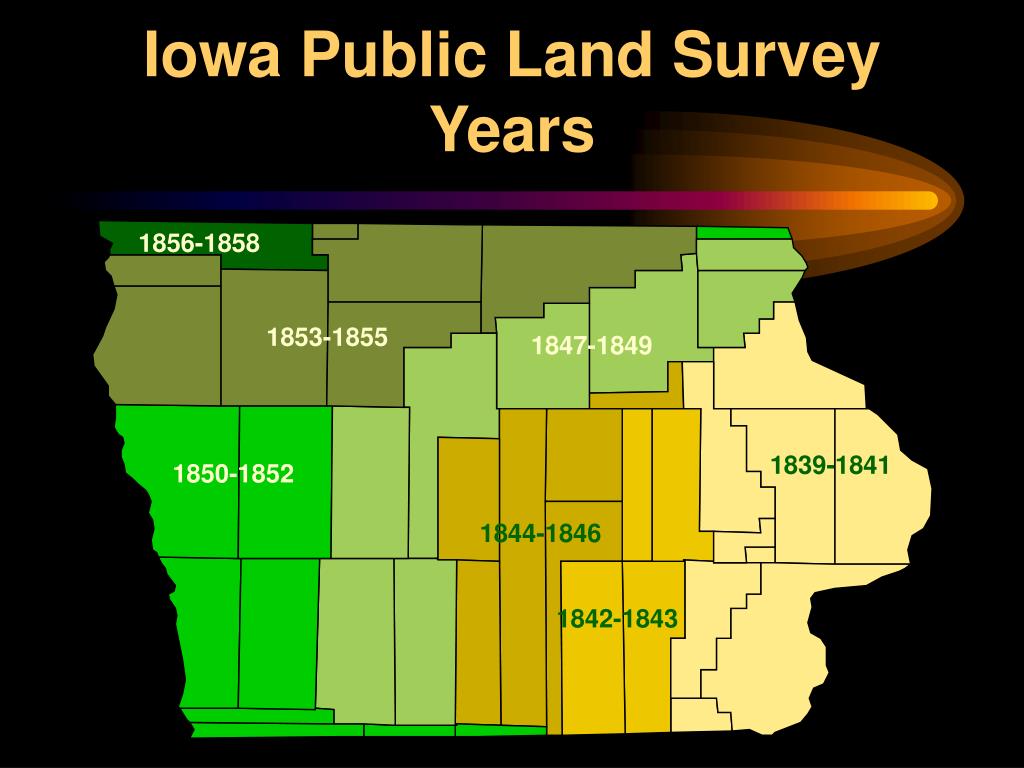

Iowa Public Land Survey Years

1856-1858

1853-1855

1847-1849

1839-1841

1850-1852

1844-1846

1842-1843

first rectangle is 24 mi by 24 mi

5th PM

Standard

Parallels

Guide

Meridians

Base Line

First rectangle is 24 mi by 24 mi

24 miles

24 miles

24 miles

24 miles

24 x 24 mile rectangles are subdivided

5th PM

24 miles

T4N

Township

T3N

24 miles

6 mi

T2N

6 mi

T1N

Base Line

R1E

R2E

R3E

R4E

24 x 24 mile rectangles are subdivided
beginning of legal description

24 miles

5th PM

T4N

24 miles

T3N

6 mi

6 mi

T2N

Base Line

T1N

R4E

R3E

R1E

R2E

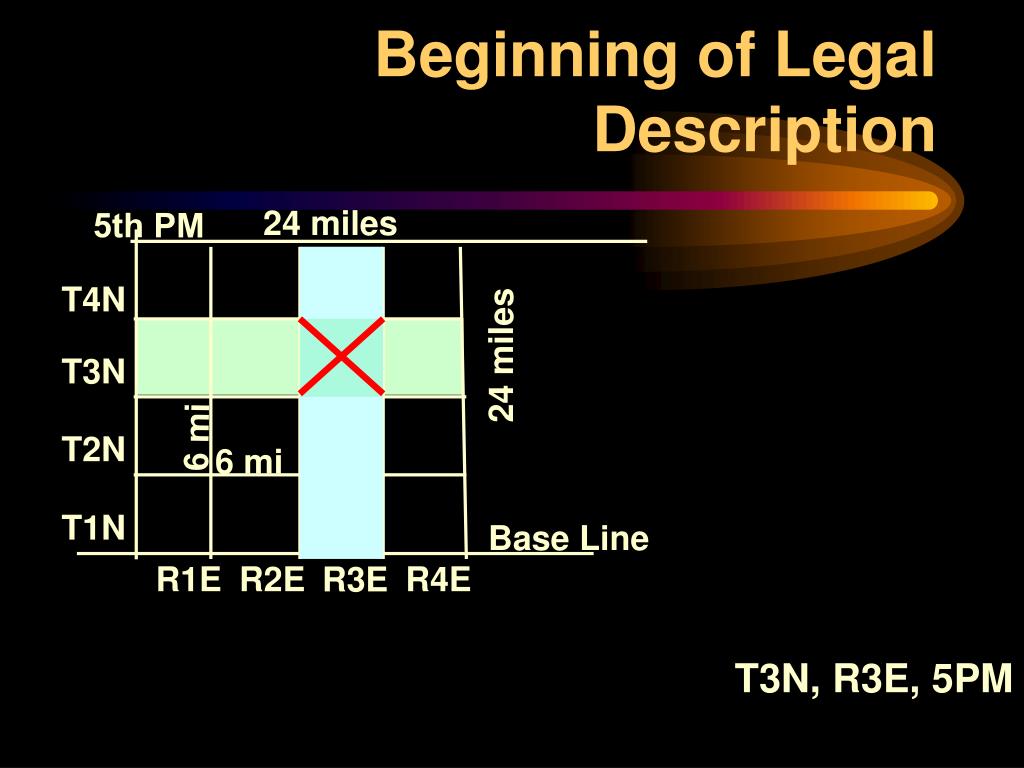

Beginning of Legal Description

T3N, R3E, 5PM

each township is divided

6

5

4

3

2

1

7

8

9

10

11

12

Section

T3N

1 mi.

36

1 mi.

R3E

Each Township is divided
adding to the legal description

6

5

4

3

2

1

12

7

8

9

10

11

T3N

36

1 mi.

1 mi.

R3E

Adding to the Legal Description

Sec 11,

T3N, R3E, 5PM

section corners were marked during survey

Section Corners were marked during survey

Gives rise to an interesting possible hobby

sections can be subdivided

NE 1/4

NW 1/4

1 mile

SW 1/4

SE 1/4

1 mile

Sections can be subdivided

SE 1/4

Contains 160 Acres

adding to the legal description33

NE 1/4

NW 1/4

Sec 11,

T3N, R3E, 5PM

1 mile

SW 1/4

SE 1/4

1 mile

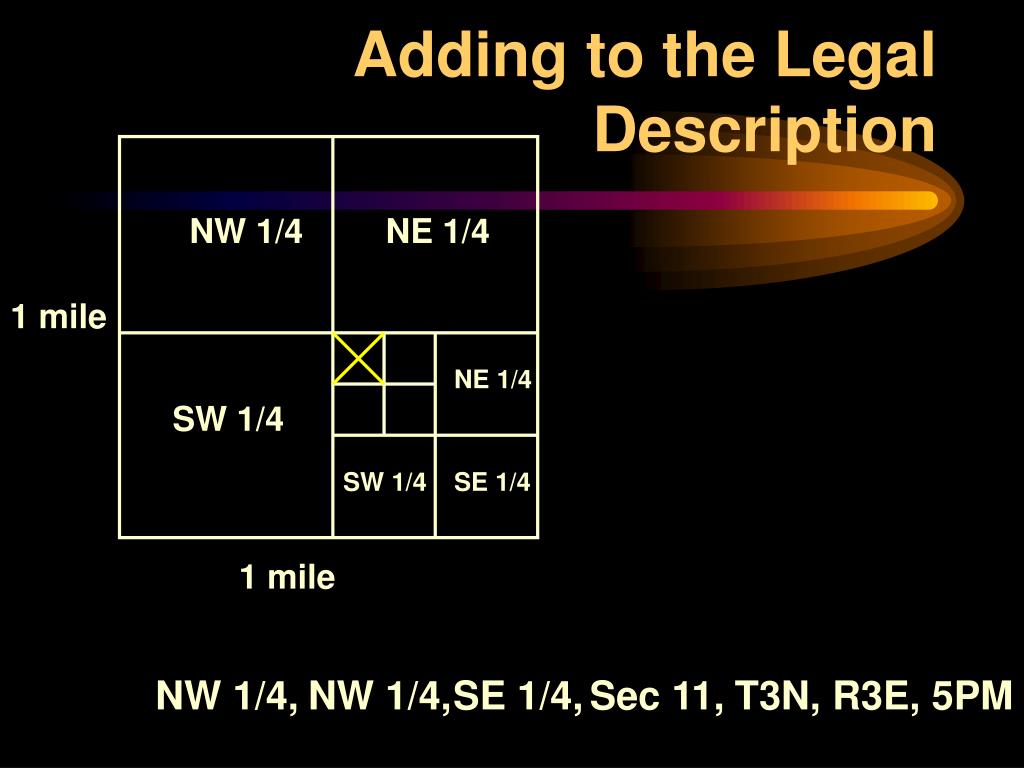

Adding to the Legal Description

SE 1/4,

further subdivision

1 mile

NW 1/4

NE 1/4

SW 1/4

SE 1/4

1 mile

Further subdivision

NW 1/4

NE 1/4

NW 1/4

SW 1/4

Contains 40 acres

adding to the legal description35

NW 1/4

NE 1/4

SE 1/4,

Sec 11,

T3N, R3E, 5PM

1 mile

NW 1/4

NE 1/4

SW 1/4

SW 1/4

SE 1/4

1 mile

Adding to the Legal Description

NW 1/4,

further subdivision36

1 mile

1 mile

Further subdivision

NW 1/4

NE 1/4

NE 1/4

NW 1/4

SW 1/4

Contains 10 acres

SW 1/4

SE 1/4

adding to the legal description37

NW 1/4

NE 1/4

NW 1/4,

SE 1/4,

Sec 11,

T3N, R3E, 5PM

1 mile

NE 1/4

SW 1/4

SW 1/4

SE 1/4

1 mile

Adding to the Legal Description

NW 1/4,

further subdivision38

1 mile

1 mile

Further subdivision

NW 1/4

NE 1/4

NE 1/4

W 1/2

SW 1/4

Contains 5 acres

SW 1/4

SE 1/4

adding to the legal description39

NW 1/4

NE 1/4

NW 1/4,

NW 1/4,

SE 1/4,

T3N, R3E, 5PM

Sec 11,

1 mile

5 Ac

10 Ac

40 Ac

160 Ac

640 AC

NE 1/4

SW 1/4

SW 1/4

SE 1/4

1 mile

Adding to the Legal Description

W 1/2,
