Presentation Transcript
Automation in microbiology for blood cultures l.jpg
AUTOMATION IN MICROBIOLOGY(for blood cultures)

Dr.T.V.Rao MD


Beginning of microbiology l.jpg

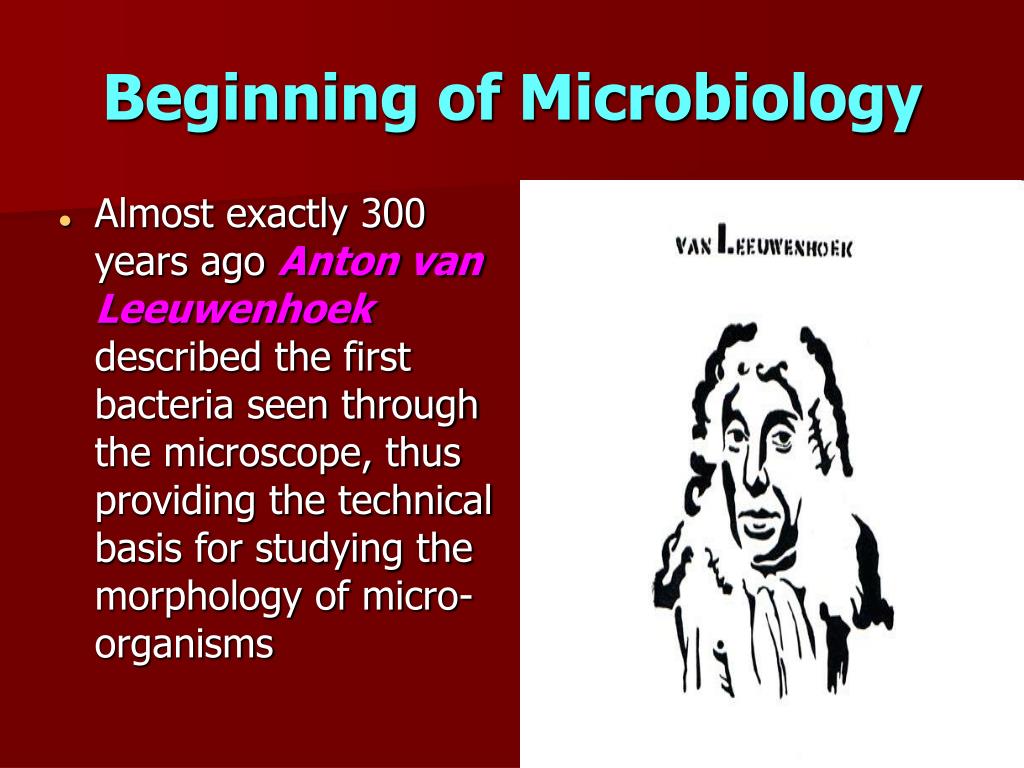

Beginning of Microbiology

  • Almost exactly 300 years ago Anton van Leeuwenhoek described the first bacteria seen through the microscope, thus providing the technical basis for studying the morphology of micro-organisms


Knowledge explosion in microbiology l.jpg
Knowledge explosion in Microbiology

  • The explosion of knowledge in the last century, pioneered by Pasteur, Koch and many others immortalised in modern generic and specific names was dependent on improvements in procedures for isolating and identifying organisms of importance in industry and medicine.


Rapid methods are emerging l.jpg
Rapid Methods are Emerging

  • Rapid methods and automation is a dynamic area in applied microbiology dealing with the study of improved methods in the isolation, early detection, characterization, and enumeration of microorganisms and their products in clinical, food, industrial, and environmental samples.


Changing perceptions l.jpg
Changing perceptions,

  • Microbiology labs are beginning to accept the shift toward automation for reasons as numerous and varied as microbiology itself. Microbiologists and lab technicians recognize that automated solutions are not intended to replace cognitive decision-making but rather, simply replace tedious, repetitive steps.



Beginning of automation l.jpg
Beginning of Automation

  • The field started around mid-1960s and with the development of a variety of miniaturized microbiological techniques developed

  • Streamlining workflow maintains consistency but allows microbiologists to devote more time to operations that require their unique skills and experience


Hospital acquired infection a threat to medical profession needs faster methods to identify l.jpg
Hospital Acquired Infection a threat to Medical Profession- needs faster methods to Identify.

  • Microbiology labs play a crucial role by establishing a front line of defence against the threat of Nosocomial infections. According to the Centres for Disease Control and Prevention, in American hospitals alone, HAIs account for an estimated 1.7 million infections and 99,000 associated deaths annually. Of these infections, 32% are urinary-tract, 22% are surgical-site, 15% are pneumoniae, and 14% are bloodstream.


The clinicians need quicker results l.jpg
The Clinicians need Quicker Results needs faster methods to Identify.

  • The shift from manual test processing to automated solutions can aid in reducing HAIs by providing health systems with standard, consistent lab processing that yields quicker, more accurate test results.


Automation enters into several areas in microbiology l.jpg
Automation enters into several areas in Microbiology needs faster methods to Identify.

  • Rapid Methods and Automation in Microbiology has developed into an important sub-discipline of applied microbiology in the past 15 years. The field deals with improved methods in the isolation, early detection, characterization, and enumeration of microorganisms and their products in clinical, food, industrial, and environmental samples.


Automation reduces errors and innovative l.jpg

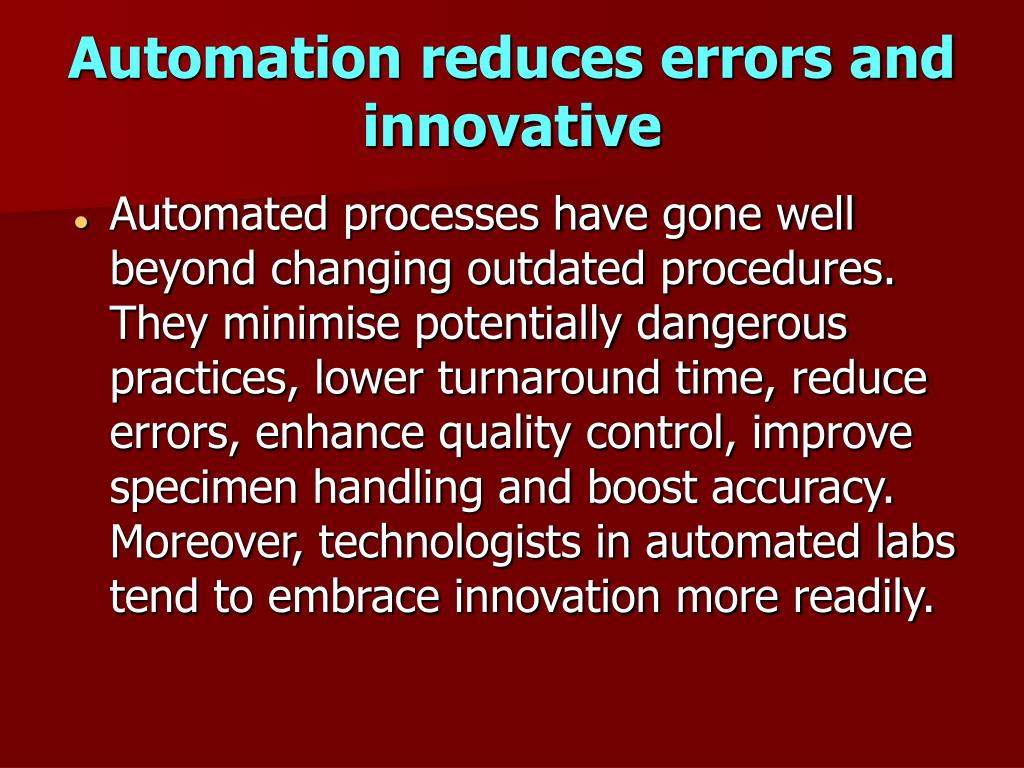

Automation reduces errors and innovative needs faster methods to Identify.

  • Automated processes have gone well beyond changing outdated procedures. They minimise potentially dangerous practices, lower turnaround time, reduce errors, enhance quality control, improve specimen handling and boost accuracy. Moreover, technologists in automated labs tend to embrace innovation more readily.


Lesser manpower more volume of work l.jpg
Lesser Manpower More volume of work needs faster methods to Identify.

  • Because automation largely circumvents repetitive manual processing, lab technicians find it easier to focus on complex tasks that require their specific skills. It is therefore remarkable that, despite shortages of skilled personnel and increases in the volume of work, it has taken years for automation to become acceptable to microbiologists.


Desired objectives in automation l.jpg
Desired Objectives in Automation needs faster methods to Identify.

  • Reexamination of laboratory functional steps

    • Phlebotomy

    • Sample labeling

    • Transportation

    • Pre-, peri-, and post-analytical processing

  • Laboratory automation for improved efficiency and error reduction

  • Create an informatics continuum

    • Process Control vs. LIS function

    • Auto-verified and auto-interpreted data

  • Predictive genomics and the passive home monitoring paradigm


Adding value to lab tests through automation l.jpg

Lab Test needs faster methods to Identify.

Faster TOT

Accuracy, Precision, Safety

Add information value

Auto validation

Trending

Effecting change using lab results

Lifestyle changes

Selection of therapeutics

Adding Value to Lab Tests Through Automation

Appropriate Therapeutics

Life Style Adjustments

Trending

Auto validation

Lab Test


Slide15 l.jpg

Every Body is a Learner to New Technologies, needs faster methods to Identify.EnthusiasmMakes Difference


Blood culturing most important and live saving investigation l.jpg

Blood culturing most important and live saving Investigation needs faster methods to Identify.

Needs optimal Methods for Diagnosis of Blood Borne Pathogens


Why blood culture l.jpg
Why Blood Culture needs faster methods to Identify.

  • Physician can find source of infection

  • Physician can initiate life-saving support measures

  • Physician can start targeted antibiotic therapy


What is a blood culture l.jpg
What is a Blood Culture? needs faster methods to Identify.

  • A blood culture is a laboratory test in which blood is injected into bottles with culture media to determine whether microorganisms have invaded the patient’s bloodstream.


Need for blood culture l.jpg
Need for Blood Culture? needs faster methods to Identify.

No microbiological test is more essential to the clinician than the blood culture. The finding of pathogenic microorganisms in a patient’s bloodstream is of great importance in terms of diagnosis, prognosis, and therapy.”

- L. Barth Reller, Clin. Infect. Diseases, 1996


Proof in blood borne infection l.jpg
Proof in Blood borne Infection needs faster methods to Identify.

  • A clinically suspected infection is ultimately confirmed by isolation or detection of the infectious agent. Subsequent identification of the microorganism and antibiotic susceptibility tests further guide effective antimicrobial therapy. Bloodstream infection is the most severe form of infection and is frequently life-threatening, and blood culture to detect circulating microorganisms has been the diagnostic standard.


Blood culture is a important a diagnostic tool in infectious diseases l.jpg
Blood culture is a Important a Diagnostic tool in Infectious diseases

  • Blood culture is a microbiological culture of blood. It is employed to detect infections that are spreading through the bloodstream (such as bacteraemia, septicaemia amongst others). This is possible because the bloodstream is usually a sterile environment.


What are we doing now is not optimal needs rapid methods l.jpg
What are We doing Now is not optimal – diseasesNeeds Rapid Methods

  • Most microbiological culture procedures require the use of solid media, like blood agar and MacConkey agar plates that need to be visually monitored by trained personnel at intervals of 24 hours. These conventional cultures using normal media take at least a minimum of 72 hours to isolate the pathogen and carry out susceptibility test to know the efficacy of antibiotics on simple aerobic bacteria


Optimal methods of blood collection makes difference l.jpg
Optimal Methods of Blood Collection makes difference diseases

  • The physicians consent with filled in request with details for culturing the Blood

  • Gloves will be worn in accordance with standard precautions..

  • Appropriate verification of the patient's identity, by means of an armband or area specific procedure, will occur before the specimen collection.

  • Cultures should be drawn before administration of antibiotics, if possible.

  • If at all possible, blood cultures should not be drawn from lines, but should be drawn only via venepuncture


Phlebotomy training programs l.jpg
PHLEBOTOMY TRAINING PROGRAMS diseases

WHO?

WHAT?

WHERE?


New category of lab personnel l.jpg
NEW CATEGORY OF LAB PERSONNEL diseases

  • Phlebotomist

    Defined as a person who collects blood for clinical laboratory test or examination purposes


Principles for collection l.jpg
Principles for Collection diseases

  • Gloves will be worn in accordance with standard precautions.

  • •A physician’s order must be obtained for specimen collection.

  • •Appropriate verification of the patient's identity, by means of an armband or area specific procedure, will occur before the specimen collection.

  • •Cultures should be drawn before administration of antibiotics, if possible.

  • •If at all possible, blood cultures should note drawn from lines, but should be drawn viavenipuncture.


Materials l.jpg
Materials diseases

  • Chlorhexidine swabs (1-2 packages)

  • Alcohol swabs

  • Blood culture bottles (2 bottles per set)

  • 2 syringes (adult: 20 cc, paediatric: 5 cc)

  • 2 needles (adult: 22 gauge or preferably larger butterfly or standard needle; pediatric: 25 or 23 gauge butterfly or standard needle)

  • Gloves (sterile &nonsterile)

  • Tourniquet

  • Sterile gauze pad

  • Adhesive strip or tape

  • Self-sticking patient labels

  • Plastic zip lock specimen bags


Steps 1 3 check explain wash l.jpg

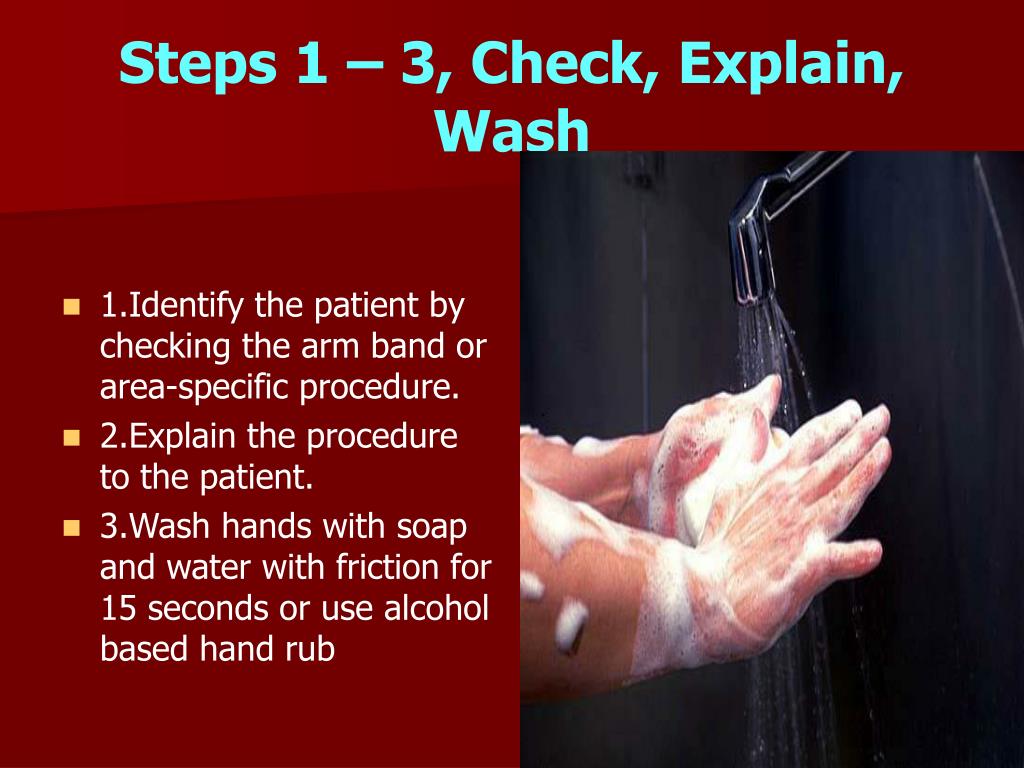

Steps 1 – 3, Check, Explain, Wash diseases

  • 1.Identify the patient by checking the arm band or area-specific procedure.

  • 2.Explain the procedure to the patient.

  • 3.Wash hands with soap and water withfriction for 15 seconds or use alcohol based hand rub


Step 4 prep cap l.jpg
Step 4 –Prep Cap diseases

  • Prep the rubber cap of the blood culture bottles with an alcohol pad in a circular motion. Allow the alcohol to dry.


Step 5 prep the puncture site l.jpg
Step 5 -Prep the Puncture Site diseases

  • Prep the puncture site with Chlorhexidine:

    • •Using aseptic technique, remove the applicator from its package.

    • •Holding the applicator downward, gently squeeze the wings to release the solution.

    • •Scrub with a back & forth motion using friction for 30 seconds on dry skin or 2 minutes on wet skin.

  • •Do not wipe the site after cleansing the skin with Chlorhexidine.


Step 6 gloves l.jpg
Step 6 -Gloves diseases

  • Apply gloves:

  • If palpation of site prior

  • to puncture is

  • anticipated, wear sterile

  • gloves.

  • If palpation of site prior to puncture is not anticipated, wear nonsterile gloves.


Step 8 mix l.jpg
Step 8 -Mix diseases

  • Gently rotate the bottles to mix the blood & the broth (do not shake vigorously).


Step 9 and 10 label l.jpg
Step 9 diseases and 10 (Label)

  • Place the patient label on each bottle & label each culture bottle with the site of specimen collection. When applying patient identification labels, do not cover the bar code label on the blood culture bottles. Attach the laboratory requisition.

  • Send the blood cultures to the Clinical Microbiology receiving area as soon as possible.


Step 11 l.jpg
Step 11 diseases

  • 11.Document the following in the medical record Date & time specimen obtained

  • –Site of specimen collection

  • If 2 sets of blood cultures have been ordered, obtain the second set in the same manner as the first, making a new venepuncture at a different site


Techniques of paediatric collections tourniquet application l.jpg
Techniques of Paediatric Collections diseasesTourniquet Application

  • Need to maximize chances of successful collection

  • Remember that the vein is still developing and might need to rely on firm tightness

  • Ideally, tourniquet should not be kept on for more than one minute

  • If possible, apply heat

  • If using a hand, consider a bucket of warm water


Techniques of paediatric collections insertion principles l.jpg
Techniques of Paediatric Collections diseasesInsertion Principles

  • Cantilevering of elbow

  • The option factor:

    -Choose your options of direction before insertion

    -Minimize the odds of unnecessary “digging”

  • Avoid plunging the needle right up to the hilt

  • Often, a drawback does the trick

  • If vacutainer is slowing down, replace with a syringe


Slide37 l.jpg

Self Protection diseases

A few ways to make sure your role in the collection process is carried out with efficiency, orderliness and safety


The contaminated blood culture l.jpg
The Contaminated Blood Culture diseases

  • If the skin is not adequately cleansed before drawing blood for culture, bacteria on the skin will be injected into the bottle, producing a false positive blood culture.

  • It is sometimes difficult for the physician to determine whether the bacteria growing in the blood culture is a real pathogen causing bloodstream infection or whether bacteria on the skin have contaminated the culture. This can lead to excess use of antibiotics and prolongation of hospital stay.


Sample labeling efficiencies l.jpg
Sample Labeling Efficiencies diseases

  • Bar coding at the point-of-phlebotomy

  • 2D vs. 1D bar codes

    • Reduce the number of computer interfaces

    • Self directing specimens

B-D id


Technological improvements for all steps in the diagnostic process l.jpg
Technological Improvements for All Steps in the Diagnostic Process

Just in Time Supplies

Process Control

Automated

Phlebotomy

Trays

EMR

Instruments Designed for Automation

Reporting

Storage

RFID

2D-Codes

Recording

Analysis

Biorepository

Transportation

Pre-analytical

Analytical and Automation

Mobile Robot

Accessioning


What is a blood culture41 l.jpg
What is a Blood Culture? Process

  • A blood culture is a laboratory test in which blood is injected into bottles with culture media to determine whether microorganisms have invaded the patient’s bloodstream.


Blood body fluid cultures l.jpg

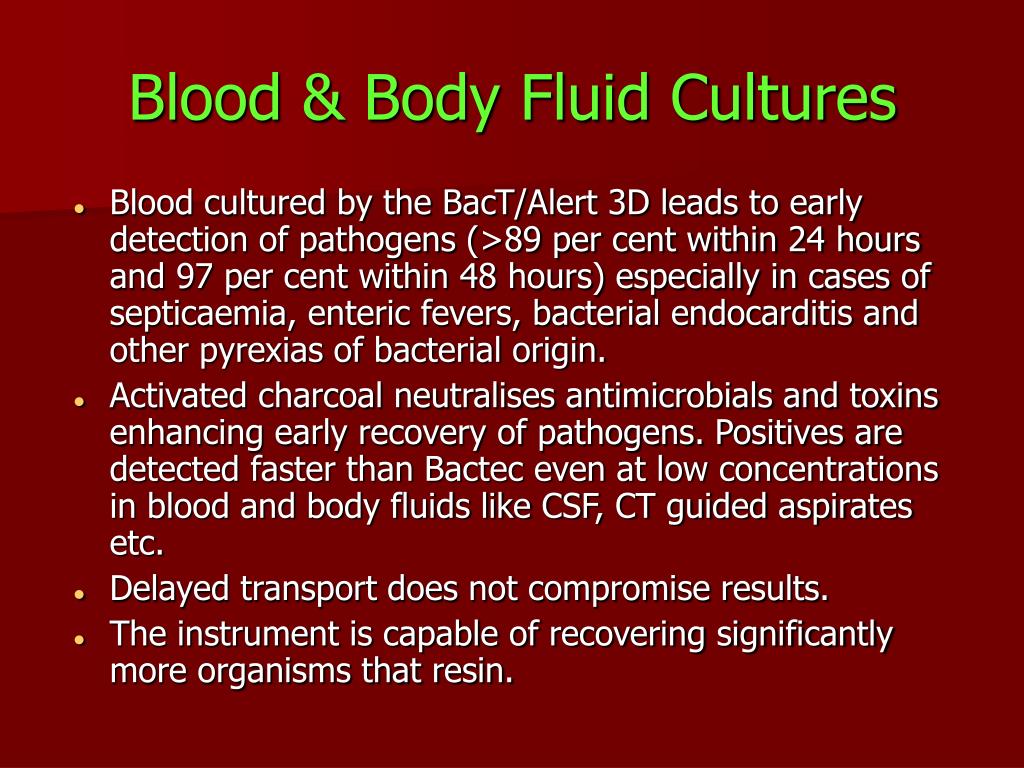

Blood & Body Fluid Cultures Process

  • Blood cultured by the BacT/Alert 3D leads to early detection of pathogens (>89 per cent within 24 hours and 97 per cent within 48 hours) especially in cases of septicaemia, enteric fevers, bacterial endocarditis and other pyrexias of bacterial origin.

  • Activated charcoal neutralises antimicrobials and toxins enhancing early recovery of pathogens. Positives are detected faster than Bactec even at low concentrations in blood and body fluids like CSF, CT guided aspirates etc.

  • Delayed transport does not compromise results.

  • The instrument is capable of recovering significantly more organisms that resin.


Bact alert 3d culture system l.jpg
BacT/AlerT 3D culture system Process

  • BacT/AlerT 3D culture system. This is the first automated non-radiometric and non-invasive culture system that continuously monitors system for culture of bacteria (both aerobic and anaerobic), fungi and mycobacteria. All these bacteria can be cultured using different media as prescribed..


Principles in bact alert 3d culture system l.jpg

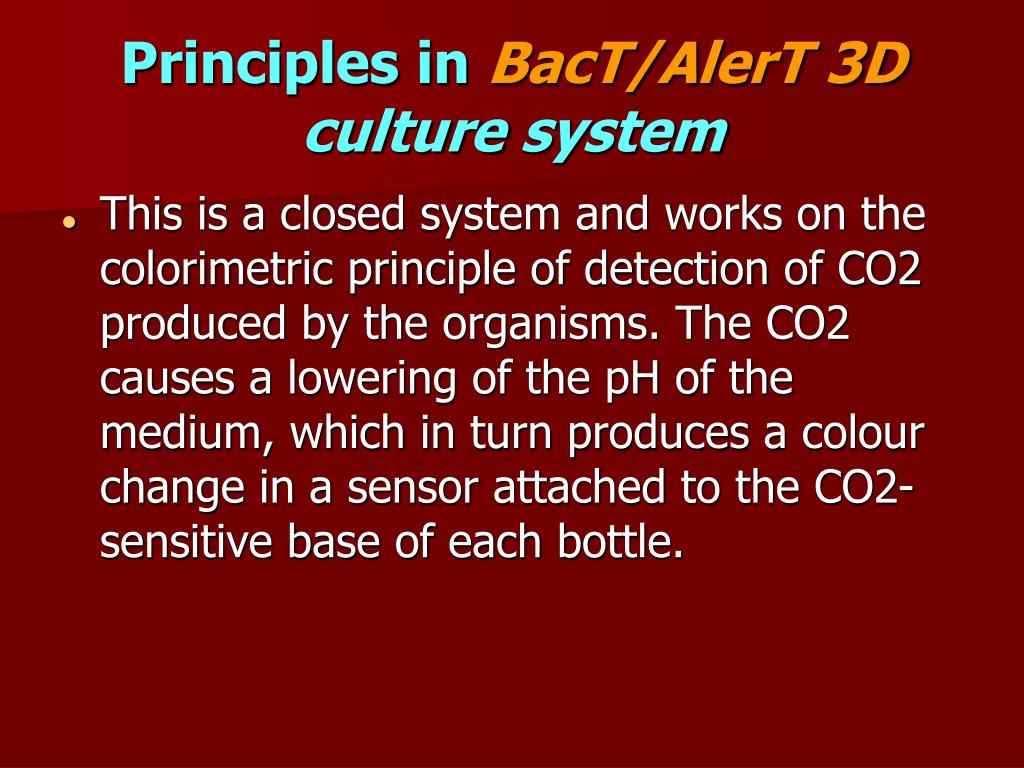

Principles in ProcessBacT/AlerT 3D culturesystem

  • This is a closed system and works on the colorimetric principle of detection of CO2 produced by the organisms. The CO2 causes a lowering of the pH of the medium, which in turn produces a colour change in a sensor attached to the CO2-sensitive base of each bottle.


You are guided by computerized systems l.jpg
You are guided by Computerized Systems Process

  • The instrument reacts before this colour change is apparent by means of an audible or visible alert flagged by the computer. The bottles are constantly agitated and are read at 10-minute intervals. The readings are transmitted to a computer compiler, which computes results. This


Biom rieux bact alert 3d l.jpg
bioMérieux BacT/ALERT® 3D Process

  • The bioMérieux BacT/ALERT® 3D provides an optimal environment for the recovery of a wide range of pathological organisms, including bacteria, yeasts and mycobacteria; utilizing proprietary plastic culture bottles ensuring added safety to the user.


Principles of functioning of bact alert monitors l.jpg
Principles of functioning of BacT alert Monitors Process

  • Microorganisms multiply in the media, generating CO2. As CO2 increases, the sensor in the bottle turns a lighter colour.

  • Measuring reflected light, the BacT/ALERT 3D monitors and detects color changes in the sensor.

  • Algorithms analyze the data to determine positivity, and the laboratory is notified immediately with visual and audible alarms.



Automation becomes need of the hour l.jpg

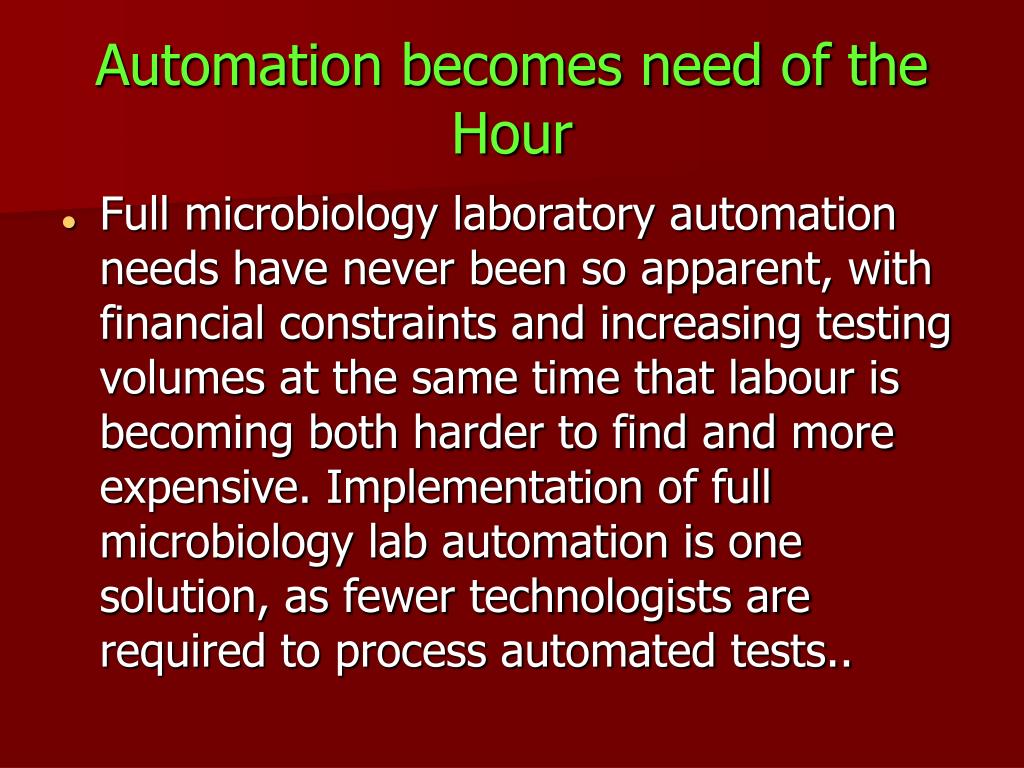

Automation becomes need of the Hour Process

  • Full microbiology laboratory automation needs have never been so apparent, with financial constraints and increasing testing volumes at the same time that labour is becoming both harder to find and more expensive. Implementation of full microbiology lab automation is one solution, as fewer technologists are required to process automated tests..


Automation improves quality of services l.jpg
Automation improves quality of services Process

  • Overall, laboratories transitioning from conventional to automated processes find that technologists and microbiologists are more open to innovation and improved quality.


Industry flourishes too l.jpg
Industry flourishes too.. Process

  • An entire industry of microbial diagnostic kits flourished to the present day. Next in the 70s the development was in immunological test kits and instruments to monitor the presence of food borne pathogens and biomass and to predict microbial growth automatically.


Advantages of automation l.jpg
Advantages of automation Process

  • Automated solutions have recently emerged in the marketplace that address key areas of the microbiology lab. Automating these processes-simple, standard, or complex-can revolutionize the microbiology lab with more efficient, standardized practices that will improve quality, safety, and cost-efficiency.


Automation increases efficacy and eliminates individual variations l.jpg
Automation increases efficacy and eliminates individual variations

  • For example, automating small, yet vitally important tasks, can make a huge impact on the efficiency and accuracy of laboratories. Lab technicians streak an estimated ??? agar plates a day, a process that is laborious, tedious, and inconsistent. Each lab technician has his own streaking technique


Automation is advantageous l.jpg
Automation is variationsAdvantageous

  • Include the elimination of subjective variability,

  • Savings in media and reagents, and the earlier production of useful information in many instances, all of winch can make a substantial contribution to productivity and the control of runaway cost escalation.


Automation combined with laboratory information management l.jpg
Automation combined with Laboratory Information management variations

  • The combined use of laboratory automation and laboratory information management software (LIMS) has been shown to increase productivity, reduce human error and improve tracking and traceability in a microbiology lab


Workflow management l.jpg

DATA variations

Accessioning

Specimen tracking

Data logging and reporting

Quality control documentation

PROCESS MANAGEMENT

Sample quality assessment

Optimal routing and scheduling

Intelligent reporting

Workflow Management

Process Control

Information

Automation

Data


Bar coding robotics and computers l.jpg
Bar coding, robotics and computers variations

  • Bar coding, robotics and computers that replace manual transcription significantly reduce data loss and errors. Automation also makes it less likely that plate information and patient identification will be duplicated or transposed.Three trends will drive laboratory automation’s future: smaller, more-flexible analysers and automation based on next-generation technology, including micro fluidics, easy-to-use, powerful software for centralised lab management, and internet-based real-time service for better up-time.


Bar coding replacing the manual reading reduces errors l.jpg
Bar coding replacing the Manual reading – Reduces errors variations

  • The key to this real-time automation was real time barcode labelling of all sample carriers (such as bags, tubes, dishes, bottles) provided by Kiestra's Barcode system. This was used in conjunction with Auto scribe's Matrix LIMS. Real time barcode reading is known to reduce transcription error rates to only 1 in 36 trillion characters - compared to 1 in 300 characters with manual reading.


Kiestra s barcoda l.jpg
Kiestra's BarcodA variations

  • Kiestra's BarcodA automatically places an optical barcode on all tubes, bottles and petri-dishes that contains important information such as composition, sell-by date etc.


Bar coding helps in tracing the errors l.jpg
Bar-coding helps in tracing the errors variations

  • The barcode makes every sample carrier unique and recorded meaning full traceability for the laboratory. Samples are also provided with a barcode which is generated by Matrix LIMS.


Quality replacing quantitity l.jpg
Quality replacing Quantitity variations

  • Quality issues are becoming increasingly important in diagnostic laboratories. The fact of quality is no longer sufficient and we must now develop mechanisms to assure consumers, the public and, most importantly, ourselves of the continuing quality of our service. Moving towards a quality-assured system is not easy, requiring a meticulous attention to detail in all areas of a laboratory's working and organization.


Automation gained the universal acceptance l.jpg
Automation gained the Universal acceptance variations

  • A further plus for lab automation is that it promotes consistency and quality. Without automation, lab tasks that are necessarily repetitive can lead to inconsistent or inappropriate ways of work and, from there, to improper treatment, longer patient stays, medication errors and unwanted drug side-effects.


Created by dr t v rao md for e learning programme l.jpg

Created by Dr.T.V.Rao MD for “e” learning Programme variations

Email

doctortvrao@gmail.com
