Presentation Transcript
slide2

The pneumatic tools normally used for heavy equipment extrications are the percussive type tools, such as the rivet hammer, and the rotary-type tools including pneumatic impact wrench and the die cut-off saw.

slide3

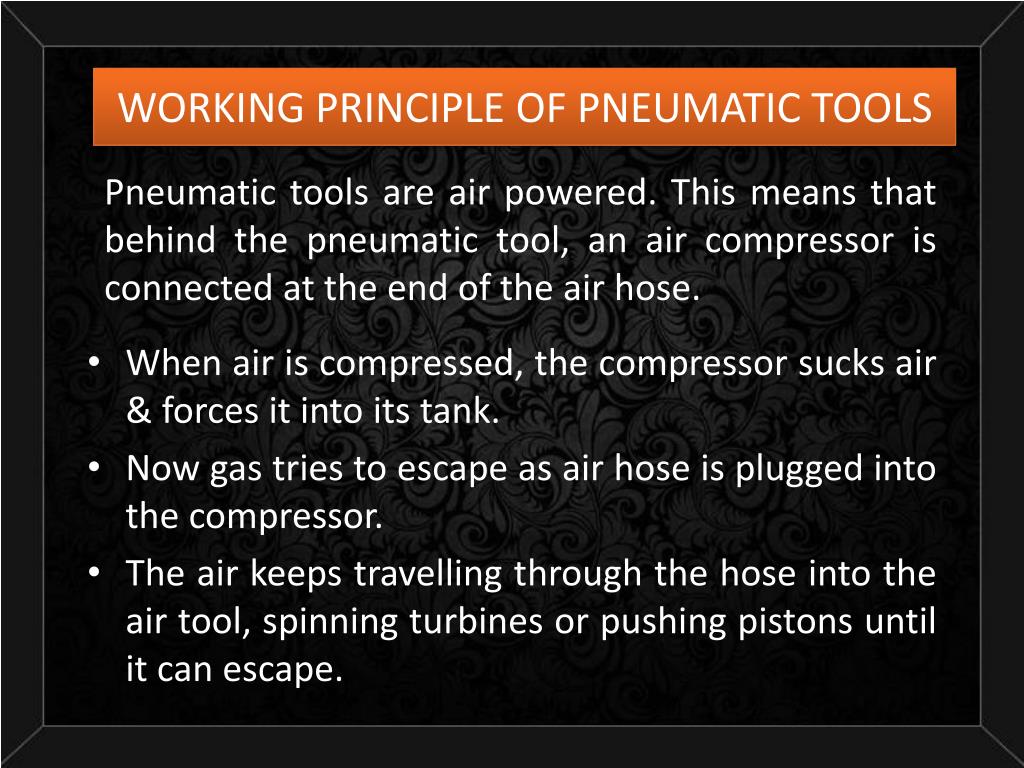

WORKING PRINCIPLE OF PNEUMATIC TOOLS

Pneumatic tools are air powered. This means that behind the pneumatic tool, an air compressor is connected at the end of the air hose.

  • When air is compressed, the compressor sucks air & forces it into its tank.
  • Now gas tries to escape as air hose is plugged into the compressor.
  • The air keeps travelling through the hose into the air tool, spinning turbines or pushing pistons until it can escape.
slide4

COMMON TYPES OF AIR TOOLS

  • Pneumatic Wrench – This tool is used to remove and tighten lug nuts on tries.
  • Drills & Die Grinders – These are a lot like dentist drills, they can be used with a variety of attachments that can drill, grind or polish.
  • Pneumatic Staplers – There are four main types of pneumatic staplers used in scenic work, and they’re classified by the size of their crown or the head of the staple.
slide5

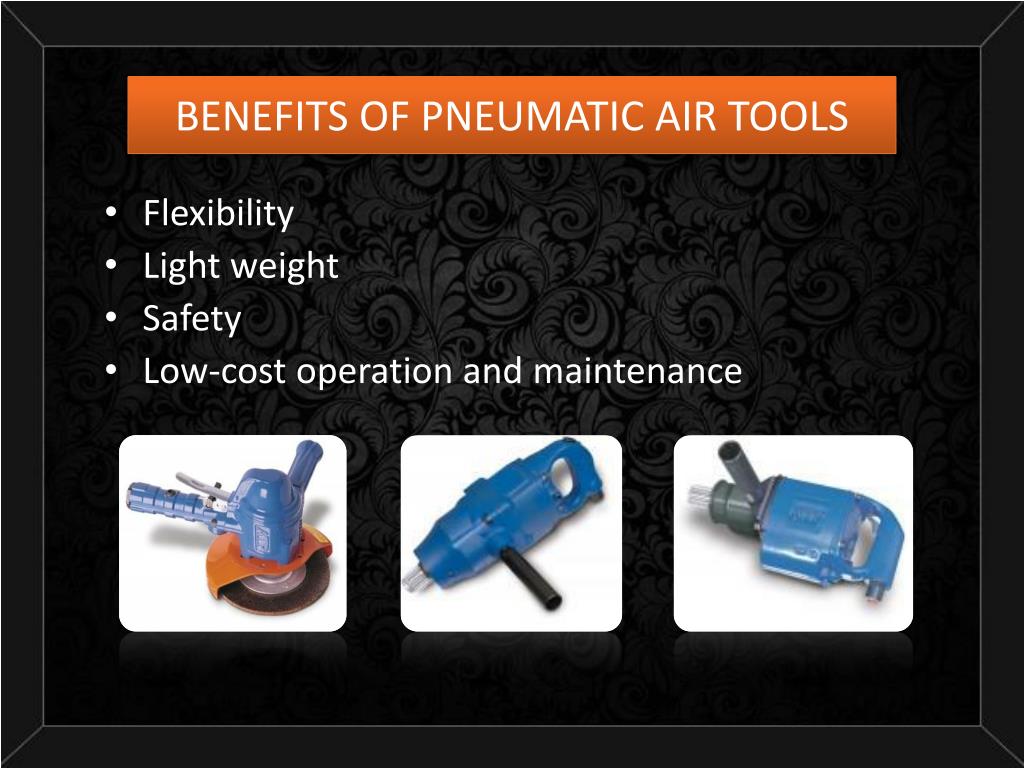

BENEFITS OF PNEUMATIC AIR TOOLS

  • Flexibility
  • Light weight
  • Safety
  • Low-cost operation and maintenance
slide6

SAFETY TIPS

  • Read and fully comprehend all of the warnings and instruction that are provided with your tools.
  • Keep your tools in good working condition with regular maintenance and attention.
  • Be sure your guards and anti-kickback devices are in good working order as well as in their correct positions.
  • Use the right tool for right job.
  • Always wear goggles, safety glasses or a face mask when using power or hand tools.
slide7

FEW MORE SAFETY TIPS…

  • Never wear neckties, bracelets, wristwatches or loose clothing. If you have long hair, wear a hat or tie it back.
  • Don’t forget to wear hearing protection when using loud tools.
  • Make sure to have a push stick or block within easy reach before starting any cutting or machining operation.
  • Don’t put yourself in awkward positions in which a sudden slip could make your hand hit the blade or cutter.
slide8

PROPER CARE AND STORAGE OF A PNEUMATIC TOOL

  • Check the compressor oil level before using the drill.
  • Make sure that the air supply is as pure as possible.
  • Inspect the air receiver for any air leakages.
  • Check that the pressure on the gauge is not more than the maximum working pressure of the tool.
  • Open the drain valve to release any moisture.
  • Keep the intake filter clean.
  • Check rubber hoses and fittings for damage or leaks.
  • Check the compressor oil level and filter to prevent damage.
slide9

DANGERS ASSOCIATED WITH PNEUMATIC TOOLS

  • Torque from impacts ratchets and gums, which can jam your hands or wrists against vehicle or engine components.
  • Fastener not secured in tool can become a dangerous projectile.
slide10

To know more about pneumatic tools, visit AirTool Direct. The company offers variety of air compressors and its accessories.
