ST-21 GAXCE SENSORS - Environmental, Health and Safety

<br>( Sound Level Meter)<br>A Sound Level Meter (SLM) is a battery-operated compact portable instrument for measuring sound-pressure levels directly, while incorporating frequency weighting networks that approximate the inverse contour of equal loudness levels. A sound level meter is also called a sound pressure level meter (SPL).<br>Specifications:<br>1. Dimensions: 310u00d772u00d732 mm<br>2. Resolution: 0.1dB<br>3. Frequency Range: 20 Hz~12.5 kHz<br>4. Measurement Range: 30 ~130 dB<br>5. Display: 128u00d764 OLED<br>6. Weight: 0.4kg<br>7. Output: AC, DC, RS232, mini USB<br>8. Time Weighting: F, S, I<br>9. Frequency Weighting: A, C, Z<br>10. P

dmgaxcesensors
Download Presentation

ST-21 GAXCE SENSORS - Environmental, Health and Safety

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

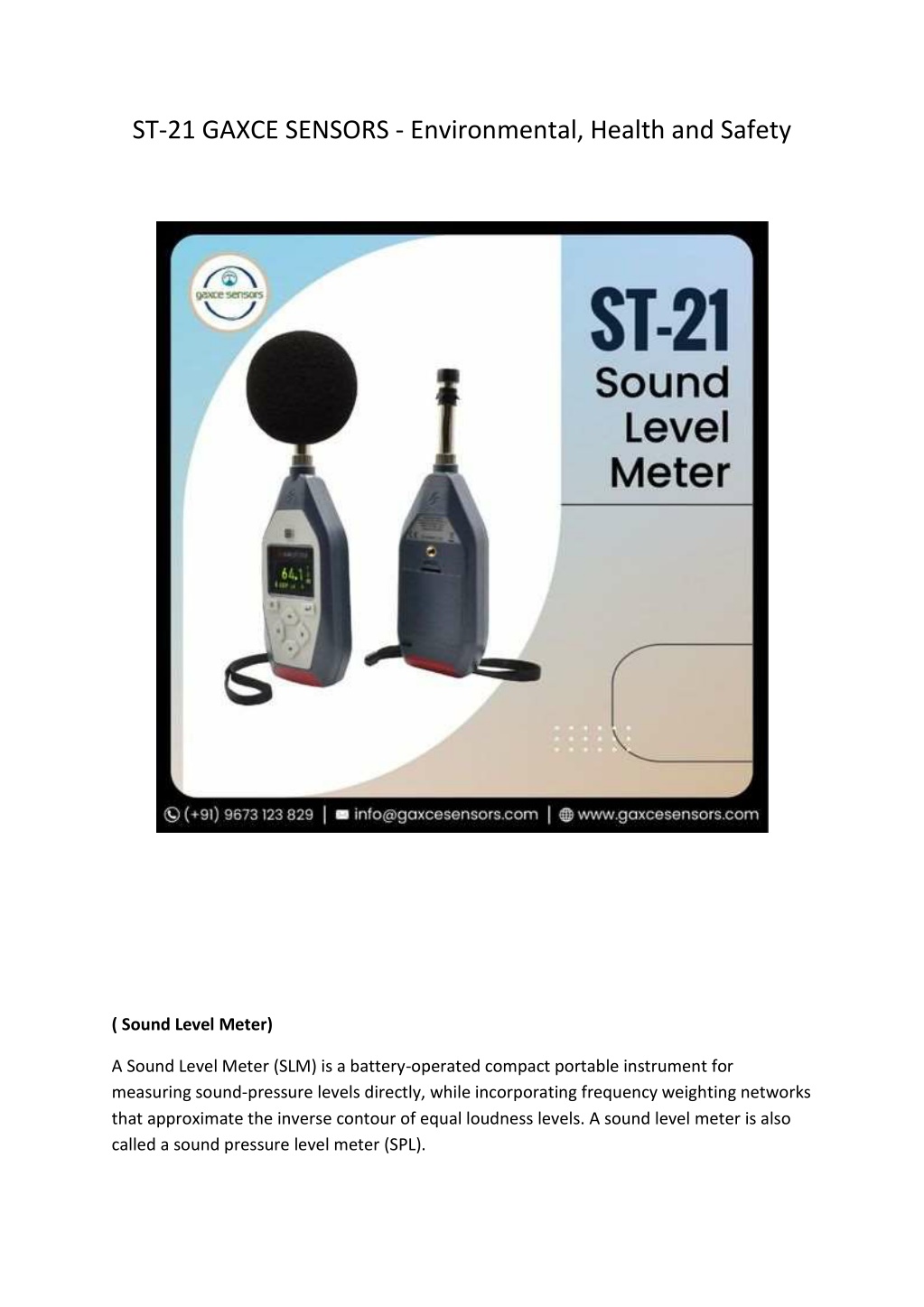

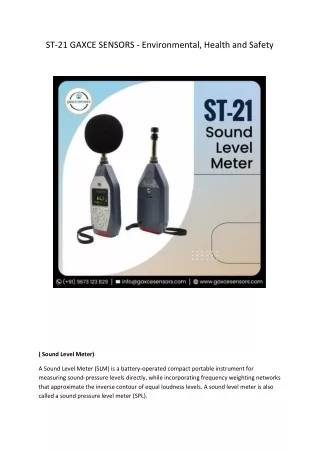

  1. ST-21 GAXCE SENSORS - Environmental, Health and Safety ( Sound Level Meter) A Sound Level Meter (SLM) is a battery-operated compact portable instrument for measuring sound-pressure levels directly, while incorporating frequency weighting networks that approximate the inverse contour of equal loudness levels. A sound level meter is also called a sound pressure level meter (SPL).

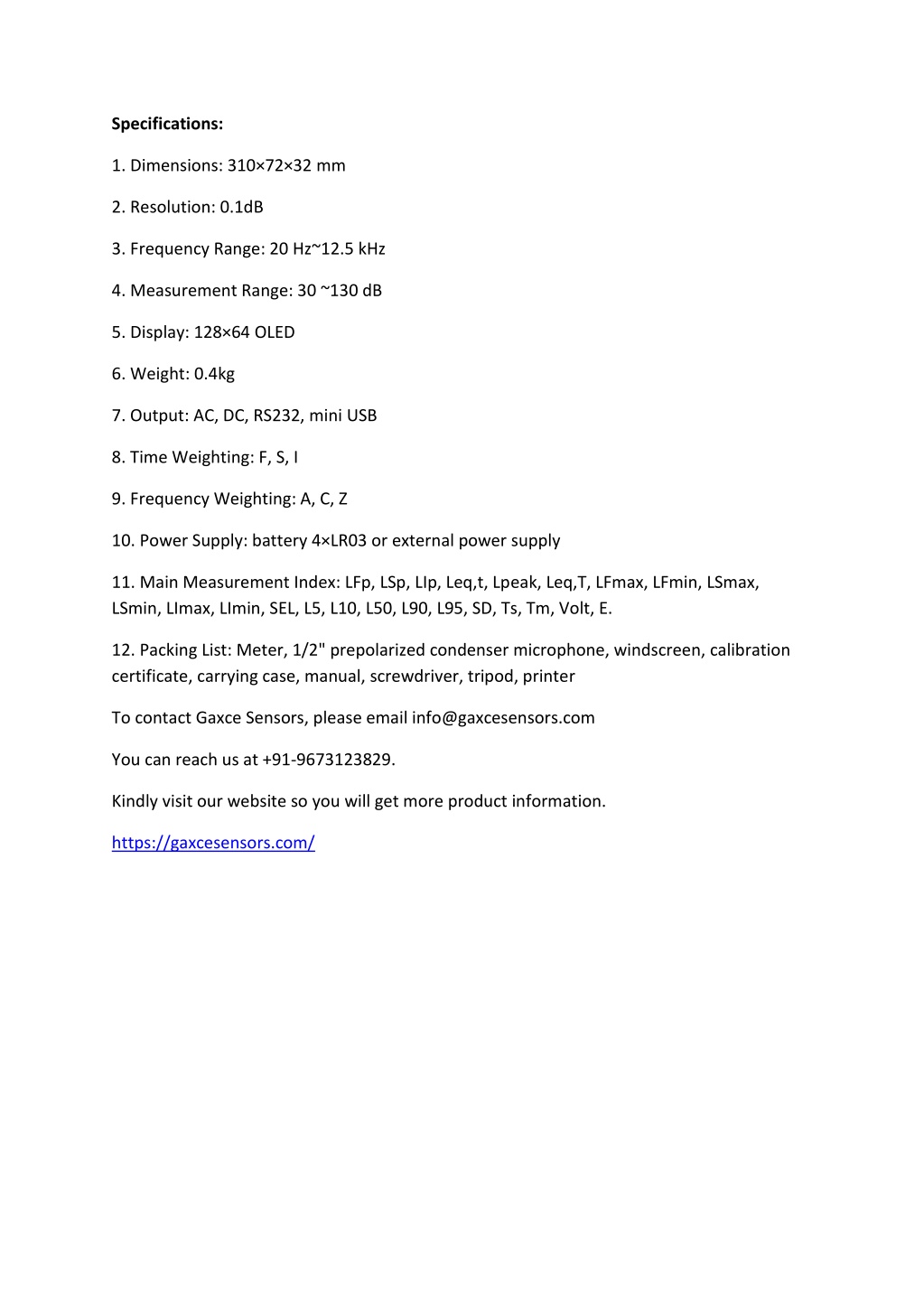

  2. Specifications: 1. Dimensions: 310×72×32 mm 2. Resolution: 0.1dB 3. Frequency Range: 20 Hz~12.5 kHz 4. Measurement Range: 30 ~130 dB 5. Display: 128×64 OLED 6. Weight: 0.4kg 7. Output: AC, DC, RS232, mini USB 8. Time Weighting: F, S, I 9. Frequency Weighting: A, C, Z 10. Power Supply: battery 4×LR03 or external power supply 11. Main Measurement Index: LFp, LSp, LIp, Leq,t, Lpeak, Leq,T, LFmax, LFmin, LSmax, LSmin, LImax, LImin, SEL, L5, L10, L50, L90, L95, SD, Ts, Tm, Volt, E. 12. Packing List: Meter, 1/2" prepolarized condenser microphone, windscreen, calibration certificate, carrying case, manual, screwdriver, tripod, printer To contact Gaxce Sensors, please email info@gaxcesensors.com You can reach us at +91-9673123829. Kindly visit our website so you will get more product information. https://gaxcesensors.com/
