PQ Series GAXCE SENSORS - Environmental, Health and Safety

<br>Prosense's "PQ" Series fixed gas detectors have been designed and developed for industrial conditions in order to monitor combustible, toxic, asphyxiate, and volatile organic compounds (VOCs) continuously.<br><br>The device has passed ATEX / IECEx, SIL2 certifications, and EN 60079-29:1 performance approval, proving its suitability for harsh environments.<br>The PQ sensors utilize PID, Pellistor, Electrochemical, Infrared, and Semiconductor sensors that provide excellent results throughout the LEL range, ppm range, ppb range, and VOL range.<br>To In order to meet evolving customer demands and industry co

dmgaxcesensors
Download Presentation

PQ Series GAXCE SENSORS - Environmental, Health and Safety

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

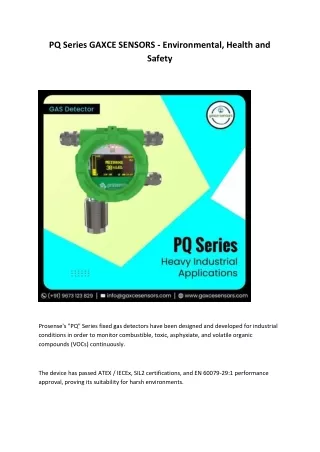

  1. PQ Series GAXCE SENSORS - Environmental, Health and Safety Prosense's "PQ" Series fixed gas detectors have been designed and developed for industrial conditions in order to monitor combustible, toxic, asphyxiate, and volatile organic compounds (VOCs) continuously. The device has passed ATEX / IECEx, SIL2 certifications, and EN 60079-29:1 performance approval, proving its suitability for harsh environments.

  2. The PQ sensors utilize PID, Pellistor, Electrochemical, Infrared, and Semiconductor sensors that provide excellent results throughout the LEL range, ppm range, ppb range, and VOL range. To In order to meet evolving customer demands and industry conditions, the PQ Series is divided into PQD (With Display) and PQN (Without Display). Specification: 1. Sensor Technology: Pellistor, Infrared, Electrochemical, PID, Semiconductor 2. Output Signal: 4-20mA and Modbus RS485 3. Sensor Warm-Up: 60sec 4. Response Time(T90): Sensor dependent 5. Accuracy: %1 6. Operating Temperature: -40°C ~ +70°C 7. Humidity: 0~ 100%RH Non-Condensing 8. Input: Min 10VDC - Max 32VDC - Nominal 24VDC 9. Display: 128x64 Graphic OLED 5 LED indicator for detector status 10. Event Logging: Records alarm, fault and maintenance events up to 250 logs 11. Power Consumption: Max. 4W 12. Relay Outputs: 2 Alarms (Programmable) and 1 Fault (All relays are NO/NC adjustable) 13. IP Rating: IP65/IP66 14. Junction Box: Epoxy Painted Die-Cast Aluminum / 316 Stainless Steel 15. Sensor Head: 316L Stainless Steel 16. Dimensions/Weight: 196,96x145,99x112mm / 2100gr To contact Gaxce Sensors, please email info@gaxcesensors.com You can reach us at +91-9673123829. Kindly visit our website so you will get more product information.
