PE-Kayo Series GAXCE SENSORS - Environmental, Health and Safety

<br><br>PE-KAYO Series is specially designed for Oil&Gas stations due to its multiple functions. A special accelerometer chip inside the detector measures physical bumps occurring at the location where the detector is installed as well as gas measurements. As soon as a car or truck strikes the detector or mounted shaft, the detector generates an alarm that cuts the gas and oil flow.<br>Moreover, the Catalytic sensor utilized by PE-Kayo has excellent output across the range 0-100%LEL.<br>Specification:<br><br>1. Sensor Technology: Catalytic, Motion Sensor: 3 axis (3D accelerometer)<br><br>2. Output Signal: 4-20mA and

dmgaxcesensors
Download Presentation

PE-Kayo Series GAXCE SENSORS - Environmental, Health and Safety

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

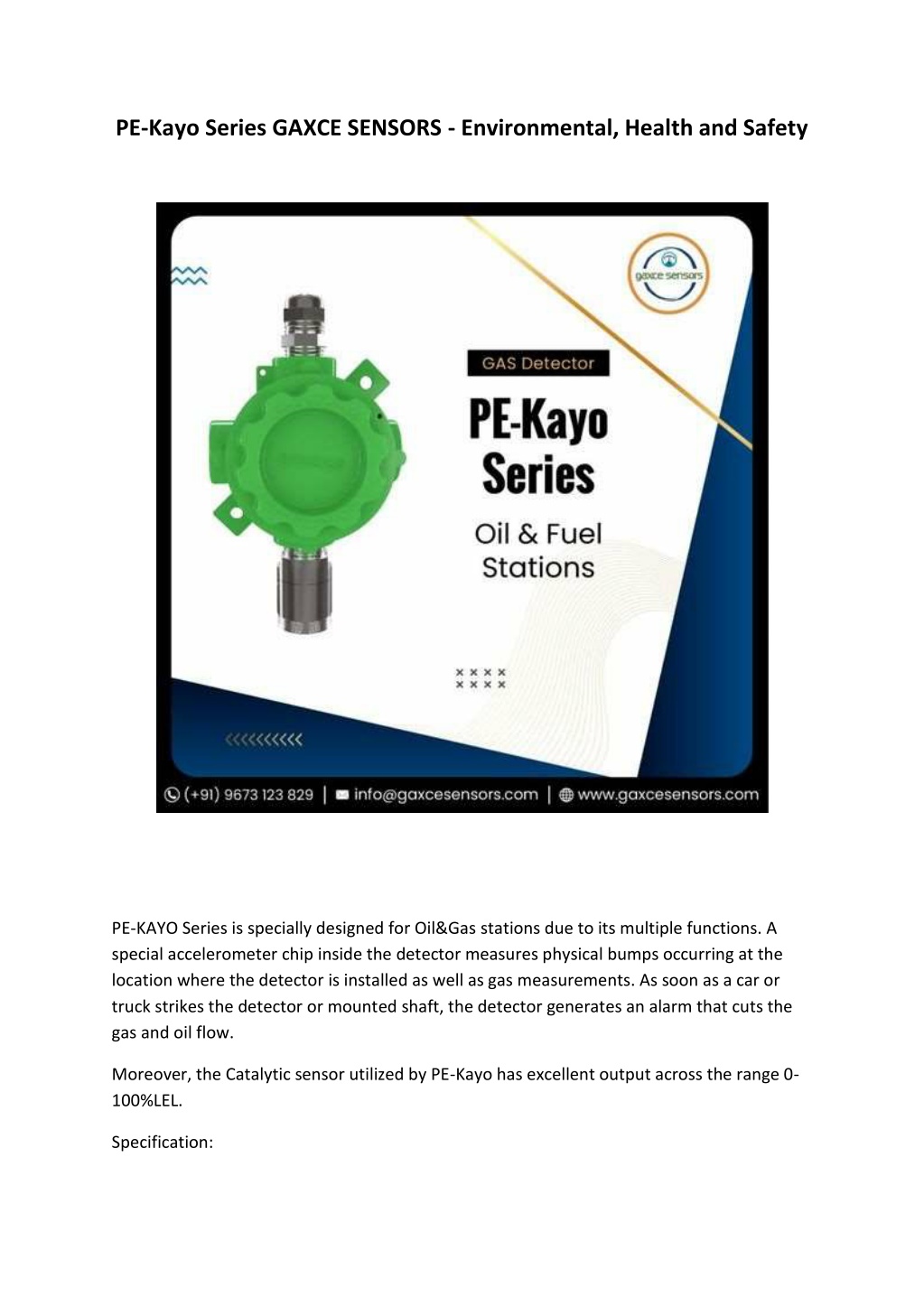

  1. PE-Kayo Series GAXCE SENSORS - Environmental, Health and Safety PE-KAYO Series is specially designed for Oil&Gas stations due to its multiple functions. A special accelerometer chip inside the detector measures physical bumps occurring at the location where the detector is installed as well as gas measurements. As soon as a car or truck strikes the detector or mounted shaft, the detector generates an alarm that cuts the gas and oil flow. Moreover, the Catalytic sensor utilized by PE-Kayo has excellent output across the range 0- 100%LEL. Specification:

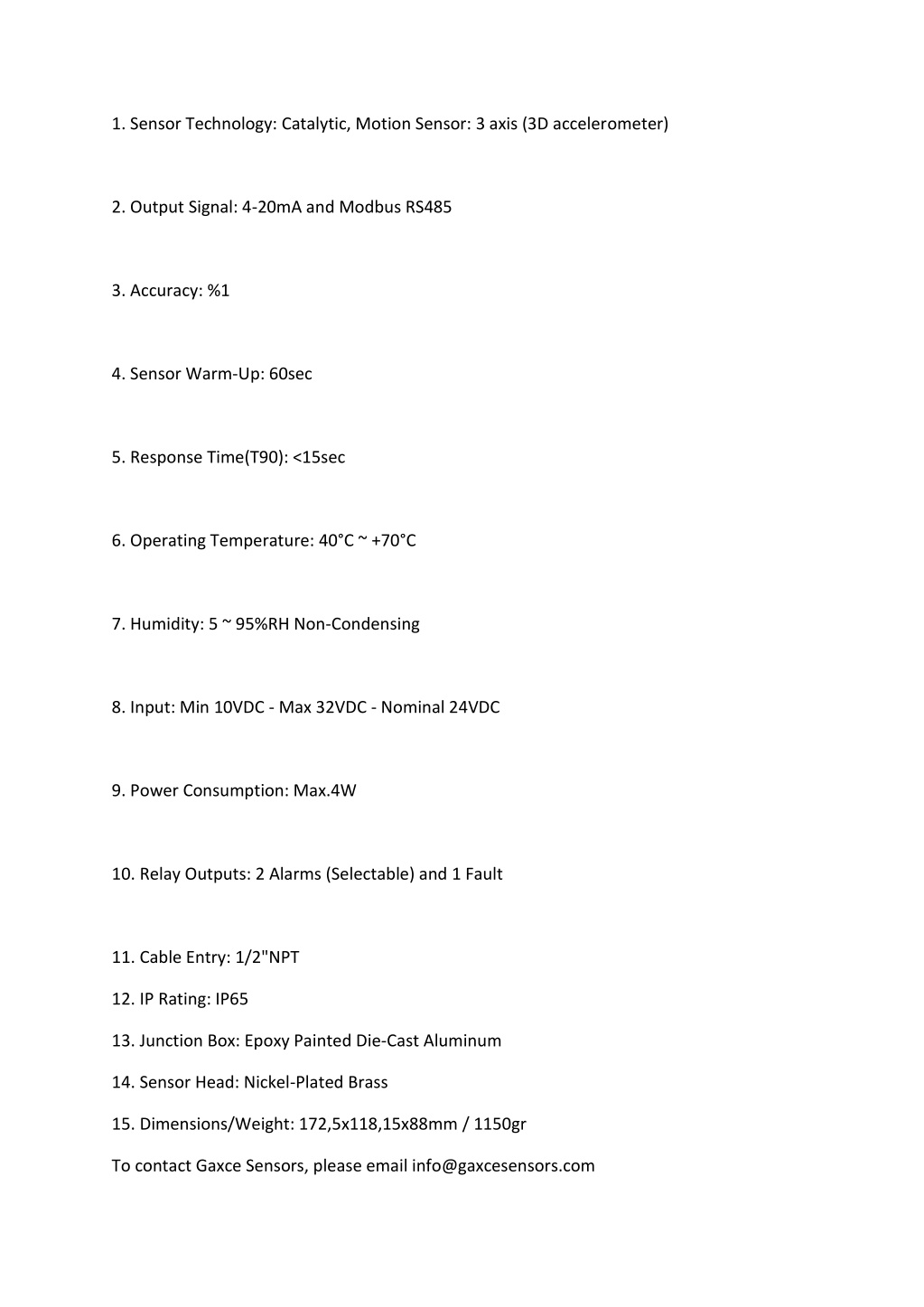

  2. 1. Sensor Technology: Catalytic, Motion Sensor: 3 axis (3D accelerometer) 2. Output Signal: 4-20mA and Modbus RS485 3. Accuracy: %1 4. Sensor Warm-Up: 60sec 5. Response Time(T90): <15sec 6. Operating Temperature: 40°C ~ +70°C 7. Humidity: 5 ~ 95%RH Non-Condensing 8. Input: Min 10VDC - Max 32VDC - Nominal 24VDC 9. Power Consumption: Max.4W 10. Relay Outputs: 2 Alarms (Selectable) and 1 Fault 11. Cable Entry: 1/2"NPT 12. IP Rating: IP65 13. Junction Box: Epoxy Painted Die-Cast Aluminum 14. Sensor Head: Nickel-Plated Brass 15. Dimensions/Weight: 172,5x118,15x88mm / 1150gr To contact Gaxce Sensors, please email info@gaxcesensors.com

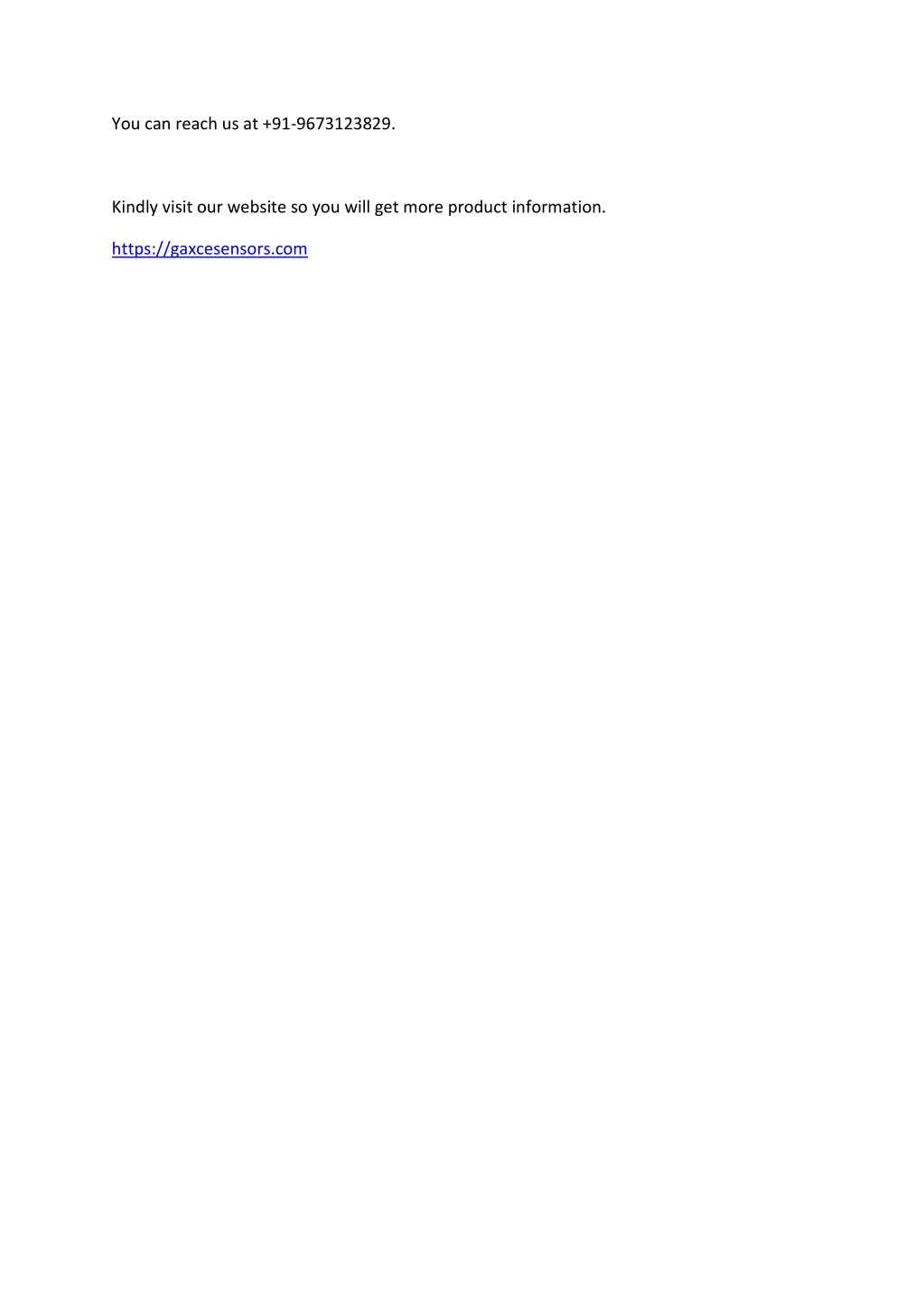

  3. You can reach us at +91-9673123829. Kindly visit our website so you will get more product information. https://gaxcesensors.com
