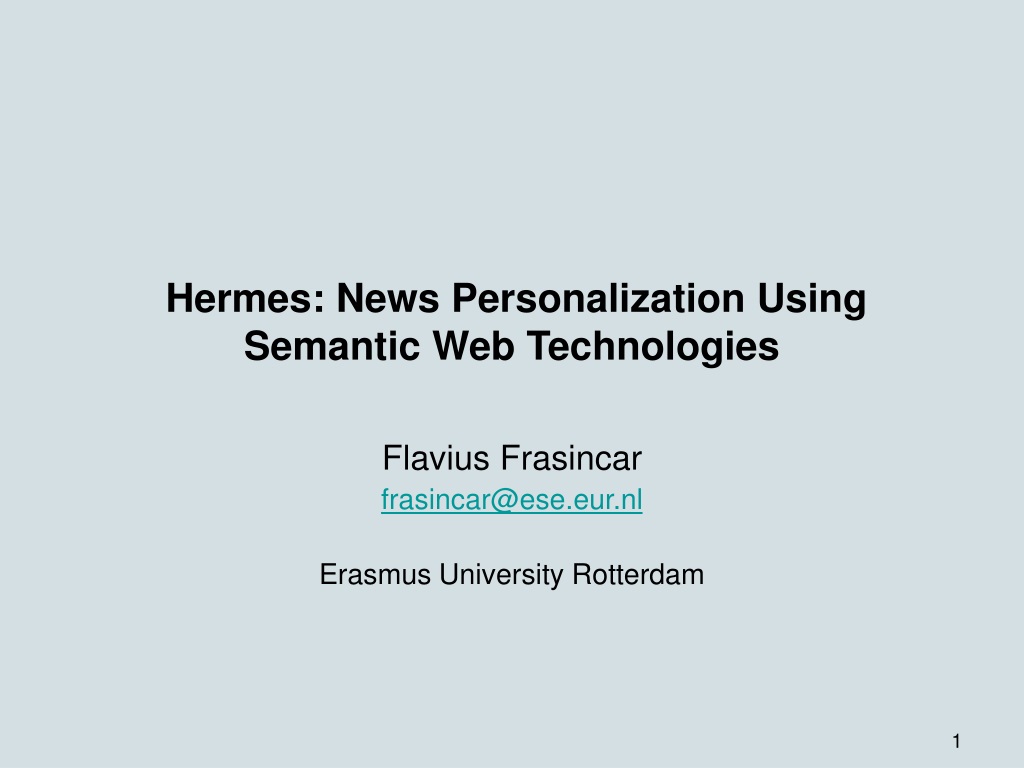

  1. Hermes: News Personalization Using Semantic Web Technologies Flavius Frasincar frasincar@ese.eur.nl Erasmus University Rotterdam

  2. Contents • Motivation • Hermes Framework: • News Classification • News Querying • Results Presentation • Hermes News Portal: • An example • Conclusions • Future Work

  3. Motivation • Large quantity of news on the Web: • Difficult to find the ones of interest • News messages have a strong impact on stock prices • Limited annotation of RSS feeds: • Broad categories (business, cars, entertainment, etc.) • Google finance shows direct news which pertain to a certain portfolio: • Indirect news (competitors of Google like Microsoft) are not presented • Not possible to ask time-related queries about news

  4. Hermes Framework • Input: • News items from RSS feeds • Domain ontology linked to a semantic lexicon (e.g., WordNet) • User query • Output: • News items as answers to the user query • Three phases: 1. News Classification: • Relate news items to ontology concepts 2. News Querying • Allow the user to express his concepts of interest and the temporal constraints 3. Results Presentation • Present the news items that match user’s query

  5. Hermes Architecture

  6. 1. News Classification • Concept defined in the ontology (class or individual) • Multiple lexical representations for the same concept: • Ontology synonyms (e.g., New York→ New York, Big Apple) • Semantic lexicon synonyms (e.g., buy→acquire) • Concepts without subclasses or instances: • Semantic lexicon hyponyms (e.g., company→dot-com) • Lookup ontology concepts into news items • A longer match supersedes a shorter match (European Central Bank supersedes European)

  7. 1. News Classification 1.1 Tokenization (words, punctuation signs) 1.2 Sentence splitting (sentences) 1.3 Part-of-speech tagging (e.g., noun, verb, adj., etc.) 1.4 Morphological analysis (e.g., lemma “read” for “reading” as a verb) 1.5 Word sense disambiguation (e.g., Structural Semantic Interconnection (SSI) based on word context) 1.6 Adding “hits” between news items and the domain ontology

  8. 2. News Querying 2.1 Query Formulation • Present the domain knowledge as directed labeled multi-graph: • with the additional constraint that arcs between two nodes are not allowed to share the same label (called conceptual graph) • User selects the concepts of interest in the conceptual graph (e.g., Google) • User is able to add to its selection concepts related to the concepts of interests using specified relations (e.g., hasCompetitors: Microsoft, eBay, and Yahoo) • The selected concepts are presented in a separate graph (called search graph)

  9. 2. News Querying • News are time stamped • User is able to specify that only news in a certain time interval should be retrieved • Time constraints: • Last hour • Last day • Last year • [2007-03-01T00:00:00.000+00:01, 2007-05-31T00:00:00.000+00:01 ] • [Future: order constraints (e.g., order by time)]

  10. 2. News Querying 2.2 Query Execution • Generate the query in a semantic query language: • Map concepts of interest to query restrictions (current: disjunctive queries) • Map temporal constraints to query restrictions • Execute the semantic query • The order of the relevant news items is not important here

  11. 3. Results Presentation 3.1 News Sorting • Return news items that match a query • Sort the news items based on their relevance degree to the query • The relevance degree is determined empirically: • based on a weighted sum of the number of hits in title (higher weight) and body (lower weight) of the news item • News items that have the same relevance degree are sorted in descending timestamp order

  12. 3. Results Presentation 3.2 News Presentation • Present the concepts involved in the query • Per each news items show a summary: • Title • Source • Date • Few beginning lines from the news item ([Future: snippet]) • Emphasize the hits (found concepts from the ontology) in the retrieved news items • Show the icons of the most important query concept found in a news item: • based on a weighted sum of the number of hits in title (higher weight) and body (lower weight) of a concept in a news item

  13. Hermes News Portal • Hermes News Portal (HNP) is an implementation of the Hermes framework • Implementation language: Java • Ontology represention language: OWL (e.g., cardinality restrictions, inverses, etc.) • Semantic lexicon: WordNet • Graph visualization: Prefuse (OWL2Prefuse) • Query language: SPARQL • SPARQL extended with custom time functions (e.g., currentDate(),currentTime(), etc.) • Natural language processing: GATE

  14. An Example • Query: Which are the news items about Google or one of its competitors from the past six months?

  15. 1. News Classification – Import News

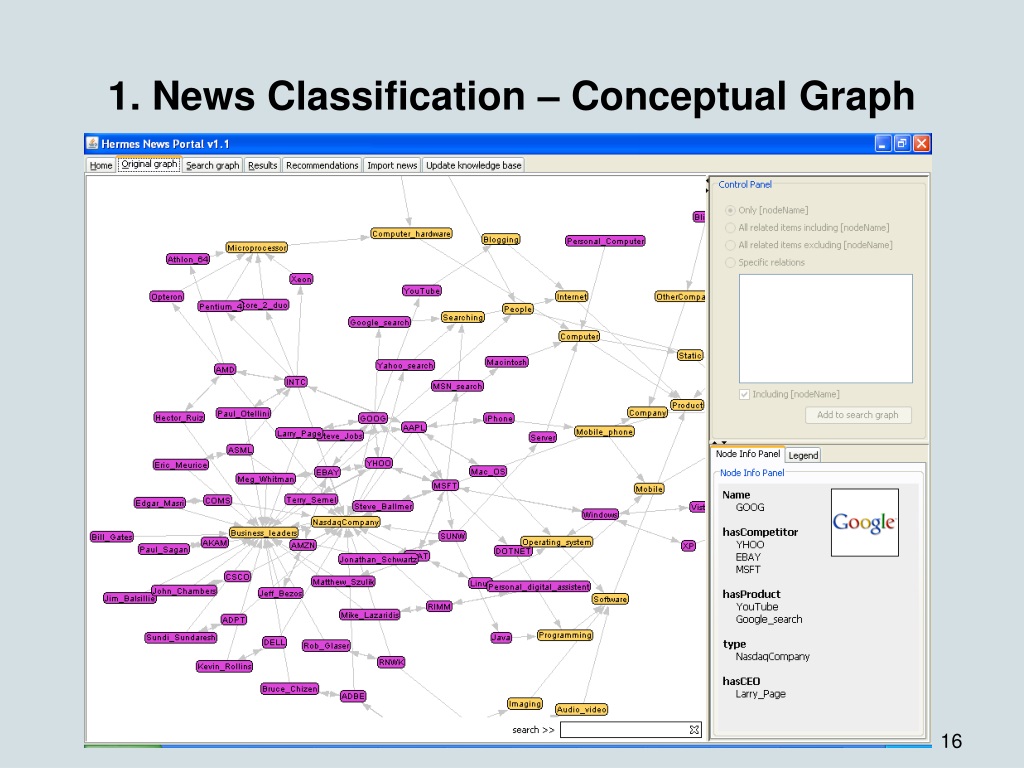

  16. 1. News Classification – Conceptual Graph

  17. 2. News Querying- Search Graph Individuals Classes Selected concepts Concepts related to the selected node Concepts from keyword search

  18. 2. News Querying - Search Graph

  19. 2. News Querying- SPARQL PREFIX hermes: <http://hermes-news.org/news.owl#> SELECT ?title WHERE { ?news hermes:title ?title . ?news hermes:time ?date . ?news hermes:relation ?relation . ?news hermes:relatedTo ?concept . FILTER ( ?concept hermes:relatedTo hermes:Google || ?concept hermes:relatedTo hermes:Micosoft || ?concept hermes:relatedTo hermes:Ebay || ?concept hermes:relatedTo hermes:Yahoo ) FILTER ( ?date > "2009-02-01T00:00:00.000+00:01" && ?date < "2009-07-31T00:00:00.000+00:01" ) } • SPARQL query:

  20. 2. News Querying- tSPARQL • Custom time functions:

  21. 2. News Querying- tSPARQL PREFIX hermes: <http://hermes-news.org/news.owl#> SELECT ?title WHERE { ?news hermes:title ?title . ?news hermes:time ?date . ?news hermes:relation ?relation . ?news hermes:relatedTo ?concept . FILTER ( ?concept hermes:relatedTo hermes:Google || ?concept hermes:relatedTo hermes:Micosoft || ?concept hermes:relatedTo hermes:Ebay || ?concept hermes:relatedTo hermes:Yahoo ) FILTER ( ?date > hermes:dateTime-substract(hermes:now(), P0Y6M) && ?date < hermes:now() ) } • tSPARQL query:

  22. 3. Results Presentation

  23. Conclusions • Hermes Framework: presents news items that match the user interests • Hermes Framework: • News Classification • News Querying • Results Presentation • Hermes News Portal (HNP): an implementation of the Hermes framework • HNP based on: • WordNet semantic lexicon, OWL ontology, (extended) SPARQL queries, Prefuse visualization, GATE natural language processing

  24. Future Work • Word Sense Disambiguation: • GAMBL (supervised learning algorithm) • Ontology updates: • Learning from news items • Check if the extracted information obeys the ontology axioms: • Faulty extraction • Ontology axioms update • Simplify the query interface: • Allow users to ask English queries based on a limited vocabulary • Evaluate the tool outside the university lab
