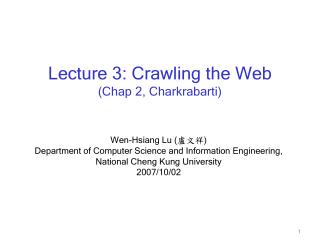

Lecture 3: Crawling the Web(Chap 2, Charkrabarti)

Wen-Hsiang Lu (盧文祥)

Department of Computer Science and Information Engineering,

National Cheng Kung University


crawling the web

Crawling the Web

Web pages

Few thousand characters long

Served through the internet using the hypertext transport protocol (HTTP)

Viewed at client end using `browsers’


To fetch the pages to the computer

At the computer

Automatic programs can analyze hypertext documents

  • HyperText Markup Language
  • Lets the author
    • specify layout and typeface
    • embed diagrams
    • create hyperlinks.
      • expressed as an anchor tag with a HREF attribute
      • HREF names another page using a Uniform Resource Locator (URL),
    • URL =
      • protocol field (“HTTP”) +
      • a server hostname (“”) +
      • file path (/, the `root' of the published file system).
http hypertext transport protocol
HTTP(hypertext transport protocol)
  • Built on top of the Transport Control Protocol (TCP)
  • Steps (from client end)
    • resolve server host name to Internet address (IP)
      • Use Domain Name Server (DNS)
      • DNS is a distributed database of name-to-IP mappings maintained at a set of known servers
    • contact the server using TCP
      • connect to default HTTP port (80) on the server.
      • Enter the HTTP requests header (E.g.: GET)
      • Fetch the response header
        • MIME (Multipurpose Internet Mail Extensions)
        • A meta-data standard for email and Web content transfer
      • Fetch the HTML page
crawl all web pages
Crawl “all” Web pages?
  • Problem: no catalog of all accessible URLs on the Web.
  • Solution:
    • start from a given set of URLs
    • Progressively fetch and scan them for new outlinking URLs
    • fetch these pages in turn…..
    • Submit the text in page to a text indexing system
    • and so on……….
crawling procedure
Crawling procedure
  • Simple
    • Great deal of engineering goes into industry-strength crawlers
    • Industry crawlers crawl a substantial fraction of the Web
    • E.g.: Alta Vista, Northern Lights, Inktomi
  • No guarantee that all accessible Web pages will be located in this fashion
  • Crawler may never halt …….
    • pages will be added continually even as it is running.
crawling overheads
Crawling overheads
  • Delays involved in
    • Resolving the host name in the URL to an IP address using DNS
    • Connecting a socket to the server and sending the request
    • Receiving the requested page in response
  • Solution: Overlap the above delays by
    • fetching many pages at the same time
anatomy of a crawler
Anatomy of a crawler.
  • Page fetching threads
    • Starts with DNS resolution
    • Finishes when the entire page has been fetched
  • Each page
    • stored in compressed form to disk/tape
    • scanned for outlinks
  • Work pool of outlinks
    • maintain network utilization without overloading it
      • Dealt with by load manager
  • Continue till the crawler has collected a sufficient number of pages.
large scale crawlers performance and reliability considerations
Large-scale crawlers: performance and reliability considerations
  • Need to fetch many pages at same time
    • utilize the network bandwidth
    • single page fetch may involve several seconds of network latency
  • Highly concurrent and parallelized DNS lookups
  • Use of asynchronous sockets
    • Explicit encoding of the state of a fetch context in a data structure
    • Polling socket to check for completion of network transfers
    • Multi-processing or multi-threading: Impractical
  • Care in URL extraction
    • Eliminating duplicates to reduce redundant fetches
    • Avoiding “spider traps” (e.g., fake URLs)
dns caching pre fetching and resolution
DNS caching, pre-fetching and resolution
  • A customized DNS component with…..
    • Custom client for address resolution
    • Caching server
    • Prefetching client
custom client for address resolution
Custom client for address resolution
  • Tailored for concurrent handling of multiple outstanding requests
  • Allows issuing of many resolution requests together
    • polling at a later time for completion of individual requests
  • Facilitates load distribution among many DNS servers.
caching server
Caching server
  • With a large cache, persistent across DNS restarts
  • Residing largely in memory if possible.
  • DNS resolution
    • UNIX gethostbyname: cannot provide concurrent requests
    • Mercator: reduce time from 87% to 25%
    • ADNS: asynchronous DNS client
prefetching client
Prefetching client
  • Steps
    • Parse a page that has just been fetched
    • extract host names from HREF targets
    • Make DNS resolution requests to the caching server
  • Usually implemented using UDP
    • User Datagram Protocol
    • connectionless, packet-based communication protocol
    • does not guarantee packet delivery
  • Does not wait for resolution to be completed.
multiple concurrent fetches
Multiple concurrent fetches
  • Managing multiple concurrent connections
    • A single download may take several seconds
    • Open many socket connections to different HTTP servers simultaneously
  • Multi-CPU machines not useful
    • crawling performance limited by network and disk
  • Two approaches
    • using multi-threading
    • using non-blocking sockets with event handlers
multi threading
  • logical threads
    • physical thread of control provided by the operating system (E.g.: pthreads) OR
    • concurrent processes
  • fixed number of threads allocated in advance
  • programming paradigm
    • create a client socket
    • connect the socket to the HTTP service on a server
    • Send the HTTP request header
    • read the socket (recv) until
      • no more characters are available
    • close the socket.
  • use blockingsystem calls
multi threading problems
Multi-threading: Problems
  • performance penalty
    • mutual exclusion
    • concurrent access to data structures
  • slow disk seeks.
    • great deal of interleaved, random input-output on disk
    • Due to concurrent modification of document repository by multiple threads
non blocking sockets and event handlers
Non-blocking sockets and event handlers
  • non-blocking sockets
    • connect, send or recv call returns immediately without waiting for the network operation to complete.
    • poll the status of the network operation separately
  • “select” system call
    • lets application suspend until more data can be read from or written to the socket
    • timing out after a pre-specified deadline
    • Monitor polls several sockets at the same time
  • More efficient memory management
    • code that completes processing not interrupted by other completions
    • No need for locks and semaphores on the pool
    • only append complete pages to the log
link extraction and normalization
Link extraction and normalization
  • Goal: Obtaining a canonical form of URL
  • URL processing and filtering
    • Avoid multiple fetches of pages known by different URLs
    • many IP addresses
      • For load balancing on large sites
        • Mirrored contents/contents on same file system
      • “Proxy pass“
        • Mapping of different host names to a single IP address
        • need to publish many logical sites
    • Relative URLs
      • need to be interpreted w.r.t a base URL.
canonical url
Canonical URL

Formed by

  • Using a standard string for the protocol
  • Canonicalizing the host name
  • Adding an explicit port number
  • Normalizing and cleaning up the path
    • /books/../papers/index.html =>/papers/index.html
robot exclusion
Robot exclusion
  • Check
    • whether the server prohibits crawling a normalized URL
    • In robots.txt file in the HTTP root directory of the server
      • species a list of path prefixes which crawlers should not attempt to fetch.
  • Meant for crawlers only
    • User-agent specification
eliminating already visited urls
Eliminating already-visited URLs
  • Checking if a URL has already been fetched
    • Before adding a new URL to the work pool
    • Needs to be very quick.
    • Achieved by computing MD5 ( Message-Digest algorithm 5)hash function
      • (
      • X = MD5("vote1234") = 8339e38c61175dbd07846ad70dc226b2
  • Exploiting spatio-temporal locality of access
      • Two-level hash function.
        • most significant bits (say, 24) derived by hashing the host name plus port
        • lower order bits (say, 40) derived by hashing the path
      • concatenated bits use d as a key in a B-tree
  • qualifying URLs added to frontier of the crawl.
  • hash values added to B-tree.
spider traps
Spider traps
  • Protecting from crashing on
    • Ill-formed HTML
      • E.g.: page with 68 kB of null characters
    • Misleading sites
      • indefinite number of pages dynamically generated by CGI scripts
      • paths of arbitrary depth created using soft directory links and path remapping features in HTTP server
spider traps solutions
Spider Traps: Solutions
  • No automatic technique can be foolproof
  • Check for URL length
  • Guards
    • Preparing regular crawl statistics
    • Adding dominating sites to guard module
    • Disable crawling active content such as CGI form queries
    • Eliminate URLs with non-textual data types
avoiding repeated expansion of links on duplicate pages
Avoiding repeated expansion of links on duplicate pages
  • Reduce redundancy in crawls
  • Duplicate detection
    • Mirrored Web pages and sites
  • Detecting exact duplicates
    • Checking against MD5 digests of stored URLs
    • Representing a relative link v (relative to aliases u1 and u2) as tuples (h(u1); v) and (h(u2); v)
  • Detecting near-duplicates
    • Even a single altered character will completely change the digest !
      • E.g.: date of update/ name and email of the site administrator
    • Solution : Shingling
load monitor
Load monitor
  • Keeps track of various system statistics
    • Recent performance of the wide area network (WAN) connection
      • E.g.: latency and bandwidth estimates.
    • Operator-provided/estimated upper bound on open sockets for a crawler
    • Current number of active sockets.
thread manager
Thread manager
  • Responsible for
    • Choosing units of work from frontier
    • Scheduling issue of network resources
    • Distribution of these requests over multiple ISPs if appropriate.
  • Uses statistics from load monitor
per server work queues
Per-server work queues
  • Denial of service (DoS) attacks
    • limit the speed or frequency of responses to any fixed client IP address
  • Avoiding DOS
    • limit the number of active requests to a given server IP address at any time
    • maintain a queue of requests for each server
      • Use the HTTP/1.1 persistent socket capability.
    • Distribute attention relatively evenly between a large number of sites
  • Access locality vs. politeness dilemma
text repository
Text repository
  • Crawler’s last task
    • Dumping fetched pages into a repository
  • Decoupling crawler from other functions for efficiency and reliability preferred
  • Page-related information stored in two parts
    • meta-data
    • page contents
storage of page related information
Storage of page-related information
  • Meta-data
    • relational in nature
      • usually managed by custom software to avoid relation database system overheads
      • text index involves bulk updates
    • includes fields like content-type, last-modified date, content-length, HTTP status code, etc.
page contents storage
Page contents storage
  • Typical HTML Web page compresses to 2-4 kB (using zlib)
  • File systems have a 4-8 kB file block size
    • Too large !!
  • Page storage managed by custom storage manager
    • simple access methods for
      • crawler to add pages
      • Subsequent programs (Indexer etc) to retrieve documents
page storage
Page Storage
  • Small-scale systems
    • Repository fitting within the disks of a single machine
    • Use of storage manager (E.g.: Berkeley DB:
      • Manage disk-based databases within a single file
      • configuration as a hash-table/B-tree for URL access key
        • To handle ordered access of pages
      • configuration as a sequential log of page records.
        • Since Indexer can handle pages in any order
page storage1
Page Storage
  • Large-scale systems
    • Repository distributed over a number of storage servers
    • Storage servers
      • Connected to the crawler through a fast local network (E.g.: gigabit Ethernet)
      • Hashed by URLs
    • `T3' grade leased lines.
      • To handle 10 million pages (40 GB) per hour

Large-scale crawlers often use multiple ISPs and a bank of local storage servers to store the pages crawled.

refreshing crawled pages
Refreshing crawled pages
  • Search engine's index should be fresh
  • Web-scale crawler never `completes' its job
  • High variance of rate of page changes
  • “If-modified-since” request header with HTTP protocol
    • Impractical for a crawler
  • Solution
    • At commencement of new crawling round estimate which pages have changed
determining page changes
Determining page changes
  • “Expires” HTTP response header
    • For page that come with an expiry date
  • Otherwise need to guess if revisiting that page will yield a modified version.
    • Score reflecting probability of page being modified
    • Crawler fetches URLs in decreasing order of score.
    • Assumption : recent past predicts the future
estimating page change rates
Estimating page change rates
  • Brewington and Cybenko & Cho
    • Algorithms for maintaining a crawl in which most pages are fresher than a specified epoch.
  • Prerequisite
    • average interval at which crawler checks for changes is smaller than the inter-modification times of a page
  • Small scale intermediate crawler runs
    • to monitor fast changing sites
      • E.g.: current news, weather, etc.
    • Patched intermediate indices into master index
putting together a crawler
Putting together a crawler
  • Reference implementation of the HTTP client protocol
    • World-wide Web Consortium (
    • w3c-libwww package
design of the core components crawler class
Design of the core components: Crawler class.
  • To copy bytes from network sockets to storage media
  • Three methods to express Crawler's contract with user
    • pushing a URL to be fetched to the Crawler (fetchPush)
    • Termination callback handler (fetchDone) called with same URL
    • Method (start) which starts Crawler's event loop.
  • Implementation of Crawler class
    • Need for two helper classes called DNS and Fetch
criterions for the project crawler
Criterions for the Project Crawler
  • Performance
    • Speed
    • Scalability
  • Interesting/useful design strategies
    • Prefetching
    • Threading
    • Compressing
    • Data management
    • Others
      • Algorithms: MD5, Depth first search/Breadth first search
      • Configuration: flexible parameter setting
