### Knowledge Engineering for Bayesian Networks

Ann Nicholson

School of Computer Science

and Software Engineering

Monash University

Overview
• Representing uncertainty
• Introduction to Bayesian Networks
• Syntax, semantics, examples
• The knowledge engineering process
• Case Studies
• Seabreeze prediction
• Intelligent Tutoring
• Open research questions
Sources of Uncertainty
• Ignorance
• Inexact observations
• Non-determinism
• AI representations
• Probability theory
• Dempster-Shafer
• Fuzzy logic
Probability theory for representing uncertainty
• Assigns a numerical degree of belief between 0 and 1 to facts
• e.g. “it will rain today” is T/F.
• P(“it will rain today”) = 0.2 prior probability (unconditional)
• Posterior probability (conditional)
• P(“it wil rain today” | “rain is forecast”) = 0.8
• Bayes’ Rule: P(H|E) = P(E|H) x P(H)

P(E)

Bayesian networks
• Directed acyclic graphs
• Nodes: random variables,
• R: “it is raining”, discrete values T/F
• T: temperature, cts or discrete variable
• C: colour, discrete values {red,blue,green}
• Arcs indicate dependencies (can have causal interpretation)

X

Flu

Y

Te

Q

Th

Bayesian networks
• Conditional Probability Distribution (CPD)
• Associated with each variable
• probability of each state given parent states

“Jane has the flu”

P(Flu=T) = 0.05

Models causal relationship

“Jane has a

high temp”

P(Te=High|Flu=T) = 0.4

P(Te=High|Flu=F) = 0.01

Models possible sensor error

“Thermometer

P(Th=High|Te=H) = 0.95

P(Th=High|Te=L) = 0.1

Flu

Flu

TB

Flu

Flu

Y

Te

Te

Te

Y

Te

Th

Th

Th

Diagnostic

inference

Causal

inference

Mixed

inference

Intercausal

inference

BN inference
• Evidence: observation of specific state
• Task: compute the posterior probabilities for query node(s) given evidence.

Flu

BN software
• Commerical packages: Netica, Hugin, Analytica (all with demo versions)
• Free software: Smile, Genie, JavaBayes, …

http://HTTP.CS.Berkeley.EDU/~murphyk/Bayes/bnsoft.html

• Examples
Decision networks
• Extension to basic BN for decision making
• Decision nodes
• Utility nodes
• EU(Action) =  p(o|Action,E) U(o)

o

• choose action with highest expect utility
• Example
Elicitation from experts
• Variables
• important variables? values/states?
• Structure
• causal relationships?
• dependencies/independencies?
• Parameters (probabilities)
• quantify relationships and interactions?
• Preferences (utilities)

BN

EXPERT

Domain

EXPERT

BN TOOLS

Expert Elicitation Process
• These stages are done iteratively
• Stops when further expert input is no longer cost effective
• Process is difficult and time consuming.
• Current BN tools
• inference engine
• GUI
• Next generation of BN tools?
Knowledge discovery
• There is much interest in automated methods for learning BNS from data
• parameters, structure (causal discovery)
• Computationally complex problem, so current methods have practical limitations
• e.g. limit number of states, require variable ordering constraints, do not specify all arc directions
• Evaluation methods
The knowledge engineering process

1. Building the BN

• variables, structure, parameters, preferences
• combination of expert elicitation and knowledge discovery

2. Validation/Evaluation

• case-based, sensitivity analysis, accuracy testing

3. Field Testing

• alpha/beta testing, acceptance testing

4. Industrial Use

• collection of statistics

5. Refinement

• Updating procedures, regression testing
Case Study: Intelligent tutoring
• Tutoring domain: primary and secondary school students’ misconceptions about decimals
• Based on Decimal Comparison Test (DCT)
• student asked to choose the larger of pairs of decimals
• different types of pairs reveal different misconceptions
• ITS System involves computer games involving decimals
• This research also looks at a combination of expert elicitation and automated methods
The ITS architecture

Bayesian

Network

Inputs

Student

Generic BN model of student

Decimal comparison

test (optional)

Item

• Diagnose misconception
• Predict outcomes
• Identify most useful information

Information about student e.g. age (optional)

Computer Games

Hidden

number

Classroom

diagnostic test

results (optional)

Feedback

Flying

photographer

• Select next item type
• Decide to present help
• Decide change to new game
• Identify when expertise gained

System

Controller

Module

Item type

Item

Decimaliens

New game

Sequencing

tactics

Number between

Help

Help

….

Report

on student

Classroom

Teaching

Activities

Teacher

Expert Elicitation
• Variables
• two classification nodes: fine and coarse (mut. ex.)
• item types: (i) H/M/L (ii) 0-N
• Structure
• arcs from classification to item type
• item types independent given classification
• Parameters
• careless mistake (3 different values)
• expert ignorance: - in table (uniform distribution)

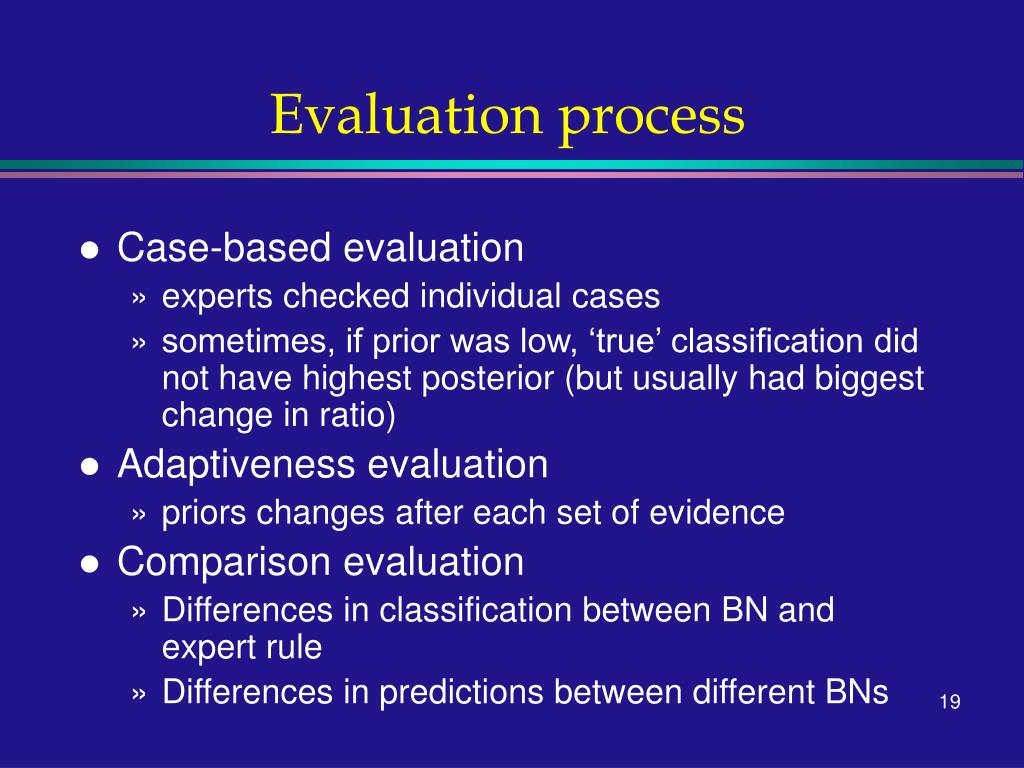

Evaluation process
• Case-based evaluation
• experts checked individual cases
• sometimes, if prior was low, ‘true’ classification did not have highest posterior (but usually had biggest change in ratio)
• priors changes after each set of evidence
• Comparison evaluation
• Differences in classification between BN and expert rule
• Differences in predictions between different BNs
Comparison evaluation
• Development of measure: same classification, desirable and undesirable re-classification
• Use item type predictions
• Investigation of effect of item type granularity and probability of careless mistake
Investigation by Automated methods
• Classification (using SNOB program, based on MML)
• Parameters
• Structure (using CaMML)
Case Study: Seabreeze prediction
• 2000 Honours project, joint with Bureau of Meteorology (PAKDD’2001 paper, TR)
• BN network built based on existing simple expert rule
• Several years data available for Sydney seabreezes
• CaMML and Tetrad-II programs used to learn BNs from data
• Comparative analysis showed automated methods gave improved predictions.
Open Research Questions
• Tools needed to support expert elicitation
• Combining expert elicitation and automated methods
• Evaluation measures and methods
• Industry adoption of BN technology
