  1. Valves & Controls for Semiconductor Fabs Part 2 – Additional Products

  2. Executive Summary: • Plast-O-Matic provides innovative, engineered valve and piping component solutions throughout the fab. • Standard and custom products that solve pressure and flow control problems. • PVC, Corzan CPVC, Natural Polypro, PTFE, Kynar PVDF, and custom materials. • Manufactured in USA since 1967.

  3. PVAC ICW, PCW RO WATER AQUEOUS CHEMICALS ACID WASTE Ball Valves

  4. The ONLY plastic ball valve featuring the safety of TRUNNION DESIGN

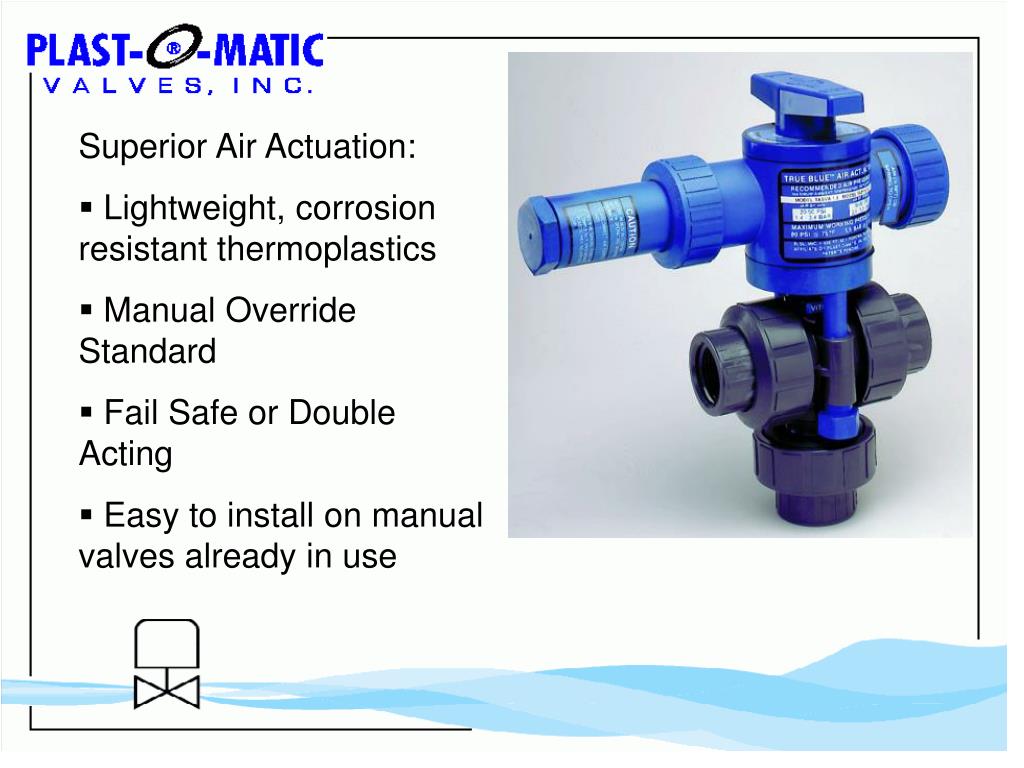

  5. Superior Air Actuation: • Lightweight, corrosion resistant thermoplastics • Manual Override Standard • Fail Safe or Double Acting • Easy to install on manual valves already in use

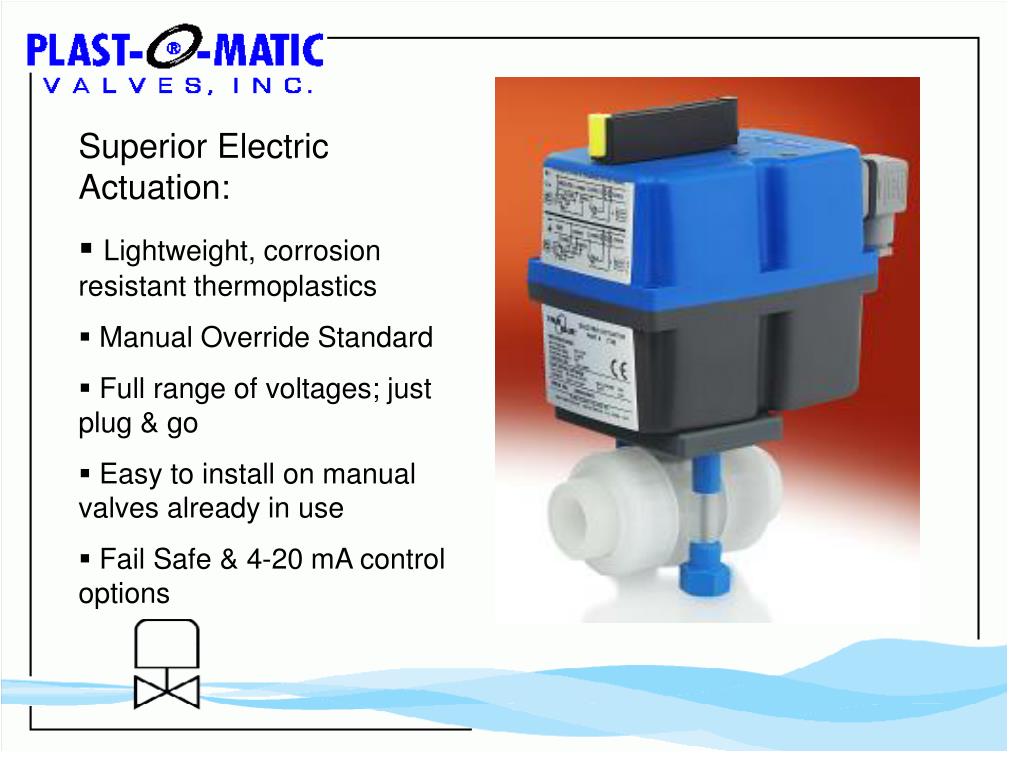

  6. Superior Electric Actuation: • Lightweight, corrosion resistant thermoplastics • Manual Override Standard • Full range of voltages; just plug & go • Easy to install on manual valves already in use • Fail Safe & 4-20 mA control options

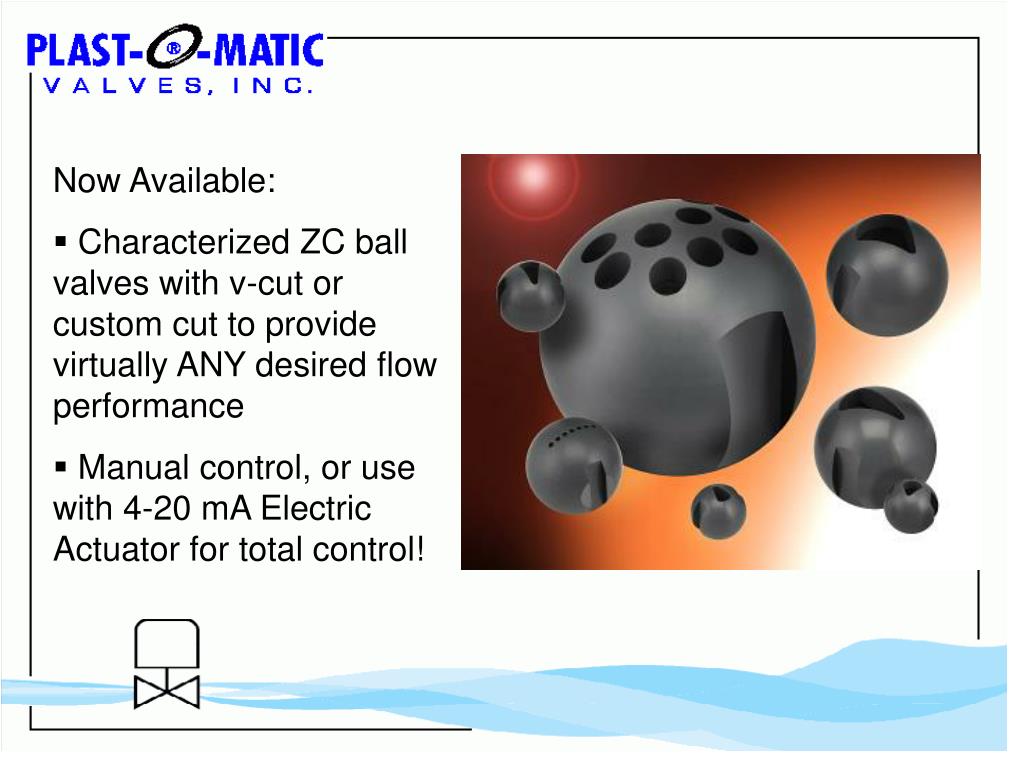

  7. Now Available: • Characterized ZC ball valves with v-cut or custom cut to provide virtually ANY desired flow performance • Manual control, or use with 4-20 mA Electric Actuator for total control!

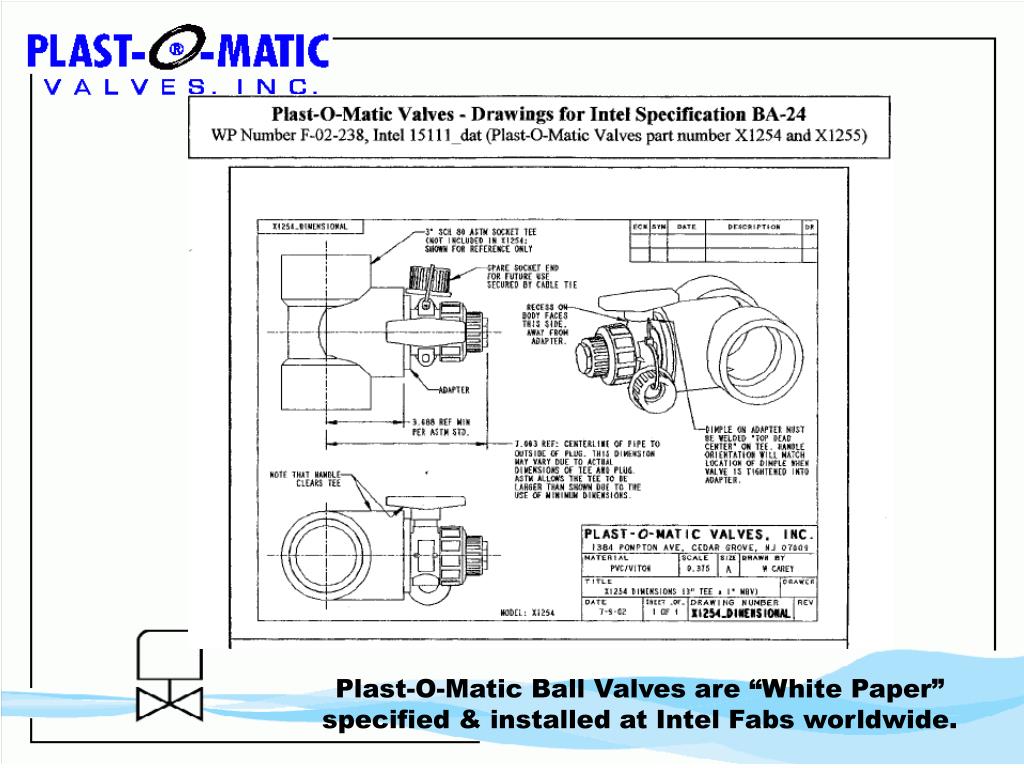

  8. Plast-O-Matic Ball Valves are “White Paper” specified & installed at Intel Fabs worldwide.

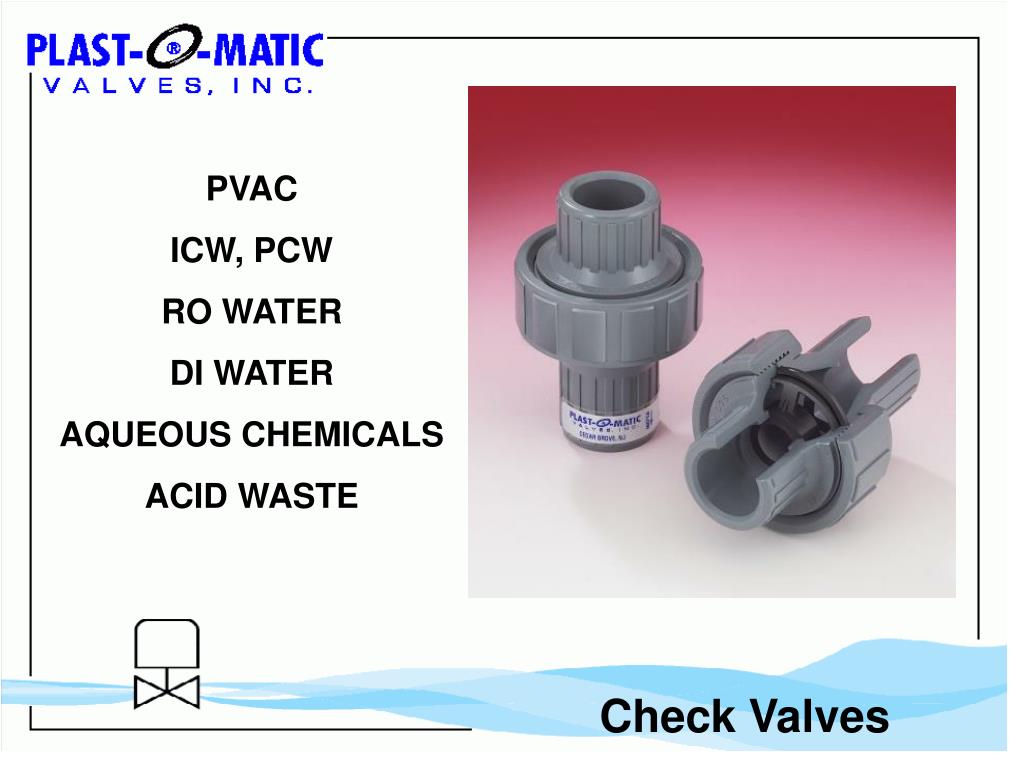

  9. PVAC ICW, PCW RO WATER DI WATER AQUEOUS CHEMICALS ACID WASTE Check Valves

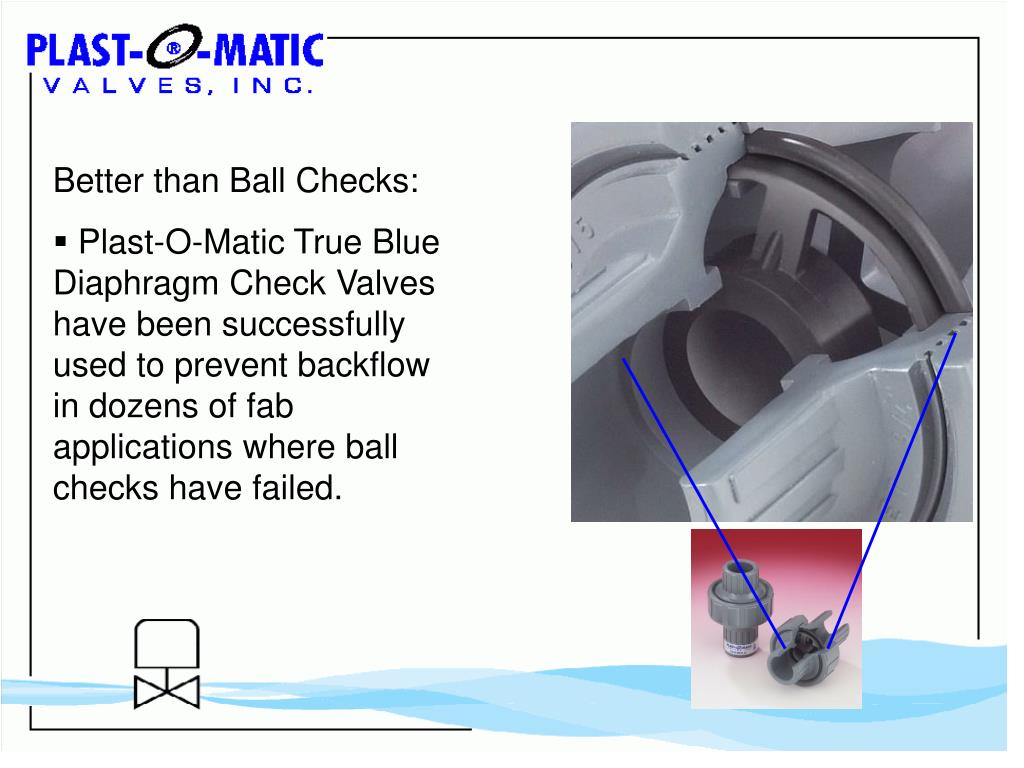

  10. Better than Ball Checks: • Plast-O-Matic True Blue Diaphragm Check Valves have been successfully used to prevent backflow in dozens of fab applications where ball checks have failed.

  11. Plast-O-Matic Check Valves are “White Paper” specified & installed at Intel Fabs worldwide. Plast-O-Matic CKMXXXEP-PV

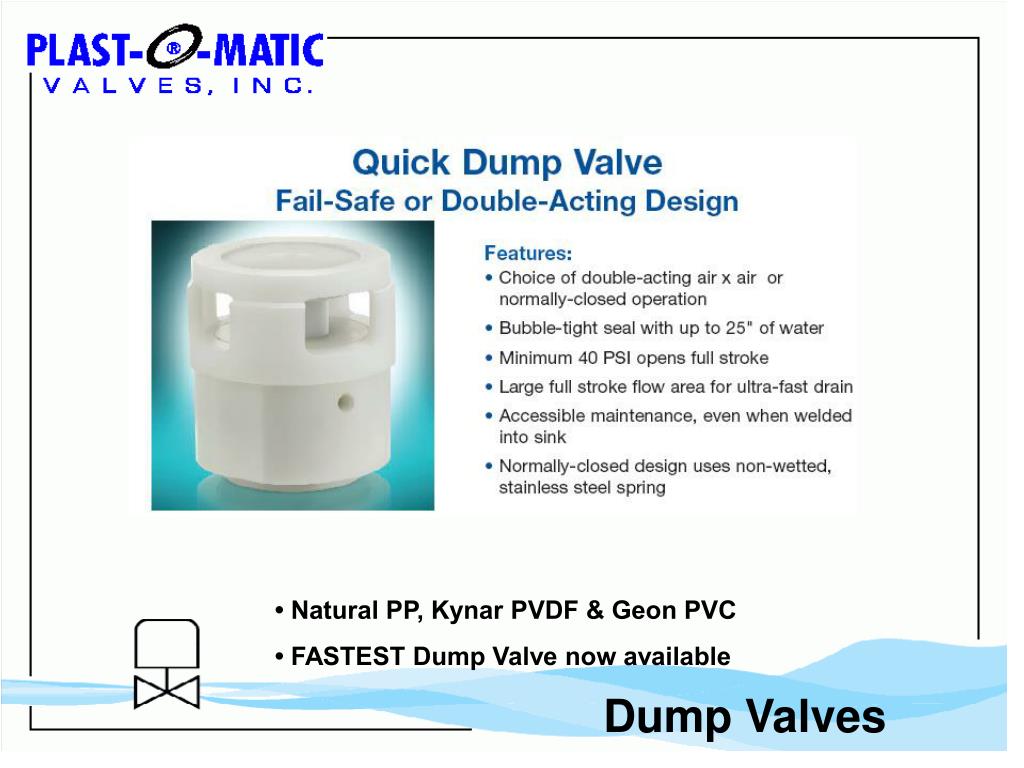

  12. • Natural PP, Kynar PVDF & Geon PVC • FASTEST Dump Valve now available Dump Valves

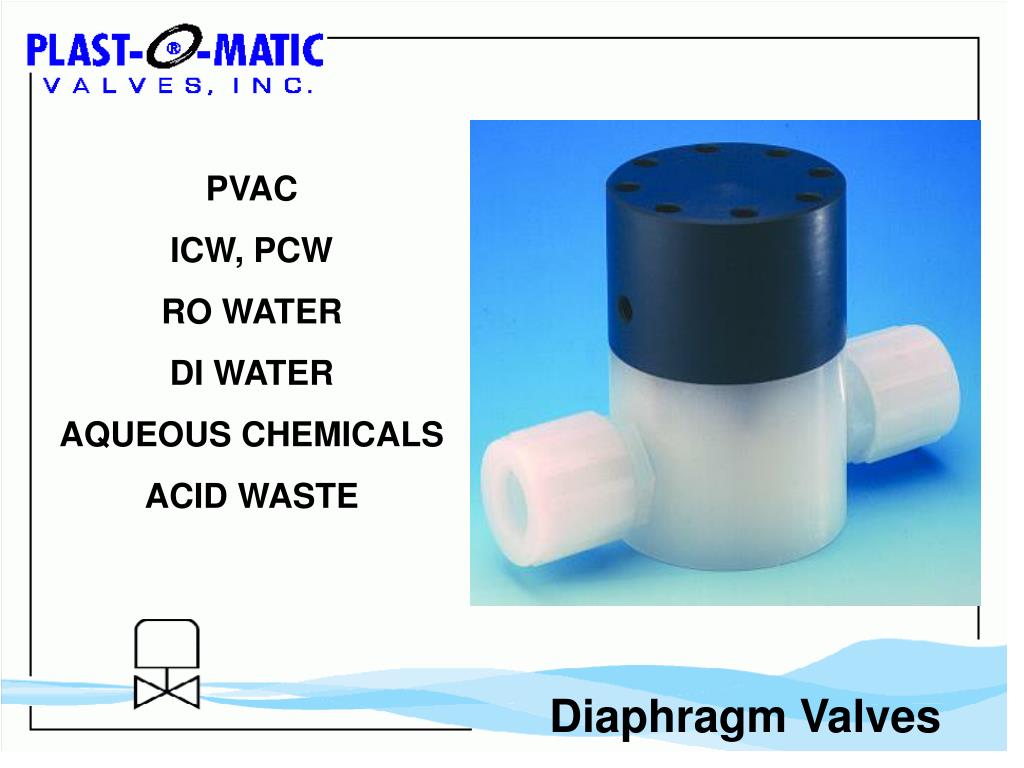

  13. PVAC ICW, PCW RO WATER DI WATER AQUEOUS CHEMICALS ACID WASTE Diaphragm Valves

  14. True Blue Air Operated Diaphragm Valves: Unique PTFE diaphragm backed by Viton provides ultimate longevity and performance Patented Fail-Dry warning system permits continued operation in the event of diaphragm failure Exceeds 1,000,000 cycles in laboratory conditions with tap water. Each valve individually tested under pressure. Molded, machined and hand assembled in USA

  15. Gauge Guards

  16. Sight Glasses

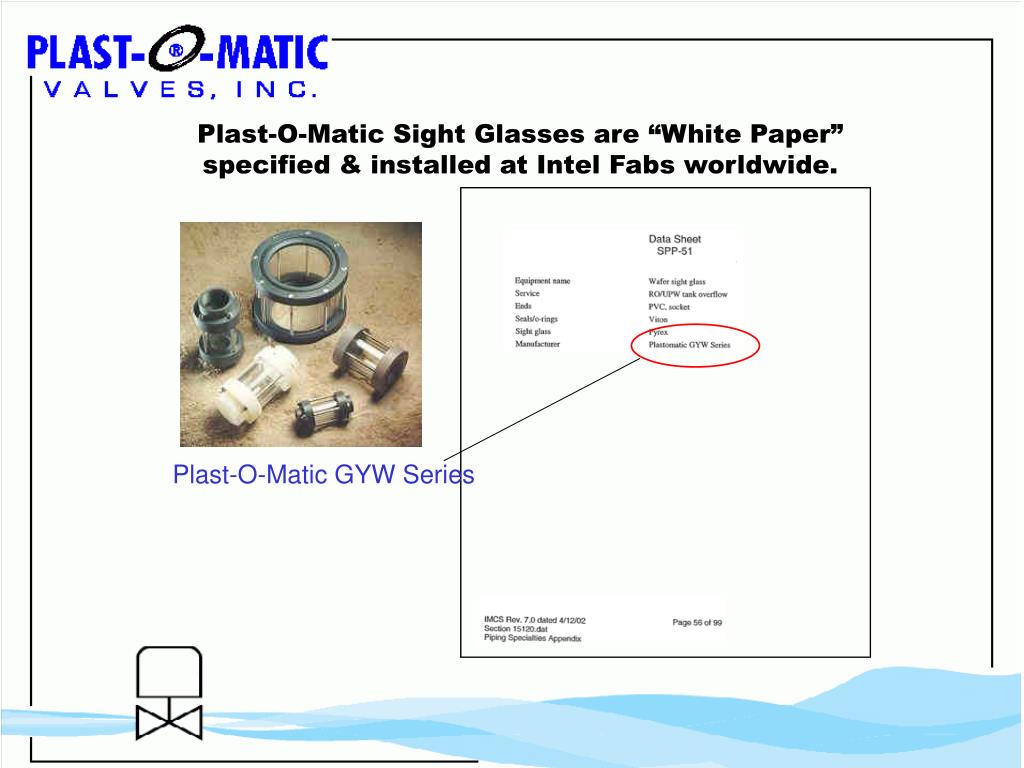

  17. Plast-O-Matic Sight Glasses are “White Paper” specified & installed at Intel Fabs worldwide. Plast-O-Matic GYW Series

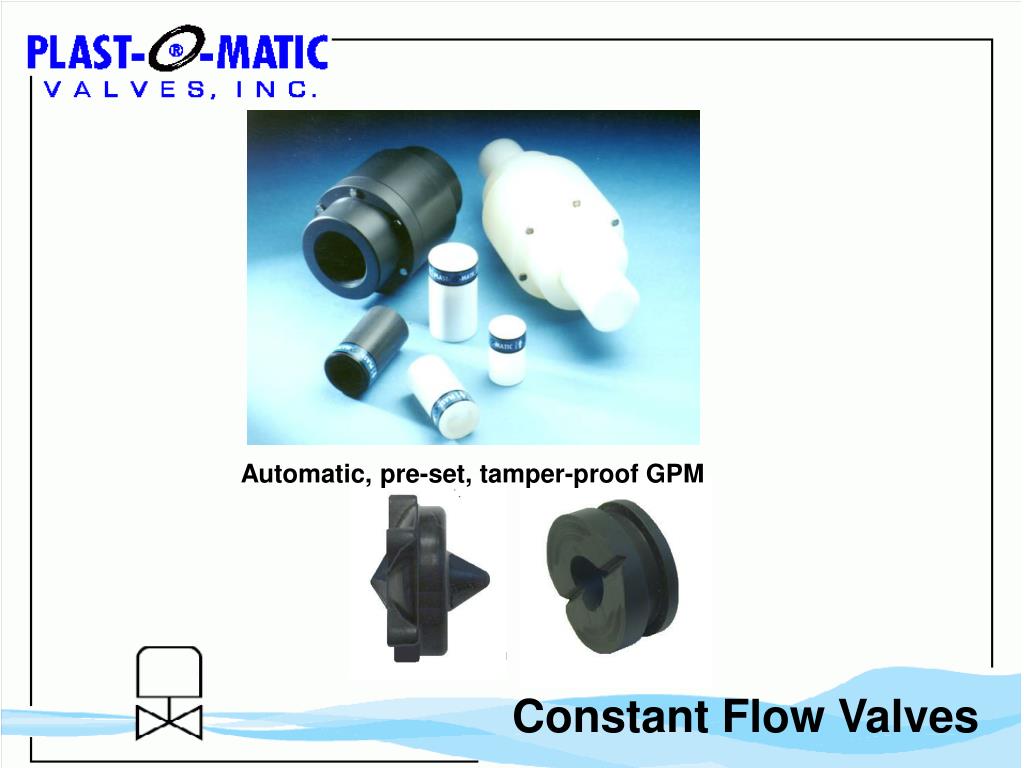

  18. Automatic, pre-set, tamper-proof GPM Constant Flow Valves

  19. Solenoid Valves

  20. Shutoff & Diverter Valves

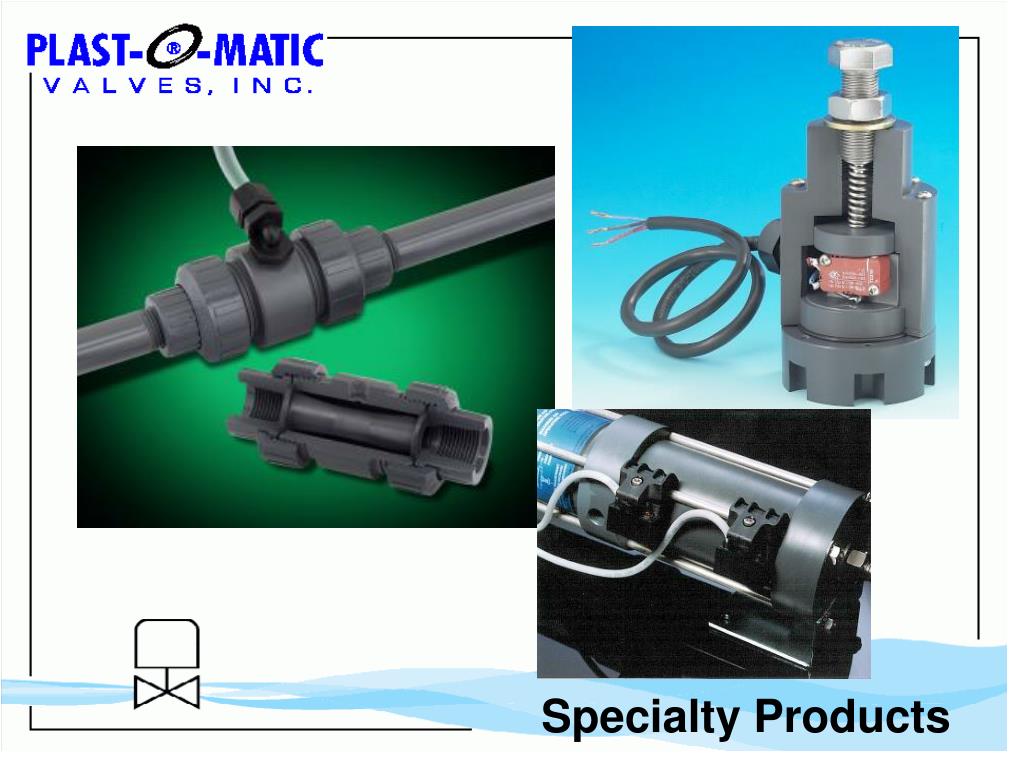

  21. Specialty Products

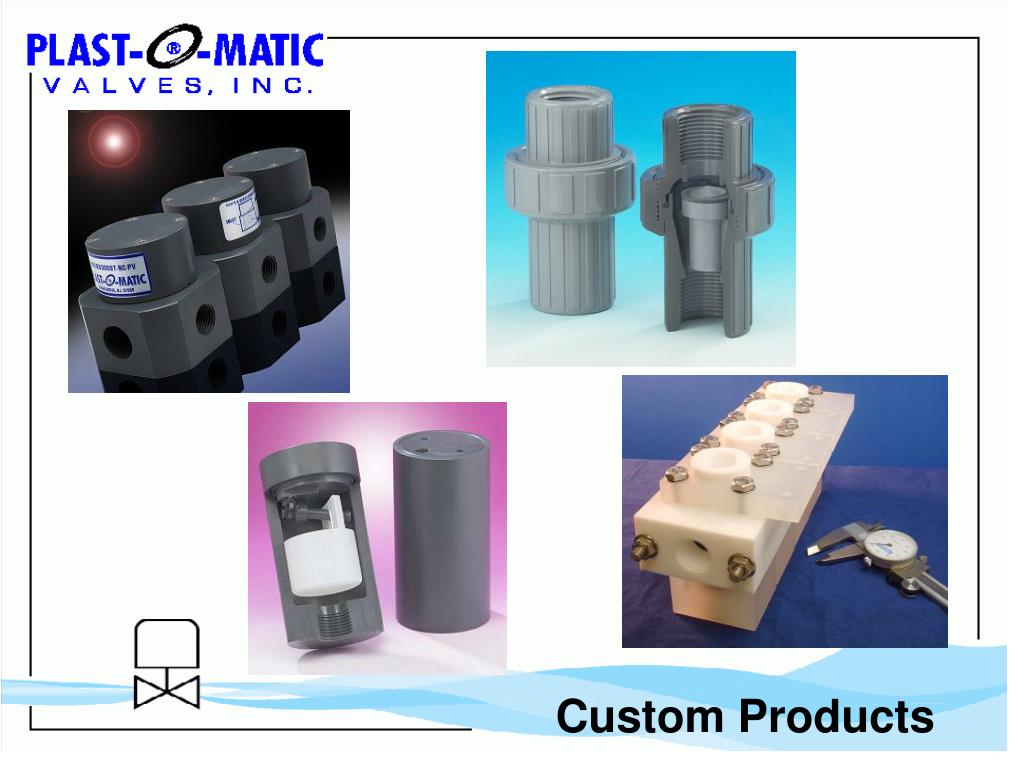

  22. Custom Products

  23. Optional End Connections

  24. More Benefits to standardizing on Plast-O-Matic • Plast-O-Matic provides superior cycle life and lowest lifetime cost-of-ownership • Plast-O-Matic provides 100% product testing prior to shipment • Plast-O-Matic provides on-call technical, engineering & field support
