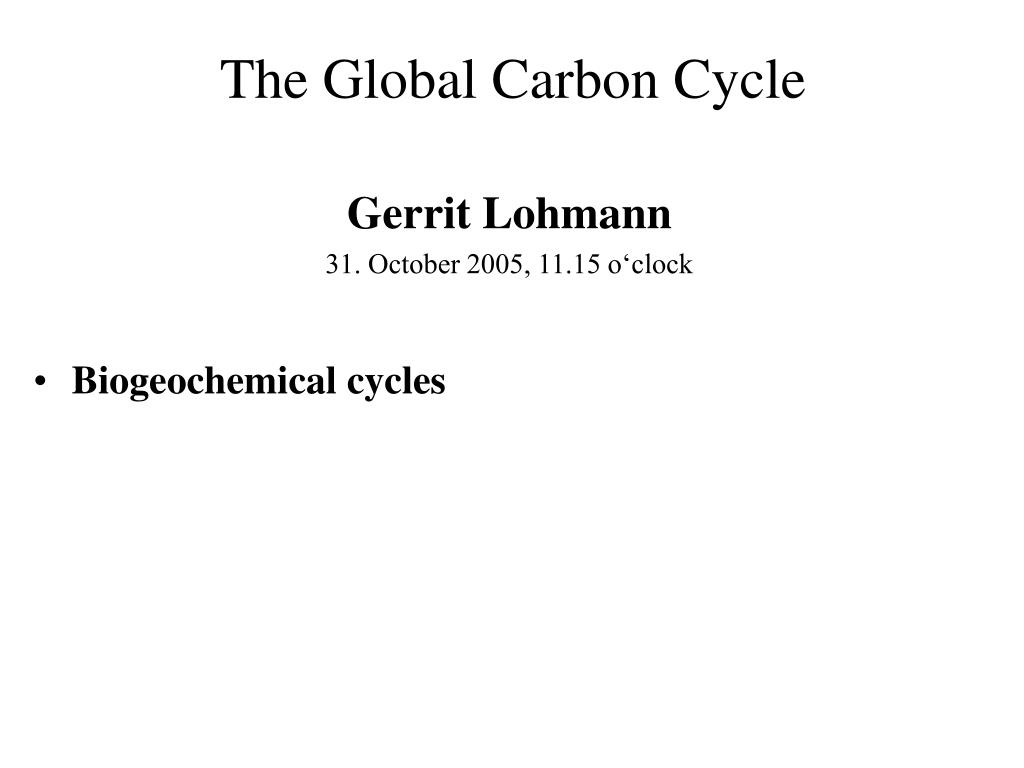

the global carbon cycle
The Global Carbon Cycle

Gerrit Lohmann

31. October 2005, 11.15 o‘clock

  • Biogeochemical cycles
slide3

S

total flux out of the reservoir

M

content if a substance in the reservoir

Turnover Time, renewal time

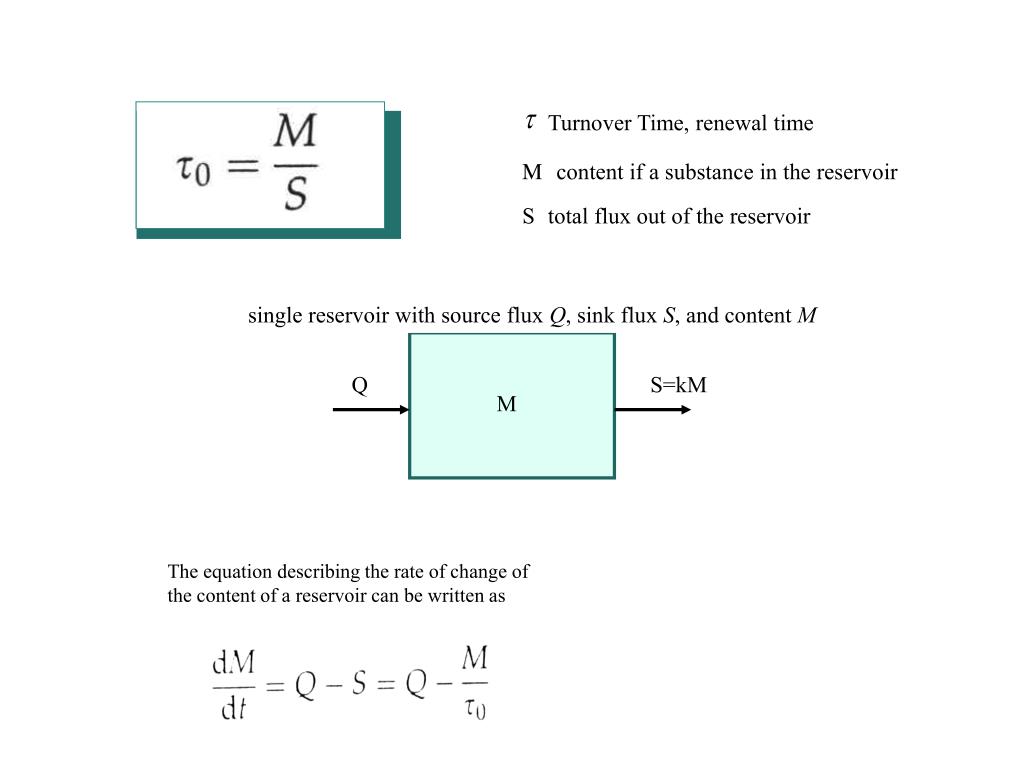

single reservoir with source flux Q, sink flux S, and content M

Q

S=kM

M

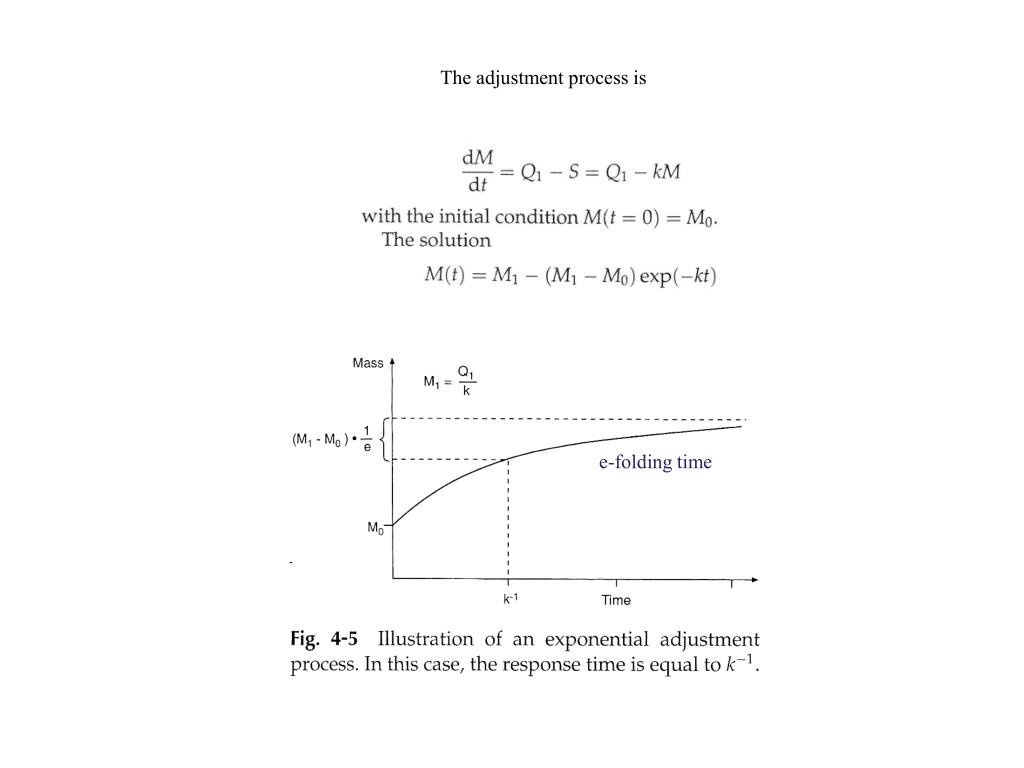

The equation describing the rate of change of the content of a reservoir can be written as

slide4

Atmosphere 725

(Annual increase ~3)

Deforestation

~1

~93

~90

~60

~120

~1

Surface water

Dissolved inorg. 700

Dissolved org. 25

(Annual increase ~ 0,3)

Short-lived biota

~110

~15

Long-lived biota ~450

(Annual decrease ~1)

~15

~40

Detritus decomposition

54-50

Primary

production

~40

Respiration &

decomposition

~36

Litter

~60

~40

~38

Surface biota

3

2 - 5

‹1

Detritus

~4

2 - 5

Intermediate and

Deep water

Dissolved inorg. 36,700

Dissolved org. 975

(Annual increase ~ 2,5)

Soil 1300 - 1400

(Annual decrease ~1)

Peat (Torf)

~160

‹1

5

Fossil fuels

oil, coal, gas

5,000 - 10,000

Land

Sea

Fig. 4-3 principal reservoirs and fluxes in the carbon cycle. Units are 1015 g(Pg) C (burdens)

and PgC/yr (fluxes). (From Bolin (1986) with permission from John Wiley and Sons.)

slide6

The flux Fij from reservoir i to reservoir j is given by

The rate of change of the amount Mi in reservoir i is thus

where n is the total number of reservoirs in the system. This system of differential equations

can be written in matrix form as

Master Equation,

Statistical Physics

where the vector M is equal to (M1, M2,... Mn) and the elements of matrix k are linear combinations

of the coefficients kij

slide7

response time

turnover times of the two reservoirs

slide9

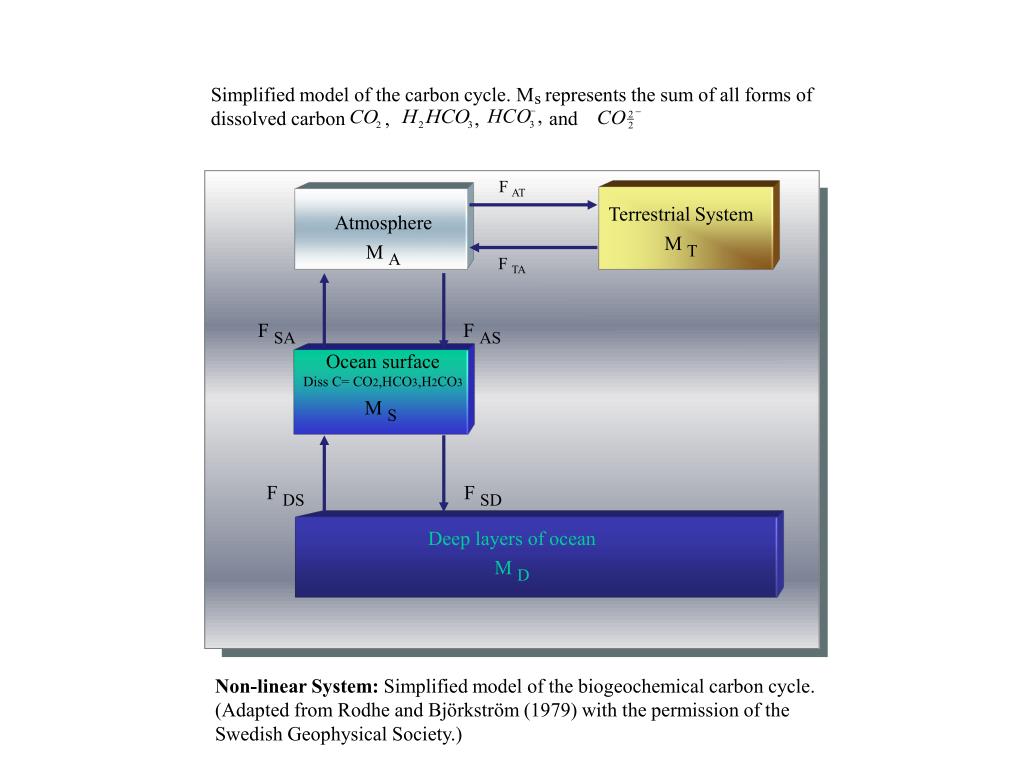

Simplified model of the carbon cycle. Ms represents the sum of all forms of

dissolved carbon , , and

F AT

Terrestrial System

M T

Atmosphere

M A

F TA

F SA

F AS

Ocean surface

Diss C= CO2,HCO3,H2CO3

M S

F DS

F SD

Deep layers of ocean

M D

Non-linear System: Simplified model of the biogeochemical carbon cycle. (Adapted from Rodhe and Björkström (1979) with the permission of the Swedish Geophysical Society.)

slide13

Inorganic Carbon Cycle

Basic concepts, non-linearity in the oceanic carbon system

hydrated

Carbonate acid

Bicarbonate

carbonate

Free proton

slide14

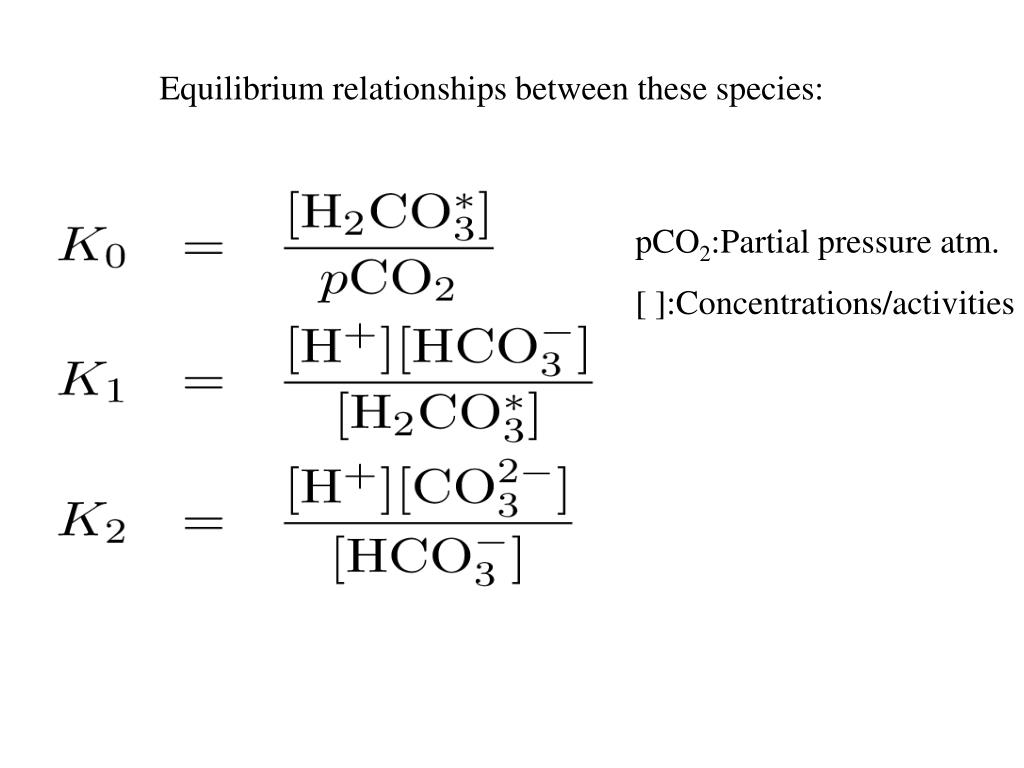

Equilibrium relationships between these species:

pCO2:Partial pressure atm.

[ ]:Concentrations/activities

slide17

Simplified model of the carbon cycle. Ms represents the sum of all forms of

dissolved carbon , , and

F AT

Terrestrial System

M T

Atmosphere

M A

F TA

Exponent  = 10

Buffer factor

Revelle factor

Degassing

Dissolution

F SA

F AS

Ocean surface

Diss C= CO2,HCO3,H2CO3

M S

F DS

F SD

Deep layers of ocean

M D

The buffer factor results from the equilibrium between CO2(g)

and the more prevalent forms of dissolved carbon.

As a consequence of this strong dependence of FSA on MS,

a substantial increase in CO2 in the atmosphere is balanced by a small increase of MS.

slide18

Simplified model of the carbon cycle. Ms represents the sum of all forms of

dissolved carbon , , and

F AT

Atmosphere to the terrestial system

Terrestrial System

M T

Atmosphere

M A

F TA

Degassing

Dissolution

F SA

F AS

Ocean surface

Diss C= CO2,HCO3,H2CO3

M S

F DS

F SD

Deep layers of ocean

M D

slide21

Equilibrium relationships between these species:

pCO2:Partial pressure atm.

[ ]:Concentrations/activities

3 Equations and 5 unknowns!

Specify 2 of the unknowns

pH= - log10 [H+]

slide22

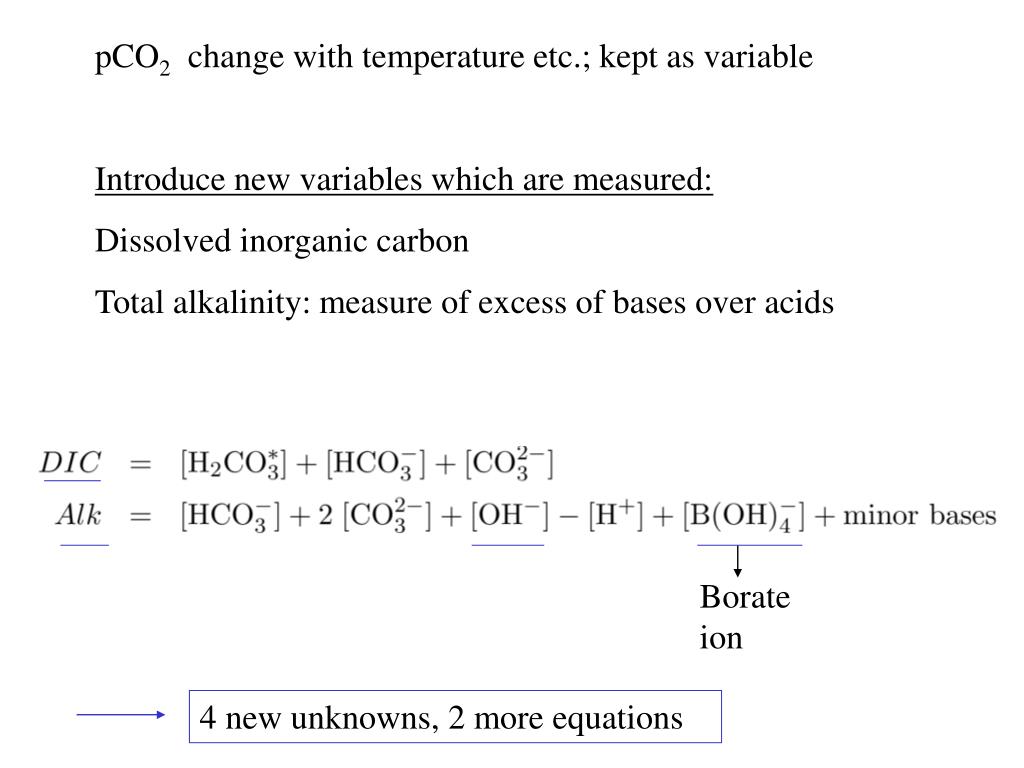

pCO2 change with temperature etc.; kept as variable

Introduce new variables which are measured:

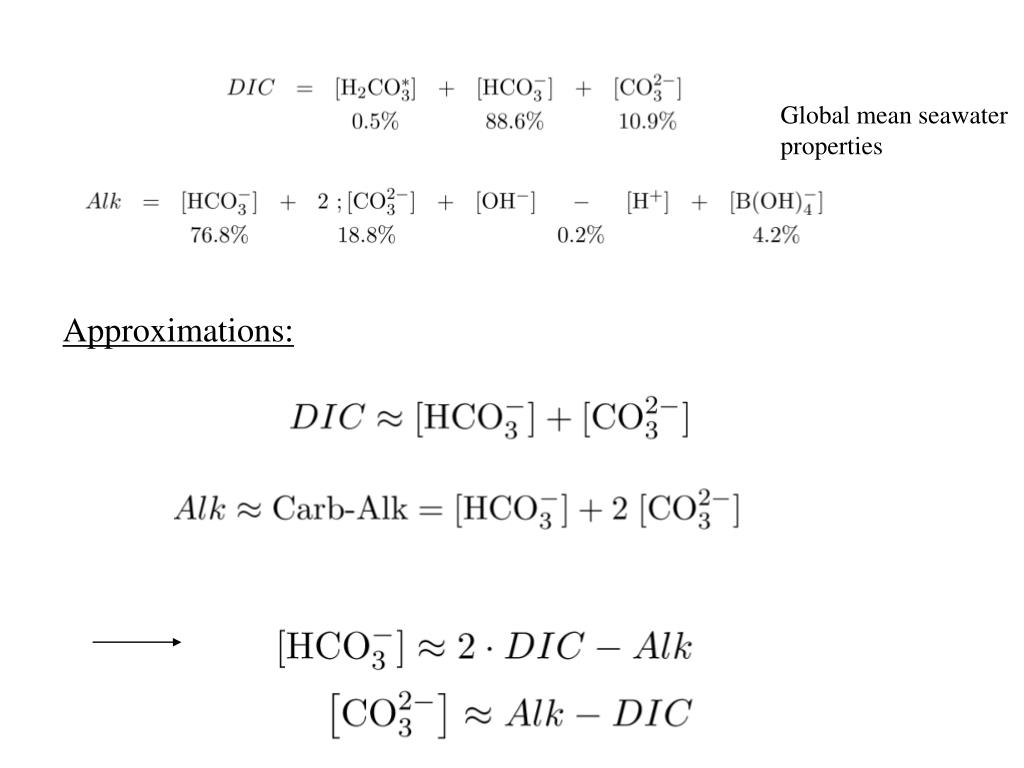

Dissolved inorganic carbon

Total alkalinity: measure of excess of bases over acids

Borate ion

4 new unknowns, 2 more equations

slide23

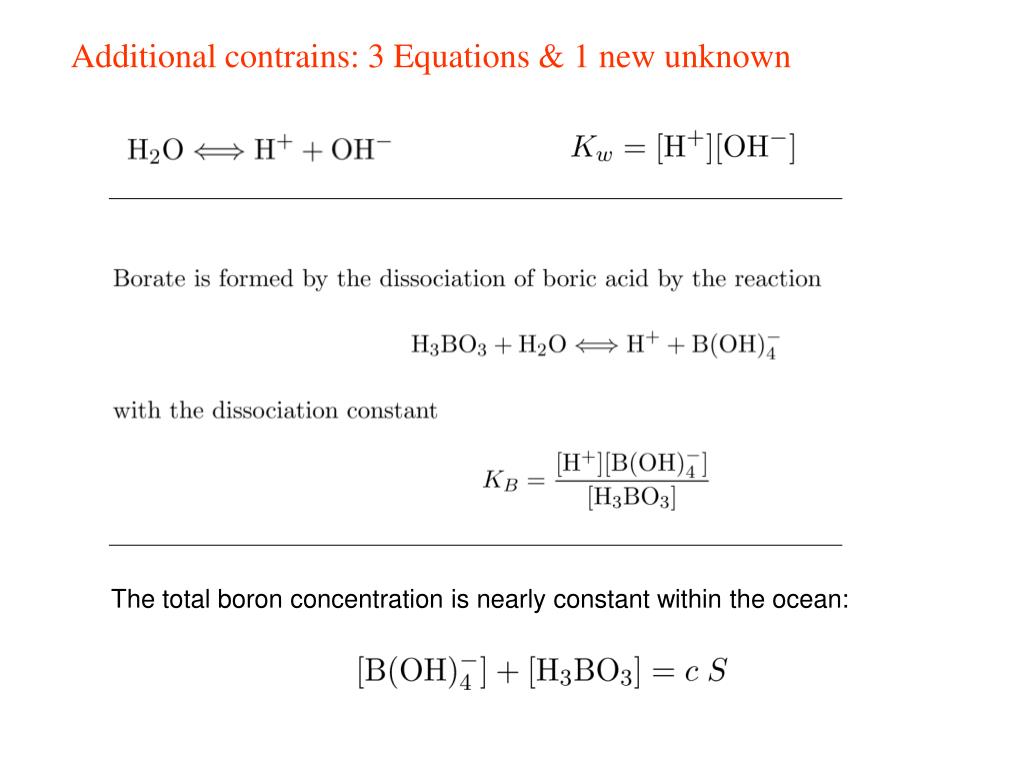

Additional contrains: 3 Equations & 1 new unknown

The total boron concentration is nearly constant within the ocean:

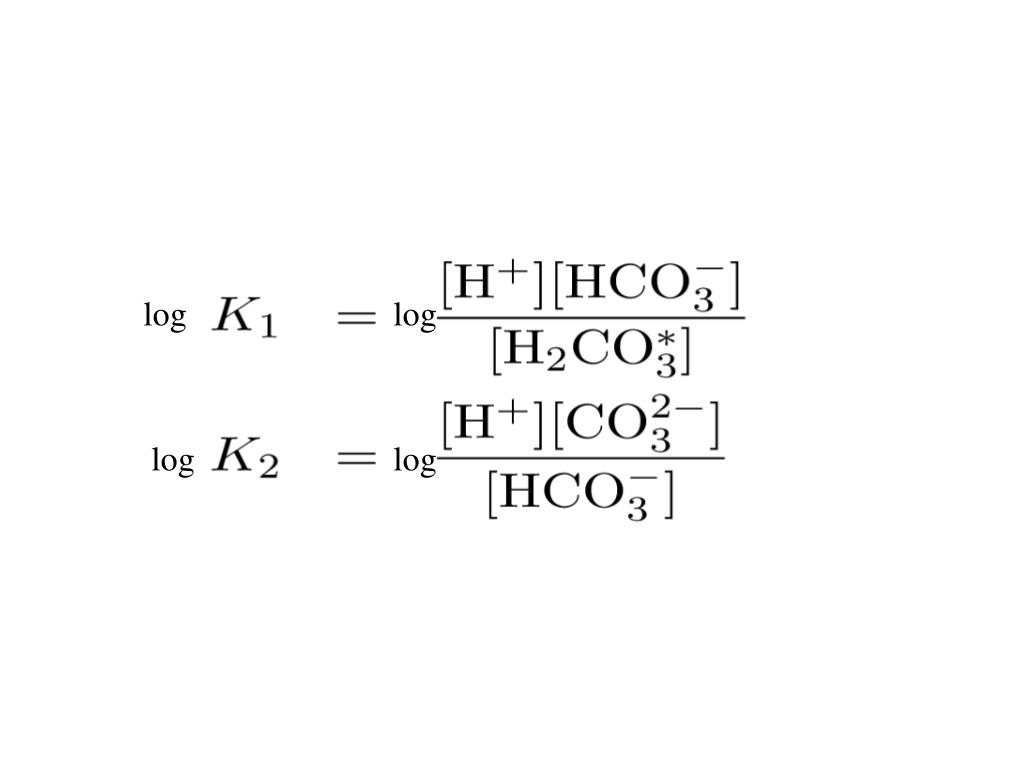

slide25

log

log

log

log

what controls the pco 229

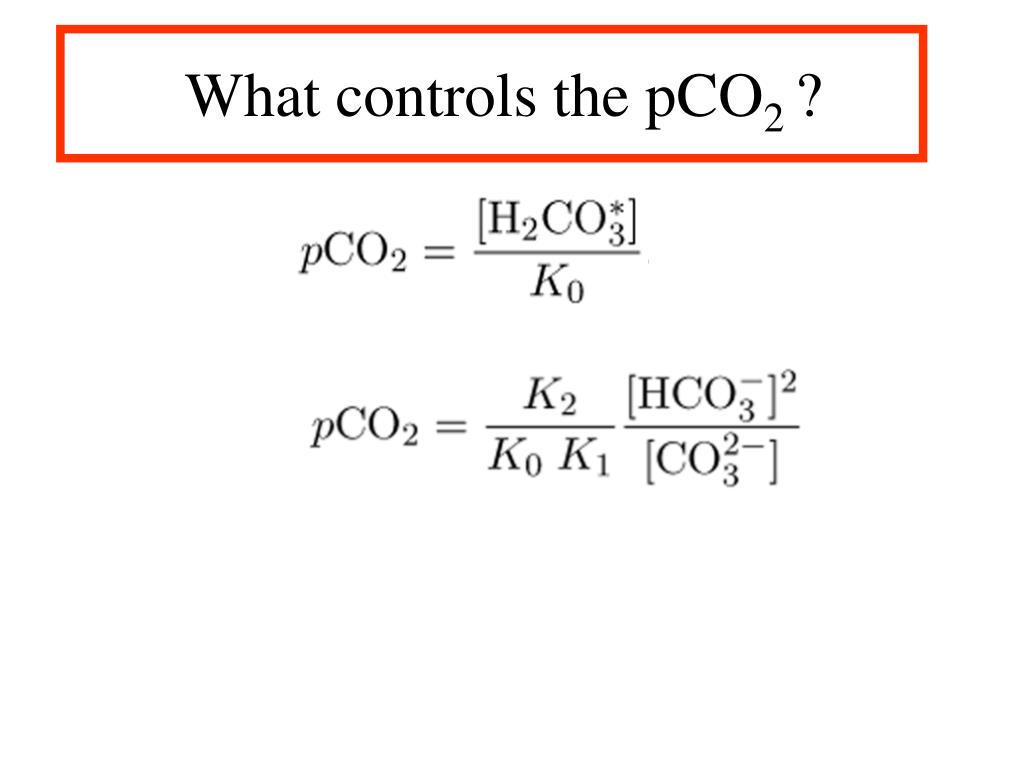

What controls the pCO2 ?

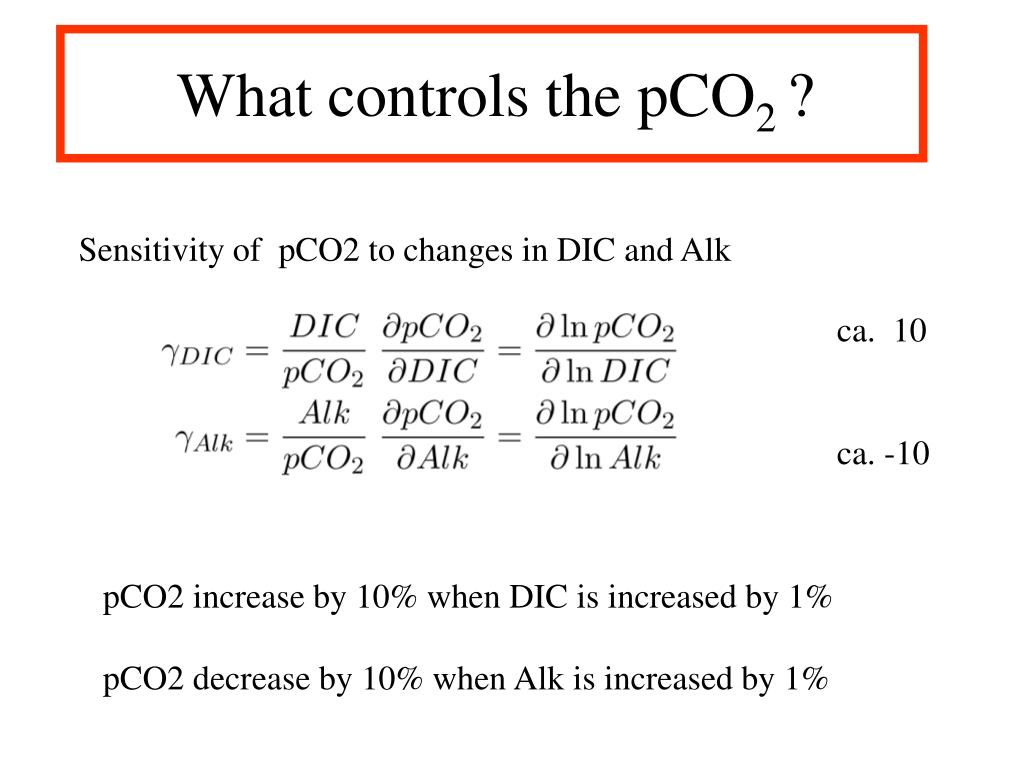

Sensitivity of pCO2 to changes in DIC and Alk

what controls the pco 230
What controls the pCO2 ?

Sensitivity of pCO2 to changes in DIC ans Alk

ca. 10

ca. -10

slide31

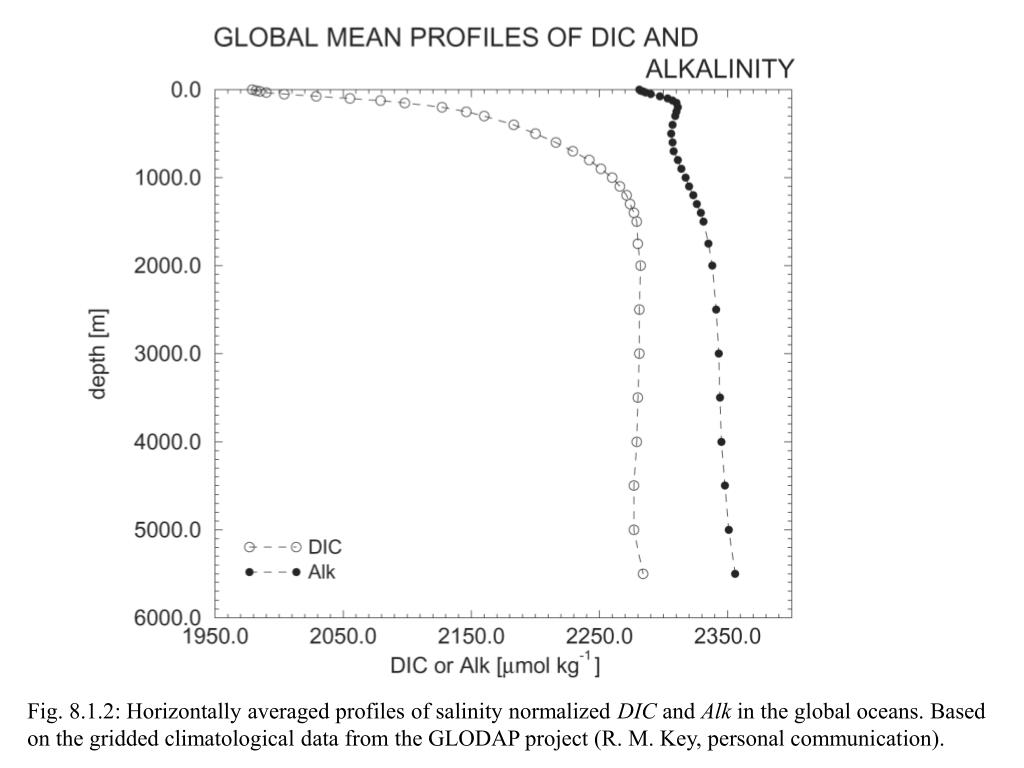

Fig. 8.1.2: Horizontally averaged profiles of salinity normalized DIC and Alk in the global oceans. Based on the gridded climatological data from the GLODAP project (R. M. Key, personal communication).

what controls the pco 232
What controls the pCO2 ?

Sensitivity of pCO2 to changes in DIC and Alk

ca. 10

ca. -10

pCO2 increase by 10% when DIC is increased by 1%

pCO2 decrease by 10% when Alk is increased by 1%

what controls the pco 233
What controls the pCO2 ?

Sensitivity of pCO2 to changes in DIC and Alk

ca. 10

ca. -10

pCO2 = c DIC10

slide34

Simplified model of the carbon cycle. Ms represents the sum of all forms of

dissolved carbon , , and

F AT

Terrestrial System

M T

Atmosphere

M A

F TA

Exponent  = 10

Buffer factor

Revelle factor

Degassing

Dissolution

F SA

F AS

Ocean surface

Diss C= CO2,HCO3,H2CO3

M S

F DS

F SD

Deep layers of ocean

M D

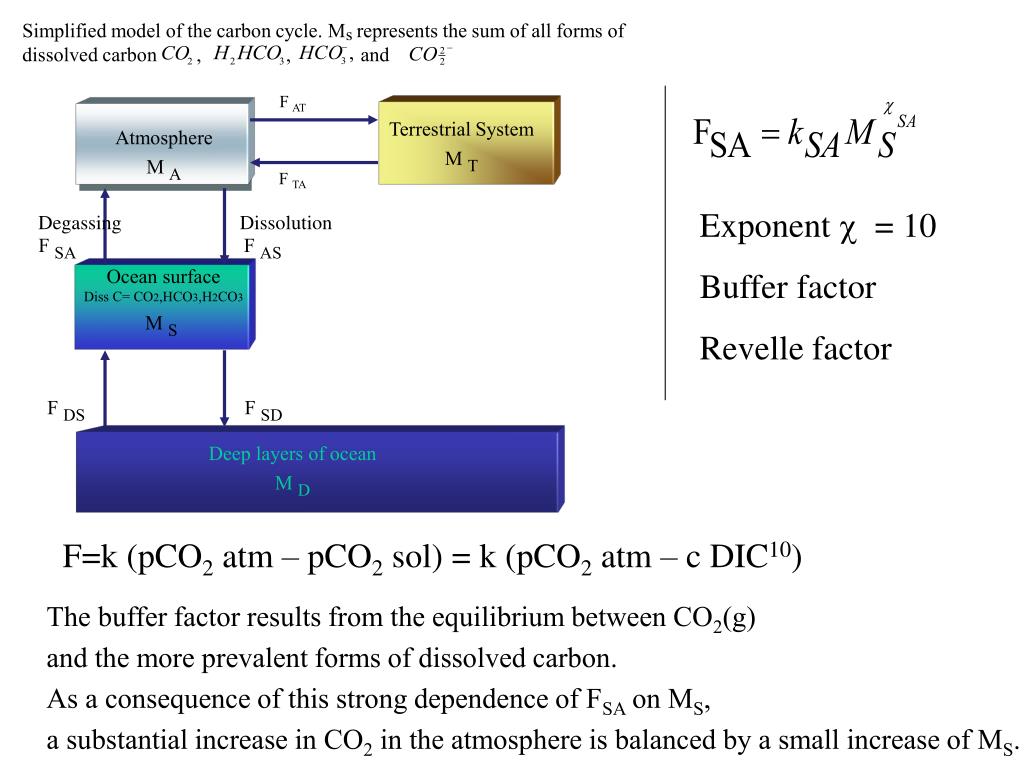

F=k (pCO2 atm – pCO2 sol) = k (pCO2 atm – c DIC10)

The buffer factor results from the equilibrium between CO2(g)

and the more prevalent forms of dissolved carbon.

As a consequence of this strong dependence of FSA on MS,

a substantial increase in CO2 in the atmosphere is balanced by a small increase of MS.

slide35
EQUATIONS FOR MODEL OF SIMPLE OCEAN - ATMOSPHERE CARBON CYCLE
    • Reservoirs:
      • INIT Atmosphere = 600 {Gt C}
      • INIT Surface_Ocean = 891.62591 {Gt C}
      • INIT Deep_Ocean = 38000 {Gt C}
    • Flows:
      • external_additions = 0 {volcanic emissions or fossil fuel burning, etc.}
      • oc--atm_exchange = k_ao*(pCO2_atm-pCO2_Ocean)
      • bio_pump = 10
      • ocean_turnover = 100*(Deep_Ocean/INIT(Deep_Ocean))-90.6*(Surface_Ocean/INIT(Surface_Ocean)) {this is upwelling minus downwelling}
      • burial = 0.6*(bio_pump/10)
      • runoff = 0.6
    • Converters:
      • Alk_Surf = 2.22 {slightly modified from Walker, 1993}
      • CO3 = (Alk_Surf-HCO3)/2 {following Walker, 1993}
      • HCO3 = (Surf_C_conc-SQRT(Surf_C_conc^2-Alk_Surf*(2*Surf_C_conc-Alk_Surf)*(1-4*Kcarb)))/(1- 4*Kcarb) {following Walker, 1993}
      • Kcarb = .000575+.000006*(T_surf-278) {following Walker, 1993}
      • KCO2 = .035+.0019*(T_surf-278) {following Walker, 1993}
      • k_ao = .278 {Gt C/yr/ppm -- the observationally-derived rate constant; this is for the entire surface area of the ocean}
      • pCO2_atm = Atmosphere*(280/600)
      • pCO2_Ocean = 280*KCO2*(HCO3^2/CO3) {following Walker, 1993}
      • Surf_C_conc = (Surface_Ocean/12000)/Vol_surf {1e18 moles/m^3}
      • T_surf = 288 {°K following Walker, 1993}}
      • Vol_surf = .0363 {units are 1E18 m^3 -- this is the upper 100 m}
      • del_atm = (Atmosphere-600)-(DELAY(Atmosphere,1)-600)
      • del_deep_ocean = (Deep_Ocean-INIT(Deep_Ocean))-(DELAY(Deep_Ocean, 1)-INIT(Deep_Ocean))
      • del_surf_ocean = (Surface_Ocean-INIT(Surface_Ocean))-(DELAY(Surface_Ocean, 1)- INIT(Surface_Ocean))
      • http://www.acad.carleton.edu/curricular/GEOL/DaveSTELLA/Carbon/c_cycle_models.htm
slide36
EQUATIONS FOR MODEL OF SIMPLE TERRESTRIAL CARBON CYCLE
    • RESERVOIRS:
      • INIT Atmosphere = 600 {Gt C -- 1 Gt=1e15 g -- from IPCC, 1995}
      • INIT Land_Biota = 610 { Gt C -- 1 Gt=1e15 g -- from IPCC, 1995}
      • INIT Soil = 1580 { Gt C -- 1 Gt=1e15 g -- from IPCC, 1995}
    • FLOWS: (all in Gt C/yr)
      • Soil_Respiration = (49.4/INIT(Soil))*Soil*(1+(Tsens_sr*global_temp)) {initial value from Siegenthaler and Sarmiento, 1993}
      • Plant_Respiration = Photosynthesis*(50/100) {equation modified from Gifford, 1993; initial value from Siegenthaler and Sarmiento, 1993}
      • External_addition = 0.6 {volcanic emissions or fossil fuel burning, etc.} }
      • Photosynthesis = (Pmax*(pCO2_eff/(pCO2_eff+Khs)))*(1+(Tsens_p*global_temp)) {equation modified from Gifford, initial value from S&S}
      • Litter_fall = 50*(Land_Biota/610) {modified from Gifford, 1993 initial value from S&S}
      • Runoff = .6*Soil/INIT(Soil) {value from S&S}
    • CONVERTERS:
      • Khs = 62.5 {ppm CO2; this is the half-saturation value -- the level of atmospheric C at which the rate of photosynthesis is half of the ultimate saturation value, given that particular temperature; modified from Gifford, 1993}
      • Pmax = ((Khs+250)*100)/250 {Gt C/yr; this is the maximum rate of photosynthesis possible at the saturation level of CO2, ignoring the temperature effect -- from Gifford, 1993}
      • global_temp = (pCO2_atm-280)*.01 {°C relative to today's temp of 15; from K&S, 1994}
      • pCO2_atm = Atmosphere*(280/600) {ppm}
      • pCO2_min = 30 {ppm -- no photosynthesis can occur below this level; from Gifford, 1993}
      • pCO2_eff = pCO2_atm-pCO2_min {ppm; the effective atmospheric CO2 concentration}
      • Tsens_p = .04 {°C-1; temperature sensitivity factor for photosynthesis; after Gifford}
      • Tsens_sr = .10 {°C-1; temperature sensitivity factor for soil respiration; after Gifford}
      • Atmos_Change = Atmosphere-600 { Gt C; change in atmospheric carbon -- used to compare results of various experiments}
      • Land_Biota_Change = Land_Biota-610 {Gt C}
      • Soil_Change = Soil-1580 {Gt C}
      • Total_Change = Atmos_Change+Land_Biota_Change+Soil_Change {Gt C}
      • http://www.acad.carleton.edu/curricular/GEOL/DaveSTELLA/Carbon/c_cycle_models.htm#eqns3
slide37

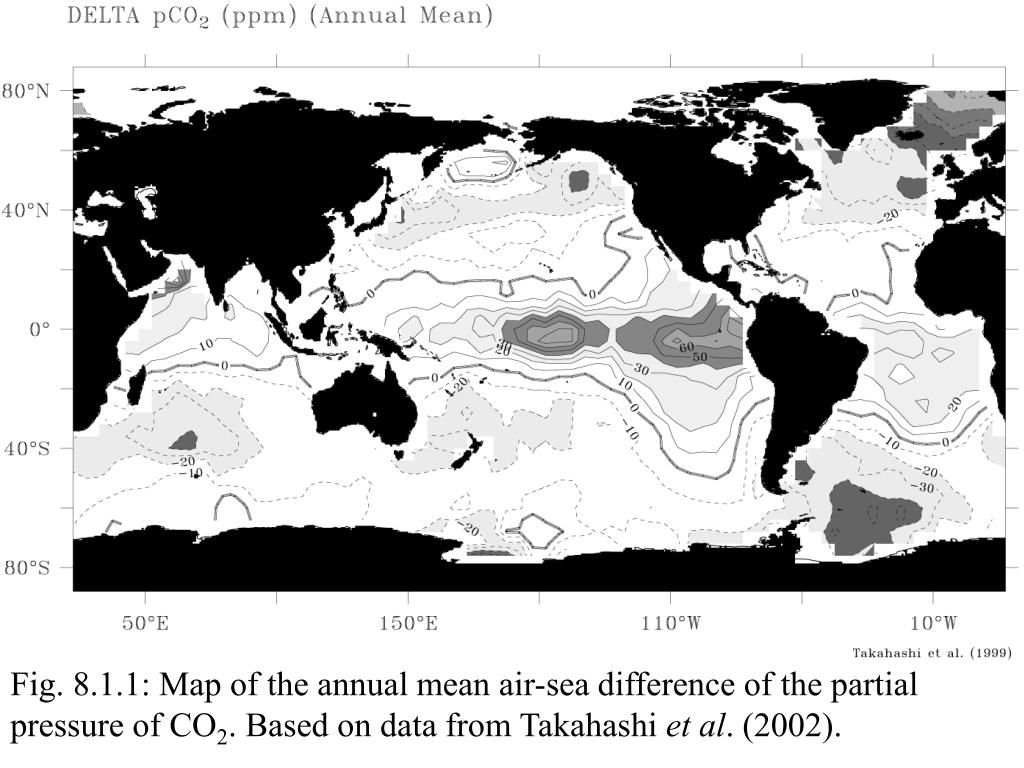

Fig. 8.1.1: Map of the annual mean air-sea difference of the partial pressure of CO2. Based on data from Takahashi et al. (2002).

slide39

Atmosphere 725

(Annual increase ~3)

Deforestation

~1

~93

~90

~60

~120

~1

Surface water

Dissolved inorg. 700

Dissolved org. 25

(Annual increase ~ 0,3)

Short-lived biota

~110

~15

Long-lived biota ~450

(Annual decrease ~1)

~15

~40

Detritus decomposition

54-50

Primary

production

~40

Respiration &

decomposition

~36

Litter

~60

~40

~38

Surface biota

3

2 - 5

‹1

Detritus

~4

2 - 5

Intermediate and

Deep water

Dissolved inorg. 36,700

Dissolved org. 975

(Annual increase ~ 2,5)

Soil 1300 - 1400

(Annual decrease ~1)

Peat (Torf)

~160

‹1

5

Fossil fuels

oil, coal, gas

5,000 - 10,000

Land

Sea

Fig. 4-3 principal reservoirs and fluxes in the carbon cycle. Units are 1015 g(Pg) C (burdens)

and PgC/yr (fluxes). (From Bolin (1986) with permission from John Wiley and Sons.)

slide40
http://www.acad.carleton.edu/curricular/GEOL/DaveSTELLA/Carbon/c_cycle_models.htmhttp://www.acad.carleton.edu/curricular/GEOL/DaveSTELLA/Carbon/c_cycle_models.htm
  • http://cran.r-project.org/src/contrib/Descriptions/longmemo.html
