val3 basics

VAL3 Basics

Sebastian van Delden

USC Upstate

svandelden@uscupstate.edu

what it is

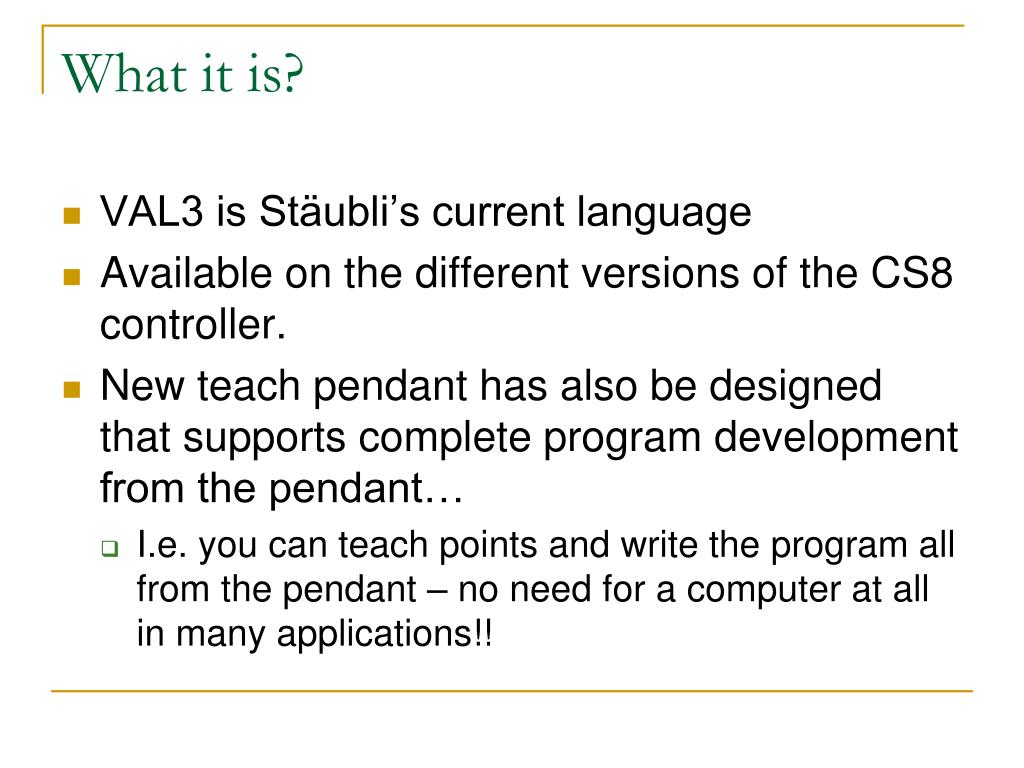

What it is?
  • VAL3 is Stäubli’s current language
  • Available on the different versions of the CS8 controller.
  • New teach pendant has also be designed that supports complete program development from the pendant…
    • I.e. you can teach points and write the program all from the pendant – no need for a computer at all in many applications!!
teach pendant overview
Teach Pendant Overview

Mode Button

Arm Power on/off

E-Stop

Movement keys

Movement Mode (joint/frame/..)

Speed adjust

Function keys

Keyboard

Navigation keys

Application control (Run/Pause/..)

Enable button (like dead man)

Digital I/O buttons

Jog keys

pendant menus
Pendant Menus
  • Arrow keys for navigation
    • Up / Down to select items
    • Right to enter/ expand
    • Left to collapse
  • Application manager
    • Load, save, and edit applications
  • Task manager
    • Debugging
  • Control panel
    • System status, settings, IO
  • Calibration
    • Arm maintenance
  • Event Log
manual mode

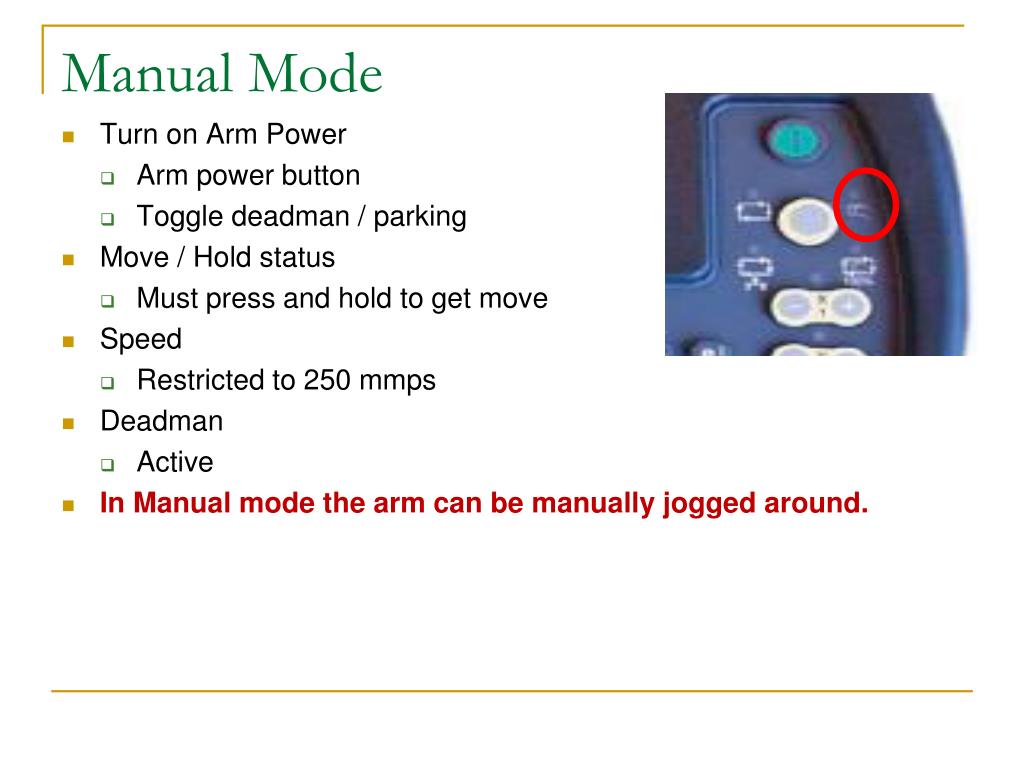

Manual Mode
  • Turn on Arm Power
    • Arm power button
    • Toggle deadman / parking
  • Move / Hold status
    • Must press and hold to get move
  • Speed
    • Restricted to 250 mmps
  • Deadman
    • Active
  • In Manual mode the arm can be manually jogged around.
manual mode joint

3

4

5

6

2

1

1

3

2

4

Manual Mode: Joint
  • Move each joint seperately
  • Simple, easy to understand
  • Fast large movements of arm in cell
  • 6 Axis
    • Angle for each axis
  • 4 Axis
    • Angle for joints 1,2, and 4
    • Distance for joint 3
manual mode frame tool

Z+

X

Y

Y+

X+

Z

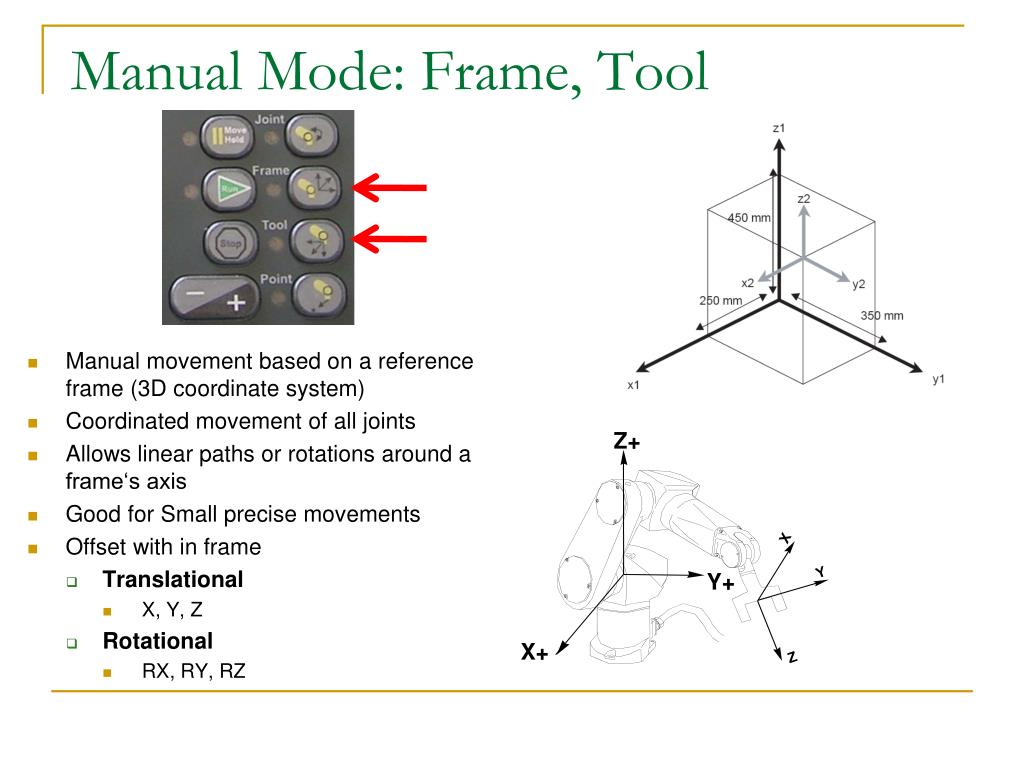

Manual Mode: Frame, Tool
  • Manual movement based on a reference frame (3D coordinate system)
  • Coordinated movement of all joints
  • Allows linear paths or rotations around a frame‘s axis
  • Good for Small precise movements
  • Offset with in frame
    • Translational
      • X, Y, Z
    • Rotational
      • RX, RY, RZ
manual mode point

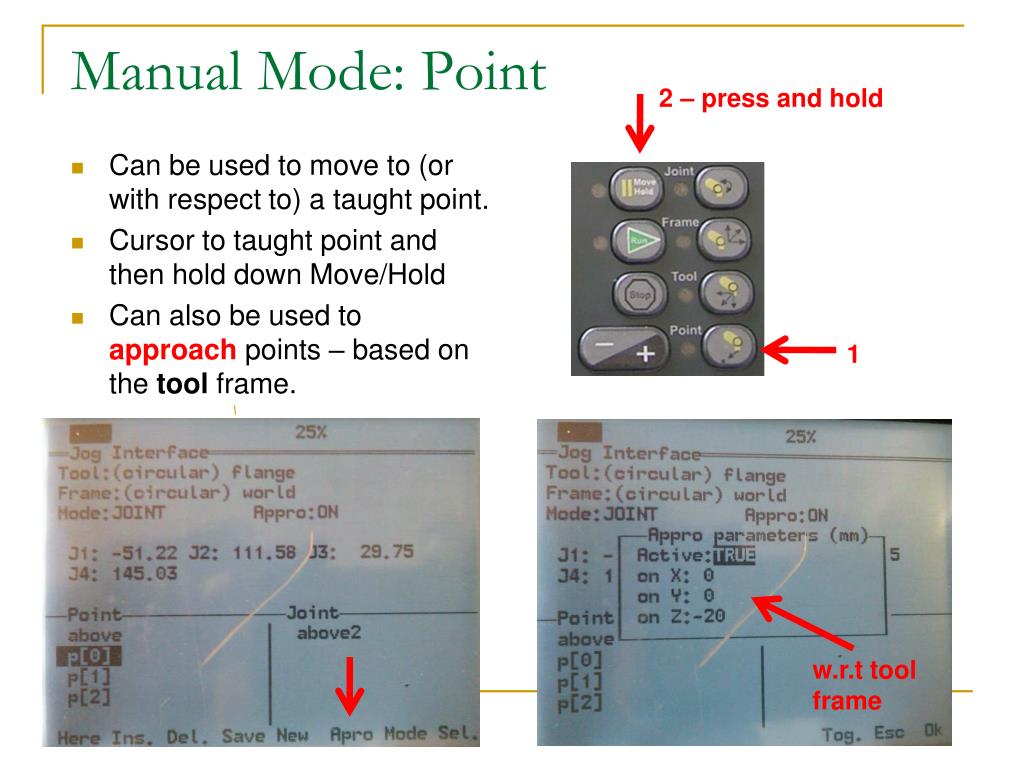

Manual Mode: Point

2 – press and hold

  • Can be used to move to (or with respect to) a taught point.
  • Cursor to taught point and then hold down Move/Hold
  • Can also be used to approach points – based on the tool frame.

1

w.r.t tool frame

teaching locations

X

Tool flange

tool pointer

Z

X

X

100 mm

Z

Teaching Locations
  • Press New to create a new location variable
    • A point location
      • Y-Y-Z Yaw-Pitch-Roll information is stored
    • A joint location
      • Joint angles are stored
  • After you declare the new variable, to set it press Here
  • Select tool and frame
    • Don‘t forget to set a correct tool transformation which moves the tool frame to an appropriate spot on the tool
    • Note: Yaw-Pitch-Roll in VAL3 is Rotation around X-Y-Z
creating applications

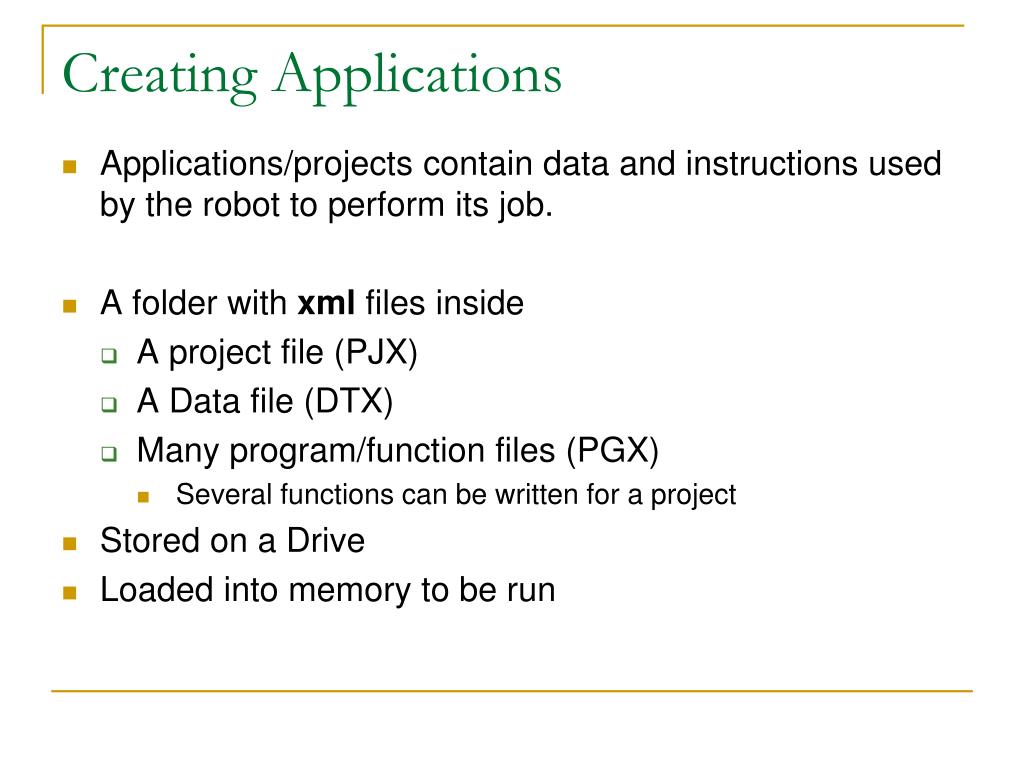

Creating Applications
  • Applications/projects contain data and instructions used by the robot to perform its job.
  • A folder with xml files inside
    • A project file (PJX)
    • A Data file (DTX)
    • Many program/function files (PGX)
      • Several functions can be written for a project
  • Stored on a Drive
  • Loaded into memory to be run
example program function pgx file
Example program/function PGX file
  • <?xml version="1.0" encoding="utf-8" ?>
  • <programList xmlns="ProgramNameSpace" >
  • <program name="demo" public="false" >
  • <description />
  • <paramSection/>
  • <localSection/>
  • <source>
  • <code> begin
        • movej(above2,flange,mNomSpeed)
        • movel(p[0],flange,mNomSpeed)
        • movel(p[1],flange,mNomSpeed)
        • movej(above2,flange,mNomSpeed)
        • movel(p[0],flange,mNomSpeed)
        • movec(p[2],p[1],flange,mNomSpeed)
        • movej(above2,flange,mNomSpeed)
        • waitEndMove()
  • end
  • </code>
  • </source> </program> </programList>
programs functions
Programs/functions
  • The application can consist of numerous functions which can call each other
  • There are two special ones that are always created for you when you create a new application:
    • start()
      • Is the function that always gets called when you run the program.
    • stop()
      • Is the function that always gets called when the program finishes.
    • You can place any kind of VAL3 instructions/code in these functions.
taskcreate call
TaskCreate / Call
  • taskCreate
    • Spawns a seperate process
    • Several process can be spawned which run in parrellel to each other
    • CPU alternates between all tasks based on some Priority
    • Arguments: function title, priority and function name.
      • taskCreate “some title”, 100, fun()
  • call
    • Transfer program execution to a subroutine.
    • call fun()
  • Use taskCreate or call in the start() function to get things going
editing code
Editing Code
  • Use the menus to create new programs/functions and edit code. Example function
  • Ins. inserts a new line
  • VAL3 gives you a drop down menu with VAL3 code... Sweet!
  • Or, you can insert pre-defined variable names(Glo.), etc.
global variables

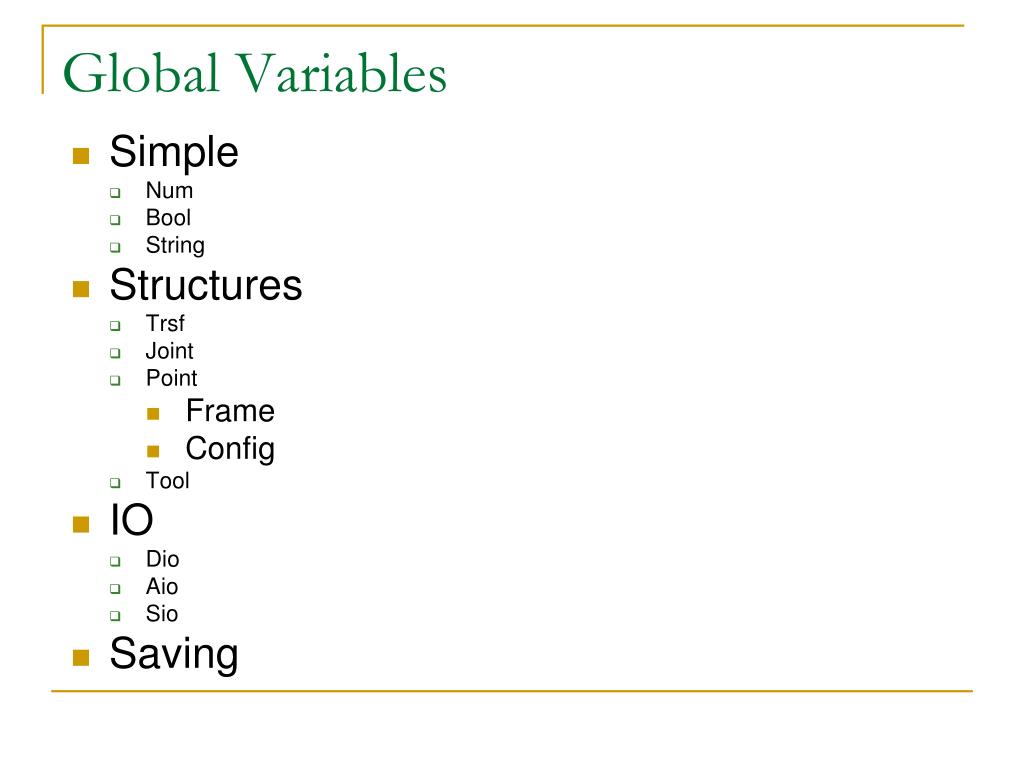

Global Variables
  • Simple
    • Num
    • Bool
    • String
  • Structures
    • Trsf
    • Joint
    • Point
      • Frame
      • Config
    • Tool
  • IO
    • Dio
    • Aio
    • Sio
  • Saving
arrays

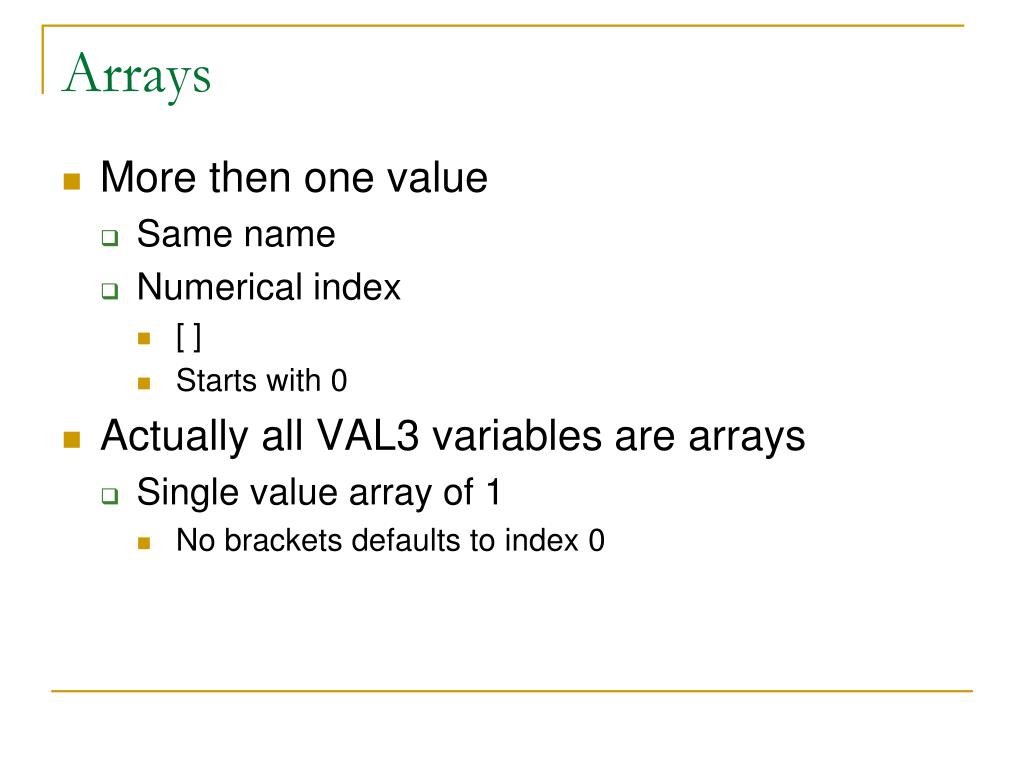

Arrays
  • More then one value
    • Same name
    • Numerical index
      • [ ]
      • Starts with 0
  • Actually all VAL3 variables are arrays
    • Single value array of 1
      • No brackets defaults to index 0
flow control

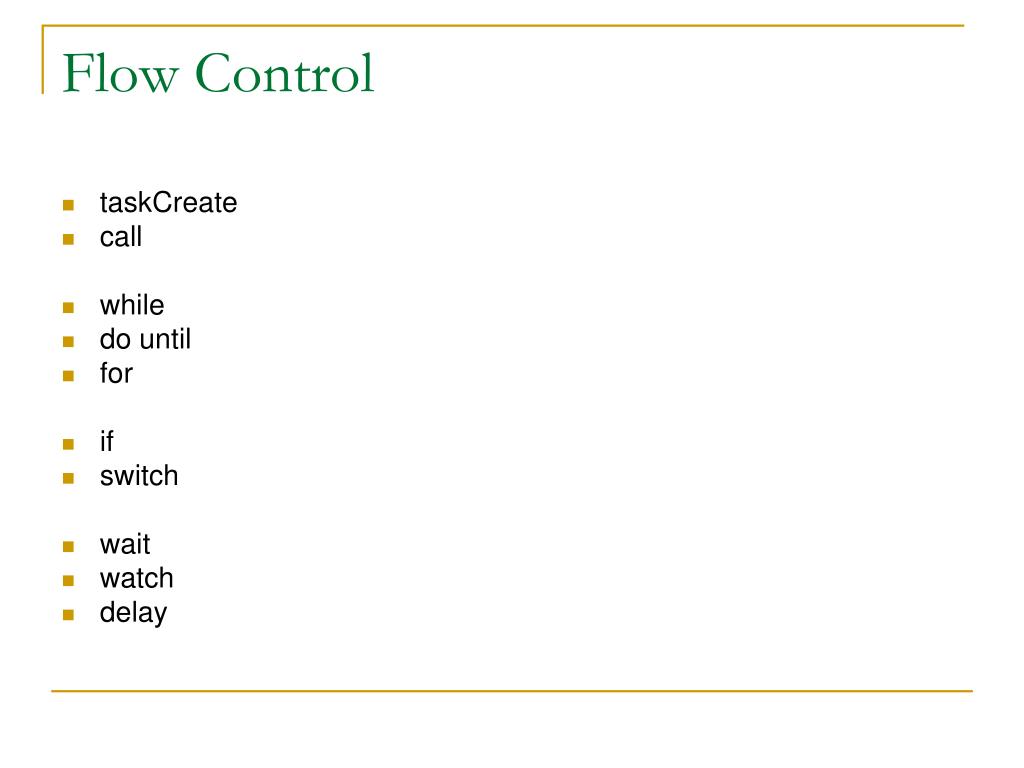

Flow Control
  • taskCreate
  • call
  • while
  • do until
  • for
  • if
  • switch
  • wait
  • watch
  • delay
operators

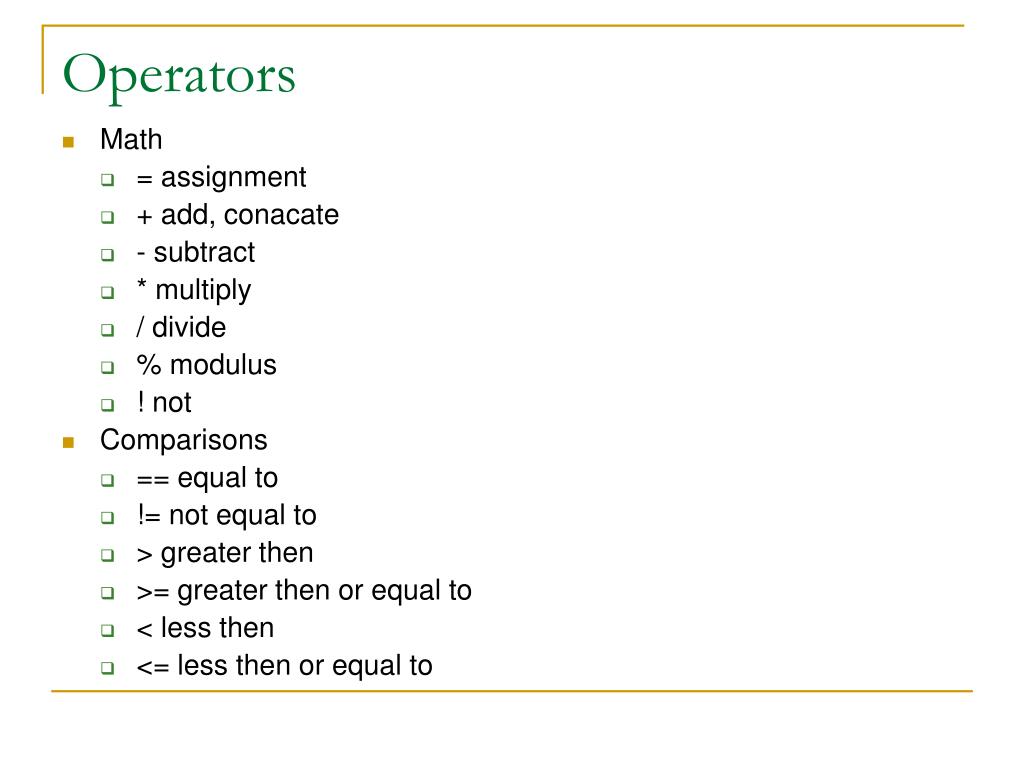

Operators
  • Math
    • = assignment
    • + add, conacate
    • - subtract
    • * multiply
    • / divide
    • % modulus
    • ! not
  • Comparisons
    • == equal to
    • != not equal to
    • > greater then
    • >= greater then or equal to
    • < less then
    • <= less then or equal to
instructions
Instructions
  • Some examples
    • Abs
    • Min
    • Max
    • Limit
    • Power
    • Left
    • Right
    • Mid
    • Chr
    • Asc
    • Size
motion

pA

pA

pA

ROBOT MOVEMENT

pB

pC

movej, movel, movej,...

pB

pB

pC

pC

pD

pD

pE

pD

pD

pC

MOTION

STACK

pB

pE

pA

Motion
  • Instructions
    • movej
    • movel
    • movec
  • Stack
    • stopMove
    • restartMove
    • restMotion
    • waitEndMove
different types of movement

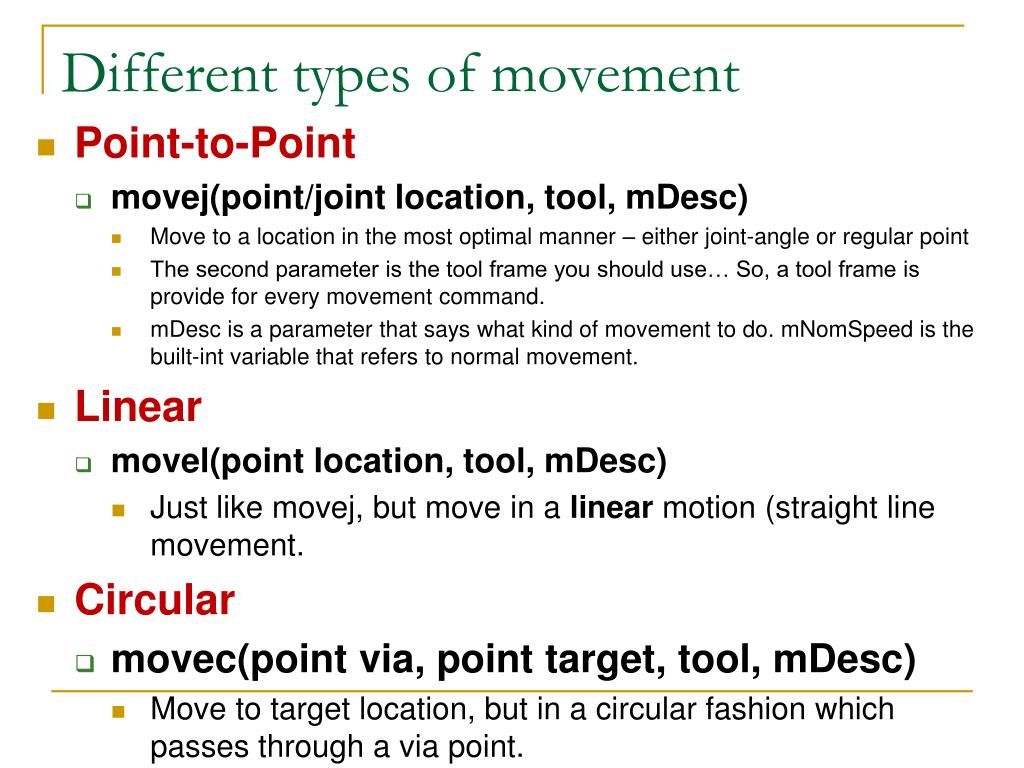

Different types of movement
  • Point-to-Point
    • movej(point/joint location, tool, mDesc)
      • Move to a location in the most optimal manner – either joint-angle or regular point
      • The second parameter is the tool frame you should use… So, a tool frame is provide for every movement command.
      • mDesc is a parameter that says what kind of movement to do. mNomSpeed is the built-int variable that refers to normal movement.
  • Linear
    • movel(point location, tool, mDesc)
      • Just like movej, but move in a linear motion (straight line movement.

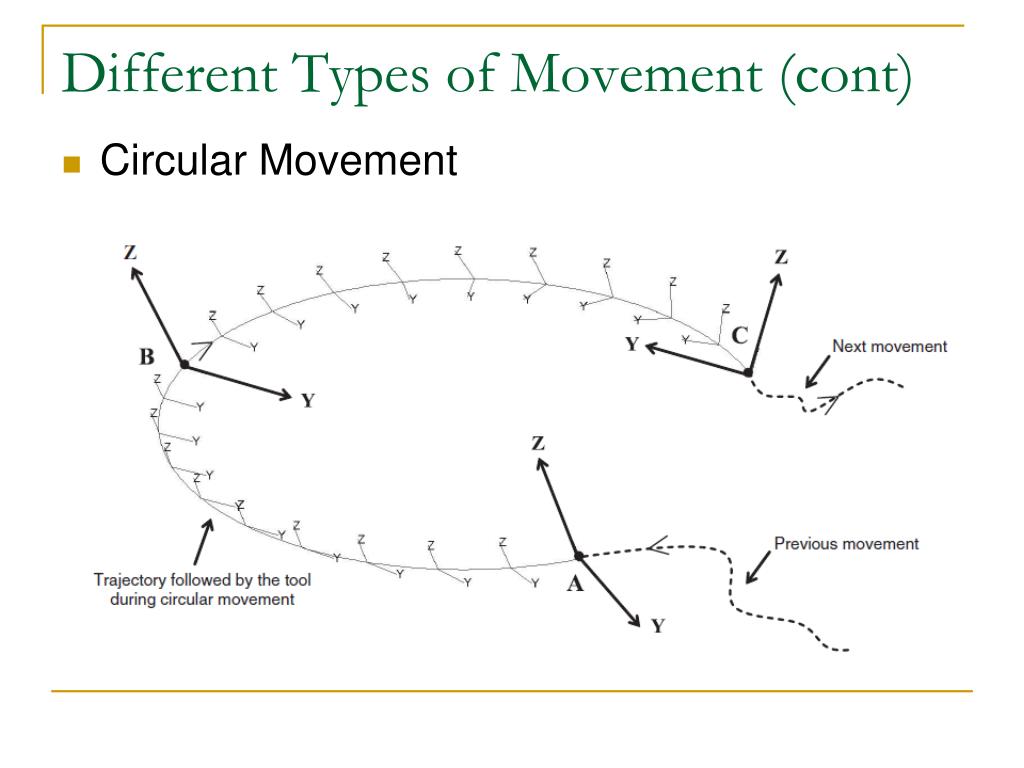

  • Circular
    • movec(point via, point target, tool, mDesc)
      • Move to target location, but in a circular fashion which passes through a via point.
executing an application

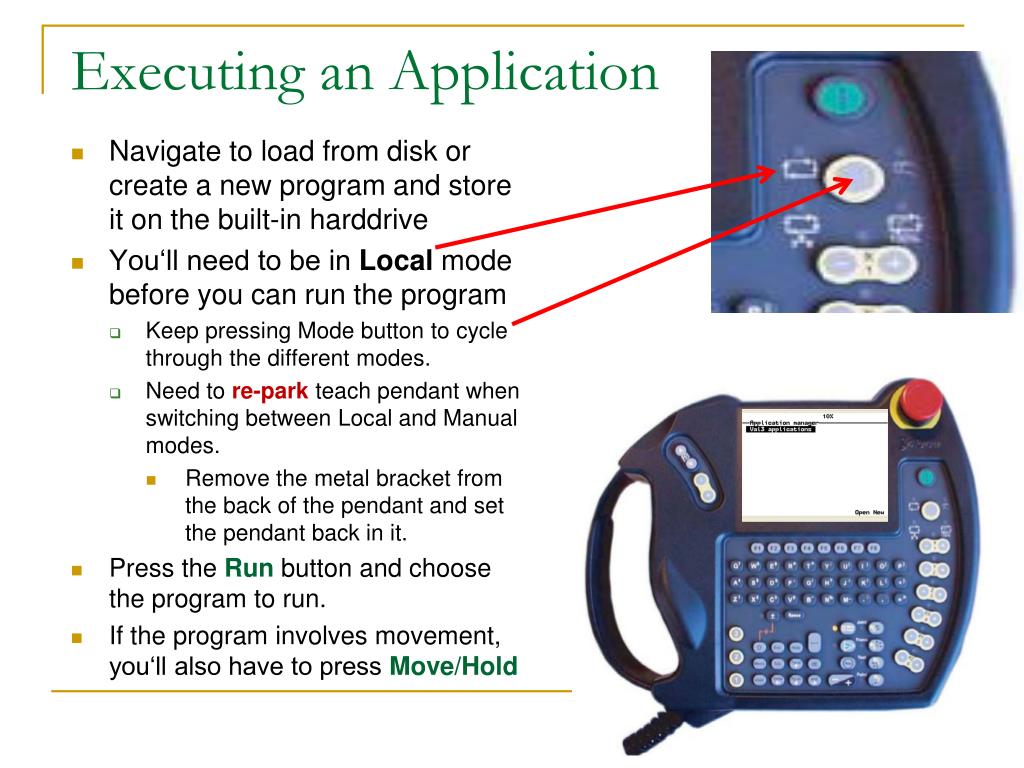

Executing an Application
  • Navigate to load from disk or create a new program and store it on the built-in harddrive
  • You‘ll need to be in Local mode before you can run the program
    • Keep pressing Mode button to cycle through the different modes.
    • Need to re-park teach pendant when switching between Local and Manual modes.
      • Remove the metal bracket from the back of the pendant and set the pendant back in it.
  • Press the Run button and choose the program to run.
  • If the program involves movement, you‘ll also have to press Move/Hold
st ubli robotics studio

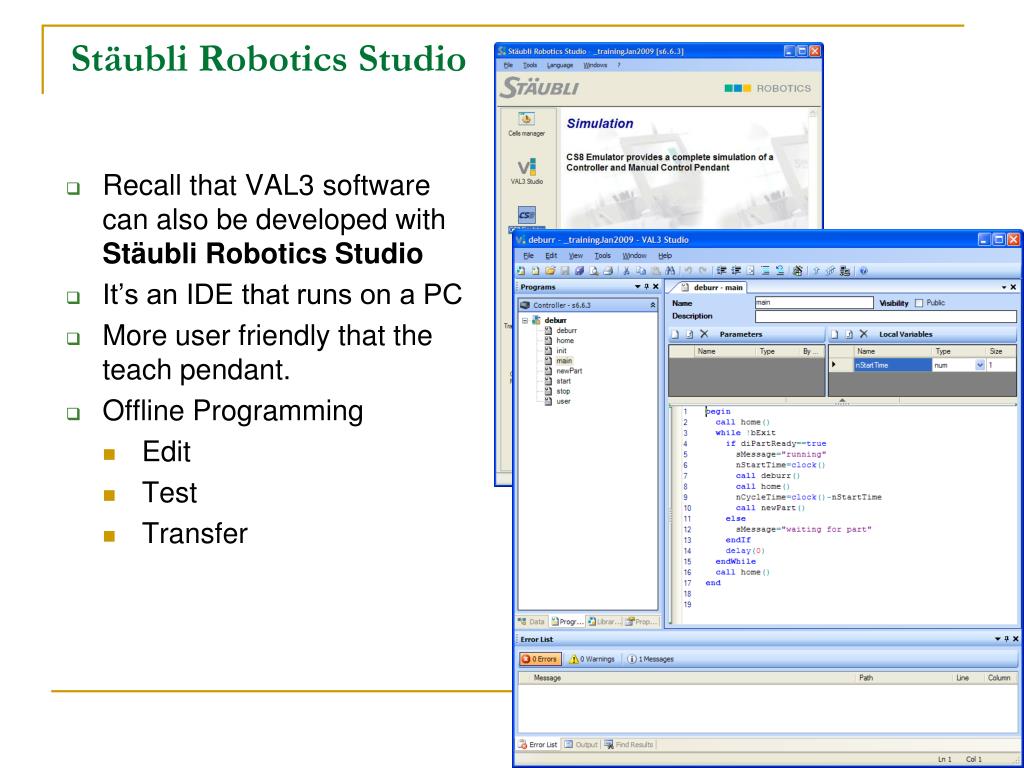

Stäubli Robotics Studio
  • Recall that VAL3 software can also be developed with Stäubli Robotics Studio
  • It’s an IDE that runs on a PC
  • More user friendly that the teach pendant.
  • Offline Programming
    • Edit
    • Test
    • Transfer
using st ubli robotics studio srs
Using Stäubli Robotics Studio (SRS)
  • A project can be FTPed back and forth between the CS8 and a PC running SDS.
  • SDS is a much better programming IDE and will make developing complex projects easier.
  • Points still need to be taught using the controller though…
  • This example project named ‘circular’ (to the right) was started on the CS8 controller and has a program called ‘demo’ in it.
st ubli robotics studio1
Stäubli Robotics Studio
  • To transfer a project to SDS, you need to establish an FTP connection
  • Need to know the controller IP address and username and password
    • This can be found in the menus on the controller.
  • Enter the information in SDS’s FTP tool:
st ubli robotics studio2
Stäubli Robotics Studio

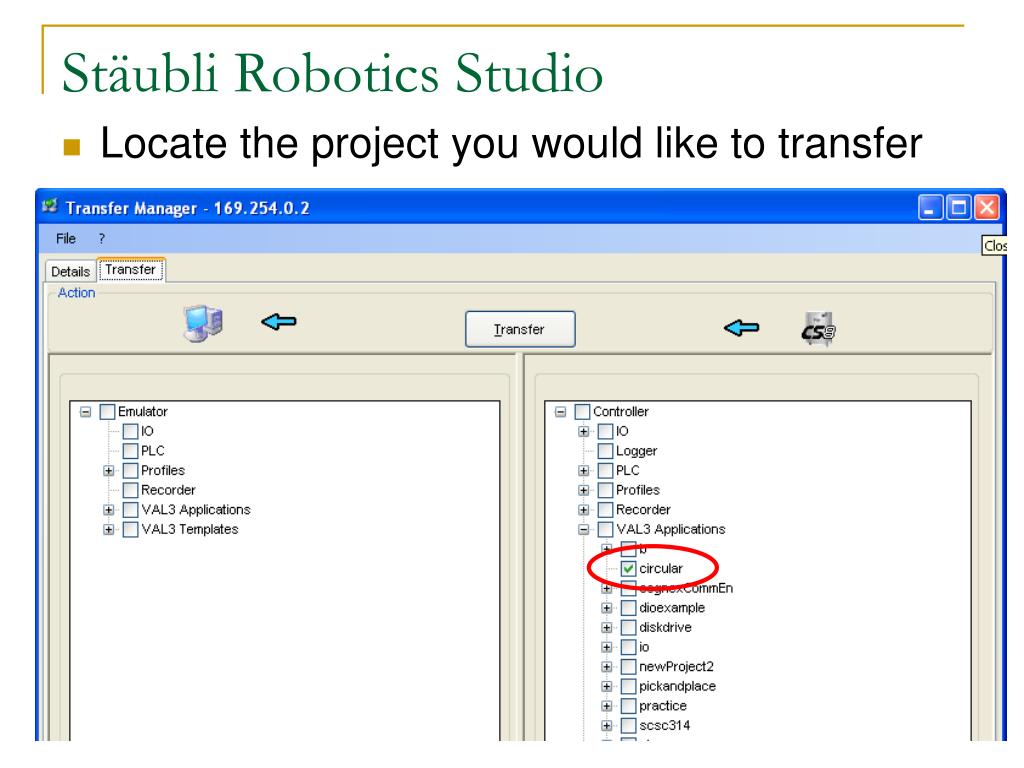

  • Locate the project you would like to transfer
st ubli robotics studio3
Stäubli Robotics Studio

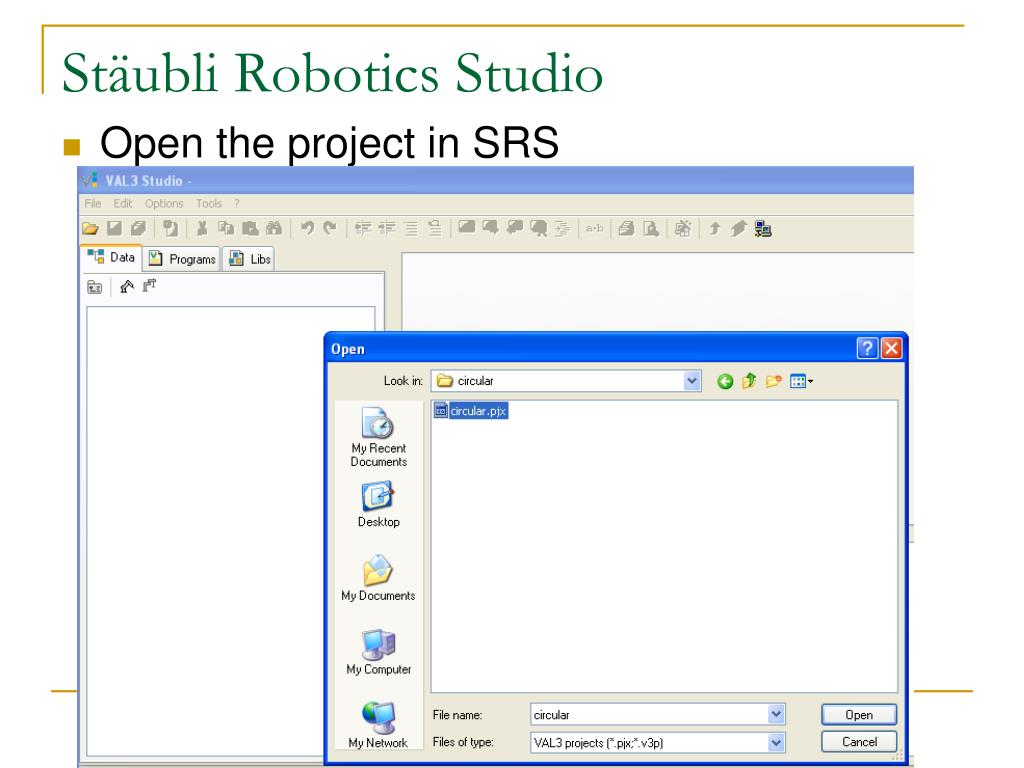

  • Open the project in SRS
st ubli robotics studio4
Stäubli Robotics Studio
  • Edit code; transfer back went ready
