Presentation Transcript

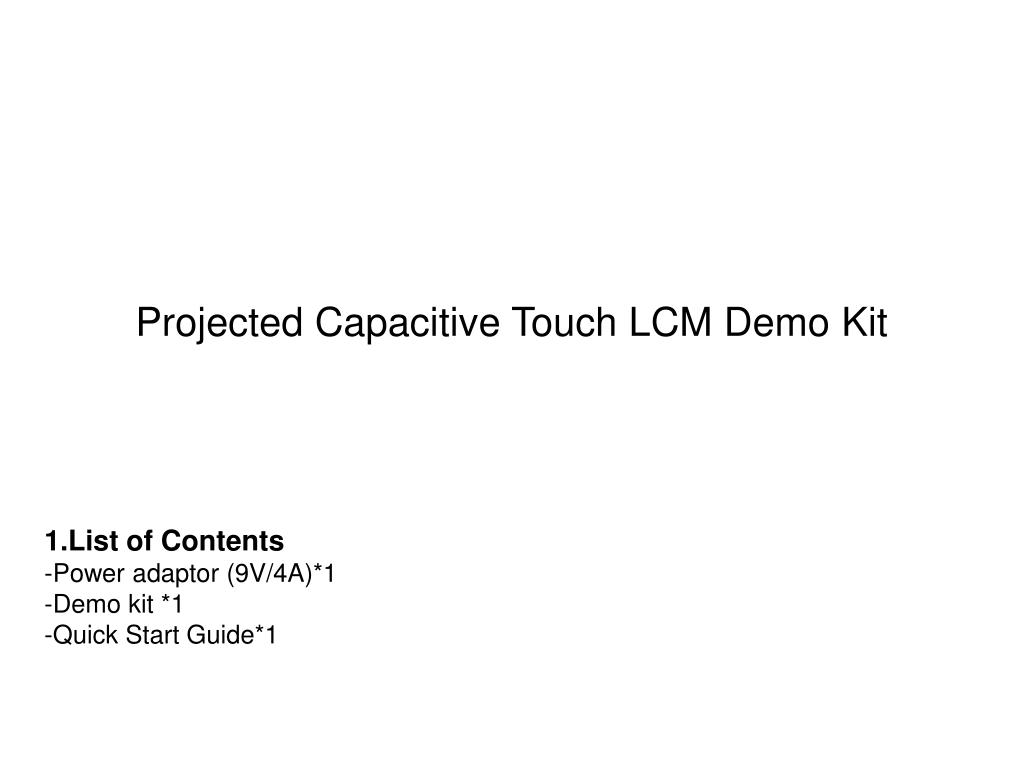

  1. Projected Capacitive Touch LCM Demo Kit 1.List of Contents -Power adaptor (9V/4A)*1 -Demo kit *1 -Quick Start Guide*1

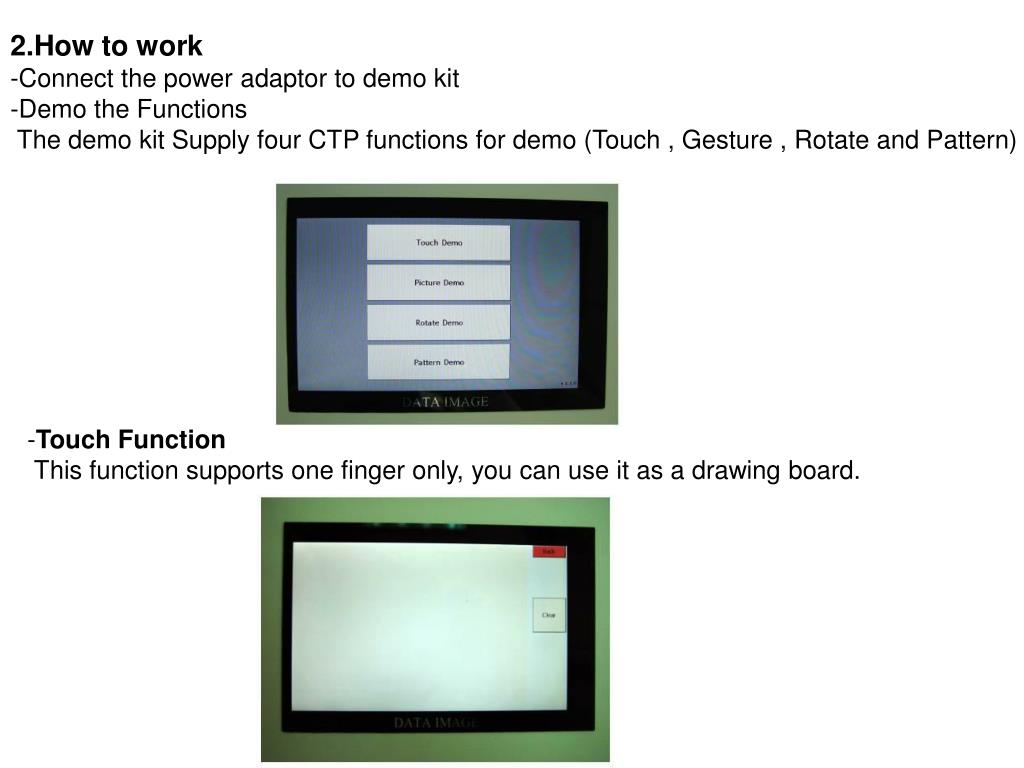

  2. 2.How to work -Connect the power adaptor to demo kit -Demo the Functions The demo kit Supply four CTP functions for demo (Touch , Gesture , Rotate and Pattern) -Touch Function This function supports one finger only, you can use it as a drawing board.

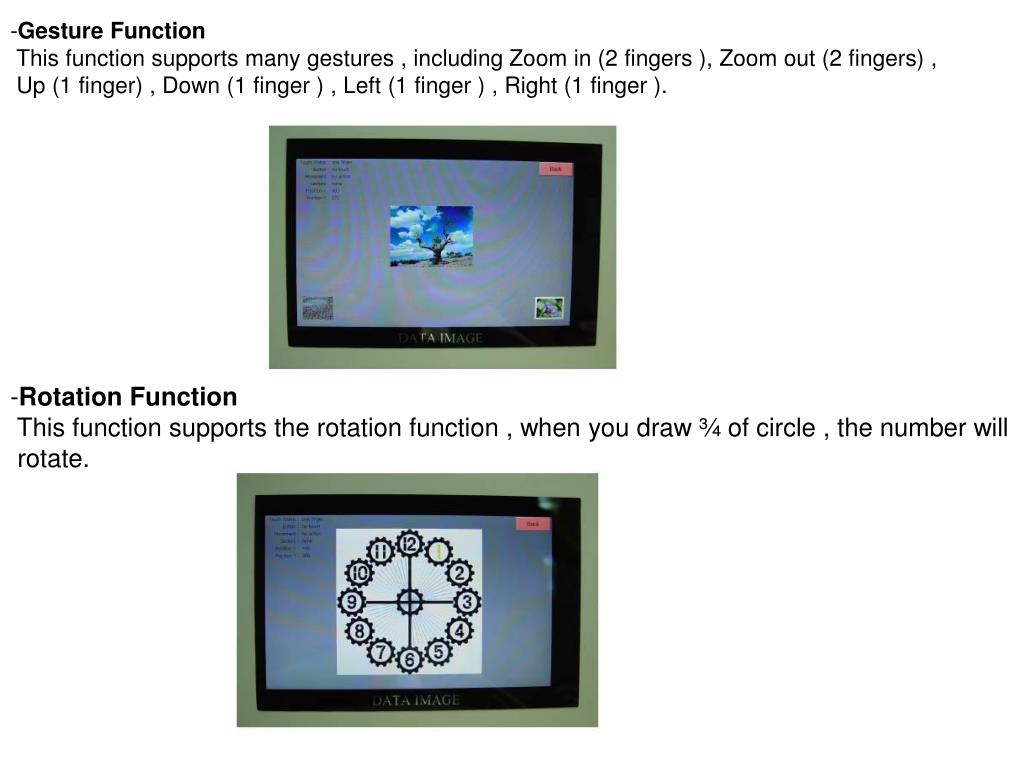

  3. -Gesture Function This function supports many gestures , including Zoom in (2 fingers ), Zoom out (2 fingers) , Up (1 finger) , Down (1 finger ) , Left (1 finger ) , Right (1 finger ). -Rotation Function This function supports the rotation function , when you draw ¾ of circle , the number will rotate.

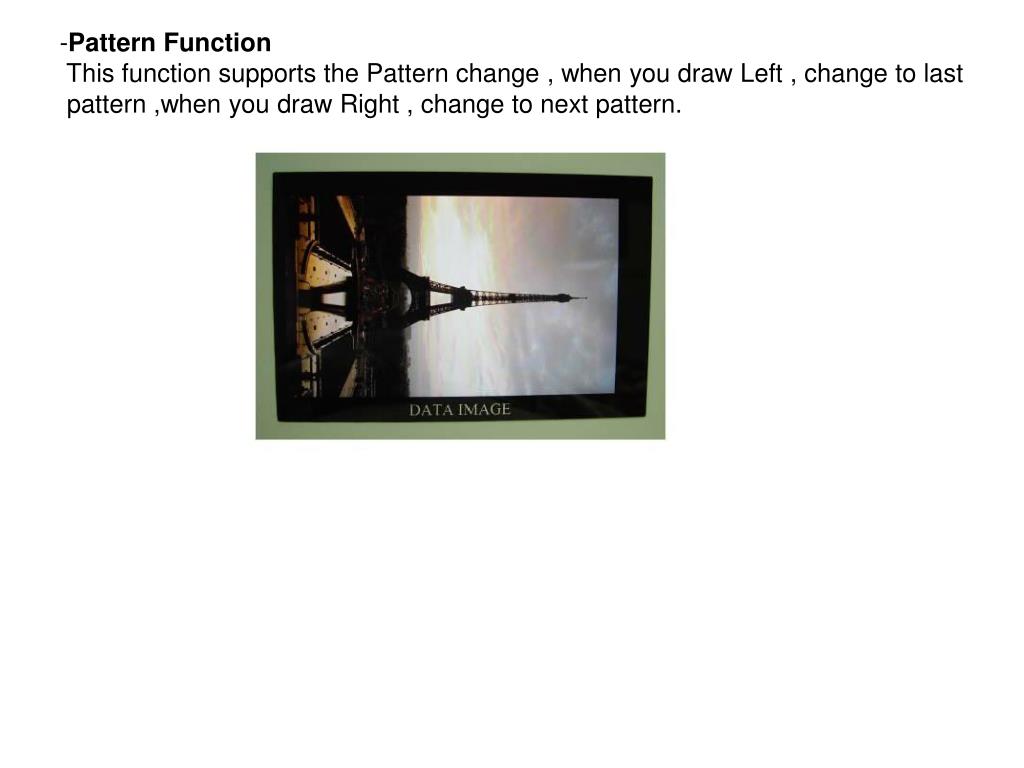

  4. -Pattern Function This function supports the Pattern change , when you draw Left , change to last pattern ,when you draw Right , change to next pattern.
