Presentation Transcript
molecular genetics and mitosis

Molecular Genetics and Mitosis

Genetic Processes – Unit 3: Asexual Reproduction – Lesson 1

slide3

Genetics is the science of heredityand variationin living organisms.

  • In this strand we will examine how that variation occurs and the mechanisms of inheritance that allow organisms to exhibit different traits.
slide4

Big Ideas in this unit:

    • The continuity of life depends on reproduction.
    • Variationin traits is the foundation for evolutionarychange.
  • Terminology in this lesson:
    • DNA, sugar-phosphate backbone, double helix, adenine, guanine, cytosine, thymine, histones, nucleosomes, chromatin, chromosomes, sister chromatids, centromere, cell cycle, mitosis, apoptosis, diploid, somatic cell, spindle fibres, interphase, prophase, metaphase, anaphase, telophase, cytokinesis, mutations, oncogenes.
i the structure of dna deoxyribonucleic acid
I. The Structure of DNA (Deoxyribonucleic Acid)
  • DNA is geneticmaterial found in the nucleusof eukaryoticcells.
  • Chromosomes, shown as an ‘X” in the picture below, are made up of long strands of DNA that have been replicated, wrapped around histoneproteins, and coiled.
  • The two replicated strands are called sister chromatids, and are attached at the centromere.
  • Unraveling chromosomes reveals that DNA is a double helix.
slide6

The sides of the helical ‘ladder’ are comprised of alternating sugars and phosphates.

  • The ‘rungs’ of the ladder are comprised of four nitrogenous bases: Adenine, Thymine, Guanine & Cytosine.

Bases in DNA always bond the same way, called ‘Chargaff’s Rule’:

Adenine-Thymine A-T

Guanine-Cytosine G-C

slide7

Metaphase Chromosome:

  • replicated
  • fully condensed
  • Supercoiling:
  • the coil itself coils…
  • and coils again…
  • Nucleosomes:
  • 8 histones wrapped in DNA = nucleosome
  • Coiling:
  • nucleosomes condense and coil
  • DNA Base Pairs:
  • Adenine-Thymine
  • Guanine-Cytosine
slide9

Metaphase Chromosome:

  • replicated
  • fully condensed
  • Supercoiling:
  • the coil itself coils…
  • and coils again…
  • Nucleosomes:
  • 8 histones wrapped in DNA = nucleosome
  • Coiling:
  • nucleosomes condense and coil
  • DNA Base Pairs:
  • Adenine-Thymine
  • Guanine-Cytosine
slide10

Nucleosomes:

  • 8 histones wrapped in DNA = nucleosome
slide11

Metaphase Chromosome:

  • replicated
  • fully condensed
  • Supercoiling:
  • the coil itself coils…
  • and coils again…
  • Nucleosomes:
  • 8 histones wrapped in DNA = nucleosome
  • Coiling:
  • nucleosomes condense and coil
  • DNA Base Pairs:
  • Adenine-Thymine
  • Guanine-Cytosine
slide12

Supercoiling:

  • the coil itself coils…
  • and coils again…
  • Coiling:
  • nucleosomes condense and coil
slide13

Metaphase Chromosome:

  • replicated
  • fully condensed
  • Supercoiling:
  • the coil itself coils…
  • and coils again…
  • Nucleosomes:
  • 8 histones wrapped in DNA = nucleosome
  • Coiling:
  • nucleosomes condense and coil
  • DNA Base Pairs:
  • Adenine-Thymine
  • Guanine-Cytosine
slide14

Metaphase Chromosome:

  • replicated
  • fully condensed
slide15

Metaphase Chromosome:

  • replicated
  • fully condensed
ii the cell cycle
II. The Cell Cycle
  • Why do cells undergo mitosis?
  • To solve the inefficiencyproblem (to increase surface area-to-volume ratio)
  • To replace worn out/damaged cells of a multicellular organism
  • For growth through an increase in numbers
  • For asexualreproductionof individuals in unicellular organisms
slide17

Centrioles and chromosomes replicate

Cell increases in size following mitosis

Cell double checks DNA for replication errors

G0

Cell cycle arrest

iv errors in mitosis
IV. Errors in Mitosis
  • Mitosis is a traumatic process! The cell goes through dramatic changes in ultrastructure, its organelles disintegrate and reform in a matter of hours, and chromosomes are jostled constantly by probing microtubules.
  • Occasionally, chromosomes may become damaged. Mutations can be inherited, they can be caused by certain viruses, or they can be caused by radiation or toxic compounds.
slide24

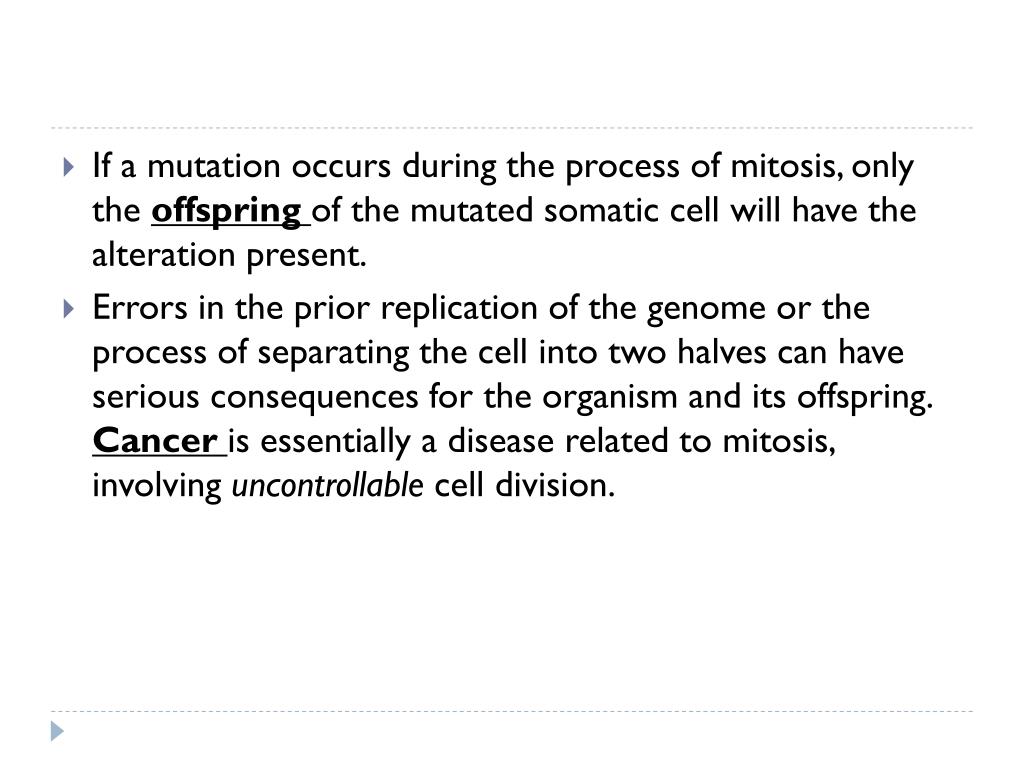

If a mutation occurs during the process of mitosis, only the offspring of the mutated somatic cell will have the alteration present.

  • Errors in the prior replication of the genome or the process of separating the cell into two halves can have serious consequences for the organism and its offspring. Cancer is essentially a disease related to mitosis, involving uncontrollable cell division.
v cancer
V. Cancer
  • Carcinogenesis (meaning literally, “the creation of cancer”) is the process of derangement of the rate of cell division.
  • Typically, several mutations are required before a cell becomes a cancer cell.
  • The process involves both oncogenes and tumor suppressor genes.
  • Oncogenespromotecancer when "switched on" by a mutation, whereas tumor suppressor genes preventcancer unless "switched off" by a mutation.
slide28

The first signs of a cell developing into a tumor cell are:

    • Immortality. The usual number of cell divisions for a mammalian cell is 50-60, then it ceases to divide (cell senescence). Tumor cells keep dividing forever.
    • Altered morphology (shape, size, colour).
    • Loss of contact inhibition (the natural process of arresting cell growth when two or more cells come into contact with each other).
    • Low or no need for growth factors (naturally occurring substances capable of stimulating cellular growth, proliferation and differentiation; usually proteins or hormones).
the end
The End!

Read p. 17, p. 68, & p. 152-159 in your text. Add/integrate any new information into your notes.
